FC3T - Coffee maker Salton - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Salton
Model	FC3T
Capacity	12 cups (approx. 1.7 liters)
Power	900 W
Voltage	120 V, 60 Hz
Dimensions (approx.)	10 x 8 x 12 inches (25.4 x 20.3 x 30.5 cm)
Weight (approx.)	3.3 lbs (1.5 kg)
Brewing System	Permanent filter (reusable), paper filter #4 compatible
Auto Shut-Off	Yes, 2 hours after brew cycle
Pause & Serve	Yes, allows pouring a cup mid-brew
Keep Warm Plate	Yes, automatic keep-warm function
Water Level Indicator	Yes, marked on water reservoir
Control Type	Simple power switch
Carafe Material	Glass with plastic handle and lid
Filter Basket	Removable, one-piece
Cleaning	Hand wash removable parts; descale every 3 months
Safety Features	Auto shut-off, thermal fuse, non-slip feet
Replacement Parts Available	Carafe, filter basket, permanent filter
Warranty	1 year limited

Frequently Asked Questions - FC3T Salton

What is the capacity of the Salton FC3T coffee maker?

The Salton FC3T has a 12-cup capacity, which is approximately 1.7 liters.

Does the FC3T have an auto shut-off feature?

Yes, it features an automatic shut-off that activates after 2 hours for safety.

Can I use paper filters with this coffee maker?

Yes, it is compatible with #4 cone paper filters, or you can use the included reusable permanent filter.

How do I clean the Salton FC3T?

Remove and hand wash the carafe, filter basket, and permanent filter in warm soapy water. Wipe the base with a damp cloth. Descale every 3 months using a vinegar-water solution.

How do I descale the coffee maker?

Fill the reservoir with equal parts white vinegar and water, run a brew cycle, then run 2-3 cycles with fresh water to rinse.

Can I brew less than a full pot?

Yes, you can brew any amount up to 12 cups. For best results, use at least 2 cups.

What should I do if the coffee maker leaks?

Check that the carafe is properly placed and the lid is closed. Ensure the filter basket is inserted correctly. If leaking persists, stop use and contact customer support.

Is the carafe dishwasher safe?

No, the carafe and other removable parts should be hand washed to prevent damage.

Where can I find replacement parts?

Replacement carafes, filter baskets, and permanent filters are available from Salton's customer service or authorized retailers.

How long is the warranty?

The Salton FC3T comes with a 1-year limited warranty against manufacturing defects.

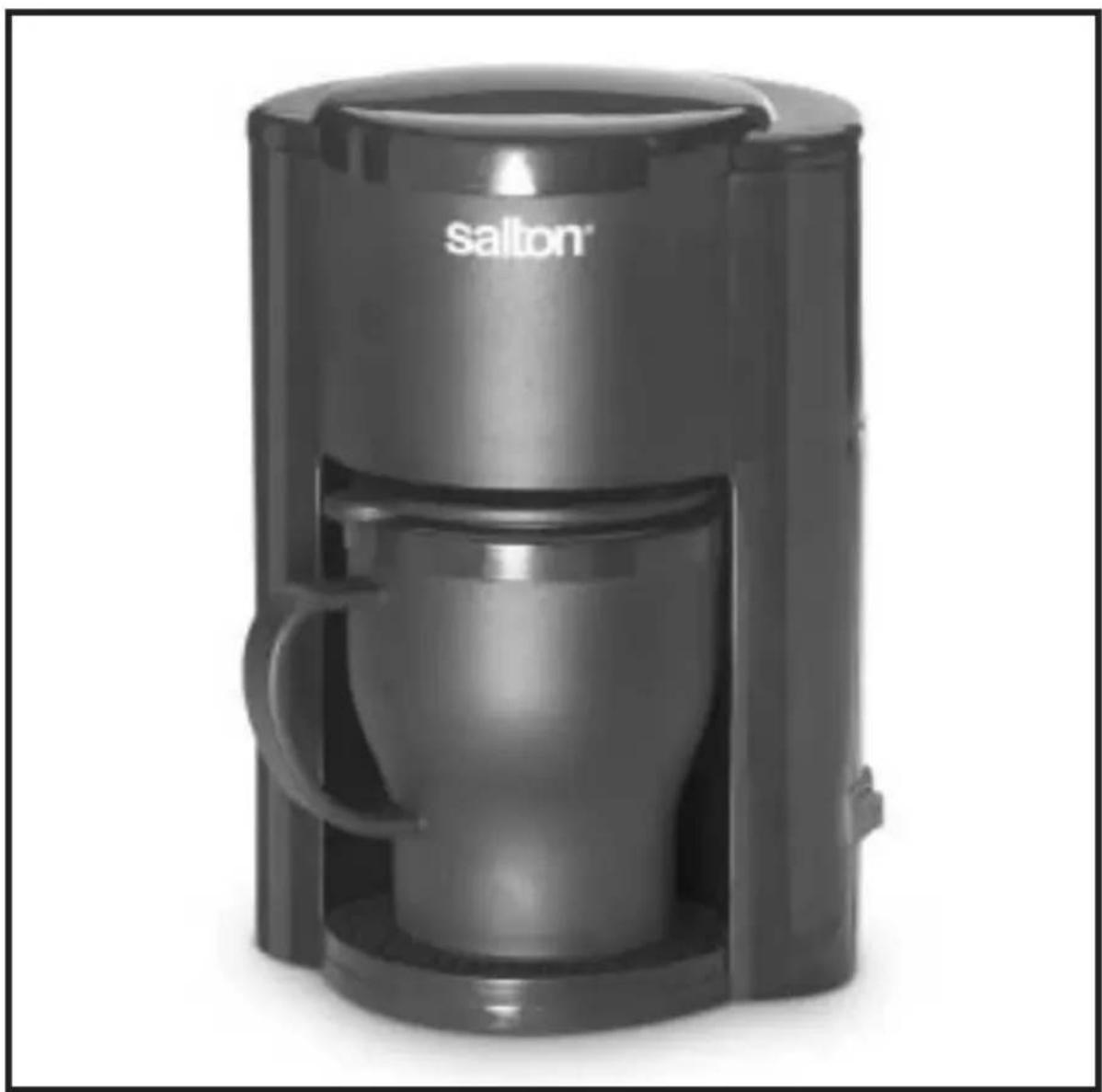

USER MANUAL FC3T Salton

with Thermal Travel Mug

Black salton coffee maker with open lid and side handle (no visible text or symbols on device body)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical hazards, do not immerse cord, plugs, or the appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to Salton for examination, repair or adjustment. See Warranty.
7. The use of accessories or attachments not recommended by Salton may cause hazards.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into the wall outlet. Todisconnect, turn any control to 'OFF', then remove plug from wall outlet.
12. Extreme caution must be used when moving an appliance containing hot liquids.
13. This appliance is for Household Use Only. Do not use appliance for other than intended use.
14. Do not leave unit unattended while in use.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

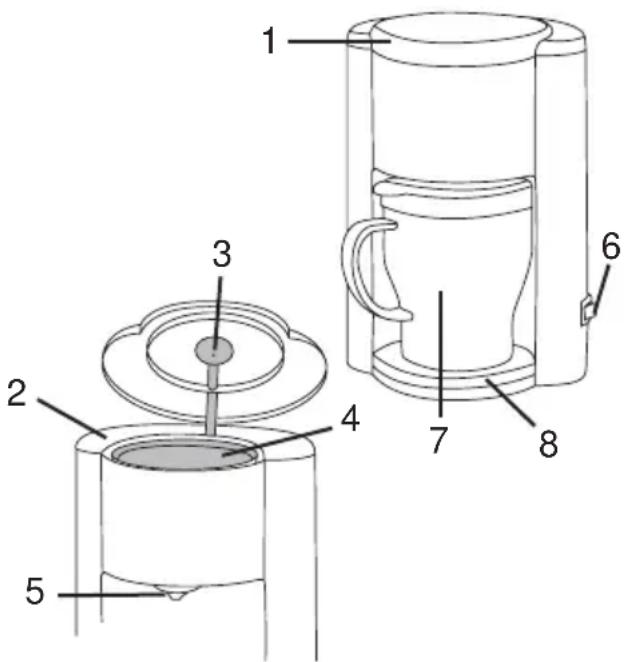

DESCRIPTION OF PARTS

1. Water Reservoir Cover
2. Water Reservoir
3. Water Spreader (inside cover)
4. Permanent Filter (inside cover)
5. Coffee Dispenser
6. Illuminated On/Off Switch
7. Thermal Mug
8. Cup/Mug Rest

BEFORE FIRST USE

1. Read all instructions carefully and keep them for future reference.
2. Remove all packaging.
3. Wash the Mug with Lid and the Permanent Filter in warm soapy water. Rinse.
4. Follow the directions in the 'HOW TO USE' section, using water only.
5. Discard the water.

HOW TO USE

1. Fill the Mug with fresh cold water and pour into the Water Reservoir. Dry the Mug. NOTE: There is a MAX fill line inside the Water Reservoir. Do not fill past this level or coffee will overflow once it has brewed.

2. Place the Mug under the Coffee Dispenser. The Mug Cover can be taken off or left on. If it is left on, be sure that the sipping hole is in the open position so coffee can flow through into the Mug.

3. Swivel the Water Spreader to the left. Fill the Permanent Coffee Filter with 1 - 2 tbsp. (15 - 30 ml) of ground coffee for 'drip coffee makers'. Return the Water Spreader to its original position and close the Cover.

4. Plug unit into a 120 Volt A.C. outlet.
5. Press the On/Off Switch to the 'On' position and the Indicator Light will illuminate.
6. Once the coffee has finished dripping into the Mug, press the On/Off Switch to the 'Off' position.
7. Unplug unit from outlet or follow directions above to prepare another cup of coffee. Be careful when opening the Reservoir Cover when the unit it hot.

How to Heat Water for Tea, Hot Chocolate, etc.

1. Fill the Mug with fresh cold water and pour into the Water Reservoir. NOTE: There is a MAX fill line inside the Water Reservoir. Do not fill past this level or water will overflow once it has been dispensed into the Mug.
2. Swivel the Water Spreader to the left and remove the Permanent Coffee Filter. Return Water Spreader to its original position.
3. Place a tea bag, hot chocolate, or instant foods etc. in the Mug. Place the Mug under the Coffee Dispenser. The Mug Cover can be taken off or left on. If it is left on, be sure that the sipping hole is in the open position so water can flow through into the Mug.
4. Plug unit into a 120 Volt A.C. outlet.
5. Press the On/Off Switch to the 'On' position and the Indicator Light will illuminate.
6. IMPORTANT: Once the water has finished dripping into the mug, press the On/Off Switch to the 'Off' position.
7. Unplug unit from outlet or follow directions above for more hot water. Be careful when opening the Reservoir Cover when the unit it hot.

CARE AND CLEANING

1. Unplug unit and allow to cool.
2. Wipe Coffee Maker with a damp cloth. Do not use abrasive cleaners or scouring pads.
3. NEVER IMMERSE THE COFFEE MAKER IN WATER OR ANY OTHER LIQUID.
4. The Mug with Lid and Permanent Filter can be removed, washed in warm soapy water and rinsed.

Descaling

Under normal use, a deposit of scale may form on the inside of the Coffee Maker. This scale build up can clog the Coffee Maker. To remove scale follow the directions below:

1. Fill the Mug 2/3 full with white vinegar and then to the top with cold water.
2. Pour into the Water Reservoir.
3. Place Mug on the Cup/Mug Rest.
4. Plug unit into a 120 Volt A.C. outlet.
5. Press the On/Off Switch to the 'On' position.
6. IMPORTANT: Once the water has finished dripping into the Mug, press the On/Off Switch to the 'Off' position.
7. Unplug unit from outlet or if necessary, repeat the descaling directions above. Be careful when opening the Reservoir Cover when the unit it hot.
8. Wash the Permanent Filter in warm soapy water.

A short supply cord is provided to reduce the hazards of becoming entangled in or tripping over a long cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounded 3-wire cord. The extension cord should be arranged so that it will not drape over the counter top or table top, where it can be pulled on by children or tripped over.

LIMITED WARRANTY

Salton Canada warrants that this appliance shall be free from defects in material and workmanship for a period of one year from the date of purchase. During this ‘in-warranty’ period, defective products will be repaired or replaced at the discretion of the retailer and/or Salton Canada. A defective product should be returned to the original place of purchase within the retailer’s stipulated return/exchange period*. If you do not wish or are unable to have a defective product replaced under warranty by the retailer, Salton Canada will repair or replace the defective product without charge. You may contact us for assistance by mail, e-mail, fax or telephone as listed below.

This warranty covers normal domestic usage and does not cover damage which occurs in shipment or failure which results from alteration, accident, misuse, abuse, glass breakage, neglect, commercial use or improper maintenance.

To ensure prompt 'in-warranty' service be sure you have an original proof of purchase. You may be asked to return the product to us along with a description of the defect and your address, zip / postal code.

For repairs not covered by the warranty, please contact us for assistance.

SALTON CANADA

Customer Service Department 81A Brunswick, Dollard-des-Ormeaux Quebec Canada H9B 2J5 website : www.salton.com E-mail : [e-mail] Fax : [phone] Tel : [phone]
