SLBCAM550 - Baby monitor SereneLife - Free user manual and instructions

Product Type	Baby Monitor
Brand	SereneLife
Model	SLBCAM550
Display Size	5.5 inches
Camera Resolution	720p HD
Night Vision	Yes, infrared
Two-Way Audio	Yes
Range	Up to 300 feet (90 meters)
Power Source	AC adapter (included) for camera and parent unit; rechargeable battery in parent unit
Dimensions (Parent Unit)	6.3 x 4.5 x 2.1 inches
Dimensions (Camera)	4.2 x 3.1 x 3.1 inches
Weight (Parent Unit)	8.8 oz (250 g)
Weight (Camera)	5.3 oz (150 g)
Temperature Sensor	Yes, displays room temperature
Lullabies	Built-in lullabies
Vibration Alert	Yes, on parent unit
Care and Cleaning	Wipe with dry cloth; do not use liquids or sprays
Safety Certifications	FCC, CE compliant
Spare Parts Availability	Contact SereneLife customer service for replacement adapters or batteries
Repairability	Not user-serviceable; refer to authorized service center

Frequently Asked Questions - SLBCAM550 SereneLife

How do I pair the camera with the parent unit?

Press the PAIR button on the camera, then press SCAN on the parent unit. The units will automatically sync.

Can I use multiple cameras with one parent unit?

Yes, the SLBCAM550 supports up to 4 cameras. You can cycle through them on the parent unit.

What is the maximum range?

The maximum range is 300 feet (90 meters) in open air. Walls and obstacles may reduce range.

How do I enable night vision?

Night vision activates automatically in low light conditions. The infrared LEDs will turn on.

Can I talk through the baby monitor?

Yes, press and hold the TALK button on the parent unit to speak through the camera speaker.

How do I adjust the volume on the parent unit?

Use the VOLUME +/- buttons on the side of the parent unit to increase or decrease the sound.

What does the temperature sensor do?

The parent unit displays the room temperature of the baby's room so you can monitor comfort.

How do I change the parent unit battery?

The parent unit has a built-in rechargeable battery. To replace, contact SereneLife support for a compatible battery.

Is the monitor hackable?

This monitor uses a secure 2.4 GHz FHSS signal. However, always use a strong Wi-Fi password if connecting to a network.

How do I clean the camera?

Wipe the camera lens and body with a dry, soft cloth. Do not use cleaning agents or submerge in water.

USER MANUAL SLBCAM550 SereneLife

Two smartwatches displayed side by side, one with a black strap and the other a white base with a black circular head (no visible text or symbols)

*☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

Smart Stylish Adjustable Viewing Angle Mounted Night Vision Baby Secure Camera Monitor

USER MANUAL

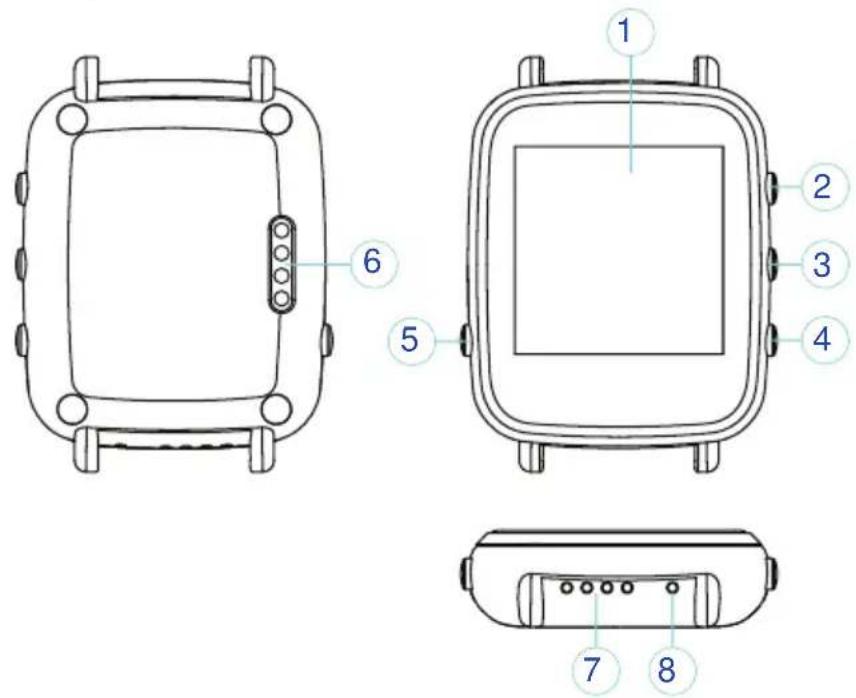

OVERVIEW OF YOUR PARENT UNIT

1. LCD display
2. Volume +/ up / VOX ON/OFF key
3. Volume - / down / PTT key
4. Menu key/ OK / Music play ON/OFF key
5. Power key/ Return key/ Time display key
6. Power wireless connector
7. Speaker
8. Microphone

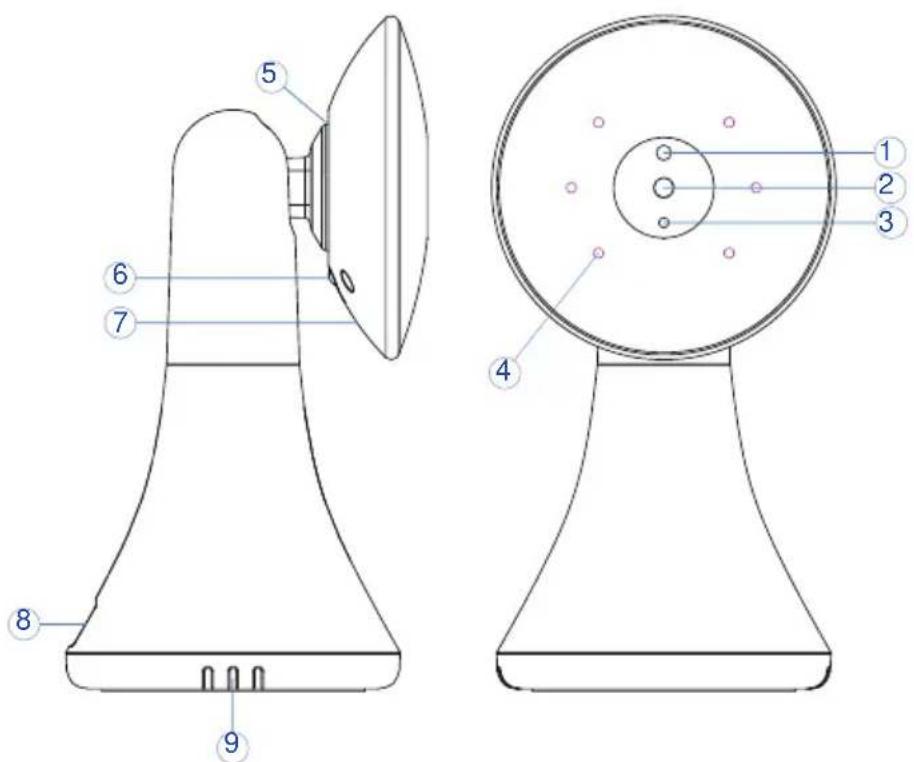

OVERVIEW OF YOUR BABY UNIT

1. Light sensor
2. Camera lens
3. Power indicating LED
4. Infrared LED
5. Speaker
6. Pair key
7. Microphone
8. Power adapter connector
9. Temperature sensor

TABLE OF CONTENTS

1. Safety Instructions 4
2. Overview of the charging stand 5
3. Camera's direction adjustable 5
4. Parent unit power supply 6
5. Baby unit power supply 6
   5.1 Setting up 7
6. Monitoring screen 8
   6.1 Menu options/main menu 8

7. Menu Options 9
   7.1 Camera registration 9
   7.2 Alarm 9
   7.3 Vox 9
   7.4 Settings 10
   a. Language 10
   b. Time and date 10
   c. Temperature unit 10
   d. Anti-flicker 11
   e. LCD backlight 11
   f. System info 11

8. Features and Technical Specs 12

SAFETY INSTRUCTIONS

WARNING:

This baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before suing the device.

1. Adult assembly is required.
   Keep small parts away from the children when assembling.
2. This product is not a toy. Do not allow children to play with it.
3. This baby monitor is not a substitute for responsible adult supervision.
4. Do not place the baby unit or cables in the cot or within arm's reach of the baby (at least 1 meter away).
5. Keep the cords out of reach of children.
6. Do not use the baby monitor near water or a heat source.
7. Only use the power adapters provided.
8. Do not touch the plug contacts with sharp or metal objects.

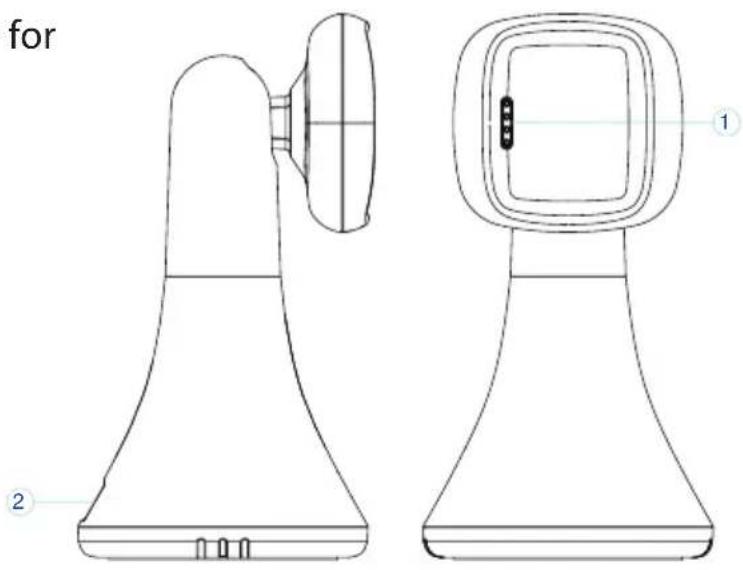

OVERVIEW OF THE CHARGING STAND

1. Wireless charging connector for the parent unit
2. Power adapter connector

Technical line drawing of a handheld device with two views (labeled 1 and 2), no text or symbols present.

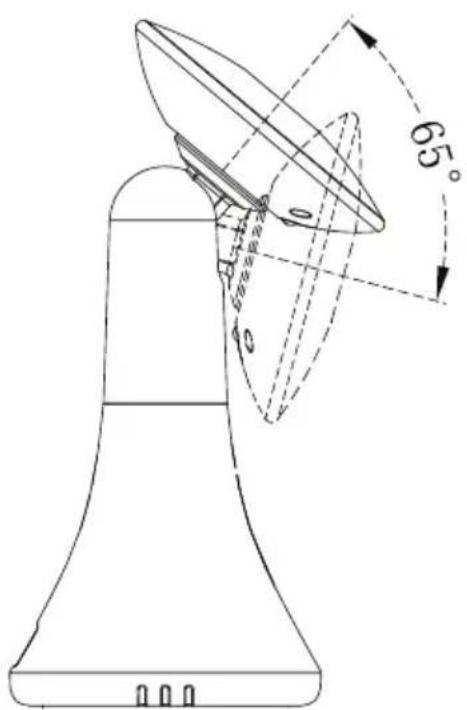

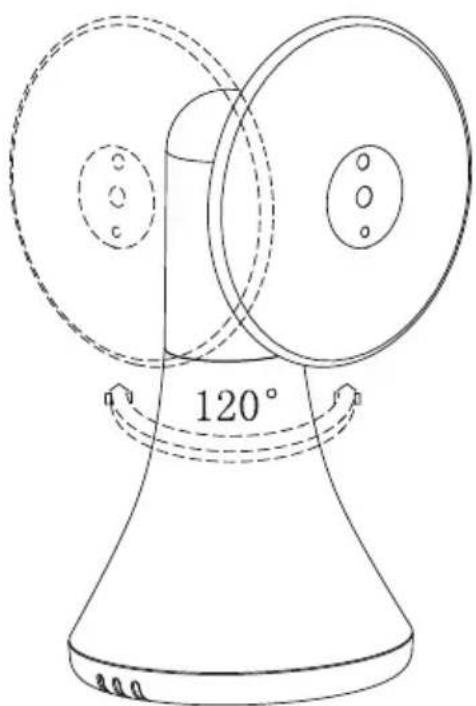

CAMERA'S DIRECTION ADJUSTABLE

65°up and down rotation

Line drawing of a mechanical device with two circular components and a 120° angle label (no text or symbols beyond basic geometry)

120°left and right rotation

PARENT UNIT POWER SUPPLY

Line drawing of a handheld device with cable and power plug (no text or symbols)

Charging the parent unit fully before use is recommended.

This will allow the unit to operate battery in the event of a power failure.

1. Connect the plug of the power adapter to the charging stand
2. Simply place your parent unit to the wireless charging connector

NOTE: Only use the power adapter provided

1. The parent unit will display charging icon means the battery starts charging

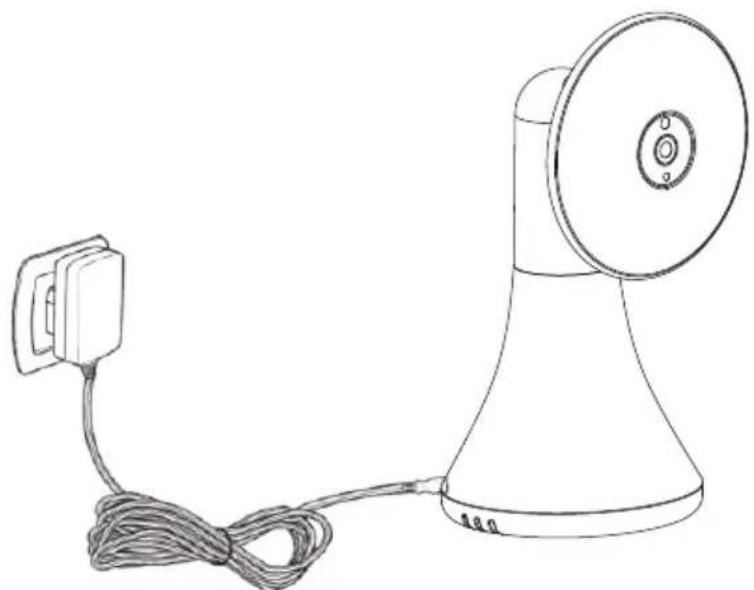

BABY UNIT POWER SUPPLY

1. Connect the small plug of the power adapter to the baby unit and the other end to the mains socket.

NOTE: Only use the power adapter provided

1. A blue light led will display indicates the baby unit is working.

Line drawing of a portable megaphone with cord and power plug (no text or symbols)

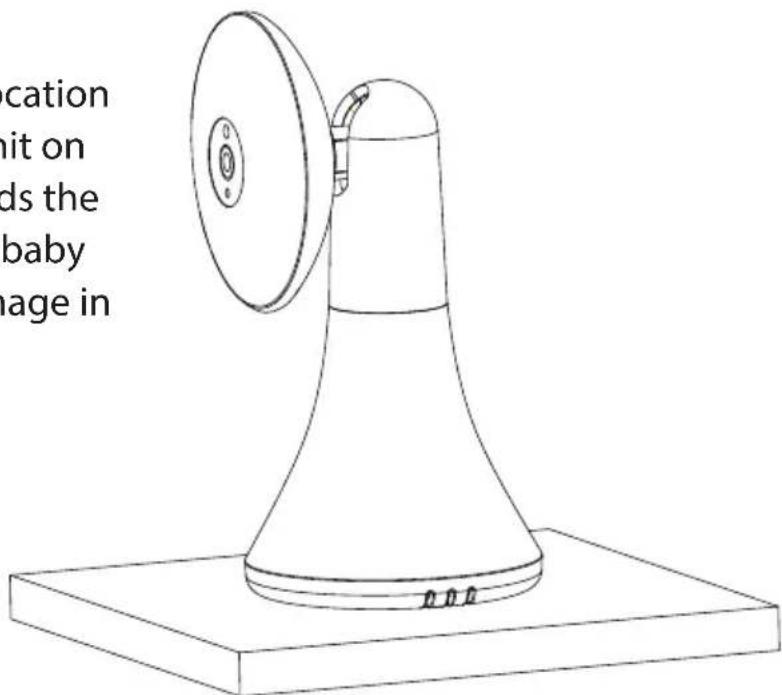

SETTING UP

Place the baby unit in a convenient location (e.g. on a table) or mount the baby unit on the wall, point the camera lens towards the area you want to monitor. Adjust the baby unit until you are satisfied with the image in the parent unit.

NOTE:

DO NOT place the baby unit within baby's reach!
- If there is interference on the picture or sound, try moving the unit to the different locations, and ensure they are not close to other electrical equipment.

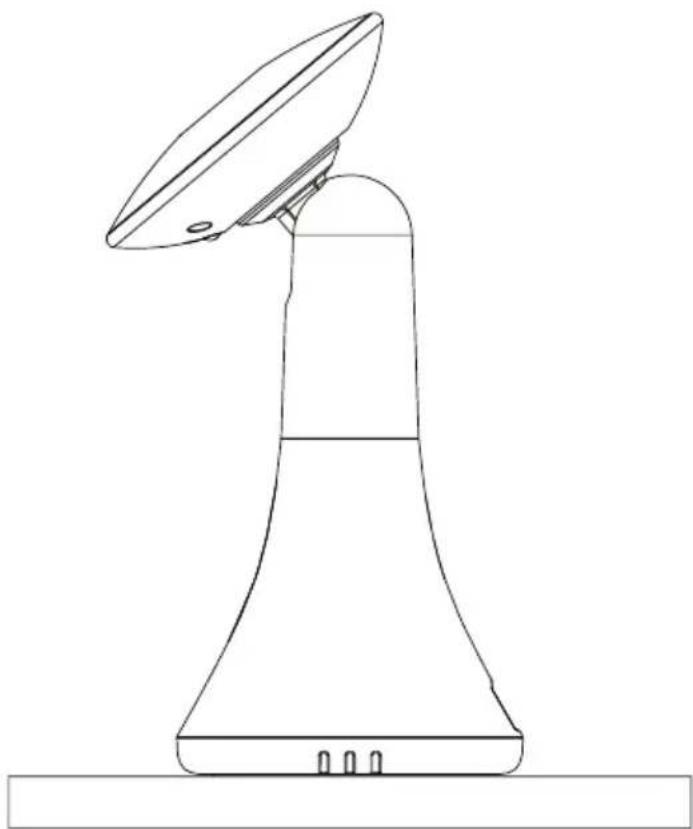

The baby unit can be mounted on the wall

Line drawing of a mechanical device with a flanged top and base, no text or symbols present

MONITORING SCREEN

1. Signal strength indicator
2. Temperature of the baby's room
3. Lullaby is playing
4. VOX function activated
5. Alarm activated
6. Battery indicator
7. PTT function activated
   8 .Date and time (HH:MM AM/PM DD/MM)

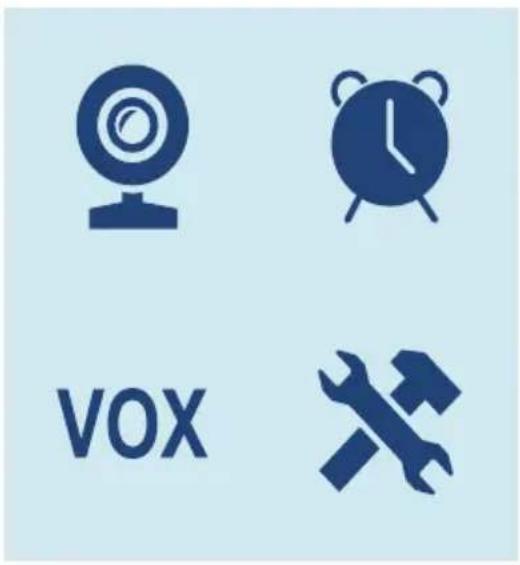

MENU OPTIONS/MAIN MENU

Press "OK/Menu" Key at monitoring screen will enter the main menu, it contains 4 items:

1. Camera
2. Alarm
3. VOX
4. Settings

You can press the "up" Key or "down" Key to move the cursor to select an item and press "Menu" key will enter the sub-menu which you selected.

Press "Return" key will be back to the monitoring screen.

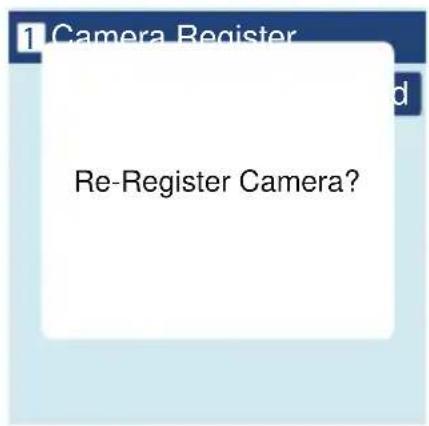

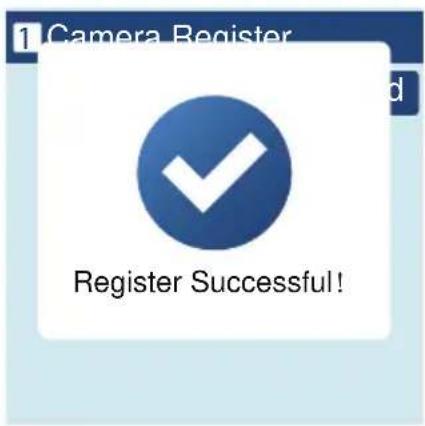

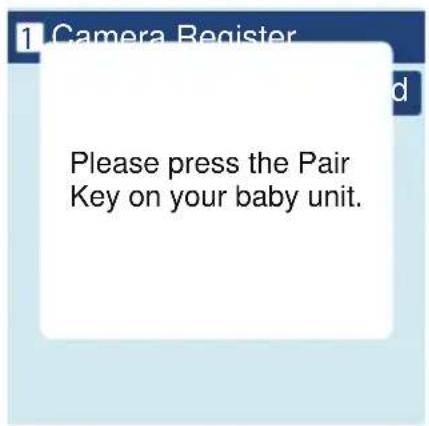

CAMERA REGISTRATION

Press "OK/Menu" key to enter registering screen, then push the "pair" key on the back of baby unit within 10 seconds.

ALARM

Press "down" key to move the cursor and "up" key to change value

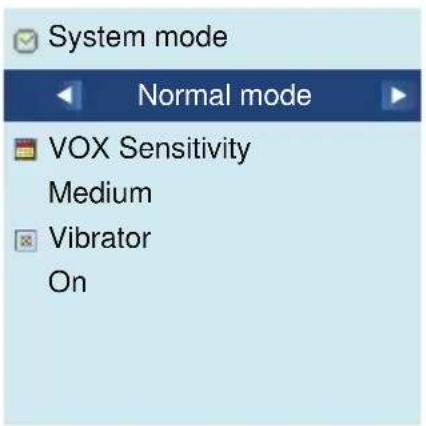

VOX

System mode

This menu allows you to choose the working mode from the following:

Normal mode/VOX mode.

VOX Sensitivity

Switch the VOX sensitivity at Low/Medium/High level.

- Vibrator

Press "up" key to choose ON/OFF

LANGUAGE

Language setting menu allows you to choose your language from the following:

English/French/ Spanish /Portuguese/Italian/German/Turkey/Russian

1 Language

2 Time and date
3 Temperature unit
4 Auti-flicker
5 LCD backlight
6 System Info

English

- English

Français
Español
Português
Italiano
Deutsch
Türkçe
русский

TIME AND DATE

There are 2 items in this menu (Set time/ date & Set format)

Press "down" key to move the cursor and "up" key to change the value.

1 Language
2 Time and date
3 Temperature unit
4 Auti-flicker
5 LCD backlight
6 System Info

HH:MM

00:18

YYYY/MM/DD
2018/08/08
Daylight saving
Off

Time

12

Date

DD MM YYYY

Date separator

/

TEMPERATURE UNIT

Switch the unit to Celsius or Fahrenheit.

1 Language
2 Time and date
3 Temperature unit
4 Auti-flicker
5 LCD backlight
6 System Info

Celsius

○ Fahrenheit

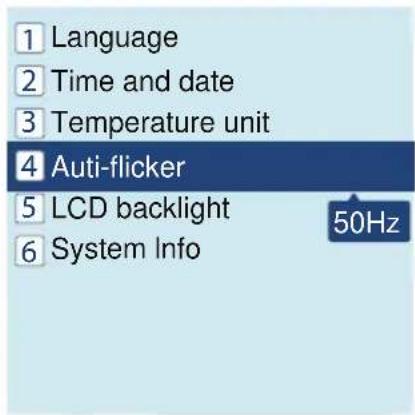

ANTI-FLICKER

You are able to adjust the frequency of 50/60 HZ to suit your lighting for anti-flicker.

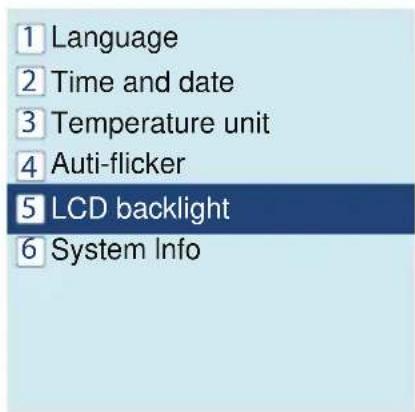

LCD BACKLIGHT

You are able to adjust the brightness of the LCD you are viewing

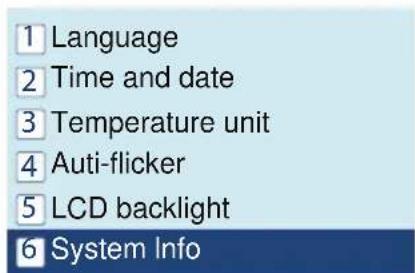

SYSTEM INFO

Contains system information such as Project ID, Hardware version, Software version, build date etc.

SLBCAM550EU - SLBCAM550UK

Adjustable Baby Safeguarding Camera

Smart Stylish Adjustable Viewing Angle Mounted Night Vision

Baby Secure Camera Monitor

Features:

• Professional Home Baby Video Monitor
• Long Lasting, Heavy Duty Baby Monitor System
• Smart Camera Wrist Watch
- Adjustable Camera Viewing Angle
• Wireless Baby Monitoring System
- Convenient, Reliable, Secure
- Portable & Wearable Watch Display Screen for Remote Viewing
• 2.4G Video Transmission for Extended Wireless Range
• Built-in Microphone & Speaker for 2-Way Communication
• User-Friendly Control Interface
• Night Vision Camera Illumination
• Simple Setup & Hassle-Free Operation
• Built-in Thermometer for Room Temperature Monitoring
- Button-Activated Musical Melodies & Lullabies for Soothing Comfort
• Universal Wall / Ceiling Mountable Camera
• Perfect for Baby Crib & Child Play Room Monitoring

What's in the Box:

• Video Smart Watch
- Charging Base
• Baby Monitor Camera
• Wall Power Adapters

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

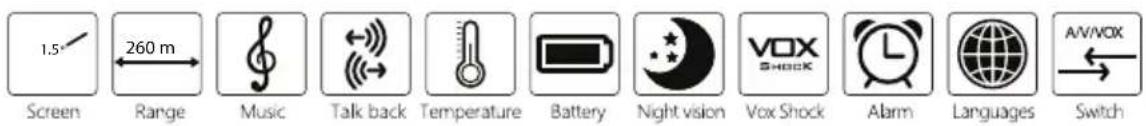

Smart Watch Monitor:

• Next Generation Stylish Design
• Displays Video via the Mounted Camera
• 1.54" -inch Digital Display Screen
• PTT (Push-to-Talk) for Voice Messaging
• Built-in Rechargeable Battery
• Alarm Clock Reminder Settings
• Room Temperature Display
• Convenient Wireless Charging Dock
• Adjustable Backlight Intensity
• Features Standard Watch Functions (Time + Date)

Technical Specs:

• Wireless Operating Range: Up to 260 meter (850' + ft.)
  • Image Processor: Mega-Pix 0.3, CMOS
  • Video Resolution: 640 x 480 Pixels
  • Video Signal Transmission Protocol: 2.4GHz
  • Camera Angle Adjustment: 65° Vertical, 120° Horizontal
  • Night Vision Distance: Up to 5 meter (15' ft.)
  • Minimum Illumination: 0 Lux
  • Temperature Unit Selectable: Fahrenheit / Celsius
  • Multi-Language Support
  • Watch Battery: 3.78 Li-Polymer, 390mAh
  • Power: 120V (5V Power Adapter)
• Charge Stand Dimensions (L x W x H): 6.60 x 6.86 x 12.7 cm
• Camera Dimensions (L x W x H): 6.86 x 7.37 x 13.72 cm

WARNING:

This product can expose you to a chemical or group of chemicals, which may include "Nickel Carbonate" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
