Product Type	Micom Rice Cooker / Warmer
Brand	Zojirushi
Model	NS-KCC05
Rice Cooking Capacity (White/Brown)	0.5 ~ 3 cups (0.09 ~ 0.54 L)
Rice Cooking Capacity (Mixed Rice)	1 ~ 2 cups (0.18 ~ 0.36 L)
Rice Cooking Capacity (Porridge)	0.5 ~ 1 cup (0.09 ~ 0.18 L)
Rated Voltage	120 V AC
Rated Power	310 W
Average Power Consumption (Keep Warm)	17 W
External Dimensions (W x D x H)	Approx. 8.7 x 11.0 x 7.9 in (22.1 x 27.9 x 20.1 cm)
Weight	Approx. 2.1 kg / 4.6 lbs
Power Cord Length	1.4 m (with cord reel)
Inner Pan Material	Nonstick coating
Cooking Methods	White/Brown, Quick Cooking, Mixed Rice, Glutinous Rice, Porridge
Keep Warm Function	Yes, automatic after cooking
Reheat Function	Yes, for kept-warm rice
Timer	Yes, up to 13 hours for white/brown rice
Clock with Lithium Battery	Yes, battery life approx. 4-5 years
Included Accessories	Rice spatula, measuring cup (180 mL), power cord
Safety Features	Automatic shut-off, polarized plug, short cord
Cleaning	Wipe with damp cloth; inner pan, inner lid, dew cup washable; do not immerse main body
Replacement Parts	Inner pan, inner lid, measuring cup, spatula (contact dealer)

Frequently Asked Questions - NS-KCC05 Zojirushi

How do I set the clock on my Zojirushi NS-KCC05?

Plug in the rice cooker. Press the Hours or Minutes key to adjust the time. Each press advances by one hour or minute. Hold the key to fast forward. The display will stop blinking after 3 seconds, confirming the setting.

What are the water level markings for white rice?

The inner pan has markings for White Rice, Mixed Rice, and Porridge. For white rice, add water up to the corresponding scale number (e.g., scale 2 for 2 cups of rice). Use the supplied measuring cup (180 mL) for accurate measurements.

Can I use the timer with quick cooking mode?

No, the Quick Cooking mode cannot be used with the timer. The timer is available for White/Brown and Porridge menus only.

How do I reheat rice that has been kept warm?

First, loosen and level the kept-warm rice. Press the COOKING/REHEAT key. The COOKING lamp will blink. After about 7-9 minutes, the buzzer sounds 8 times and the cooker returns to Keep Warm mode. Stir the rice well before serving.

What should I do if the clock display is blinking?

A blinking display indicates the clock is not set or the lithium battery is weak. Set the correct time using the Hours/Minutes keys. If it continues blinking after setting, the battery may need replacement. Contact the dealer or customer service for battery replacement at your expense.

How do I clean the rice cooker?

Unplug and let it cool. Wash the inner pan, inner lid, and dew cup with a sponge and warm water. Wipe the control panel and outer body with a dry soft cloth. Do not immerse the main body in water. Use only mild detergents; avoid abrasive cleaners.

What types of rice can I cook with this model?

You can cook white rice, brown rice, mixed rice, glutinous/sweet rice, and porridge. The cooker has dedicated menu settings for each type.

How long does it take to cook white rice?

For white rice, the cooking time is approximately 40-55 minutes for 0.5 to 3 cups, using the standard White/Brown setting. Quick Cooking takes about 30-45 minutes.

Can I cook porridge using the timer?

Yes, you can set the timer for porridge. The timer range for porridge is 1 hour 10 minutes to 13 hours. Select the PORRIDGE menu after setting the timer, then press COOKING/REHEAT.

What does the alarm sound indicate?

The alarm sounds to indicate the end of a cooking cycle (8 beeps) or to signal an error. For example, if the inner pan is not placed properly, an alarm will sound and the display turns off. Insert the pan correctly to resume normal operation.

USER MANUAL NS-KCC05 Zojirushi

Micom Rice Cooker / Warmer

Operating

Instructions

象印牌微電腦燜燒電子鍋

마이크로 컴퓨터 전자밥솔

炊飯ジャー

使用説明書

취급설명서

取扱説明書

NS-KCC05

Contents 目錄

IMPORTANT SAFEGUARDS 1\~2

Important Safeguards 3\~9

Description of Parts 11\~13

How to Set the Clock 15\~17

How to Cook Rice 19\~29

Tips and Hints (Reheat) 31

Tips and Hints (How to Use the Timer)…33\~35

Cleaning and Maintenance 37

Specifications 39

안전을 위한 주의 4\~10

WHEN USING ELECTRICAL APPLIANCES,

BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

1 Read all instructions carefully.
2 Do not touch hot surfaces. Use handles or knobs. Do not close or clog the steam vent opening under any circumstance.
3 To prevent electrical shock hazards, do not immerse cord, plugs, or rice cooker, except inner lid and inside pan, in water or any other liquid.
4 Close supervision is necessary when the appliance is used by or near children.
5 Unplug from outlet when neither the cooker nor warmer is in use, or before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning the appliance. Make sure appliance is OFF when not in use, before putting on or taking off parts, and before cleaning.
6 Do not use or operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility or dealer for examination, repair, or adjustment.
7 The use of accessories attachments not recommended by the appliance manufacturer may cause hazards.
8 Do not use outdoors.
9 Do not let the power supply cord hang over edge of table or counter, or touch hot surfaces.
10 Do not place the appliance on or near heat sources such as hot gas or electric burners and stoves, or in a heated oven.
11 Extreme caution must be used when moving the appliance containing hot contents or liquids.
12 Plug the cord into a household electric outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13 Do not use the appliance for other than intended or specified purposes.
14 To reduce the risk of electrical shock, cook only in removable container.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

This appliance is supplied with a short cord to reduce risk of becoming entangled or tripping. "This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way."

IMPORTANTES MESURES DE SÉCURITÉ

※These warnings and cautions are intended to prevent you and other persons from injuries and damages. To ensure safe operation, please follow them carefully.

WARNING	CAUTION
Indicates risk of serious injury.	Indicates risk of injury or property damage if mishandled.

About the symbols used

△ Indicates a warning or caution. The symbol inside the triangle specifies the nature of the warning or caution. The example below indicates an electrical shock warning.

Indicates a prohibition. The symbol inside the circle specifies the nature of the prohibition. The example below indicates "Do not disassemble."

! Indicates a requirement or instruction that must be followed. The symbol inside the circle specifies the nature of the requirement or instruction. The example below left indicates "unplug the unit"; the example below right indicates that the accompanying instruction must be followed.

※Please keep the operating instructions available in a handy place after reading.

使用之前

	●Do not modify the rice cooker.Only a repair technician may disassemble or repair this unit.Attempting to do so carries the risk of fire, electrical shock, or injury. If repair is necessary, take it to the store where you purchased it or to an authorized repair center.
	●Do not allow children to use this device unsupervised. Keep it out of the reach of infants.Children are at risk of burns, electrical shock, and injury.
	●Do not open the lid while rice is cooking.Doing so may result in burns or scalding.
	●If the blades or surface of the electrical plug are soiled, wipe them clean.A dirty electrical plug may cause a fire.
	●Use only an electrical outlet rated at 15 amperes minimum. Do not plug other devices into the same outlet.Plugging other devices into the same outlet may cause the electrical outlet to overheat, resulting in fire.
	●Do not immerse the rice cooker in water or splash it with water.Doing so may cause a short circuit or electrical shock.
	●Do not use the rice cooker if the electrical plug or power cord is damaged or the plug is loosely inserted into the electrical outlet.Doing so may cause an electrical shock, short circuit, or fire.
	●Use only 120-volt AC electrical current.Use of any other power supply voltage may result in fire or electrical shock.
	●Do not scratch, damage, modify, forcefully bend, pull, twist, or fold the power cord.Do not place heavy items on the power cord, allow it to become pinched between other objects, or modify it. A damaged power cord can cause a fire or electrical shock.

警告

Hold the plug only	●Do not pull on the power cord itself. Always hold the plug when unplugging the power cord.Doing so may cause short circuit or fire.
Prohibited	●Do not use the rice cooker near a heat source or where it may be splashed with water.Doing so may cause a short circuit, electrical shock, or deformation of the rice cooker.
Prohibited	●Do not use any other inner pans except for the inner pans exclusively made for this device.Doing so may cause the inner pan to overheat and may cause the rice cooker to malfunction.
Prohibited	●Do not use the rice cooker on unstable surfaces or on a non-heat-resistant carpet.Doing so may cause a fire.
Unplug	●Unplug the electrical plug from the outlet when the rice cooker is not in use.Leaving the electrical plug in an outlet may cause the insulation to become damaged, resulting in injury or burns, electrical shock, short circuit, or fire.
Hold the plug	●Always hold the plug when winding up the power cord.Being struck by the plug may result in injury.
Do not touch	●Do not touch the steam vent.Doing so may cause burns or scalding. Take special precautions with children and infants.

注意

Please use on outlet which is properly wired.● Otherwise, it may cause a fire or electrical shock.

Be careful when using the rice cooker on kitchen shelving. Do not allow steam to contact the shelf above or the ceiling. Do not use within 30 cm of a wall or furniture.● Doing so may cause discoloration or distortion of nearby objects or surfaces.

Do not touch the push button or open the lid while the rice is cooking.● Doing so may cause burns or scalding.

Do not wash the entire rice cooker or pour water directly into the cooker if the inner pan is not inside.● Doing so may cause a fire or electrical shock.

Handle with care.● Subjecting the rice cooker to strong shock or touching the push button while carrying it may cause injury due to the lid opening or may damage the rice cooker.

Check the inner pan and rice cooker before use.● If leftover rice or other foreign object remains on the outer surface of the inner pan the rice will not cook properly.

Preventing burns and scalding● Watch out for high temperatures around the steam vent.● Watch out for steam when opening the outer lid.● Be careful not to touch the sides of the inner pan when mixing the rice.

Do not cover the rice cooker, especially the steam vent, with cloth or other object.● Doing so may cause discoloration and deformation of the rice cooker or lid.

使用上敬请注意事项

Power Supply Cord	電源軟線
How to extend the cordPull the power plug out.※Do not pull the cord beyond the red mark.How to retract the cordPull the cord by 2 or 3 cm and release it. The cord will retract automatically.	拉出方法握持插頭拉出。※最長不得超過紅色標記收存方法握持插頭,微向外拉出2~3cm後鬆力,則自動捲入。

Use the timer when you want the rice cooker to automatically finish cooking the rice at a specific time.

Although the clock is set before shipment from the factory, certain conditions, such as fluctuating room temperatures, may cause it to display an inaccurate time. If the clock is not accurate, set the correct time as shown below.

Now it is 3:01 p.m., the clock is displaying 2:58 p.m.

1. Place the inner pan inside and insert the plug.

2. Press the Hours or Minutes key. The time display blinks.

3. Press the time setting keys to set the correct time.

HOURS: Each press of the key advances the time by one hour.

MINUTES: Each press of the key advances the time by one minute.

●Press key and hold to fast forward.

After the display flashes for 3 seconds it becomes steady.

When the time display changes from flashing to steady, the time setting is completed.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

1. 按下時鐘或分鐘，調整時間。

時鍵：每按一下，前進1小時。

分鐘：每按一下。前進1分鐘。

●持續按下，快速調進。

閃爍3秒鐘後，變為點亮。

按下後，閃爍停止，時間調整完畢。

Hand holding a wall-mounted power socket with a switch, no text or symbols visible

1.なべを入れ、差込みプラグを接続する

①時キー：押すごとに1時間づつ進む

④キー：押すごとに1分づつ進む

●押し続けると早送りができます。

Changing the lithium battery

The lithium battery powers the clock and timer memory when the power is off.

About battery life

Battery life is about 4 to 5 years at an ambient temperature of 20°C and with the power off.

When the battery is weak

● Insert the plug into the outlet, the clock shows 7:00 a.m. and keeps blinking.
● The rice cooker can be used normally once you set the time. However, the time on the display will disappear if you unplug the power plug.
● In this case, contact the dealer where you made your purchase or call our customer service department. The lithium battery will be replaced at your expense.

Note

● To avoid causing damage or harm to the rice cooker, do not attempt to replace the lithium battery yourself.

關於鋰電池

● This product is designed only to cook rice and keep it warm. Do not use it for any other purpose.

1. Measure and wash the rice. Add water.

A leveled measure of rice in the enclosed measuring cup is approx. 0.18L in quantity.

The rice may be washed in the inner pan. Any moisture or foreign matter must be completely wiped from the outside of the inner pan.

For example, when you cook 2 cups of rice, wash and drain the rice. Add water into the inner pan up to the scale 2 of "White Rice".

Simple line drawing of a container with an arrow indicating direction (no text or symbols)

1. 量米、洗米、調節加水量。

Illustration of hands washing a cup with a fork (no text or symbols)

Make sure the surface of the rice is level.

應將米攤平。

(White Rice)

(煮白米飯時)

Note

● For best results, measure the rice accurately.
● As the accuracy of different measuring devices may vary, use the provided measuring cup.
● Do not add too much water or the rice cooker will boil over.
● Glutinous/sweet rice should be drained in a strainer for more than 30 minutes after washing.

注意

Simple line drawing of a container with particles and an arrow indicating direction (no text or symbols)

Illustration of hands washing a cup with a faucet (no text or symbols)

쌀은 수평하게 넣어 주십시오.

米は水平にならしてください。

(백미의 경우) (白米の場合)

주의

1. Place the inner pan inside the rice cooker, close the lid and plug the power cord into an electrical outlet.

2. 將內鍋放入鍋體內，關上鍋蓋插入插頭。

Note

• If the Rice COOKING/REHEAT key or Keep WARM/RESET key is pressed without the inner pan inside the body of the cooker, the display will turn off and an alarm will start to sound. If this happens, insert and position the inner pan properly in the cooker.
  ● Wipe water and any foreign matter carefully from the top, bottom, and sides of the inner pan, and from the bottom and sides of the heating plate. Otherwise, corrosion may develop, noise may be produced during cooking, and rice may not cook properly.

注意

Make sure the KEEP WARM indicator is off before pressing COOKING. (Otherwise, the REHEAT function will be activated.)

①Press the MENU key.

The display changes with each press of the MENU key.

Choose WHITE/BROWN for brown rice, mixed rice or glutinous rice.

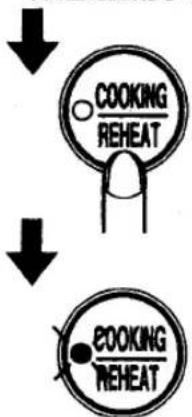

Press the "COOKING/REHEAT" key.

The Cooking light comes on.

During the final steaming process, the remaining time is displayed.

The remaining time differs for each menu selection.

White/Brown	Porridge	Quick Cooking

3. 煮飯

※QUICK COOKING is when you want your rice cooked quickly. The rice may sometimes turn out a little harder.

● For best results, do not open the outer lid while cooking.
- When cooking glutinous rice keep the quantity of rice less than 1-2 cups. More than that won't cook properly.

注意

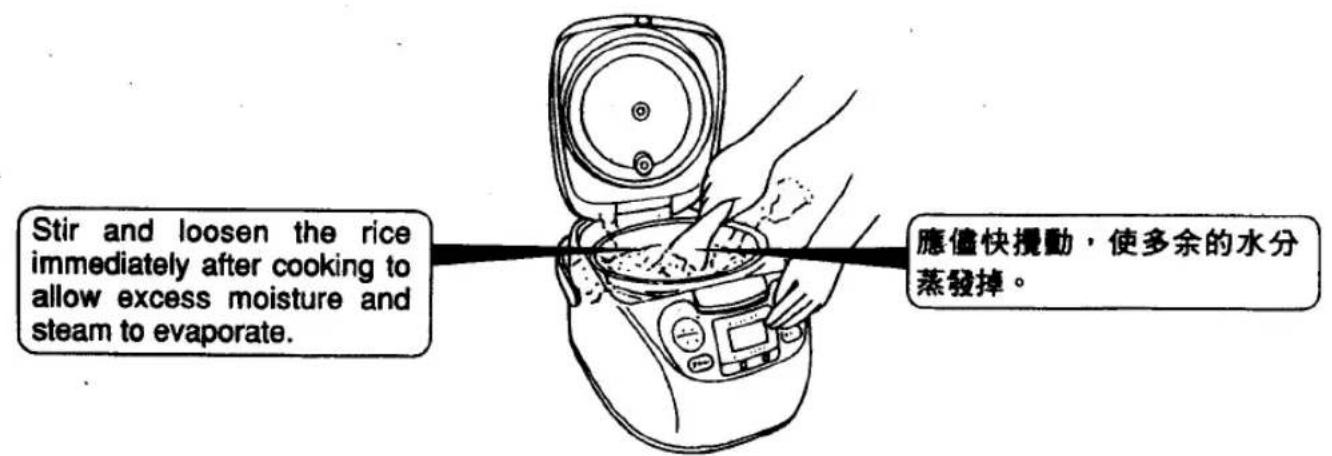

4 For best results, stir and loosen the rice to remove excess steam and create a fluffy texture.

4. 充分摯動米飯

(蜂鳴器鳴響，表示已煮好。)

(The rice is finished cooking when the buzzer sounds.)


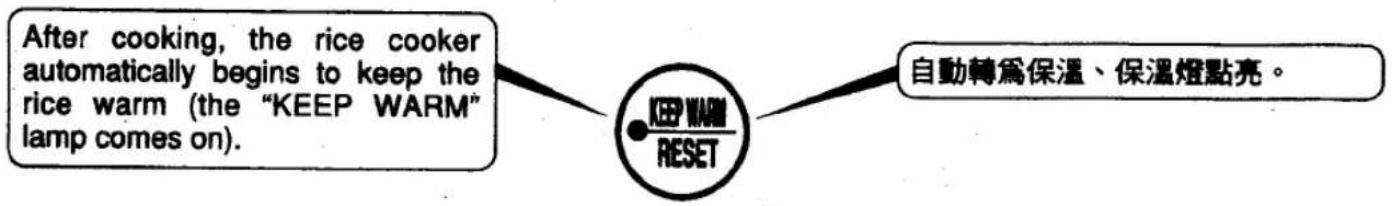

    A["After cooking, the rice cooker automatically begins to keep the rice warm (the "KEEP WARM" lamp comes on)."] --> B["KEEP WARM/RESET"]
    B --> C["自動轉為保溫、保溫燈點亮。"]

Note

● Depending on cooking conditions, cooked rice may sometimes be somewhat scorched, leaving a brown color on the bottom.
● Because the inner pan has a round bottom, a depression may form at the top of the cooked rice.
- If rice is kept warm without first loosening, it may not be fluffy and tasty.
● To prevent rice from drying, gather any small remaining amounts of rice towards the center of the inner pan.

留意

(Make sure the surface of the rice is level.)

The pure 1 soys now, org the rice has been kept warm

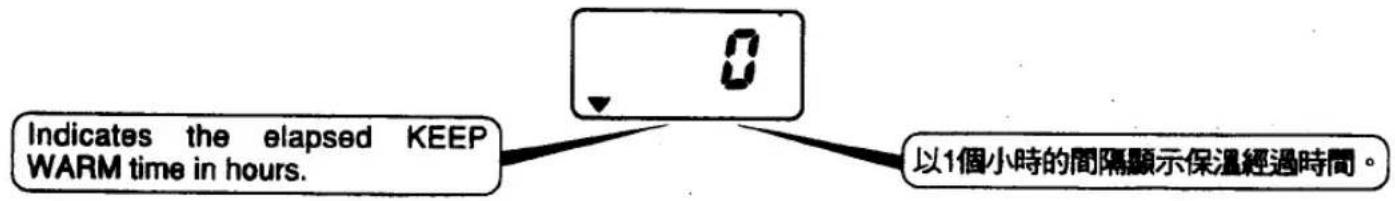

During KEEP WARM, the elapsed KEEP WARM time will be indicated on the display.

● The indication is given in units of hours starting from the end of the cooking cycle.

Keeping rice warm for more than 12 hours tends to cause bad odors, and to dry and change the color of rice. For these reasons, rice kept warm in the cooker should be eaten as soon as possible.

Cautions

● Please empty the water in the dew cup.
● If moisture remains in the dew cup, it may overflow or cause bad odors.

After Use

①Press the KEEP WARM/RESET key.

The KEEP WARM lamp goes off.

●Unplug the power plug.

Note

● Make sure the KEEP WARM indicator is off.
- If the plug is left plugged in, the panel may become warm. There is nothing abnormal about this.
● The KEEP WARM indicator stays on even if the inner pot is removed. Make sure to cancel by pressing the KEEP WARM button.

Hand holding a wall-mounted electrical socket with a switch, no text or symbols visible

5. 保温

(攤平米飯表面)

图 1-3

Hand holding a wall-mounted power socket with a switch, showing a downward arrow (no text or symbols)

Standard Rice Cooking Times

● Voltage of 120-volts, room temperature of 68°F, water temperature of 64°F.
●The table below shows the time required to cook rice (from start of cooking to start of keep-warm mode). Please note that the actual time may vary depending on voltage, room temperature, season, amount of water used, and cooking mode.

	White/Brown	Quick Cooking	Mixed rice	Glutinous/Sweet	Porridge
Quantity of rice (cups)	0.5~3	0.5~3	1~2	1~2	0.5~1
Required time in minutes (approximate)	40~55	30~45	50~60	45~55	55~70

※Variation in cooking outcomes may occur when cooking large quantities of rice due to fluctuations in voltage, etc. Furthermore, rice becomes somewhat softer in texture using the timer or soaking.

在火车前入货时间

※For use during "Keep Warm".

●The Reheat mode reheats the kept warm rice to a perfect serving temperature.
- Loosen and level the surface of the rice that is kept warm.
●Be sure to loosen the rice to avoid any possible excess of scorching.

再加热

※用於保溫中。

②Press the "COOKING/REHEAT" key.

Approximately 7-9 minutes after switching from KEEP WARM to REHEAT, the buzzer will sound 8 times, then the cooker will switch back to KEEP WARM mode and the KEEP WARM indicator will light.

③Stir and loosen the rice.

●Stir, loosen and level the rice as the rice on the bottom tends to be a little harder.
©To cancel REHEAT...

and return to KEEP WARM mode..., Press the COOKING/REHEAT key.

The "KEEP WARM" lamp lights.

保温燈點亮時

The "COOKING" lamp blinks.

煮飯燈閃爍

②按下炊飯／再加熱鐘。

Please don't reheat the rice under the following conditions:

●When reheating something other than white rice (causes burning or discoloring).
● Repeated reheating (causes burning or dries up the rice).
- When the rice is higher than water level 2 (the rice won't be heated sufficiently)

※When there is not so much rice but you would still need to reheat it...

Spray the water on the rice, about one big spoonful per one bowl of rice (approx.160g), and loosen it and gather it around in the middle of the pot. It helps the rice to keep the moisture.

Reheating cannot be used in the following cases:

(The alarm sounds and no control key is functional)

●Immediately after the rice has cooked, or when the rice is cold
●When the inner pan temperature is too low.
●During the Rice Porridge mode.

在下列情況下，不要再加熱。

How to Use the Timer

To make sure that the rice is ready at the desired time, press the COOKING/REHEAT key after setting the timer.

If the clock is not set correctly, the rice will not be ready at the desired time.

The timer has already memorized an appointed time (6:00 AM).

定時器預約煮飯

Set the way to me you want me to be read, to eat

Example: Reset the timer from 6:00 a.m. to 7:30 a.m.

①Press the TIMER key.

※The TIMER display blinks.

②Press the TIMER setting keys to set the time you want the rice completed. (see Page 15)

③Press the MENU key and select between white rice and porridge.

※QUICK COOKING is not available.

④Press the "COOKING/REHEAT" key.

The timer will not start working unless you press the "COOKING/REHEAT" key.

Timer lamp lights, and the Timer starts.

※Following the above procedures, the present time of TIMER will be memorized 7:30 AM.

Note

● The remaining cooking time will not be displayed.
- When cancelling the timer, press the KEEP WARM/RESET key.
● Unless you want to use a different cooking time setting, it is not necessary to set the timer each time.
● Quick Cooking mode can not be used with the timer.

預約開飯時間表

例：上午6:00（預約1）改為

上午7:30煮飯時

①按下預約鍵。

※時間顯示閃爍。

Since the unit keeps the preset time in memory, the preset times can be recalled with only two key operations.

①Press the TIMER key.

預約1次後

⑦Press the "COOKING/REHEAT" key.

The cooking completes at the preset time and Keep Warm starts automatically.

②按下炊飯／再加熱鍵。

Recommended minimum and maximum time settings

Menu	Timer setting ranges
White/Brown	1 hour ~ 13 hours
Porridge	1 hour 10 minutes ~ 13 hours

●The timer cannot be set for less than 57 minutes for White/Brown rice or less than 1 hour and 10 minutes for rice porridge. In this case, the unit beeps four times and cooking starts immediately.
- It is possible to use the timer to cook rice with red beans or other ingredients, however the outcome may be less than desired due to added seasonnings or ingredients settlings and not distributing properly.

※When the timer used, the rice is softer.

定時器預約煮飯的推薦時間

Regular cleaning after each use prevents poor flavor and odor. Remove the plug from the outlet and allow the unit to cool before cleaning.

inner Pan / Rice Spatula / Inner Lid / Dew Cup

Immerse in warm or cold water, and wash with a sponge.

The top portion of the inner pan may rust if left soaking in water.

Power Supply Cord / Power Plug

Wipe with a dry soft cloth.

Inside of the Outer Lid / Inside of the Main Body

Clean stains with a damp cloth.

Surface of the Outer Lid / Outside of the Main Body (Incl. Control panel)

Wipe the control panel clean with a dry, soft cloth. Clean the outer body and lid with a cloth soaked in liquid detergent; wring the excess detergent, wipe clean.

Heating Plate / Central sensor

Remove any grains of rice or foreign matter with a rubber spatula or chop sticks. Wring a cloth soaked in hot water, wipe up any surface stains.

Cautions

• Do not clean with thinner, benzene, bleach, abrasive cleaners, or anything that may damage the unit's surface.
• When using a chemically treated cloth, do not scrub the rice cooker excessively or allow the cloth to contact the rice cooker for a long period.

Nonstick Inner Pan

The inner pan is coated with a nonstick surface for easy cleaning. To protect the nonstick surface, avoid the following.

Do not use the inner pan for dish washing.

Do not use vinegar.

Clean the inner pan promptly after using seasonings.

Do not use brushes or abrasive cleaners.

● After repeated use, the inner pan may change color, this is normal and does not interfere with quality or sanitation.
- When the inner pan is damaged or corroded, purchase a replacement at the original pan's point of purchase.

Model No.		NS-KCC05
Rice cooking capacity	White / Brown (cups)	0.09~0.54L(0.5~3)
	Mixed Rice (cups)	0.18~0.36L(1~2)
	Porridge (cups)	0.09~0.18L(0.5~1)
Rating		120V 310W
Average power consumption during Keep Warm		17W
Rice cooking system		Direct heating system
Power cord		Length 1.4m (with cord reel)
External dimensions (in)		Approx. 8.7(W) x 11.0(D) x 7.9(H)
Weight		Approx. 2.1kg/4.6Lbs

※The power consumption in the Reset state (when the timer is used as a clock to display the current time) is approximately 1.5W.
※The current time indication may produce a deviation of approximately one minute per month depending on the room temperature.
※The average power consumption during KEEP WARM mode is the value of the maximum rice cooking capacity at a room temperature of 68°F.
※The rice cooking capacity volume indicates the quantity of rice before cooking. (It does not include the volume of ingredients added to the rice, red beans, vegetables, etc.)

規格

All recipes are measured by using the supplied measuring cup which comes with your new Micom Rice Cooker. The measurement of the supplied cup(6 oz.) is slightly different from that of the standard cup(8 oz.) measurement.

JAMBALAYA (Approximately 4 servings)

INGREDIENTS:

Long grain rice....1 cupBeef broth....1-1/2 cupsChili powder....1/4 tsp.Thyme....1/8 tsp.Bay leaf....1 leafOlive oil....1/2 Tbsp.

Green bell pepper (chopped)....1/4 cupOnion (chopped)....1/4 cupParsley (chopped)....1/8 cupChicken (cooked and cubed)....3/4 cupHam (cubed)....3/4 cupPolish sausage (sliced)....3/4 cup

1. In a separate bowl, combine beef broth, spices and olive oil, and mix well.
2. Wash rice well and drain.
3. Place rice and all other ingredients in the pan and mix well.
4. Pour broth and spice mixture in the pan and stir well.
5. Place the pan into the unit, close the lid and plug the cord into the outlet.
6. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
7. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
8. Open the lid and mix all ingredients well.

RED RICE (Approximately 4 servings)

INGREDIENTS:

Long grain rice....2 cups	Chili powder....1/2 tsp.
Water....2 cups	Red bell pepper (chopped)....1/2 cup
Tomato sauce....1 cup	Onion (chopped)....1/2 cup
Salt....1/2 tsp.	Celery (chopped)....1/2 cup
Sugar....1/2 tsp.	Bacon (cooked and diced)....3 strips

1. Wash rice well and drain.
2. Place rice and all other ingredients in the pan and mix well.
3. Place the pan into the unit, close the lid and plug the cord into the outlet.
4. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
5. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
6. Open the lid and mix all ingredients well.

SAFFRON RICE (Approximately 4 servings)

INGREDIENTS:

Jasmine rice	2 cups
Chicken broth	3 cups
Saffron or Turmeric	1 tsp.

Salt	3/4 tsp.
Butter	3/4 Tbsp.

1. In a separate bowl, combine saffron or turmeric and chicken broth, then mix well.
2. Heat chicken broth mixture in microwave for 30 seconds.
3. Wash rice well and drain.
4. Place rice and all other ingredients in the pan. Pour chicken broth mixture in the pan and mix well.
5. Place the pan into the unit, close the lid and plug the cord into the outlet.
6. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
7. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
8. Open the lid and mix all ingredients well.

WILD RICE WITH MUSHROOMS (Approximately 4 servings)

INGREDIENTS:

Wild rice	1-1/2 cups
Water or Chicken stock	2 cups
Dry white wine	3/4 cup
Salt	1/4 tsp.

White pepper	1/5 tsp.
Butter	3/4 Tbsp.
Mushroom, Shiitake mushroom or Portabella (sliced)	1/3 lbs.

1. Wash rice well and drain.
2. Place rice and all other ingredients in the pan and mix well.
3. Place the pan into the unit, close the lid and plug the cord into the outlet.
4. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
5. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
6. Open the lid and mix all ingredients well.

Recipes

All recipes are measured by using the supplied measuring cup which comes with your new Micom Rice Cooker. The measurement of the supplied cup(6 oz.) is slightly different from that of the standard cup(8 oz.) measurement.

VEGETABLE RICE (Approximately 4 servings)

INGREDIENTS:

Long grain rice 2 cups

Water at scale 2

(WHITE RICE)

Vegetable bouillon....1 Tbsp.

Mixed vegetables 1-1/2 cups

1. Wash rice well and drain.
2. Place rice in the pan. Fill the pan with water up to the scale 2 under "WHITE RICE" indicated on the inner lining of the pan.
3. Add vegetable bouillon and other ingredients.
4. Place the pan into the unit, close the lid and plug the cord into the outlet.
5. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
6. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
7. Open the lid and mix all ingredients well.

CURRY FLAVORED RICE (Approximately 4 servings)

INGREDIENTS:

Long grain rice 2 cups

Water...... at scale 2

(WHITE RICE)

Powdered chicken bouillon....1 Tbsp.

Raisins....1 Tbsp.

Curry powder 1 tsp.

Salt to taste

Bay leaf....1 leaf

Olive oil 1-1/2 Tbsp.

Onion (finely chopped) 1/2 cup

Garlic (peeled and finely minced)....1/2 clove

Parsley (chopped)....1/2 tsp.

1. In a skillet, sauté onion and garlic in olive oil on moderate heat until onions are translucent.
2. Wash rice well and drain.
3. Place rice in the pan. Fill the pan with water up to the scale 2 under "WHITE RICE" indicated on the inner lining of the pan.
4. Add precooked onion and garlic, and all other ingredients except parsley.
5. Place the pan into the unit, close the lid and plug the cord into the outlet.
6. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
7. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
8. Open the lid, mix all ingredients well and sprinkle with parsley.

MUSHROOM FLAVORED RICE (Approximately 4 servings)

INGREDIENTS:

Long grain rice 2 cups

Water at scale 2

(WHITE RICE)

Powdered chicken bouillon....1 Tbsp.

Salt and black pepper to taste

Olive oil 1-1/2 Tbsp.

Onion (finely chopped)....1/2 cup

Garlic (peeled and finely minced)....1/2clove

Fresh mushroom (diced)....1/4 lbs.

Parsley (chopped)....1/2 tsp.

1. In a skillet, sauté onion and garlic in olive oil on moderate heat until onions are translucent.
2. Add mushroom and sauté for approximately 3 minutes.
3. Wash rice well and drain.
4. Place rice in the pan. Fill the pan with water up to the scale 2 under "WHITE RICE" indicated on the inner lining of the pan.
5. Add precooked onion, garlic, mushroom and all other ingredients except parsley.
6. Place the pan into the unit, close the lid and plug the cord into the outlet.
7. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
8. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
9. Open the lid, mix all ingredients well and sprinkle with parsley.

CREAMY GRITS (Approximately 4 servings)

INGREDIENTS:

Stone ground grits....1 cup

Water 2 cups

Milk 2 cups

Butter 3/4 Tbsp.

Salt 3/4 tsp.

1. Combine all ingredients in the pan and mix well.
2. Place the pan into the unit, close the lid and plug the cord into the outlet.
3. Press "MENU" key to select "PORRIDGE" and press "COOKING/REHEAT" key.
4. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
5. Open the lid and mix all ingredients well.

Recipes

All recipes are measured by using the supplied measuring cup which comes with your new Micom Rice Cooker. The measurement of the supplied cup(6 oz.) is slightly different from that of the standard cup(8 oz.) measurement.

BROWN RICE (Approximately 4 servings)

INGREDIENTS:

Brown rice....2 cups

Water 3 cups

1. Wash brown rice well and drain.
2. Place brown rice in the pan and add water.
3. Place the pan into the unit, close the lid and plug the cord into the outlet.
4. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
5. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
6. Open the lid and loosen brown rice well.

ORIENTAL VEGETABLE RICE (Approximately 4 servings)

INGREDIENTS:

Rice	2 cups
Water	at scale 2(WHITE RICE)
Chicken	1 oz
Age (fried tofu)	1/3 pcs.
Carrot	1 oz

Konnyaku (paste made of yam)......1 oz
Gobo (edible burdock)......1/3 pcs.
1	{Light soy sauce......1 Tbsp.
	Mirin (sweet sake)......1 Tbsp.
	Salt......1/3 tsp.
	Dashinomoto (dried soup stock)......1/3 tsp.

1. Cut chicken in 1/2 in. cube and "Age" in strips. Put "Age" in strainer, pour hot water and squeeze "Age" to drain excess oil.
2. Mix Group ① well. Marinate chicken and "Age" in mixed Group ① for 5 minutes. Then separate marinated chicken and "Age" from the sauce mixture.
3. Cut carrot and "Konnyaku" in thin strips. Pour hot water over "Konnyaku" and drain.
4. Cut "Gobo" in thin strips, soak in water for 5 minutes and drain.
5. Wash rice well, drain and place in the pan. Add the sauce mixture and fill the pan with water up to the scale 2 under "WHITE RICE" indicated on the inner lining of the pan. Then place all other ingredients in the pan.
6. Place the pan into the unit, close the lid and plug the cord into the outlet.
7. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
8. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
9. Open the lid and mix well.

AZUKI BEAN RICE (Approximately 4 servings)

INGREDIENTS:

Sweet Rice	2 cups
Water	at scale 2(SWEET RICE)

Azuki beans	1/4 cup
Gomia shio	to taste
(black sesame seeds with salt)

1. Wash sweet rice and drain for at least 30 minutes.
2. Boil "Azuki" beans with 2 cups of water for 2 minutes in a sauce pan, then drain.
3. Boil again with 2 cups of water for about 20 minutes or until soft, then separate the beans and broth.
4. Place sweet rice and the broth in the pan. Add water up to the scale 2 under "SWEET RICE" indicated on the inner lining of the pan and mix well. Then place the boiled "Azuki" beans in the pan.
5. Place the pan into the unit, close the lid and plug the cord into the outlet.
6. Press "MENU" key to select "WHITE/BROWN" and press "COOKING/REHEAT" key.
7. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
8. Open the lid, mix well and sprinkle with "Goma shio".

RICE PORRIDGE WITH TEA (Approximately 3 servings)

INGREDIENTS:

Rice	1/2 cup
Water	at scale 0.5 (PORRIDGE)

Green tea bag....1 bag

1. Wash rice well and drain.
2. Place rice in the pan, fill the pan with water up to the scale 0.5 under "PORRIDGE" indicated on the inner lining of the pan and add the tea bag.
3. Place the pan into the unit, close the lid and plug the cord into the outlet.
4. Press "MENU" key to select "PORRIDGE" and press "COOKING/REHEAT" key.
5. Upon completion of the cooking cycle, the orange "KEEP WARM" lamp will automatically illuminate and beeps will sound.
6. Open the lid and remove the tea bag.
7. Serve with cooked vegetable, pickles or fish as a garnish.

JAPANESE COOKING TERMS

These items are usually available at Japanese grocery stores or other Asian supermarkets.

Age	: Deep fried tofu pouches
Azuki beans	: Japanese small red beans
Dashinomoto	: Dried soup stock made by bonito stock
Gobo	: Edible burdock
Goma shio	: Black sesame seeds with salt
Konnyaku	: A gelatinous substance made of yam
Mirin	: A sweet golden rice wine used only for cooking
Shiitake-Mushroom	: The most common Japanese mushroom
