Product Type	Rice Cooker
Brand	Zojirushi
Model	NS-PC18
Cooking Capacity	0.36–1.8 L (2–10 cups)
Rated Voltage	AC 120V 60Hz
Power Consumption (Cooking)	600 W
Power Consumption (Keep Warm)	38 W
Power Cord Length	4'7\" (1.4 m)
Dimensions (W x D x H)	10.5 x 13.5 x 9.875 in (26.5 x 34 x 25 cm)
Weight	Approx. 8 lbs (3.3 kg)
Accessories	Measuring Cup, Spatula, Spatula Holder
Inner Pan Material	Nonstick coating
Heating Method	Heating plate with electromagnetic thermostat
Controls	Push-button switch with Cook and Keep Warm indicator lights
Safety Features	Polarized plug, automatic switch-off, keep warm function
Steam Vent	Removable steam vent set with reverse stopper valve
Dew Collector	External dew collector for condensation
Maintenance	Hand wash inner pan and accessories; wipe main body; clean steam vent under water
Replacement Parts	Inner Pan (B157-6B), Spatula (SHAKN-6B), etc.
Customer Service	1-800-733-6270, www.zojirushi.com

Frequently Asked Questions - NS-PC18 Zojirushi

How do I measure rice for cooking?

Use the provided Measuring Cup which holds approximately 6.1 oz (180 mL). One level cup of uncooked rice yields about two servings.

How much water should I add?

Add water up to the corresponding scale line on the inner pan for the number of cups. For example, for 6 cups of rice, fill water to the '6' mark on the 'CUP' scale.

Why is my rice not cooking properly?

Ensure the Inner Pan is properly seated on the Heating Plate, the Upper Lid is firmly closed, and you have added the correct amount of water. Also, check that the power is on and the switch is pushed down.

How do I clean the rice cooker?

Unplug and let cool. Clean the Inner Pan with a soft sponge and mild detergent. Wipe the Main Body with a well-wrung cloth. Remove and wash the Steam Vent Set and Dew Collector under running water.

What should I do if the rice smells bad?

Possible causes: reheating cold rice, Upper Lid not closed properly, power interruption, keeping warm over 12 hours, or unclean parts. Discard spoiled rice, clean thoroughly, and avoid these practices.

Can I cook other foods in the rice cooker?

No, this rice cooker is designed exclusively for cooking rice. Do not use it to reheat other foods, make porridge, or stew, as it may cause damage or malfunction.

What are the replacement part numbers?

Key replacement parts: Inner Pan (1.8L) B157-6B, Spatula SHAKN-6B, Spatula Holder 6191020000-00, Measuring Cup 615784-00, Dew Collector 6191040000-00.

What is the power consumption?

During cooking, it consumes 600W. In Keep Warm mode, it averages 38W. Use a 120V AC outlet with a 15A minimum rating.

Can I use an extension cord?

Yes, if care is exercised. The extension cord's electrical rating must be at least as great as the appliance's, and the cord should be arranged to avoid tripping hazards.

How long does it take to cook rice?

For 2–10 cups of rice, the cooking time is approximately 18–31 minutes, depending on voltage, room temperature, and water temperature. See the manual for a detailed chart.

USER MANUAL NS-PC18 Zojirushi

IMPORTANT SAFEGUARDS....2

MAJOR PARTS NAMES....4

HOW TO USE....5

CLEANING INSTRUCTIONS....7

GENERAL PRECAUTIONS....9

REPLACEMENT PARTS....12

SPECIFICATIONS....12

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

1 Read all instructions carefully.
2 Do not touch hot surface. Use handles or knobs. Do not close or clog the steam vent opening under any circumstance.
3 To prevent electrical shock hazards, do not immerse cord, plugs, or rice cooker, except inside pan, in water or any other liquid.
4 Close supervision is necessary when the appliance is used by or near children.
5 Unplug from outlet when neither the cooker nor warmer is in use, or before cleaning.

• Allow to cool before putting on or taking off any parts, and before cleaning the appliance.
  ● Make sure appliance is OFF when not in use, before putting on or taking off parts, and before cleaning.

6 Do not use or operate the appliance with a damaged cord or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility or dealer for examination, repair or adjustment.

7 The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electrical shock or personal injury.

8 Do not use outdoors.

9 Do not let the power supply cord hang over the edge of table or counter, or touch hot surfaces.

10 Do not place the appliance on or near heat sources such as hot gas or electric burners and stoves, or in a heated oven.

11 Extreme caution must be given when moving the appliance containing hot contents or liquids.

12 To disconnect: remove plug from wall outlet after the appliance switches to "keep warm".

13 Do not use the appliance for other than intended or specified purposes.

14 Caution: To reduce the risk of electrical shock, use only the supplied inner pan.

15 The appliance is intended for household use only.

16 Do not add water above the "MAX" water guide mark.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

Note:

A. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
B. Extension cords are available and may be used if care is exercised in their use.
C. If an extension cord is used:

(1) the marked electrical rating of the cord set should be set at least as great as the electrical rating of the appliance,
(2) the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled by children or tripped over unintentionally.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

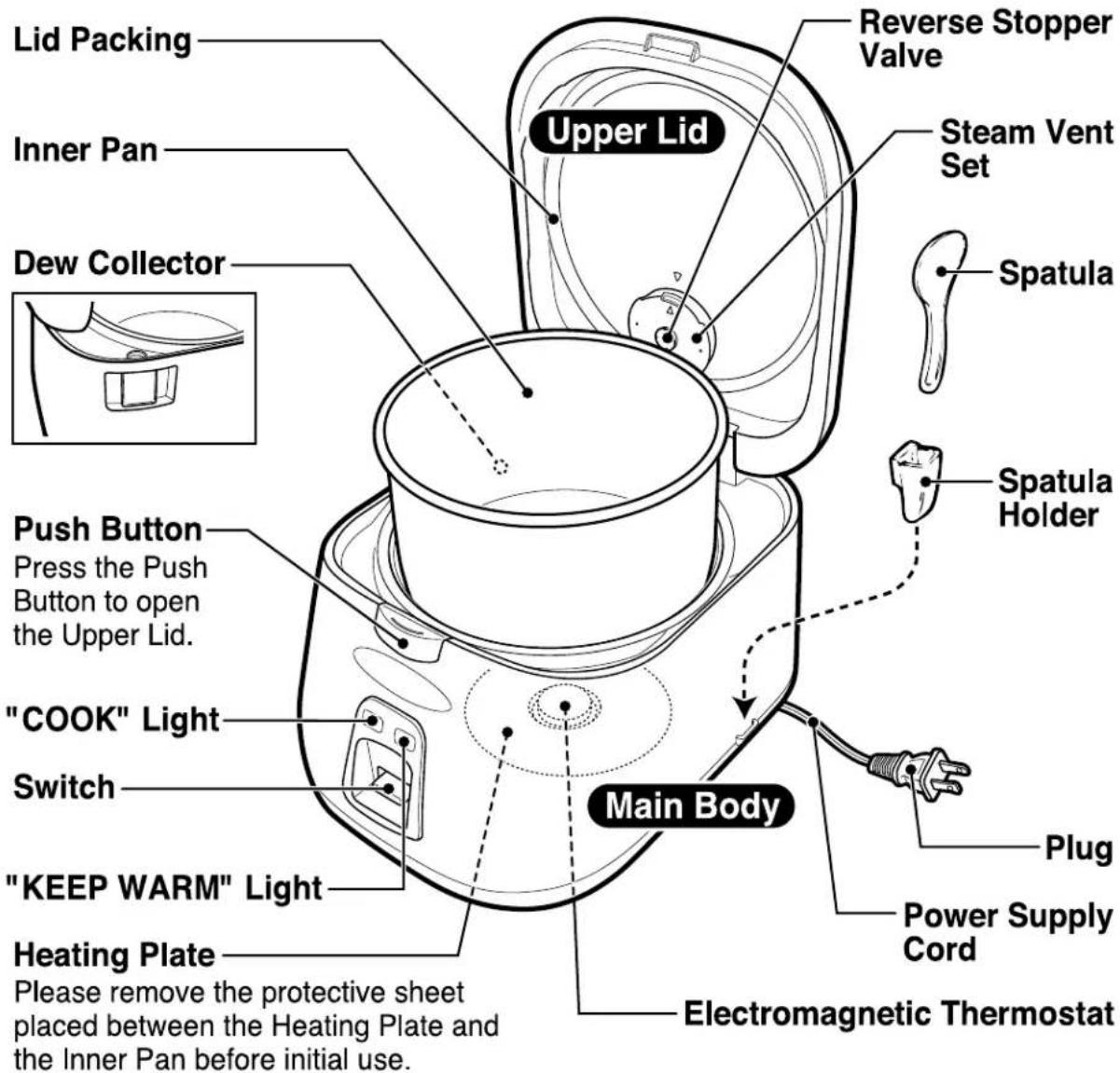

MAJOR PARTS NAMES

Accessories

Simple line drawing of a spoon (no text or symbols)

Spatula

Spatula Holder

Measuring Cup (approx. 6.1oz./approx. 180mL)

● The illustrations used in this Operating Instructions may vary from the actual product you have purchased.

HOW TO USE

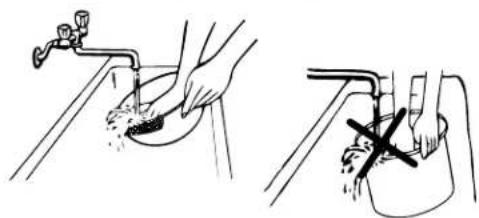

1 Measure rice accurately and wash.

● Measure rice accurately with the provided Measuring Cup. One cup measures approx. 6.1oz. (approx. 180mL).
● Wash rice with cold water until the water becomes relatively clear.
● Do not use the Inner Pan to wash rice.

Illustration showing two hand-drawn methods of cleaning a sink surface, one using a tool to clean or wash material, the other with a cross mark (no text or symbols)

2 Put washed rice into the Inner Pan, and add proper amount of water.

The scale of the Inner Pan represents the standard amount of water. Adjust the amount of water according to sorts of rice.

• This illustration shows the Inner Pan of the 1.8L model.

3 Place the Inner Pan in the Main Body.

● Wipe off any water and foreign objects carefully from the top, bottom, and sides of the Inner Pan, and from the surface of the Heating Plate. Otherwise, corrosion may develop, noise may be produced during cooking, and rice may not be cooked properly.
● Slightly turn the Inner Pan so that it sits properly on the Heating Plate.
- If the Inner Pan is at an angle, the rice may not be cooked well.

Illustration of hands pressing down on a container with a lid (no text or symbols)

Before Cooking

For best results to cook fluffy and tasty rice, it is recommended to soak the raw rice in water for about 30 minutes in the summertime and about 2 hours in the wintertime.

4 Close the Upper Lid firmly and properly.

• If the Upper Lid is not firmly closed, it will affect rice cooking.
  ● Do not open the Upper Lid during cooking.

HOW TO USE

5 Plug in the Plug and push down the Switch.

• Insert the Plug securely into a household electric outlet.
  ● Then, push the Switch down, the "KEEP WARM" Light turns off, and "COOK" Light turns on.

Hand inserting a plug into an electrical socket (no text or symbols visible)

6 Switch turns off with a "click" sound.

- When the rice is cooked, the Switch turns off automatically with a "click" sound. Then the "KEEP WARM" system starts working automatically and the "KEEP WARM" Light turns on.

Cooking Time

Model No.	Amount (cups)	Approx. time (min)
NS-PC10	1~5	16~27
NS-PC18	2~10	18~31

The cooking time shown on above chart is based on voltage of 120V, room temperature of 68°F (20°C) and water temperature of 64°F (18°C).

The time is from start of cooking to start of keep warm.

Please note that the cooking time may vary depending on voltage, room temperature, season and amount of water.

7 Keep the Upper Lid closed.

- Do not open the Upper Lid until the cooking process is completed. For better results, after the Rice Cooker switches to "KEEP WARM", it is recommended to keep the Upper Lid closed for about 15 minutes so that the rice can be steamed and softened by its own moisture. This is an important process to make fluffy, tasty rice.

HOW TO USE

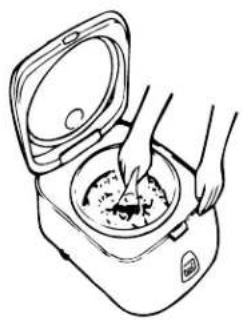

8 Loosen the cooked rice.

• When the steaming process ends, open the Upper Lid and loosen the cooked rice with the Spatula.
  ● This is an important process because it releases any excess steam and helps keeping freshness of the cooked rice.
  ● This must be done whether the cooked rice is to be served at once or to be kept warm for hours.

Line drawing of hands placing food into a microwave oven (no text or symbols)

9 Unplug the Plug if you do not want to keep rice warm or when the unit is not in use.

CLEANING INSTRUCTIONS

● Clean the Rice Cooker thoroughly after every use.
● Be sure to unplug the Plug and allow the Main Body and the Inner Pan to cool down.
- Do not use a thinner, benzene, abrasive cleaners and brushes (nylon/metal), bleach or anything that may damage the surface of the Rice Cooker.
- Do not use a dishwasher or dish-dryer. Doing so may cause scratches, deformation or discoloration.
● Be sure to reattach the Steam Cap, Spatula Holder and Dew Collector correctly.

HOW TO MAINTAIN THE INNER PAN IN GOOD CONDITION

The nonstick coating can peel off if damaged. Please take special care to prevent damage and follow these precautions:

Do not use the Inner Pan for dish washing.

Do not use vinegar in it.

Clean the Inner Pan immediately after using any seasonings.

Do not use brushes or abrasive cleaners to clean.

● The nonstick coating may wear out with use. The nonstick coating may eventually discolor or peel off. This will not affect the cooking / Keep Warm performances or sanitary properties, and is harmless to your health.
- If concerned with the peeling of the nonstick coating or if the Inner Pan deforms, please replace it by purchasing a new one. → pg.12

CLEANING INSTRUCTIONS

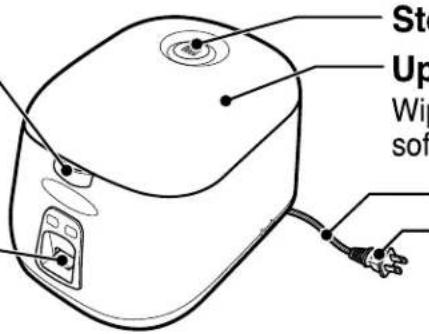

HOW TO CLEAN THE EXTERIOR

Main Body: Wipe clean with a well-wrung soft cloth.

- If using a cloth that is chemically treated, use sparingly to avoid transferring the chemical smell and do not scrub the Rice Cooker forcefully.

Push Button

If the Push Button becomes clogged with rice or other matter, remove with a bamboo stick.

Switch

Wipe with a well-wrung soft cloth.

Steam Vent

Upper Lid

Wipe with a well-wrung soft cloth.

Power Supply Cord Plug

Wipe with a dry soft cloth.

HOW TO CLEAN THE INTERIOR

Steam Vent Set → See pg.9

Upper Lid

Hold the Upper Lid securely and wipe with a well-wrung soft cloth. Remove any rice or residue on the inside of the Upper Lid.

● Do not use kitchen detergents.
● Leaving rice and other matter on the surface may cause the Upper Lid to rust or discolor.

Lid Packing

Inside of the Main Body (Interior)

Wipe with a well-wrung soft cloth.

Heating Plate

Wipe with a well-wrung soft cloth. If rice or other matter become stuck to the Heating Plate, lightly polish them off with a sand paper of about No.320 after dipping in water.

Dew Collector

Pull out the Dew Collector and wash with lukewarm water.

Electromagnetic Thermostat

Wipe with a well-wrung soft cloth. If it becomes clogged with rice or other matter, remove with a bamboo stick.

HOW TO CLEAN THE ACCESSORIES AND INNER PAN

Wash with a soft sponge.

To wash thoroughly, use a mild kitchen detergent.

Spatula

Spatula Holder

Measuring Cup

Inner Pan

CLEANING INSTRUCTIONS

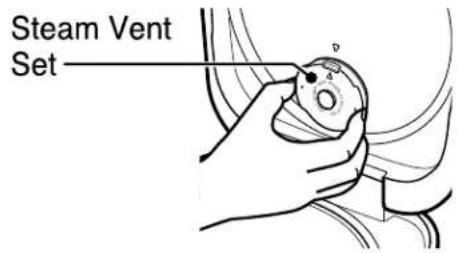

HOW TO CLEAN THE STEAM VENT SET

Pull off the Steam Vent Set straight toward you to remove it from the Upper Lid. Wash it under running water.

The Steam Vent Cap can be detached by turning it to the direction marked "DETACH". To attach, align the △ of the Steam Vent Cap and the △ of the Steam Vent Case.

Then turn it in the direction marked "ATTACH", and make sure that it is securely fitted.

Please do not remove the Reverse Stopper Valve.

After cleaning and maintenance, please make sure the Steam Vent Set is inserted into the Upper Lid. Align the △ mark of the Steam Vent Case with the ▽ mark of the Upper Lid and push in straight to attach.

Reattach the Steam Vent Set if △ mark of the Steam Vent Case and the ▽ mark of the Upper Lid are not aligned.

Steam Vent Set

Reverse Stopper Valve

GENERAL PRECAUTIONS

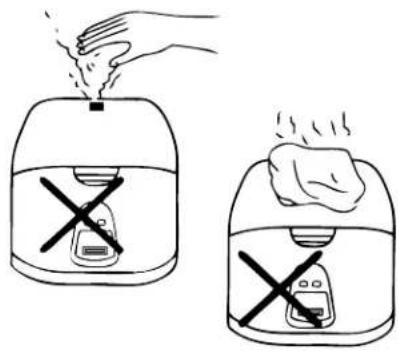

1 Do not touch:

• Do not touch the area near the Steam Vent while "COOK" Light (Red), or "KEEP WARM" Light (Orange) is "ON" because it is very hot.
• Do not cover the Steam Vent with any kind of cloth. The Upper Lid may deform or change color.

2 Do not use a power source other than 120V AC. Use only an electrical outlet rated at 15 amperes minimum, and do not plug other devices into the same outlet. Do not bend or twist the Power Supply Cord.

GENERAL PRECAUTIONS

3 Do not immerse the Rice Cooker in water or splash it with water. Do not pour water directly into the Rice Cooker.

Doing so may cause short circuit or electric shock.

Simple line drawing of a hand pouring liquid into a bowl with a cross mark (no text or symbols)

4 Insert the Plug to an electric outlet only when rice is ready to be cooked.

Then push the Switch down immediately to start cooking. If the Plug is left plugged while the Switch is not pushed down, the Thermal Reed Switch will close automatically and electric current will flow to the keep warm heater.

Hand holding a wall-mounted power plug with a black arrow indicating clockwise direction (no text or symbols)

5 Do not turn on the Switch when empty.

- Do not turn the Switch on when the Inner Pan is empty or the Inner Pan is not in the unit.

6 To prevent overflowing, do not fill the Inner Pan with too much rice or water.

7 Do not use for other purposes.

● Do not use your Rice Cooker for purposes other than cooking rice.

- Do not reheat cold, pre-cooked rice, make rice porridge or make stew.

● Do not use it to warm soup, curry, stew and other cooked foods.

● Do not leave the plastic spatula in the Rice Cooker.

8 Keep away from any source of intense heat.

● Do not immerse the Rice Cooker in water for cleaning, because it may cause electrical shock.

- Do not place it near gas or electric ovens, stoves or any source of intense heat.

● Also keep it away from a water tap to protect it from moisture.

Illustration of a kettle emitting smoke next to a cage with a birdhouse and a crossed-out valve (no text or symbols)

GENERAL PRECAUTIONS

9 Do not shake.

- Do not shake the Rice Cooker when the Upper Lid is open, because it may cause the Upper Lid to shut and injure your fingers.

Simple line drawing of a hand washing dishes with a cross mark (no text or symbols)

10 Do not use sauce, vinegar, ketchup, salt, sugar, oil, butter, or spices with water to cook rice. These additives often spoil cooked rice in a few hours.
11 Any other servicing should be performed by an authorized service representative.

If the rice smells bad...

the cause could be one of the following reasons.

1. Cold, pre-cooked rice is reheated.
2. The Upper Lid is not closed properly.
3. The electric power supply is intermittent.
4. The rice is kept warm over 12 hours.
5. A Spatula or other foreign material is left in the Inner Pan while the Rice Cooker / Warmer is in use.
6. Upper Lid and Inner Pan are not clean.
7. Possible mechanical or electrical malfunction which causes an extraordinary low temperature.

If the rice shows yellowish color...

1. The rice is kept warm over 12 hours.
2. Possible mechanical or electrical malfunction causes an extraordinary high temperature.

In either case, do not eat or serve the spoiled rice.

Empty, clean, and dry the Upper Lid and Inner Pan thoroughly before you use the Rice Cooker again.

REPLACEMENT PARTS

• Please replace damaged parts for optimum performance.
• When replacing parts, please check the model number and the parts name beforehand, then contact the store where you purchased the Rice Cooker or Zojirushi Customer Service.

Zojirushi Customer Service

1-800-733-6270

www.zojirushi.com

Parts Names	Parts Number
Inner Pan (1.0L model)	B156-6B
Inner Pan (1.8L model)	B157-6B
Spatula	SHAKN-6B
Spatula Holder	6191020000-00
Measuring Cup	615784-00
Dew Collector	6191040000-00

SPECIFICATIONS

Model No.		NS-PC10	NS-PC18
Cooking Capacity	approx. L	0.18~1.0	0.36~1.8
	Cups	1~5	2~10
Rating		AC 120V 60Hz
Electric Consumption		420W	600W
Average Power Consumption during Keep Warm		33W	38W
Power Supply Cord Length		4' 7" (1.4m)
External Dimensions	(Approx. inch)	9-5/8(W)×12-5/8(D)×8-3/4(H)	10-1/2(W)×13-1/2(D)×9-7/8(H)
	(Approx. cm)	24.5(W)×32(D)×22(H)	26.5(W)×34(D)×25(H)
Weight		approx. 6 lbs. (approx. 2.6 kg)	approx. 8 lbs. (approx. 3.3 kg)
Accessories		Measuring Cup, Spatula, Spatula Holder
