Punch PPS4-10 - Loudspeaker Rockford Fosgate - Free user manual and instructions

Brand	Rockford Fosgate
Model	Punch PPS4-10
Product Type	Mid Range Speaker
Nominal Diameter	10" (254 mm)
Nominal Impedance	4 Ω
Frequency Response	40 Hz - 4 kHz
Voice Coil Diameter	2.58" (65.5 mm)
Fs (Free Air Resonance)	53.5 Hz
Qts	0.26
Vas	1.24 ft³ (35.2 L)
Xmax (Linear Excursion)	0.18" (4.6 mm)
SPL @ 1W/1m	96 dB
Power Handling RMS	350 W
Power Handling Peak	700 W
Mounting Diameter	9.05" (230.0 mm)
Mounting Depth	4.17" (106.0 mm)
Includes Grille/Trim Ring	Yes
Trim Ring Diameter	10.87" (276.0 mm)
Trim Ring Height	1.03" (26.05 mm)
Safety	Disconnect battery negative terminal before installation; practice safe sound to avoid hearing loss
Warranty	1 year limited warranty (see manual for details)

Frequently Asked Questions - Punch PPS4-10 Rockford Fosgate

What is the recommended power handling for the PPS4-10?

The PPS4-10 handles 350 W RMS and 700 W peak power.

What is the impedance of the Punch PPS4-10?

The nominal impedance is 4 ohms.

What size hole should I cut for mounting?

The required mounting diameter is 9.05 inches (230 mm). A template can be found at www.rockfordfosgate.com.

Does the speaker come with a grille?

Yes, the PPS4-10 includes a grille/trim ring.

How do I connect the speaker wires?

Observe proper polarity: the positive terminal is marked with a +. Use high-quality connectors for best performance.

What is the mounting depth required?

The mounting depth is 4.17 inches (106 mm). Ensure the installation location has enough clearance.

How can I prevent hearing damage?

Practice Safe Sound: continuous exposure to sound levels over 100 dB can cause permanent hearing loss. Use common sense.

What is the warranty length?

The warranty period is 1 year for speakers. See your authorized dealer for details.

How do I obtain warranty service?

Contact the Authorized Rockford Fosgate Dealer from whom you purchased the product. If needed, call KING CARGO S.A. Customer Service at 507-4302122 and obtain an RA# before returning.

Can I install the speaker in a boat?

Yes, but take care not to cut or drill through the main hull, and avoid running wires over sharp edges. Use grommets for protection.

USER MANUAL Punch PPS4-10 Rockford Fosgate

Installation & Operation

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

CARTON CONTENTS

• (I) Pc Punch Series Mid Range Speakers
• (I) Pair of grilles/trim rings
- Mounting Hardware

INSTALLATION CONSIDERATIONS

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers in place.
4. Use high quality connectors for a reliable installation and to minimize signal or power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

MOUNTING

1. Determine where the speakers will be mounted. Ensure an area large enough for the speaker to mount evenly. Be sure that the mounting location is deep enough for the speaker to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model. Cutting and mounting templates can be found at www.rockfordfosgate.com.
3. Mark the locations for the mounting screws. Drill the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals. Be sure to observe proper polarity when connecting the wires. The speaker's positive terminal is indicated with a "+".
   5a. On models with slotted holes, fit the speaker into the cutout and install the screws in the slots at the top and bottom. This will allow you to rotate the speaker to match the remaining mounting holes. When aligned, tighten the screws.
   5b. On models with a trim ring, fit the trim ring over the speaker and mount into place using four (4) screws.
5. Tighten the screws until the speaker is snug in place to prevent rattling. Do not over tighten the screws.

SPECIFICATIONS

	PPS4-6	PPS4-8	PPS4-10
Nominal Diameter - inch (mm)	6.5” (165)	8” (203)	10” (254)
Description	6.5” Mid range speaker	8” Mid range speaker	10” Mid range speaker
Nominal Impedance (ohms)	4Ω	4Ω	4Ω
Frequency Response (Hz)	85-5KHz	80-5KHz	40-4KHz
Voice Coil Diameter - inch (mm)	1.53”(38.7)	2.0”(49.5)	2.58” (65.5)
Fs - Free Air Resonance (Hz)	85	80	53.5
Qts	0.36	0.34	0.26
Vas - cu. ft. (Liter)	0.24ft3 (6.9)	0.54ft3 (15.2)	1.24ft3 (35.2)
Xmax - inch (mm)	0.04” (1.0)	0.04” (1.0)	0.18” (4.6)
SPL (dB @ 1w/1m)	92.5	94.5	96
Power Handling-Watts (RMS / Peak)	100 W / 200 W	125 W / 250 W	350 W / 700 W
Mounting Diameter-inch (mm)	5.67” (144.00)	7.12” (180.87)	9.05” (230.00)
Mounting Depth-inch (mm)	2.24” (56.80)	2.91” (74.00)	4.17” (106.00)
Includes Grille/Trim ring	Y	Y	Y
Trim Ring Diameter-inch (mm)	6.69” (170.00)	8.35” (212.00)	10.87” (276.00)
Trim Ring Height-inch (mm)	0.66” (16.84)	0.92” (23.24)	1.03” (26.05)

	PPS8-6	PPS8-8	PPS8-10
Nominal Diameter - inch (mm)	6.5” (165)	8” (203)	10” (254)
Description	6.5” Mid range speaker	8” Mid range speaker	10” Mid range speaker
Nominal Impedance (ohms)	8Ω	8Ω	8Ω
Frequency Response (Hz)	85-5KHz	80-5KHz	40-4KHz
Voice Coil Diameter - inch (mm)	1.53”(38.7)	2.0”(49.5)	2.58” (65.5)
Fs - Free Air Resonance (Hz)	87	82	56.5
Qts	0.45	0.50	0.30
Vas - cu. ft. (Liter)	0.24ft3 (6.9)	0.54ft3 (15.2)	1.20ft3 (34.1)
Xmax - inch (mm)	0.04” (1.0)	0.04” (1.0)	0.19” (4.7)
SPL (dB @ 1w/1m)	91.5	93	95
Power Handling-Watts (RMS / Peak)	100 W / 200 W	125 W / 250 W	350 W / 700 W
Mounting Diameter-inch (mm)	5.67” (144.00)	7.12” (180.87)	9.05” (230.00)
Mounting Depth-inch (mm)	2.24” (56.80)	2.91” (74.00)	4.17” (106.00)
Includes Grille/Trim ring	Y	Y	Y
Trim Ring Diameter-inch (mm)	6.69” (170.00)	8.35” (212.00)	10.87” (276.00)
Trim Ring Height-inch (mm)	0.66” (16.84)	0.92” (23.24)	1.03” (26.05)

See figures on following pages.
Specifications subject to change without notice

SPECIFICATIONS
PPS4-6 PPS8-6

SPECIFICATIONS
PPS4-8 PPS8-8

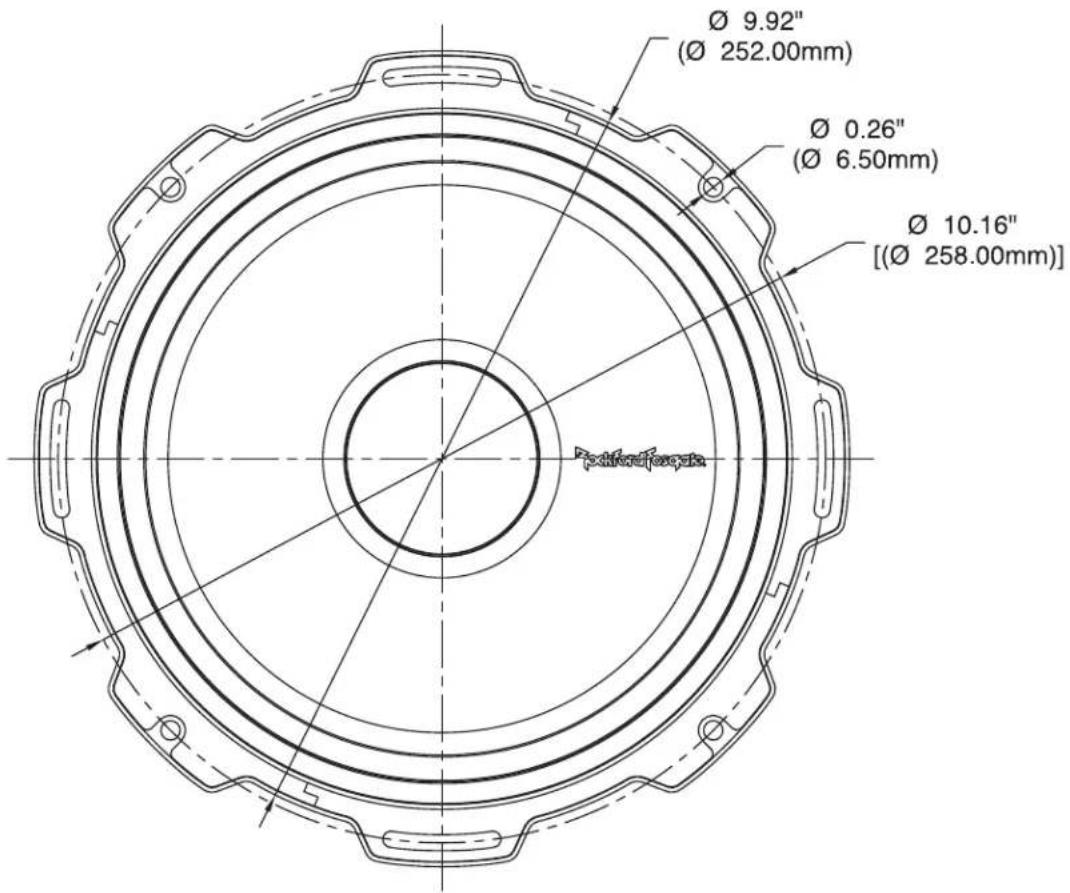

SPECIFICATIONS
PPS4-10 PPS8-10

Français

Rockford Corporation and King Cargo S.A. offer a limited warranty on lincensed Rockford Fosgate products on the following terms:

Length of Warranty

Speakers - 1 Year.

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Distributors Latin America. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer. In order to receive service, the purchaser must provide KING CARGO S.A. with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping

1. Any cost or expense related to the removal or reinstallation of product

2. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center

4.Any product which has had the serial number defaced, altered, or removed

1. Subsequent damage to other components

6.Any product purchased from a non Authorized Rockford Fosgate Distributor

7.Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 507-4302122 for KING CARGO S.A. Customer Service.You must obtain an RA# (Return Authorization number) to return any product to KING CARGO S.A.,You are responsible for shipment of product to KING CARGO S.A.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.
