M-RBC-1 - Remote control JL Audio - Free user manual and instructions

Product Type	Remote Bass Control
Brand	JL Audio
Model	M-RBC-1
Compatibility	JL Audio amplifiers with Remote Bass Port (especially HX & MHX series)
Water Resistance	Yes, water-resistant design for marine/outdoor use
Mounting Hole Diameter	3/8 inch (9 mm)
Maximum Panel Thickness	1/8 inch (3.2 mm)
Minimum Depth Behind Panel	3/4 inch (19 mm)
Required Area Behind Panel	1 1/8 x 1 1/8 inches (28 x 28 mm)
Shaft Depth Adjustment	Yes, via included extra washers and nuts
Control Type	Rotary knob with pointer
Knob Pointer Position (Min Bass)	7:00 when fully counter-clockwise
Connection	Wired control cable with waterproof connector (for HX/MHX amps)
Installation Tool	12 mm deep-well socket or wrench
Included Accessories	Knob, extra washers, extra nuts
Power Supply	From amplifier via control cable (no battery)
Power Consumption	Negligible (passive control)
Maintenance	Clean with a soft, damp cloth; avoid harsh chemicals
Safety Note	Do not over-tighten mounting nut, especially on plastic surfaces
Repairability	No user-serviceable parts; replace if defective
Spare Parts Included	Extra washers and nuts for depth adjustment
Application	Marine and automotive audio systems

Frequently Asked Questions - M-RBC-1 JL Audio

What is the JL Audio M-RBC-1?

The M-RBC-1 is a water-resistant remote bass control designed for JL Audio amplifiers with a Remote Bass Port, especially the HX and MHX series monoblock amplifiers.

Which JL Audio amplifiers are compatible with the M-RBC-1?

It is compatible with JL Audio amplifiers equipped with a Remote Bass Port, and specifically designed for the HX and MHX water-resistant monoblock models.

How do I install the M-RBC-1 remote control?

Drill a 3/8 inch (9 mm) hole in the mounting panel. Insert the shaft from behind, attach the knob, and adjust depth using extra washers and nuts if needed. Tighten the front nut with a 12 mm deep-well socket, being careful not to overtighten on plastic surfaces.

Is the M-RBC-1 waterproof?

It is water-resistant, not fully waterproof. It is designed to withstand splashes and marine environments, but should not be submerged.

What tools are needed for installation?

You will need a 3/8 inch drill bit, a 12 mm deep-well socket or wrench, and possibly a screwdriver for the knob set screw (if applicable).

Can I use the M-RBC-1 with non-JL Audio amplifiers?

No, the M-RBC-1 is designed only for JL Audio amplifiers with a dedicated Remote Bass Port. It may not work with other amplifiers.

How do I adjust the bass level using the M-RBC-1?

Turn the knob clockwise to increase bass, and counter-clockwise to decrease. The minimum bass position is with the pointer at 7:00 (fully counter-clockwise).

What does the pointer on the knob indicate?

The pointer shows the current control position. It should be set to 7:00 when the control is fully counter-clockwise (minimum bass).

Is there any risk of damaging the amplifier with this remote?

No, the M-RBC-1 is a passive device that only varies resistance. When used correctly, it will not damage the amplifier.

Where can I download the user manual for the M-RBC-1?

The manual is available as a free PDF download on JL Audio's official website or at notice-facile.com.

USER MANUAL M-RBC-1 JL Audio

M-RBC-1: Installation Instructions

Water-Resistant Remote Bass Control for JL Audio Amplifiers

Compatible with JL Audio amplifiers equipped with "Remote Bass Port" feature, and specifically designed for use with HX & MHX water-resistant monoblock amplifiers.

Installation Procedure:

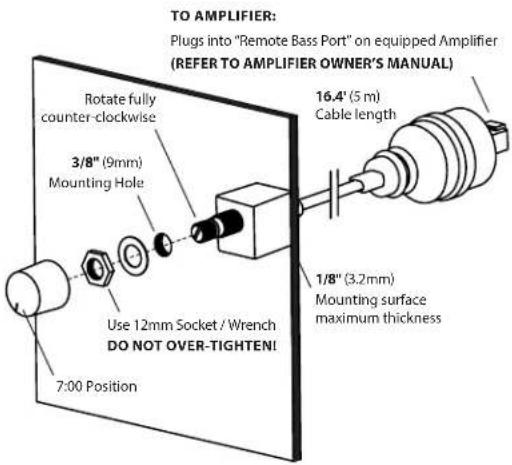

1. Find an appropriate location to mount the control assembly on the dash or console of the vehicle/vessel. You will need access to the rear of the mounting panel for installation. The area will require the following minimum and maximum dimensions:

Area Behind Panel: 1 1/8" square x 3/4" deep (28mm x 28mm x 19 mm) Mounting Panel Thickness: 1/8" (3.2mm) maximum

1. Drill a 3/8" (9mm) hole in the center of the mounting area.

2. Remove the knob from the M-RBC-1's shaft. Do NOT remove the nut and washer.

3. Insert the M-RBC-1's shaft through the drilled hole from behind the panel and place the knob on the shaft from the front, pushing it as far as it will go.

4. If the knob does not fit flush to the panel, remove the M-RBC-1 and use one of the extra washers or nuts (or both) to space the assembly back from the panel until the knob is flush. Once the appropriate shaft-depth has been achieved, remove the knob.

5. Place the remaining nut and washer on the front of the shaft and tighten with a 12 mm deep-well socket or wrench. Take care not to over-tighten this nut, especially when attaching the M-RBC-1 to a plastic surface.

6. Place the knob on the shaft so that the pointer is at 7:00 with the control turned fully counter-clockwise.

7. Route the control cable to the amplifier and connect the end to the jack labeled "Remote Bass Control". For use with HX/MHX amplifiers, the connector includes a waterproof covering to pull over the amplifier's remote jack once connected.

8. Refer to the Amplifier Owner's Manual for an explanation of control operation.
