MXA60L - Loudspeaker Memphis Audio - Free user manual and instructions

Product Type	6.5" Coaxial Marine Speaker with RGB LED
Brand	Memphis Audio
Model	MXA60L
RMS Power	50W
Peak Power	100W
Sensitivity	88 dB
Magnet Weight	10 oz
Mounting Depth	2.5 inches (63.5 mm)
Overall Diameter	6.5 inches (165 mm)
Mounting Cutout	5.04 inches (128 mm)
Tweeter	Swivel mount aluminum dome tweeter
Cone Material	Injection molded poly cone
Surround Material	Butyl rubber
Housing	Cast plastic with integrated crossover
Grills	RGB LED equipped grills with gunmetal and white mesh inserts
UV Resistant Coating	Yes
Water Resistant	Yes (marine grade)
Marine Grade Construction	Engineered for extreme environments
Warranty	2 years (installed by authorized dealer), 1 year otherwise
Recommended Use	Marine, outdoor, and automotive audio systems

Frequently Asked Questions - MXA60L Memphis Audio

What is the power handling of the MXA60L?

The MXA60L has an RMS power handling of 50 watts and a peak power handling of 100 watts.

Are the grills included with RGB LEDs?

Yes, the MXA60L comes with RGB LED equipped grills. The package includes both gunmetal and white mesh grill inserts.

Is this speaker water resistant?

Yes, the MXA60L features water resistant construction with a UV resistant coating, making it suitable for marine environments.

What is the mounting depth?

The mounting depth is 2.5 inches (63.5 mm). The required mounting cutout diameter is 5.04 inches (128 mm).

Can I use these speakers in a boat?

Absolutely. The MXA60L is designed with marine grade construction, including water resistance and UV protection, making it ideal for boats and other outdoor applications.

How do I connect the RGB LEDs?

The RGB LEDs require a separate controller or connection to an RGB source (not included). Consult the installation manual for wiring details. The LEDs are built into the grills.

What tools are needed for installation?

Basic tools include a screwdriver, wire strippers, and a drill with a hole saw for the mounting cutout. Speaker wire and appropriate fasteners are also required.

How long is the warranty?

The warranty is 2 years from the date of purchase if installed by an authorized Memphis Audio dealer. If purchased but not installed by an authorized dealer, the warranty is 1 year.

What is not covered under warranty?

The warranty does not cover damage from improper installation, exposure to moisture or excessive heat, chemical cleaners, UV radiation, negligence, misuse, accident, abuse, amplifier clipping, altered serial numbers, or shipping damage. It also does not cover removal or reinstallation costs.

How do I register my product?

Visit www.memphiscaraudio.com/register to register your MXA60L. Registration allows you to receive news updates and a chance to win free Memphis Audio gear.

USER MANUAL MXA60L Memphis Audio

Two white speaker wheels with blue LED patterns, shown from front and side views (no text or symbols visible)

Two circular industrial grills with visible protective mesh, one black and one white, displayed against an orange background (no text or symbols on the grills themselves)

Engineered For Xtreme Environments

MXA60L

6.5" Coaxial Speakers With RGB LED

Marine Grade Construction

MEMPHIS

XTREME AUDIO

50/100

RMS/PEAK POWER

MEMPHIS

AUDIO SINCE 1945

MXA60L 6.5" Coaxial Speakers - LED

www.memphiscaraudio.com

Memphis Audio

122 Gayoso Ave

Memphis,TN 38103

P.800.489.2300

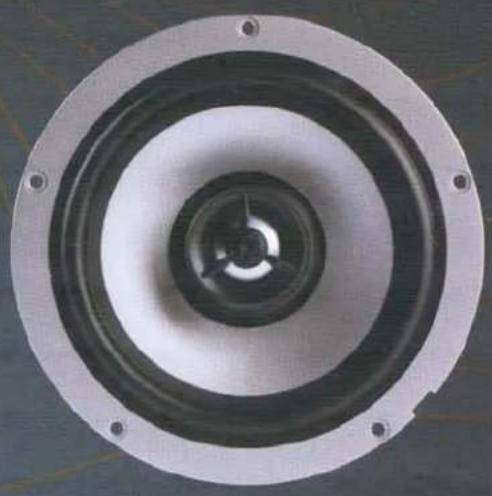

Close-up of a speaker cone with concentric rings and mounting holes (no text or symbols visible)

Abstract circular logo with a stylized letter 'M' in yellow and black, surrounded by blue and orange gradient (no text or symbols)

MEMPHIS

AUDIO SINCE 1965

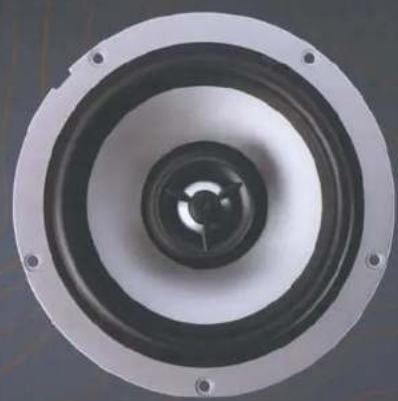

Close-up of a speaker cone with concentric rings and mounting holes (no text or symbols visible)

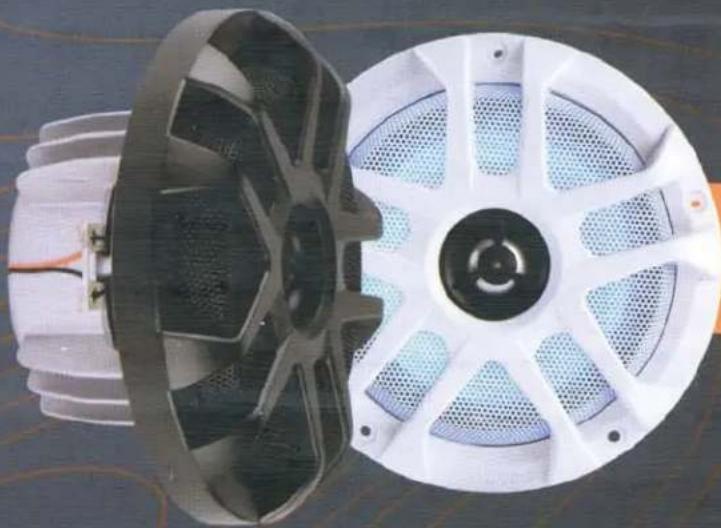

RGB LED Equip ped

Gunmetal & White grills with removable mesh Included.

Close-up of a white and black mechanical component with circular blades and a central hub (no text or symbols visible)

FEATURES

• Swivel mount aluminum dome tweeter
• RGB LED equipped grills included
- Mesh grill inserts included (gunmetal & white)
• Injection molded poly cone
- Butyl rubber surround
- Cast plastic housing w/ integrated crossover
- UV resistant coating
- Water resistant

Abstract circular logo with a stylized letter 'M' in yellow and black, surrounded by a blue ring (no text or symbols)

MEMPHIS

AUDIO SINCE 1965

SHOW US YOUR INSTALL!

MemphisAudio

Instagram logo icon with camera symbol inside a circular frame (no text or symbols)

Facebook logo icon, stylized lowercase 'f' inside a dark circle (no text or symbols)

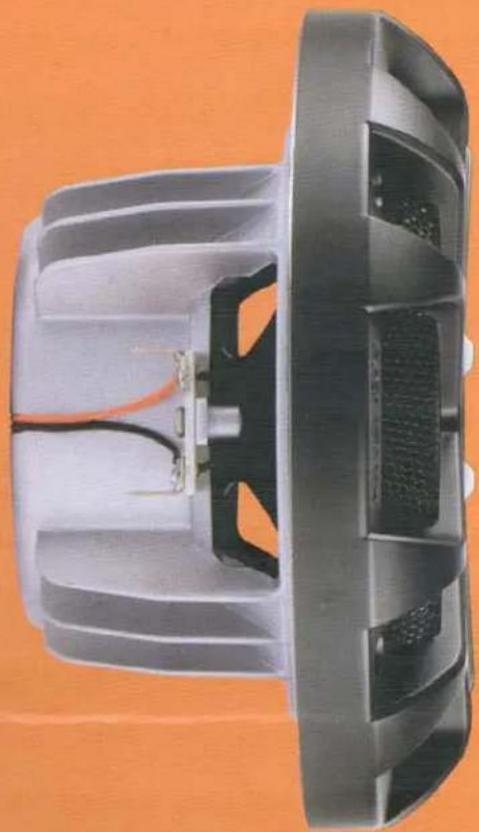

Close-up of a black and gray electronic device with visible internal components and wiring (no text or symbols)

6.5"

MXA60L

Size (in)	6.5
RMS / PEAK (w)	50/100
Sensitivity (dB)	88
Magnet Size (oz)	10
Mounting Depth (in)	2.5

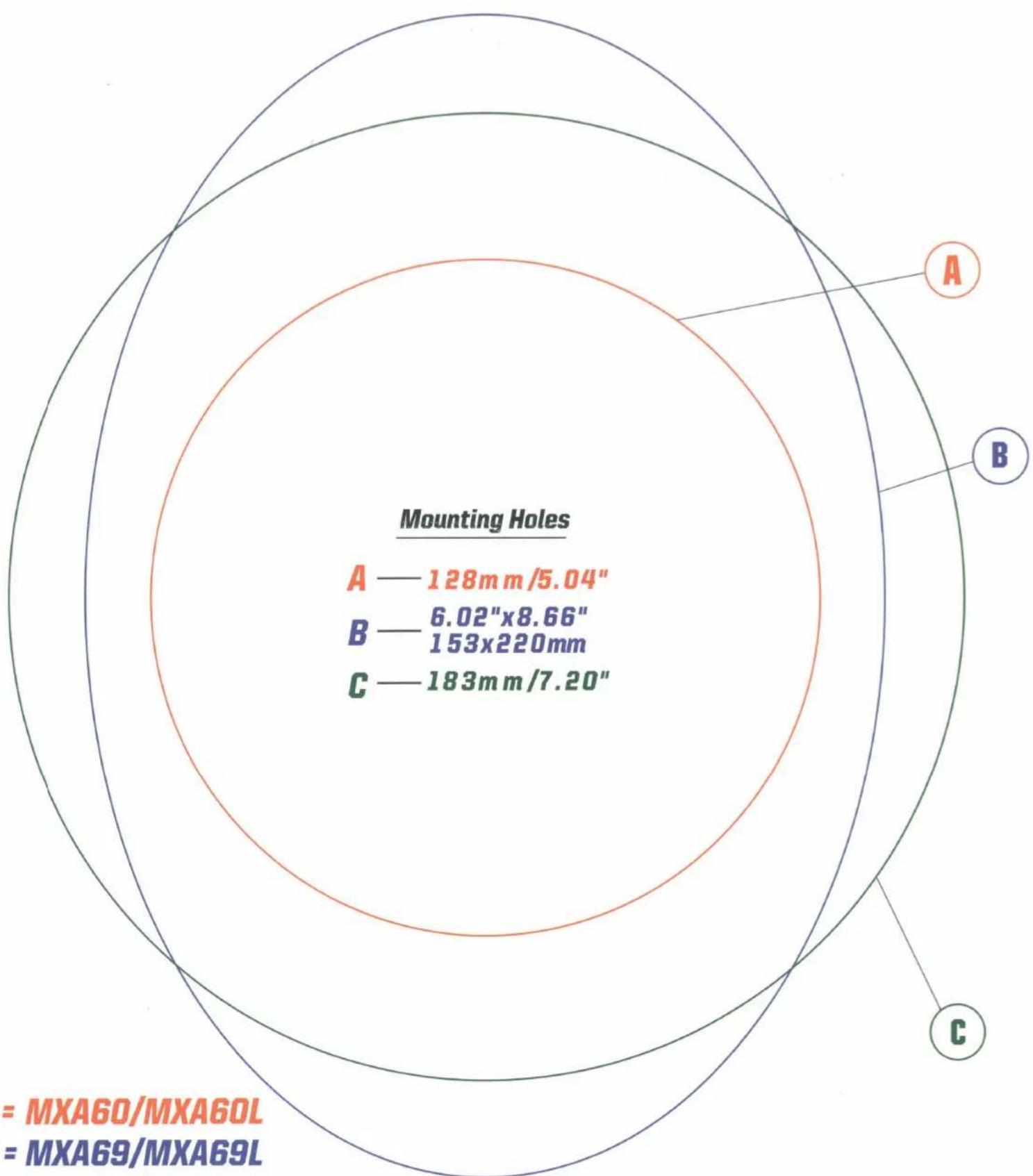

MXA60/MXA60L, MXA69/MXA69L, MXA80/MXA80L Mounting Templates

Established 1965, Memphis, TN, USA

MEMPHIS

THIS CARD MUST ACCOMPANY YOUR SHIPMENT SHOULD SERVICE BE REQUIRED

MODEL# SERIAL#

STREET ADDRESS

DEALER NAME

PURCHASER NAME

CITY STATE ZIP

DATE PURCHASED

DESCRIBE PROBLEM IN DETAIL

EMAIL

PHONE

Visit WWW.MEMPHISCARAUDIO.COM/REGISTER to register your product with Memphis Audio and receive news updates and a chance to win FREE memphis Gear!

FOLLOW US:

@MEMPHISCARAUDIOUSA

@MEMPHISCARAUDIO

Please call 800-489-2300 to obtain the required Return Authorization number. Include this number in your package along with a copy of your receipt and send to:

AFCO Inc.

Attn: (Insert your Return Authorization Number heere)

300 Regency Drive

Glendale Heights, IL 60139

MEMPHIS

MEMPHIS XTREME

LIMITED WARRANTY

Memphis Audio warranties this product for defects in material or workmanship for 2 years from the date of purchase when installed by an authorized Memphis Audio Dealer. If purchased from but not installed by an authorized dealer, the warranty is 1 year. This warranty is void if the product has been physically damaged by improper use or abuse, or if repairs have been attempted outside of a Memphis Audio repair facility.

This warranty is limited to the original retail purchaser and does not cover any expense incurred in the removal or re-installation of the product. This warranty does not apply to product exterior and cosmetics. Memphis Audio disclaims any liability for incidental or consequential damages caused by product defects. Memphis Audio's liability will not exceed the purchase price of the product and the warranty period specified.

What is NOT Covered under this warranty

• Damage due to improper installation
- Damage Caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation
- Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse.
- Product damaged in an accident and/or due to criminal activity
• Service performed by anyone other than Memphis Audio
- Subsequent damage to other components
- Any cost or expense related to the removal or re-installation of product
- Speakers damaged due to amplifier clipping or distortion
- Products with tampered, missing, altered or defaced serial number labels
- Freight damage
• The cost of shipping product to Memphis Audio
- Return shipping on non-defective items
• Any product not purchased from an Authorized Memphis dealer
• Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights and you may have other rights which vary from state to state.

If warranty service is require, a return authorization number is required to return the product to Memphis Audio/AFCO, Inc. Warranty shipments to Memphis Audio are the responsibility of the purchaser. Pack the product carefully in the original carton if possible. Memphis Audio will NOT be responsible for damages incurred in shipment or due to improper packaging materials used by the purchaser.

If determined to be in warranty, product will be repaired or replaced at the discretion of Memphis Audio.
