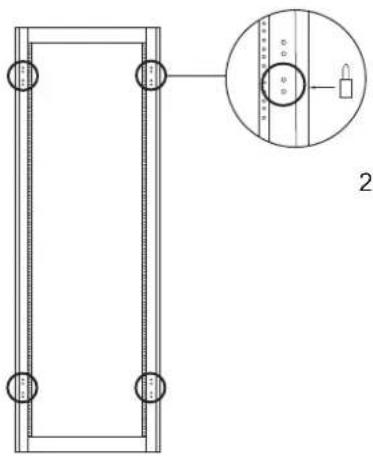

1) Determine door swing in order to know what side to install hinges. (FIGURE A)

NOTE: If two sets of mounting holes are present, use the lower holes.

FIGURE A

2) Knock out cover plate (if installed) and discard. (FIGURE B)

Pure technical line drawing of a mechanical bracket with mounting holes and a small inset detail (no text or symbols)

FIGURE B

3) Install male hinge to the enclosure. (FIGURE C)

NOTE: Hinge post ships with washer preinstalled. If the washer has come off during shipping, it must be reinstalled.

Technical line drawing of a mechanical component with no visible text or symbols

FIGURE C

4) Install screws using a #2 Phillips driver. Install decorative cap. (FIGURE D)

Technical line drawing of a mechanical component with a cylindrical assembly and a spring-like tool (no text or symbols)

FIGURE D

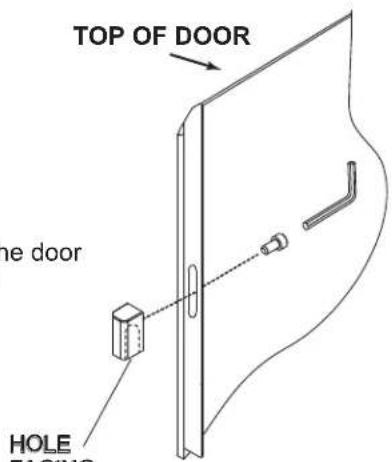

5) Install female hinge to the door using provided hex key. (FIGURE E)

FIGURE E

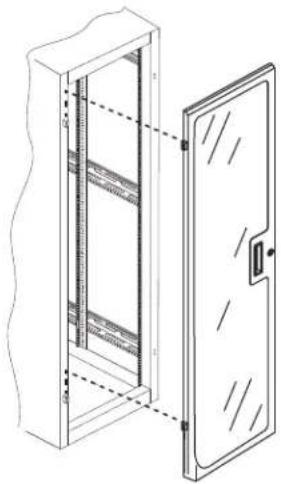

6) Install the door. (FIGURE F)

Technical line drawing of a cabinet with internal shelves and an open door (no text or symbols)

FIGURE F

Middle Atlantic Products I-00033 Rev L
