USER MANUAL SH-BRK Middle Atlantic

FEATURES: Quick-Position ^™ Shelf (SH-BRK) mounts without rack screws and accepts rear mounting of power (PD-815SC or PD-815SC-NS).

Hardware Included (per shelf):

Qty

4

Description

2

Pins

Wood Screws

4

Nuts

4

Studs

2

Rear Brackets

1

Wrench

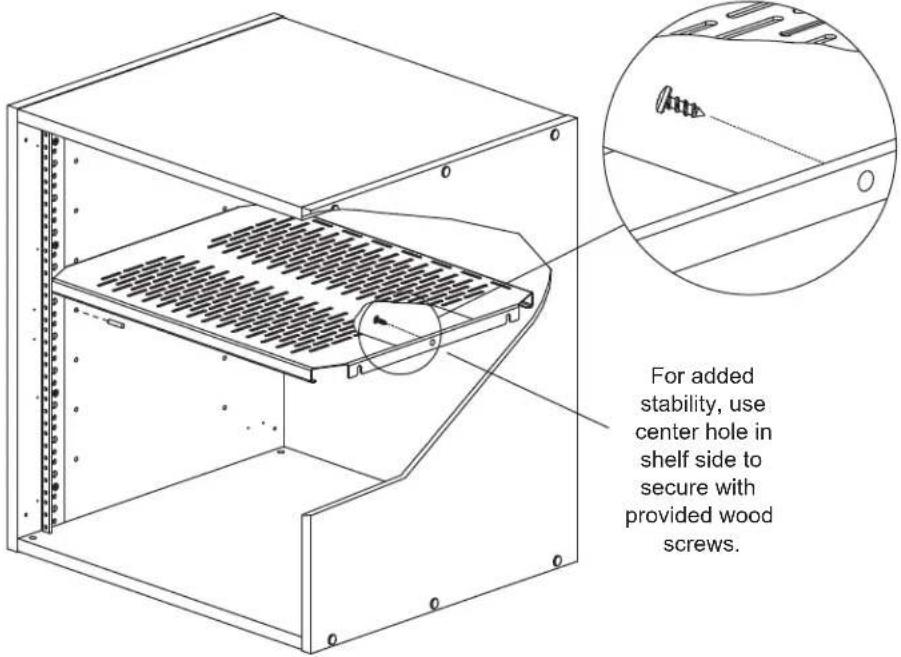

For added stability, use center hole in shelf side to secure with provided wood screws.

1) Select location for shelf.
2) Install 4 pins (Insert fully).
3) Install shelf.
4) Install wood screws where shown if added stability is desired.

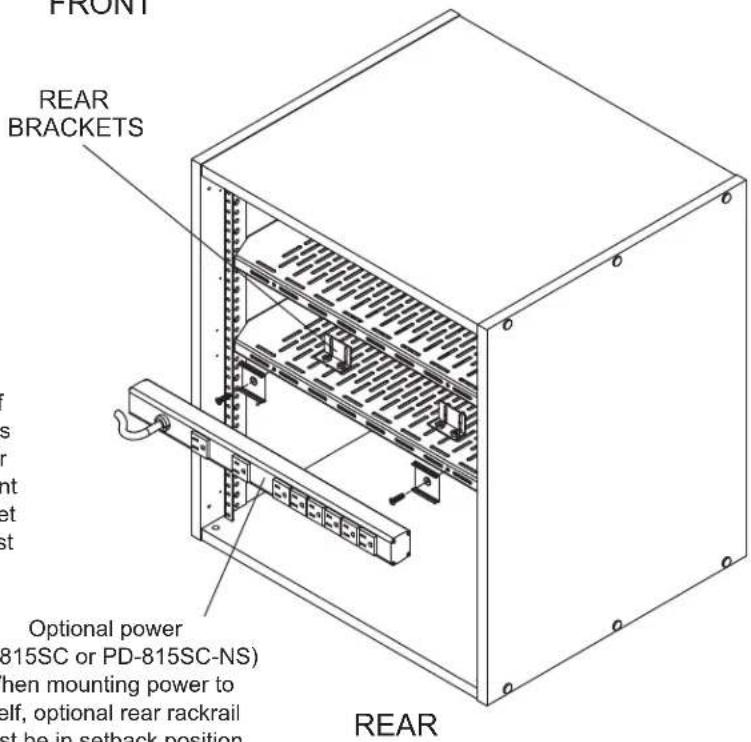

5) Using the wrench provided, install rear brackets to prevent component from sliding back (Rear Brackets can be mounted 4 different ways).

Simple line drawing of a rectangular frame with a horizontal double-headed arrow at the center (no text or symbols)

NOTE: Shelves can be used with or without rackrail installed

FRONT

shelf cables power mount er reset against ack)
Optional power (PD-815SC or PD-815SC-NS) When mounting power to shelf, optional rear rackrail must be in setback position

I-00193

Rev B

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the SH-BRK to be free from defects in material or workmanship under normal use and conditions for a period of (7) seven years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other parties) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
