USER MANUAL ALFSWD Hoffman

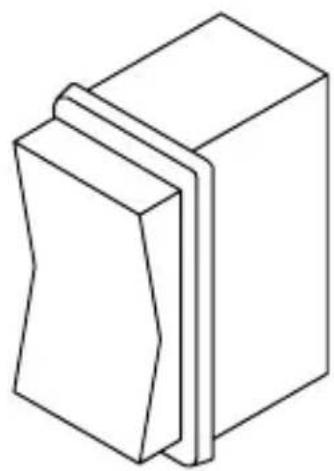

Simple line drawing of a toggle switch or lever mechanism (no text or symbols)

Simple line drawing of a 3D rectangular block with a folded corner (no text or symbols)

GENERAL SAFETY INFORMATION

1. Before installing switches, read these instructions carefully. Failure to follow instructions could damage the product or cause a hazardous condition.
2. Route supply wires away form door hinge, sharp edges, etc.

WARNING

Black and white icon of a hand with lightning bolts and a curved line above it (no text or symbols)

To avoid electric shock and equipment damage, disconnect any power supplies to the enclosure before installing the switch. Do not energize any circuits before all internal and external electrical and mechanical clearances are checked to assure that all assembled equipment functions safely and properly.

Before drilling mounting holes, check all mechanical and electrical clearances to verify latch rods and other enclosure accessories will operate freely without interference.

1(1x)	2(1x)	3(2x)
4 6-32x.625(2x)	5(2x)

Español

Black and white illustration of a hand with lightning bolts and a plug, symbolizing electrical hazard (no text or symbols)

1. All wiring must comply with applicable national and local electrical codes and ordinances; all authorities having jurisdiction.
2. Connect the switch according to the electrical schematic shown below.

Español

CABLEADO

LOCATION AND MOUNTING

Door Switch (ALFSWD) Manual Switch (ALFSWM)

Note: Spacers (item 5) may have to be used if gasket or retainer interferes with the switch.

PROLINE®

1

Español

UBICACIÓN Y MONTAJE

Interruptor De la Puerta (ALFSWD) Interruptor Manual (ALFSWM)

2

LOCATION AND MOUNTING

Door Switch (ALFSWD) Manual Switch (ALFSWM)

Note: Spacers (item 5) may have to be used if gasket or retainer interferes with the switch.

1

Español

UBICACIÓN Y MONTAJE

Interruptor De la Puerta (ALFSWD) Interruptor Manual (ALFSWM)

1

2
NOTE: For the door to properly activate the door switch, the bracket (item 1) must be positioned to enable the door to push the plunger of the switch (item 2) a minimum of .13 inches (3 mm), but no more than .50 inches (13 mm).
