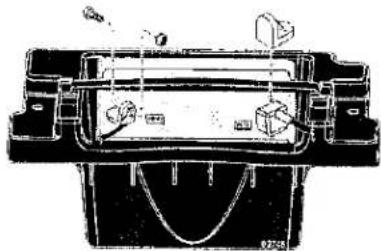

IV. VEDLIKEHOLD OG OPPBEVARING

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of an electronic device casing with internal components and wiring (no text or symbols)

Technical diagram of a vehicle rear panel with labeled component (no text or symbols present)

OBSERVERA!

Technical line drawing of a mechanical component with no visible text or symbols

JUSTERA AVSTÅNDSHJUL

Technical line drawing of a mechanical assembly with no visible text or symbols

F1 TUKIPYÖRIEN SÄÄTÖ

Reglagens placering

Isometric line drawing of a mechanical component with no visible text or symbols

SE 1. Belysningsströmbrytare
NO 1. Belysningsstrømbryter
DK 1. Lyskontakt tænd/sluk
FI 1. Valokytkin
PT 1. Interruptor das luzes
GR 1. Θέση διακόπτη προβολέων

Pure technical line drawing of a mechanical component with no text or symbols

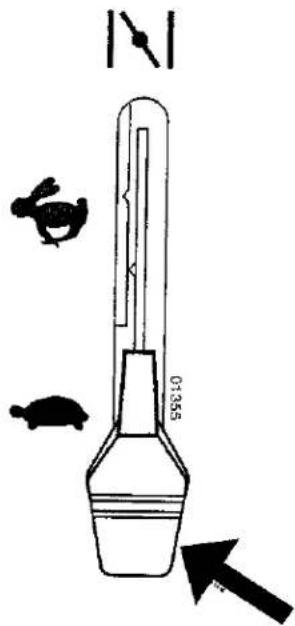

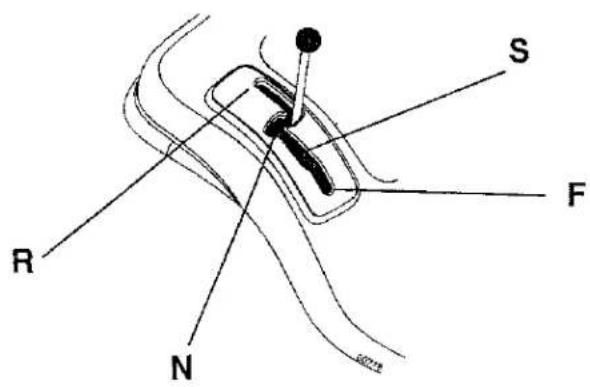

N = Neutral (ingen fremdrift)

S = Langsom kørsel

F = Hurtig kørsel

R = Bak

Black-and-white photo of a person wearing a helmet and glasses, with a magnified inset showing a hand pointing to the ear area (no visible text or symbols)

Close-up of mechanical components with a labeled section A (no readable text or symbols)

Abstract grayscale pattern with intersecting diagonal lines and a central dark region (no text or symbols)

7. Tändninglås

Close-up of a mechanical device with directional arrows indicating motion or movement (no visible text or symbols)

8. Parkeringsbroms

Two mechanical components with threaded ends, one black and one white, shown without any text or symbols.

SE 11. Chokereglage

Circular mechanical component with concentric rings and a central arrow, no visible text or symbols

Däckens lufttryck

5. Körning. 5. Kjøring. 5. Drift. 5. Ajo.

Close-up of a mechanical component with no visible text or symbols

Start av motor

Diagram of a mechanical lever mechanism with a handle and pivot, no text or symbols present

Two black mechanical components with threaded ends, one with a dimension label (0.15mm) and the other with a dimension label (0.15mm), shown without any text or symbols.

SE Drag ut chokereglaget (gäller endast om motorn är kall).
NC Trekk ut chokeregulatoren (bare dersom motoren er kald).
DK Træk chokeren ud (kun ved kold motor).
Fi Vedā kuristirvipu ulos (jos moottori on kylmä).
PT Desligue o afogador (se o motor estiver frio).
GR Τραβήξε προς τα έξω το χειριστήριο τσοκ (αν ο κινητήρας είναι κρύος).

Simple line drawing of a lamp with a bulb, two small fish, and a black arrow symbol (no text or labels)

SE Ved varm motor: indstil gashåndtaget på fuld gas
NO Vid varm motor: Skjut gasreglaget halvvågs mot fullgaslaget "F".
Ved varm motor: Skyv gasshändtaket halvveis mot full-gass-stilling "F".
© Moottorin ollessa lâmmin: Tÿönnä kaasuvipu puolivällin täyskaasuasennosta F.
Motor quente: Empurre o comando do gás até a metade do caminho para a posição de aceleração máxima ou posição "F".
Ζεστά μοτέρ: Πιέστε το χειριστήριο βενζίνης στη μισή διαδρομή προς τη θέση πλήρους βενζίνης.

5

VIKTIGT! KALLSTART AV HYDROSTATISK

FÖR TEMPERATURER UNDER 40°F (4°C). LÄT VÄXELLÄDAN VÄRMAS UPP UNDER 1 MINUT GENOM ATT LÄGGA IN NOLLANS VÄXEL OCH SLÄPPA UPP BROMSPEDALEN OCH KOPPLINGEN EFTER DET ATT MOTORN STARTATS/FÖRE KÖRNING.

VIKTIG! KOLDSTART FOR HYDROSTATISK

FOR TEMPERATURER UNDER 40°F (4°C). ETTER AT MOTOREN HAR BLITT SATT ! GANG OG F∅R DU BEGYNNER Å KJ∅RE, MÅ DU LA GIRKASSEN VARME OPPIETT (1) MINUTTVED APLASSERE GIRSPAKENI FRI OG SÅ SLIPPE BREMSEN/KL∅TSJEN.

VIGTIGT! KOLD START MED HYDROSTATISK TRANSMISSION

BEREGNET TIL TEMPERATURER UNDER 40°F (4°C). EFTER DU HAR STARTET MOTOREN, OG F∅R DU K∅RER, SKAL DU LADE TRANSMISSIONEN VARME OP I ET (1) MINUT VED AT ANBRINGE GEARSKIFTET I FRIGEAR OG UDL∅SE BREMSE/KOBLINGSPEDALEN.

TÄRKEÄÄ! HYDROSTAATTISEN VAIHTEISTON KYLMÄKÄYNNISTYS

LÄMPÖTILAN OLLESSA ALLE + 4 C TÄYTTY VAIHTEISTON ANTAA LÄMMETÄ YHDEN (1) MINJUTIN AJAN ENNEN AJOA. KAYNNISTÄ MOOTTORI, ASETA VAIHDE VAPAALLE JA VAPAUTA JARRU/KYKINPOLJIN JA ANNA VAIHTEISTON LÄMMETÄ MINJUTIN AJAN.

IMPORTANTE! PARTIDA A FRIO PARA TRANSMISSÃO HIDRAULICA

IMPORTANTE: PARTIDA A FRIO PARA TRANSMISSÃO HIDRÁULICA (ABAIXO DE 4°C) - APOS DAR A PARTIDA NO MOTOR E ANTES DE CONDUZIR, DEIXE A TRANSMISSÃO ESQUENTAR POR UM (1) MINUTO, COLOCANDO AALAVANCADE CONTROLE DE MOVIMENTO EM PONTO MORTO (N) E SOLTANDO O PEDAL DE FREIO.

Close-up of a mechanical component with a curved arrow indicating motion or force (no visible text or symbols)

Körning

System for Reversert Bruk (ROS)

Reverse Operation System (ROS) - Bak-

manovresystem

Illustration of a person riding a small wheeled vehicle on a slope (no text or symbols)

WARNING!

(2) Tilkopling for frontlys

DK (1) Hjelm

Technical line drawing of a mechanical assembly with shaft, housing, and mounting bracket (no text or labels)

Knivar

Technical line drawing of a mechanical assembly with a shaft and mounting bracket (no text or symbols)

Terät

Att byta ut gräsklipparens drivrem ATT AVLÄGSNA GRÄSKLIPPARENS DRIVREM

Byte av drivrem

INSTÄLLNING AV VÄXELSPAK I DEN MEKANISKA VÄXELN MED DIFFERENTIAL OCH FRAM-HJULSDRIFT

VAIHTEISTON VAIHDETANGON SÄÄTÖ
