USER MANUAL Ruti (Queen) JYSK

180 MIN.

Two identical black silhouette figures with crossed lines, no text or symbols present

Line drawings of four different types of tools or devices: a drill, screwdriver, a hammer, and a gavel (no text or symbols present)

Technical diagram showing warning symbol, three mechanical assembly diagrams with labeled components and crosslinking lines

JYSK Ruti (Queen) - 5

726-14-1123
RUTI

A x48M8X25MM	B x96M3.5X16MM	C x32M4X38MM	D x47M6X50MM
E x56	F x56	G x103	H x8
I x305/8	J x6		K x1
L x2400MM (16")		M x4450MM (18")

1 A x 48
Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts and section views.

2 F x 56
Technical diagram showing assembly steps of a mechanical component with labeled parts and numbered annotations

	726-14-1123			RUTI
3	B x 36	L x 2	M x 4






			8 - 20

	726-14-1123	RUTI

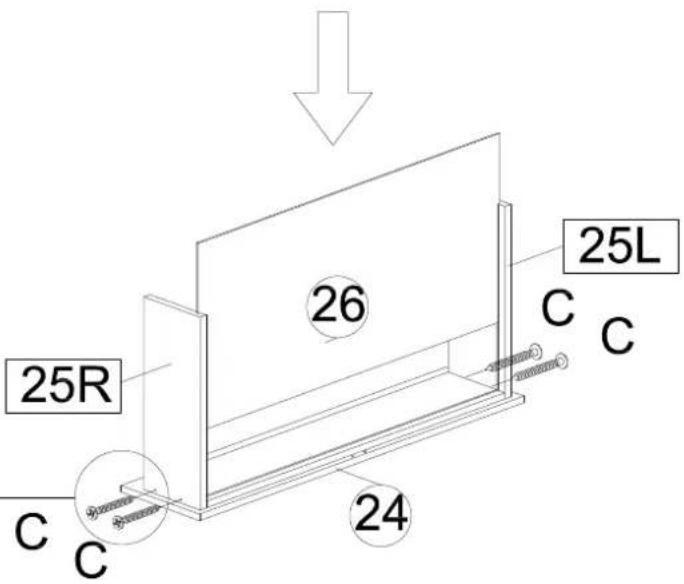

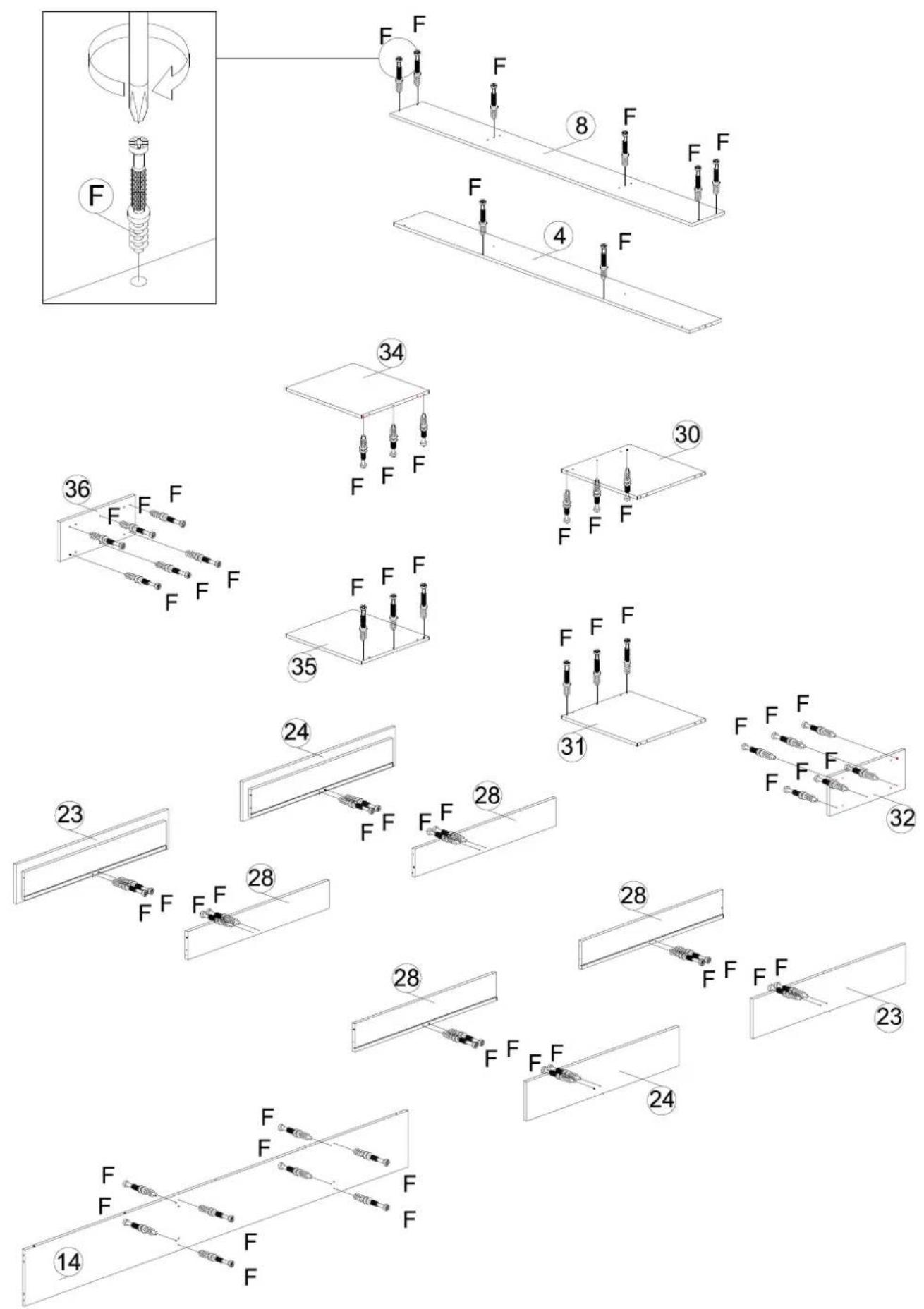

4	C x 16

	X2
	X2
		9 - 20

X2
X2

	726-14-1123			RUTI
5	C x 16	E x 16	G x 16	K x 1


X4
6	B x 24	M x 4


			10 - 20

10 - 20

	726-14-1123			RUTI

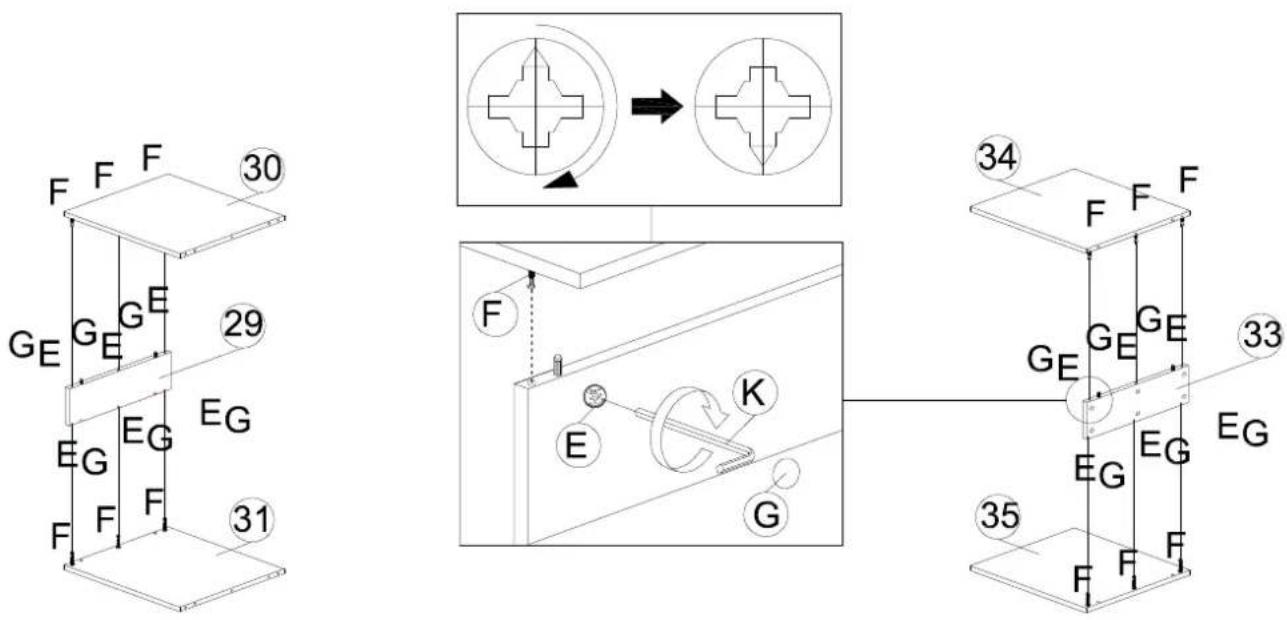

7	Ex 12	G x 12	K x 1

8	Ex 12	G x 12	K x 1

				11 - 20

		726-14-1123	RUTI
9	B x 12	L x 2

10	B x 12	J x 6

		12 - 20

	726-14-1123	RUTI

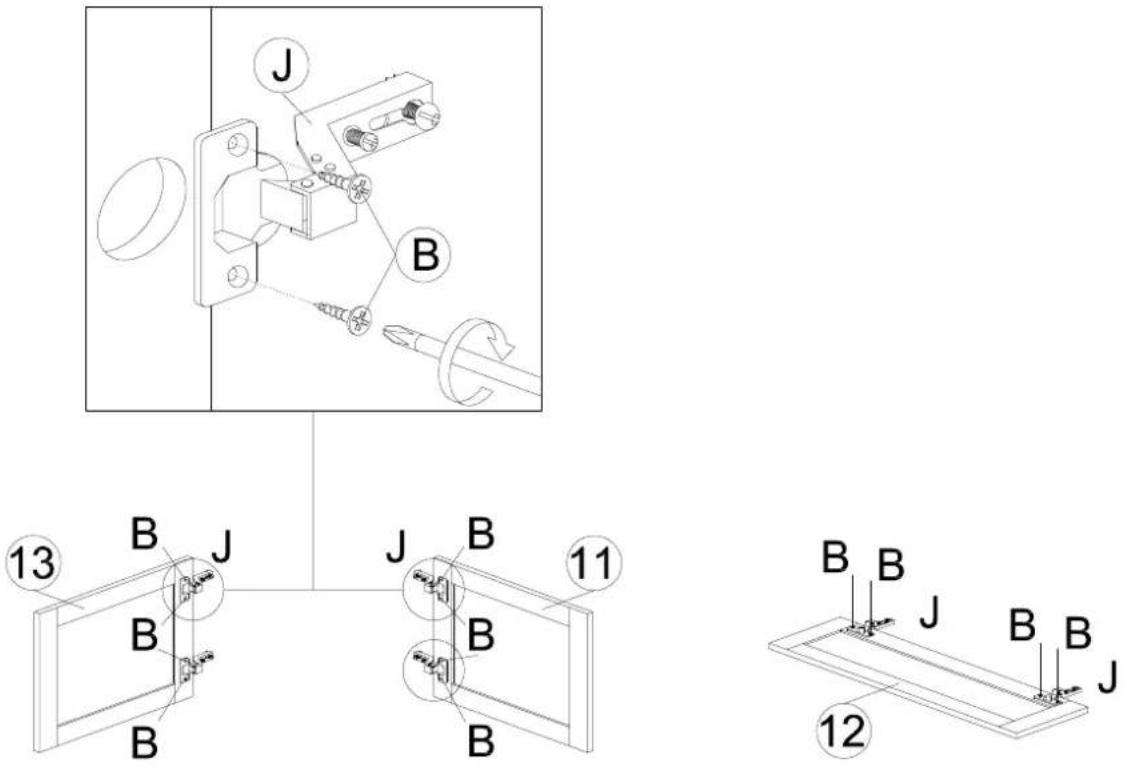

11	B x 12	J x 6

12	D x 2	G x 2 K x 1

	13 - 20
726-14-1123	RUTI

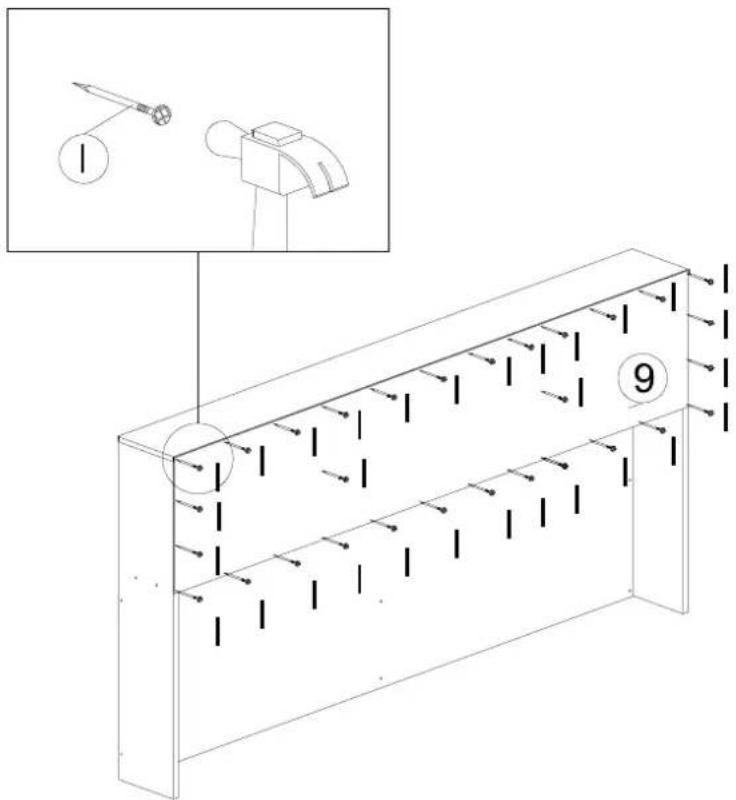

13 D x 8 E x 2 G x 10 K x 1

G K D 7 G D G D GD GD GD GD 6 E G 5 F G K E

14 - 20

	726-14-1123		RUTI
14	Ex 6	G x 6	K x 1

15	I x 30

	15 - 20

16 H x 8
Technical diagram of a mechanical assembly with labeled components and a magnified inset showing cylindrical and cylindrical parts.

Technical diagram showing a door lock assembly with numbered components and directional arrows indicating movement or force.

16 - 20

726-14-1123

RUTI

Line drawing of a multi-panel cabinet or enclosure with internal compartments and mounting brackets (no text or symbols)

Ex 8

G x 8

K x 1

Technical diagram illustrating a structural assembly with labeled components and directional arrows, including 15A, 15B, 16A, and 16B views.

726-14-1123

RUTI

D x 12

G x 12

Kx1

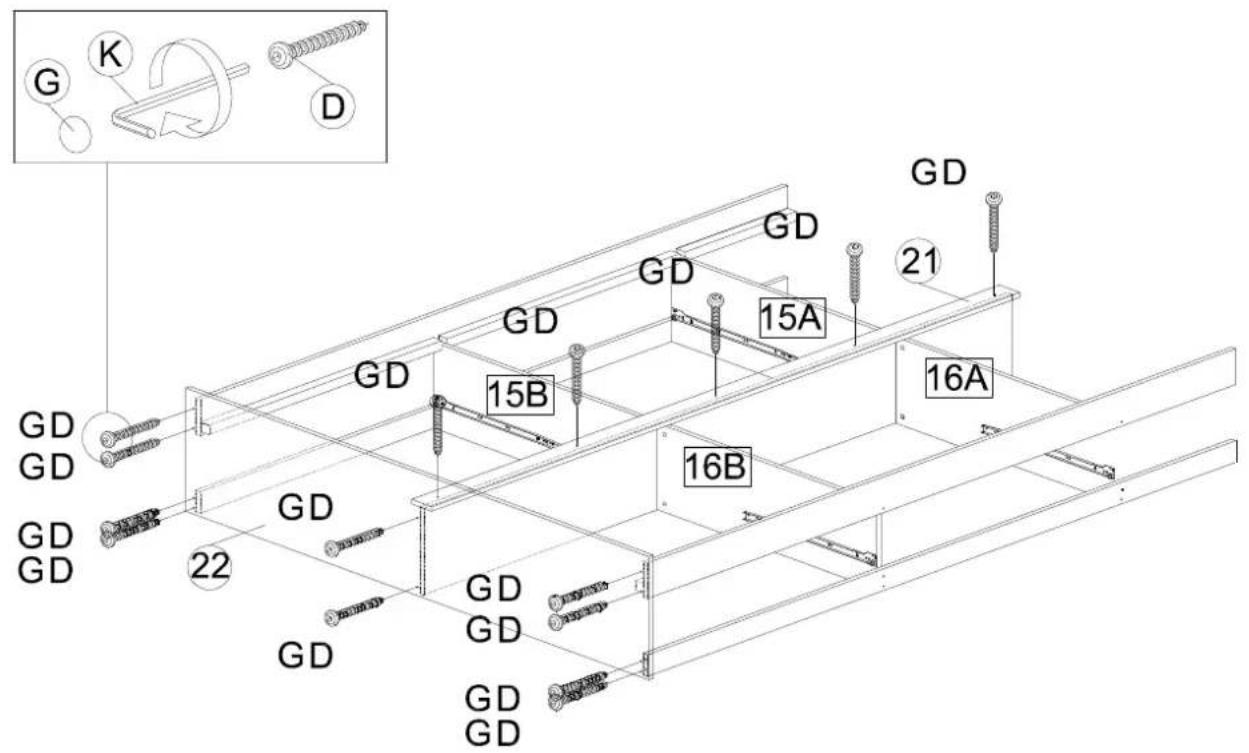

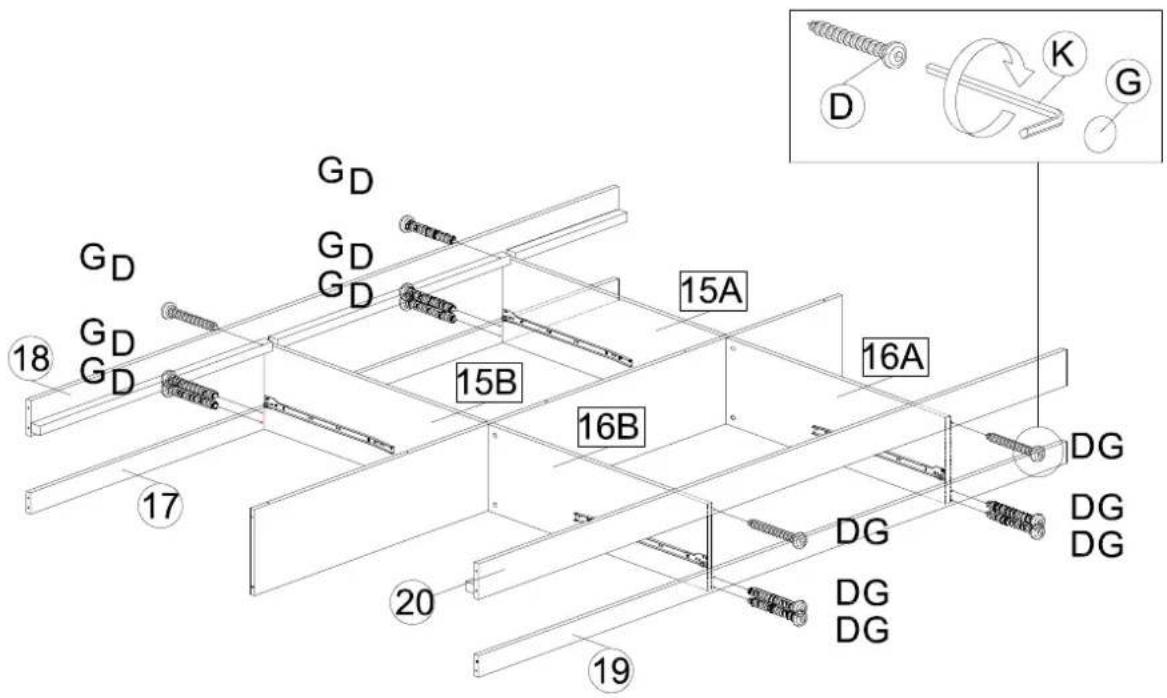

GD GD GD GD 18 GD GD 17 15A 15B 16A 16B 20 19 DG DG DG DG DG

D x 15

G x 15

Kx1

DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG DG

22

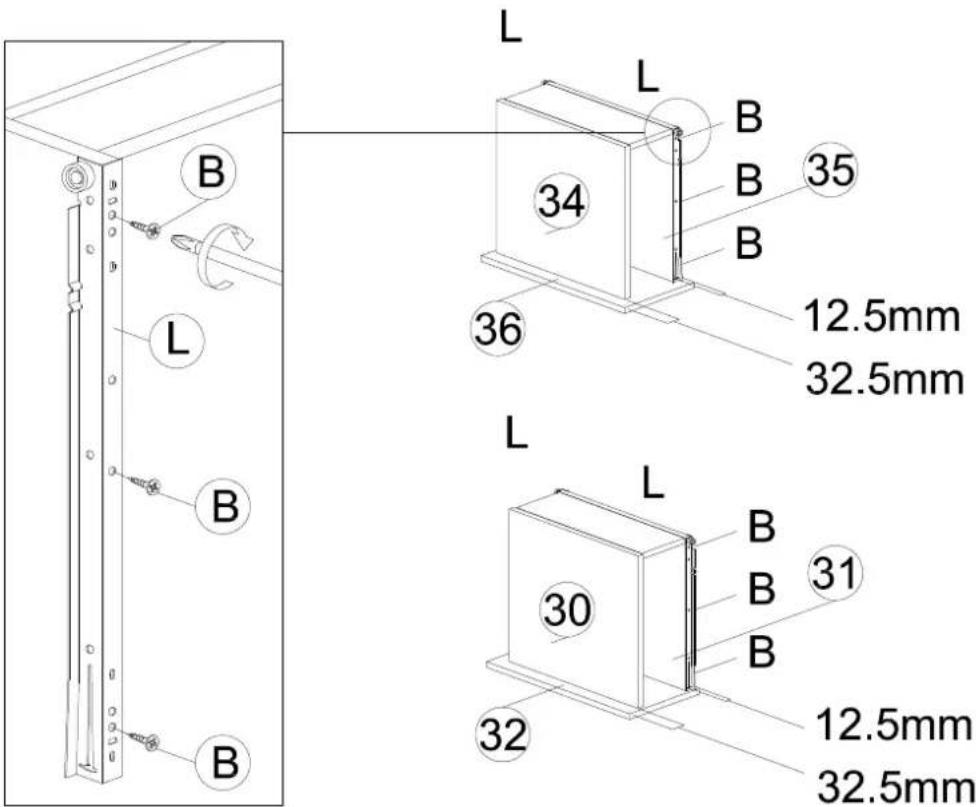

23 24 36 34 30 32 23 24

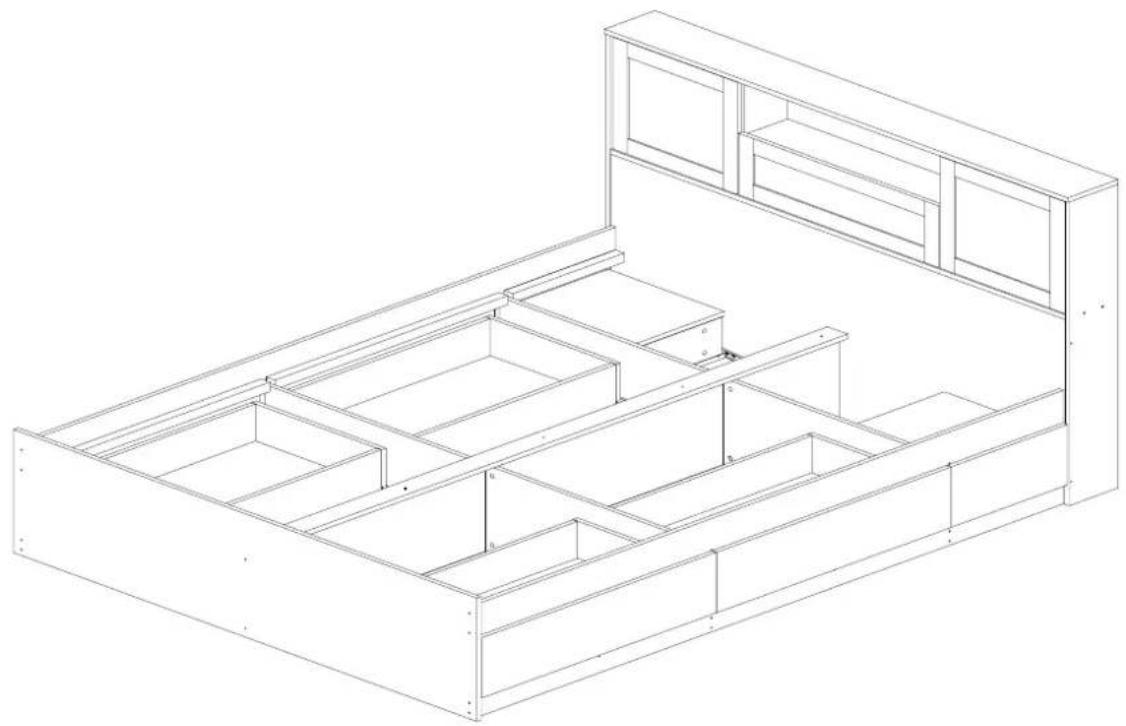

Isometric line drawing of a multi-level modular bed or shelf assembly (no text or symbols)
