Product Type	Backpack Leaf Blower
Brand	Tanaka
Model	TBL-505
Engine Displacement	44 ml (2.68 cu in)
Engine Type	Two-stroke, air-cooled
Fuel Type	Unleaded gasoline mixed with two-cycle oil (25-50:1 ratio; 50:1 for California)
Fuel Capacity	2 L (67.6 fl oz)
Dry Weight	10.0 kg (22.0 lbs)
Sound Pressure Level	93.3 dB(A)
Sound Power Level	100 dB(A)
Vibration Level	1.1 m/s²
Spark Plug	NGK BM-7A or BMR-7A (gap 0.6 mm / 0.024 in)
Air Filter	Oiled foam type
Idle Speed	2500-3000 rpm
Ignition Switch	On/Off
Blowing Pipe Attachment	Straight pipe, fan-headed pipe, flexible pipe, swivel pipe, bent pipe (optional)
Shoulder Harness	Included
Safety Features	Dust cover, guard, throttle lock, ignition switch
Recommended Protective Gear	Safety face shield/goggles, ear protection, dust filter mask, heavy pants, boots, gloves
Maintenance Interval (Air Filter)	Every 8 hours or daily
Maintenance Interval (Spark Plug)	Every 100 hours or as needed

Frequently Asked Questions - TBL-505 Tanaka

What is the fuel mix ratio for the Tanaka TBL-505?

The recommended fuel mix ratio is 25-50:1 (gasoline to oil) for most areas, and 50:1 for California. Use Tanaka two-cycle oil or a quality equivalent. Do not use multi-grade oil or waste oil.

How do I start the TBL-505 leaf blower?

1. Set ignition switch to ON. 2. Push priming bulb several times until fuel flows through return line. 3. Set choke to CLOSED. 4. Pull recoil starter briskly until engine wants to start, then return choke to RUN and pull again. Allow 2-3 minutes warm-up.

How do I adjust the carburetor idle speed?

Turn the Idle Adjustment Screw (T) clockwise to increase idle speed, counterclockwise to decrease. Standard idle rpm is 2500-3000. Only adjust if necessary; improper adjustment may damage engine.

What is the correct spark plug gap for the TBL-505?

The spark plug gap should be 0.6 mm (0.024 inches). Use NGK BM-7A or BMR-7A spark plug. Replace after 100 hours or if electrodes are worn.

How do I clean the air filter?

Clean the foam element daily or every 8 hours. Wash in liquid detergent and water, squeeze dry, then saturate with two-cycle oil, squeeze out excess, and reinstall.

What safety gear should I wear when using the TBL-505?

Always wear safety face shield or goggles, ear protection, a dust filter mask, heavy long pants, boots, and gloves. Do not wear loose clothing or jewelry, and secure long hair.

How do I stop the engine?

Decrease engine speed and push the ignition switch to STOP position. For model TBL-4610 (if applicable), move throttle lever to START position then to STOP.

What are the recommended blowing speeds for different tasks?

Use low speed for leaves and dry grass, medium speed for wet leaves and grass, and high speed for gravel, dirt, or heavy materials.

How should I store the TBL-505?

Empty the fuel tank, allow engine to cool, clean the unit, secure it, and store in a dry place out of reach of children. Ensure ignition switch is off.

What maintenance should be performed after 100 hours?

Clean the cylinder cooling fins, muffler (remove excess carbon), spark plug (check gap or replace), and fuel filter (rinse with detergent). Also inspect all fasteners.

USER MANUAL TBL-505 Tanaka

Industrial air-bulb sprayer with black and orange components (no visible text or symbols)

TBL-4600

Orange and black electric blower with brand logo (no visible text or symbols on body)

THB-2510

Before using this unit:

• Read the operator's manual carefully.
• Check that the blower is correctly assembled and adjusted.
• Start the unit and check the carburetor adjustment. See "Maintenance".

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.

Always wear eye, head and ear protectors when using this unit.

Read, understand and follow all warnings and instructions in this manual and on the unit.

It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.

Explains choke position. Upper sign indicates choke closed and the lower fully open.

Symbolic illustration of a turbine blade inside a square frame (no text or labels)

WARNING ⚠️ DANGER

Keep hands off from rotating fan. For vacuum, vacuum pipe and bag must be in place. For blower, dust cover must be securely installed.

1. What is what?

En Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Fuel tank
5. Carburetor
6. Air cleaner
7. Handle
8. Suspension eyelet
9. Ignition switch
10. Straight pipe
11. Fan-headed pipe
12. Dust cover
13. Spark plug
14. Shoulder harness
15. Frame
16. Throttle arm
17. Chock knob
18. Wire clamp
19. Swivel pipe
20. Flexible pipe
21. Bent pipe
22. Priming bulb
23. Throttle grip

2. Warnings and safety instructions.

Operator Safety

• IMPORTANT: A dust filter mask should be worn during operation.
  • Always wear a safety face shield or goggles. Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
• Do not operate that tool when you are tired, ill or under the influence of alcohol, drugs or medication.

- Never let a child or inexperienced person operate the machine.

- Wear hearing protection.

- Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.

- Keep handles free of oil and fuel.

- Keep hands away from moving part or heated area.

- Do not grab or hold the unit by the blow pipe.

- When the unit is turned off, make sure the engine has stopped before the unit is set down.

- When operation is prolonged, take a break from time to time so that you may avoid possible whitefinger disease which is caused by vibration.

Tool Safety

• Inspect the entire tool before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely fastened.
• Replace parts that are cracked, chipped or damaged in any way before using the tool.
• Make sure the safety guard is properly attached.
• Keep others away when making carburetor adjustments.
• Use only accessories as recommended for this tool by the manufacturer.

WARNING!

Never modify the tool in any way. Do not use the tool for any job except that for which it is intended.

Fuel Safety

• Mix and pour fuel outdoors and where there are no sparks or flames.
• Use a container approved for fuel.
• Do not smoke or allow smoking near fuel or the tool or while using the tool.
• Wipe up all fuel spills before starting engine.
• Move at least 3 m (10 ft) away from fueling site before starting engine.
• Stop engine before removing fuel cap.
• Empty the fuel tank before storing the tool. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store tool and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.

WARNING!

Antivibration systems do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.

Blowing Safety

• Operate power equipment only at reasonable hours-not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m., Monday through Saturday.
• Never direct discharge of air toward bystanders nor allow anyone near the area of operation. Use care in directing discharge to avoid glass enclosures, automobiles, etc.
• Stay alert for uneven sidewalks, holes in terrain or other unstable condition when using the tool.
  • Take all possible precautions when leaving the tool unattended such as stopping the engine.
• Never operate the tool without guards, blow pipes or other protective device in place. (if so equipped.)
• Keep others including children, animals, bystanders and helpers outside the 15 m (50ft) hazard zone. Stop the engine immediately if you are approached.
  • Always keep the engine on the right side of your body. (Hand held blower only)
• Keep firm footing and balance. Do not over-reach.
• Keep all parts of your body away from the muffler.

Maintenance Safety

• Maintain the tool according to recommended procedures.
• Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
• Use only genuine replacement parts as recommended by the manufacturer.

Transport and storage

• Carry the tool by hand with the engine stopped and the muffler away from your body.
• Allow the engine to cool, empty the fuel tank, and secure the tool before storing or transporting in a vehicle.
• Empty the fuel tank before storing the tool. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store tool out of the reach of children.
• Clean the unit carefully and store it in a dry place.
• Make sure engine switch is off when transporting or storing.

If situations occur which are not covered in this manual, take care and have good judgment. Contact your dealer if you need assistance.

Pay special attention to statements preceded by the following words:

WARNING!

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION!

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE!

Helpful information for correct function and use.

Fig.1-1

Fig.1-1B

3. Assembly procedures.

Blow pipes to main body (Fig. 1-1)

Inspect the main body and accessories,

Connect straight pipe (1) and other pipe(s)

securely. (See page 1)

Align groove (2) in straight pipe with projection (3) on blower housing (or another pipe) and slide the pipe onto the blower housing (or another pipe).

Rotate the pipe clockwise to lock it into place, then tighten the clamp band (if so equipped, THB-2510).

NOTE! (TBL-4600, optional)

• Connect flexible pipe (2) to main body with clamp (1).
  Finger-tighten the clamp.
• Connect swivel pipe (4) to flexible pipe with clamp (3).

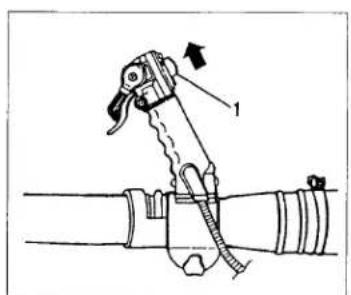

  • Install throttle grip (5) to swivel pipe so that the grip locates 2-3 cm away from projection (6) on swivel pipe.
• Finally, if direction of bent pipe does not match the direction of throttle grip, loosen knob (7) or wing bolt (8) (enclosed in vinyl bag) and swivel the grip to your comfort. (Fig. 1 - 1 B)

NOTE! (TBL-4600/4610/505, optional)

• Use flexible pipe with wire clamps.
  • Install the pipe handle on swivel pipe or on straight pipe. Decide location and direction to your comfort.

(Fig. 1-2)

Technical line drawing of a mechanical clamp or tool with multiple pins and a handle (no text or symbols)

Fig.1-2

NOTE! (THB-2510, optional)

Vacuum attachment is offered as an optional kit, which converts the hand-held blower into a vacuum cleaner. For installation, see THV-200 vacuum manual.

Fig.2-1

4. Operating procedures.

WARNING!

This unit is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when fueling or handling fuel.

Fuel

• Always use branded 89 octane unleaded gasoline.

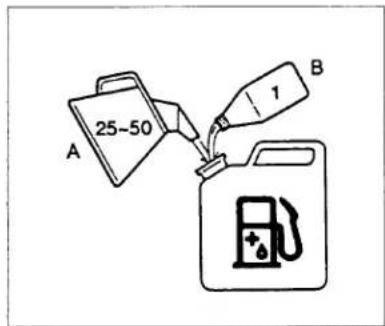

- Use Tanaka two-cycle oil or a quality two-cycle oil at mixing ratio of 25-50:1 (Gasoline (A) : Oil (B)), only for the state of California at 50: 1.
- Never use multi-grade oil (10 W/30) or waste oil.
• Always mix fuel and oil in a separate clean container.

Always start by filling half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture.

Add the remaining amount of fuel.

Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Fueling

WARNING!

* Always shut off the engine before refueling.
*Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
Tighten the fuel cap carefully, after fueling.
*Always move the unit at least 3 m (10 ft.) from the fueling area before starting.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank.

Make sure that the fuel is well mixed by shaking the container, before fueling.

Starting

CAUTION!

Do not start if the pipe is obstructed by the ground or any other object.

1. Set ignition switch (1) to ON position.

(Fig. 2-2, 2B, 2C)

• Push priming bulb (4) several times so that fuel flows through return pipe (5) (if so equipped) (Fig. 2-3, 3B)
• Move throttle lever to a half-open position (2) and lock it with lock lever (4) (if so equipped), when it is hard to start engine. (Fig. 2-2C)

Note! (TBL-4610)

Model TBL-4610 does not have an ignition switch.

To start or to stop the unit, ignore the switch operation from procedures in the manual. However, when starting the unit, move throttle lever to START position.

Mechanical assembly diagram showing a component with a numbered arrow and spring-like structure (no text or symbols)

Illustration of hands operating a mechanical device with a tool, labeled Fig. 2-5 (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a hand operating a motor with a directional arrow indicating motion (no text or symbols present)

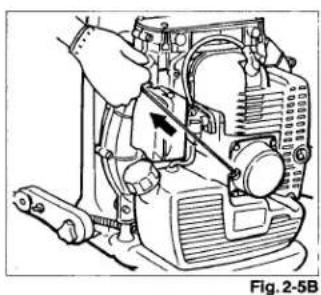

1. Set choke lever to CLOSED position (4). Fig. 2-4, 4B
2. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 2-5, 5B)
3. When you hear the engine want to start, return choke lever to RUN position (open). Then pull recoil starter briskly again.

NOTE!

If engine does not start, repeat procedures from 2 to 4.

1. After starting engine, allow the engine about 2-3 minutes to warm up before subjecting it to any load.

Line drawing of a person using a long-handled tool to clean debris (no text or symbols)

Fig. 2-6

Fig. 2-6B

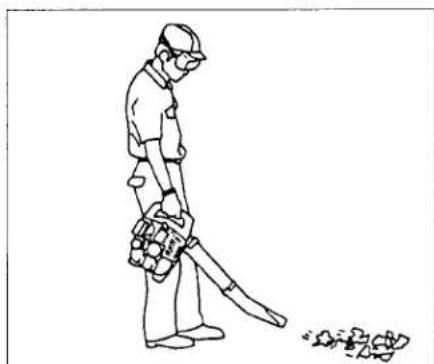

Operating blower (Fig. 2-6, 6B)

Adjust shoulder harness to fit your stature before operating unit. Back-pack unit in a correct way. (Fig. 2-6B)

WARNING!

Do not direct discharge of air toward people or pet.

1. The unit should be operated in a well ventilated area.
2. A low speed should be used to blow leaves and dry grass.
3. A medium speed should be used to clean wet leaves and grass.
4. A high speed should be used when moving gravel, dirt or other heavy materials.

CAUTION!

This blower has been designed and adjusted to be used with all blower pipes attached (See page 1). It must never be operated without the straight pipe, and blow head.

Fig. 2-7

Fig.2-7B

Fig.2-7C

Stopping (Fig. 2-7, 7B, 7C)

Decrease engine speed, and push ignition switch to stop position.

Note! (TBL-4610)

Model TBL-4610 does not have an ignition switch.

To stop the unit, move throttle lever to START position and run for a few minutes, then move the lever further to STOP position.

Fig. 3-1

Fig.3-1B

Fig.3-1C

5. Maintenance

MAINTENANCE, REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEM MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 3-1, 1 B, IC)

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

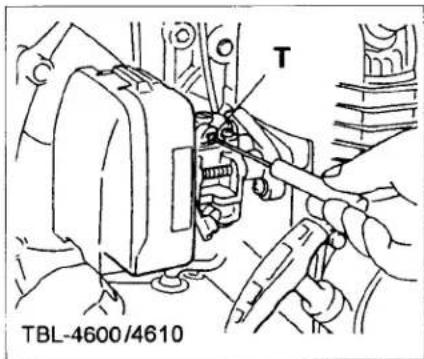

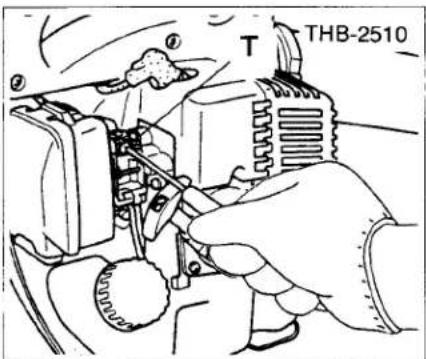

T = Idle speed adjustment screw.

Idle speed adjustment (T)

To adjust, turn IDLE Adjustment Screw (T) in (clockwise) to increase engine speed, out (counterclockwise) to decrease engine speed.

Standard Idle rpm is 2500-3000rpm.

CAUTION!

The above adjusting procedure must be followed when adjustment is MADE or DAMAGE to engine will occur because of the incorrect condition.

RECOMMENDATION:

CARBURETOR ADJUSTMENT NEEDS THE SKILL OF EXPERIENCED OR WELL TRAINED PEOPLE. IT IS RECOMMENDED TO TAKE THE UNIT TO YOUR NEAREST DEALER.

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Fig.3-2

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.3-2B

Fig.3-2C

Air filter

The air filter must be cleaned from dust and dirt in order to avoid:

• Carburetor malfunctions.
- Starting problems.
• Engine power reduction.
- Unnecessary wear on the engine parts.
• Abnormal fuel consumption.

Remove the air cleaner cover by pushing and pulling back the tab on the top. (Fig. 3-2)

Cleaning the air filter

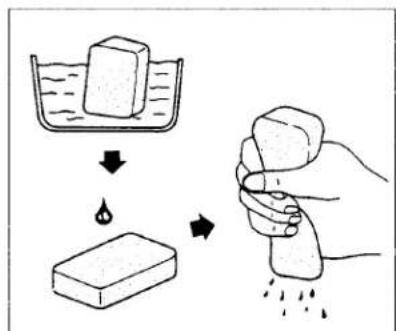

Clean the cleaner element every day or every 8 hours of operation. More frequent cleaning is recommended under very dusty conditions. Wash the element in liquid detergent and water. Squeeze the element to remove the dirt. Press the element in a dry rag until it is completely dry. Saturate the element in 2-cycle oil or the equivalent. Squeeze the element to distribute the oil completely and to remove any excess oil. Replace the element and install the cover. (Fig. 3-2B, 2C)

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Fig. 3-3

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 3-3B

Fuel filter (Fig. 3-3, 3B)

Drain all fuel from fuel tank and pull fuel filter line from tank. Pull filter element out of holder assembly and rinse element in warm water with detergent.

Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water and allow element to air dry.

NOTE!

If element is hard due to excessive dirt buildup, replace it.

Fig. 3-4

Exploded view diagram of a mechanical assembly with labeled part THB-2510 (no text or symbols on the diagram itself)

Fig. 3-5

Technical line drawing of a mechanical device with attached components (no text or symbols)

Fig. 3-5B

Mechanical assembly diagram showing a clamping device with attached components (no text or labels)

Fig. 3-5C

Spark plug (Fig. 3-4)

The spark plug condition is influenced by:

• An incorrect carburetor setting.
• Wrong fuel mixture (too much oil in the gasoline)
• A dirty air filter.
• Hard running conditions (such as cold weather).

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Readjust if necessary. The correct gap is 0.6 mm (.024"). The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE!

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

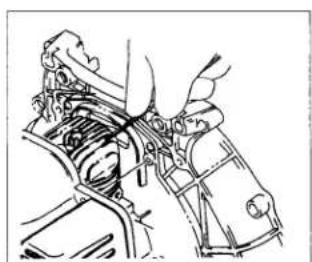

Muffler (Fig. 3-5, 5B,5C)

Remove the muffler and clean out any excess carbon from the exhaust port or muffler inlet every 100 hours of operation.

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Fig. 3-6

Technical line drawing of an engine assembly (no text or labels)

Fig. 3-6B

Cylinder (Engine cooling) (Fig. 3-6, 6B)

The engine is air cooled, and air must circulate freely around engine and over cooling fins on cylinder head to prevent overheating.

Every 100 Operating hours, or once a year (more often if conditions require), clean fins and external surfaces of engine of dust, dirt and oil deposits which can contribute to improper cooling.

NOTE!

Do not operate engine with engine shroud or muffler guard removed as this will cause overheating and engine damage.

Spark arrestor

If your unit comes with spark arrestor screen and yet your local regulation requires use of spark arrestor for prevention against a possible fire, please attach it to the muffler by removing muffler protector and other related parts.

(The spark arrestor meets the regulation of SAE J335-SEP90 and CSA CAN3-Z62. 1 -M77)

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact your service dealer.

Daily maintenance

• Clean the exterior of the unit.
• Check the dust cover for damage or cracks. Change the cover in case of impacts or cracks. (Hand held blower only)
• Check that nuts and screws are sufficiently tightened.

Weekly maintenance

• Check the starter, especially cord and return spring.
• Clean the exterior of the spark plug.
• Remove it and check the electrode gap. Adjust it to 0.6 mm (.024"), or change the spark plug.
• Clean the cooling fins on the cylinder and check that the air intake at the starter is not clogged.
• Clean the air filter.

Monthly maintenance

• Rinse the fuel tank with gasoline.
• Clean the exterior of the carburetor and the space around it.

• Clean the fan and the space around it.

• Specifications

	En MODEL	THB-2510/2510V/THB-2500	TBL-4600/4610	TBL-505
Engine Size (ml)		24 (1.46 cu. in.)	44 (2.68 cu. in.)	←
Spark Plug		NGK BPM-6A or BPMR-6A	NGK BM-7A or BMR-7A	←
Air Cleaner		Oiled Foam Type	←	←
Dry Weight (kg)		3.8 (8.4 lbs) / 4.2 (9.2 lbs)	9.0 (19.8 lbs)	10.0 (22.0 lbs)
Fuel Capacity (l)		0.7 (23.6 fl.oz)	2 (67.6 fl.oz)	←
Sound pressure level (dB(A))		By ANSI 69.0By CEN 95.4 / 95.1	93.3	←
Sound power level (dB(A))		By ANSIBy CEN 103.0 / 102.7	100	←
Vibration level (m/s2)		20.7/L :14.1R: 6.7	1.1	←

ANSI : Measured at 50 feet away from unit.
CEN : Measured at operator's ear.
NOTE : Equivalent noise level/vibration levels are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution : 12 idle, 12 full speed.
* All data subject to change without notice.

Declaration of conformity

Declaration de conformite

Tanaka Kogyo Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

Nous, soussign6s,

Noi,

Der unterzeichnete,

Nosotros.

vi,

Declare under our sole responsibility that the product, power blower model THB-25 10, TBL-4600/4610/5O5

to which this declaration relates is in conformity with the essential safety requirements of directives.

89/392/EEC, 91/368/EEC, 93/44/EEC, 93/68/EEC, EMC89/336/EEC

The following standards have been taken into consideration

IS03864, (EN-292-2)

Les normes suivantes ont 6t6 prises en considration. Sono stati presi in considerazione 1 seguenti standard. Die

Manufactured at: Chiba, Japan

Fait A:

Luogo:

Erstellt in:

Fabricado en:

Tillverkad av:

Serial No. up from

v001001
