WAF-B50 - Waffle Maker CUISINART - Free user manual and instructions

Product Type	Belgian Waffle & Omelet Maker
Brand	Cuisinart
Model	WAF-B50
Series	Breakfast Express®
Functions	Makes waffles and omelets
Browning Control	6 adjustable settings (#1 lightest to #6 darkest)
Indicator Light	Green light indicates ready; beeps when done
Rotating Feature	180° rotation for even cooking
Heating Elements	Even heat distribution
Non-Stick Plates	Yes
Included Accessories	Measuring cup
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Safety	Unplug before cleaning; allow to cool
Power Supply	Standard electrical outlet (120V~, 60Hz)
Warranty	Limited warranty (check manual)
Manual	Downloadable PDF available

Frequently Asked Questions - WAF-B50 CUISINART

How do I use the waffle maker for the first time?

Remove all packaging and wipe the housing and baking plates with a damp cloth. Plug in, turn on, and preheat. Season plates with cooking spray before first use.

How do I adjust the browning setting?

Turn the control knob to your desired setting. Setting #1 produces the lightest color, setting #6 the darkest.

How do I know when the waffle is done?

The unit will beep three times and the green indicator light will illuminate when the waffle is baked to the desired doneness.

Can I make omelets in this appliance?

Yes, after preheating, pour egg mixture onto the omelet plate, close the lid, wait 20 seconds, then rotate 180°. The unit will beep when done.

How do I clean the waffle maker?

Unplug and let cool completely. Brush crumbs from grooves and wipe plates with a damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the indicator light doesn't come on?

Ensure the appliance is plugged in and the power switch is turned on. If still not lighting, contact Cuisinart customer service.

Can I use metal utensils on the plates?

No, use only heatproof plastic or wooden utensils to avoid scratching the non-stick coating.

How do I store the appliance?

After cleaning and drying, store with the lid closed in a dry place. Do not wrap cord around the appliance.

What type of batter should I use?

Use standard waffle batter or your favorite recipe. For omelets, use beaten eggs with desired fillings.

Is the appliance dishwasher safe?

No, do not immerse in water or place in dishwasher. Clean only with a damp cloth.

USER MANUAL WAF-B50 CUISINART

Breakfast Express® Belgian Waffl e/Omelet Maker

Exterior view of a modern office building (no signage)

BEFORE THE FIRST USE

Remove all packaging and any promotional labels or stickers from your Breakfast Express®. Wipe housing and baking plates with a damp cloth to remove any dust from the warehouse or shipping.

Close-up of a stainless steel waffle grater with open lid (no visible text or symbols)

OPERATING INSTRUCTIONS

1. Plug the power cord into a standard electrical outlet. Press switch to ON position.

Close-up of a black electrical plug inserted into a white wall socket (no visible text or symbols)

1. Adjust control knobs to the desired setting. Setting #1 will produce the lightest color waffl es or omelets. Setting #6 will produce the darkest color waffl es or omelets. Once the waffl e/omelet maker has reached desired temperature, the green indicator light will light up and the indicator sound will beep 6 times.

Close-up of a metallic cylindrical device with a black button and arrow indicator (no readable text or symbols)

1. After unit is preheated, season waffle grids and omelet plates with cooking spray or brush with a flavorless oil to thoroughly coat all surfaces.

Close-up of a black and silver waffle grater with handle (no visible text or symbols)

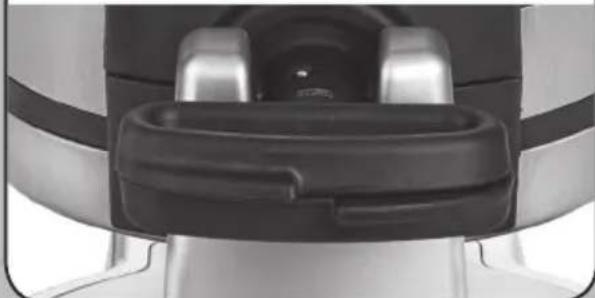

1. To open the Breakfast Express®: Place thumb on top of lip of lower handle and index finger under lip of upper handle. Push open. To close: Place thumb on top handle and fingers under bottom handle and pull together until shut.

Close-up of a mechanical device's side panel showing black and silver components (no text or symbols visible)

Making Waffles:

1. After the Breakfast Express® is preheated and ready for baking, open the waffle maker. Fill the supplied measuring cup to the top. Pour batter evenly into the center of the waffle plate.
2. Use a heatproof spatula to spread the batter evenly over the plate. Close top lid cover and rotate the waffle side 180^ .
3. When the waffle is baked to the desired doneness, the unit will beep three times and the green indicator light will illuminate.
4. Rotate waffle maker with the lit indicator light to the top position. Remove the waffle by gently loosening the edges with a heat proof spatula.

Making an Omelet:

1. After the Breakfast Express® is preheated and ready for baking, open the omelet maker. Pour egg mixture evenly on the omelet plate.
2. Close top lid cover and let mixture stand for 20 seconds. Then rotate the omelet side 180^ .
3. When the omelet is baked to the desired doneness, the unit will beep three times and a green indicator light located on the omelet cover will illuminate.
4. Rotate the omelet maker so that the lit indicator light is at the top position. Raise the top cover and remove the baked omelet.

CLEANING AND CARE

The waffle/omelet maker must be unplugged and completely cool before cleaning or storing.

1. Once you have finished baking, press switch to the OFF position; remove plug from electrical outlet. Leave top lid open and allow grids/plates to cool before cleaning.
2. To clean, simply brush crumbs from grooves and absorb any excess cooking oil by wiping with a dry cloth or paper towel. You may also clean the plates by wiping with a damp cloth to prevent staining and sticking from batter or oil buildup.
3. To clean exterior, wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.

IMPORTANT!

Do not throw away. Read before operating your new Breakfast Express® Belgian Waffle/Omelet maker. Keep for future reference.

These helpful hints are intended to be a supplement to the Instruction Booklet. In order to ensure safe operation and optimum performance, please read the entire Instruction Booklet.

Exterior view of a modern office building (no signage)

Close-up of a stainless steel waffle grater with open lid (no visible text or symbols)

Close-up of a black cable inserted into a white wall socket, showing the plug and socket (no text or symbols visible)

Close-up of a metallic cylindrical device with a black arrow pointing to a button (no visible text or symbols)

Close-up of a mechanical device handle and neck component (no visible text or symbols)
