Product Type	Heart Rate Monitor + Pedometer Sports Watch
Brand	Sportline
Model	S12
Power Source	1 x CR2032 lithium battery (user replaceable)
Water Resistance	3 ATM (suitable for showering and light swimming)
Time Functions	Time, day, date, month; 12/24 hour format; dual time; daily alarm
Heart Rate Measurement	Finger-touch sensor; single user-selected HR zone; zone alert; average heart rate
Pedometer Functions	Steps count, step goal, exercise time, distance, calories burned; 3 sensitivity levels
Chronograph	1/100 sec resolution; up to 99 hours, 59 minutes, 59.99 seconds; split time
Countdown Timer	1 sec resolution; range up to 99 hours, 59 minutes, 59.99 seconds
Backlight	EL (electroluminescent) backlight
User Profile Settings	Birth date, gender, weight, height; imperial/metric unit selection
Target Heart Rate Zones	Fat Burning (55-65%), Cardio (65-75%), Endurance (75-85%) of max HR
Display	Digital LCD with EL backlight
Key Functions	MODE, LIGHT, START/STOP/HR LOCK, LAP/RESET
Care Instructions	Clean with damp cloth; avoid harsh chemicals; do not disassemble
Battery Replacement	Recommended by watch repair service or certified jeweler to maintain water resistance
Warranty	5 years (U.S. only) against defects in material or workmanship
FCC Compliance	Part 15 Class B digital device
Manual Pages	28 (English)

Frequently Asked Questions - S12 Sportline

How do I activate the watch from Power Down mode?

Press and hold any key for 5 seconds to deactivate Power Down mode and turn on the watch.

How do I set the time and date?

In Time mode, press and hold the MODE key to enter programming. Use START/STOP or RESET to adjust values, and MODE to confirm and move to the next field. Press and hold MODE to exit.

How do I measure my heart rate?

Wear the watch on your wrist. Touch and hold the metal heart rate sensor on top of the watch with your index finger. Keep holding until your heart rate appears. Release to display for about 10 seconds.

How do I set a step goal and adjust sensitivity?

In Pedometer mode, press and hold MODE. Use START/STOP to turn goal on/off, set the step count with S/S or RESET, and adjust sensitivity (1-3) with S/S or RESET. Press MODE to set each step, then hold MODE to exit.

How do I reset the pedometer?

In any pedometer sub-mode, make sure the pedometer is stopped (no movement detected or after 10 sec delay). Press and hold the LAP/RESET (R) key until the step count resets to zero.

What type of battery does the Sportline S12 use?

It uses a single CR2032 lithium battery. Replacement is recommended by a professional to maintain water resistance.

Is the watch water resistant?

Yes, it is water resistant to 3 ATM static pressure, meaning it can be worn while showering and light swimming. However, avoid pressing buttons underwater.

What should I do if the heart rate reading is slow or not working?

Possible causes include dry skin, pressing too hard, dead skin, body grease, or low battery. Solutions: moisten fingers and wrist, reduce pressure, clean skin and watch back, or replace battery.

How do I set my target heart rate zone?

In Heart Rate Zone mode, press and hold MODE. Adjust upper zone limit (Hi) and lower zone limit (Lo) using START/STOP or RESET. Then set your user profile (birth date, gender, weight, height). Press MODE to confirm each.

How long is the warranty?

For purchases made in the U.S., the warranty covers defects in material or workmanship for five years from the purchase date. Return prepaid with the guarantee certificate to the address in the manual.

USER MANUAL S12 Sportline

Congratulations on your purchase of a S12 Heart Rate Monitor + Pedometer. Please keep in mind your watch is a sensitive technical instrument. With proper care and maintenance, it will last for many years. However, improper care and handling can cause the various sensors to be damaged and to stop functioning.
Sportline Personal Fitness Monitors have many unique features and functions. Please read all sections of this manual carefully and become fully familiar with the operation of the watch before using it in the field. Proper setup and operation will greatly enhance the watch's usefulness and your enjoyment.
The manual is divided into sections outlining each of the major functions of the watch. A drawing of the watch screen that represents the starting point or other important screens for each operational process a shown adjacent to the instructions for the process; important keys are shown indicating PRESS & HOLD a PRESS. The steps for the programming or operation are adjacent to the screen illustration. Key points and import information are shown in highlighted blocks.
PLEASE NOTE: Your watch was originally shipped in Power Down Mode to conserve battery life. To deactivate Power Down mode: PRESS & HOLD ANY KEY for 5 seconds.

HOW TO USE THIS MANUAL

ACTIVATING THE WATCH FROM POWER DOWN MODE

WARNINGS & CAUTIONSINTRODUCTION

WARNING: Before starting any exercise program or performing any vigorous physical activity, we strongly suggest you visit your doctor for a complete physical and to discuss your plans.

[Non-Text]

CAUTION: Your watch is designed to be water resistant to a static pressure of 3 ATM and can be worn while showering and light swimming. However, we recommend that extensive use of the unit in the water be avoided whenever possible. Care should be taken not to press any keys while the unit is submerged as this can force moisture past the key seals and damage the unit.

CAUTION: Avoid exposing your watch to extreme conditions for a prolonged period of time.

CAUTION: Avoid rough usage or severe impacts to your watch.

DO NOT use hand cream as it will insulate the signal between the skin and sensor contacts. DO NOT use the fingertips where the skin is dry and thick. For those with extremely dry skin, moisten fingers and wrist with tap water or a conductive gel.

CLEAN the back cover occasionally by using a damp cloth. Then wipe dry to remove any residual grease.
CLEAN your skin and fingers with soap and water for a better signal transmission.
AVOID doing awkward motions during measurement. It may create inaccurate heart rate readings.

WATCH FUNCTIONS
CARE & MAINTENANCE

• NEVER attempt to disassemble or service your unit.• DO NOT expose the unit to extreme heat, shocks, magnetic fields, electrical noise, strong vibration or long-term exposure to direct sunlight.• DO NOT drop or step on the watch.• TO CLEAN THE UNIT: wipe with a lightly moistened cloth. Apply mild soap to the area if there are stubborn stains or marks. Do not expose the unit to strong chemicals such as gasoline, cleaning solvents, acetone, alcohol or insect repellents as they may damage the unit's seal, case and/or finish.• STORE the unit in a dry place when you are not using it.CUSTOMER SUPPORTIf you have questions, comments or need assistance with your Sportline S12 Heart Rate Monitor + Pedometer, you may contact Customer Support by calling 1-866-694-4575.

TIME• Time/Day/Date/Month• 12/24 Hour Format• Dual Time• Daily AlarmHEART RATE• Finger-Touch• Single user-selected HR Zone• HR Zone Alert• Average Heart RatePEDOMETER• Steps• Steps Goal• Exercise Time• Distance• Calories• 3 Sensitivity Levels• Calorie Consumption

CHRONOGRAPH• 1/100 second resolution• 99 hours, 59 minutes, 59.99 secondsTIMER• 1-second resolution• Range: 99 hours, 59 minutes, 59.99 secondsOTHER• EL Backlight System

SPORTLINE.

SB1064ISO-10.10.12.2013

SI2 Heart Rate Monitor + Pedometer

2:16 PM

SPORTLINE.

6

SB1064ISO 6-01th 2021

2:16 PM

SI2 Heart Rate Monitor + Pedometer

MODE KEY

- Scroll through operating modes

- PRESS & HOLD: Enter/Exit the programming

sequence

- Set value sequence

LIGHT KEY

- Activates (EL) backlight system

HEART RATE SENSOR

• Acquires Finger Touch Heart Rate

- Start/Stop Chronograph

- Increase setting values being adjusted in

programming sequence

- Deactivates touch heart rate feature

LAP/RESET KEY (R)

- Reset Chronograp

• Decrease setting values being adjusted in

programming sequence

•View a split time in Chronograph mode

[Non-Text]

[Non-Text]

START/STOP/HEART RATE LOCK KEY (S/S)

- Access Alarm in Time mode

- Turn Alarm ON or OFF in Alarm mode

- Start/Stop Countdown Timer

- Start/Stop Chronograph

- Increase setting values

programming sequence

- Deactivates touch heart rate feature

POWER DOWN/RESET

ACQUIRING HEART RATE / MEASURING STRIDE LENGTH

ACQUIRING HEART RATE: FINGER TOUCH

Heart rate may be acquired from any operating mode (not in any Setting Sequence).

1. With the watch on your wrist, TOUCH & HOLD the HEART RATE SENSOR

(anywhere on the metal top plate of the watch) with your index finger.

NOTE: You may exit Heart Rate mode at any time by Pressing the Mode, Start/Stop or Reset key.

1. Continue TOUCHING & HOLDING until heart rate displays.

2. Once Heart Rate is acquired, RELEASE THE SENSOR. Heart Rate will continue to

display for a period of approximately 10 seconds.

1. If trouble acquiring heart rate, moisten the underside of the watch case (so contact between the wrist

and watch is ensured). To activate heart rate, the watch's back plate must come into direct contact with

your skin, while your fingertip is touching the top case.

HOW TO MEASURE YOUR STRIDE LENGTH

1. Your stride is the distance between your back foot's toe and your front foot's toe. To find out what your stride is, walk

or run 10 steps and then measure the distance with a tape measure from the first step's toe to the 10th step's toe (fig.

1). Divide your total distance by 10 to get your average stride length (fig. 2).

1. For a quick estimate, walk 3 steps, measure the distance, and divide by 3. The more steps you take, the more accurate and realistic your stride will be. An average walking stride for a female is 2 feet (24in), a male is 2.5 feet (30in).

FIGURE 1 | START WALKING/RUNNING DIVIDE TOTAL FIGURE 2 | START WALKING/RUNNING

DIVIDE TOTAL

DISTANCE BY 10

START WALKING/RUNNING

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder and violates the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

FIGURE 1

广力云智慧零售收银系统

SPORTLINE.

SB1064ISO-CLith 8xv15-8xv13

SB1064ISO-CLith 8xv15-8xv13

2:16 PM

SI2 Heart Rate Monitor + Pedometer

The Sportline S12 Heart Rate Monitor + Pedometer has 8 main operating modes: Time/Date, Pedometer, Heart Rate Zone, Resting Heart Rate, Alarm/Chime, Chronograph, Countdown Timer and Dual Time. Scroll through modes by PRESSING the MODE key. The watch also has 4 Pedometer sub modes (see following page). You may acquire Heart Rate by TOUCHING & HOLDING the Heart Rate Sensor in any operating mode.

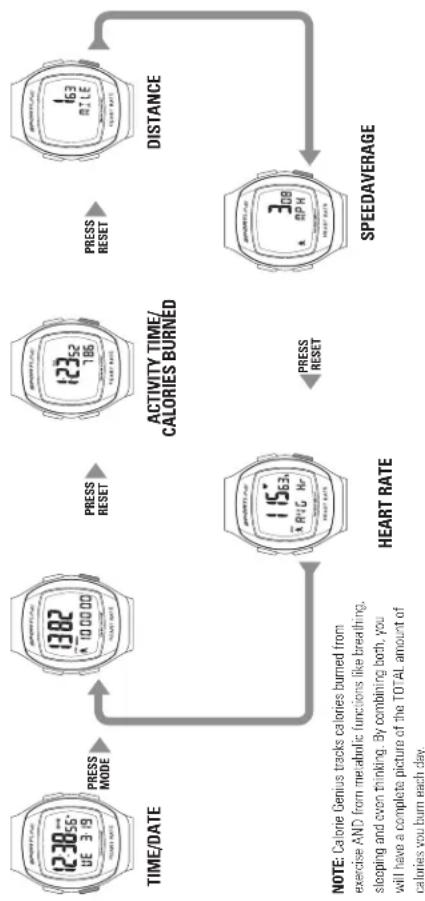

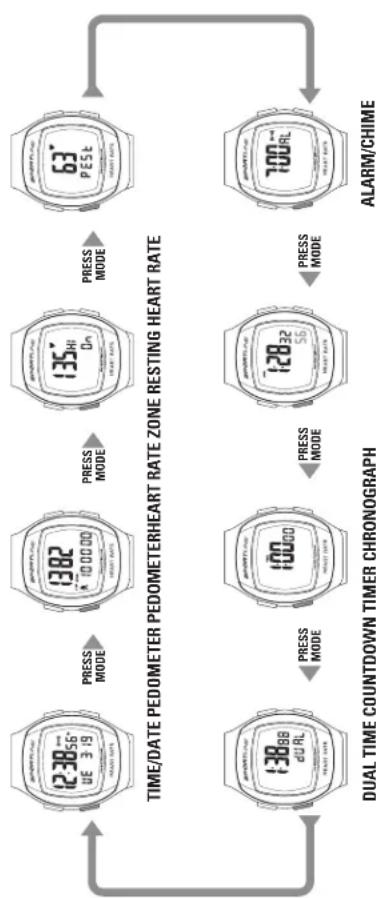


SPORTLINE.

10

SB1064ISO 6-01tdd 2x21*2001:10

2:16 PM

SI2 Heart Rate Monitor + Pedometer

SETTING THE WATCH FUNCTIONSSETTING THE WATCH FUNCTIONS

SETTING TIME AND DATE

1. In Time mode, PRESS & HOLD the MODE key to enter the programming sequence. The variable being adjusted will flash on and off.

2. Reset Seconds to zero (00) by PRESSING the START/STOP (S/S) or RESET (R) key.

Advance to Set Minutes by PRESSING the MODE key.
3. Adjust Minutes by PRESSING START/STOP (to increase) or RESET (to decrease). Set

Minutes and advance to Set Hour by PRESSING the MODE key.

1. Adjust Hour by PRESSING S/S or R. Set Hour and advance to Set Year by PRESSING

the MODE key. 5. Adjust Year by PRESSING S/S or R. Set by PRESSING the MODE key.

1. Adjust Month by PRESSING S/S or R. Set by PRESSING the MODE key.

2. Adjust Day by PRESSING S/S or R. Set by PRESSING the MODE key.

3. Adjust Month/Date display format by PRESSING S/S or R. Set Format by PRESSING

the MODE key.

1. Adjust 12/24-hour format by PRESSING S/S or R. Set Format by PRESSING the MORE key

the MODE key. 10. Turn Key Beep ON or OFF by PRESSING S/S or R. Set by PRESSING the MODE key.

1. PRESS & HOLD the MODE key to exit the Programming Sequence.

Operating mode

1. Turn Alarm ON o

SET: MODE

SPORTLINE.

11 12

SB1064ISO

2:16 PM

SI2 Heart Rate Monitor + Pedometer

SETTING THE WATCH FUNCTIONS

SETTING THE WATCH FUNCTIONS

FINDING YOUR TARGET HEART RATE ZONE

Losing weight and managing to keep it off is a lot easier when you exercise in your target heart rate zone. To get the most out of any exercise program, you should target 55% to 85% of your maximum heart rate depending on your fitness level and objectives.

Fat Burning Zone: 55% - 65% of maximum heart rate. This zone is ideal for fitness beginners on a low to moderate reduces blood pressure and cholesterol and nearly all the c

Cardio Zone: 65% - 75% of maximum heart rate.

Reaching this zone requires more intense aerobic activity and is perfect for fitness enthusiasts working to burn maximum calories from fat and carbohydrates.

Endurance Zone: 75% - 85% of maximum heart rate.

Exercising in the Endurance Zone is generally recommended for athletes in training. Cardiovascular strengthening, increased metabolism and elevated caloric burn are the primary benefits.

SETTING HEART RATE TARGET ZONE AND USER PROFILE

The Sportline S12 Heart Rate Monitor + Pedometer allows you to set a Target Heart Rate Zone for targeted exercise. The watch automatically calculates your Maximum Heart Rate from your User Profile.

1. In Heart Rate Zone mode, PRESS & HOLD the MODE key to enter the Programming Sequence.
2. Adjust Upper Zone Limit (Hi in display) by PRESSING the START/STOP (S/S) or RESET (R) key. Set by

PRESSING the MODE key.

SPORTLINE.

13 14

ADJUST: S/S or R

SET: MODE

SETTING HEART RATE TARGET ZONE AND USER PROFILE (cont.)

1. Adjust Lower Zone Limit (Lo in display) by PRESSING the START/STOP (S/S) or RESET (R) key. Set Target Zone by PRESSING the MODE key.

- All, Pld. V.

1. Adjust Birth Year by PRESSING S/S or R key. Set by PRESSING the MODE key.

2. Adjust Birth Month by PRESSING S/S or R key. Set by PRESSING the MODE key.

3. Adjust Birth Day by PRESSING S/S or P key. Set by PRESSING the MODE key

4. Adjust Birth Day by PRESSING 3/3 of A key. Set by PRESSING the MODE KEY.

5. Adjust Gender (M=Male, F=Female) by PRESSING S/S or R key. Set by PRESSING the

MODE key.

1. Select Units (Imperial or Metric) by PRESSING S/S or R key. Set by PRESSING the

MODE key.

NOTE: This setting will effect Distance and Speed displays in Pedometer mode.

1. Adjust Weight by PRESSING S/S or R key. Set by PRESSING the MODE key.

2. Adjust Height by PRESSING S/S or R key. Set by PRESSING the MODE key

3. Adjust Height by PRESSING 3/3 of R Key. Set by PRESSING the MODE Key.

4. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Heart Rate Zone mode.

SI2 Heart Rate Monitor + Pedometer

2:16 PM

SB1064ISO-01inch 2mm:3.5mm:1.14

SETTING THE WATCH FUNCTIONSSETTING THE WATCH FUNCTIONS

SETTING THE PEDOMETER

The Sportline S12 Heart Rate Monitor + Pedometer allows you to set a walking goal and adjust sensitivity to maximize your workout. By activating the Goal setting, the watch displays an indicator bar to show the progress you have made on your desired step goal. To test sensitivity setting, while wearing the watch and walking, watch as the steps are recorded. If it seems that steps are being missed or over counted, adjust the sensitivity 1 (lowest) - 3 (highest). 2 is the default setting. 1. In Pedometer Mode, PRESS & HOLD the MODE key to enter the Programming Sequence.

ADJUST: S/S or R

In Pseudometer mode, FIGUE & HUBS this MODE key to enter the Programming Sequence.

1. Turn the Goal indicator ON/OFF by PRESSING the S/S key. Set by PRESSING the

MODE key.

1. Adjust the number of steps for your goal by PRESSING the S/S or R key. Advance to adjust the next digit by PRESSING the MODE key. Continue through all digits. Set by

PRESSING the MODE key.

1. Turn Average Heart Rate Beep ON/Off by PRESSING S/S. Set by PRESSING the MODE

key.

1. Adjust your sensitivity (1-3) by PRESSING the S/S or R key. Set by PRESSING the

MODE key.

1. PRESS & HOLD the MODE key to exit the Programming Sequence.

SPORTLINE.

15 16

SB1064ISO-01.jrdd 20x1:5-6x1:18

2:16 PM

SI2 Heart Rate Monitor + Pedometer

SETTING THE WATCH FUNCTIONSSETTING THE WATCH FUNCTIONS

SETTING YOUR RESTING HEART RATE

Your Resting Heart Rate is a useful reference for tracking your fitness progress. As you gain fitness, your Resting Heart Rate will lower.

NOTE: it is recommended to check your Resting Heart Rate just after waking in the morning. For best results, check your Resting Heart Rate under consistent conditions.

1. In Resting Heart Rate mode, PRESS & HOLD the HEART RATE SENSORS until heart

rate is acquired.

1. An audible beep will sound. Your Resting Heart Rate will be displayed and recorded.

SETTING THE COUNTDOWN TIMER

The Sportline S12 Heart Rate Monitor + Pedometer is equipped with a 100-hour Countdown Timer. To set Timer:

1. PRESS & HOLD the MODE key in Timer mode.

2. Adjust Seconds by PRESSING the START/STOP (S/S) or RESET (R) key. Set by PRESSING the MODE key.

3. Adjust Minutes by PRESSI

4. Adjust Hours by PRESSING the S/S or R key. Set by PRESSING the MODE key.

5. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Timer mode.

ADJUST: S/S or R

SET: MODE

To operate the Timer:

1. To START timing, PRESS the START/STOP (S/S) key.

2. To STOP timing, PRESS the S/S key.

3. To RESET the Timer, PRESS the RESET (R) key.

PRESS HR SENSOR

RESTING HR SET

SPORTLINE.

17 18

SB1064ISO-5-01InH 20117524113

2:16 PM

SI2 Heart Rate Monitor + Pedometer

OPERATING THE WATCH

SETTING THE WATCH FUNCTIONS

SETTING DUAL-TIME

The Sportline S12 Heart Rate Monitor + Pedometer has 5 Pedometer sub modes. To access Pedometer mode, PRESS the MODE key in Time/Date mode. Scroll through sub modes by PRESSING the RESET key

Pedometer mode. You may acquire Heart Rate by PRESSING & HOLDING the HEART RATE SENSOR in any operating mode.

1. The pedometer sensor automatically turns on as soon as movement is detected and begins counting steps. The pedometer icon (✗) will turn on in the lower left of the screen to indicate that the pedometer sensor is activated.

NOTE: To prevent false counting, there is a 10 second delay built into the watch when you 1st begin walking. Steps are still being recorded in the 10 second period and will be automatically added to the step count after 10 seconds.

1. The pedometer is limited to counting 99,999 steps and will then need to be reset. To RESET the

Pedometer, in any Pedometer mode, PRESS & HOLD the R key (the pedometer must be stopped).

SPORTLINE.

19 20

SB1064ISO 8-0 inch 2mm:5-5mm:12t

SB1064ISO 8-0 inch 2mm:5-5mm:12t

SB1064ISO 8-0 inch 2mm:5-5mm:12t

SB1064ISO 8-0 inch 2mm:5-5mm:12t

SB1064ISO 8-0 inch 2mm:5-5mm:12t

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

The Sportline S12 Heart Rate Monitor + Pedometer is equipped with a 100-hour Chronograph. To operate the Chronograph:

1. To START timing, PRESS the START/STOP (S/S) key.

2. To view a split time, PRESS the LAP/RESET (R) key. The watch will display your current split time. PRESS the LAP/RESET key again resume current chronograph

timing.

START/STOP TIMING: S/S

1. To RESET the Chronograph, PRESS & HOLD the LAP/RESET (R) key.

[Non-Text]

[Non-Text]

START/STOP TIMING: S/S

SPORTLINE.

21 22

SB1064ISO

2:16 PM

SI2 Heart Rate Monitor + Pedometer

BATTERY SAFETY INFORMATION

REPLACING THE WATCH BATTERY

The Sportline S12 Heart Rate Monitor + Pedometer uses a single CR2032 lithium battery.

Battery replacement will be required from time to time, and should occur when:

1. The display fades in part or completely

2. The heart rate function will not activate

3. Backlight system does not operate

To replace the battery of your The Sportline S12 Heart Rate Monitor + Pedometer, we recommend you take it to a watch repair service center or certified jeweler. This will ensure that the water resistance will be retained after battery replacement.

▲ CAUTION – BATTERY SAFETY INFORMATION

• Non-rechargeable batteries are not to be recharged

- Rechargeable batteries must be removed before recharging

- Rechargeable batteries should only be recharged under adult supervision

- Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries - Exhausted batteries are to be removed

- Do not mix old and new batteries

- Do not dispose of batteries in fire; batteries may explode or leak

- Do not dispose of product in fire; batteries may explode or leak

- If this product will not be used for an extended period of time, remove the batteries from the product - The supply terminals are not to be short-circuited

- Batteries are to be inserted with correct polarity

- Clean the battery contacts and also those of the product prior to battery installation

- As always, dispose of batteries in an eco-friendly manner

The purpose of the crossed-out wheelie bin symbol is to remind us that most electrical products, and batteries, contain trace elements (including Mercury B Hg, Cadmium B Cd and Lead B Pb) which could be harmful to our environment and therefore our health. We must all be careful to dispose of them responsibly in a specifically designated way D either using a collection scheme or into the correctly labelled civic amenity (NOT into general waste) B this will help your local authority to arrange to recycle or dispose of them in the appropriate manner.

SPORTLINE.

23 24

SB1064ISO 18-0 inch 25x123-55x123

2:16 PM

SI2 Heart Rate Monitor + Pedometer

TROUBLE SHOOTING RANGES & SPECIFICATIONS

POTENTIAL CAUSES FOR NO HEART RATE READING OR LONG RESPONSE TIME:

CAUSE: DRY SKIN

SOLUTION: Apply conductive gel thoroughly to fingers. Tap water may help if conductive gel is not available.

CAUSE: MUSCLE TREMORS CAUSED BY PRESSING ON SENSORS TOO HARD

SOLUTION: Decrease finger pressure on the Sensor Pads.

CAUSE: DEAD SKIN ON WRIST OR FINGER

SOLUTION: Rub off excessive dead skin with a towel

CAUSE: A THIN LAYER OF BODY GREASE INSULATES THE ECG SIGNAL PREVENTING WATCH FROM

DETECTING ECG HEART RATE

SOLUTION: Wipe wrist and the back of watch with a tissue or soft towel.

CAUSE: EXCESSIVE BODY HAIR

SOLUTION: Apply conductive gel to wrist.

CAUSE: LOW BATTERY

SOLUTION: Replace the battery in watch.

TIME

• AM, PM, hour, minute, second

• 12/24 hour format

- Calendar: month, date, day display with auto

leap year adjustment

ALARM

• Daily alarm

• Alarm duration: 30 seconds

CHRONOGRAPH

- Resolution: 1/100 second

• Measuring range: 99 hours, 59 minutes, 59.99

seconds

PEDOMETER

- Step Range: 0-999999

• Exercise Time: 99 hours, 59 minutes, 59.99

seconds

• Distance: 0-248.55 mi. (0-400 km)

• Calorie Range: 0-99999 kCal

• 3 sensitivity levels

SPORTLINE.

25 26

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SB1064ISO 6-0 jtdl 2x125-5x125

SI2 Heart Rate Monitor + Pedometer

FCC COMPLIANCE

The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the transmitting equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio technician for help.

SPORTLINE.

27 28

SI2 Heart Rate Monitor + Pedometer

2:16 PM

SB1064ISO-0.1inch 2xv127-6x128

WARRANTY

GUARANTEE CERTIFICATE – FOR PURCHASES MADE IN THE U.S.

If at any time within five (5) years from the purchase date of this product, it fails to perform properly because of defects in material or manufacturing, return it prepaid to: EB SPORT GROUP, 585 Oak Ridge Road, Hazleton, PA 18202

[Non-Text]

Complete this Guarantee Certificate and enclose it (or a copy of it) with the product.

(LEASE THINK GLEAVLT) NAME TEL STORE PURCHASED FROM

ADDRESS DATE OF PURCHASE

CITY PURCHASE PRICE

STATE ZIP

STATE EN PROBLEM WITH PRODUCT

PROBLEM WITH PRODUCT

REPLACEMENT

This product has been carefully designed, manufactured and packaged. If any parts are missing or damaged, please contact us at the address above and we will replace the unit at no charge. (Guarantee does not cover crystal or battery.)

1. 2017年 ，公司及子公司

©2012 Distributed by Sportline®, Hazleton, PA 18202

FOR PURCHASES MADE IN THE UK:

Should you experience problems with this item, please return it to the point of purchase. This will not affect

your statutory rights. Alternatively return it to the address shown below for a repair/replacement.

EB Brands UK, Berkeley Business Park, Wainwright Road, Worcester WR4 9FA

www.sportline.com

Distributed in the UK by EB Brands UK, Worcester WR4 9FA

SPORTLINE®

www.sportline.com Sportline® is a trademark of SPORTLINE, a division

of EB Sport Group, Yonkers, NY 10701

Distributed in the UK by

EB Brands UK, Worcester, WR4 9FA

All Rights Reserved. ©2012

SB1064IS01SPO

SI2

HEART RATE MONITOR + PEDOMETER

SB106

2013 218-74
