USER MANUAL 22233 Summer Infant

classic comfort™ wood high chair

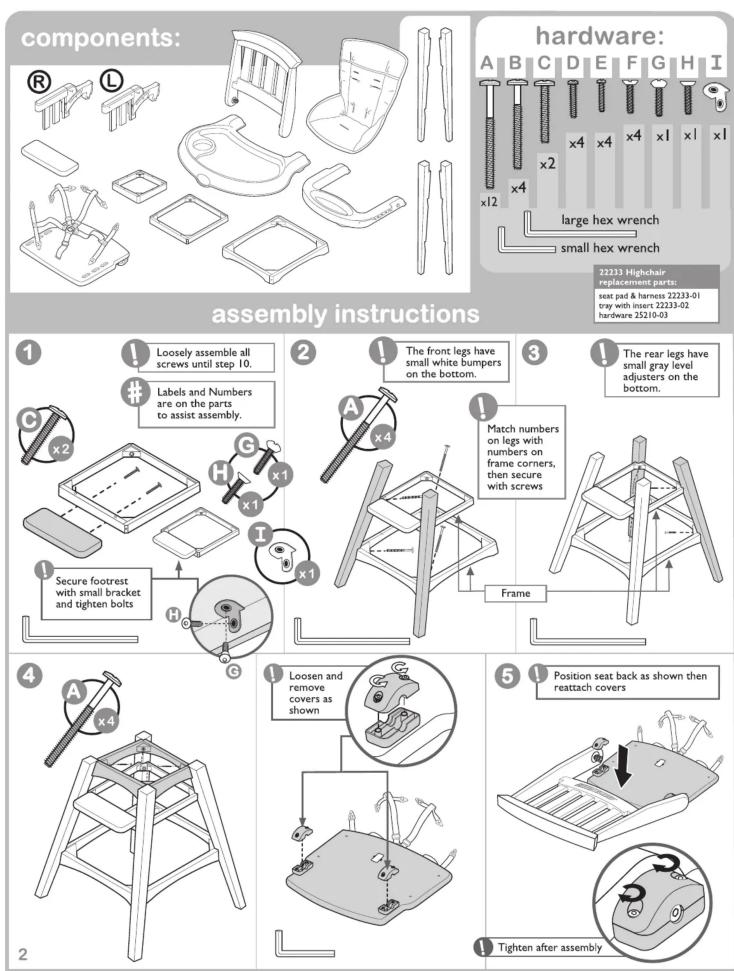

INSTRUCTION MANUAL

Please read the following instructions and warnings carefully BEFORE assembly and USE of the high chair. KEEP THIS INSTRUCTION MANUAL FOR FUTURE USE. All tools required to assemble high chair have been supplied.

Cleaning and Maintenance:

Before each use, inspect the high chair for damaged hardware, loose joints, missing parts, or sharp edges. Do not use high chair if any parts are missing or broken.

To clean high chair frame: Use only household soap and warm water. Never use bleach or detergent.

To clean seat pad:

  • Remove seatpad from high chair seat, and remove harness restraint straps.
  • Seat pad: machine wash in cold water, gentle cycle, no bleach, hang to dry.
    • High chair Tray: Dishwasher safe, top rack only.

WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair.

• Always secure child in the restraint.
• Never leave child unattended.
- Never adjust seat recline positions while child is in high chair.
- Do not use high chair in upright position until child can sit upright unassisted.
- The child should be secured in the high chair at all times by the restraining system, either in the reclining or the upright position. The tray is not designed to hold the child in the chair.

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 1

natural_image Line drawing of a babyhood seat with animal design and certification badge (no text or symbols on the diagram itself)

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 2

For Technical Support

Call 1-800-268-6237 or contact us at customerservice@summerinfant.com

For use with children from birth to 3 years.

WARNING: This product requires adult assembly. Keep small parts away from children.

Colors and styles may vary. MADE IN CHINA.

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 3

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 4

8
Diagram showing a wooden chair with arrows indicating downward motion, likely illustrating seat or seat positioning.

9
B x4

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 7

10
Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 8

natural_image Line drawing of a baby chair with seat, legs, and armrest (no text or symbols)

11
Diagram showing two mechanical or electrical component configurations with lock symbols indicating connection points.

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 10

natural_image Line drawing of a baby in a chair with internal mechanical components (no text or symbols)

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 11

6
flip seat and backrest so top is facing upwards
raise backrest partially to install armrests

7

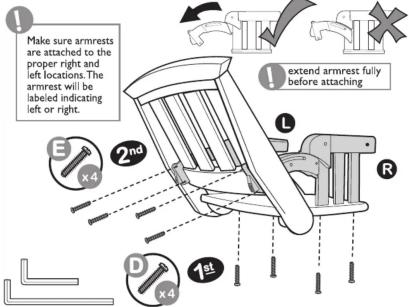

Make sure armrests are attached to the proper right and left locations. The armrest will be labeled indicating left or right. 2nd extend armrest fully before attaching E x4 D x4 1st

8
Diagram showing a wooden chair with arrows indicating downward motion, likely illustrating a safety or safety concept.

9

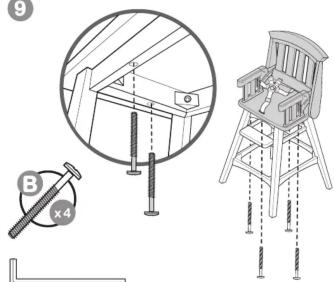

Technical diagram showing a wooden chair with supporting fixtures and a magnified view of the structural detail.

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 16
!
Important: Tighten all screws from steps 1 through 9

10
Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 17

natural_image Line drawing of a baby boom chair with seat, legs, and backrest (no text or symbols)

11
Diagram showing two configurations of lock mechanism with directional arrows and lock icons

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 19

natural_image Line drawing of a baby stool with internal compartments and arrows indicating flow direction (no text or symbols)

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 20

operating instructions
Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 21
Adjust levelers on rear legs to accomondate uneven surfaces

celers on rear legs to late uneven surfaces

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 23

Adjust recline to the desired position Press

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 25

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 26

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 27

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 28
Lock the tray into position using the single front handle or the double side handles. Ensure the tray is in a locked position.

Tray into position single front for the double side Ensure the tray is ed position.

Summer Infant, Inc. 1275 Park East Drive Woonsocket RI 02895 USA 1-800-268-6237 www.summerinfant.com
Summer Infant Canada 11055 Middlegate Road, Unit 2 Mississauga, Ontario L4Y 3Y4 1-905-848-2424
Colors and styles may vary. Please retain information for future reference. MADE IN CHINA.

Summer Infant 22233 - WARNING: Prevent serious injury or death from falls or sliding out. Read all instructions before using high chair. - 30

classic comfort™ chaise haute en bois

MODE D'EMPLOI

natural_image Line drawing of a baby in a full height chair with a summer hat and floral decoration (no text or symbols)
