USER MANUAL P120F BOSS
If you need technical support with your Boss Audio product or have quesons about its use, please contact us:
805.751.4853
www.BossAudio.com
Congratulaons on your purchase of the Phantom Flat Subwoofer.
Boss Audio takes great pride in producing products that look great, sound great, and stand up to the daily rigors applied by audio enthusiasts around the world.
Due to ongoing product development, speciaons are subject to change without noce.
AUDIO SYSTEMS


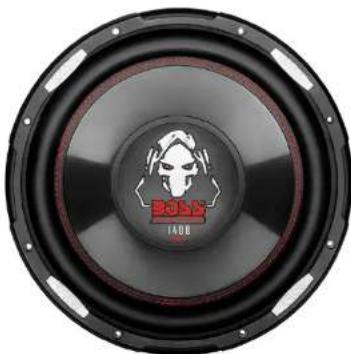

Top-down view of a speaker with a skull logo and 'BOSK 1400' branding (no additional text or symbols)P120F 12" (30cm) Flat Subwoofer
- Single 4 Ω Voice Coil
• 1400 W Peak Power Handling
• 2"(50.8 mm) High Temperature Voice Coil - Butyl Rubber Surround
AUDIO SYSTEMS
Enclosures
The P120F is designed to work in a compact sealed enclosure of only 0.75^3 . Since the woofer has pole-vent, it needs a minimum clearance from the rear wall of the enclosure of 0.75'' (19 mm). Below you will find the dimensions to make the enclosure to suit the subwoofers needs, it has been designed for maximum output while retaining great sound quality. The dimensions have already accounted for the volume displacement of the subwoofer, and using 3/4'' (19mm) MDF. All dimensions are external.
Enclosure Dimensions
Sealed Dimensions:
Length (L) : 17" (431.8 mm)
Width (W) : 10" (254mm)
Height (H) : 14" (355.6 mm)
Cutout Diameter: 11" (279 mm)
AUDIO SYSTEMS
Wiring your Subwoofer
4 Ω
Parallel
2Ω
8 Ω
AUDIO SYSTEMS
Product Specicaons
Impedance 4 Ω
Resonant Frequency 44 Hz
Qts 1.088
Qms 5.143
Qes 1.379
Vas 1.562 cu . (44.2 liters)
Xmax 7 mm
Sensitivity (1 W/ 1 m) 86 dB
Peak Power Handling 1400 W
Mounng Depth 3-7/8" (98mm)
Cutout Diameter 11" (279 mm)
Brand : BOSS
Model : P120F
Category : Subwoofer
