USER MANUAL 345-90401 GOAL ZERO

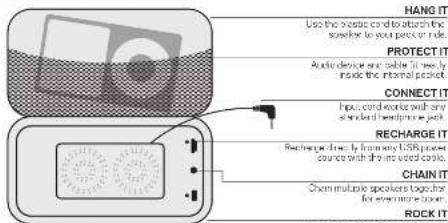

Get to Know Your Gear

The wooden sandbox producer
improvatively full range of sound

Getting Started

1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Connect the ROCK OUT to your audio player with the audio input card
3. Turn it on to start playing.
4. Recharge through any USB power source, with included USB cable.

How to Use

1 Audio input cord Plug your audio device into the built-in 3.5mm audio input.
② Power switch and Power LED Slide power switch to "ON." Red indicates power is on.
3 USB-mini charging port and Charging LED Charges directly from any USB power sources, with included USB cable. Red light indicates charging and turn-off when full.
4 Audio output port Chain an additional ROCK OUT speaker through this port.

Mn-USD, Audio output Power switch, Charging (HD) part/sharing; Power (-)

Technical Specs

Usage
Run time Up to 20 hours
Recharge time 2 hours
Inputs
Charging port Min-USB jack, 5V
Audio input cord 3.5mm risle plug, line-level
Outputs
Audio output part: 3.5mm female audio jack, mini-level lchairingl
Internal
Speakers 2x 40mm, 4 ohm, 2W drivers
Amplifier Stereo, 2W max, 70dB SNR, 70Hz-18KHz
Battery Lithium-ion, 3.7V, 0.6Ah (2.0 Wh)
Battery might. Integrated end fully automatic
General
Weight 14.4 oz (0.40 kg)
Dimensions 6×5×3 in |15×12.7×7.8 cm
Warranty 12 months
Certifications: CE and FCC
Optimal operating temp. 32-104° [0-20°C]

Comes With

Mini-USB charging cable

Audio input cord (built-in, 3.5mm plug, 300mm cord)

Frequently Asked Questions

How durable is it?

The ROCKOUT is impact and weather resistant. It can handle a hit, but take care to protect your audio equipment if stored inside.

Does it need to be plugged in for power?

Nope. The ROCKOUT has a built in battery that will last up to 20 hours depending on how loud you crank the volume. Recharge from any USB power source.

Can multiple speakers be chained together?

Yes. Chain any number in close proximity together with the built-in cording, or use a 3.5mm audio extension cable for larger spaces. Each speaker in the chain must be recharged separately.

Is the internal battery replaceable?

No, but it will last for hundreds of cycles, or several years of use.

Compatible With

Audio devices, like:

Smartphone

MP3 player

Laptop

Anything with a phone jack

GOAL ZERO products:

NOMAD solar panels

GUIDE 10 PLUS

SHERPA power packs
