Product Type	Digital Audio Player (MP3 Player)
Brand	RCA (by Audiovox)
Model	TH1602
Internal Memory	2 GB
Expandable Memory	Micro SD card slot (supports up to 2 GB? Not specified, assume standard)
Playback Formats	MP3 (32-320 kbps), WMA (48-192 kbps), WAV, Audible Format 4
Dimensions (H x W x D)	77.5 mm x 27.4 mm x 18.3 mm
Weight	22 g (0.8 oz)
Power Source	1 x AAA battery (included)
Display	LCD screen (monochrome, details not specified)
Connectivity	USB 2.0 (mass storage class), headphone jack (3.5mm)
Radio	FM tuner with 20 presets, stereo/mono, recording (WAV)
Recording	Voice memo (via built-in microphone) and FM radio recording (WAV files)
Audio Features	Equalizer presets (Flat, Bass, Pop, Rock, Jazz), shuffle, repeat (one/all)
Additional Features	Audiobook support (section-by-section skip), Favorites playlist, screensaver, power save timer
Software	RCA EasyRip Media Software (for CD ripping, library management, file transfer)
System Requirements	Windows XP SP1 or higher, Windows Vista; USB 2.0 port; 250 MB free disk space; 128 MB RAM (256 MB recommended)
Battery Life	Not specified; depends on usage and battery type
Included Accessories	Earphones, AAA battery, quick start guide
Warranty	1 year (US/Canada)
Certifications	FCC Part 15 Class B, Canadian ICES-003

Frequently Asked Questions - TH1602 AUDIOVOX

How do I transfer music to the TH1602?

Connect the player to your computer via USB. It will appear as a removable drive. You can either use the included RCA EasyRip software to import and transfer music, or simply drag and drop files using Windows Explorer. Supported formats include MP3, WMA, and WAV.

How do I reset the player if it freezes?

If the player stops responding, remove the battery and reinsert it after a few seconds. This will reset the device without losing most settings. If the problem persists, consider a firmware update from the RCA support website.

Can I use a micro SD card to expand storage?

Yes, the TH1602 has a micro SD card slot. Insert a micro SD card into the slot (located under a cover) to increase storage capacity. The player will automatically recognize the card and display a card icon.

How do I record FM radio?

While listening to FM radio, press the Play/Pause button to access the option menu. Select Start Recording to begin recording the current station. Recordings are saved as WAV files in the 'FMRecord' folder on the player.

Why is my radio reception poor?

The FM radio uses the earphone cable as an antenna. For better reception, fully extend the earphone cable. You can also switch from Stereo to Mono mode in the option menu to reduce noise on weak signals.

How do I create a Favorites playlist?

While playing a music file, press the Play/Pause button to show the option menu. Select Add to Favorites and confirm. The file will be added to the 'Favorites' playlist. You can play the entire playlist from the Home menu under Favorites.

What equalizer settings are available?

The player offers five equalizer presets: Flat, Bass, Pop, Rock, and Jazz. You can change the setting in the Settings menu under Equalizer.

How do I set the player to turn off automatically?

In the Settings menu, select Power Save and choose a time interval (Off, 1, 2, 5, or 10 minutes). The player will automatically shut down if no button is pressed during the set time.

Can I listen to audiobooks on this player?

Yes, the TH1602 supports audiobooks in Audible Format 4. You can transfer audiobook files to the player and navigate them using the Audiobooks menu. The player allows section-by-section skipping for books with chapters.

How do I delete files from the player?

You can delete files in two ways: 1) While playing a file, press Play/Pause to show the option menu and select Delete File. 2) Connect the player to a computer, open it in Windows Explorer, select the files, and press the Delete key on your keyboard.

USER MANUAL TH1602 AUDIOVOX

TH160 & TC160 series

It is important to read this instruction book prior to using your new product for the first time.

Contents

Safety information

FCC information 3

Product registration ....3

For your records 3

Important battery precautions ....4

Electrostatic disturbance ....4

Headset safety 4

IMPORTANT SAFETY INFORMATION ....5

End user license agreement

End user license agreement ....6

Before you begin

Copyright warning 8

Back up your data 8

Unpacking your player 8

Computer system requirements 8

Getting the latest software, firmware and information .....8

Frequently asked questions 8

Installing the battery in the player 9

Adding more storage space to the player 9

Connecting to the computer 9

Managing files on your RCA Player

Using RCA EasyRip 10

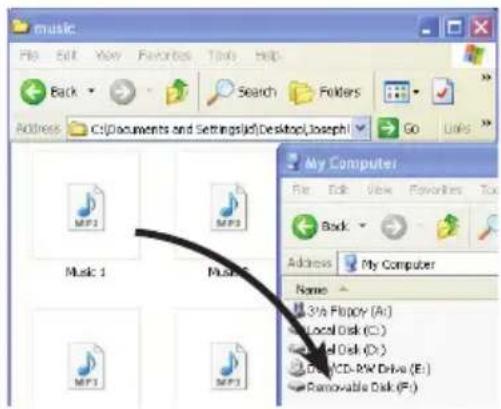

Using Windows Explorer 12

Deleting files from the player 12

Disconnecting the player from the PC 12

General controls

Turning the player on and off 13

Locking the player controls 13

Resetting the player 13

Using the menus

Menu types 14

Menu navigation ....14

The Home menu 15

Music

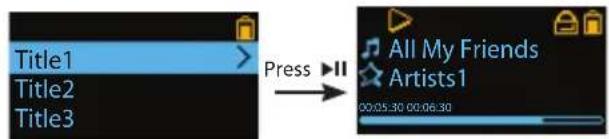

Playing music files 16

Music playback controls 16

Audiobooks

Playing audiobooks 17

Audiobook playback controls 17

Skipping through audiobook sections 17

Radio

Playing FM radio 18

Storing and recalling preset stations 18

Improving FM radio sound 19

Recording FM radio 19

Playing back FM radio recordings 19

Voice Memo

Recording voice memo 20

Playing back voice memo ....20

Favorites

Creating a "Favorites" playlist ....21

Removing files from "Favorites" playlist ....21

Settings

Changing the player's settings 22

Shuffle 22

Equalizer....22

Screensaver 22

Power save 22

RecDur (Record duration) 22

FreqStep (Frequency step) 22

Language 22

System info 22

Restore defaults ....22

Additional information

Tips and troubleshooting 23

Check for updates 24

Specifications....24

Limited warranty

For US 25

For Canada 26

FCC information

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference which may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

In accordance with FCC requirements, changes or modifications not expressly approved by manufacturer could void the user's authority to operate this product.

RCA

TH1601

RCA

TC1601

RCA

TH1602

RCA

TC1602

RCA

TH1604

RCA

TC1604

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.	THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.
SEE MARKING ON BOTTOM / BACK OF PRODUCT

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Manufacturer/Responsible Party

Audiovox Electronics Corp,

150 Marcus Blvd, Hauppauge, NY 11788

1-800-878-5779

Product registration

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed. You can go to www.rcaaudiovideo.com for online registration as well.

For your records

Keep your sales receipt for proof of purchase to obtain warranty parts and service.

In the event that service should be required, you may need both the model number and the serial number. In the space below, record the date and place of purchase, and the serial number:

Model No.

Date of Purchase

Place of Purchase

Serial No.

This Class B digital apparatus complies with Canadian ICES-003.

Important battery precautions

• Any battery may present a risk of fire, explosion, or chemical burn if abused. Do not try to charge a battery that is not intended to be recharged, do not incinerate, and do not puncture.
• Non-rechargeable batteries, such as alkaline batteries, may leak if left in your product for a long period of time. Remove the batteries from the product if you are not going to use it for a month or more.
• If your product uses more than one battery, do not mix types and make sure they are inserted correctly. Mixing types or inserting incorrectly may cause them to leak.
• Discard any leaky or deformed battery immediately. They may cause skin burns or other personal injury.
• Please help to protect the environment by recycling or disposing of batteries according to federal, state, and local regulations.

Electrostatic disturbance

This unit may temporarily cease to function if subjected to electrostatic disturbance. To resume normal operation, you may reset the player by removing and re-installing the battery.

Precautions for the player

• Do not use the unit immediately after transportation from a cold place to a warm place; condensation problems may result.
• Avoid shock to the unit.
• Do not store the unit near fire, places with high temperature or in direct sunlight. Exposure to direct sunlight or extreme heat (such as inside a parked car) may cause damage or malfunction.
• Do not expose to rain or moisture.
• Do not operate or store unit in places with frequent static electricity or electrical noise (e.g. speaker, TV set).
• Clean the unit with a soft cloth or a damp chamois leather. Never use solvents.
• The unit must only be opened by qualified personnel.

Headset safety

To use a headset safely, please keep the following in mind:

• Do not play your headset at a high volume. Hearing experts advise against continuous extended play.
• If you experience ringing in your ears, turn down the volume or stop using the headset.
• Do not use a headset while driving a motorized vehicle or riding a bike. It may cause a traffic hazard and is illegal in many areas.
• Even if your headset is an open-air type designed to let you hear outside sounds, don't turn up the volume so high that can't hear sounds around you.

Safety information

IMPORTANT SAFETY INFORMATION

PLEASE READ AND SAVE FOR FUTURE REFERENCE

Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use.

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Portable Cart Warning

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• ADDITIONAL SAFETY INFORMATION

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Always leave sufficient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air flow through vent openings.
• Do not place lighted candles, cigarettes, cigars, etc. on the product.
• Connect power cord only to AC power source as marked on the product.
• Care should be taken so that objects do not fall into the product.
• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.

- IF YOUR PRODUCT OPERATES ON BATTERIES, adhere to the following precautions:

A. Any battery may leak electrolyte if mixed with a different battery type, if inserted incorrectly, or if all batteries are not replaced at the same time.
B. Any battery may leak electrolyte or explode if disposed of in fire or an attempt is made to charge a battery not intended to be recharged.
C. Discard leaky batteries immediately. Leaking batteries can cause skin burns or other personal injury. When discarding batteries, be sure to dispose of them in the proper manner, according to your state/provincial and local regulations.

End user license agreement

IMPORTANT: READ CAREFULLY BEFORE DOWNLOADING OR INSTALLING THIS SOFTWARE!

THIS END USER LICENSE AGREEMENT (THIS "EULA") IS A LEGAL AGREEMENT BETWEEN YOU AND AUDIOVOX CORPORATION AND, AS APPLICABLE, ANY AUDIOVOX SUBSIDIARY, AS DEFINED BELOW (COLLECTIVELY "AUDIOVOX"), FOR THE RCA BRANDED PORTABLE DIGITAL AUDIO/VIDEO DEVICE APPLICATION/DRIVER SOFTWARE PROGRAM WHICH MAY INCLUDE ASSOCIATED SOFTWARE COMPONENTS, SOFTWARE LICENSED BY AUDIOVOX FROM THIRD PARTIES ("LICENSORS") AND ASSOCIATED DOCUMENTATION, IF ANY (COLLECTIVELY, THE "PROGRAM"). THIS EULA CONTAINS IMPORTANT LEGAL LIMITATIONS, RESTRICTIONS AND DISCLAIMERS, AND ALSO SPECIFIES THE DURATION OF YOUR LICENSE.

BY INSTALLING THE PROGRAM OR CLICKING ON THE ACCEPTANCE BUTTON OF THE PROGRAM, COPYING OR OTHERWISE USING THE PROGRAM, YOU ACKNOWLEDGE AND AGREE THAT YOU HAVE READ THIS EULA, UNDERSTAND IT, AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. THIS PROGRAM IS PROTECTED BY COPYRIGHT LAWS AND INTERNATIONAL COPYRIGHT TREATIES, AS WELL AS OTHER INTELLECTUAL PROPERTY LAWS AND TREATIES. YOU MAY USE THE PROGRAM ONLY IN ACCORDANCE WITH THIS EULA, AND ANY SUCH USE IS HEREBY UNDERSTOOD TO BE CONDITIONAL UPON YOUR SPECIFIC AGREEMENT TO THE UNMODIFIED TERMS SET FORTH HEREIN. IF YOU DO NOT AGREE WITH ALL OF THE TERMS OF THIS EULA, CLICK ON THE REJECTION BUTTON AND/OR DO NOT INSTALL THE PROGRAM AND/OR DO NOT USE THE PROGRAM.

1. LICENSE

(a) Under this EULA, you are granted a non-exclusive, non-sublicenseable, non-assignable and non-transferable (except as expressly set forth below) license (i) to use and install the Program on a single workstation, and (ii) to make one (1) copy of the Program into any machine-readable form for backup of the Program, provided the copy contains all of the original Program's proprietary notices.
(b) You may transfer the Program and license to another party only as a part of the RCA branded Portable Digital Audio/Video Device ("A/V Device"), and only if the other party agrees to accept the terms and conditions of this EULA. If you transfer the Program, you must at the same time either transfer all copies to the same party or destroy any copies not transferred.
(c) The terms of this EULA will govern any software upgrades or updates provided by AUDIOVOX that replace and/or supplement the original Program, unless such upgrade or update is accompanied by separate license terms and conditions in which case the terms of that separate license will govern. You acknowledge and agree that AUDIOVOX may automatically download upgrades or updates to the Program software to your computer in order to update, enhance, and/or further develop the Program.

2. LICENSE RESTRICTIONS

(a) Except for the licenses expressly granted to you in this EULA, no other licenses or rights are granted or implied.
(b) You may not (i) make the Program available over a network where it could be used by multiple computers at the same time; (ii) modify, translate, reverse engineer, decompile, disassemble (except to the extent that this restriction is expressly prohibited by law), or create derivative works

based upon the Program; (iii) copy the Program, except as expressly permitted herein; (iv) remove or alter any copyright notices on all copies of the Program; or (v) rent, lease or lend the Program. You agree that you shall only use the Program in a manner that complies with all applicable laws in the jurisdictions in which you use the Program, including, but not limited to, applicable restrictions concerning copyright and other intellectual property rights.

(c) The Program may contain pre-release code that does not perform at the level of a final code release. In such case, the Program may not operate properly. Updated versions of the Program may be downloaded from www.rcaaudiovideo.com/downloads
(d) AUDIOVOX is not obligated to provide support services for the Program.
(e) The Program is provided with "RESTRICTED RIGHTS". Use, duplication, or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of DFARS 252.227-7013, or FAR 52.227-19, or in FAR 52.227-14 Alt. III, as applicable.

3. TERM AND TERMINATION

(a) Your license is effective on the date you accept this EULA and remains in effect until this EULA is terminated by either party.
(b) You may terminate this EULA and the associated license, without any notice or delay, by destroying or permanently erasing the Program and all copies thereof.
(c) If you fail to comply with any of the terms of this EULA, in whole or part, your license will automatically terminate without notice from AUDIOVOX.
(d) Upon termination of this EULA and your associated license, you shall cease all use of the Program and destroy or permanently erase the Program and all full or partial copies thereof.

4. WARRANTY DISCLAIMER

THE PROGRAM IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU (AND NOT AUDIOVOX, ITS SUPPLIERS, OR ITS DEALERS) ASSUME THE ENTIRE COST FOR ALL NECESSARY REPAIR OR CORRECTION.

This exclusion of warranty may not be allowed under some applicable laws. As a result, the above exclusion may not apply to you, and you may have other rights depending on the law that applies to you.

5. OWNERSHIP RIGHTS

All title and intellectual property rights, including but not limited to copyrights, in and to the Program and any copies thereof are owned by AUDIOVOX, its Licensors or its suppliers. All title and intellectual property rights in and to the content which may be accessed through use of the Program is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and treaties. This license grants you no rights to use such content. All rights not expressly granted are reserved by AUDIOVOX or its Licensors.

End user license agreement

6. LIMITATION OF LIABILITY

(a) TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL AUDIOVOX, OR ITS DEALERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, CORRUPTION OF FILES, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) REGARDLESS OF CAUSE OR FORM OF ACTION, INCLUDING CONTRACT, TORT, OR NEGLIGENCE, ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE PROGRAM, EVEN IF AUDIOVOX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
(b) YOU ASSUME RESPONSIBILITY FOR THE SELECTION OF THE APPROPRIATE PROGRAM TO ACHIEVE YOUR INTENDED RESULTS, AND FOR THE INSTALLATION, USE, AND RESULTS OBTAINED.

7. WINDOWS MEDIA

The software embedded within your A/V Device (the "Device Firmware") contains software licensed from Microsoft that enables you to play Windows Media Audio (WMA) files ("WMA Software"). The WMA Software is licensed to you for use with your A/V Device under the following conditions. By installing and using this version of the Device Firmware, you are agreeing to these conditions. IF YOU DO NOT AGREE TO THE END USER CONDITIONS OF THIS SECTION 7, DO NOT INSTALL OR USE THIS VERSION OF THE DEVICE FIRMWARE.

The WMA Software is protected by copyright and other intellectual property laws. This protection also extends to documentation for the WMA Software, whether in written or electronic form.

GRANT OF LICENSE: The WMA Software is only licensed to you as follows:

You may use this version of the Device Firmware containing the WMA Software only as such use relates to your A/V Device.

You may not reverse engineer, decompile, or disassemble the WMA Software, except and only to the extent that such activity is expressly permitted by applicable law.

You may transfer your right to use the Device Firmware only as part of a sale or transfer of your A/V Device, on the condition that the recipient agrees to the conditions set forth herein. If the version of the Device Firmware that you are transferring is an upgrade, you must also transfer all prior versions of the Device Firmware that you have which include the WMA Software. MICROSOFT IS NOT PROVIDING ANY WARRANTY OF ANY KIND TO YOU FOR THE WMA SOFTWARE, AND MICROSOFT MAKES NO REPRESENTATION CONCERNING THE OPERABILITY OF THE WMA SOFTWARE.

The WMA Software is of U.S. origin. Any export of this version of the Device Firmware must comply with all applicable international and national laws, including the U.S. Export Administration Regulations, that apply to the WMA Software incorporated in the Device Firmware.

Content owners use Windows Media digital rights management technology ("WMDRM") to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline to accept an upgrade, you will not be able to access content that requires the upgrade.

8. THIRD PARTY SOFTWARE

ANY THIRD PARTY SOFTWARE THAT MAY BE PROVIDED WITH THE PROGRAM IS INCLUDED FOR USE AT YOUR OPTION. IF YOU CHOOSE TO USE SUCH THIRD PARTY SOFTWARE, THEN SUCH USE SHALL BE GOVERNED BY SUCH THIRD PARTY'S LICENSE AGREEMENT, AN ELECTRONIC COPY OF WHICH WILL BE INSTALLED IN THE APPROPRIATE FOLDER ON YOUR COMPUTER UPON INSTALLATION OF THE SOFTWARE. AUDIOVOX IS NOT RESPONSIBLE FOR ANY THIRD PARTY'S SOFTWARE AND SHALL HAVE NO LIABILITY FOR YOUR USE OF THIRD PARTY SOFTWARE.

9. GOVERNING LAW

If you acquired this A/V Device in the United States, this EULA shall be governed and construed in accordance with the laws of the State of Indiana, U.S.A. without regard to its conflict of laws principles. If you acquired this A/V Device outside the United States or the European Union, then local law may apply.

10. GENERAL TERMS

This EULA can only be modified by a written agreement signed by you and AUDIOVOX, and changes from the terms and conditions of this EULA made in any other manner will be of no effect. If any portion of this EULA shall be held invalid, illegal, or unenforceable, the validity, legality, and enforceability of the remainder of the Agreement shall not in any way be affected or impaired thereby. This EULA is the complete and exclusive statement of the agreement between you and AUDIOVOX, which supersedes all proposals or prior agreements, oral or written, and all other communications between you and AUDIOVOX, relating to the subject matter of this hereof. AUDIOVOX'S Licensors shall be considered third party beneficiaries of this Agreement and shall have the right to enforce the terms herein.

"AUDIOVOX SUBSIDIARY" shall mean any person, corporation, or other organization, domestic or foreign, including but not limited to subsidiaries, that is directly or indirectly controlled by Audiovox Corporation including, but not limited to, Audiovox Consumer Electronics, Inc. and Audiovox Electronics Corporation. For purposes of this definition only, the term "control" means the possession of the power to direct or cause the direction of the management and policies of an entity, whether by ownership of voting stock or partnership interest, by contract, or otherwise, including direct or indirect ownership of at least fifty percent (50%) of the voting interest in the entity in question.

Before you begin

Dear RCA Customer,

Thank you for purchasing the Player. This product will play mp3 and Windows Media™ audio (WMA) content as well as Digital Rights Management (WMDRM-9) protected music files.

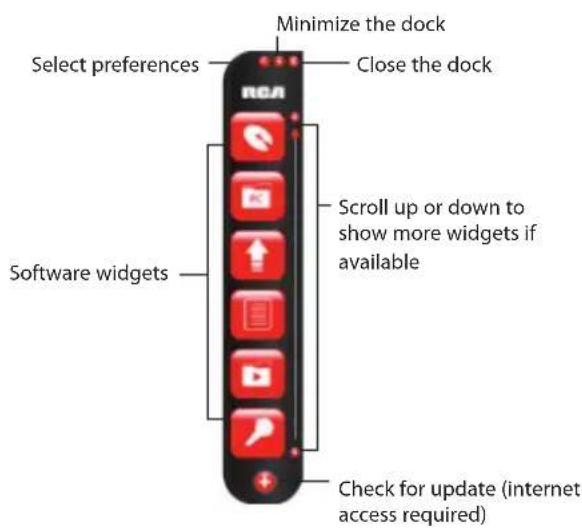

RCA EasyRip™ Media Software, installed automatically when you connected this player to your PC, lets you import music files from CDs and other sources, organize your music library, and transfer unprotected MP3 and WMA files to and from this player.

Copyright warning

This player is for your personal use only. Unauthorized recording or duplication of copyrighted material may infringe upon the rights of third parties and may be contrary to copyright laws.

Back up your data

As with any portable player, you must back up the drive regularly. The manufacturer is not responsible for lost data.

Unpacking your player

All of the items listed below should have been packed in the box with your player.

• RCA player (contains music management software installer and user manual)
• Quick Start Guide
• Earphones
• AAA battery x 1

Computer system requirements

• Pentium III 500MHz or higher recommended
• Windows® XP (service pack 1 or higher) or Windows Vista™
• Internet access
  • Windows Media Player 10 or higher
• 250MB or more free hard disk space for the software
  • 128MB RAM (256MB recommended)
  • CD drive capable of digital audio extraction
  • USB port (2.0 recommended)
• Sound card

Getting the latest software, firmware and information

Go to www.rcaaudiovideo.com/downloads for the latest firmware, RCA EasyRip Media Software and user manual for your player. Follow the instructions there to download and install files.

Frequently asked questions

For answers to frequently asked questions (FAQ), go to www.rcaaudiovideo.com/faq.

Before you begin

Installing the battery in the player

1. Apply thumb pressure to slide the battery compartment cover in the direction of the arrow, then remove the cover.
2. Insert the supplied AAA battery, following the polarity marks in the battery compartment.
3. Replace the cover.

- Refer to the battery level icon 📁 on the display to check the battery level. Replace the battery when the icon is empty.

Adding more storage space to the player

To increase the number of files you can store on the player:

1. Turn off the player.
2. Lift the cover from the micro SD slot and insert a micro SD memory card as shown.
3. Do not force the card into the slot, as this may damage the card.
4. When micro SD card is inserted, the card icon shows on the display.

Connecting to the computer

USB port of your computer

Player

• Rotate the USB plug out of the player body and connect the player to your PC as shown.
• The player will turn on automatically and display "USB connected" on the display. The player will appear as a drive letter on your computer, a Mass Storage Class (MSC) device, and behave as a detachable drive for file transfer in one or both directions.
• The RCA EasyRip™ Media Software installer (stored in the player*) will launch automatically. Click NEXT to begin the installation and follow the instructions to install the software on your PC.
• The software installer can be deleted from the player after installation to free up more storage spaces.

- It might take several seconds for the player to be detected. Click Refresh in My Computer or Windows Explorer to make sure the player has been detected

• The player is capable of transferring files at USB 2.0. If USB 2.0 port is available on your computer, use it to connect to your player. The player is still backward compatible with the older USB 1.1 ports. However, you will not be able to take full advantage of the potential speed increase.
• IMPORTANT: Don't disconnect the USB cable to the PC or the player during the software installation.
• If the installer does not auto-launch, go to MyComputer in the Start menu, find and open the drive letter associated with the player and then double-click the rcaeasyrip_setup file to launch the installer.

Managing files on your RCA Player

Before you begin using your RCA Player, you'll want to copy your music to the player. You can use any of the following methods to transfer content:

• RCA EasyRip
• Drag and drop files in Windows Explorer
• Software provided by online music stores

Using RCA EasyRip

The RCA EasyRip software was installed automatically the first time you connected this player to your PC.

EasyRip lets you:

• Import music from CDs
• Organize your music library on your PC
• Create playlists
  • Copy files from your library to the player
• Copy files from the player to your library
• Delete files from the player

For instructions on organizing your library and creating playlists, please refer to the EasyRip help.

To start EasyRip (using either method below):

• Click on the RCA system tray icon and select RCA EasyRip from the menu.
• Double-click the EasyRip icon on your PC's desktop. The EasyRip dock appears at the side of your screen.

To import music from a CD to the player:

1. Click CD Ripper on the EasyRip dock. The CD Ripper window appears.

1. Load the CD into your PC.

- CD Ripper then gets the track names from the Internet. (If it cannot get the names, you can name the tracks yourself; see the EasyRip help for instructions.)

- To import only selected tracks, click the checkbox next to the desired track.

1. Click Add Selected to Device to start importing music.

To load your media content into the EasyRip library:

1. Click PC Library on the EasyRip dock.

1. Click Import Media.

2. Select the folder (with media files) you wish to load and click OK.

Managing files on your RCA Player

To copy your music library to the player:

1. Click Player Loader on the EasyRip dock. The Player Loader window appears.

1. Click Load Player. EasyRip then copies as many files as can fit onto the player.

To copy selected files or playlists to the player:

- In the Player Laoder window, click Select Individual Files. The window expands to list the music on your PC.

• To copy selected files, choose Music from the Your PC Library list, then check the files you wish to load and click Load Player with Selected Files.

- To copy selected playlists, open the Load with drop down menu and then choose the desired playlist and click Load Player.

To copy files from the player to your music library:

1. Open Player Library.

1. Select desired files.

2. Click Add Selected to Library.

To delete selected files from the player:

1. Open Player Library.

2. Select unwanted files.

3. Click Remove Selected from Player.

To delete all files in the player:

1. Open Player Loader.

2. click Delete All Media Files.

Help – For detailed explanation on the above or other software widgets on the RCA EasyRip, click the Help widget.

Managing files on your RCA Player

Using Windows Explorer To copy files in Windows XP or Windows Vista:

1. Open the player in Windows Explorer.

2. Drag and drop music files onto the drive letter associated with the player.

Deleting files from the player

For any files you have transferred to the player, you may delete them while you have connected the player with your computer.

1. Open the player in Windows Explorer and then navigate to the folder containing the files.

2. Select the files you want to remove and then press the Delete key on the keyboard of your PC.

Disconnecting the player from the PC Windows will show the player as a removable disk:

1. In the Windows system tray, click the Safely Remove Hardware icon and then select the device with the appropriate drive letters from the list of devices.

2. When the Safe to remove hardware message appears, unplug the player from the PC.

Do not disconnect the USB connection during file download. Doing so may corrupt system files or the files being downloaded.

General controls

Turning the player on and off

To turn the player on, press and hold ⏻MENU. Press and hold ⏻/MENU again to turn the player off.

Locking the player controls

If you don't want the player controls to be activated accidentally, slide the lock/unlock switch towards the 🔒 icon. When the controls are locked, the lock icon 🔒 appears on the display.

Resetting the player

If the player stops operating properly, you can reset it by removing and re-installing the battery.

Using the menus

Menu types

The player has two types of menu:

Player menu

The player menu appears when you turn on the player or if you press ⏻/MENU while listening to the player. It lets you:

• Select music and audiobook files
• Listen to the radio
  • Record and play back voice memos
• Change the player's settings

Menu title

Menu items

Option menu

The option menu appears if you press ▶while listening to the player. It provides different options depending on what you are listening to when you press ▶II.

"Now playing" screen

Option menu

Menu navigation

When a menu is displayed:

• Press + and – to scroll up and down the list of menu items.
• Press ▶ to go to the next menu level. Press ▶ to return to the previous menu level.

- If the highlighted item is playable (for example, an audio file), press ▶ to start playback.

- If the highlighted item indicates the current setting (for example, the repeat mode setting), press ▶ to change the setting.

Using the menus

The Home menu

The top-level or "Home" menu is always displayed when you press ⏻/MENU. The menu options are:

Now Playing

Available only during playback.

Press ▶ to return to the currently playing file.

Music

Press ▶ to play all the music files on the player. Press

▶▶ to enter the Music menu and choose an artist, album, genre, year, or individual title.

Audiobooks

Press ▶ to play all the audiobooks on the player.

Press ▶ to enter the Audiobook menu and choose a particular audiobook.

Radio

Press ▶ to enter the Radio menu and choose to either listen to the radio or play recordings of previous radio shows.

Voice memo

Press ▶ to enter the Voice memo menu and choose to either start recording or play recordings of previous voice memo.

Favorites

As you listen to music, you can add individual titles to a "favorites" playlist. Press▶to play the entire playlist. Press▶to enter the Favorites menu and choose a particular title or edit the playlist.

Settings

Press ▶ to enter the Settings menu, which lets you:

• Choose the shuffle playback mode
• Choose an equalizer setting
• Choose the screensaver setting
• Turn on/off the automatic shutdown feature
• Choose a record duration setting
• Switch between US and European radio frequency steps
• Change the language of the player's menus
• Display the firmware version, space used, and space available
• Reset the player's settings to the factory defaults

Music

Playing music files

The player sorts your music files by artist, album, track name (title), genre and year.

1. Press ⏻/MENU to display the Home menu, then press + or - to select Music.

• To play all the files on the player, press ▶II
- To start playback at a particular artist, album, title, genre or year, press to enter the Music menu. Use + or - and << or >> to navigate through the menus and select the desired item, then press

The item that you can select for playback is not limited to a single file, you may select an artist, an album and then press ▶ to start playback of all files within your selected item.

Music playback controls

◀◀	Skips to the previous file*, press and hold to scan backward within a file
▶◀	Skips to the next file, press and hold to scan forward within a file
▶◀	Starts/pauses playback and shows/ hides the Option menu
+ or -	Increases or decreases the volume during playback

* Press within the beginning 4 seconds of the current music file to skip to previous file. Otherwise, you will return to the beginning of the current file.

Option menu (music playback)

Press ▶ to show or hide the Option menu during playback. Press + or - to highlight an option and then press ▶ to confirm the selection or change the setting.

The following options are available:

• Resume – to resume playback
• Repeat – press ▶II repeatedly to select repeat current 📋r all files (corresponding icon shows on the display)
• Add to Favorites – to add the current file in the Favorites playlist (read page 21). If the file is already in the playlist, this option changes to Clear from Favorites to remove the current file from the playlist
• Delete File – to remove current file from the player

Playing audiobooks

Audiobook playback is similar to music playback.

1. Press ⏻ /MENU to display the Home menu, then press + or – to select Audiobooks.

• To play all the audiobooks in file name order, press ▶
• To play back a particular audiobook, press to enter the Audiobooks menu. Use + or - to select the desired item, then press II.

Audiobook playback controls

Simple diagram of a directional control panel with plus and minus signs and bidirectional arrows (no text or symbols)

◀◀	Skips to previous file or section, press and hold to scan backward within a file
▶◀I	Skips to the next file or section, press and hold to scan forward within a file
▶II	Starts/pauses playback and shows/ hides the option menu
+ or -	Increases or decreases the volume during playback

Option menu (Audiobook playback)

Press▶ to show or hide the Option menu during playback. Press + or - to highlight an option and then press▶to confirm the selection or change the setting.

The following options are available:

• Resume – to resume playback
• Repeat – press ▶repeatedly to select repeat current 📋r all files (Corresponding icon shows on the display)
• Mode – to select section-by-section or file-by-file skipping (read below section for details)
• Delete File – to remove current file from the player

Skipping through audiobook sections

If the currently playing audiobook contains sections, you can choose to skip forward and back between sections when you press nor , instead of skipping between files.

To choose section-by-section skipping:

1. Press▶ to pause playback and display the Option menu.
2. Press + or - to select Mode, then press▶II to switch to Section.

1. Press + to select Resume and press▶ to resume playback.
2. Section-by-section skipping is indicated by Sect on the display.

- The player returns to file-by-file skipping automatically when you play another file or turn the player off.

Radio

The radio uses the earphones as an antenna. For better reception, extend the earphone cable as far as possible.

Playing FM radio

To turn the radio on:

1. Press ⏻ /MENU to display the player menu.

2. Press + or – to select Radio and press ▶ to enter the radio menu.

1. While Listen is selected, press to start listening. The frequency screen appears.

To tune the radio:

• Press or to step through the frequency range.
• Press and hold on until "Searching" shows and then release the button to start scanning through the frequency range. The player stops scanning when it detects the next station.

To turn the radio off:

- Either turn the player off or press ⏻/MENU and choose a different option.

Storing and recalling preset stations

You can store up to 20 preset stations in the player.

To store the currently playing station as a preset:

1. Press ▶ to display the Option menu.
2. Press + or – to highlight Save to Preset and then press >>
3. If all 20 preset station numbers are occupied, the option changes to Replace Preset.

1. The first available preset number is displayed. Press + or – to select a different preset number if desired.
2. If you choose a preset number that already contains an FM station, you will replace the existing station with the new station.
3. Press ▶ to highlight Yes and then press ▶II.

To listen to a preset station:

1. When the radio is playing, press ▶ to display the Option menu.
2. Press + or – to highlight Tuning and press ▶II to switch from Manual to Preset.

1. Press + or – to highlight Back and press ▶ to return to the frequency screen.
2. Press ◀ or ▶ to choose the desired station preset number. The preset number shows at the bottom left of the screen.

Preset number

- When you turn off the radio or the player, it remembers your last setting for tuning.

Radio

Improving FM radio sound

If stereo reception is noisy, you can often reduce the noise by switching to mono.

To switch between stereo and mono:

1. While the radio is playing, press ▶II to display the Option menu.

2. Press + or – to highlight Mode and then press▶ to switch between Stereo and Mono.

1. Press + or - to highlight Back and press to return to the frequency screen.

Recording FM radio

You can record the radio and play back recordings as well as copy the recordings (WAV files) to your PC.

To record the currently playing radio station:

1. Press▶II to display the Option menu.

2. Press + or - to highlight Start Recording and then press ▶ to start recording.

- Press▶II to pause or resume recording.

1. Press ⏻/MENU to stop recording.

- The player names each recording FMRecXXX.wav where XXX is a unique number.

To record for a specific duration:

Refer to RecDur on page 22.

Playing back FM radio recordings To play back a recording:

1. Press ⏻/MENU to display the player menu.

2. Press + or – to select Radio and press ➞ to enter the radio menu.

3. Press + or – to highlight Playback and press >> to see the list of recordings.

1. Press + or - to select a recording and press ▶II to start playback.

Option menu (recording playback)

Press▶to show or hide the Option menu during playback. Press + or – to highlight an option and then press▶to confirm the selection or change the setting.

The following options are available:

- Resume – to resume playback

- Repeat – press▶▶ repeatedly to select repeat current 📊 or all files Ⓗ corresponding icon shows on the display)

- Delete File – to remove current file from the player

Copying recordings to your PC

Recordings are stored as WAV files in the "FMRecord" folder on the player.

To copy recordings to the PC:

1. Plug the player into the PC.

2. Open the player's Record folder.

3. Select the files you want to copy and drag and drop them onto a folder on the PC.

- Almost all audio applications can play WAV files.

Voice Memo

Recording voice memo

You can record voice and play back recordings as well as copy the recordings (WAV files) to your PC.

To record voice:

1. Press ⏻ /MENU to display the Home menu.

2. Press + or - to select Voice Memo.

1. Press ▶ to highlight Record and press ▶ to start recording.

2. Press ▶ to pause or resume recording.

3. The microphone is located at the back of the player.

4. Press ⏻/MENU to stop recording.

- The player names each recording VRecXXX.wav where XXX is a unique number.

To record for a specific duration:

Refer to RecDur on page 22.

Playing back voice memo

To play back a recording:

1. Press ⏻ /MENU to display the player menu.
2. Press + or – to select Voice Memo and press ▶▶ to enter the voice memo menu.
3. Press + or – to highlight Playback and press ▶▶ to see the list of recordings.

1. Press + or - to select a recording and press ▶II to start playback.

Option menu (recording playback)

Press ▶ to show or hide the Option menu during playback. Press + or - to highlight an option and then press ▶ to confirm the selection or change the setting.

The following options are available:

• Resume – to resume playback
• Repeat – press ▶repeatedly to select repeat current 📊 or all files Ⓗcorresponding icon shows on the display)
• Delete File – to remove current file from the player

Copying recordings to your PC

Recordings are stored as WAV files in the "VRecord" folder on the player.

To copy recordings to the PC:

1. Plug the player into the PC.
2. Open the player's Record folder.
3. Select the files you want to copy and drag and drop them onto a folder on the PC.
4. Almost all audio applications can play WAV files.

Favorites

Creating a "Favorites" playlist

You can create a playlist of your favorite music by adding new files to the playlist as you listen to them. This function is not available for other media formats such as audiobooks and recordings.

To add the currently playing music file in the playlist:

1. Press ▶ to pause playback and display the Option menu.
2. Press + or – to highlight Add to Favorites and then press ▶II.

1. Press ▶ to highlight Yes and then press ▶. Added Successfully shows on the display.

- Repeat the above steps for adding more music files.

To listen to the Favorites playlist:

1. Press ⏻/MENU to display the Home menu.
2. Press + or - to select Favorites and press ▶.

1. Press + or - to select Play Music.

• To play the entire playlist, press ▶II
- To play back a particular file, press ▶ list the files. Press + or - to select the desired file and press ▶II.

Removing files from "Favorites" playlist

To remove a music file from the playlist:

1. While the music file is playing, press ▶ to pause playback and display the Option menu.
2. Press + or - to highlight Clear from Favorites and press ▶II.

1. Press▶ to highlight Yes and then press▶ to remove the file from the playlist.

To remove all music files from the playlist:

1. Press ⏻ /MENU to display the Home menu.
2. Press + or – to select Favorites and press ▶ to enter the Favorites menu.
3. Press + or - to highlight Clear Favorites and press ▶II

1. Press ▶ to highlight Yes and then press ▶ to remove all files from the playlist.

Settings

Changing the player's settings To change the player settings:

1. Press ⏻/MENU to display the Home menu.
2. Press + or - to select Settings and press▶ to enter the settings menu.

1. Press + or - to select a setting and then press ▶ to change it.

Shuffle

• Press▶repeatedly to select shuffle on or off. Music files (mp3/wma/wav) will be played randomly when shuffle is activated.
• The shuffle icon ( ) shows on display when shuffle is on.

Equalizer

- Press▶▶ repeatedly to choose an equalizer setting (Flat, Bass, Pop, Rock and Jazz).

Screensaver

To choose the duration (10, 20, 30 seconds or 1 minute) before the screensaver activates.

Power save

To set the time interval (Off, 1, 2, 5 or 10 minute) before the player turns off if no key is pressed.

RecDur (Record duration)

To change the duration (Max, 5 minutes, 30 minutes, 1 hour) for radio and voice recording.

FreqStep (Frequency step)

To changes the way that the player scans through the radio frequencies. Switch to EU if you bring the player to Europe; switch back to US when you return to North America.

Language

To change the language of the player menus.

System info

To show the amount of free space available and the firmware version.

Restore defaults

To reset all menus to factory defaults.

Additional information

Tips and troubleshooting

Cannot delete files on the player.

• For any files you have transferred to the player, you may delete them while you have connected the player with your computer. Highlight the unwanted file in the player's file directory on your computer and press the delete key on your computer to delete the file. Subscribed files are best to be removed through Windows Media Player.
• For deleting files from the player, refer to Option menu from page 16-20 for details.

Player repeats same tracks or all tracks.

- Repeat play is turned on. Press the PLAY button to show the option menu and change the play mode.

Audio distorted at high volume.

• Change the Equalizer mode to Flat.
• Turn down the volume.

The audio tracks on my player keep skipping or popping.

• You'll need to re-record the audio track – make sure you close all other applications on your PC when you record.
• Try recording with Error Correction setting turned on.

Player turns itself off.

- Your player turns itself off if you leave it in pause mode or navigation mode for the duration specified in PowerSave setting.

The player cannot be turned on.

• Battery is empty.
• Ensure the keys lock is not activated.
• Reset the player by removing and re-installing the battery.
• If the player still cannot be turned on after resetting, perform a firmware upgrade to restore it.
• Please go to www.rcaaudiovideo.com for more details.

Player does not respond to key presses.

- If your player stops responding to key presses, you can reset it by removing and re-installing the battery. Most of your settings will be preserved; only the settings that you have changed after your last power off will be lost.

• This player may temporarily cease to function if subjected to electrostatic disturbance.
  To resume normal operation, it may be necessary to cycle the power off and back on or by removing and re-installing the battery.
• Make sure the Lock function is not activated.

Player cannot play WMA songs.

- Secure music download files must be transferred to your player through the Windows Media Player or the application recommended by your online music download service (Note: Services and applications must be Windows Media audio-compliant and support Digital Rights Management.) (Apple iTunes music content is not supported).

The player takes a long time to read files in a folder.

- File reading may take longer if too many files are put in a single folder. Re-organize your files into a number of folders.

Song information is not showing correctly.

- Song information may not match your current player's language setting. Change the language setting.

The player reports that it is full.

- You have filled the capacity of the internal memory of the player.

Cannot playback tracks on the player.

• Make sure audio tracks are encoded in the mp3 or Windows Media formats at supported bitrates.
• Bitrates support by the player: mp3 – 32 to 320 kbps wma – 48 to 192 kbps
• WMA files may be DRM protected and you don't have the proper rights (license) to play the files.
• Check the website and/or application help system of the music download service provider from where the content was purchased from for license acquisition details. For more information on how license acquisition works, go to www.microsoft.com/windowsmedia/drm.

Cannot play Audible files.

- Make sure the file format is correct. The player supports Format 4 Audible files.

Additional information

Check for updates

Visit http://www.rcaaudiovideo.com for the latest news and firmware upgrades for our digital media player.

Specifications

Technical specification

Product: Digital Audio Player

Brand: RCA

Model: TH1601, TH1602, TH1604, TC1601, TC1602, TC1604

Electrical Consumption: AAA battery x 1

Hardware

• Dimensions: 77.5 mm H, 27.4 mm W, 18.3 mm D
• Unit Weight: 22 g (0.8oz)
- Stereo Headphones jack
- USB Connection Jack
- Battery Operated: AAA battery x 1

USB Drive

• External USB Drive: When connected to a computer via USB, the player is capable of storing any file type allowing the user a fast, convenient method of storing, retrieving, and transferring files. This includes word processing files, presentations, spreadsheets and any other computer files.
• Capacity: TH1601/TC1601 : 1 GB, TH1602/TC1602 : 2 GB, TH1604/TC1604 : 4 GB
• Connection: USB 2.0, Hi-speed capable

Software

- Includes the player applications and media management software.

Limited warranty

For US

What your warranty covers:

• Defects in materials or workmanship.

For how long after your purchase:

• One year from date of purchase.

- The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

- Provide you with a new, or at our option, a refurbished unit. The exchange unit is under warranty for the remainder of the original product's warranty period.

- Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

How to make a warranty claim:

- Properly pack your unit. Include any cables, etc., which were originally provided with the product. We recommend using the original carton and packing materials.

- Include evidence of purchase date such as the bill of sale. Also print your name and address and a description of the defect. Send via standard UPS or its equivalent to:

Thomson Inc., Product Exchange Center, 11721B Alameda Avenue Socorro, Texas 79927

- Insure your shipment for loss or damage. Thomson accepts no liability in case of damage or loss en route to Thomson.

- Pay any charges billed to you by the Exchange Center for service not covered by the warranty.

- A new or refurbished unit will be shipped to you freight prepaid.

What your warranty does not cover:

- Customer instruction. (Your Owner's Manual provides information regarding operating Instructions and user controls. For additional information, ask your dealer.)

• Installation and set-up service adjustments.

- Batteries.

• Damage from misuse or neglect.

- Products which have been modified or incorporated into other products.

- Products purchased or serviced outside the USA.

- Acts of nature, such as but not limited to lightning damage.

Product Registration:

- Please complete and mail the Product registration Card packed with your unit. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

Limitation of Warranty:

- THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.

- REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

- Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

- This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your product outside the USA:

- This warranty does not apply. Contact your dealer for warranty information.

Limited warranty

For Canada

Thomson multimedia Ltd. warrants to the purchaser or gift recipient that if any manufacturing defect becomes apparent in this product within 1 year from the original date of purchase, it will be replaced free of charge, including return transportation.

This warranty does not include damage to the product resulting from accidents, misuse or leaking batteries.

Should your product not perform properly during the warranty period, either:

1. Return it to the selling dealer with proof of purchase for replacement,

OR

1. Call 1-800-522-0338 (English) or 1-800-522-0445 (French) for instructions concerning where to mail the product.

The provisions of this written warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in any applicable legislation, and to the extent that any such provisions purport to disclaim, exclude or limit any such statutory warranties and other rights and remedies, such provisions shall be deemed to be amended to the extent necessary to comply therewith.

Illustrations contained within this publication are for representation only and subject to change.

The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice. The English version serves as the final reference on all products and operational details should any discrepancies arise in other languages.

Audiovox Electronics Corp,

150 Marcus Blvd, Hauppauge, NY 11788

1-800-878-5779

© 2008

Trademark(s) ^® Registered

Marca(s) ^® Registrada(s)
