USER MANUAL PL1090BL Pyle

PL1090BL

PL1290BL

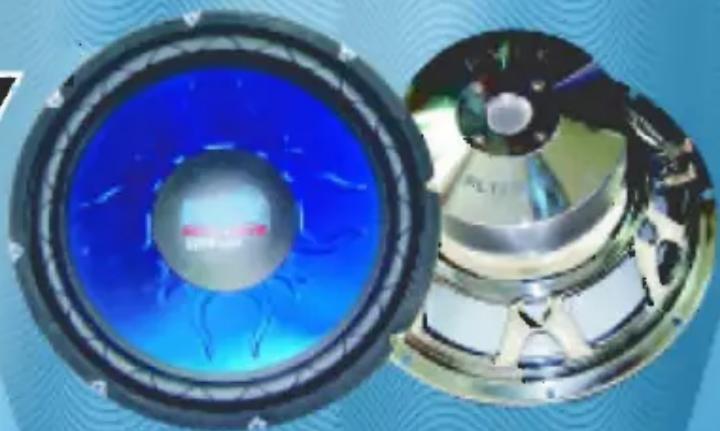

Close-up of two speaker blades with blue filter effect, no visible text or symbols

PL1590BL

Close-up of two speaker blades with blue liquid, one emitting a red light beam (no text or symbols visible)

About Pyle Blue Wave Series Woofer

Congratulations!

You have just purchased one of the most advanced subwoofers in the history of car audio. Pyle Blue Wave Series Woofer is the latest series, which has been designed and engineered for consistent and high performance

Let's enjoy the nice music that Blue Wave Woofer provided.

Basic Features of Pyle Blue Wave Series Woofers:

  • Blue Injection-Molded Cone
  • Blue Injection-Molded Cone
  • Non-fatiguing Big Rubber Suspension
  • Non-fatiguing Big Rubber Suspension
  • Blue Chrome-plated Steel Basket
  • Blue Chrome-plated Steel Basket
  • Bumped & Vented Extended Pole Piece
  • Bumped & Vented Extended Pole Piece
  • Silver Plated Terminal
  • Silver Plated Terminal
  • Flat Progressive Spider
  • Flat Progressive Spider
  • New Wave-Like Rubber Gasket
  • New Wave-Like Rubber Gasket
  • Rubber Magnet Boot
  • Rubber Magnet Boot
  • 2.0" Kapton Voice Coils
  • 2.5" Kapton Voice Coils
  • 2X70 oz Magnet Structure
  • 2X90 oz Magnet Structure

PLI090BL

PLI590BL

Mounting Depth 6.20° Overall Depth 6.80° Mounting Diameter 9.69" Overall Diameter 10.16"

Mounting Depth 8.62" Overall Depth 9.22" Mounting Diameter 15.34" Overall Diameter 13.84"

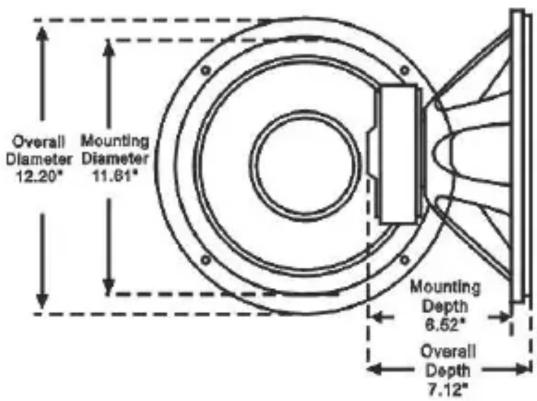

PLI290BL

Overall Diameter 12.20° Mounting Diameter 11.61° Mounting Depth 8.52° Overall Depth 7.12°

SpecificationPL1090BLPL1290BLPL1590BL
Power r(Watts Peak)100012001400
Nom.Impodanoo(Ohm)444
Voice Coll2.0"KSV2.5"KSV2.5"KSV
Magnet Structure2X70 oz2X90 oz2X90 oz
Fs (Hz)26.923.221.2
Qms5.234.925.0
Qes0.890.840.90
Qts0.760.720.75
SPL (dB)83.58584
Vas (cuft)2.3944.9085.204

Pyle Blue Wave Series Woofer continually strives to improve the performance and value of its products-all specifications are subject to change.
