Product Type	Interactive Flat Panel Display (Touch Monitor)
Brand	InFocus
Model	JTouch IN8613 (also IN6513, IN7513 in series)
Series	JTouch Series 13
Display Size (Diagonal)	86 inches (approximate, based on model number)
Resolution	3840 × 2160 (4K UHD, typical for this class)
Touch Technology	Multi-touch (supports up to 20 touch points)
Operating System	Android with custom JTouch interface
Input Ports	HDMI (4), DisplayPort (1), USB Type-C (1), USB 3.0 (4 public + 1 Android), USB 2.0 (1), Micro-SD card slot, Audio: MIC In (3.5mm)
Output Ports	HDMI Out (1), USB Type-C Out (1), SPDIF Out (1), Line Out (3.5mm)
Networking	WiFi (802.11 a/b/g/n/ac), Dual LAN ports (LAN1, LAN2), WiFi hotspot capability
NFC	Yes (for user authentication and unlock)
Camera	Yes (with All View, Speaker, and Meeting modes)
Environmental Sensors	Temperature, Humidity, PM2.5, Carbon Dioxide (CO2)
Key Software Features	Whiteboard, Annotation, Multi Display (up to 3 screens), Floating Ball, Side Menu, App List, Signal Source, All Shortcuts, Recent Apps, Settings
Audio	Line Out, SPDIF Out; built-in speakers not specified
RS232 Control	Yes (for external control)
Touch USB-B Ports	2 (for touch connectivity)
Installation	Must be installed by a trained installer
Accessories Included	Remote control

Frequently Asked Questions - JTouch IN8613 INFOCUS

How do I open the whiteboard application?

From the homepage, slide up from the bottom of the screen to open the Apps list, then tap the Whiteboard app icon. Alternatively, use the side menu if enabled.

How can I connect the display to a WiFi network?

Go to Homepage → Settings → Network → Wireless network. Select your WiFi network and enter the password.

How do I use the NFC feature for user authentication?

First, create a user account via Homepage → Settings → System → Multiple users → Add user. Then go to Settings → Connected devices → NFC and hold an NFC card near the sensing area. After adding the card, you can assign an identity and use it to unlock the associated user account.

How can I set up a WiFi hotspot from the monitor?

Navigate to Homepage → Settings → Network → Set hotspot. Configure the hotspot name and password, then enable it.

How do I annotate on the screen?

Use the Annotation tool from the side menu or the all shortcuts menu. You can write freely on the screen with the touch pen or finger. Various drawing tools, erasers, and zoom options are available.

How does the Multi Display feature work?

The Multi Display function allows you to extend the large-screen application to up to three external displays via wired projection. You can show three different applications simultaneously on the main screen and connected displays.

How can I adjust the side menu settings?

The side menu is hidden by default. To enable it, go to Homepage → Settings → Display and turn on Side menu switch. Then it will appear on the home screen edges.

What environmental sensors are available and how to view data?

The device includes sensors for temperature, humidity, PM2.5, and carbon dioxide. Enable the environmental sensors switch in Settings → Display or Advanced Features. Once enabled, the readings will appear in the upper right corner of the screen.

How do I clean the touch screen safely?

Turn off the device and unplug the power. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquid cleaners, abrasive materials, or spray directly on the screen. Avoid moisture ingress.

What should I do if the display is not responding to touch?

First, ensure the touch USB-B cable is properly connected between the display and a computer if using external touch. Restart the device. If the issue persists, check for software updates in Settings → System → About or contact InFocus support.

USER MANUAL JTouch IN8613 INFOCUS

JTouch Series 13 Users Guide

Models

IN6513, IN7513, IN8613

Regulator Models

D011, D012, D013

Please read carefully this manual before operation.

Safety

Read and understand all safety information, operating instructions, and product labels before operating the equipment. Keep this guide in a safe place for future reference.

The lightening flash with arrow-head symbol, within a triangle, is intended to alert the user to the presence of “dangerous voltage” within the products enclosure that may be sufficient to constitute a risk of electric shock to persons.

The exclamation mark within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions.

To reduce the risk of fire or electric shock, do not expose this product to smoke, rain, dust or moisture

To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire.

The installation of this product should be completed by a Trained Installer.

Note

The contents of this document may be updated from time to time due to product version upgrades or other reasons.

Unless otherwise agreed, this document is provided as a guide only, and all statements, information, and recommendations in this document are not warranties of any kind, express or implied.

Contents

Hardware Details	Hardware Details	1
HomePage	Homepage	3
	Applications	4
	White Board	5
	Side menu	7
	App List Signal	9
	source	10
	Annotation	11
	All shortcuts	12
	Floating ball	13
	Multi Display	14
	Recent Apps	15
Settings	Advanced Features	16
	Environmental sensors switch	17
	WiFi	18
	Wired network	19
	WiFi hotspot	20
	NFC	21
Others	Camera	24
	Remote control	25

Hardware Details

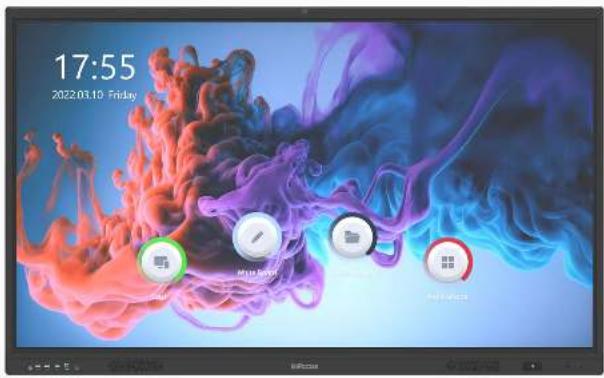

1. Front View 2. Right side View


1. TYPE-C IN Port
2. Public USB 3.0 Port
3. Public USB 3.0 Port
   • 4. Public USB 3.0 Port
4. Touch USB-B Port
5. HDMI IN 1 Port
6. Power button

①
②

1. AC Power Switch
2. Power Cable Input

1 / 25

Hardware Details

1. Left Side View


1. HDMI IN 4 Port
2. Touch USB-B Port
3. HDMI IN 3 Port
4. HDMI IN 2 Port
5. TYPE-C IN Port
6. DP IN Port
7. Public USB 3.0 Port
8. Public USB 2.0 Port

9. Micro-SD (TF) card slot

10. Bottom View


• 1. MIC IN Port
2. LINE OUT Port
3. SPDIF OUT Port
4.RS232 Port
5. HDMI OUT Port

1. TYPE-C OUT Port
2. LAN2 Port
3. LAN1 Port
4. Android USB3.0 Port

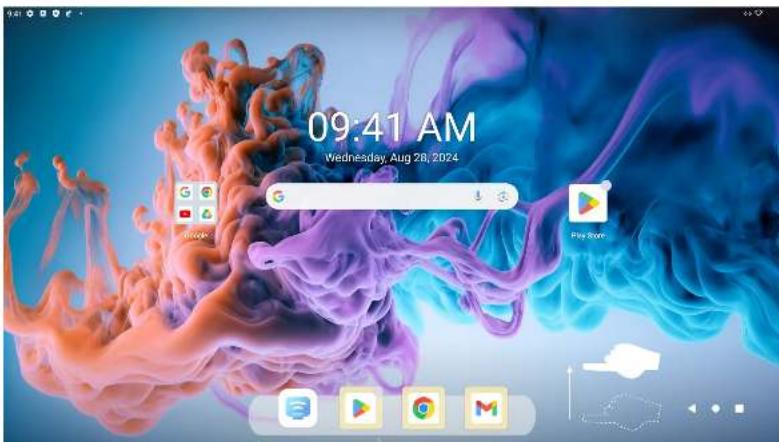

Homepage

Slide up from the bottom of the screen to bring up the Apps list.

Cast

Tip: the device needs to be connected to the hotspot sent by the Intelligent conference board

Project the content on from mobile de- cives to touch screen, including mobile phones, tablet and laptops, support Android/IOS/Windows/Mac OS.

Here shows the recently opened applications.

3/25

Applications

Here are all the APKs of the device.

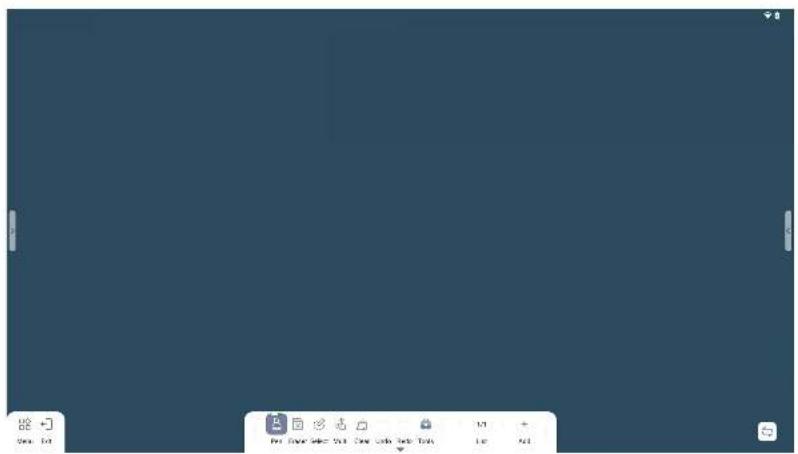

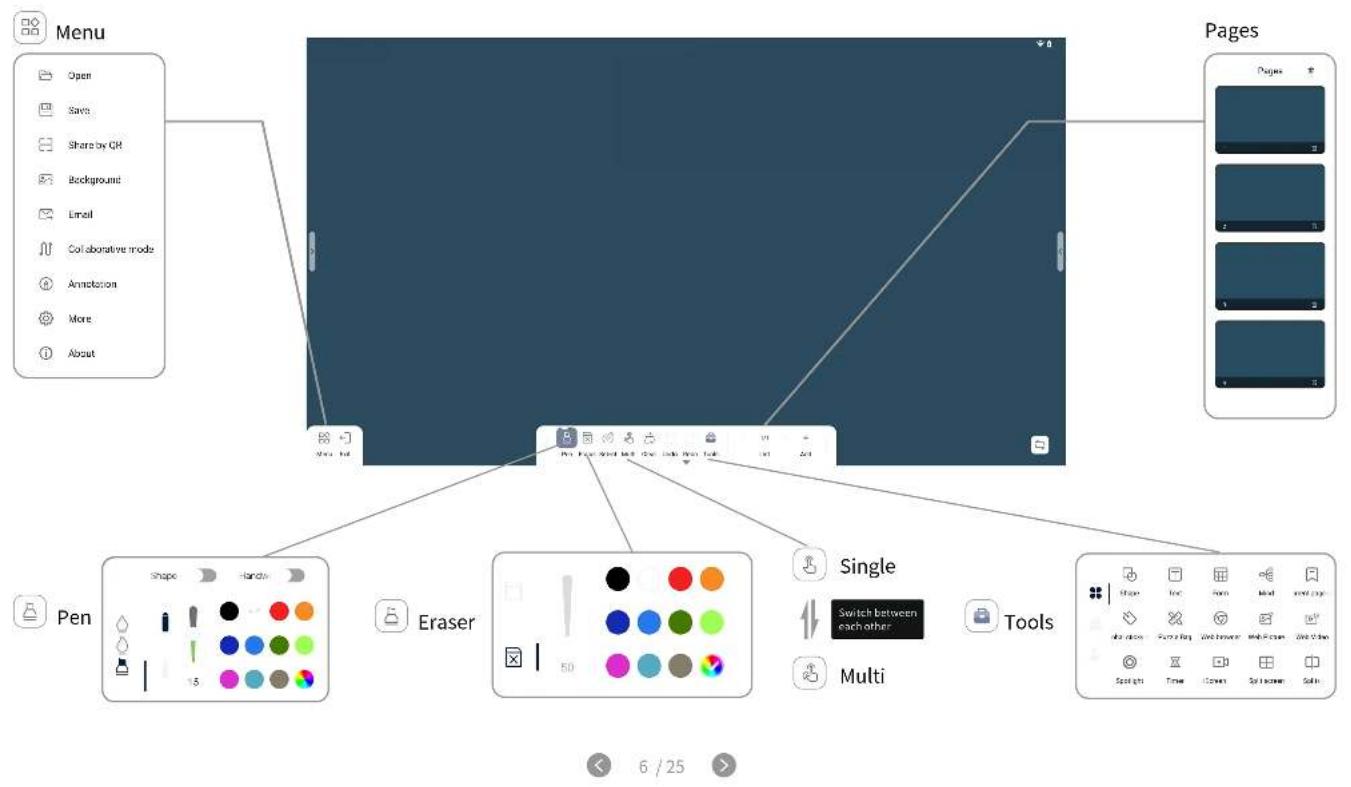

White Board

① Open the whiteboard menu
②← Close the current application
③ Drawing tool
④ Selection of erasure mode and plate erasure
⑤ Zoom in, zoom out, and drag the selected area
⑤ Switch between Multi writing and Single writing
⑦ ▲ Click to clear screen
⑧ Return to the previous step
⑨ Return to the next step
Including Shape, Text, Form, Mind, Puzzle, split screen, Split+, Web browser, Web picture, Web video, Spotlight, Timer, Current and Global sticky tools
⑪ + Add page
⑫ Bottom left and right menu switching

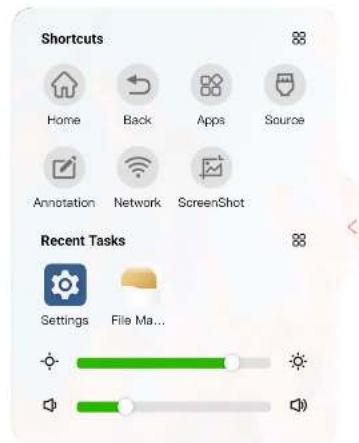

Side menu

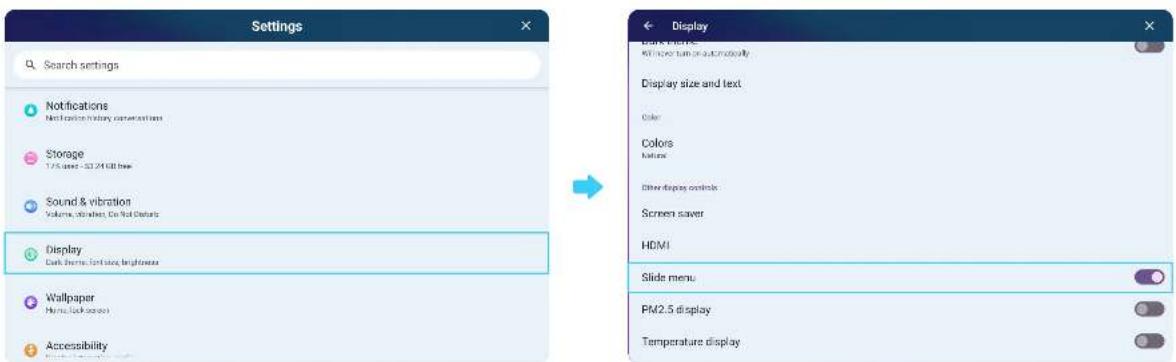

This side menu is hidden by default. Turn on the Side menu switch as below:

"Settings—Display—Turn on the Side menu switch." Side menu can be displayed on the homepage.

Side menu

Touch the icon on the left or right side of the home page, open Side menu.

8 / 25

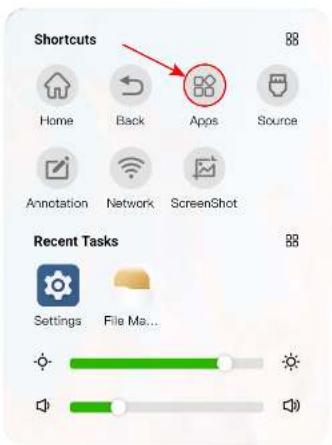

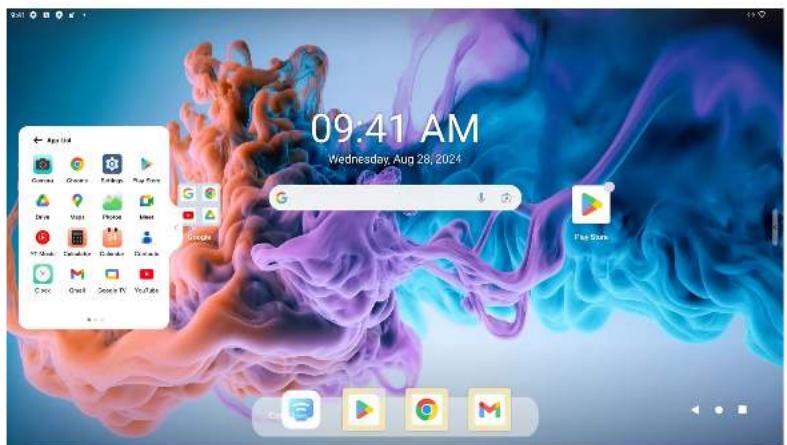

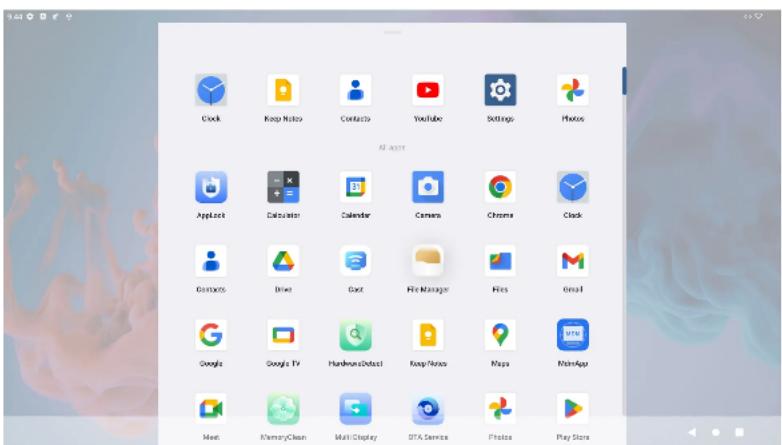

App List

Find more applications quickly.

9 / 25

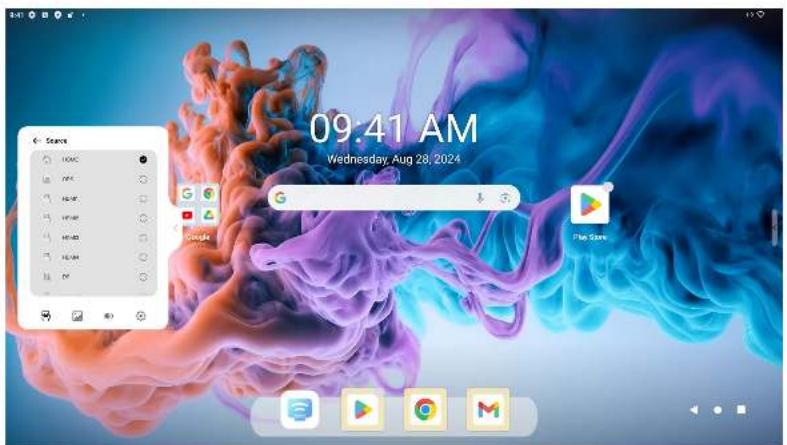

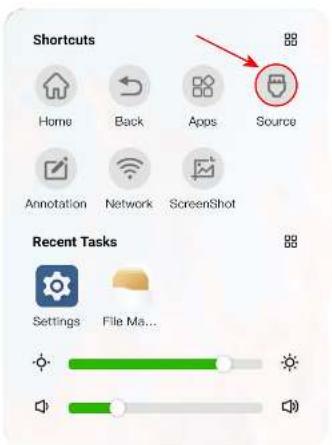

Signal source

Select the corresponding signal channel.

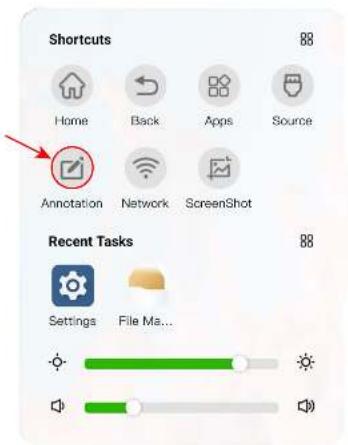

Annotation

You can write freely on the screen.

11 / 25

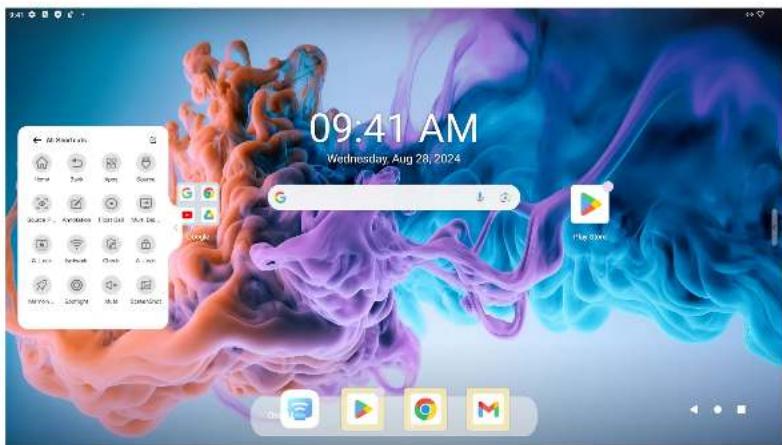

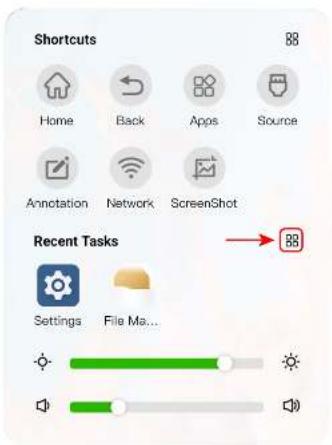

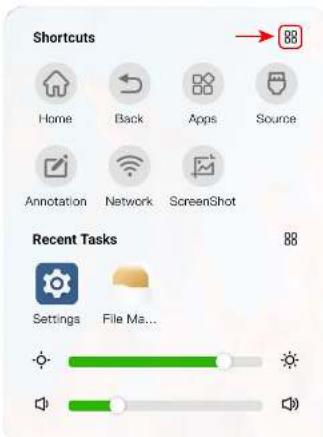

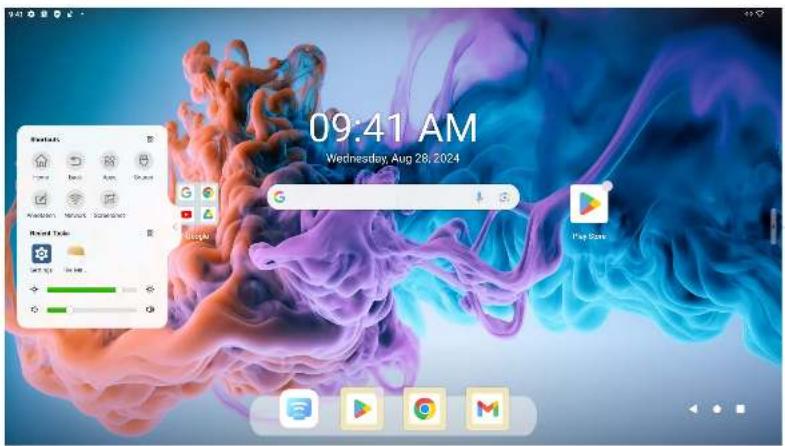

All shortcuts

The collection of tools shortcuts.

12 / 25

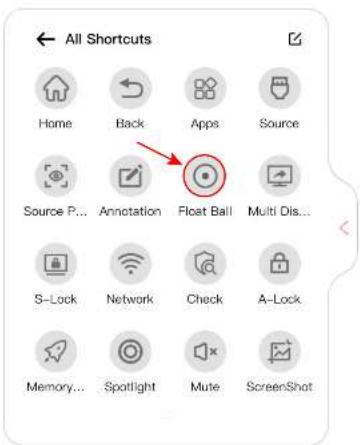

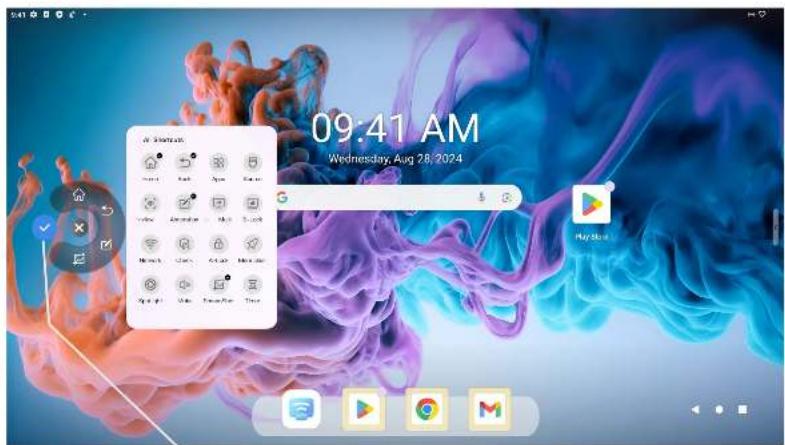

Floating ball

The floating ball can be customized to meet the quick operation needs of users.

Custom definition

13/25

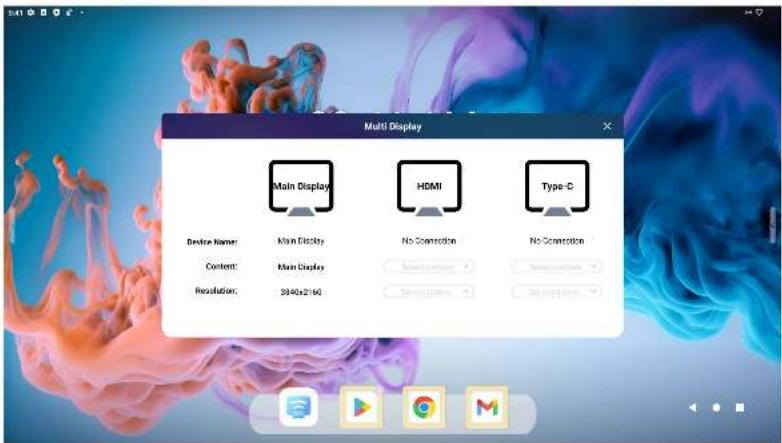

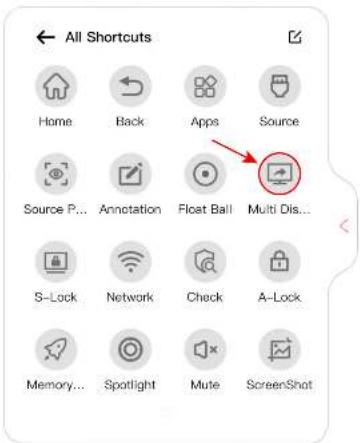

Multi Display

Multi-screen expansion function: You can output the large-screen application screen to other displays through wired projection, and support up to 3 screens to display 3 different applications at the same time.

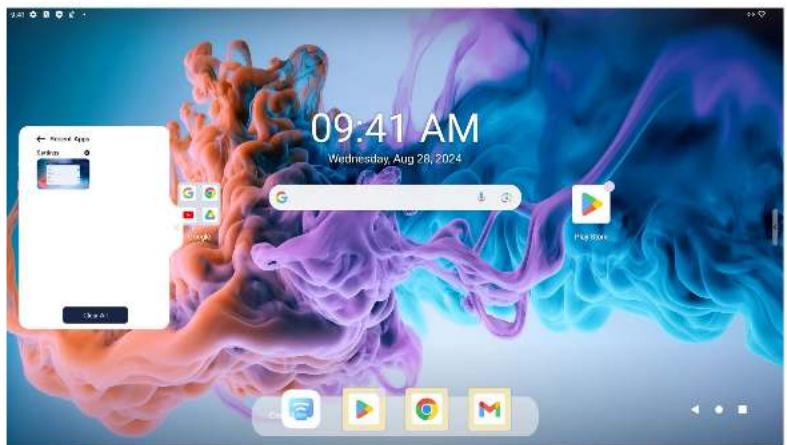

Recent Apps

Manage background applications.

15 / 25

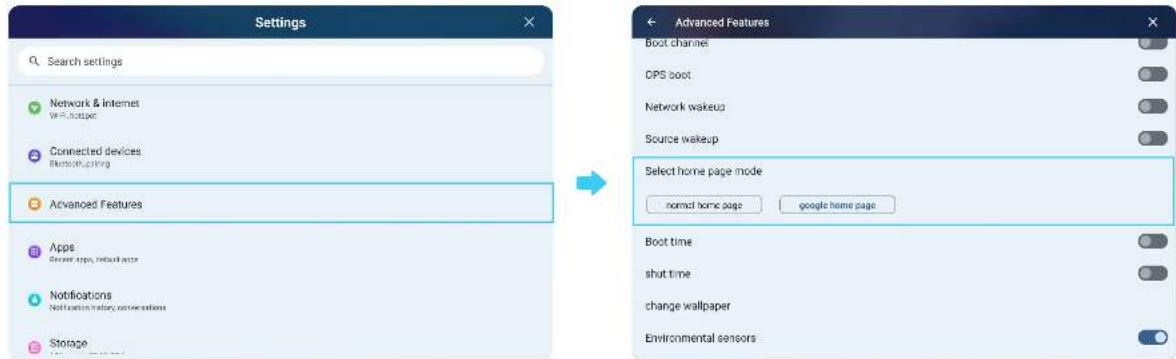

Advanced Features

There are two home page modes to select.

"Homepage—Settings—Advanced Features—Select home page mode" normal & google home page can be set.

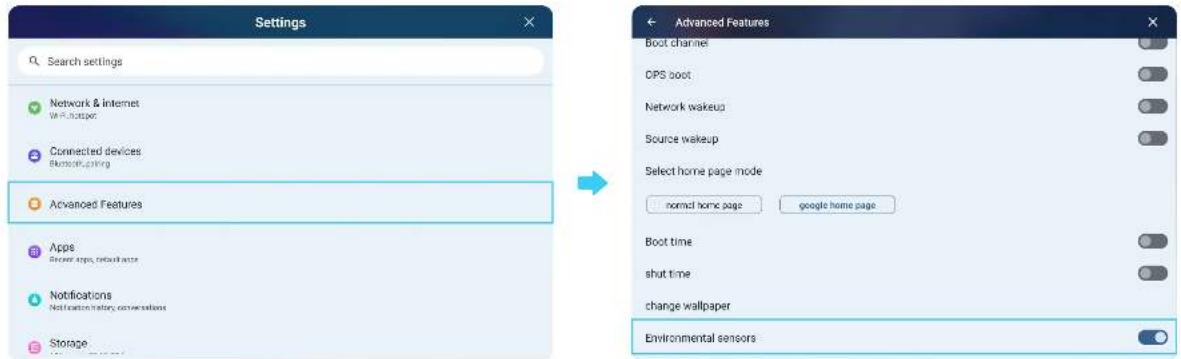

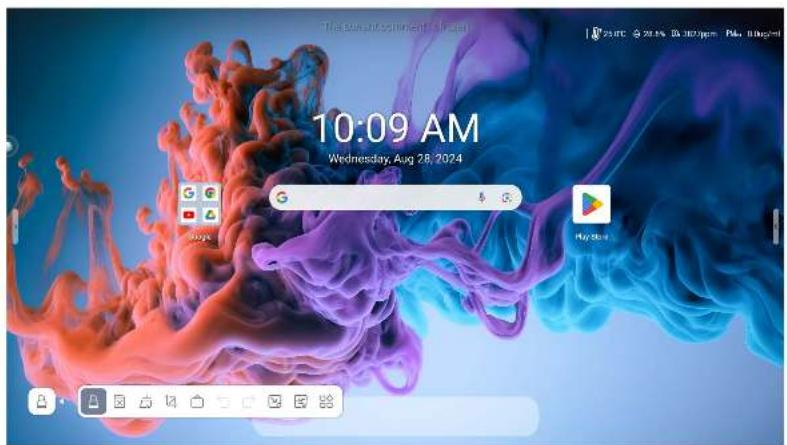

Environmental sensors switch

Environmental sensor(including temperature and humidity sensor, PM2.5 sensor, carbon dioxide sensor): Turn on the environmental sensors switch, the relevant information will be displayed on the upper right corner of the screen.

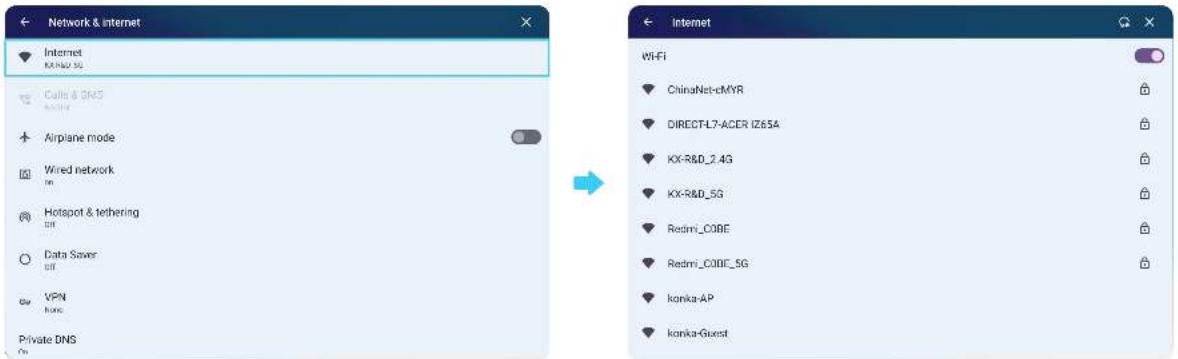

Network settings-WiFi

"Homepage—Settings—Network—Wireless network" WiFi can be set

18 / 25

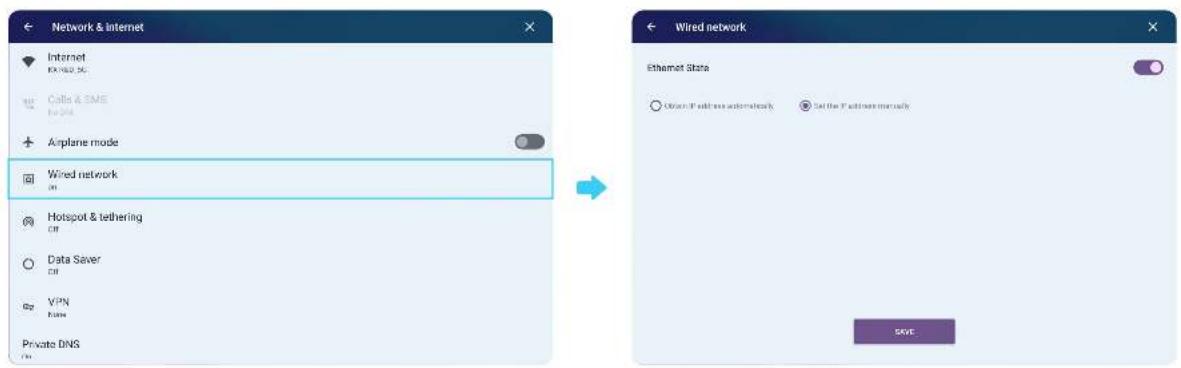

Network settings-Wired network

"Homepage—Settings—Network—Wired network" Wired network can be set

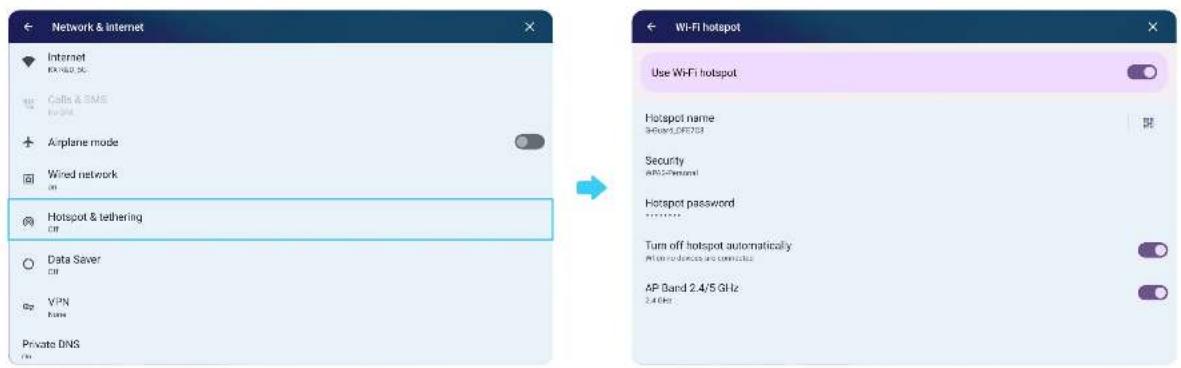

Network settings-WiFi hotspot

"Homepage—Settings—Network—Set hotspot" WiFi hotspot can be set

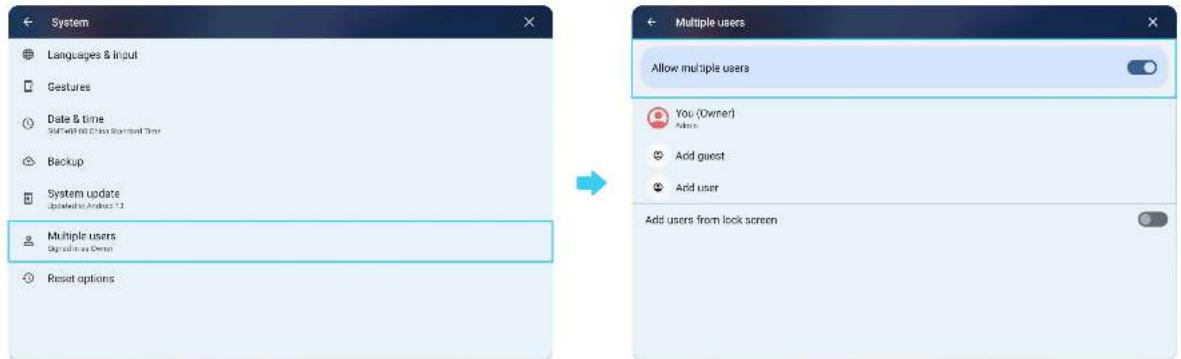

NFC settings-Add user

Before using an NFC card, a new user account must be established first.

"Homepage—Settings—System—Multiple users-Add user" A new user account can be established.

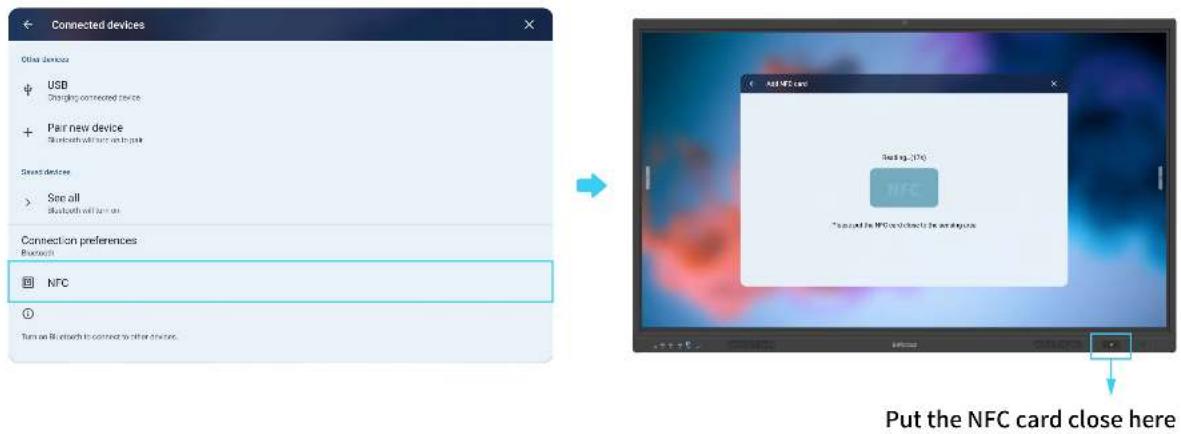

Add NFC card

"Homepage—Settings—Connected devices—NFC" Put the NFC card close to the sensing area.

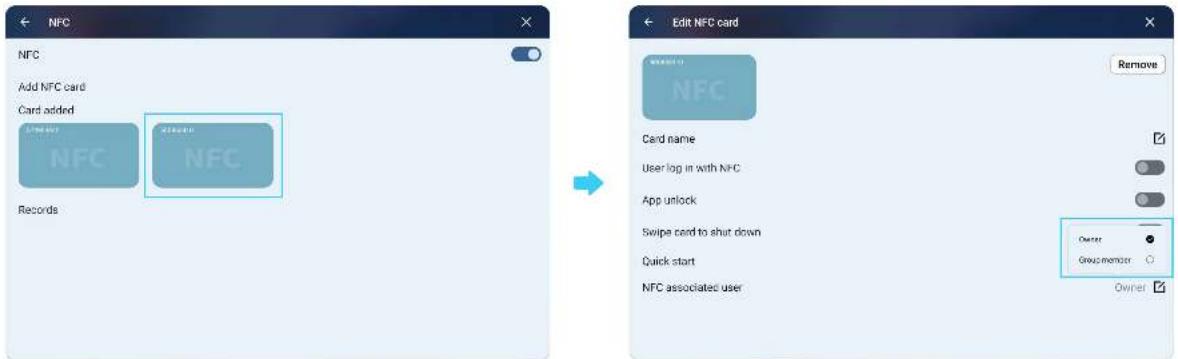

Edit NFC card

After adding two NFC cards, you can see the following interface.

Select any one of the NFC cards, then you can set the identity of this NFC card.

The NFC card can unlock the user account associated with it.

23 / 25

Camera

Different gesture switching modes.

All view mode: without sound source tracing in this mode.

Speaker mode: with sound source tracing in this mode.

Meeting mode: with facial capture in this mode.

24 / 25

Accessories

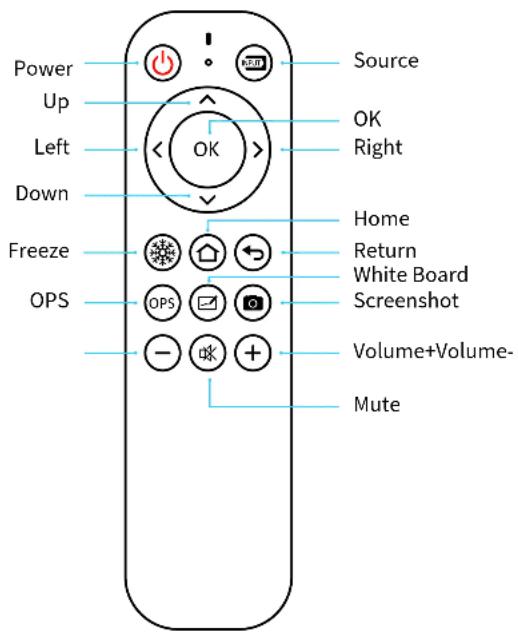

Remote control

25 / 25
