| Product Type | Computer Cooling Component (Chiller Unit) |
| Brand | Daikin |
| Model | EWAD240TZSLB1 |
| Cooling Capacity | Approximately 240 kW (Rated) |
| Refrigerant Type | R-134a or R-410A (Typical) |
| Dimensions (H x W x D) | 1800 mm x 1100 mm x 800 mm |
| Weight | Approximately 1200 kg |
| Power Supply | 400V / 3-Phase / 50-60 Hz |
| Power Consumption | Approximately 80 kW (Rated) |
| Compressor Type | Scroll or Screw Compressor |
| Condenser Type | Air-Cooled or Water-Cooled (Typical) |
| Evaporator Type | Plate Heat Exchanger or Shell-and-Tube |
| Operating Temperature Range | -10°C to 45°C Ambient |

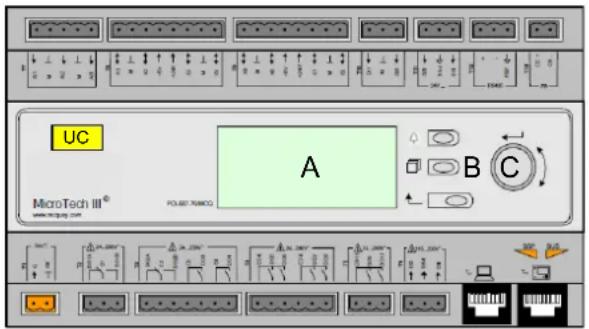

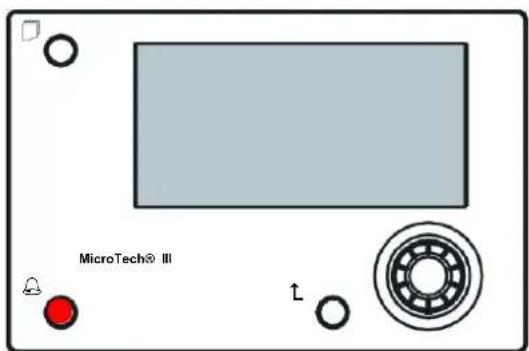

| Control Interface | Digital Controller with LCD Display |
| Protection Features | Overload, High/Low Pressure, Phase Loss |
| Maintenance Intervals | Clean condenser coils every 3 months |
| Spare Parts Availability | Filters, Gaskets, Expansion Valves |
| Repairability Index | 8/10 (Modular components, easy access) |
| Certifications | CE, UL, RoHS |
Frequently Asked Questions - EWAD240TZSLB1 DAIKIN
How do I install the Daikin EWAD240TZSLB1 chiller?
Installation must be performed by a qualified technician. Ensure the unit is placed on a level, vibration-absorbing base, with sufficient clearance for airflow and maintenance. Connect to power supply and water/air lines as per the manual.
What is the recommended maintenance schedule?
Perform monthly checks on refrigerant pressures and electrical connections. Clean condenser coils every 3 months. Replace filters annually. Schedule a professional inspection every 6 months.

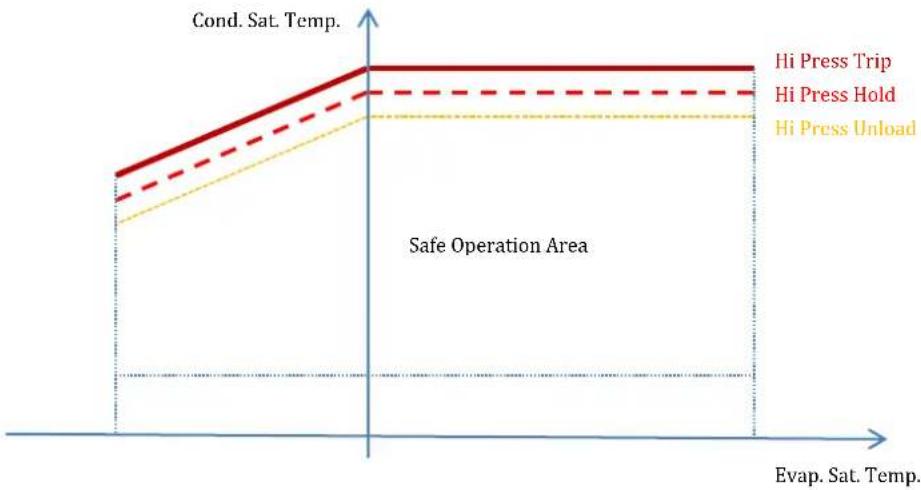

How do I reset the high-pressure alarm?
First, identify and resolve the cause (e.g., blocked coil, fan failure). Then press the reset button on the control panel for 5 seconds. If the alarm persists, contact service support.
Can this unit operate in low ambient temperatures?
Yes, the EWAD240TZSLB1 can operate down to -10°C with optional low-ambient kit. Ensure condenser fans are controlled to maintain proper head pressure.
What type of refrigerant does it use?
The unit typically uses R-134a or R-410A. Refer to the nameplate for exact refrigerant type and charge quantity.

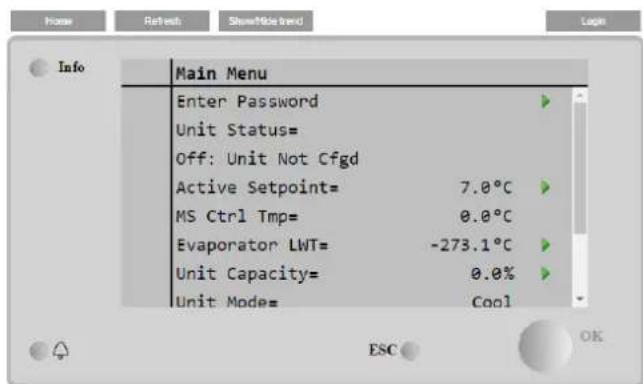

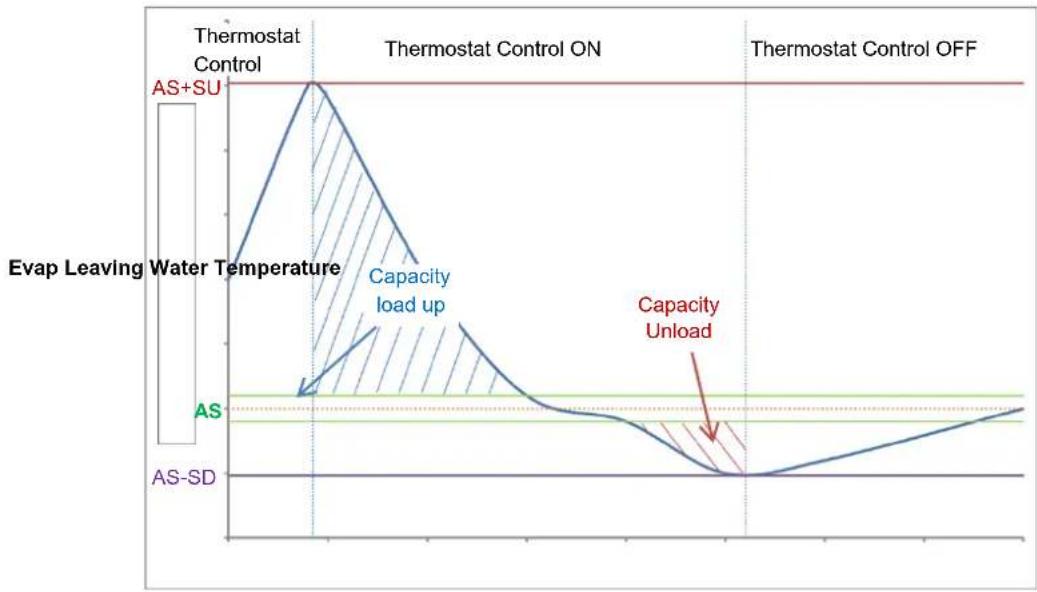

How do I adjust the setpoint temperature?
Use the digital controller: Press the SET button, use UP/DOWN arrows to change the desired leaving water temperature, then press SET to confirm.
What is the cooling capacity in tons?
Approximately 68 tons (1 ton = 3.517 kW). The unit is rated at 240 kW cooling capacity.
How do I clean the condenser coils?
Turn off power. Use a soft brush or compressed air to remove debris. Avoid damaging the fins. For heavy dirt, use a coil cleaner and rinse with water.
What warranty does the Daikin EWAD240TZSLB1 have?
Standard warranty is 2 years for parts and labor. Extended warranty options are available. Refer to your purchase contract for details.
Where can I find spare parts?
Contact Daikin authorized distributors or service centers. Provide the model number and serial number for accurate part identification.
