USER MANUAL CU0212 LOGILINK

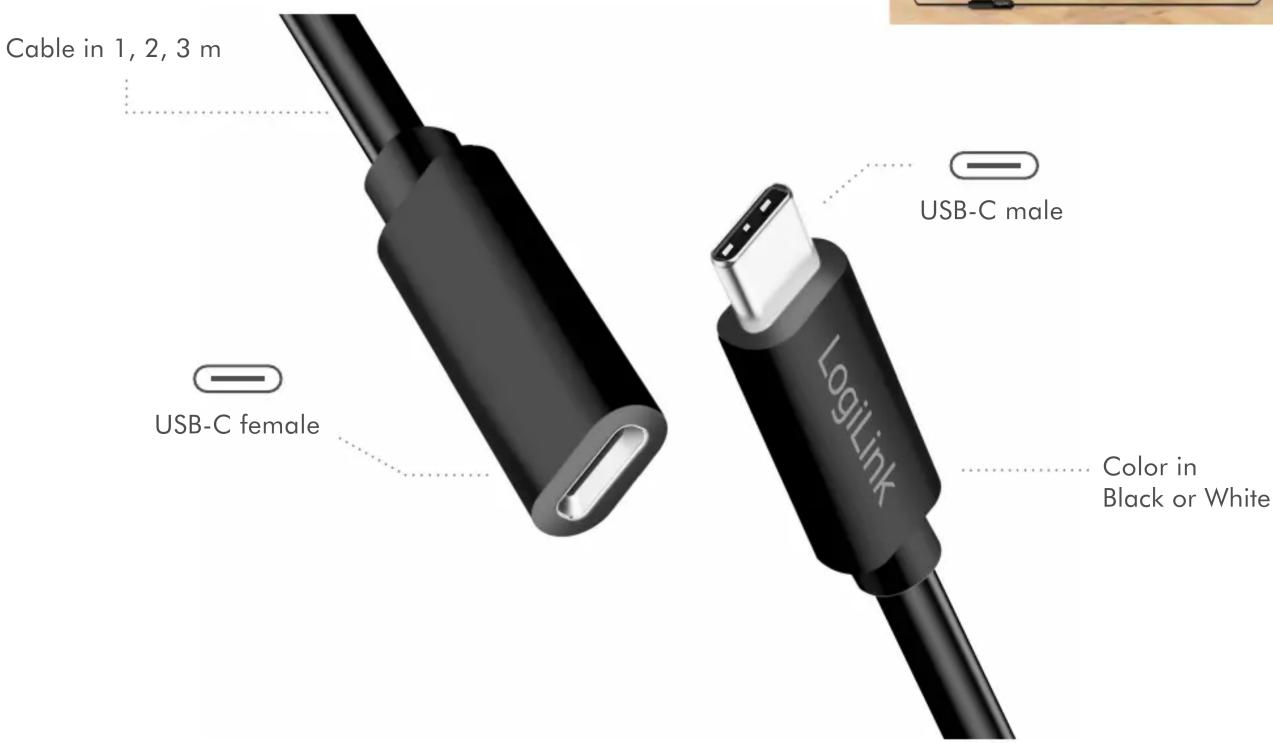

Three black and white LogitLink connectors with connector pins, shown from different angles (no text or symbols on the cables themselves)

LogiLink®

USB-C Extension Cable

USB-C male to USB-C female

Art. No.: CU0210 CU0220

CU0211 CU0221

CU0212 CU0222

The USB-C sync and charge extension cable is designed to solve the long distance connection, cluttered desktop space and protect the USB-C ports from damaging by frequently ejecting.

Features:

» Easier access to USB-C port with 1–3 m extension cable
» Data transfer rate up to 480 Mbps and load up to 5 A of the charging current (with 1 and 2 m cables)
» Compatible with most USB-C devices

Woman sitting on a gray sofa using a tablet, connected to a wall-mounted device (no visible text or symbols)

Specifications:

Connection 1 USB-C male
Connection 2 USB-C female
Material PVC mold
Max. Current Capacity Up to 5 A for 1–2 m cables, and up to 3 A for 3 m cable
Max. Data Transfer Rate 480 Mbps

Art-No.	Cable Length	Color	EAN Code
CU0210	1 m	Black	4052792074307
CU0211	2 m	Black	4052792074314
CU0212	3 m	Black	4052792074321
CU0220	1 m	White	4052792074338
CU0221	2 m	White	4052792074345
CU0222	3 m	White	4052792074352

Package Content:

» 1 x USB-C Extension Cable

Package Information:

Art-No.	Packing Dimension	Packing Weight	Carton Dimension	Carton Q'ty	Carton Weight
CU0210	161 x 240 x 10 mm	0.0385 kg	380 x 290 x 350 mm	280 pcs	11.9 kg
CU0211	162 x 240 x 10 mm	0.067 kg	380 x 290 x 350 mm	200 pcs	14.4 kg
CU0212	202 x 258 x 15 mm	0.097 kg	380 x 290 x 350 mm	120 pcs	12.6 kg
CU0220	160 x 238 x 10 mm	0.0395 kg	380 x 290 x 350 mm	280 pcs	11.9 kg
CU0221	160 x 238 x 15 mm	0.0675 kg	380 x 290 x 350 mm	200 pcs	14.4 kg
CU0222	200 x 256 x 15 mm	0.096 kg	380 x 290 x 350 mm	120 pcs	12.6 kg
