WHFPR01SS - Food processor WESTINGHOUSE - Free user manual and instructions

Type	Food Processor
Brand	Westinghouse
Model	WHFPR01SS
Functions	Slicing, shredding, chopping, blending, citrus juicing, kneading
Processing Bowl Capacity	3.5 L (estimated)
Blender Jug Capacity	1.5 L (estimated)
Speed Settings	2 speeds (1 low, 2 high) + pulse
Power	800 W (estimated)
Voltage	220-240 V AC
Cord Length	Short (approx. 0.8 m)
Dimensions (approx.)	30 x 25 x 40 cm
Weight (approx.)	5 kg
Material	Plastic body, stainless steel blades, glass blender jug (estimated)
Safety Features	Locking lid, non-slip base, overload protection, sharp blade warning
Dishwasher Safe Parts	Bowl, lid, blades, blender jug, accessories
Continuous Operation Limit	3 minutes, then 5-minute cool down
Warranty	1 year limited
Country of Origin	China
Intended Use	Household indoor use

Frequently Asked Questions - WHFPR01SS WESTINGHOUSE

How do I assemble the food processor for slicing?

Place the motor base on a flat surface. Place the processing bowl onto the base and twist clockwise to lock. Insert the driving shaft. Place the blade disc holder on the shaft, then the desired disc. Add the bowl cover and twist clockwise until it clicks. Turn on using speed 1 or 2.

Can I blend hot liquids in the blender?

No, do not blend hot liquids. Hot liquids can cause steam buildup and eject out of the appliance, leading to burns. Allow liquids to cool before blending.

How long can I operate the food processor continuously?

Do not operate for more than 3 minutes continuously. After each cycle, let the appliance cool for 5 minutes before using again.

What should I do if the food processor does not start?

First, ensure the bowl and lid are properly locked in place. Check that the plug is securely inserted into the outlet and that the outlet is working. If the circuit breaker has tripped, reset it. If the problem persists, contact customer service.

Are the blades and accessories dishwasher safe?

Yes, all accessories are dishwasher safe. For best care, use a non-abrasive cloth and mild detergent. The motor base should only be wiped with a damp cloth.

How do I use the citrus juicer attachment?

Place the processing bowl on the base with the driving shaft. Insert the citrus juicer filter over the shaft and lock it. Add the cone. Switch on and press halved citrus fruit onto the spinning cone.

What is the maximum capacity for chopping meat?

The chopping guide suggests up to 600g of meat for about 40 seconds. Do not overload the bowl.

Why is the blade not rotating?

The food may be too hard, too large, or too much. Remove some ingredients, cut them into smaller pieces, and try a higher speed setting. Also ensure the bowl and lid are correctly assembled.

Can I use an extension cord?

No, do not use an extension cord. If the cord is too short, have a qualified electrician install an outlet near the appliance.

What is the warranty period and how do I claim?

This appliance comes with a 1-year limited warranty. To claim, return the product with your sales receipt to the place of purchase or contact Westinghouse customer service at 1300 883 109 (AU) or 0508 776 546 (NZ).

USER MANUAL WHFPR01SS WESTINGHOUSE

Exterior view of a modern kitchen appliance with a glass control panel and a black handle (no visible text or symbols)

FOOD PROCESSOR INSTRUCTION MANUAL

CONTENTS

SAFETY INFORMATION

Important Safety Instructions 1 - 2

Electrical Requirements 3

SETUP AND USE

Installation Guide 3

Parts and Features 4

Assembly and operation 5-6

Chopping guide 7

CLEANING AND CARE 7

TROUBLESHOOTING....8

WA RRANTY 9-10

Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance.

Product design and specifications may be changed without notice.

IMPORTANT SAFETY INSTRUCTIONS

DANGER

DANGER - Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING - Hazaros or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION - Hazards or unsafe practices which COULD result in minor personal injury.

\*\*\*WARNING\*\*\*

Keep hair, hands, fingers and other body parts away from the the blades whilst in operation.

1. Read all instructions carefully before using the food processor.
2. Always turn the power off at the power outlet before you remove or insert the power plug. Remove by grasping the plug - do not pull on the cord.
3. While in use, ensure to only touch the jug handle, jug lid and/or base of the food processor as other components may get warm during operation.
4. Do not operate the food processor if:
   i) the cord or plug is split, melted or damaged.
   ii) the food processor has malfunctioned.
   iii) the food processor has been damaged in any manner.
   i) the cord or plug is split, melted or damaged. ii) the food processor has malfunctioned. iii) the food processor has been damaged in any manner.

If any of the above incidents occur to your food processor, contact the email address on the back of this instruction manual with all relevant information for a resolution.

1. This food processor is not intended to be operated by means of an external timer or separate remote-control system.
2. Close supervision is necessary when any appliance is used by or near children.
3. Any appliance that has been dropped or damaged should not be used until examined by an authorised service center.
4. Do not permit the mains supply cord or plug to touch hot objects or allow the power cord to lay across the food processor.
5. If the mains supply cord is damaged, it must be replaced by the manufacturer, it's service agent or a similarly qualified person in order to avoid a hazard.
6. This appliance is deemed for use indoors only.
7. Never plug the appliance into the power outlet if the cutting blades are exposed. Blades should be housed within the jug.
8. Do not under any circumstances immerse the power cord, mains plug or food processor body in water or any other liquid.
9. Do not at any time, insert hands or other body parts into the jug whilst in operation.

IMPORTANT SAFETY INSTRUCTIONS

1. This food processor can be used by children aged from 12 years old and above and by persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the food processor in a safe way and understand the hazards involved.

2. Children should not play with the food processor.

3. Keep the food processor and its cord out of reach of children less than 12 years old.

4. The food processor should not be unattended while in use.

5. This food processor should not be used in a commercial environment such as a restaurant, hotel or hostel dining room.

6. Always use this food processor with a power outlet of the voltage (A.C. only) marked on the back of the food processor.

7. Do not use the food processor for any purpose other than its intended use.

8. Do not place the food processor on top of any other appliance.

9. Do not allow the power cord of this food processor to hang over the edge of a table or bench top.

10. Keep hands, fingers and utensils out of jug while operating to reduce the risk of severe injury. A scraper may be used but must only be used when the food processor is not running.

11. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

1. Do not place the food processor on or near a hot gas flame, electrical element, heated oven or any other hot surface.

2. ⚠️ WARNING: Do not blend hot liquids.

3. ⚠️ WARNING: The blades are very sharp, handle with care particularly when cleaning the blades.

4. ⚠️ WARNING: Do not operate the appliance continuously for longer than five minutes as the appliance may overheat.

5. ⚠️ WARNING: Misuse may cause potential injury.

6. ⚠️ WARNING: Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

ELECTRICAL REQUIREMENTS

POWER SUPPLY CORD

1. Do not attempt to modify the power cord or plug in any way.
2. A short power supply cord is provided to reduce the risk of the user becoming in or tripping entangled over a longer cord.
3. If the power supply cord is too short, do not use an extension cord. Have a qualified electrician or serviceman install an outlet near the appliance.

NOTE: Neither Westinghouse nor the retailer can accept any liability for damage to the product or personal injury resulting due to failure to observe the electrical connection procedures.

INSTALLATION GUIDE

1. Carefully unpack your electric food processor and attachments.
2. Carefully remove packaging around the food processor and power cord. Do not remove warning labels.
3. Wash Jug, Lid and accessories before use.

WARNING: ⚠️ Do not under any circumstances immerse the food processor body, mains cord or mains plug in water or any other liquid.

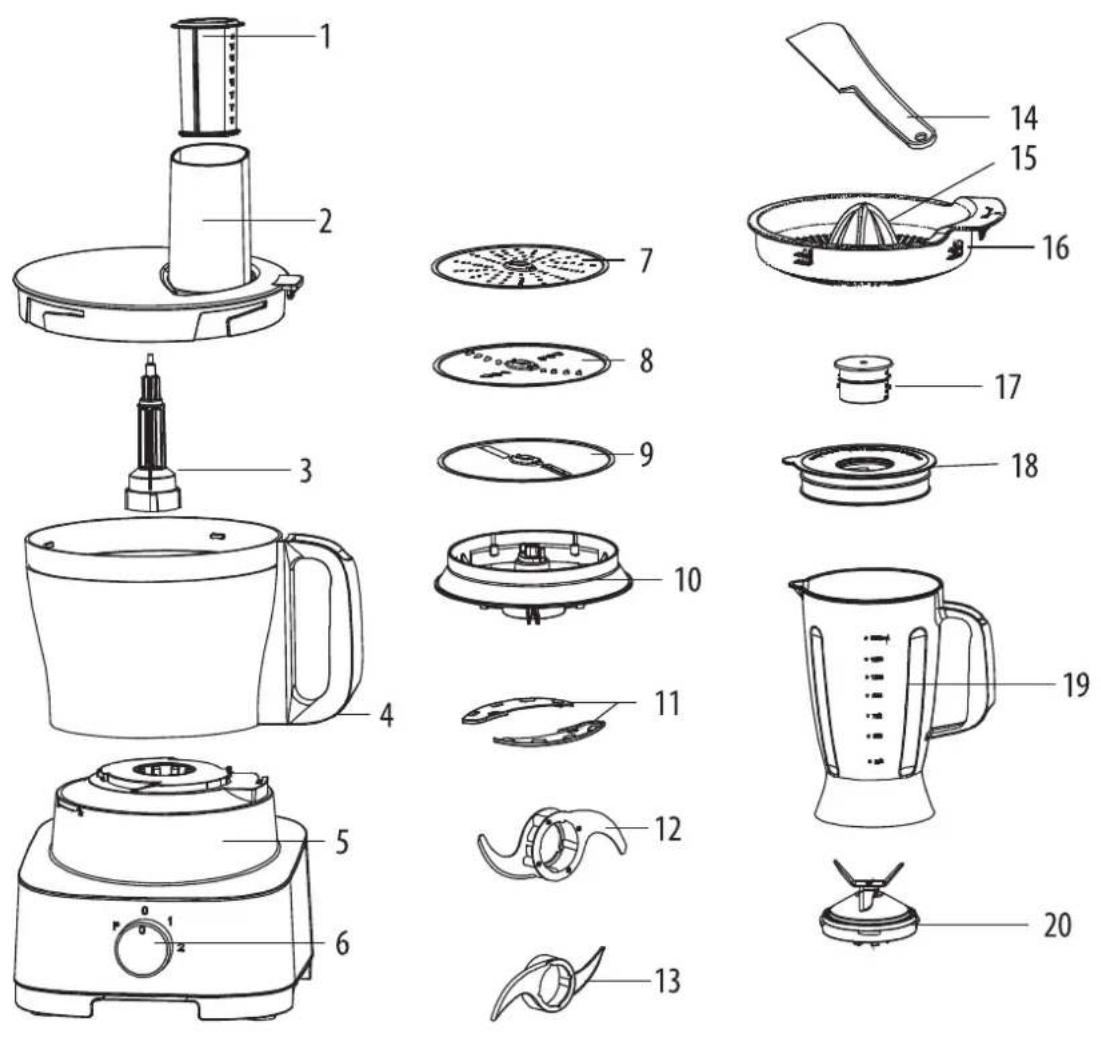

PARTS AND FEATURES

1. Chute guide
2. Bowl cover with feeding chute
3. Driving shaft
4. Processing bowl
5. Motor base
6. Control knob
7. Fine shredding disc
8. Coarse shredding disc
9. Coarse and fine slicing disc

10. Blade disc holder

11. Chopping blade cover

12. Chopping blade
13. Kneading blade
14. Spatula
15. Cone of citrus juicer
16. Filter part of citrus juicer
17. Blender jug cap
18. Blender jug cover
19. Blender jug
20. Blender blade

ASSEMBLY &

Before the initial use of this product, please clean the jug assembly thoroughly. See the section "Cleaning and Maintenance" for details.


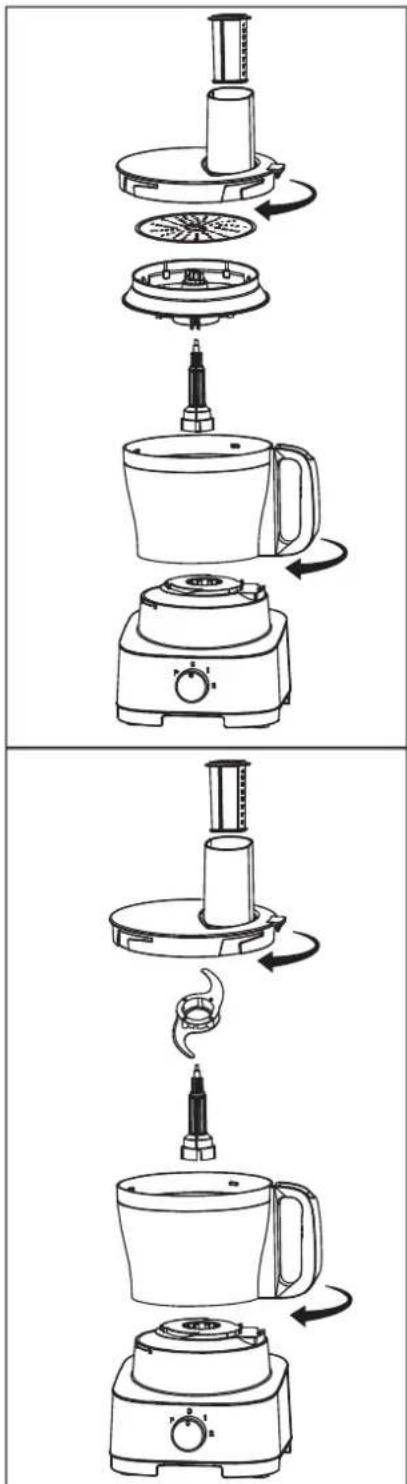

Food Processing Configuration

1. Place the motor base on a flat, dry surface.
2. Place the processing bowl onto the motor base and twist clockwise until it locks into place.
3. Place the driving shaft onto the rotor inside the bowl.
4. Place the blade disc holder onto driving shaft and place the desired disc onto the disc holder.
5. Place the bowl cover on the processing bowl and twist clockwise until it locks into place. (You will hear a click)
6. Turn on the appliance by selecting either 1 or 2 on the control knob. It is recommended to start on a low setting (1) first for soft ingredients.
7. Guide the ingredients through the feeding chute with the chute guide. Be sure to press down the ingredients slowly and steadily.
8. Turn off the appliance before removing lid and accessories.

Food Chopping Configuration

1. Place the motor base on a flat, dry surface.
2. Place the processing bowl onto the motor base and twist clockwise until it locks into place.
3. Place the driving shaft onto the rotor inside the bowl.
4. Carefully place the chopping blade over the driving shaft and push down to the bottom of the shaft with the "UP" side facing upwards.
5. Carefully place the ingredients into the bowl. If the ingredients are thick or hard it is suggested to use the feeding tube to insert them with the chute guide while the food processor is in use.
6. Place the bowl cover on the bowl and twist clockwise until it locks into place. (You will hear a click)
7. Turn on the appliance by selecting either 1 or 2 on the control knob. It is recommended to start on a low setting (1) first for hard ingredients.
8. Turn off the appliance before removing lid and accessories.

ASSEMBLY & OPERATION CONT

Line drawing of a blender with three steps: adding, rotating, and cutting (no text or symbols)

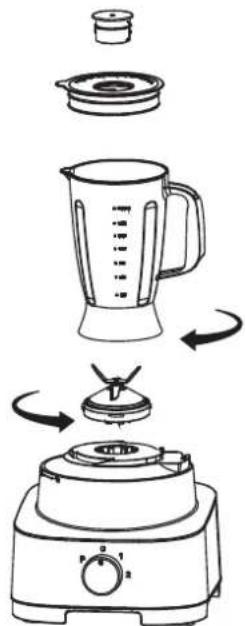

Food Blending Configuration

1. Place the motor base on a flat, dry surface.
2. Carefully place the blender blade into the bottom of the blender jug and twist the blade clockwise until locked in.
3. Carefully place the ingredients into the jug. (If the ingredients are thick or hard it is suggested to use the hole in the lid to insert them while the blender is in use)
4. Place the blender lid cap into the blender lid and twist clockwise. Then place the lid onto the jug, ensuring to line up the tab over the spout.
5. Place the blender jug onto the motor base and twist clockwise until it locks into place.
6. Turn on the appliance by selecting either 1 or 2 on the control knob. It is recommended to start on a low setting (1) first for hard ingredients.
7. Turn off the appliance before removing blender lid and/or blender jug.

Line drawing of a kitchen appliance with a lid, handle, and base unit (no text or symbols)

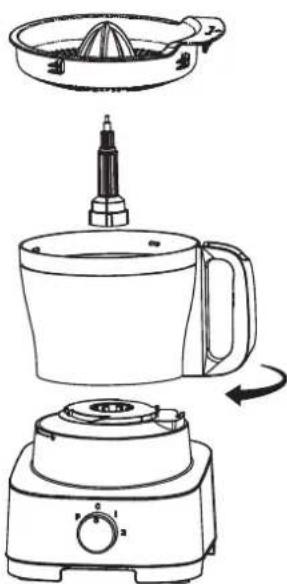

Citrus Juicer Configuration

1. Place the motor base on a flat, dry surface.
2. Place the processing bowl onto the motor base and twist clockwise until it locks into place.
3. Place the driving shaft onto the rotor inside the bowl.
4. Place the citrus juicer onto the processing bowl, ensuring the tip of the driving shaft inserts into the citrus juicer securely. Lock it in by twisting clockwise and place the cone of the citrus juicer onto the middle of the citrus juicer filter.
5. Turn on the appliance by selecting either 1 or 2 on the control knob. It is recommended to start on a low (1) setting first for softer ingredients.
6. Carefully push the halved ingredients onto the spinning cone of the citrus juicer to juice the ingredients.
7. Turn off the appliance before removing citrus juicer and/or bowl.

CHOPPING GUIDE

Meat 40 sec.600g
Cheese		20 sec.350g
Onions		35sec.700g
Fruit	500g	25 sec.
Kneading	700g	2 min.

⚠ WARNING: Do not operate this appliance beyond 3 minutes of continuous use. Allow to cool for 5 minutes between cycles.

CLEANING AND CARE

1. ⚠️ WARNING: Do not under any circumstances immerse the power cord, mains plug or food processor body in water or any other liquid.
2. ⚠️ WARNING: Do not attempt to clean the unit whilst it is still plugged into the electrical power outlet. Always unplug the unit before cleaning.
3. Do not use harsh or abrasive cleaning agents. The outside surface may be wiped clean with a soft, damp cloth and dried thoroughly. If necessary, a mild dishwashing detergent may be applied to the cloth but not directly applied to the base.
4. Soaking the jug, lid, and lid cap accessories in water will assist in the removal of sticky or tough to remove substances. In most instances, running warm water over the accessories is sufficient to remove most substances.
5. When washing, non-abrasive cloths and plastic bristle kitchen brushes may be used to remove stubborn food particles from the jug and accessories. Do not use abrasive cloths and cleaning materials as they will damage the surfaces.
6. All accessories are dishwasher safe.
7. Store in a dry place away from steam and humidity where possible.

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

If the food processor fails to operate:

1. Check to make sure the food processor plugged in correctly and securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it back in securely.
2. Check for a blown or tripped circuit breaker in your home. If these seem to be working correctly, test another appliance in the same outlet to ensure the outlet is working correctly.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, DO NOT TRY TO ADJUST OR REPAIR THE FOOD PROCESSOR YOURSELF.

CUSTOMER SERVICE

In the event you believe your food processor to be defective, please return it along with your sales receipt to the place of purchase for resolution.

For any enquiries, please call our service center on: Tel: [phone]

TROUBLESHOOTING

Troubleshoot your problem by using the chart below. If the food processor still does not operate correctly, it may be defective.

TROUBLE	POSSIBLE CAUSE	POSSIBLE REMEDY
The food processor fails to work.	The jug is not positioned properly.	Remove the jug and place back onto the base again.
The blade is unable to rotate and/or motor is struggling.	Food material is too hard, too large or too much in the jar.	Remove some foods and cut into smaller pieces. Adjust to higher speed.
Abnormal noise when in operation.	The main body or the jug is not installed properly/unbalanced.	Remove jug and check for obstructions. Re-seat onto base.

LIMITED WARRANTY

1. Nothing in this warranty affects the Consumer's rights under the Australian Consumer Law. The benefits to the Consumer under this Warranty are in addition to the rights and remedies of the buyer under any Consumer Guarantees. The Australian Consumer Law requires that we confirm that:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

1. Subject to Clause 1, the Seller warrants that Westinghouse branded products will be free of manufacturing defects and will perform to the Seller's specifications subject to the following clauses.

2. The benefit of this Warranty extends only to the owner of the property in which the Products manufactured or supplied by the Seller are installed and used by the owner for the duration of the Warranty Period.

3. The Warranty commences on the date of the purchase of the product and continues for the benefit of the Owner for the Warranty Period. If within the Warranty Period a manufacturing defect is discovered in the Product, or the Product fails to perform to the Seller's specifications as a result of some defect in retail or workmanship in the Product, then the Seller will at its own discretion:

a.) Repair or replace the Product at the cost of the Seller, including but not limited to labour and travel costs. Goods repaired or replaced under this Warranty will be warranted for the remaining period of the Warranty.
b.) Refund the purchase price paid by the consumer.

1. The Warranty does not apply to Product that:

a.) Has failed due to excessive wear and tear beyond what is considered to be reasonable.
b.) Has been misused or neglected.
c.) Has been damaged accidentally or by acts of God including fire and flooding.
d.) Has been used or operated contrary to operating or maintenance instructions.
e.) Has been damaged by the Consumer or a third party authorised to act for the consumer in transit from the Sellers store to the Consumer.

1. In order to make a claim under the Warranty, the Owner must, where possible return the goods to the Seller's store at the Owner's cost. Proof of purchase must be supplied in all cases.

2. The seller will examine any returned Products and if the Seller determines that there is an apparent defect through no fault of the Owner, the Seller will:

a.) Make note of the Owner's contact details including the Owner's telephone number which the owner can be contacted during business hours, postal address and e-mail address.

b.) Make note of the defects reported by the Owner.

c.) Take back the defective goods from the owner and determine within a reasonable time through dialogue with the Seller whether the goods are defective.

d.) Advise the owner within a reasonable time frame whether it accepts or rejects the Product claim.

e.) If the Seller accepts the return of the Product, the Seller must arrange to have

i) The Product repaired or,

ii) Replace the damaged or faulty Product or,

iii) Refund the purchase price.

1. The Seller will not accept any returned Product which has not been returned strictly in accordance with this Warranty.

2. For the purpose of this Warranty:

a.) Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010 (Cth).

b.) Consumer means the Purchaser of goods from the seller.

c.) Consumer means a Consumer as that term is set out in section 3 of the Australian Consumer Law.

d.) Consumer Guarantees means the guarantees under the Australian Consumer Law.

e.) Implied terms means any guarantees, conditions, warranties or other terms implied by any Australian Commonwealth, State or Territory laws, (excluding the Australian Consumer Law) or the law of any other jurisdiction.

f.) Owner has the meaning set out in clause 3.

g.) Warranty means this warranty.

h.) Product means the Product/s bought by the Owner from the Seller that fall under this warranty.

i.) Warranty Period means:

i) In relation to Cast Iron Cookware: 3 Year Limited Warranty.

ii) In relation to Non-Stick Cookware: 3 Year Limited Warranty

iii) In relation to Cooking Utensils: 3 Year Limited Warranty

iv) In relation to Knives/Knife Block Sets: 3 Year Limited Warranty

v) In relation to Stainless Steel Cookware: 10 Year Limited Warranty

vi) In relation to Chopping boards: 1 Year Limited Warranty

vii) In relation to Small Appliances: 1 Year Limited Warranty

White crown icon inside a circle on a blue background (no text or symbols)

Westinghouse

www.westinghousesmallappliances.com.au

CUSTOMER SERVICE - AU: 1300 883 109

[e-mail]

CUSTOMER SERVICE - NZ: 0508 776 546

[e-mail]

IMPORTED AND DISTRIBUTED BY RVM AUSTRALIA PTY LTD.

11 Tamara Drive, Cockburn Central, WA 6164

MADE IN CHINA

© 2022 RVM AUSTRALIA PTY LTD. ALL RIGHTS RESERVED.

[NO TEXT]

WESTINGHOUSE and trademarks of Westinghouse Electric Corporation.

Used under license by RVM AUSTRALIA PTY LTD. ALL RIGHTS RESERVED.
