Product Type	Dante Audio Adapter (Analog Input)
Brand	Kopul
Model	DAN-AIXF2
Connectors	2 x Female XLR (Input), 1 x RJ45 (Ethernet)
Maximum Input Signal Level	+24 dBu (balanced)
Frequency Response	20 Hz – 20 kHz (±0.5 dB)
Input Impedance	20 kΩ (balanced), 10 kΩ (unbalanced)
Dynamic Range	>100 dB
Signal-to-Noise Ratio	>100 dB
Total Harmonic Distortion	<0.01% at +4 dBu
Network Interface	RJ45, supports Dante Audio over IP and AES67
Power Source	PoE (Power over Ethernet) 802.3af
Power Consumption	3.15 W maximum
Sample Rates	44.1, 48, 96 kHz
Bit Depth	24-bit
Latency	1, 2, or 5 ms (configurable via Dante Controller)
Network Transport Protocol	Dante Audio over IP, AES67 RTP
Construction Material	ABS plastic
Dimensions (L x W x H)	4.5 x 1.1 x 1.1 in (11.4 x 2.8 x 2.8 cm)
Integrated Cable Length	9 in (22.9 cm)
Weight	5.6 oz (159 g)
LED Indicators	Yellow (Power/Data Traffic), Green (System Ready/Identify)
Warranty	One-year limited warranty
Intended Use	Connect analog audio output devices (mixers, DI boxes, keyboards) to a Dante network

Frequently Asked Questions - DAN-AIXF2 Kopul

What is the Kopul DAN-AIXF2 used for?

The DAN-AIXF2 is a Dante audio adapter that allows you to connect analog audio output devices, such as mixers, DI boxes, and keyboard instruments, to a Dante network. It converts analog signals to digital Dante/AES67 streams.

How do I power the DAN-AIXF2?

The adapter is powered via Power over Ethernet (PoE) compliant with 802.3af. Simply connect it to a PoE-enabled network switch or injector using an Ethernet cable.

What sample rates and bit depth does it support?

It supports sample rates of 44.1, 48, and 96 kHz with a 24-bit bit depth. The default is typically 48 kHz.

Can I use the DAN-AIXF2 with AES67?

Yes, the adapter supports both Dante Audio over IP and AES67 RTP transport formats, making it compatible with AES67 networks.

How do I configure the latency?

Latency (1, 2, or 5 ms) can be configured using Dante Controller software, available from Audinate. The adapter must be connected to the network.

What do the LEDs on the Ethernet port indicate?

Yellow LED: steady = power on, flashing = data traffic. Green LED: steady = system ready, flashing = identify mode (triggered via Dante Controller) or bootloader mode.

Can I connect a microphone directly to the DAN-AIXF2?

No, the DAN-AIXF2 has female XLR inputs designed for line-level signals (up to +24 dBu). Microphones require preamplification before connecting.

Is the DAN-AIXF2 compatible with Dante Domain Manager?

Yes, the adapter is compatible with Dante Domain Manager for advanced network management and security.

What is the maximum cable length from the adapter to the XLR device?

The integrated pigtail cable is 9 inches (22.9 cm) long. For longer runs, use standard XLR cables.

How do I update the firmware?

Firmware updates can be performed via Dante Controller or Dante Updater. During the update process, the green LED will flash rapidly. Refer to the user manual for detailed steps.

USER MANUAL DAN-AIXF2 Kopul

Abstract red geometric shape with white and black edges (no text or symbols)

Thank you for choosing Kopul.

The Kopul Dante Adapters let you connect analog and digital gear to your existing Dante network. The adapters are instantly recognized by the Dante network and expand it to include legacy audio gear as well as computers, laptops, and smartphones. They're road-ready and made to deliver bit-perfect audio reproduction with very low latency and sample-accurate synchronization across your network. These plug-and-play adapters support Dante Audio over IP and AES67 RTP transport formats, and they're compatible with Dante Domain Manager.

DAN-AIXF2

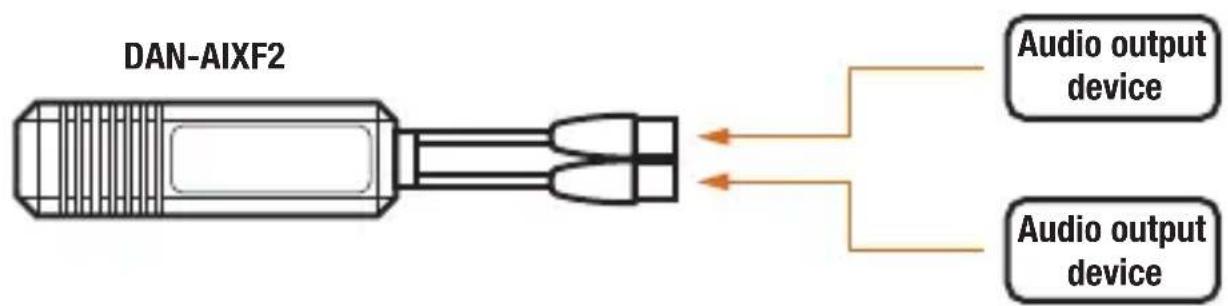

The DAN-AIXF2 features two female XLR connectors and is ideal for connecting output devices like analog mixers, DI boxes, keyboard instruments, and other audio outboard gear to your Dante network.

DAN-A0XM2

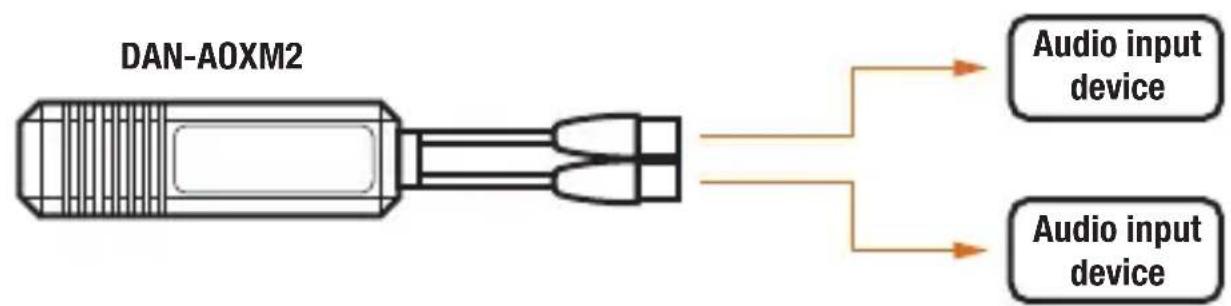

The DAN-AOXM2 Analog Output Adapter features two male XLR connectors and allows you to connect analog gear like power amplifiers, powered speakers, and analog compressors and equalizers to your Dante network.

4

DAN-2X2UAC

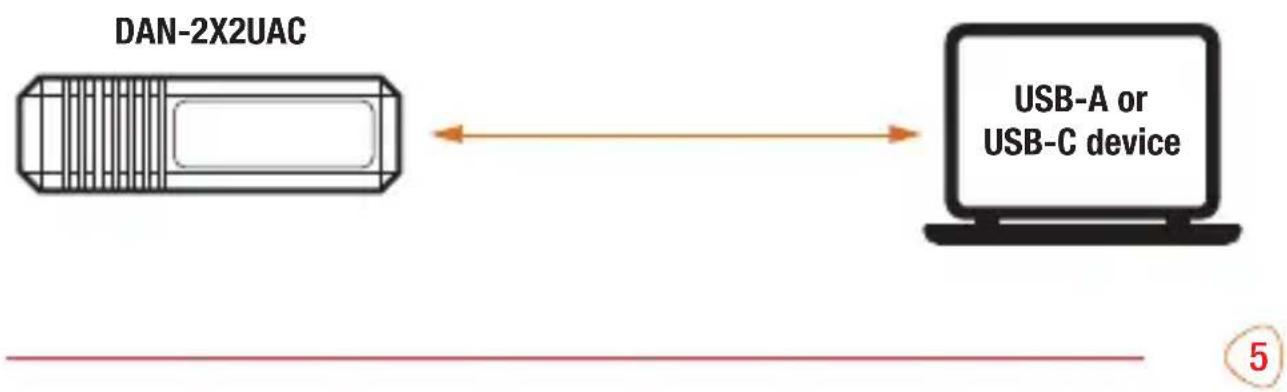

The DAN-2X2UAC lets you connect any computer, laptop, tablet, or smartphone to the Dante network with 2×2 channels of bidirectional audio. Use this adapter with any DAW to play into and record from your Dante network without any additional software. It's also ideal for audio applications like conferencing software with network-connected speakers, microphones, and mixers.

LED Indicators

Yellow LED

Green LED

Pure electrical circuit lines without any symbols

The LEDs on the adapter's ethernet port indicate the following status:

Function Yellow LED Green LED

Power On Steady –

Data Traffic Flashing –

System Ready – Steady

Identify (Dante Controller function) – Flashing

Upgrade (bootloader) – Flashing

Specifications

DAN-AIXF2, DAN-AOXM2

Maximum Signal Level (Balanced)

DAN-AIXF2: +24 dBu DAN-AOXM2: +18 dBu

Output Gain DAN-AOXM2: -6 dBu

Frequency Response 20 Hz to 20 kHz ( ± 0.5 dB)

Impedance DAN-AIXF2 (Input): 20 kΩ (balanced),

10 kΩ (unbalanced)

DAN-AOXM2 (Output): 150 Ω (balanced), 75 Ω (unbalanced)

Dynamic Range >100 dB

Signal-to-Noise Ratio >100 dB

Total Harmonic Distortion <0.01% at +4 dBu
Connectors RJ45	DAN-AIXF2: XLR-F (×2)DAN-AOXM2: XLR-M (×2)
Power 802.3af PoE
Power Consumption DAN-AIXF2: 3.15 W (max)DAN-AOXM2: 2.6 W (max)
Sample Rates 44.1, 48, 96 kHz
Bit Depth 24-bit
Latency 1, 2, or 5 ms (configurable with Dante Controller)
Network Transport Protocol	Dante Audio over IP / AES67 RTP

Construction ABS

Dimensions 4.5 × 1.1 × 1.1 in. (11.4 × 2.8 × 2.8 cm)

Cable Length 9 in. (22.9 cm)

Weight 5.6 oz. (159 g)

DAN-2X2UAC

Audio Channels 2 Inputs, 2 Outputs

Connectors 1 × RJ45 Female, 1 × USB Type-C Female

USB USB 2.0

Sample Rate 48 kHz

Bit Depth 24-bit

Latency 1, 2, or 5 ms (configurable with Dante Controller)
Network Transport Protocol	Dante Audio over IP, AES67 RTP
Power Requirement 802.3af PoE or USB
Enclosure Material ABS
Dimensions (L × W × H)	4.5 × 1.1 × 1.1 in. (11.4 × 2.8 × 2.8 cm)
Included Cable USB Standard-A to USB Type-CUSB Type-C to USB Type-C
Cable Length 7 in. (17.8 cm)
Weight 2.3 oz. (65 g)

One-Year Limited Warranty

This KOPUL product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Kopul Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Kopul along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.kopulcables.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com

KOPUL is a registered trademark of the Gradus Group. © 2024 Gradus Group LLC. All Rights Reserved.
