Cooper CR1121A - Radio Crosley - Free user manual and instructions

Product Type	Radio with Bluetooth
Brand	Crosley
Model	Cooper CR1121A
Power Source	DC 5V 1A via USB-C (built-in rechargeable battery)
Power Consumption	7.5 W
Speaker	2 Ω, 4 W
Frequency Range (AM)	520 – 1710 KHz
Frequency Range (FM)	87.5 – 108 MHz
Playing Time	Up to 9 hours at 50% volume
Charging Time	3 – 4 hours
Battery Capacity	1200 mAh
Bluetooth Version	5.3
Included Accessories	Radio, USB-C Cable
Display	LED display (shows clock, frequency, mode)
Antenna	Telescopic antenna for FM reception
Controls	Volume/Mode/Power Knob, Play/Pause, +/-, Set/Select buttons
Radio Modes	AM, FM
Aux Input	3.5 mm jack (cable not included)
Preset Memory	Up to 40 presets (manual or auto)

Frequently Asked Questions - Cooper CR1121A Crosley

How do I turn on the Crosley Cooper CR1121A radio?

Long press the Power Knob to turn the unit on or off.

How do I charge the radio?

Connect the provided USB-C Cable to a PC, laptop, or 5V USB adapter. Charging takes 3-4 hours.

How do I switch between AM and FM?

Short press the Mode Button repeatedly to cycle through AM, FM, Bluetooth, and Aux modes.

How do I tune to a radio station?

Short press + or - to adjust frequency manually, or long press to scan continuously.

How do I program preset stations automatically?

Long press the Set/Select Button to auto-scan and save all available stations as presets.

How do I save a preset manually?

Tune to the desired station, long press Play/Pause, use +/- to choose preset number, then press Play/Pause to confirm.

How do I connect Bluetooth?

Select Bluetooth mode (LED shows flashing 'BT'), enable Bluetooth on your device, search for 'CROSLEY CR1121A', and pair. A confirmation sound will play.

What is the Bluetooth range and version?

Bluetooth version 5.3. For best performance, keep the device within 10 meters (33 feet) without obstructions.

How do I use the Aux input?

Switch to Aux mode, connect a 3.5mm audio cable (not included) from your device to the Aux In jack, and play music.

What should I do if there is no sound?

Check that the volume is turned up on both the radio and your connected device. Ensure the correct mode is selected (AM/FM/Bluetooth/Aux).

USER MANUAL Cooper CR1121A Crosley

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Radio
• USB-C Cable

Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power DC output 5V 1A

Power consumption 7.5 W

Speaker 2Ω 4W

Frequency Range AM 520 – 1710 KHz

FM 87.5 – 108 MHz

Playing Time Up to 9 hours (50% volume)

Charging Time 3 – 4 hours

Battery Capacity 1200 mA/h

Bluetooth Version 5.3

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

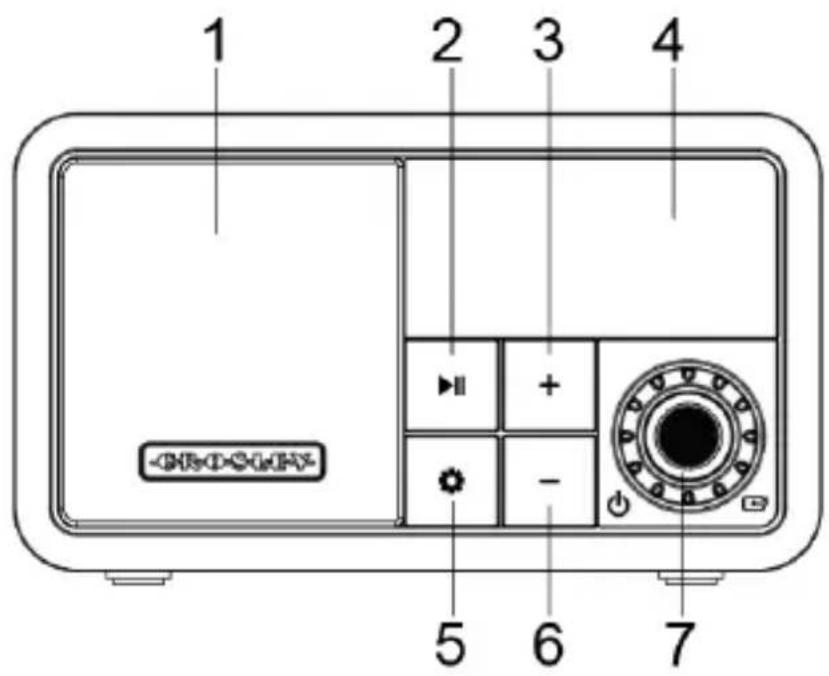

Product Description

1. Speaker
2. Play/Pause Button
3. • Button
4. LED Display

5. Set/Select Button

6. • Button
7. Volume/Mode/Power Knob
8. Aux In Jack
9. Power Jack
10. Telescopic Antenna

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Long press the Power Knob to turn the unit on and off.
3. Turn the volume knob clockwise or counterclockwise to adjust the volume.

Charging/Power Source

1. This unit has a built in rechargeable battery.
2. Connect to a PC, Laptop or 5V USB adaptor with the provided USB-C cable.

Radio Operation

1. Short press the Mode Button repeatedly to select the AM or FM Radio mode.
   Note: The LED screen will display either AM or FM depending on your selection.
2. Short press the + or - button to increase or decrease the radio frequency.
3. Long press the + or - button to increase or decrease the radio frequency continuously.
4. Short press the set/select button to switch between the clock and radio station on the LED display.
   Note: When operating FM band radio, pull up the TELESCOPIC ANTENNA, and adjust position to get better reception.

Automatic Preset Programming

1. Long press the set/select button to automatically scan and save all available radio stations as presets.
2. To select a preset station, press the play/pause button, then use the + or - buttons to find your desired preset station.

Manual Preset Programming

1. Go to the radio station you want to save as a preset.

2. Long press the play/pause button.

3. Press the + or - buttons to select your desired preset.

Note: up to 40 presets can be saved.

1. Press the play/pause button to confirm and save your preset.

To find a preset, short press the play pause button, then use to + or - buttons to select your preset.

Bluetooth Operation

1. Short press the Mode Knob repeatedly to select the Bluetooth mode.
   Note: The LED screen will flash "BT" to indicate Bluetooth mode.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR1121A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. During playback, press the Play/Pause Button to suspend and resume playback.
6. During playback, press the – Button or the + Button for the previous or next song.
   Note: Bluetooth version - *5.3*

To Disconnect

To disconnect Bluetooth, press and hold the Play/Pause button. You'll hear a confirmation notification indicating that it has been disconnected.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, turn on the unit, short press the Mode Button to Aux-In Mode, connect a 3.5 mm auxiliary cable (Not Included) between your audio device to the Aux In Jack of this unit and start playing the music.

Note: The LED screen will show AUX to indicate AUX mode.

Troubleshooting

There is no power

• No power at the power outlet.
• The battery needs to be charged.

There is no sound

• Make sure the volume is turned up.
• Make sure the volume on your third party device is turned up.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC
