Close to Me - Baby bed Chipolino - Free user manual and instructions

Product Type	Baby Bed (Co-Sleeper)
Brand	Chipolino
Model	Close to Me
Dimensions (L x W x H)	90 x 60 x 80 cm
Weight	10 kg
Material	Steel frame, polyester fabric, foam mattress
Mattress Size	85 x 55 cm
Age Range	0-24 months
Max Weight Capacity	15 kg
Adjustable Height Positions	4 positions
Side Drop-Down Function	Yes (one-handed operation)
Built-in Storage	Yes (undershelf)
Assembly Required	Yes (tools included)
Care & Cleaning	Wipe metal frame with damp cloth; remove and machine wash mattress cover at 30°C
Safety Standards	EN 716-1:2017, EN 16890:2017
Anti-Slip Feet	Yes
Spare Parts Availability	Mattress, side panel, screws available via Chipolino service
Warranty	2 years
Country of Origin	China

Frequently Asked Questions - Close to Me Chipolino

How do I assemble the Chipolino Close to Me baby bed?

Follow the step-by-step assembly instructions in the manual. Use the included Allen key and screws. Ensure all locks click into place.

What is the maximum weight capacity?

The baby bed can hold up to 15 kg (approx. 24 months old).

Can I wash the mattress cover?

Yes, the mattress cover is removable and machine washable at 30°C. Do not tumble dry.

Is this bed suitable for co-sleeping?

Yes, the side drop-down allows it to attach securely to the parent's bed for safe co-sleeping.

How do I adjust the height?

Use the height adjustment mechanism on each leg. There are 4 positions to match your mattress height.

What safety certifications does this product have?

It complies with EN 716-1:2017 (cribs) and EN 16890:2017 (mattresses).

Can I use this bed without the side panel?

No, the side panel is essential for safety. Always use all components as instructed.

What tools are needed for assembly?

All necessary tools (Allen key) are included in the box. No extra tools required.

How to clean the metal frame?

Wipe with a damp cloth and mild soap. Avoid abrasive cleaners.

Where can I find spare parts?

Contact Chipolino customer service or visit their website for replacement parts like mattress or side panel.

USER MANUAL Close to Me Chipolino

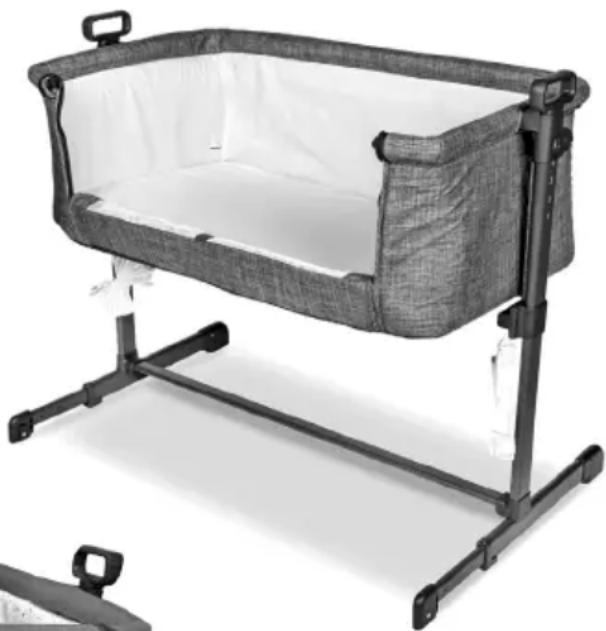

INSTRUCTION FOR USE OF

CO-SLEEPING CRADLE WITH DROP SIDE, MODEL "CLOSE TO ME"

Black baby bed with mesh backrest and adjustable legs, no visible text or symbols

Black baby crib with metal frame and decorative blanket (no text or symbols visible)

chipouno has been

This product ____ has been manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1130:2019 „Children’s furniture. Cribs. Safety requirements and test methods” and the regulations of national law, including Consumer Protection Law.

WARNINGS!

• WARNING! DO NOT USE THIS PRODUCT WITHOUT READING THE INSTRUCTIONS FIRST!
- WARNING! NEVER LEAVE THE CHILD UNATTANDED!
- WARNING! STOP USING THE PRODUCT AS SOON AS THE CHILD CAN SIT OR KNEEL OR PULL ITSELF UP!
- WARNING! DO NOT PLACE ADDITIONAL ITEMS (E.G. TOYS, PILLOWS ...) IN THE PRODUCT! PLACING ADDITIONAL ITEMS IN THE PRODUCT MAY CAUSE SUFFOCATION!
- WARNING! DO NOT PLACE THE PRODUCT CLOSE TO ANOTHER PRODUCT THAT COULD PRESENT A DANGER OF SUFFOCATION OR STRANGULATION, E.G. STRINGS, BLIND/CURTAIN CORDS, ETC.!
- WARNING! TO AVOID HAZARDS FROM THE CHILD'S NECK BEING CAUGHT ON THE TOP RAIL ON THE SIDE THAT IS NEXT TO THE ADULT BED, THE TOP RAIL MUST NOT BE HIGHER THAN THE ADULT MATTRESS!
- WARNING! TO AVOID THE RISK OF YOUR CHILD BEING STRANGLED THE ATTACHMENT SYSTEM TO THE ADULT'S BED SHALL ALWAYS BE KEPT AWAY FROM AND OUT OF THE CRIB.
- WARNING! THE PRODUCT SHALL ONLY BE USED ONCE IT HAS BEEN SECURELY ATTACHED TO THE ADULT'S BED OR WHEN THE DROP SIDE IS IN THE FULLY RAISED POSITION TO PREVENT THE CHILD FALLING FROM HEIGHT.
• WARNING! DO NOT USE MORE THAN ONE MATTRESS IN THE PRODUCT!
- If you purchase a mattress different to the one supplied, make sure that it is the right thickness and it is suitable for the product. The thickness of the mattress must be such that the internal vertical height (upper surface of the top of the mattress until the upper edge of the product's sides) is at least 200 mm.
- DANGER! ALWAYS LOCK THE DROP SIDE IN THE TOP POSITION WHEN THE PRODUCT IS NOT ATTACHED TO AN ADULT BED!
- The product should be placed on a horizontal floor! Uneven surfaces can cause instability of the product.
- Young children should not be allowed to play unsupervised near the product!
• The cradle should be locked in the fixed position when in use.
- Do not use the product if any part is broken, torn or missing. If you need to replace parts or additional information, you must contact the manufacturer or an authorized service center.
- All assembly fittings should always be tightened properly and that care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc.) which would pose a risk of strangulation.
- Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the product.
- DO NOT use the body of the product without its frame.
- DO NOT substitute parts! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him!
- The product shall never be used in an inclined position.
- When use in “Co-sleep mode (fixed to the bed)” to prevent a suffocation hazard from entrapment, the product shall be properly secured to the adult bed using the attachment system.
- Use only the attachment system provided with this product! DO NOT use another attachment system!
- There must never be a gap between the lower side of the product and the mattress of the adult bed. DO NOT use the product if there is any gap! Gaps should not be filled with pillows, blankets or other items.

• Check the tightness of the attachment system before each use by pulling the product in a direction away from adult bed.
• The product must NOT be used for more than one child at a time!
  • Assembly, folding and unfolding of the product to be made ONLY by adult!
• DO NOT lift, DO NOT move and DO NOT make any settings on the product while there is a child in it!
  • DO NOT allow children younger than 3 years old near the product during the assembly or disassembly in order to prevent the risk of injury or swallowing of small parts!
• The plastic bags must be kept away from children to avoid the risk of strangulation!

MAIN FEATURES

• The product is intended for children aged 0 to 6 months weighing no more than 9 kg;
- “Co-sleep mode (fixing to the parents’ bed)”, that allows the parent to sleep close to the child;
- Easily removable upholstery, easy for cleaning;
- Mattress with removable fabric for easy cleaning;
- Adjustable legs with wheels;
• Adjusting the crib at height and anti-reflux position;
- Easy and compact folding and storage of the product.

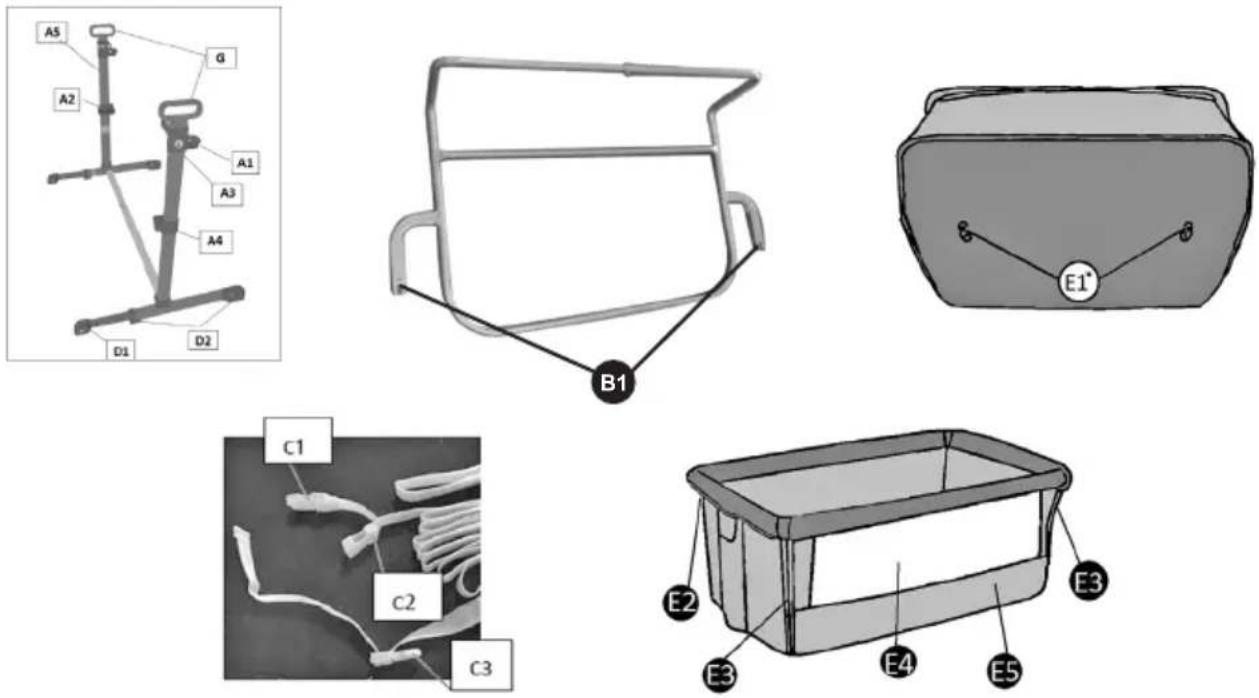

MAIN PARTS

Please check if the parts described are available:

Mechanical support bracket with two vertical arms and mounting holes (no text or symbols)

A. Central supporting structure

Two metal wire handles arranged vertically (no text or symbols)

B. Middle support frame C. Fixing belts

Two identical circular objects with concentric rings and protruding blades, resembling stylized animal heads or decorative elements (no text or symbols)

F. Bottom connecting tube

Open suitcase with black straps and white covers, no visible text or symbols

D. Frame with fabric cover E. Mattress with removable cover G. Handles

Simple rounded rectangle outline with no text or symbols

Two gray plastic tool holders with handles, no text or symbols visible

A1	Height adjustment button C3 Mechanism for adjusting the length of the belt
A2	Middle support frame release button D1 Adjustable feet with wheels
A3	Height indicator D2 Non-slip feet
A4	Middle support frame Hub E1*
A5	Support frame E2 Zipper for fabric removal
B1	Fixing pin E3 Zipper for drop side
C1	Fixing „male” buckle (to the bed) E4 Mesh window
C2	Fixing „female” buckle E5 Side support for restraint

INTSTRUCTIONS FOR ASSEMBLY ANF FUNCTIONS

WARNING! Follow exactly the instructions and sequence for assembling and using the product from the text and illustrations enclosed in the manual!

WARNING! CHECK THE SECURITY OF FIXING AFTER PERFORMING ANY OPERATION!

WARNING! Fixing a certain position in most cases is accompanied by clicking sound.

WARNING! Keep your hands from pinching when performing individual operations!

You do not need to use tools to perform the assembly.

Assembling, folding, and unfolding operations are numbered from 1 to 8. Use the descriptions below together with the illustration bearing the same number.

ASSEMBLY AND DISASSEMBLY OF THE PRODUCT

1 - ASSEMBLY OF THE BOTTOM CONNECTING TUBE
2 - ASSEMBLY OF THE FRAME WITH FABRIC COVER

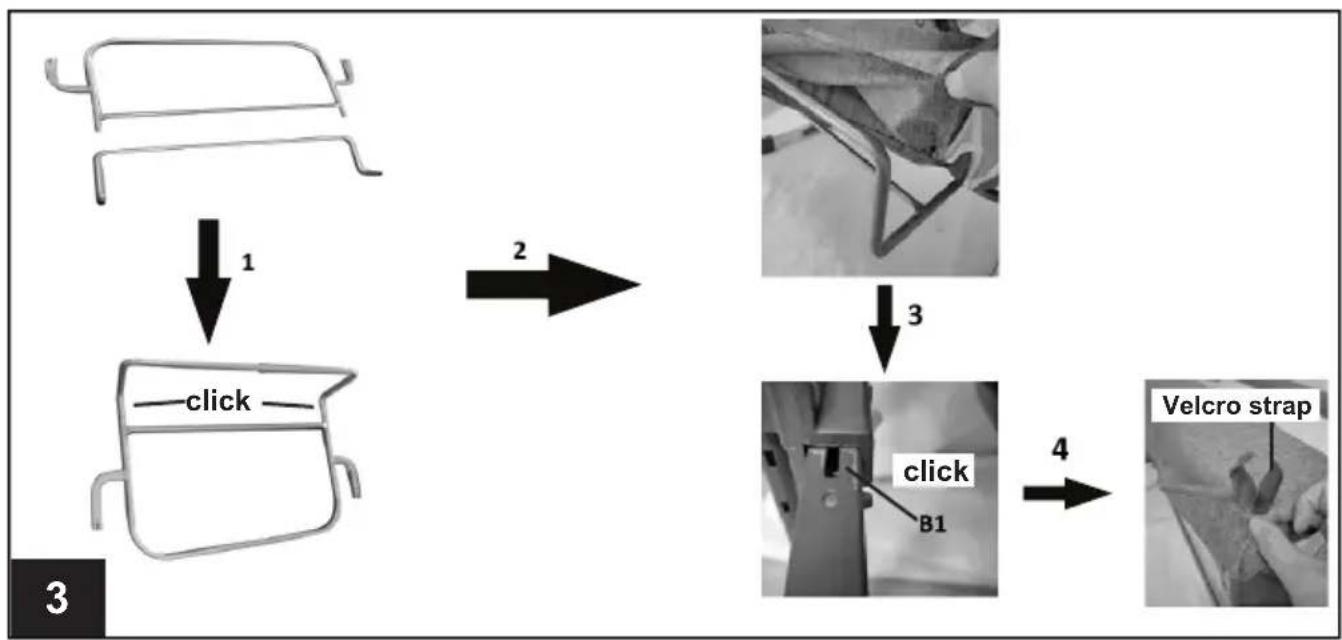

3 - ASSEMBLY OF MIDDLE SUPPORT FRAME
4 – PLACING OF THE MATTRESS
5 - ASSEMBLY OF THE HANDELS

FUNCTIONS

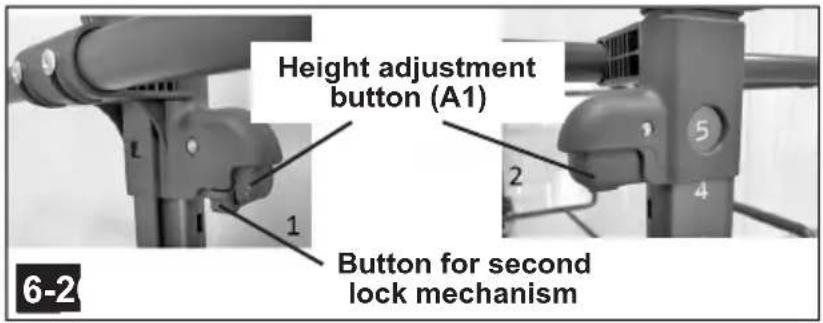

6 - ADJUSTING THE CRIB AT HEIGHT

6-2 - Press the button on the second locking mechanism and slide inwards (1). Press the button for adjusting of the height and place the cot in the desired position.

IMPORTANT! The crib can be inclined with a maximum difference of 2 positions between one side and the other. (6-3)

IMPORTANT! The baby's head should always be in the highest part of the bed

7 - CO-SLEEP MODE "FIXING TO THE PARENTS BED"

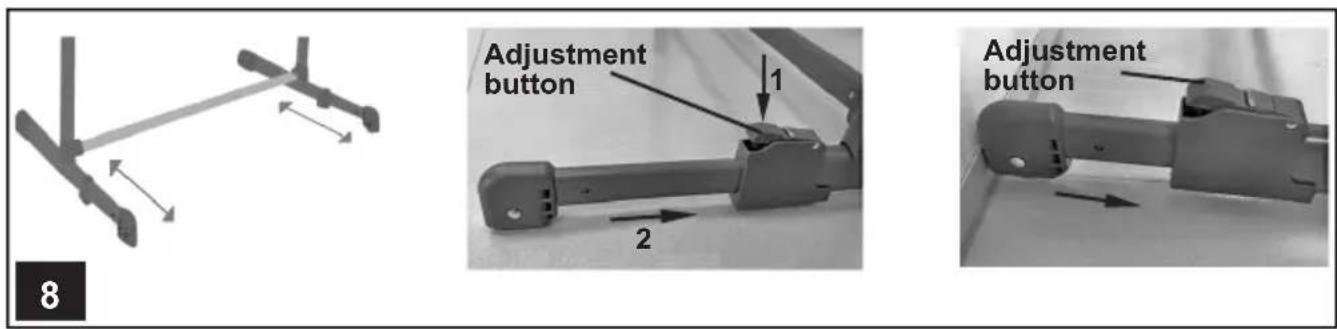

8 - ADJUSTMENT THE LENGTH OF THE LEGS WITH WHEELS

Shortening: Press (1) the button for adjusting the length and move each of the legs inward (2). Extension: When the cot is moved from the adult bed, both legs will be extended automatically.

Diagram showing a container being placed on a stand next to a separate metal frame structure (no text or symbols)

Black-and-white photo of a bed with a white cloth or towel inside, viewed from above (no visible text or symbols)

Diagram of a baby seat with adjustable legs and a side view showing height measurement (no text or symbols)

Illustration of a baby in two different indoor playroom setups, showing structural and decorative elements (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a directional arrow and component labels (no readable text or symbols)

Diagram showing a mechanical assembly with a magnified inset illustrating the motion of a lever mechanism (no text or labels present)

CARE AND MAINTENANCE

• Do not exert strong pressure on the adjusting and folding mechanisms to prevent damage or breakage.
• Clean contaminated plastic or metal parts of the product with a soft cotton cloth or sponge moistened with water or a mild detergent
• The crib and mattress covers can be washed by hand at a temperature up to 30^irc C.
• Keep the guidelines of the labels.
• Do not spin or dry in a machine!
• Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or alcohol.
• After cleaning, always dry the crib and mattress, allow them to dry before storing them. It may appear mold if you keep them most.
• Store the product in a clean, dry place. Do not expose to the direct impact of the environment - sun, rain, moisture, or sudden temperature changes!
• Do not place items or objects in or on the product not to damage the construction and / or the fabric.
• Please contact authorized services for consultation or repair for problems connected with use of the product.

Materials used: plastic, textile, metal.

KOSCLOxxxxx
