Product Type	Air Fryer Oven
Model	AFO330
Brand	Healthy Choice
Power	1700W
Voltage	220-240V~ 50Hz
Capacity	30 Liters
Temperature Range	40°C - 250°C
Timer	1 - 60 minutes
Control Type	Dials (Thermostat, Mode, Timer)
Indicator Light	Power indicator
Cooking Functions	Dehydrate, Air Fry, Bake+, Pizza, Bake, Toast, Rotisserie, Broil
Accessories Included	Air Fry Basket, Crumb Tray, Baking Pan, Pizza Stone, Wire Rack, Tray Handle, Rotisserie Fork, Remover Tool
Dishwasher Safe Parts	All accessories except pizza stone
Recommended Preheat	10-15 minutes
Clearance Required	At least 20 cm from walls and other objects
Safety Features	Automatic shut-off (timer), overheat protection (implied)
Cleaning	Wipe with damp cloth; accessories dishwasher safe except pizza stone
Material	Metal interior, glass door

Frequently Asked Questions - AFO330 Healthy Choice

Why does my air fryer emit smoke or odor during first use?

It is normal for new appliances to emit slight smoke or odor during the first use. This will burn off within a few minutes. Ensure adequate ventilation.

What clearance is required around the air fryer?

Leave at least 20 cm of space on all sides, including above, to allow for proper air circulation. Do not place against walls or other appliances.

Can I use an extension cord with this appliance?

No, never use an extension cord or power board. Plug directly into a dedicated power outlet.

How do I use the rotisserie function?

Slide the forks onto the rod, skewer the food, secure with thumbscrews, insert the rod into the drive socket, set temperature to 250°C, select rotisserie mode, and set timer. Use the remover tool to take out the cooked food.

Can I put frozen food directly on the pizza stone?

No, do not place frozen food directly on the pizza stone as the sudden temperature change may cause it to crack.

How should I clean the air fryer?

Unplug and let it cool. Wipe the interior and exterior with a damp cloth. All accessories except the pizza stone are dishwasher safe.

What is the recommended preheating time?

Preheat the oven for 10-15 minutes for optimal cooking performance.

What does the power indicator light mean?

The power indicator lights up when the timer is turned on and turns off when the timer is set to OFF.

Can I leave the air fryer unattended while operating?

No, do not leave the appliance unattended while it is in operation.

What should I do if black smoke comes out?

Unplug the appliance immediately. Wait for the smoke to stop before removing the contents.

USER MANUAL AFO330 Healthy Choice

Black portable kitchen oven with open doors and control knobs (no visible text or symbols)

Model: AFO330 | Batch: PR5094

CAUTION: TO AVOID DAMAGE TO YOUR BENCHTOP AND SPLASHBACK, DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCHTOP.

HOUSEHOLD USE ONLY

Carefully read all instructions before use and save for future reference.

CAUTION: TO AVOID DAMAGE TO YOUR BENCHTOP AND SPLASHBACK, DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCHTOP.

Please use the air fryer on a heat-proof material and on a dry, level and even surface. Leave a minimum distance of 20cm from walls and other heat-sensitive materials.

Do not place the appliance against a wall or other appliances. Hot air up to 160 Degrees expels through the rear vent of the appliance. Leave at least 20cm clearance around the entire appliance, including directly above it. Additional care should be taken when placing appliances on benchtop surfaces or near splashbacks where such materials (acrylics, timber, stone etc.) do not have high heat-resistant properties.

IMPORTANT SAFEGUARDS

PLEASE READ AND SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

When using the appliance, basic safety precautions should be followed, including:

1. Remove and safely discard any packaging material and labels before using this product for the first time. Ensure children and babies do not play with plastic bags or any packaging materials.
2. Before use, check that your local voltage corresponds with the specifications shown on the appliance nameplate located under the appliance.
3. Always operate the appliance on a horizontal surface that is level, stable and non-combustible. Do not operate the appliance on or near combustible materials such as tablecloths or curtains.
4. Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.

5. Never connect this appliance to an external timer or a separate remote-control system.

6. Never use this appliance with an extension cord or power board. Ensure it is plugged into a dedicated power point and without any other appliances on the same outlet.

7. Do not turn on the power until the appliance and parts are in place as required.

8. To protect against electric shock, do not immerse the cord, plug, or appliance in water or any other liquid. Do not expose the appliance to dripping or splashing and ensure that no objects filled with liquids such as vases are placed on the appliance. Do not put any water or other liquid into the main housing of the appliance through the vents. Do not rinse it under the tap.

9. Do not touch the appliance, power cord or power plug with wet hands.

10. Unplug from the outlet when not in use and before cleaning. Allow the appliance to cool down before putting on or taking off the parts, and before cleaning.

11. The appliance does not contain any serviceable parts inside. Do not attempt to open and repair the appliance yourself. All components should only be serviced by a qualified technician.

12. Do not use the appliance if the plug, power cable or unit itself are damaged. If the power cord is damaged, you must have it replaced at a service centre by qualified persons in order to avoid a hazard.

13. Do not use the appliance for anything other than the intended use. It is for household use only. It is not to be used outdoors or for commercial purposes.

14. Close supervision is necessary when the appliance is used near children. Keep the appliance and power cord out of reach of children when it is in operation or during the cooling process.

15. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farmhouses;

- by clients in hotels, motels and other residential-type environments;

- bed and breakfast type environments.

1. Extreme caution must be used when moving an air fryer containing hot food.

2. Leave enough open space from other objects while in use. Do not block air intakes or exhausts.

3. Do not place the appliance against a wall or against other appliances. Leave at least 20 centimetres of free space on the back and sides and above the appliance. Do not place anything on top of the appliance.

4. When the appliance is in operation, hot air is released through the air outlet vent. Keep your hands and face at a safe distance from the air outlet vent.

5. Do not touch the hot surfaces. The appliance's outer surfaces may become hot during use. The rotisserie basket and rotisserie fork set will be hot. Wear oven mitts or use the rotisserie remover tool to remove them. Wear oven mitts when handling the crisper trays and drip tray.

6. Do not cover the appliance while in use.

7. Do not let the cord hang over the edge of the table or counter.

8. Do not unplug the appliance by pulling on the cord.

9. This appliance can be used by children 8 years and above and people with a physical, sensory or mental impairment, or people without knowledge or experience if they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

10. Do not leave the appliance operating while unattended.

11. The appliance may emit light smoke during its first use. It is not defective, and the smoke will burn off within a few minutes.

12. Should the appliance emit black smoke, unplug it immediately. Wait for the smoke to stop before removing the contents inside.

13. To prevent the food from contacting the inner upper wall and heating element, do not overfill the rotisserie fork or crisper trays.

14. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children younger than 8 years.

Technical Parameters

Model	AFO330
Voltage	220-240V~ 50Hz
Power	1700W
Capacity	30	Litre
Adjustable temperature	40°C - 250°C
Timer	1 - 60 min

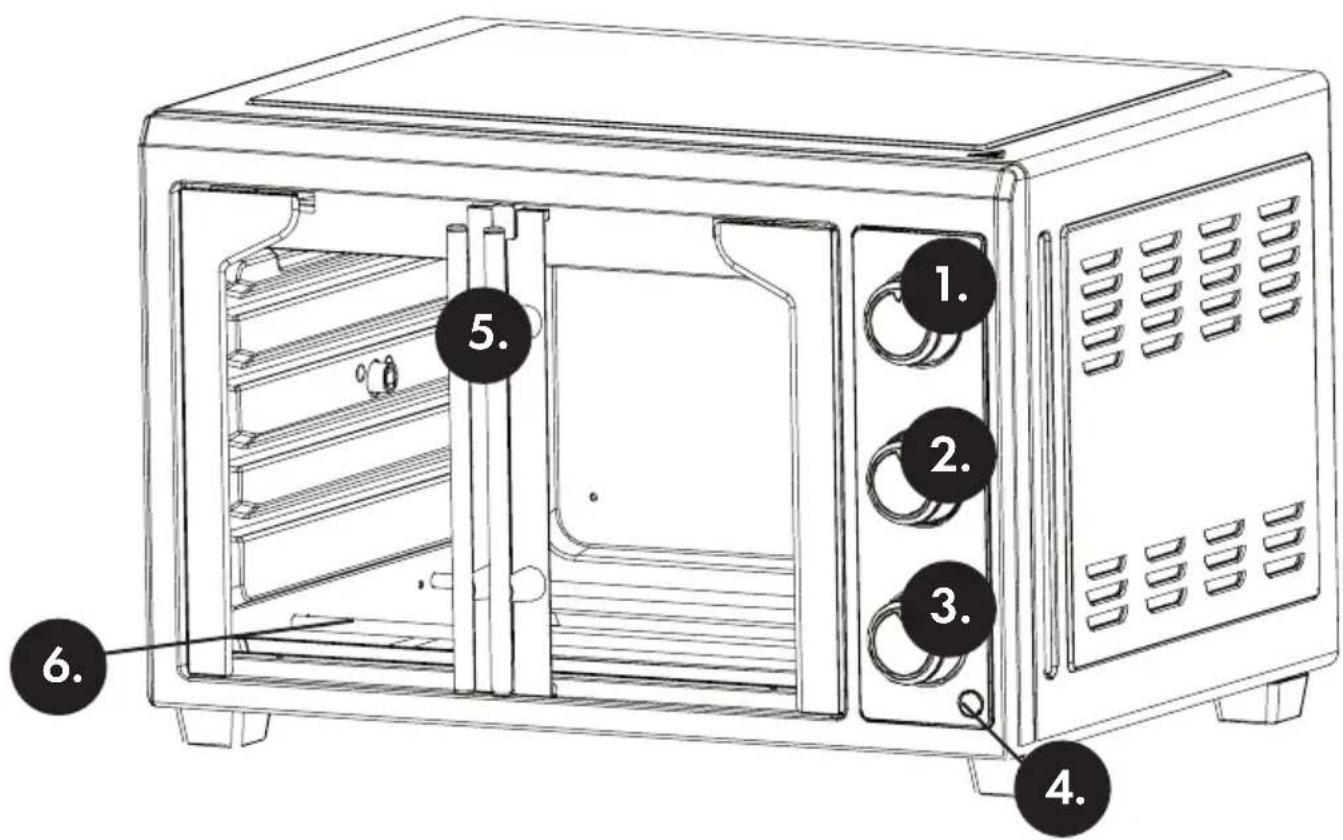

Appliance overview

1. Thermostat Dial 2. Mode Dial 3. Timer 4. Power Indicator

2. Glass French Door with Handles 6. Heating Element

Accessories

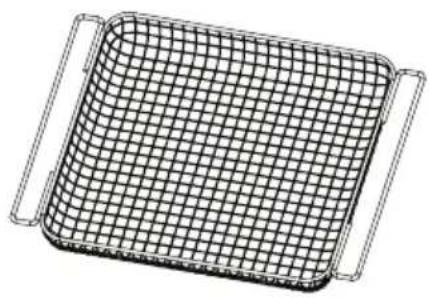

3D wireframe model of a rectangular grid-patterned tray or container (no text or symbols)

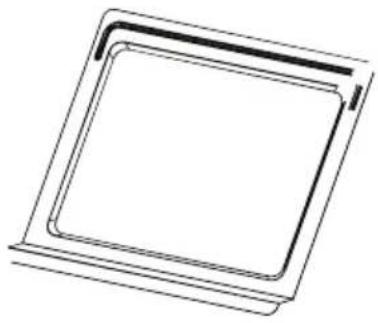

Air Fry Basket Crumb Tray

Simple line drawing of a square frame with rounded corners and a horizontal line at the top (no text or symbols)

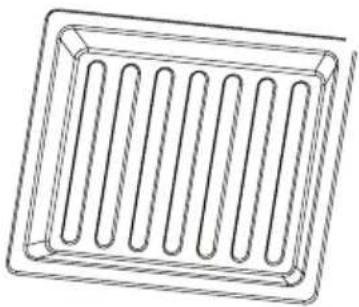

Line drawing of a rectangular tray with vertical slots (no text or symbols)

Baking Pan Pizza Stone

Simple black circular outline on white background (no text or symbols)

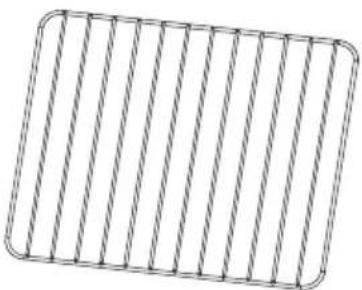

Simple line drawing of a rectangular grid with vertical lines (no text or symbols)

Wire Rack Tray Handle

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Pure mechanical clamp or tool diagram without any text, numbers, or symbols

Rotisserie Fork

Pure line drawing of a symmetrical U-shaped pipe or conduit (no text or symbols)

Remover Tool

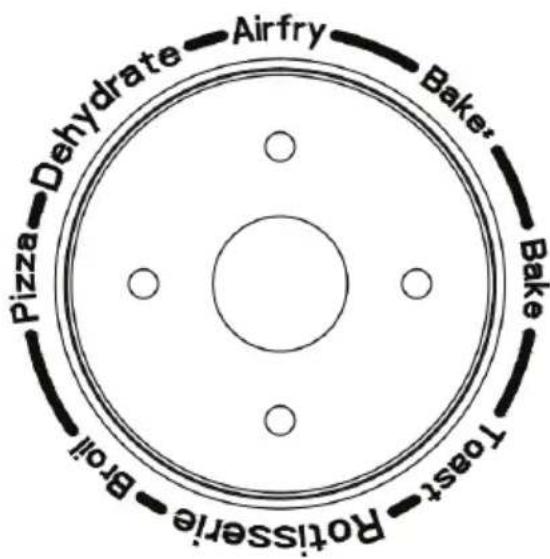

Mode Dial

1. Air fry - top heating element + bottom heating element + convection
2. Bake* - top heating element + bottom heating element + convection
3. Bake - bottom heating element
4. Toast - top heating element + bottom heating element
5. Rotisserie - top heating element + bottom heating element + rotisserie + convection
6. Broil - top heating element
7. Pizza - top heating element + bottom heating element + convection
8. Dehydrate - top heating element + convection + rotisserie

Timer Dial

When you turn on the timer, the power indicator light will switch on.

When you turn off the timer, the power indicator light will switch off.

BEFORE FIRST USE

1. Remove all packaging and promotional materials.
2. Thoroughly clean all accessories with hot soapy water.
3. Wipe the inside and outside of the appliance with a soft cloth.
4. Ensure there is adequate ventilation around the oven.
5. Make sure the oven is completely dry before use.
6. Do not place the oven on an untreated wooden surface. Always use a heat-resistant surface.
7. The feet of the oven may leave marks on the table. If this occurs, remove the marks with a damp cloth.

Note: When your air fryer is heated for the first time, it may emit slight smoke or odour. This is normal with many brand-new appliances. This does not affect the safety of your appliance.

USING THE APPLIANCE

• Turn the thermostat dial clockwise to set the desired temperature.
• Select the desired function by turning the rmode dial.
• Turn the timer dial clockwise to set the desired cooking time.
• The power light will illuminate when the timer is turned on and will turn off when the timer is set to OFF.
• When the cooking time is over, the timer will automatically shut off, and a bell will ring.
• If cooking finishes before the set time, please turn the timer back to OFF to switch off the oven.
• For optimal cooking performance, it is recommended to preheat the oven for 10-15 minutes.

USING THE ROTISSERIE

1. Slide one fork onto the pointy end of the rod, ensuring it's pointed towards the pointy end of the rod. Slide the skewer towards the square end of the rod.
2. Insert the rod directly through the centre of the food you wish to roast on the rotisserie.
3. Slide the second fork onto the pointy end of the rod.
4. Push the forks into the food and secure them using the thumbscrews.
5. Ensure the food is centred on the rod.
6. Insert the pointy end of the rotisserie rod into the drive socket, making sure the square end rests on the rotisserie support.
7. Plug in the oven.
8. Set the thermostat to 250^ .
9. Turn the timer to the desired cooking time. The power indicator will light up. Typically, it takes around 40 minutes to roast a 2.5kg chicken.
10. Set the mode dial to the ROTISSERIE setting to start the rotisserie rotating.
11. When roasting is complete, turn the timer back to OFF.
12. After the oven has cooled, use the rotisserie handle to lift the spit. Place the handle hooks under the grooves on both sides of the spit. Lift the right side of the spit first, then slide it slightly to the right to remove the left side from the drive socket. Carefully remove the roasted food from the oven.
13. Remove the food from the spit.

USING THE PIZZA STONE

1. Preheat the oven with the pizza stone inside for 10-20 minutes before use to ensure it reaches the desired temperature.

2. Do not place frozen food directly on the pizza stone, as it may crack due to the sudden temperature change.

3. Avoid getting the pizza stone wet. Do not soak it in water or use it to cook foods with high moisture content.

4. Use a pizza peel or oven mitts to place and remove food from the stone to avoid burns.

5. Allow the pizza stone to cool completely before cleaning. Gently scrape off any food residue with a spatula or brush.

SUGGESTED COOKING SETTINGS

Steak	250°C	10 - 15 min
Ribs	250°C	20 - 30 min
Prawns	200°C	10 - 12 min
Sausages	200°C	12 - 15 min
Chicken	250°C	40 - 45 min
Pizza	250°C	7 - 10 min
Hot Chips	250°C	20 - 30 min
Sliced Bread	200°C	5 - 7 min
Chicken Wings	220°C	15-18 min

AFTER USE

• Turn the timer OFF
• Turn the mode dial to OFF
  • Unplug the appliance from the power outlet
• Wait until the oven is completely cool before any cleaning or maintenance.

CLEANING AND MAINTENANCE

Unplug the appliance and allow it to cool before cleaning.

Do not immerse the appliance in water. All surfaces can be cleaned with a damp cloth.

If stains persist, use a mild soap for cleaning.

Do not use abrasive cleaners or sharp utensils on the appliance.

Clean the interior chamber with a damp cloth.

All accessories (except the pizza stone) are dishwasher safe.
