Product Type USB-C Multi-Port Adapter
Model AU-MMCW
Brand Sabrent
Dimensions 4.5 x 1.5 x 0.5 inches (11.4 x 3.8 x 1.3 cm)
Weight 1.8 oz (51 g)
Power Source USB-C bus powered or external Power Delivery up to 100W
Video Output HDMI 4K @ 30 Hz
USB Ports 1x USB 3.0 Type-A, 1x USB-C Data
Charging Support USB-C Power Delivery pass-through (up to 100W)
Compatibility Laptops, tablets, and smartphones with USB-C (Thunderbolt 3/4 compatible)
Operating Systems Windows, macOS, Chrome OS, Android, iPadOS
Indicator Light LED power/activity indicator
Housing Material Aluminum alloy
Maintenance Wipe with a soft, dry cloth; no liquid cleaners
Safety Precautions Avoid exposure to liquids, excessive heat, or physical stress
Spare Parts Not available; unit is non-serviceable
Warranty 1 year limited warranty

Frequently Asked Questions - AU-MMCW Sabrent

Is the Sabrent AU-MMCW compatible with my laptop?
Yes, the AU-MMCW works with any laptop, tablet, or smartphone that has a USB-C port supporting DisplayPort Alt Mode. It is also compatible with Thunderbolt 3 and 4 ports.
What resolution does the HDMI output support?
The HDMI port supports up to 4K@30Hz (3840x2160). For 4K@60Hz or higher, a different adapter may be needed.
Can I charge my laptop while using the adapter?
Yes, the adapter features Power Delivery (PD) pass-through up to 100W. Connect your laptop's USB-C charger to the adapter's PD port to charge while using other functions.
Does the adapter support USB 3.0 speeds?
Yes, the USB-A port provides USB 3.0 (5 Gbps) data transfer speeds, backward compatible with USB 2.0 and 1.1.
Why is my external monitor not detected?
Ensure your laptop's USB-C port supports video output (DisplayPort Alt Mode). Also check that the HDMI cable is securely connected and the monitor is set to the correct input. Restarting the laptop may help.
Can I use the USB-C port on the adapter for data transfer?
Yes, the built-in USB-C port supports data transfer at USB 3.0 speeds. However, it does not support video output or PD charging.
Is the adapter hot during use?
Mild warmth is normal due to power conversion. If it becomes excessively hot, unplug it and check for proper ventilation. The aluminum housing helps dissipate heat.
Does this adapter work with a Nintendo Switch?
Yes, the AU-MMCW is compatible with the Nintendo Switch in docked mode. It can output video to an HDMI display and support charging via PD. However, the USB ports may not work for all accessories.
What should I do if the adapter stops working?
Try connecting it to a different device to isolate the issue. Ensure the USB-C connection is clean. If it still fails, contact Sabrent support for warranty service. Do not attempt to open the unit.
Can I use the adapter with a USB-C to USB-A cable?
No, the adapter requires a full-featured USB-C connection from the host device. Using a USB-C to USB-A cable will not provide video or PD functionality.

User questions about AU-MMCW Sabrent

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Uncategorized in PDF format for free! Find your manual AU-MMCW - Sabrent and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AU-MMCW by Sabrent.

USER MANUAL AU-MMCW Sabrent

SABRENT Connecting Differently™

USB Sound Adapters

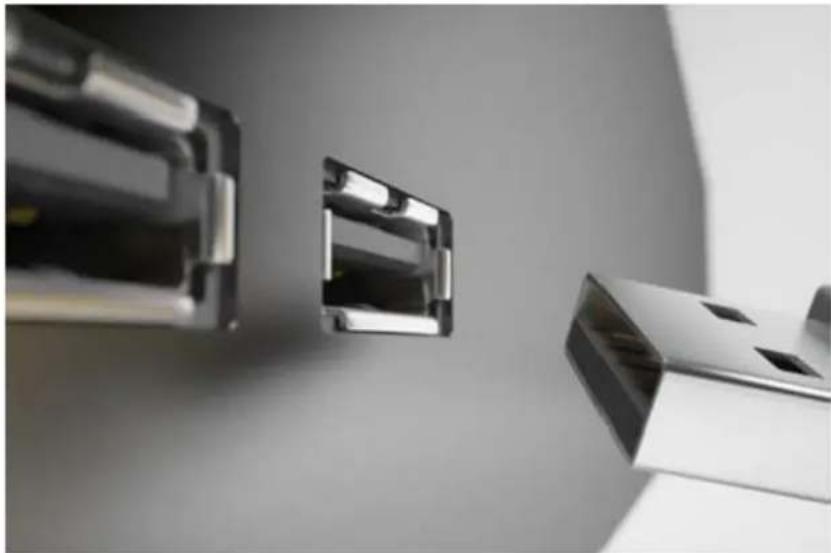

16 Connect Sound Adapter to available USB port on your Windows or Mac OS computer6

Sabrent AU-MMCW - USB Sound Adapters - 1

natural_image Close-up of three metallic USB connectors with reflective surfaces, no visible text or symbols

26 Connect a Microphone to the Pink hole when using with Microphone6

Sabrent AU-MMCW - USB Sound Adapters - 2

natural_image Simple black silhouette of a microphone (no text or symbols)

36 Connect Speaker/Headphone to the Green hole when using with Speaker/Headphone6

Sabrent AU-MMCW - USB Sound Adapters - 3

natural_image Black headset icon on white background (no text or symbols)

Speakers/Headphone setup on Windows

16 Right click on the Speaker icon on your taskbar6

Sabrent AU-MMCW - Speakers/Headphone setup on Windows - 1

26 Left click on Playback devices6

Open Volume Mixer Playback devices Recording devices Sounds Volume control options

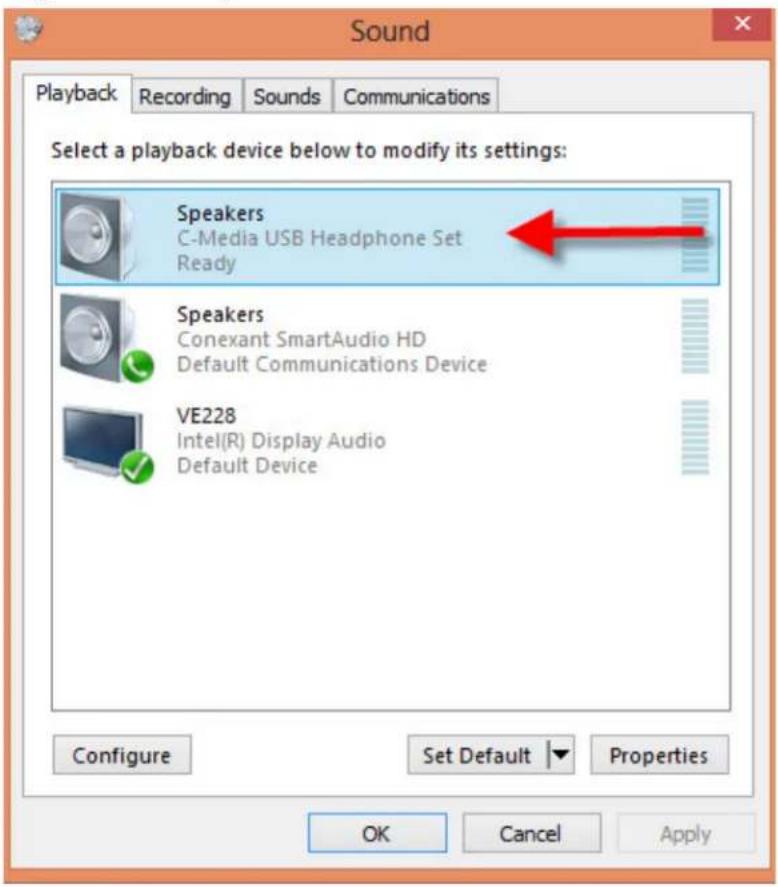

Right click on Speakers USB6
Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Ready Speakers Conexant SmartAudio HD Default Communications Device VE228 Intel(R) Display Audio Default Device Configure Set Default Properties OK Cancel Apply

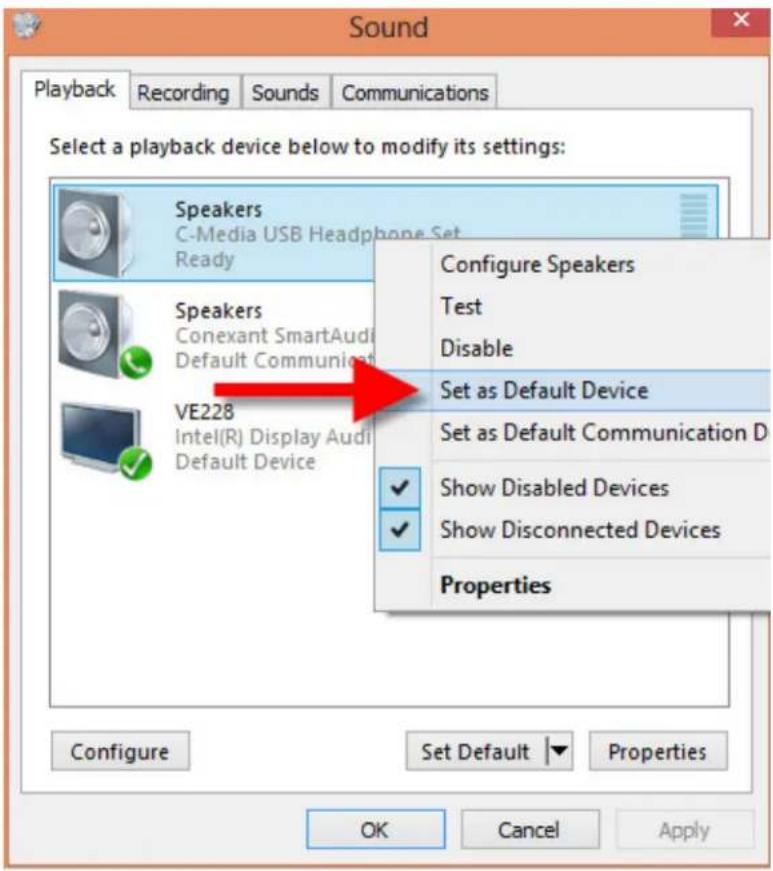

Left click on Set as Default Device6

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Ready Configure Speakers Test Disable Speakers Conexant SmartAudio Default Communication Set as Default Device VE228 Intel(R) Display Audi Default Device Set as Default Communication D ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties Configure Set Default Properties OK Cancel Apply

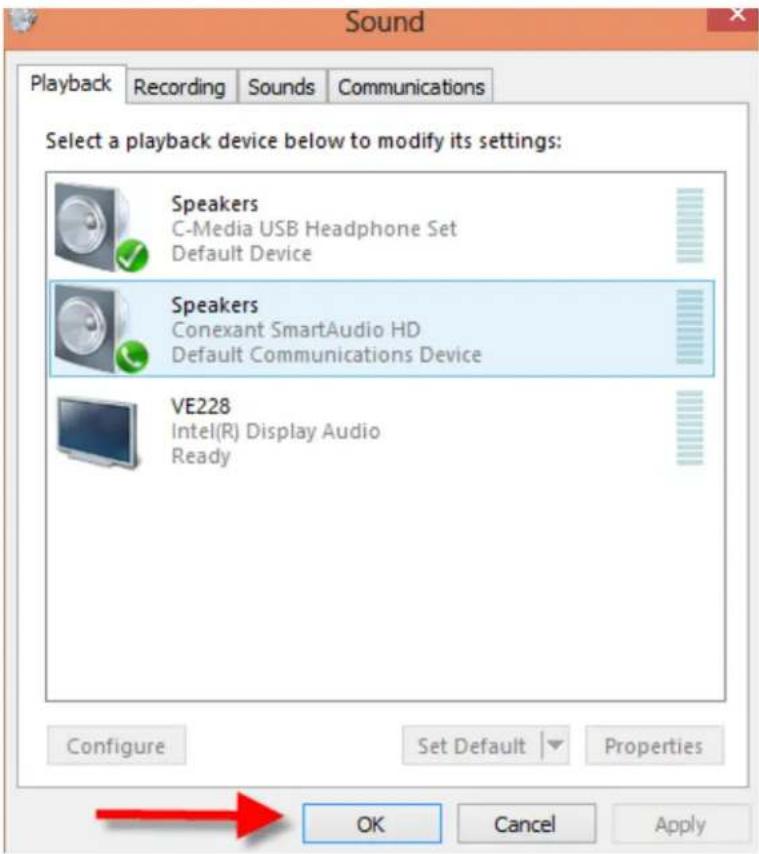

5. Left click on OK.

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers C-Media USB Headphone Set Default Device Speakers Conexant SmartAudio HD Default Communications Device VE228 Intel(R) Display Audio Ready Configure Set Default Properties OK Cancel Apply

  1. You are ready to use this adapter.

Microphone setup on Windows

  1. Right click on the Speaker icon on your taskbar.

Sabrent AU-MMCW - Microphone setup on Windows - 1

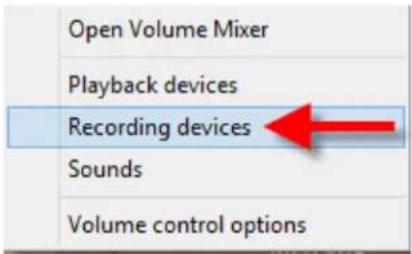

26 Left click on Recording Devices6

Open Volume Mixer Playback devices Recording devices Sounds Volume control options

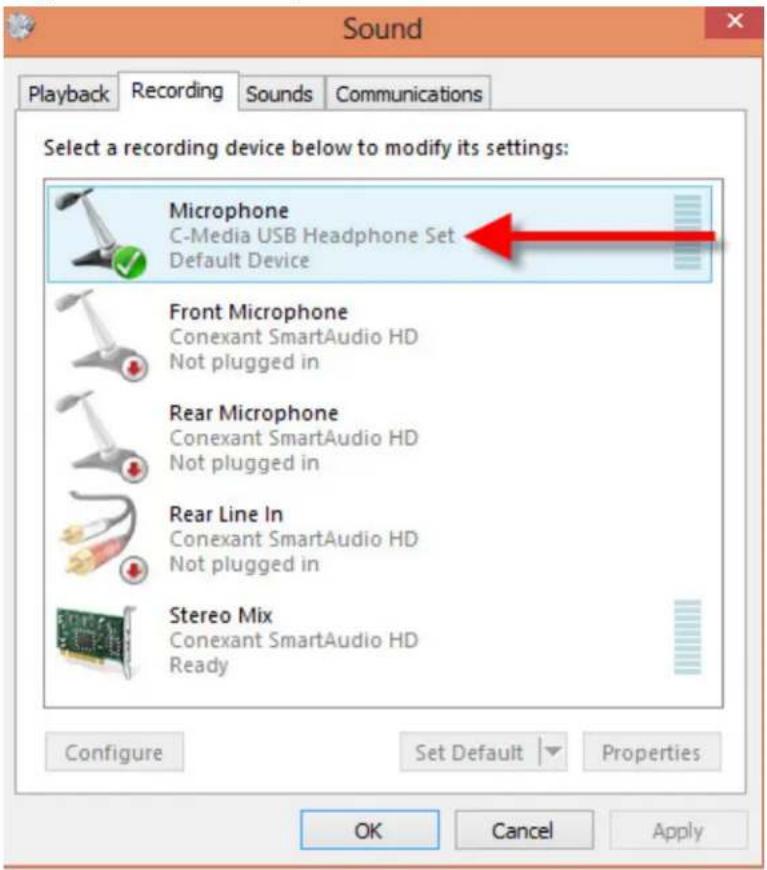

36 Right click on Microphone USB6

Sound Playback Recording Sounds Communications Select a recording device below to modify its settings: Microphone C-Media USB Headphone Set Default Device Front Microphone Conexant SmartAudio HD Not plugged in Rear Microphone Conexant SmartAudio HD Not plugged in Rear Line In Conexant SmartAudio HD Not plugged in Stereo Mix Conexant SmartAudio HD Ready Configure Set Default Properties OK Cancel Apply

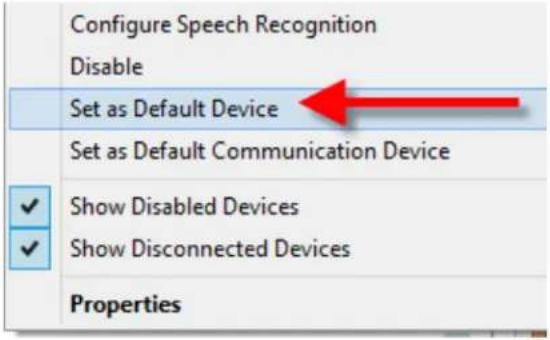

  1. Left click on Set as Default Device.

Configure Speech Recognition Disable Set as Default Device Set as Default Communication Device ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties

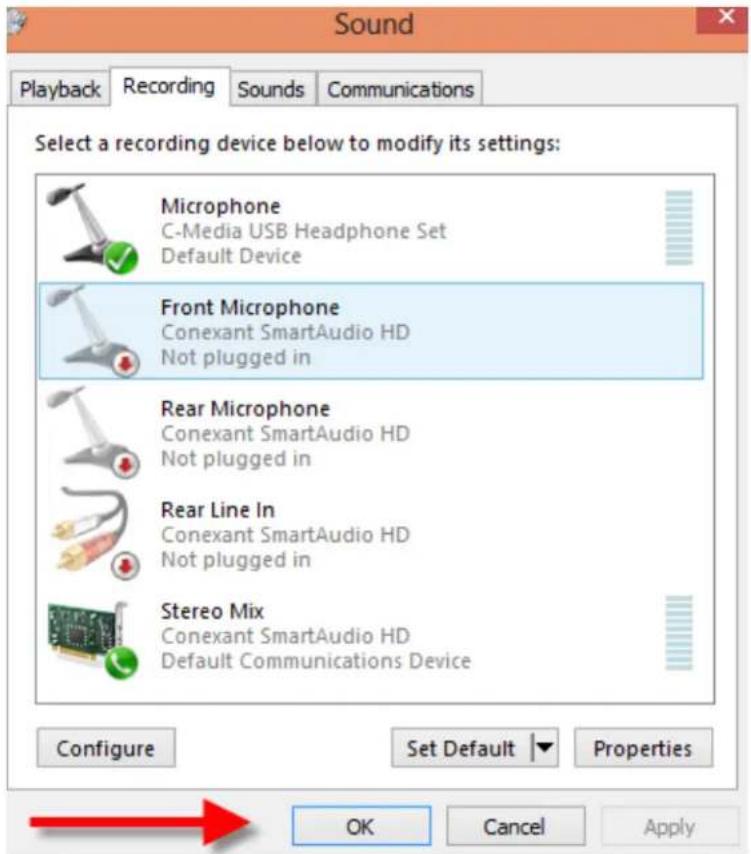

  1. Left Click on OK.

Sound Playback Recording Sounds Communications Select a recording device below to modify its settings: Microphone C-Media USB Headphone Set Default Device Front Microphone Conexant SmartAudio HD Not plugged in Rear Microphone Conexant SmartAudio HD Not plugged in Rear Line In Conexant SmartAudio HD Not plugged in Stereo Mix Conexant SmartAudio HD Default Communications Device Configure Set Default Properties OK Cancel Apply

  1. You are ready to use this adapter.

Speaker/Headphone setup on Mac

16 Click on System Preferences on your Taskbar6

Sabrent AU-MMCW - Speaker/Headphone setup on Mac - 1

natural_image Close-up of a metallic gear with visible teeth and central hub (no text or symbols)

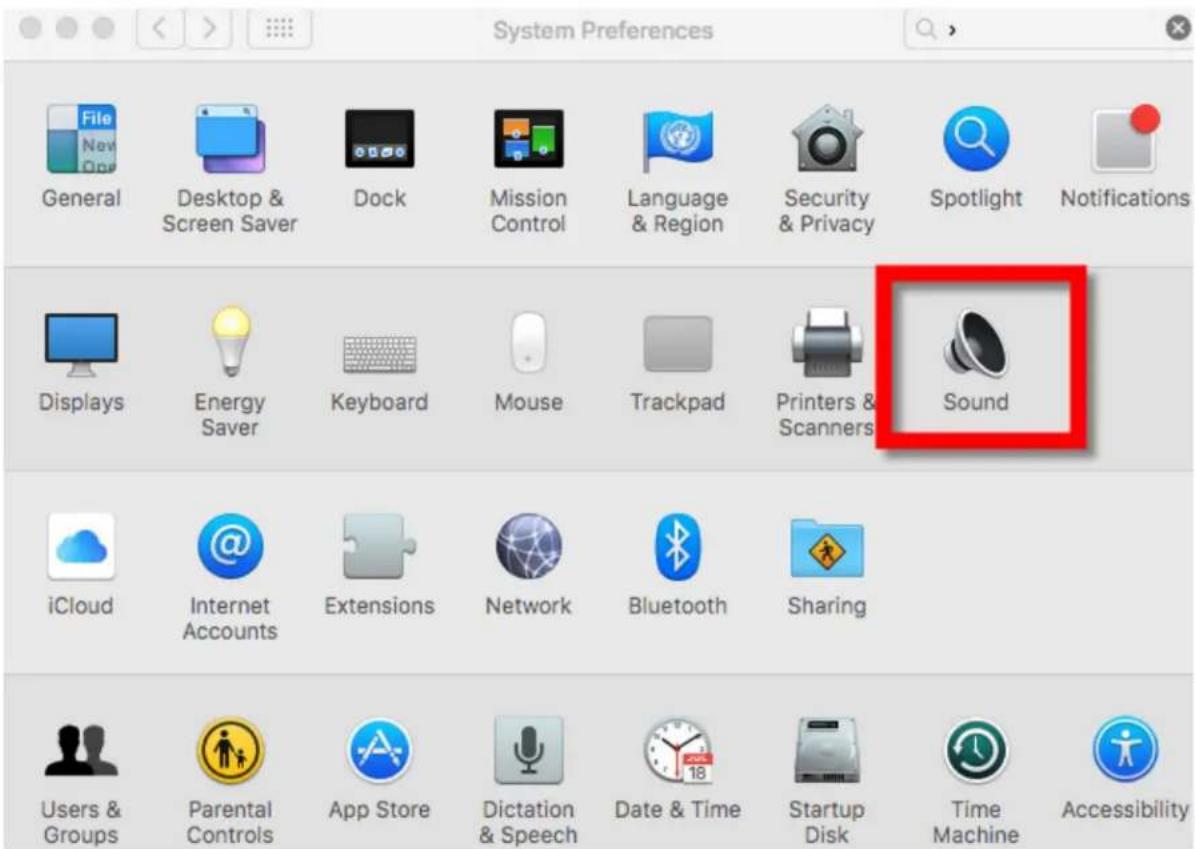

Click on Sound6
System Preferences General Desktop & Screen Saver Dock Mission Control Language & Region Security & Privacy Spotlight Notifications Displays Energy Saver Keyboard Mouse Trackpad Printers & Scanners Sound iCloud Internet Accounts Extensions Network Bluetooth Sharing Users & Groups Parental Controls App Store Dictation & Speech Date & Time Startup Disk Time Machine Accessibility

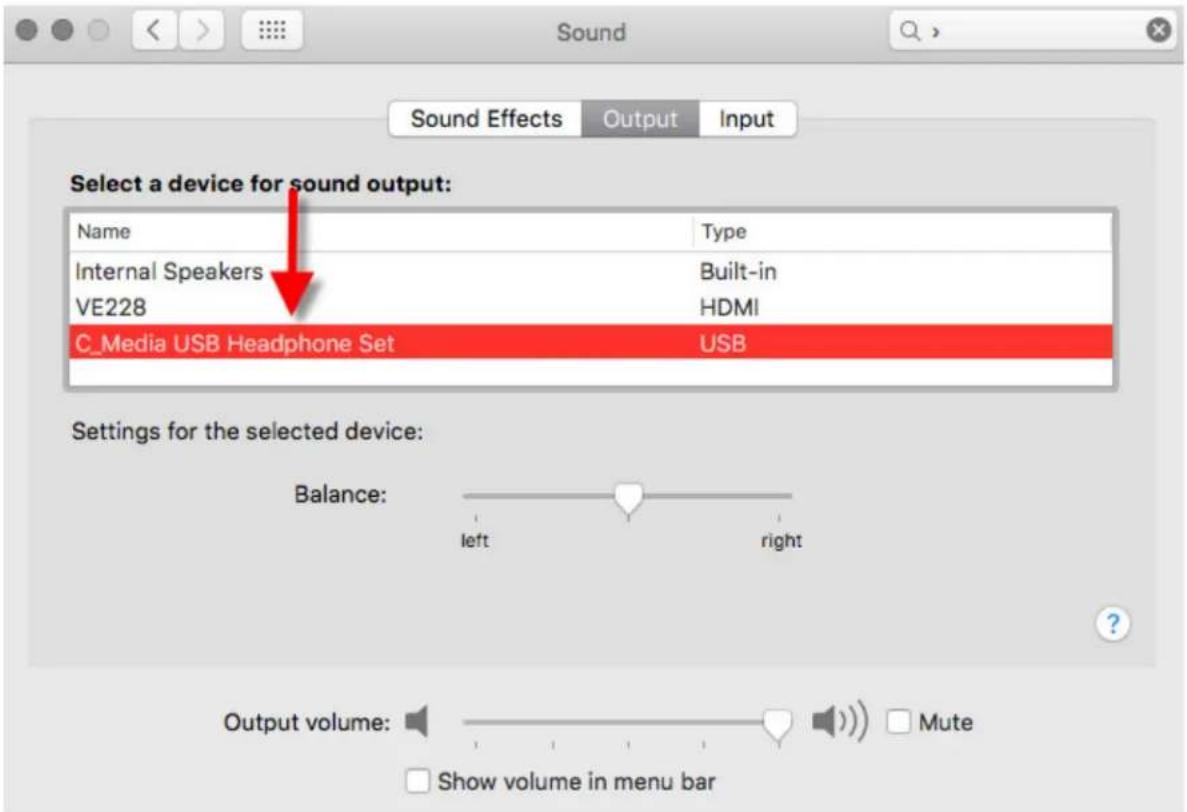

Click on USB Headphone Set6

Sound Sound Effects Output.Input Select a device for sound output: Name Way Internal Speakers Built-in VE228 HDMI C_Media USB Headphone Set USB Settings for the selected device: Balance: left right Output volume: Mute Show volume in menu bar

46 You are ready to use this adapter6

Microphone setup on Mac

16 Click on System Preferences on your Taskbar6

Sabrent AU-MMCW - Microphone setup on Mac - 1

natural_image Close-up of a metallic gear with visible teeth and central hub (no text or symbols)

Click on Sound6

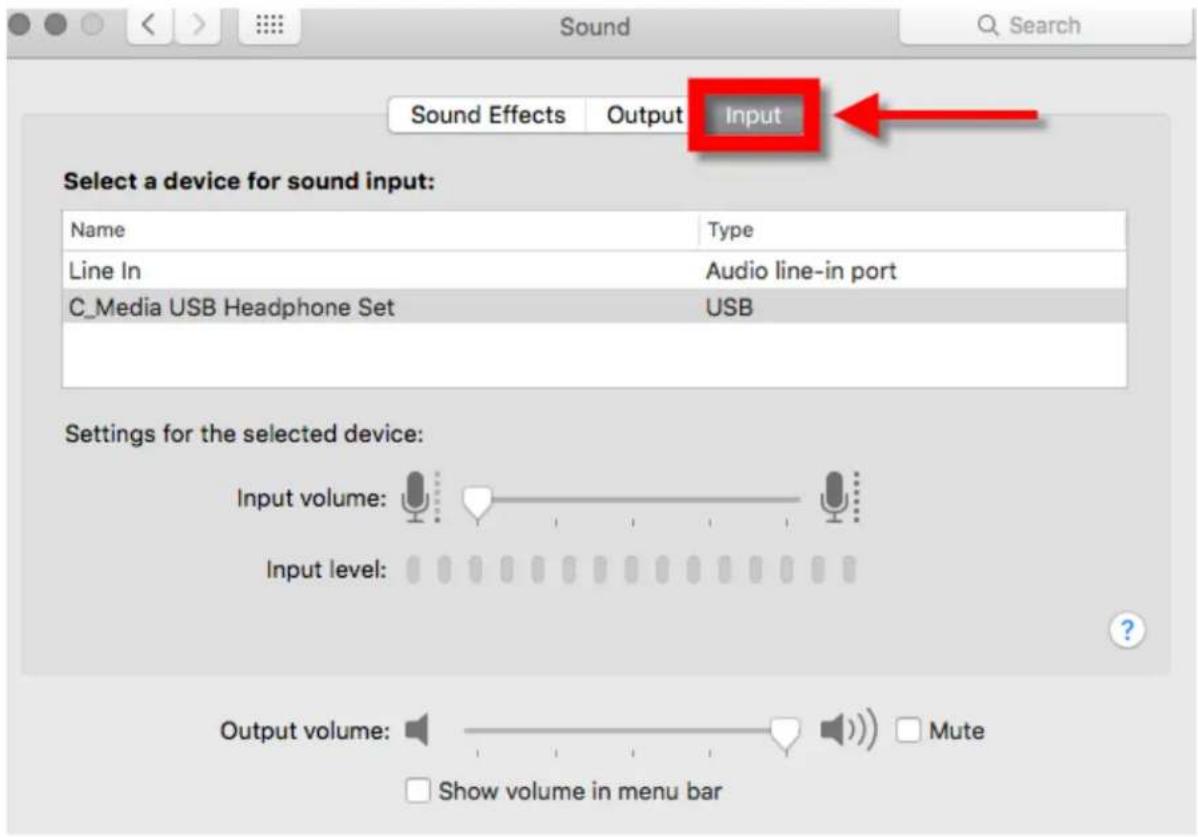

Click on Input6

Sound Effects Output Input Select a device for sound input: Name Type Line In Audio line-in port C_Media USB Headphone Set USB Settings for the selected device: Input volume: Input level: Output volume: Mute Show volume in menu bar

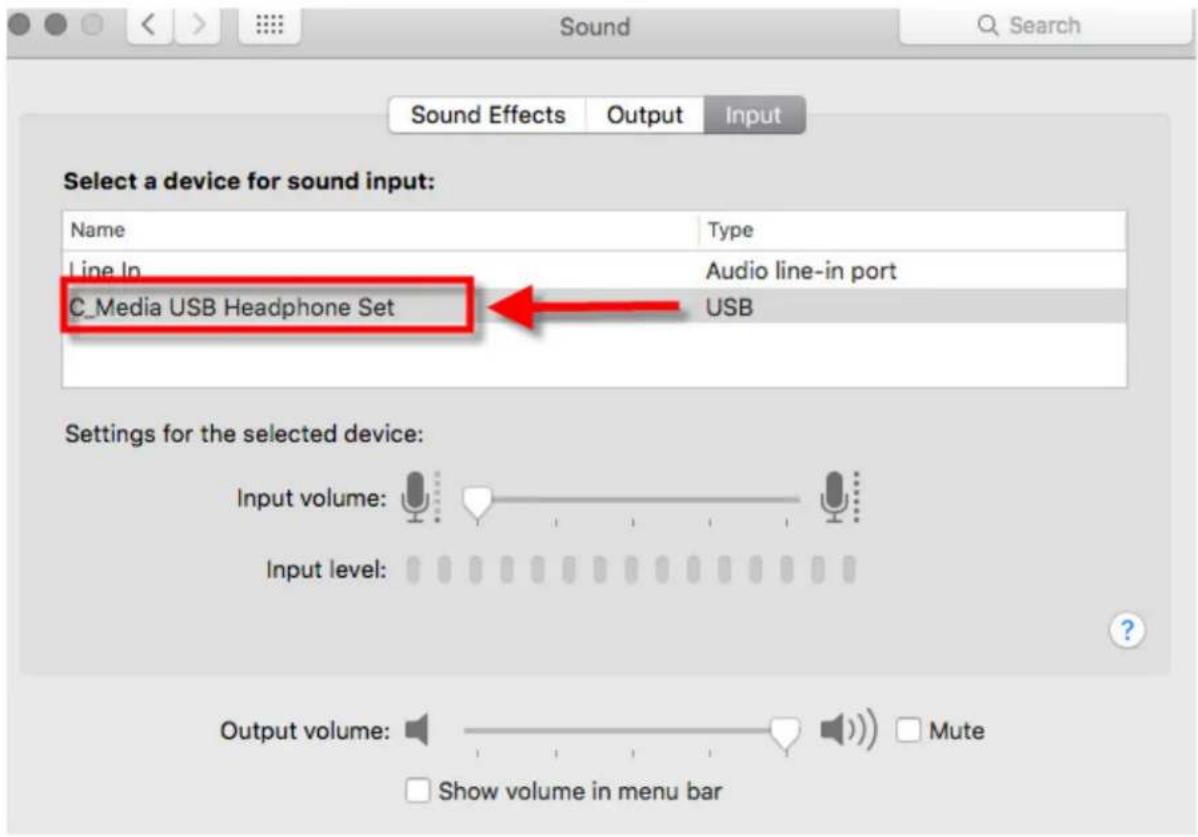

Click on USB Headphone Set6

Sound Effects Output Input Select a device for sound input: Name Type Line In Audio line-in port C_Media USB Headphone Set USB Settings for the selected device: Input volume: Input level: Output volume: Mute Show volume in menu bar

You are ready to use this adapter6
