Product Type	USB 2.0 to SATA/IDE Hard Drive Converter
Brand	Sabrent
Model	USB-DSC5
Interface	USB 2.0 (backward compatible with USB 1.1)
Supported Drive Types	2.5" and 3.5" IDE (PATA) and SATA hard drives
Power Supply	Included AC adapter (Input: 100-240V AC, Output: 12V DC 2A)
LED Indicators	Power and activity LEDs for drive status
Cable Length	Approximately 30 cm (USB and data cables) - estimate
Operating System Compatibility	Windows, Mac, Linux (plug-and-play)
Data Transfer Rate	Up to 480 Mbps (USB 2.0)
Additional Connectors	2.5" IDE (short connector), 3.5" IDE (long connector), SATA data and power
Care Instructions	Keep dry, avoid electrostatic discharge, store in a cool place
Safety Precautions	Use only the provided power supply, avoid overheating, do not disassemble
Spare Parts / Repairability	Power supply is replaceable; internal components are not user-serviceable
General Information	Compatible with most 2.5" and 3.5" IDE/SATA drives; ideal for data recovery or drive cloning

Frequently Asked Questions - USB-DSC5 Sabrent

How do I connect a 2.5" IDE hard drive to the Sabrent USB-DSC5?

Connect the short 2.5" IDE connector from the adapter directly to the pins on your 2.5" IDE hard drive. Ensure the keyed pin and slot align properly. Then connect the USB cable to your computer. In most cases, USB power is sufficient for 2.5" drives.

How do I connect a 3.5" IDE hard drive?

Attach the included IDE power adapter to the drive. Then connect the long 3.5" IDE connector to the drive's pins, ensuring proper alignment. Finally, connect the USB cable to your computer. For 3.5" drives, you must use the provided power supply.Important: The power supply is required for 3.5" drives.

How do I connect a SATA hard drive?

First, connect the power supply to the Sabrent converter. Then plug the SATA power connector into the SATA drive. Next, connect the SATA data cable into the converter and the other end into the drive. Finally, connect the USB cable to your computer. The drive should spin up and be recognized.

What should I do if the hard drive does not spin or vibrate?

If the drive does not spin, first check all connections. Ensure the power supply is plugged in for 3.5" drives. Try connecting to a different USB port (rear ports may work better). If it still fails, the drive itself may be faulty. This adapter can only access working drives.

No drive letter appears in My Computer. What can I do?

If a drive letter does not appear, try these steps: 1) Connect to a different USB port. 2) Try a different computer. 3) Use a different hard drive. If 2.5" drives work but 3.5" drives do not, you may only need a new power supply. The adapter may be defective if nothing works.

Can I use the Sabrent USB-DSC5 with a solid state drive (SSD)?

Yes, the adapter works with SATA SSDs. Connect the SATA data and power cables as described. The SSD will be recognized as a standard drive. Note that transfer speed is limited to USB 2.0 (480 Mbps).

Is the power supply always necessary?

For 2.5" IDE or SATA drives, the USB cable often provides enough power, so the power supply may not be needed. However, for 3.5" drives, the external power supply is required because USB cannot deliver enough power for larger drives.

What do the LED activity lights indicate?

The adapter has power and activity LEDs. The power LED lights up when the adapter is connected to power. The activity LED flashes when data is being transferred between the drive and the computer.

Is the Sabrent USB-DSC5 compatible with USB 3.0 ports?

Yes, it is backward compatible with USB 3.0 ports, but the transfer speed will be limited to USB 2.0 (up to 480 Mbps). For faster transfers, consider a USB 3.0 adapter.

Can I hot-swap hard drives using this adapter?

Yes, the adapter supports hot-swapping. You can connect or disconnect drives while the adapter is powered, as long as you safely eject the drive from the operating system first to prevent data corruption.

USER MANUAL USB-DSC5 Sabrent

Connecting Differently™

USB-DSC5

USB 2.0 TO SATA/IDE Hard Drive Converter With Power Supply & LED Activity Lights

User Manual

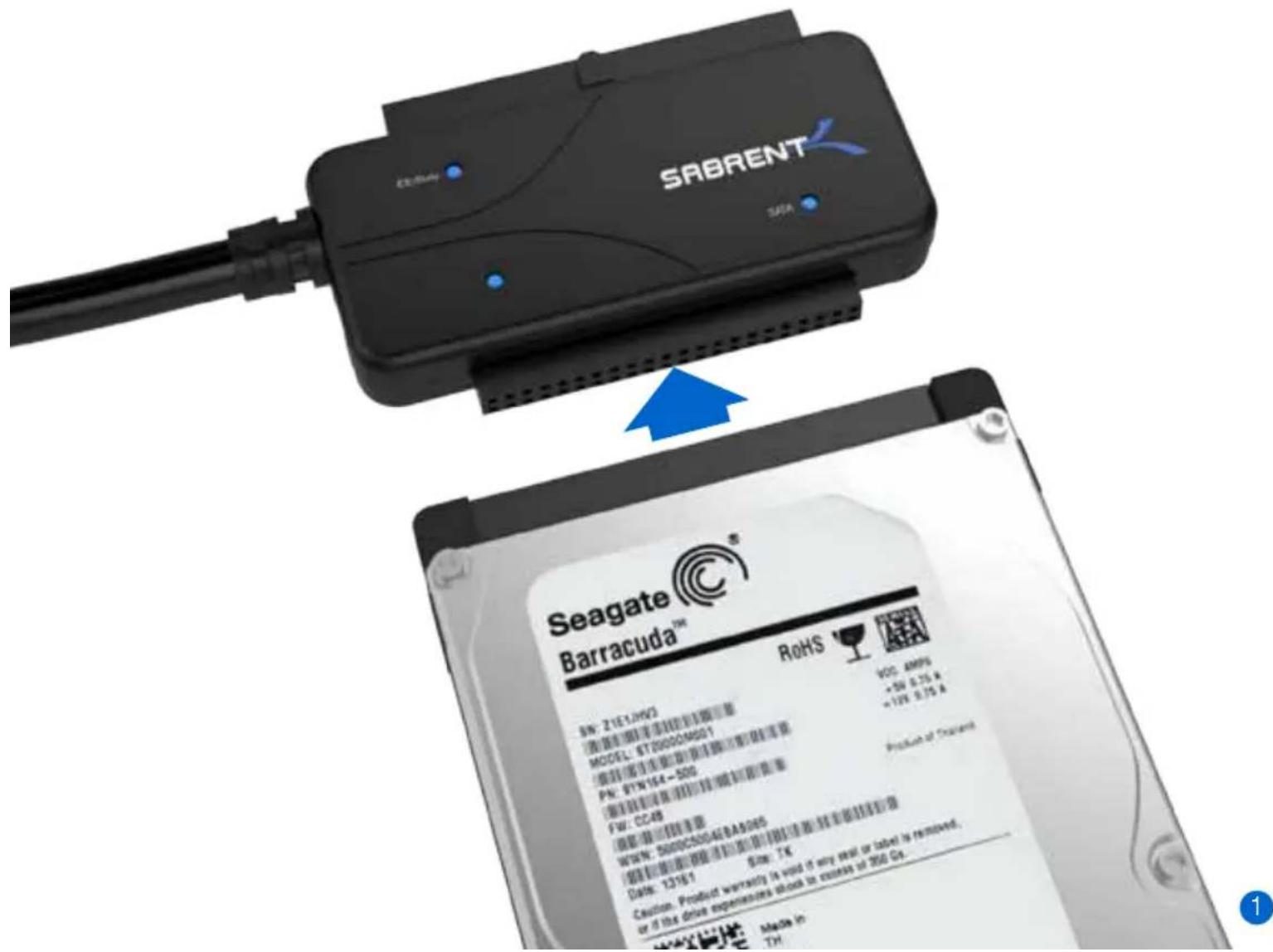

1-Connect the short 2.5" IDE connector from the Sabrent adapter to the pins on your 2.5" Hard Drive.

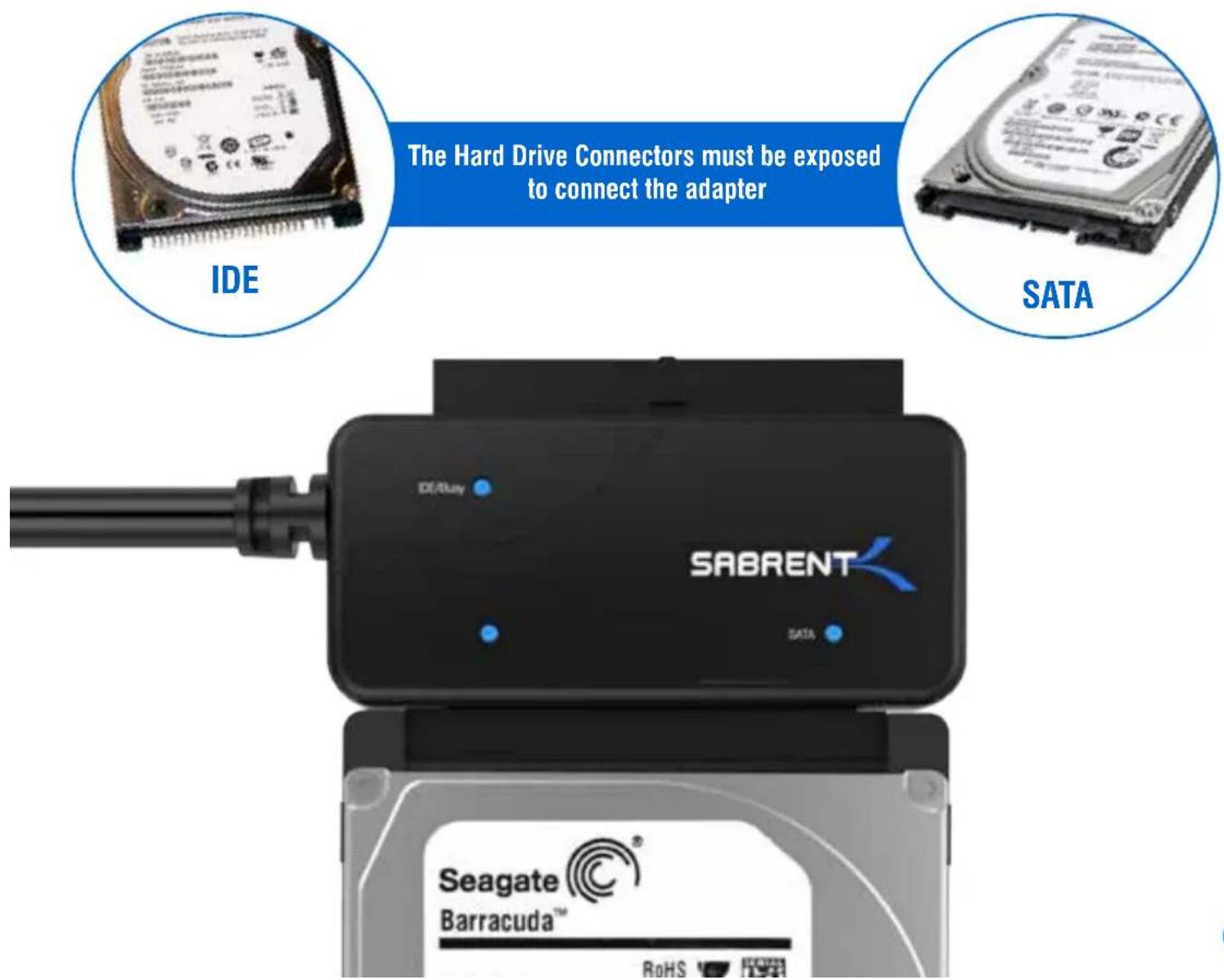

Please Note: When you remove a hard drive from an existing laptop, you may need to first remove the outer cage and sometimes an additional converter which cover the IDE or SATA connectors.

SABRENT

USB-DSC5 / User Manual

2-Connect the USB cable from the Hard Drive Adapter to an available USB port on your computer.

3-In most cases, the USB cable will supply sufficient power for the drive to spin up and initiate.

However, some larger capacity Hard Drives may require additional power to spin up and initiate.

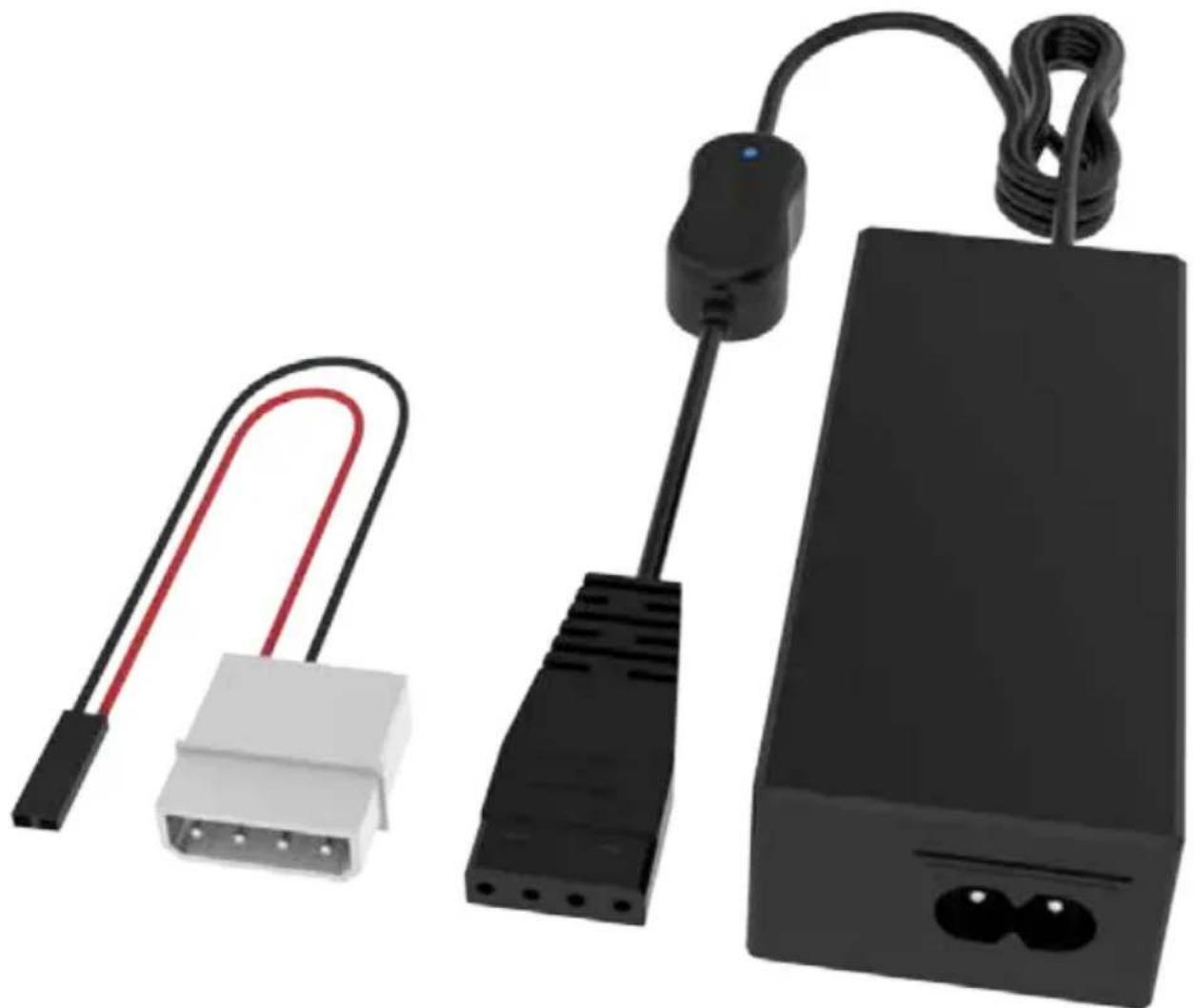

Use the power supply provided for the needed power.

Black and white electronic device with connected cables and a connector, no visible text or symbols

SABRENT

USB-DSC5 / User Manual

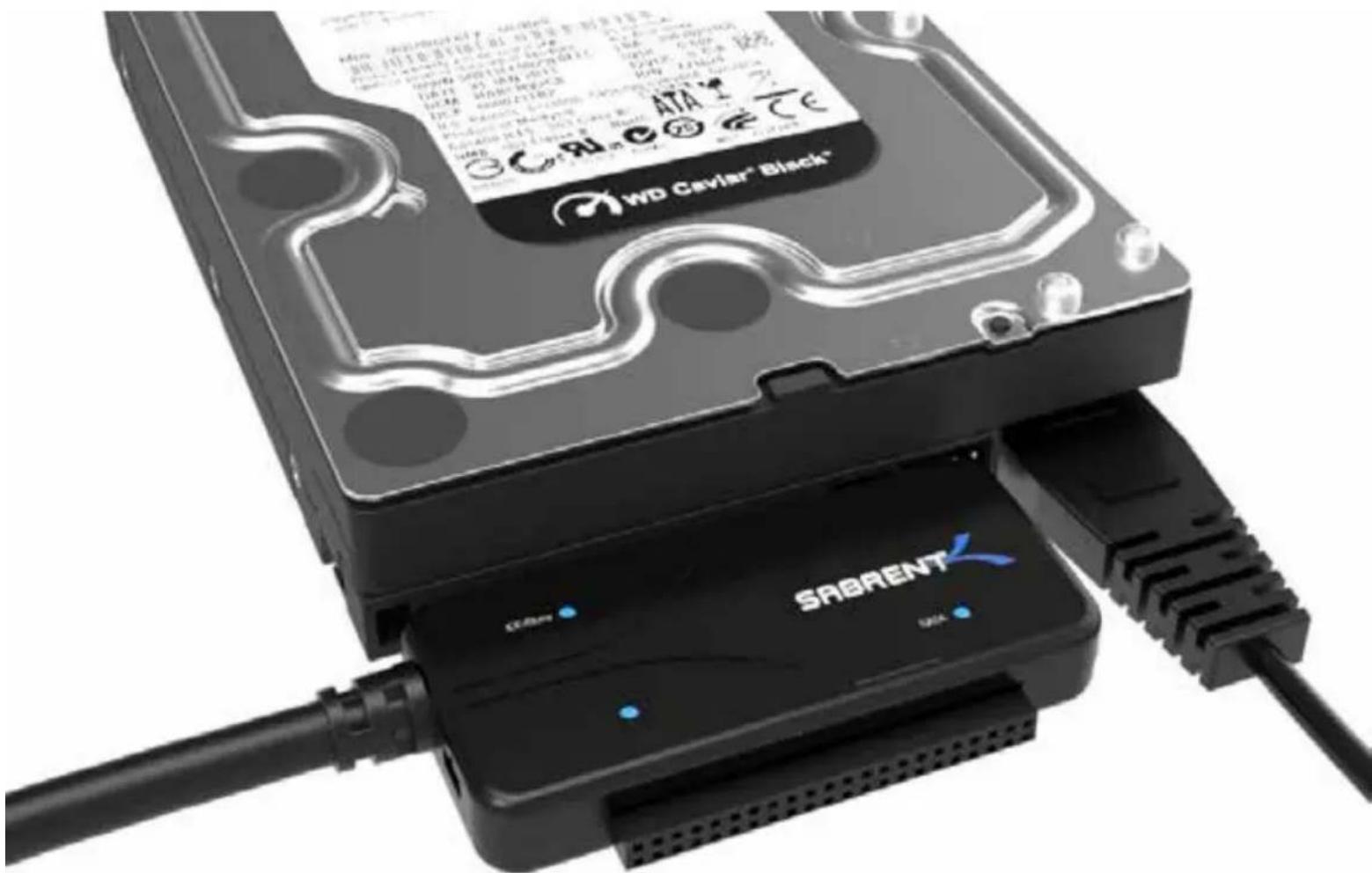

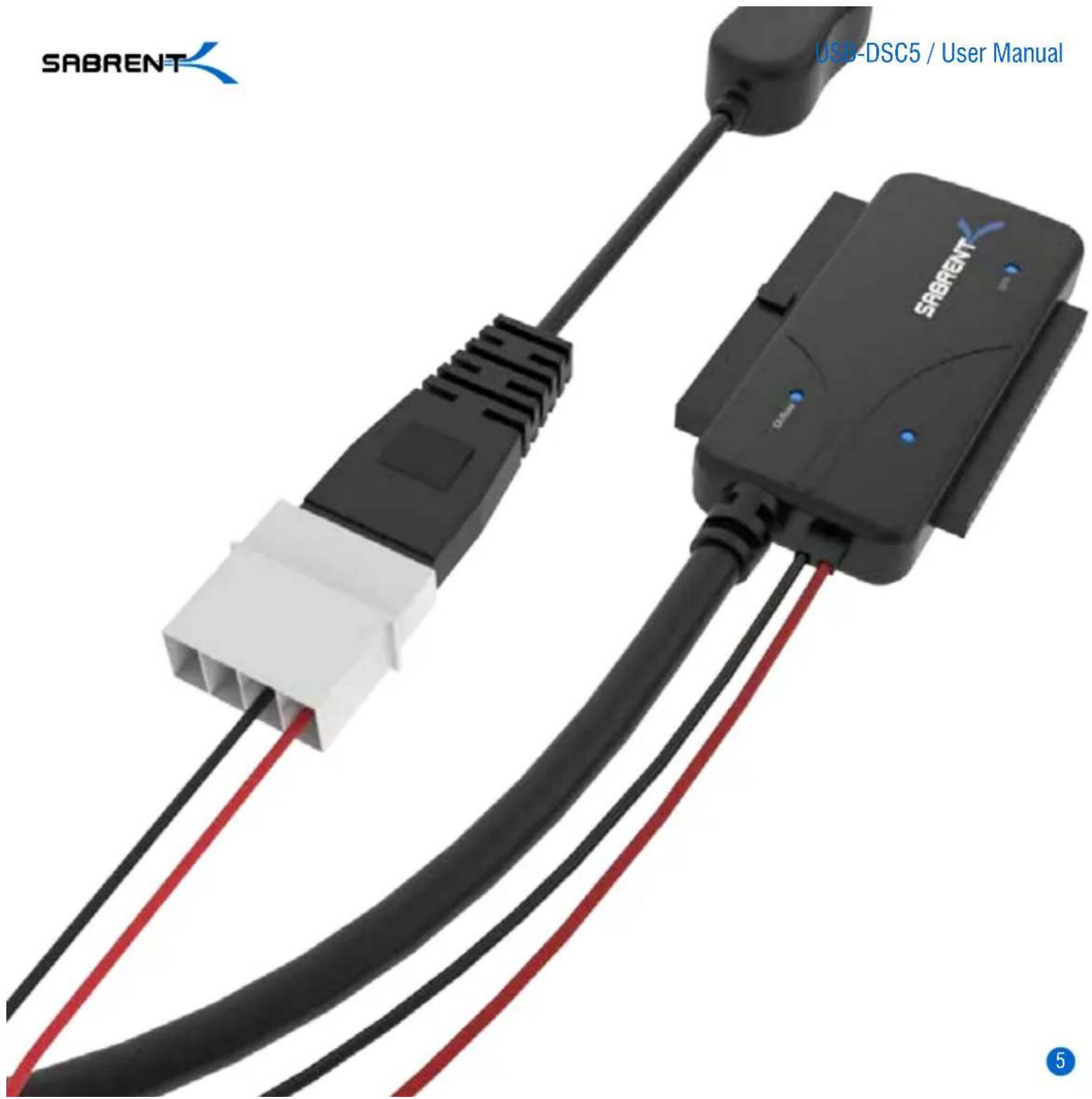

1-Connect the IDE power adapter (included) directly into the IDE drive

2-Connect the long 3.5 inch IDE connector to the pins on your hard drive Ensure that the keyed pin and slot are properly lined up to the device and that the fit is snug.

3-Connect the USB cable from the Sabrent converter to an available USB port on your computer

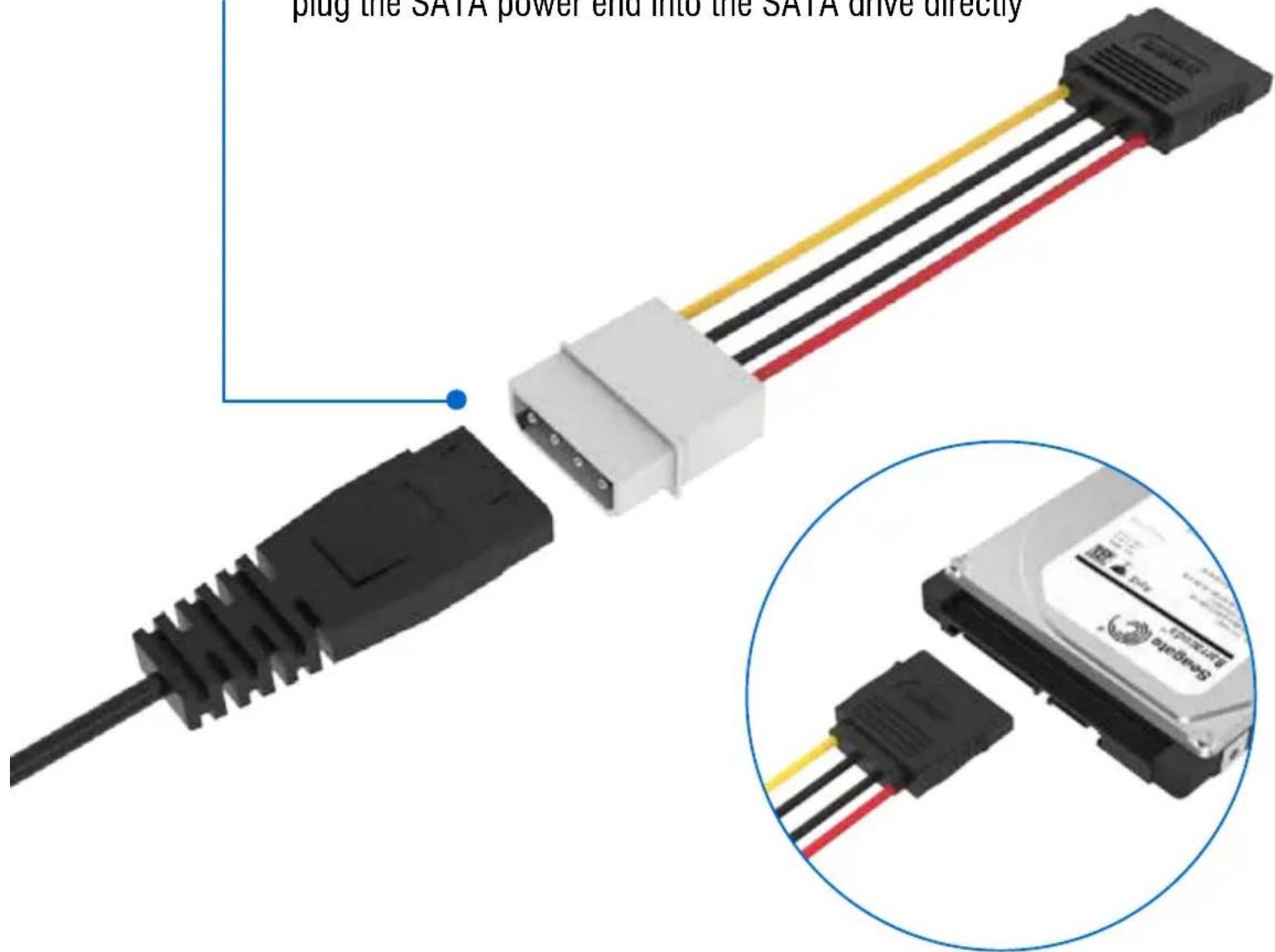

1-Connect the Sabrent converter to the power adapter, and then plug the SATA power end into the SATA drive directly

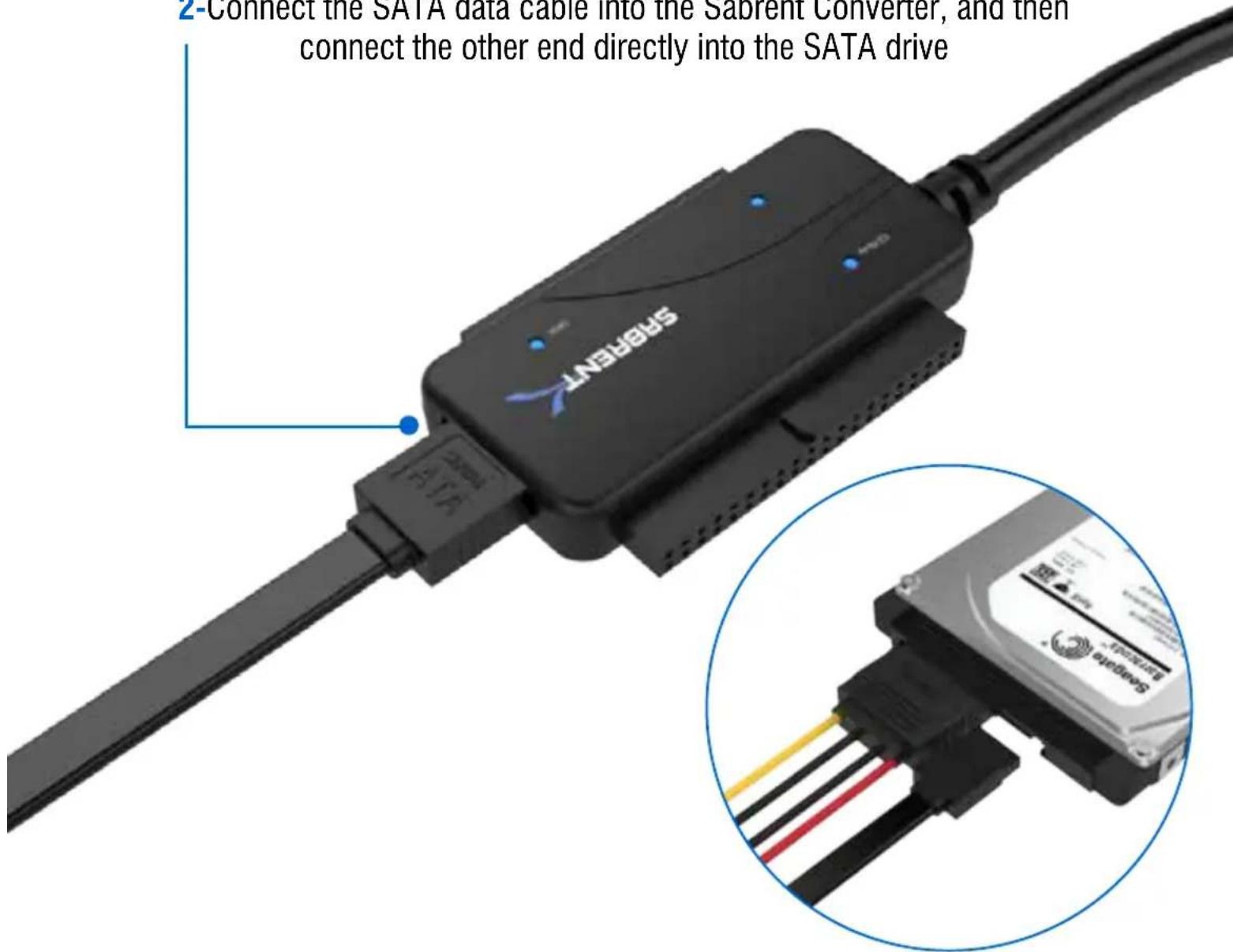

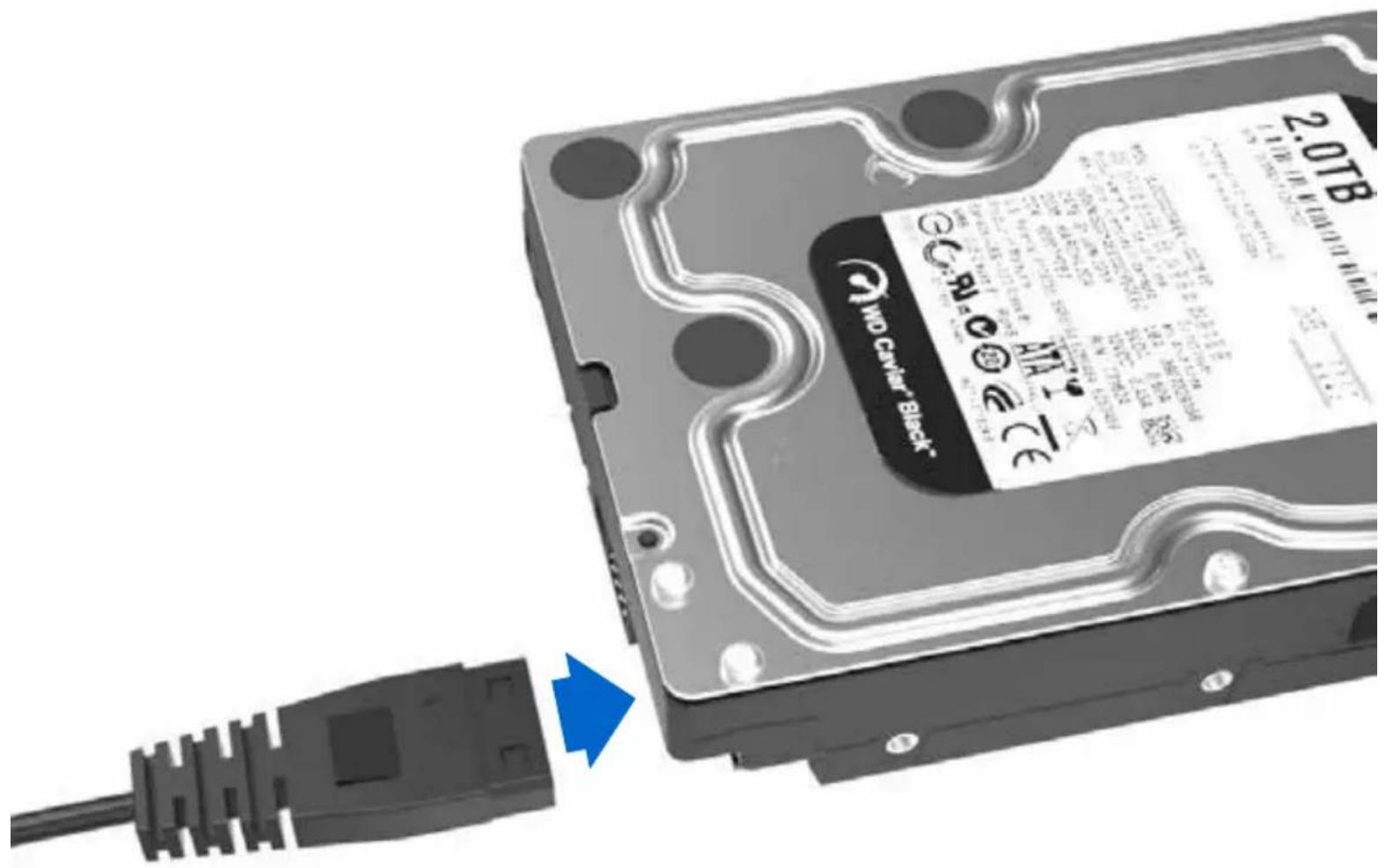

2-Connect the SATA data cable into the Sabrent Converter, and then connect the other end directly into the SATA drive

3-Connect the USB cable from the Sabrent converter to an available USB port on your computer

The Hard Drive should now spin/vibrate, indicating that the Hard Drive is powering up.

If the Hard Drive does not spin, it may indicate that the hard drive itself is no longer working. Quite often, older laptops or desktops that have failed may also have a malfunctioning hard drive. This adapter can only access working drives.

A Drive letter should appear in MY COMPUTER, indicating that the Hard Drive has mounted and the data is accessible. If this does not work:

1. Try connecting to a different USB port on the computer (Rear ports may work better than front ports.)
2. Try connecting to a different computer
3. Try using a different Hard Drive

If that still does not work, that may indicate that the adapter itself is not working and needs to be replaced.

If 2.5" drives work but 3.5" drives do not, you may only need a new power supply.
