DE6340-R2 - Computer AOPEN - Free user manual and instructions

Product Type	Personal Computer
CPU	AMD Embedded R2000 APU, Quad Core, TDP 12–45W (FP5 BGA)
Memory	Dual Channel, 2x SO-DIMM DDR4 2667/3200MHz, up to 32GB
Graphics	AMD Radeon Graphics (integrated)
Storage Expansion	M.2 2230 (Key E for WiFi), M.2 2242 (Key B for SSD), M.2 2242 (Key B for AiCU)
Audio	Realtek ALC269Q HD Audio CODEC
LAN	Realtek RTL8111H-CG 10/100/1000 Mbps Ethernet
Front Panel I/O	1x Power Button (with blue LED), 1x HDD indicator (blue), 2x USB 2.0
Rear Panel I/O	1x DC 19V jack, 4x HDMI 2.0, 1x RJ45 LAN, 2x USB 3.0, 1x RS232, 1x Speaker out, 1x Mic in, 1x Extend power switch
Power Adapter	90W (19V, 4.74A) AC Adapter
Input Voltage	AC 100–240V
Operating Temperature	0°C to 40°C
Ventilation Clearance	At least 2–5 cm on sides and rear
Laser Class	Class I (for optical drive)
Safety Compliance	FCC Part 15 Class B, Canadian ICES-003
Cleaning Instructions	Disconnect power, use moisture sheet or cloth; no liquid detergents
Disposal	Recycle as WEEE; do not discard in municipal trash
Package Contents	1x DE6340-R2 system, 1x insert page, 1x Driver CD, 1x 90W Adapter & Power Cord, 1x L-type Holder with 4 screws, 4x M3-L4 screws, 1x power holder
Warranty Disclaimer	No expressed or implied warranties; AOpen reserves right to change specifications

Frequently Asked Questions - DE6340-R2 AOPEN

How do I connect the power adapter to the DE6340-R2?

Connect the 90W (19V, 4.74A) AC adapter to the DC 19V jack on the rear panel. Plug the power cord into an AC outlet (100–240V). Ensure the voltage matches your region.

Can I connect multiple displays to this system?

Yes, the DE6340-R2 has four HDMI 2.0 ports on the rear panel, allowing you to connect up to four monitors simultaneously.

What is the function of the 'Extend power switch' on the rear panel?

It allows you to connect an external power switch (screwless spring clamp terminal). The PS_ON signal indicates system power status (low = on, high = off). See the manual for wire gauge and strip length.

How do I clean the DE6340-R2 safely?

Always disconnect the power before cleaning. Use a moistened sheet or cloth (no liquid or spray detergents). Avoid pouring any liquid into openings.

What type of memory is supported and what is the maximum capacity?

The system supports dual-channel DDR4 SO-DIMM modules at 2667/3200 MHz, with a maximum of 32 GB (2x16GB).

Is the DE6340-R2 compatible with wall mounting?

The package includes an L-type holder and screws for mounting on a horizontal desktop table. The holder dimensions are provided in the manual; ensure proper ventilation.

What should I do if the system overheats?

Ensure ventilation holes are not blocked and there is at least 2–5 cm clearance on the sides and rear. The operating temperature range is 0°C to 40°C. If overheating persists, consult qualified service personnel.

Can I replace the battery myself?

Use only the battery type recommended by the manufacturer. Incorrect battery may cause explosion. Dispose of used batteries according to local regulations.

How do I dispose of the DE6340-R2 properly?

Do not throw it in municipal trash. Recycle as Waste Electrical and Electronic Equipment (WEEE). Visit www.aopen.com under 'Green Products' for more information.

What does the PS_ON signal on the extend power switch mean?

PS_ON is a signal that indicates system power status: low (0V) means the system is on, high (5V) means it is off. This can be used to monitor power state remotely.

USER MANUAL DE6340-R2 AOPEN

Personal Computer User Guide for DE6340-R2 series

Black rectangular electronic device with two ports and a circular button on the side (no visible text or symbols)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2024 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.

2. Please keep this User's Manual for later reference.

3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.

4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.

5. All cautions and warnings on the equipment should be noted.

6. Never pour any liquid into opening: this could cause fire or electrical shock.

7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.

8. If one of the following situations arises, get the equipment checked by a service personnel:

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

1. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is "Class I Laser Product" This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as "Class 1 laser product". While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 40 degrees C.

2. Risk of overheating!

- Do not install DE6340-R2 in a closed space. Be sure the ventilation holes in the DE6340-R2 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE6340-R2

In right side and rear side keep space at least 5cm Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors....5
4. Function introduction......6
5. Packing List.... 8
6. Chassis and Holder Dimension....9

1. Outlook

Front IO

Rear IO

2. Product Specification

CPU	AMD Embedded R2000 APU, FP5 BGA type, Quad core TDP=12~45W
Chipset	NA
Memory	Dual Channel Mode, SO-DIMM DDR4 x 2, 2667/3200MHz, Max memory size : 32GB
Graphics	AMD Radeon Graphics
Expansion	M.2 2230 x 1(key E for wifi), M.2 2242 x 1(key B for SSD)
Slot	M.2 2242 x 1(key B for AiCU)
Audio	Realtek ALC269Q HD Audio CODEC on-Board.
LAN	Realtek 10/100/100bps LAN controller RTL8111H-CG
Front Panel IO	Power Button x 1 (with Power indicator (Blue)), HDD indicator (Blue) x 1, USB 2.0 Port x 2
Rear Panel IO	DC 19V Jack x 1, HDMI 2.0 Port x 4, RJ45 LAN Jack x 1, USB 3.0 Port x 2, RS232 Serial Port x 1, HD Audio ports (speaker out x 1, Mic in x 1), extend power S.W.
Adapter	90W (19V, 4.74A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Function Introduction

4.1 Extend power switch

Extend power switch at rear IO of DE6340-R2 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

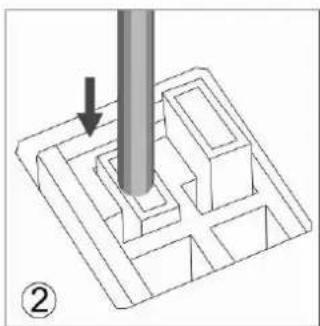

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

Isometric diagram of a mechanical assembly with a downward arrow and numbered label (1), no readable text or symbols present.

3D diagram of a mechanical component with a cylindrical pin inserted, showing internal cavities and a downward arrow indicating force (no text or symbols)

Diagram showing a black curved object being inserted into a 3D grid structure, with a tool partially visible (no text or symbols)

3D diagram of a mechanical component with a curved pipe inserted, showing a force or compression process (no text or symbols)

5. Packing List

DE6340-R2

1 x DE6340-R2 system
1 x insert page
1 x Driver CD
1 x 90W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
1 x power holder

6. Chassis and Holder Dimension

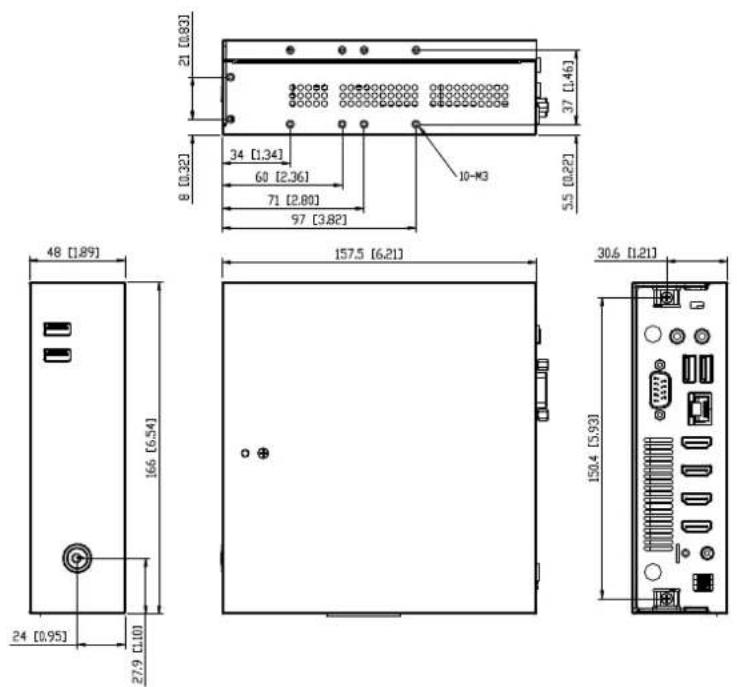

A. Dimension of DE6340-R2 (unit: mm[inch])

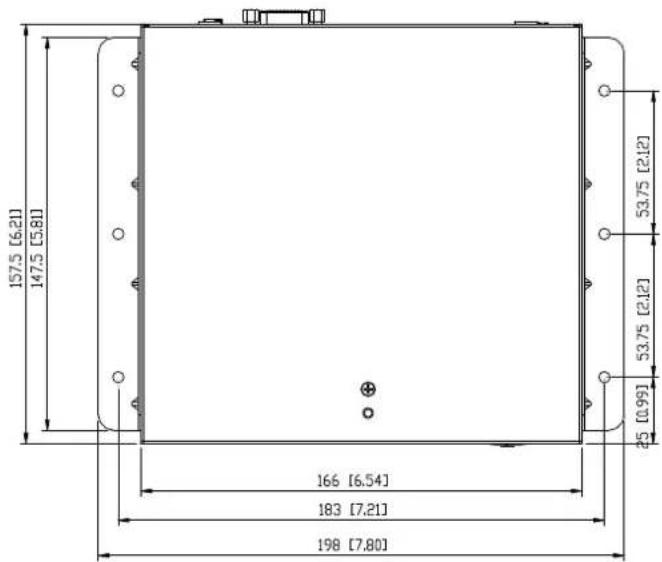

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (unit: mm)

(This L type Holder can only lock on horizontal desktop table)

Pure technical diagram of a rectangular enclosure or enclosure with mounting holes and internal compartments (no text or symbols)
