USER MANUAL Rocket PLUS Baby Trend

Rocket PLUS Lightweight Stroller

babytrend®

Quality • Comfort • Style

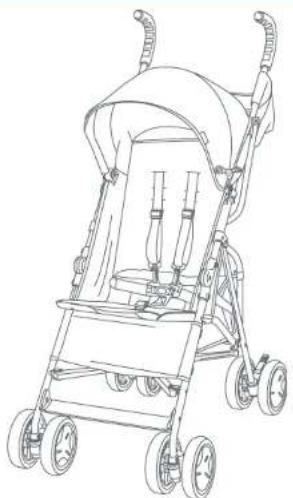

Line drawing of a stroller with wheels and handlebars (no text or symbols)

Instruction Manual Manual de Instrucciones

ST14xxxxA

Baby Trend, Inc. 13048 Valley Blvd. Fontana CA 92335

1-800-328-7363 (8:00 a.m. \~ 4:30 p.m. PST) www.babytrend.com

babytrend®

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND® FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within 1 year of purchase. Any product which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence, environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates all claims against the manufacturer. Any damage to property during installation is the sole responsibility of the end user.

Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/limited-warranty for complete warranty details.

GARANTIA

NO DEVUELVA SU PRODUCTO A LA TIENDA. POR FAVOR CONTACTE A BABY TREND® PARA PIEZAS DE REPUESTO, SERVICIO Y REPARACION.

Baby Trend, Inc. 13048 Valley Blvd. Fontana CA 92335

1-800-328-7363 • (8:00am - 4:30pm PST)

www.babytrend.com

WARNING

ADVERTENCIA

WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future reference.
WARNING: Failure to follow these instructions could result in serious injury or death. Avoid serious injury from falling or sliding out, always use the safety harness and ensure that the children are properly positioned according to these instructions.
⚠ WARNING: Never leave children unattended.
WARNING: Care must be taken when folding and unfolding the stroller to prevent finger entrapment.

• CAUTION: This stroller is designed for one child only. Use with more than one child may cause an unbalanced condition which can injure/harm your child.
• Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and cause a hazardous, unstable condition.
• The maximum weight that can be carried in the storage basket is 5 lb (2.26 kg). Parent tray is 2 lbs (0.9 kg). Excessive weight may cause a hazardous unstable condition to exist. Do not place hot liquids in the parent tray. Serious burns or unstable conditions could result.
• Be certain the stroller is completely opened and locked in place before allowing a child near the stroller.
• The maximum weight capacity of this stroller is up to 50 lbs (22.5 kg) or 40 inches (101.6 cm). Additional weight will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition to exist.
• NEVER use the stroller on stairways or escalators.
• NEVER use the stroller with roller skates, in-line skates, skateboards or bicycles.
  • NEVER allow your stroller to be used as a toy.
  • To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair parts as needed.
  • Discontinue use of stroller should it malfunction or become damaged.

IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully. Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

IMPORTANT! Adult assembly is required.

Line drawing of a mechanical device with attached components (no text or symbols)

Remove stroller from box. The front wheels and rear wheels MUST be installed prior to use.

Fig. 1a

Diagram of a mechanical component with an orange rotation arrow indicating rotational motion (no text or symbols)

Fig. 1b

Center Pedal Pedal del Centro
Fig. 1c

FRONT WHEELS

RUEDAS DELANTERAS

2) • Lean the stroller backwards and push each front wheel posts into the wheel housing (Fig. 2a). Press firmly to lock each wheel into position. NOTE: Pull on each wheel to ensure they are both securely attached.
- Apoye la carriola hacia atrás y empuje los postes de cada rueda delantera en la carcasa de la rueda (Fig. 2a). Presione firmemente para bloquear cada rueda en su posición.

Fig. 2a

ASSEMBLY ENSAMBLAR ASSEMBLY ENSAMBLAR

REAR WHEELS

RUEDAS TRASERAS

Diagram of a mechanical linkage or support structure with an orange arrow indicating upward motion (no text or symbols present)

Fig. 3a

Fig. 3b

CANOPY

CUBIERTA

Diagram of a mechanical assembly with highlighted components and an arrow indicating direction (no text or symbols)

Fig. 4a

Fig. 4b

Diagram of a mechanical device with arrows indicating force or movement (no text or symbols)

Fig. 4c

Copyright © 2022, Baby Trend Inc.. All Rights Reserved. Todos los derechos reservados.

ASSEMBLY ENSAMBLAR

SAFETY SEGURIDAD

Technical illustration of a mechanical assembly with an inset showing a highlighted component (no text or symbols present)

Fig. 4d

PARENT TRAY

Diagram of a vehicle chassis with wheels and directional arrows indicating motion (no text or symbols)

Fig. 5a

Diagram of a mechanical device with two wheels and directional arrows indicating motion (no text or symbols)

Fig. 5b

SAFETY SEGURIDAD SAFETY SEGURIDAD

Diagram of a mechanical system with two wheels and red arrows indicating downward motion (no text or symbols)

Fig. 6a

Diagram of a vehicle's suspension system with two wheels and upward arrows indicating motion (no text or symbols)

Fig. 6b

TO SECURE THE CHILD PARA SUJETAR AL NIÑO

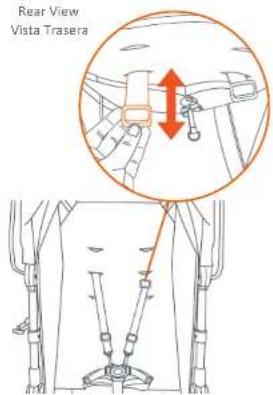

7) • The shoulder straps of the 5-point harness have 3 attachment positions. Select the position that places the shoulder strap level with, or below, the top of the child's shoulders.
- To adjust harness height unhook the shoulder strap from the crotch buckle. Feed the shoulder strap through the harness spread slots (Fig. 7a). You can access these slots from the rear of the seat. Feed shoulder strap through appropriate slot and reattach shoulder strap to crotch buckle,

Fig. 7a

SAFETY SEGURIDAD SAFETY SEGURIDAD

Diagram of a mechanical assembly with five arms and directional arrows indicating motion (no text or symbols)

Adjust for a snug fit Regule para lograr un buen ajuste
Fig. 7b

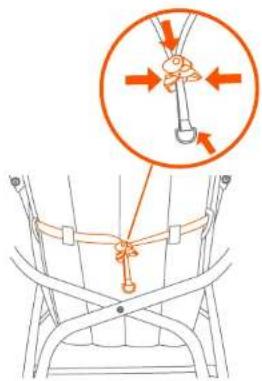

TO RELEASE THE CHILD PARA SOLTARLAS AL NIÑO

Fig. 9a

Fig. 9b

TO FOLD STROLLER PARA PLEGAR EL CARRITO

10) • Close the canopy as described in the canopy section (Fig. 4c).

• To release the lock, pull the center pedal from the right side tab towards you and push up, push the left side tab away from you and push up. Then pull the center pedal upward. The released pedal will begin to fold together simultaneously with the stroller frame (Fig. 10a).

Fig. 10a

FOLD PLEGAR

MAINTENANCE MANTENIMIENTO

Diagram of a stroller with wheels and an orange curved arrow indicating rotation (no text or symbols)

Fig. 10b

Diagram of a mechanical device with a curved handle and a wheel, showing a red directional arrow (no text or symbols)

Fig. 10c

FRONT WHEEL REMOVAL DESMONTAJE RUEDA DELANTERA

Diagram of a car chassis with a highlighted component and arrow indicating direction (no text or symbols)

Fig. 11

REAR WHEEL REMOVAL DESMONTAJE RUEDA TRASERA

Diagram of a vehicle wheel assembly with two orange arrows pointing to the center (no text or symbols)

Fig. 12

MAINTENANCE MANTENIMIENTO MAINTENANCE MANTENIMIENTO

13) • For removal, refer to step 4d.

Fig. 13

Fig. 14

MAINTENANCE MANTENIMIENTO

CARE AND MAINTENANCE

• Cleaning Seat Pad: Spot clean only - Surface wash small spots with mild solution of soap and water. Rinse with water to remove soap solution. Wipe or air dry.
• Cleaning Stroller: Surface wash stroller frame, plastic parts and fabric with mild solution of soap and water. Wipe surfaces with water to remove soap solution. Wipe or air dry.
• Cleaning Parent Tray: Spot clean only - Surface wash small spots with mild solution of soap and water. Rinse with water to remove soap solution. Wipe or air dry.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair parts as needed.

The Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®.
