USER MANUAL C1070V OSD Audio

Our 8" dual cone speaker with 6 oz. magnet features a dual 70/25V transformer and white metal grille combination. The transformer, which is wired and mounted, has 5, 2.5, 1.25, .63, & .32 Watt taps. A version of this speaker with a volume control and grille combination can be found under model number OSD-C1090VK.

Features:

• 8" speaker combination with transformer & mounted grille
  • 8 Ohm impendance
• 10W RMS power
• 15W max. power
• 6 oz. magnet
• 5W Dual 70/25V transformer (with taps: 5, 2.5, 1.25, .63, and .32 tap & 8 Ohms)

C1070V

8" Dual Paper Cone Ceiling Speaker with Transformer

C1090VK

8" Dual Paper Cone Ceiling Speaker with Transformer & Volume Control

Specifications:
C1070V
C1090VK

Frequency Response:	40Hz~18kHz	40Hz~18kHz
Sensitivity:	90±3dB 1W/1m	90±3dB 1W/1m
Outer Dimensions:	12" Diameter X 3.25" Depth	12" Diameter X 3.25" Depth
Cutout Dimensions:	10.75"	10.75"
Mounting Hardware:	NCC1070 Ceiling Tile Bracket(Optional - Sold Separately)

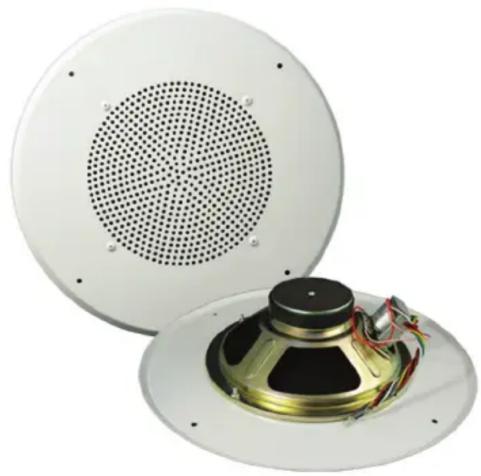

Two open circular speaker components with perforated inner structure and exposed internal wiring (no text or symbols visible)

Wiring Color Codes:

25V/70V Taps

C: Common Ground 70V	Black
25V-5W	Red
25V-2.5W	Yellow
25V-1.25W	Green
25V-0.63W/70V-5W	Blue
25V-0.32W/70V-2.5W	Brown
70V-1.25W	Yellow
70V-0.63W	White
70V-0.32W	Grey

8Ohm:	Positive
Common Ground/8Ohm	Black

OSD Audio is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
