USER MANUAL DEX5950 AOPEN

Personal Computer User Guide for DEX5950 series

Back view of a black server rack with ventilation slots, ports, and indicator lights (no visible text or symbols)

V1.0

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2024 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening: this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel:

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you cannot get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

1. Ambient operation temperature: 0 \~ 40 degrees C.
2. Risk of overheating!

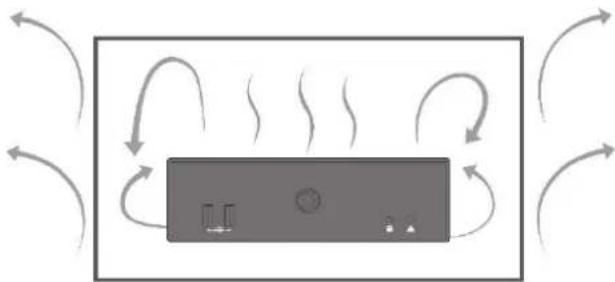

- Do not install DEX5950 in a closed space. Be sure the ventilation holes in the DEX5950 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DEX5950.

In right side and rear side keep space at least 5cm

Diagram of airflow around a control panel with circular arrows indicating direction (no text or symbols)

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors....5
4. Function introduction....6
5. Packing List....9
6. Chassis and Holder Dimension....10

1. Outlook

Front IO

Rear IO

2. Product Specification

CPU	Intel 13th Gen Raptor Lake-U Core i processor TDP 15W
Chipset NA
Memory SO-DIM	MM DDR5 x 1, 4800/5200, Max memory size : 32GB
Graphics Intel Iris Xe Graphics (Gen13)
Expansion Slot	M.2 2230 x 1(key E for wifi), M.2 2242 x 1(key B for 4G LTE)M.2 2280 x 1(key B for NVMe/SATA SSD)
Audio Realtek HD Audio CODEC on-Board.
LAN Intel 2.5G LAN x 2 (i226LM/i226V)
Front Panel IO	Power Button x 1, Power indicator (Green) x 1, HDD indicator (Orange) x 1, USB3.2 Port x 2, USB 2.0 Port x 2, HD Audio Combo x 1, System error LED x 1, BIOS Recovery button x 1
Rear Panel IO	DC 19V Jack x 1, HDMI2.1 Port x 1, HDMI 2.0 Port x 1, DisplayPort 1.4 x 1, RJ45 LAN Jack x 2, USB 3.0 Port x 1, USB Type C w/DP x 1, RS232 x 1, RS232/422/485 x 1, extend power S.W x 1.
Adapter 90W (19V, 4.74A) AC Power Adapter
Input Voltage AC 100 ~ 240V

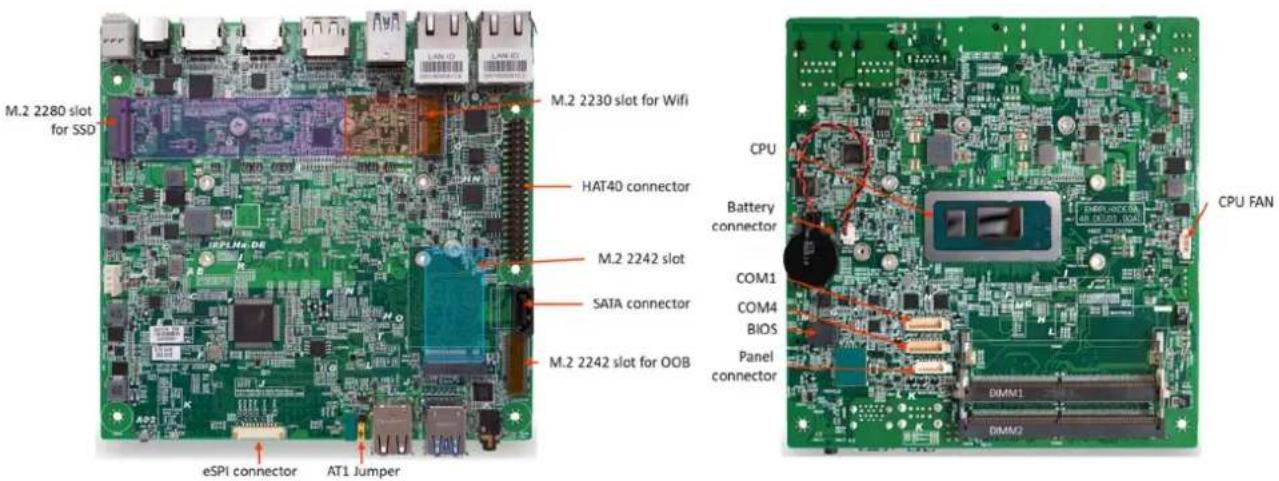

3. Internal Connectors

4. Function Introduction

4.1 Terminal Block - Extend power switch

Extend power switch at rear IO of DEX5900 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

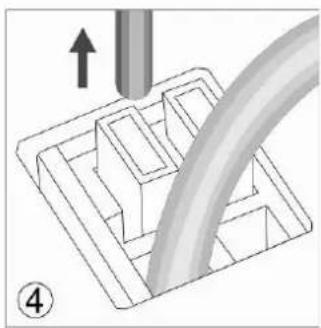

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

Isometric diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

3D diagram of a mechanical assembly with a cylindrical component inserted, showing internal structure and an arrow indicating direction (no text or symbols)

Diagram showing a tool interacting with a black curved component on a grid-like structure (no text or symbols)

Technical diagram showing a mechanical component with an upward arrow and numbered label (4), no readable text or symbols present.

4.2 Terminal Block – pin definition

Signal	Pin definition
GND	ground signal
SW+	Power button
PS_ON	It is switched from high to low when power supply turns on.

4.3 COM1 / COM4 - pin definition

COM4 support RS232/422/485 and it can be set by BIOS.

COM1 Male DB9	Pin	RS232
	1	DCD
	2	RX
	3	TX
	4	DTR
	5	GND
	6	DSR
	7	RTS
	8	CTS
	9	RI

COM4 Male DB9	Pin	RS232	RS422	RS485
	1	DCD	TX(B)	Data-(B)
	2	RX	TX(A)	Data+(A)
	3	TX	RX(A)
	4	DTR	RX(B)
	5	GND	GND
	6	DSR
	7	RTS
	8	CTS
	9	RI

5. Packing List

DEX5950

1 x DEX5950 system
1 x insert page of driver download link
1 x 90W Adapter and Power Cord
4 x Rubber foot

6. Chassis and Holder Dimension

A. Dimension of L type Holder. (unit: mm)

(This L type Holder can only lock on horizontal desktop table)

Ver: DEX5950-MU-04122024
