Product Type	6x2 HDMI/HDBT Audio Matrix Switcher
Dimensions (Net)	43.6 cm x 23.7 cm x 4.4 cm (17.2" x 9.3" x 1.7")
Weight (Net)	2.6 kg (5.7 lbs)
Power Supply	100-240 V AC, 250 VA max
Max Data Rate	10.2 Gbps (3.4 Gbps per channel)
Max Resolution	4K@60 Hz (4:2:0)
Inputs	2 HDBT (with PoE), 4 HDMI
Outputs	1 HDBT (with PoE), 1 HDMI, 2 Balanced Stereo Audio, 1 Power Amplifier (2x60W @4/8Ω or 1x120W @70V/100V)
Control Interfaces	Front panel, RS-232, Ethernet, IR, embedded Web pages, Kramer Protocol 3000
HDBaseT Extension Range	Up to 100 m (4K@60Hz 4:2:0), up to 130 m (1080p@60Hz 36bpp), up to 180 m (1080p@60Hz 24bpp ultra-mode)
EDID Management	Copy from output/input/default, load custom EDID file
Room Automation	Maestro 1.5, trigger-based scripts with scheduling
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	-40° to +70°C (-40° to 158°F)
Humidity	10% to 90% RHL non-condensing
Safety	No user-serviceable parts; use supplied power cord; disconnect power before servicing
Maintenance / Cleaning	Keep away from moisture, excessive sunlight, and dust. Use only quality cables.
Warranty	7 years (standard Kramer warranty)
Included Accessories	Power cord, IR remote control transmitter, rubber feet, mounting brackets
Compliance	CE, RoHS, WEEE

Frequently Asked Questions - VS-622DT Kramer

How do I reset the VS-622DT to factory defaults?

You can reset by pressing the RESET button (rear panel) while powering on the device, or via the Web pages under Device Settings > Factory reset, or by sending the #FACTORY and #RESET commands via Protocol 3000.

What is the maximum resolution supported?

The VS-622DT supports resolutions up to 4K@60Hz with 4:2:0 chroma subsampling. For full HD (1080p@60Hz), you can achieve longer HDBaseT extension ranges.

How can I control the matrix switcher remotely?

You can control it via RS-232, Ethernet (using the built-in Web pages or Protocol 3000), IR remote control, or front panel buttons. The Web interface provides full configuration and automation.

Can I extract audio from HDMI inputs?

Yes, the device can de-embed audio from any of the 6 inputs (2 HDBT + 4 HDMI) and output it through the two balanced analog audio outputs. Additionally, one extracted audio signal can be sent to the built-in power amplifier.

How do I copy EDID from a display to an input?

Use the front panel EDID button or the Web pages. On the front panel, press EDID, then select the output (TO OUT 1 or TO OUT 2) and the desired inputs, then press EDID again. On the Web, go to EDID Management, select the EDID source (e.g., Output 2), choose target inputs, and click COPY.

What are the power amplifier specifications?

The built-in amplifier can deliver 2x60W into 4/8Ω (stereo) or 1x120W into 70V/100V (mono). The output mode (Lo-Z or Hi-Z) and voltage are configurable via the Web pages.

How do I set up the Maestro room automation?

Access the Automation page via the Web interface. You can define triggers (e.g., input switching, button press, time schedule) and associate them with actions such as controlling lights, screens, or relays. Detailed instructions are in the Kramer Maestro User Manual.

Can I use the VS-622DT with a step-in device like the DIP-30?

Yes, the VS-622DT supports step-in functionality. Connect the step-in device to an input, then configure the remote buttons via the Routing page (click the input button). You can set actions like echo commands and output routing.

What is the default IP address of the device?

The default IP address is 192.168.1.39, with subnet mask 255.255.0.0 and default gateway 192.168.0.1. You can change it via the Web pages under Device Settings > Communication.

How do I upgrade the firmware?

Go to the Device Settings Web page, select the FW Upgrade tab, and click Update. Choose the firmware file from your PC. The device will upload and reboot automatically. Ensure you download the latest firmware from www.kramerav.com/downloads/VS-622DT.

USER MANUAL VS-622DT Kramer

Contents

Introduction 1

Getting Started 1

Overview 2

Typical Applications 3

Controlling your VS-622DT 4

Defining VS-622DT 5

Mounting VS-622DT 7

Connecting VS-622DT 8

Connecting the Audio Outputs 10

Connecting to VS-622DT via RS-232 10

Connecting VS-622DT via the Ethernet Port 11

Operating VS-622DT via Front Panel Buttons 14

Capturing the EDID 14

Using the Web Pages 15

Switching and Setting Ports 17

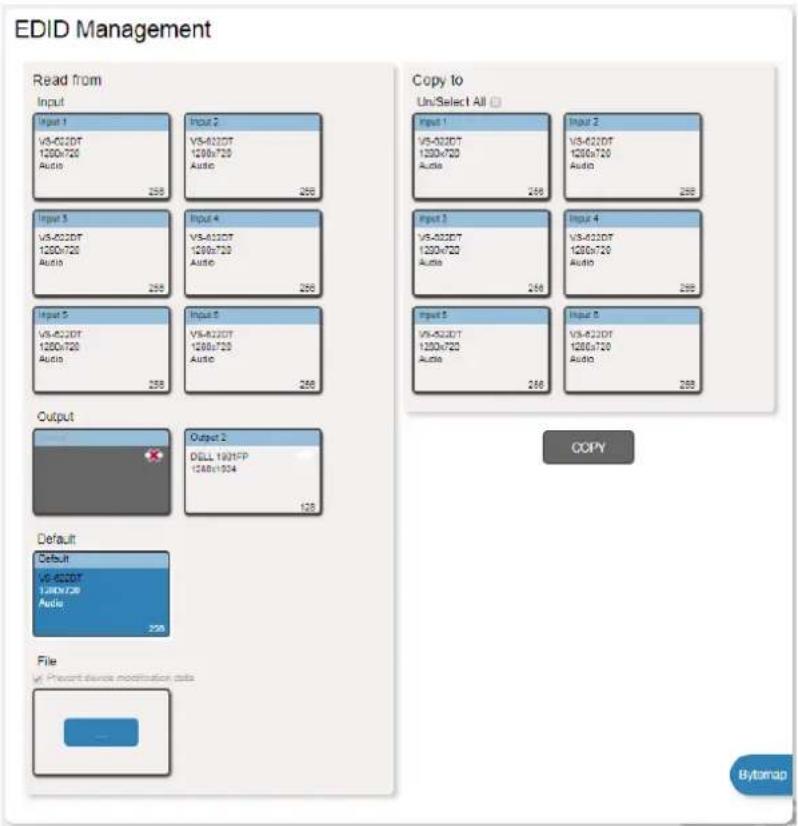

Managing EDID 23

Copying EDID from an Output to an Input 23

Copying EDID from an Input to an Input 26

Copying EDID from the Default EDID to an input 28

Loading a Customized EDID from a File 28

Changing the Device Settings 29

Saving and Loading Settings 29

Resetting to Factory Default Parameters 30

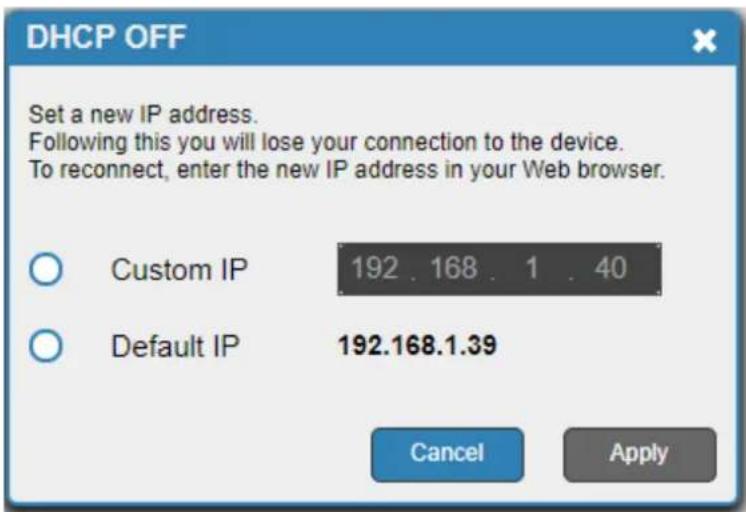

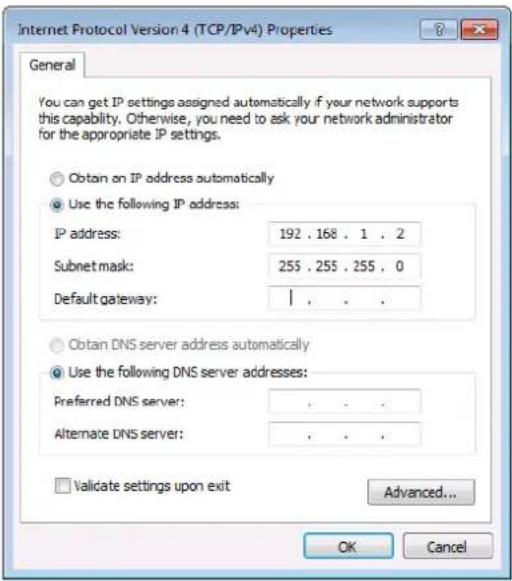

Managing Ethernet Settings 30

Setting the Date and Time 34

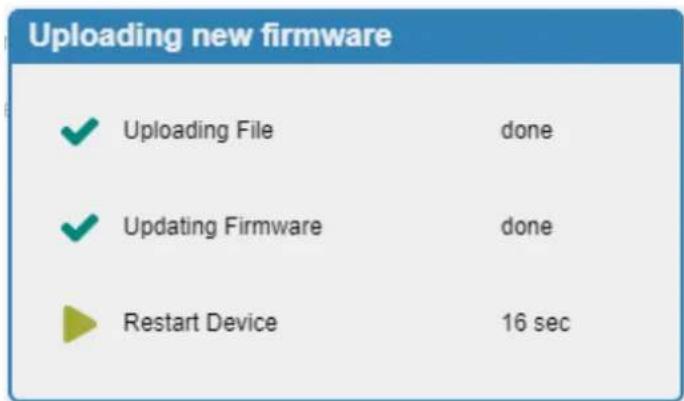

Upgrading the Firmware 35

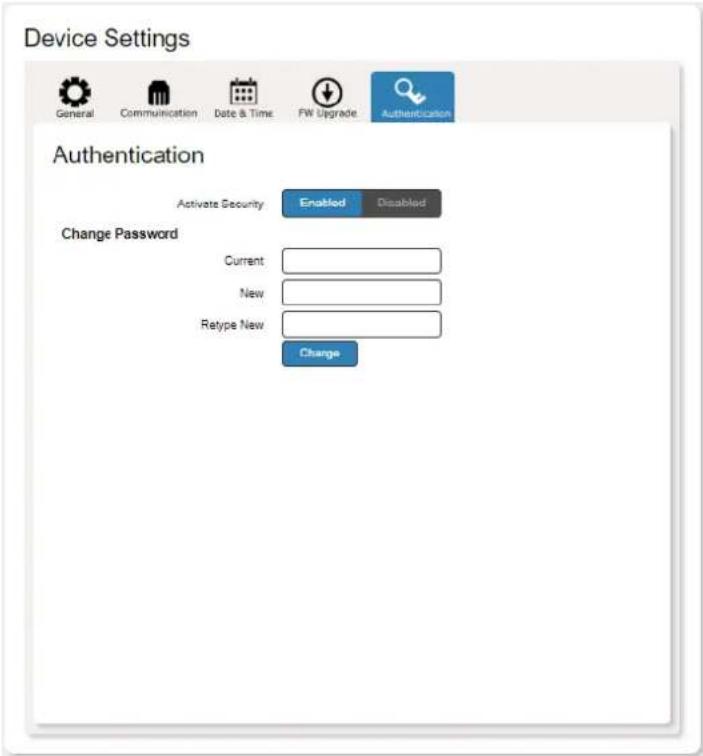

Setting Authentication 37

Managing IO Gateway Settings 40

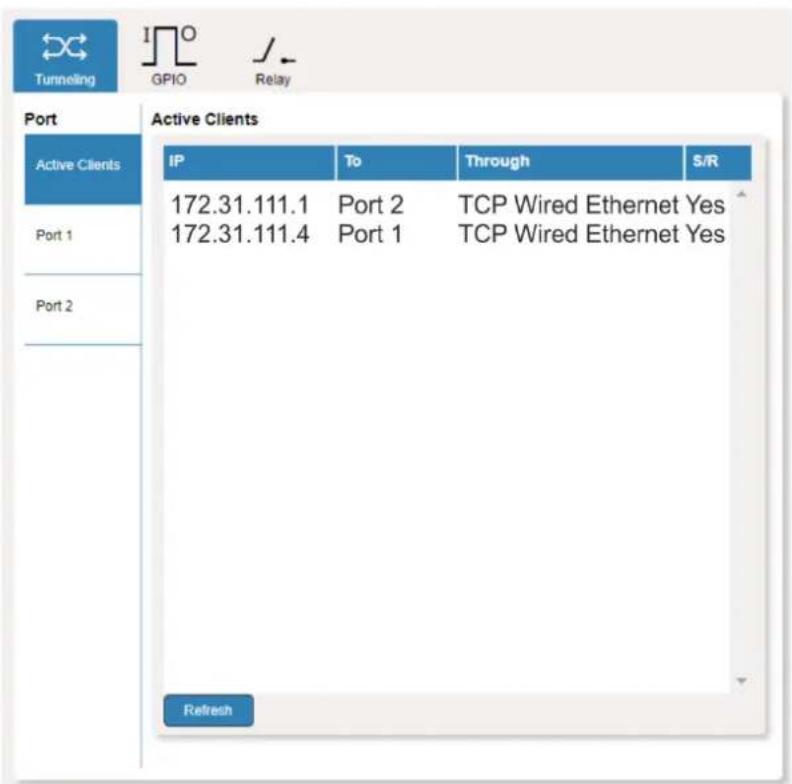

Configuring RS-232 Signal Tunneling 40

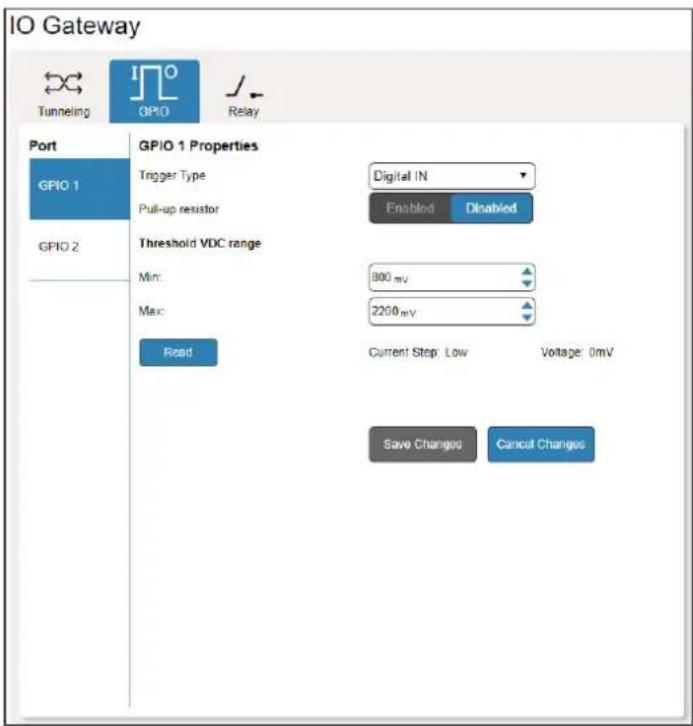

Setting GPI/O Parameters 42

Setting Relays 47

Configuring Room Automation 48

Viewing General Information 49

Technical Specifications 50

Default Parameters 51

Protocol 3000 52

Understanding Protocol 3000 53

Kramer Protocol 3000 Syntax 54

Protocol 3000 Commands 54

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 15 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders & Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters; GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; GROUP 14: Collaboration; and GROUP 15: KM & KVM Switches.

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment.
• Review the contents of this user manual.

Go to www.kramerav.com/downloads/VS-622DT to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
• Do not secure the cables in tight bundles or roll the slack into tight coils.
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality.
• Position your Kramer VS-622DT away from moisture, excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

Safety Instructions

Caution: There are no operator serviceable parts inside the unit.

Warning: Use only the power cord that is supplied with the unit.

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

Warning: Disconnect the power and unplug the unit from the wall before installing.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.

Overview

Congratulations on purchasing your Kramer VS-622DT 6x2 HDMI/HDBT Audio Matrix Switcher. VS-622DT is an all-in-one 4K@60Hz (4:2:0) presentation system with 6x2 HDMI™/HDBaseT® matrix switching, control gateway, PoE, power amplifier, and Maestro room automation.

The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0).

VS-622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS-232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.

VS-622DT provides exceptional quality, advanced and user-friendly operation, and flexible control.

Exceptional Quality

• Max. Data Rate – 10.2Gbps (3.4Gbps per graphics channel).
• Max. Resolution – 4K@60Hz (4:2:0).
• Provides Power (PoE) on all HDBaseT ports to compatible devices.
• HDBaseT Data Tunneling – Supports Ethernet tunneling, as well as bidirectional tunneling for RS-232 and IR control.
• HDBaseT Extension Reach – Up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), up to 180m (590ft) at ultra-mode and full HD (1080p @60Hz 24bpp). For optimum range and performance, use recommended Kramer cables.
• HDCP compliant.
• HDMI Support – 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
• EDID Capture – Copies and stores the EDID from a display device to non-volatile EDID storage.
• True video clock detection.

- Kramer ReKlocking™ & Equalization Technology – Rebuilds the digital signal to travel longer distances.

• Static or dynamic DHCP IP addressing.

Advanced and User-friendly Operation

• Simple and Powerful Maestro 1.5 Room Automation – Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
• Advanced Auto AV Switching – Optional independent (breakaway) audio routing of embedded HDMI to two balanced audio ports.
• Audio Extraction (De-embedding) – Select the audio signals from 2 of the 6 inputs (2 HDBaseT + 4 HDMI) to be extracted. The extracted signals are output through the two balanced analog audio outputs. In addition, one of the extracted audio signals can be output to the power amplifier
• Programmable Step-In over HDMI Functionality – When used in conjunction with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• Lock Button – Prevents unwanted tampering with the front panel.
• Internal pattern generator.
• Embedded Web Pages – Provide remote configuration and operation.
• Flexible Control Options – Front panel buttons, IR remote (included), RS-232, Ethernet, embedded web pages, Kramer protocol 3000 support.
• USB Port – For upgrading firmware.

Flexible Connectivity

• 2 HDBT and 4 HDMI inputs.
• 1 HDBT and 1 HDMI output.
• 2 stereo balanced audio outputs.
• Built-in Power Amplifier – 1x120W @70V/100V & 2x60W @4/8Ω.
• Control gateway with RS-232, IR, GPI/O and relay ports.

Typical Applications

VS-622DT is ideal for the following typical applications:

• Small to mid-sized boardrooms, meeting rooms and executive meeting spaces.

• Houses of worship.

• Lecture halls and classrooms.

• Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.

Controlling your VS-622DT

Control your VS-622DT directly via the front panel buttons (see Operating VS-622DT via Front Panel Buttons on page 14), or:

• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller (see Connecting to VS-622DT via RS-232 on page 10).
• Remotely, using the infrared remote-control transmitter.
• Via the Ethernet using built-in user-friendly Web pages (see Using the Web Pages on page 15).

Defining VS-622DT

This section defines VS-622DT.


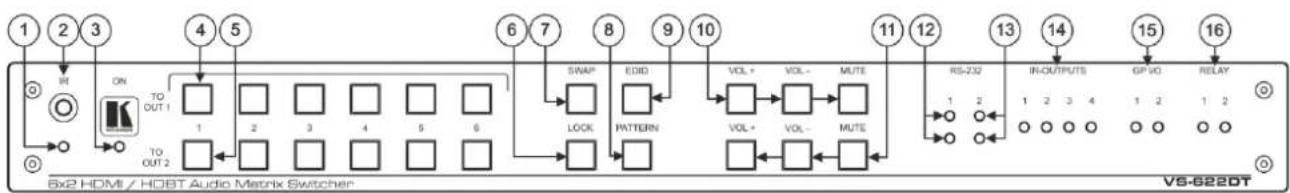

Figure 1: VS-622DT 6x2 HDMI/HDBT Audio Matrix Switcher Front Panel

#	Feature	Function
1	IR LED	Lights yellow when the unit accepts IR remote commands.
2	IR Receiver	Receives signals from the remote-control transmitter.
3	ON LED	Lights when the unit is powered.
4	TO OUT 1	Press to select an input to switch to OUT 1 (from 1 to 6).
5	TO OUT 2	Press to select an input to switch to OUT 2 (from 1 to 6).
6	LOCK Button	Press and hold for about 2 seconds to lock/unlock the front panel to prevent unintentional operation.
7	SWAP Button	Press to swap between audio outputs.
8	PATTERN Button	Press to activate the test pattern generator. When the generator is active, press one of the input buttons to select a test pattern.
9	EDID Button	Press to capture the EDID.
10	Output 1 Audio Buttons	VOL +: Increase output 1 volume.VOL -: Decrease output 1 volume.MUTE: Mute output 1 audio signal.
11	Output 2 Audio Buttons	VOL +: Increase output 2 volume.VOL -: Decrease output 2 volume.MUTE: Mute output 2 audio signal.
12	HDBT RS-232 LEDs	Indicates data transmission between a controller and a device connected to the transmitter via HDBT OUT 1:TX 1: Lights green when data is transmitted via HDBT OUT 1.RX 1: Lights red when data is received on HDBT OUT 1.
13	External (Controller) LEDs	Indicates data transmission via the RS-232 port (item 29) to the VS-622DT:TX 2: Lights green when data is transmitted on the RS-232 port.RX 2: Lights red when data is received on the RS-232 port.
14	IR OUTPUT LEDs (1 to 4)	Lights green when the relevant IR port transmits data.
15	GPI/O LEDs (1 to 2)	Lights green when the port is triggered.
16	RELAY LEDs (1 to 2)	Lights green when the relay is closed.

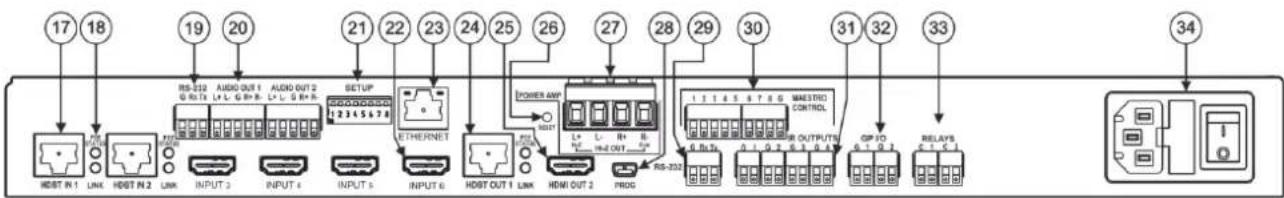

Figure 2: VS-622DT 6x2 HDMI/HDBT Audio Matrix Switcher Rear Panel

#	Feature	Function
17	HDBT IN 1 RJ-45 Connectors (1 to 2)	Connect to an HDBT transmitter (for example, TP-580Txr).
18	POE STATUS and LINK LEDs	Light when PoE is available and an HDBaseT link is established (HDBT IN 1, HDBT IN 2 and HDBT OUT 1).
19	Control RS-232 3-pin Terminal Block	Connect to the serial controller to control the device.
20	AUDIO OUT Balanced Stereo Audio 5-pin Terminal Block Connectors (1 to 2)	Connect to an analog audio acceptor.
21	SETUP DIP-switches	Use to set the device behavior.
22	INPUT HDMITM Connectors (3 to 6)	Connect to HDMI sources.
23	ETHERNET RJ-45 Connector	Connect to a remote network controller via a LAN.
24	HDBT OUT1 RJ-45 Connector	Connect to an HDBT receiver (for example, TP-580Rxr).
25	HDMI OUT 2 Connector	Connect to an HDMI acceptor.
26	RESET Switch	Press and hold while powering on the device to reset to factory default parameters.
27	Hi-Z OUT Terminal Block Connectors	Lo-Z – connect stereo output to Lo-Z speakers: L+ and L- to the left speaker; R+ and R- to the right speaker. Hi-Z (70V or 100V) – connect Hi-Z and COM to mono Hi-Z speakers.
28	PROG Mini USB Connector	Connect to a PC to perform a firmware upgrade.
29	RS-232 (G, Rx, Tx) Terminal Block Connector	Connect to an RS-232 controlled device.
30	MAESTRO CONTROL 9-pin Terminal Block Connectors	Connect to configurable buttons (configured via the Automation page), such as the RC-21TB.
31	IR OUTPUT 2-pin Terminal Block Connectors (1 to 4)	Connect to IR blasters/emitters.
32	GPI/O 2-pin Terminal Block Connectors (1 to 2)	Connect to controllable sensors or devices (for example, motion sensors). This port can be configured as a digital input, digital output, or analog input.
33	RELAY 2-pin Terminal Block Connectors (1 to 2)	Connect to a relay controllable device (for example, a motorized projection screen).
34	Mains Power Connector, Fuse, and Switch	Connect to the mains supply.

Mounting VS-622DT

This section provides instructions for mounting VS-622DT. Before installing, verify that the environment is within the recommended range:

• Operation temperature – 0° to 40°C (32 to 104°F).
• Storage temperature -40^ to +70^ (-40 to +158^ ).
• Humidity – 10% to 90%, RHL non-condensing.

Caution:

- Mount VS-622DT before connecting any cables or power.

Warning:

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.

Mount VS-622DT in a rack:

- Use the recommended rack adapter (see www.kramerav.com/product/VS 622DT).

Mount VS-622DT on a surface using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more information go to www.kramerav.com/downloads/VS 622DT.

Connecting VS-622DT

Always switch off the power to each device before connecting it to your VS-622DT. After connecting your VS-622DT, connect its power and then switch on the power to each device.

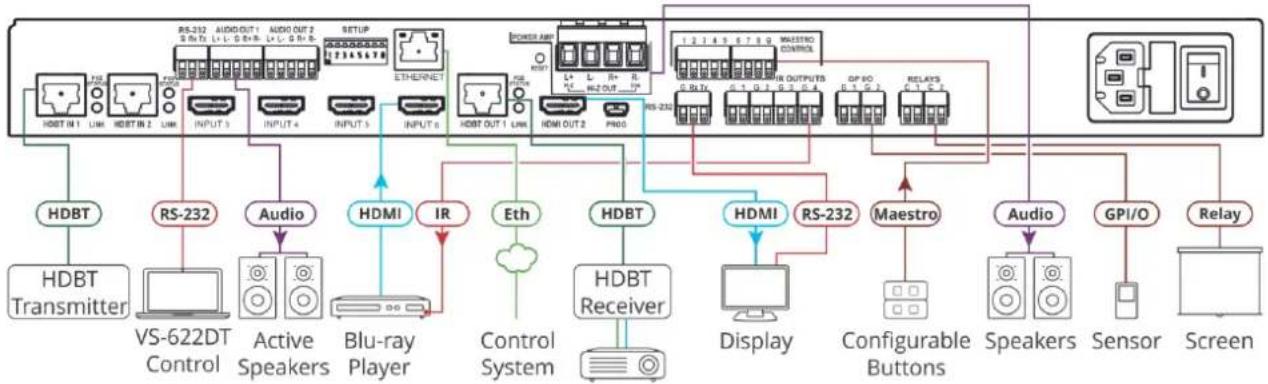

Note that not all the ports are connected in the following example.

To connect the VS-622DT Matrix as illustrated in the example in Figure 3:

1. Connect the HDMI and HDBT sources:

2. An HDMI source (for example, a Blu-ray player) to the HDMI INPUT 6 connector (3 to 6) ^22

3. A transmitter (for example, the Kramer TP-580Txr) to the HDBT IN 1 RJ-45 port (1 to 2) ⑰

4. Connect the HDBT and HDMI outputs:

The HDBT OUT 1 RJ-45 port ^24 to a receiver (for example, the Kramer TP-580Rxr).
The HDMI OUT 2 connector ^25 , to an HDMI acceptor (for example, a display).

1. Connect the audio outputs:

2. The AUDIO OUT 1 terminal block connector (1 to 2) ^20 to a balanced audio acceptor (for example, active speakers).

3. The POWER AMP OUT terminal block connector ⑳ to either Lo-Z or Hi-Z loudspeakers:
   Lo-Z (4 to 8 ohm): connect the stereo output to Lo-Z speakers by connecting the left loudspeaker to the "L+" and the "L-" terminal block connectors, and the right loudspeaker to the "R+" and the "R-" terminal block connectors.
   Hi-Z (70V or 100V): connect Hi-Z and COM to mono Hi-Z speakers.

Do not ground the loudspeakers.

1. Connect RS-232 3-pin terminal blocks:

2. RS-232 Data ⑲ – connect directly to control the HDMI output acceptor (for example, a display).
   Alternatively, connect to a laptop to control peripheral devices that are connected to transmitters/receivers that connect to the HDBT OUT ports.

- RS-232 Control ⑲ – Connect to a laptop to control VS-622DT.

1. Connect ETHERNET port ⑳ to a laptop or network to control VS-622DT.

Since VS-622DT incorporates an embedded Layer 2 Ethernet switch. We recommend that you only connect this port to the network.

Peripheral devices that are connected to VS-622DT via HDBT ports and have Ethernet ports as well, should not be connected to the network and can be used for Ethernet IP clients.

Connecting the Ethernet port of the HDBT transmitters/receivers to the network switch port in conjunction with Ethernet port network connection on the VS-622DT, will cause network loops that may cause Ethernet switch network breakdown.

1. Connect IR OUT 4 2-pin terminal blocks (1 to 4) ⑩ an IR emitter and attach the emitter to a controlled device (for example, a Blu-ray player).
2. Connect the GPI/O 2-pin terminal block connector (1 to 2) ⑩ an input/output device (for example, a sensor).
3. Connect the RELAY 2-pin terminal block connector (1 to 2) ⑩ a relay port (for example, a controlled screen).
4. Connect the Maestro terminal block connectors (1 to 8) ⑩ configurable buttons (for example, the Kramer RC-21TB).
5. Connect the power cord 34

We recommend that you use only the power cord that is supplied with this machine.

Figure 3: Connecting to the VS-622DT Rear Panel

Connecting the Audio Outputs

The following are the pinouts for connecting the audio outputs 20 balanced or unbalanced stereo audio acceptors:

Pure electrical circuit lines without any symbols

L+ L- G R+ R-
Figure 4: Connecting the Output to a Balanced Stereo Audio Acceptor

Simple line drawing of a test tube setup with four beakers and two rings above (no text or symbols)

L+ L- G R+ R-
Figure 5: Connecting the Output to an Unbalanced Stereo Audio Acceptor

Connecting to VS-622DT via RS-232

You can connect to the VS-622DT via an RS-232 connection to the Control RS-232 port using, for example, a PC; and connect the second Control RS-232 port to an RS-232 controlled device.

Connect the RS-232 terminal block on the rear panel of the VS-622DT to a PC/controller, as follows (see Figure 6):

• TX pin to Pin 2.
• RX pin to Pin 3.
• GND pin to Pin 5.

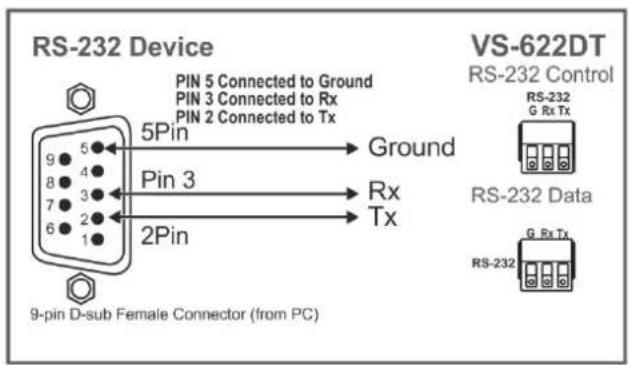

Figure 6: RS-232 Connection

Connecting VS-622DT via the Ethernet Port

You can connect to the VS-622DT via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Connecting the Ethernet Port Directly to a PC on page 11).
• Via a network hub, switch, or router, using a straight-through cable (see Connecting the Ethernet Port via a Network Hub or Switch on page 13).

If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the VS-622DT directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the VS-622DT with the factory configured default IP address.

After connecting the VS-622DT to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.

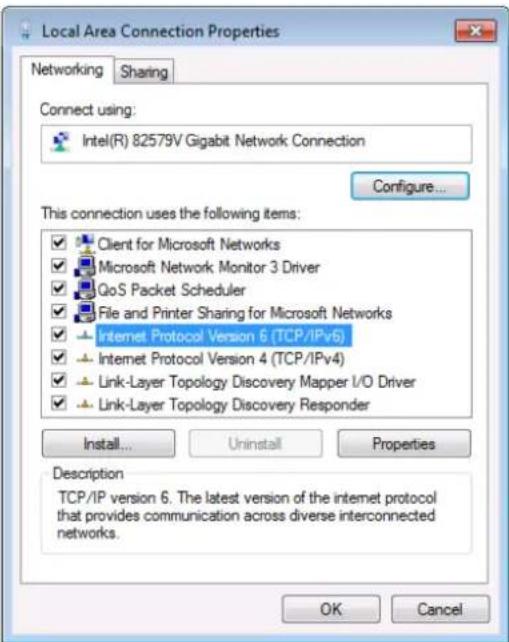

   The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 7.

Figure 7: Local Area Connection Properties Window

1. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT system.

2. Click Properties.

The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 8 or Figure 9.

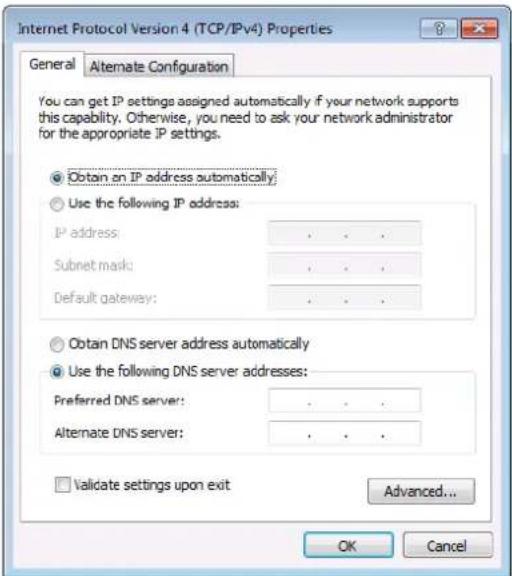

Figure 8: Internet Protocol Version 4 Properties Window

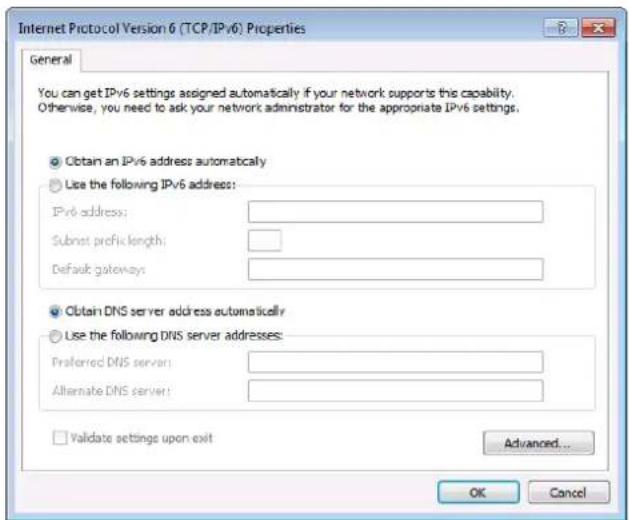

Figure 9: Internet Protocol Version 6 Properties Window

1. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 10.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.

Figure 10: Internet Protocol Properties Window

1. Click OK.
2. Click Close.

Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VS-622DT to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

Since VS-622DT incorporates an embedded Layer 2 Ethernet switch, we recommend that this port only is connected to the network.

Peripheral devices that are connected to VS-622DT via HDBT ports and have Ethernet ports as well, should not be connected to the network and can be used for Ethernet IP clients.

Connecting the Ethernet port of the HDBT transmitters/receivers to the network switch port in conjunction with Ethernet port network connection on the VS-622DT, will cause network loops that may cause Ethernet switch network breakdown.

Control Configuration via the Ethernet Port

To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see Connecting VS-622DT via the Ethernet Port on page 11).

Operating VS-622DT via Front Panel Buttons

VS-622DT front panel includes the following front panel buttons:

• 12 INPUT selector buttons: 6 buttons to switch inputs to OUT 1 ④ and another 6 to switch inputs to OUT 2 ⑤
• LOCK, SWAP and PATTERN buttons.
• An EDID ⑨ button, see Capturing the EDID on page 14.
  • OUT 1 audio level and mute buttons .⑩
  • OUT 2 audio level and mute buttons .⑪

Capturing the EDID

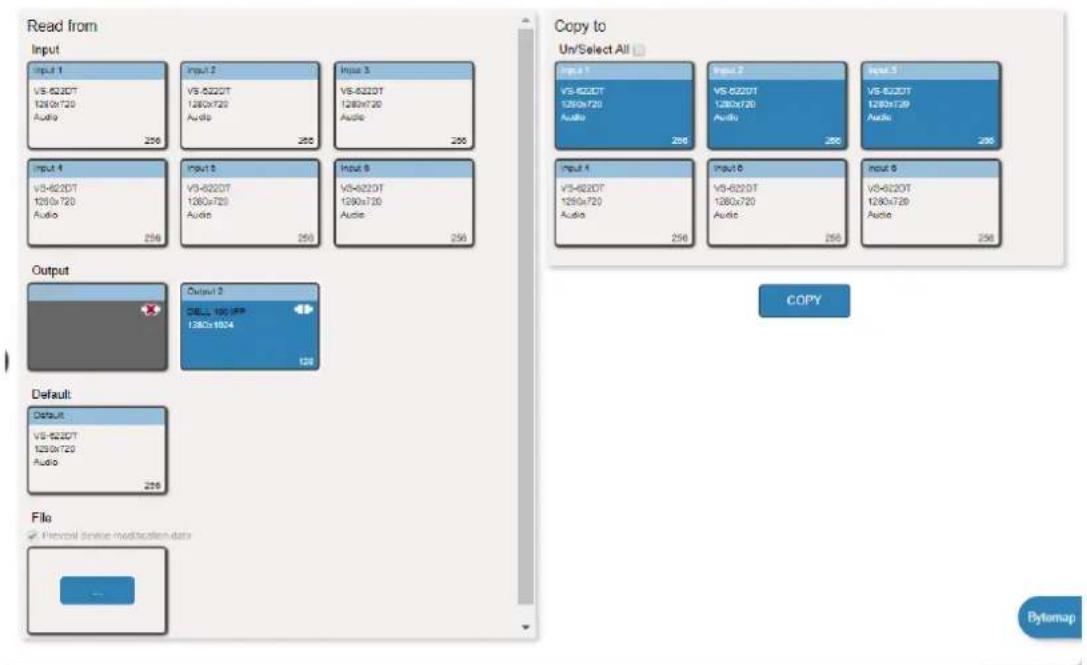

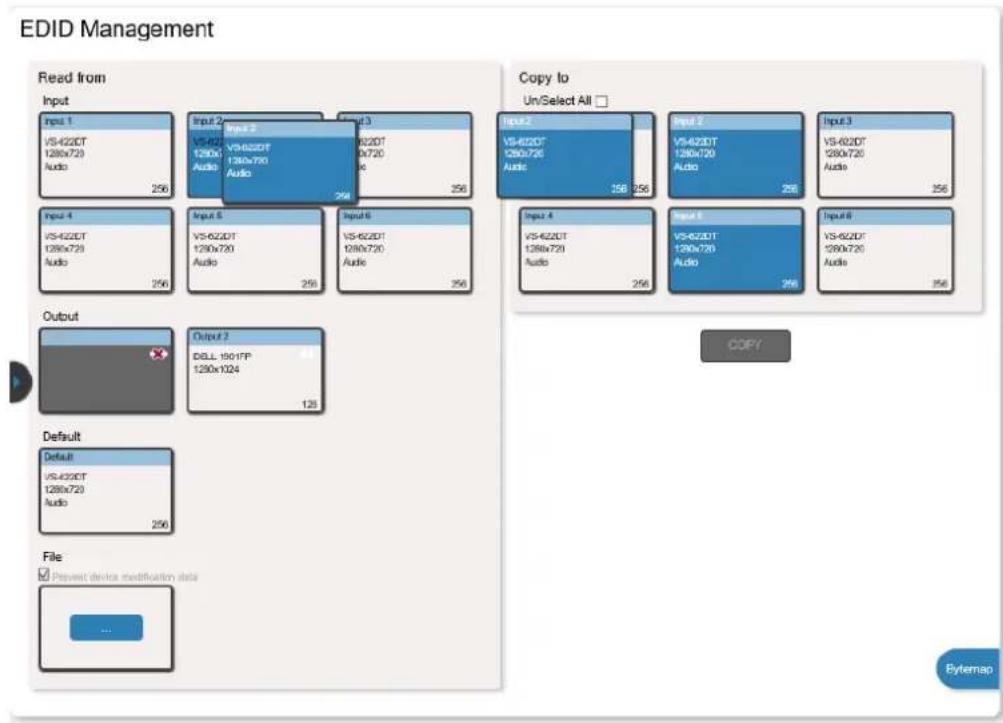

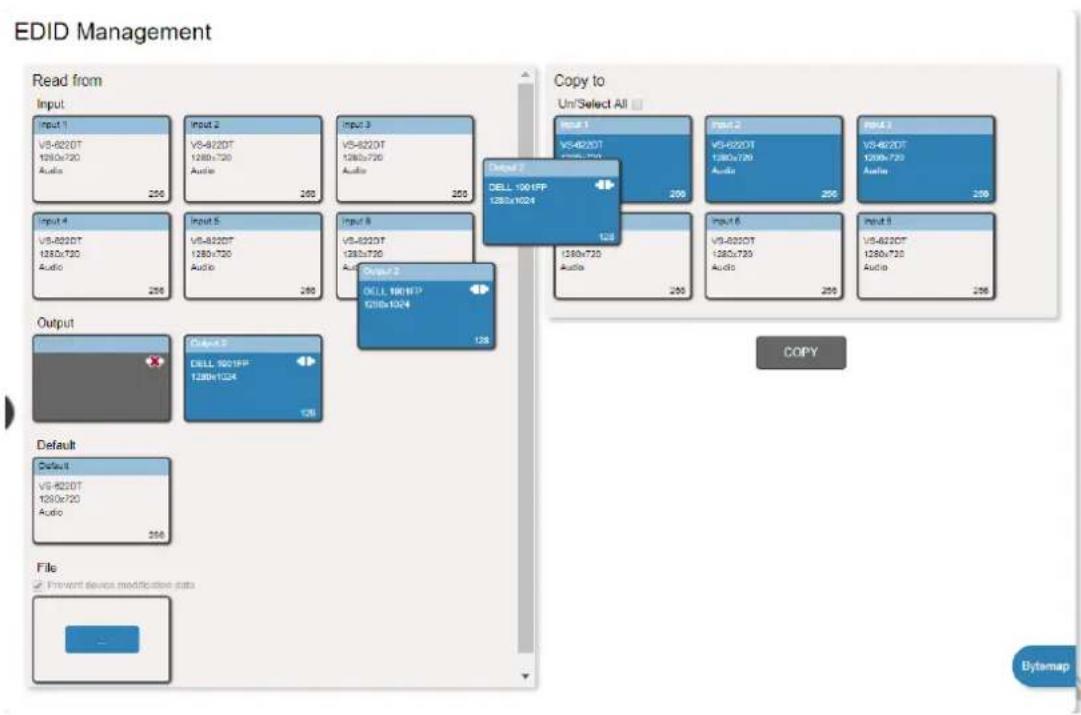

You can acquire the EDID from OUT 1 or OUT 2 and copy it to any or all of the six inputs to be stored in non-volatile memory. You can also reset any or all of the inputs to the default EDID.

To copy the EDID from an output to one or more inputs:

1. Press EDID. The device enters the EDID setting mode and the EDID button lights.

If there is no button activity for 10 seconds, the device automatically exits the EDID setting mode to normal operation, the EDID button no longer lights and any changes made are lost.

1. From the To OUT 1 (top) row, press each of the inputs to which you want to copy the EDID from output 1. Each selected input LED lights.

2. From the To OUT 2 (bottom) row, press each of the Inputs into which you want to copy the EDID from output 2. Each selected input LED lights.

3. Press EDID.

The EDID changes are saved and the button no longer lights.

To copy the default EDID to one or more inputs:

1. Press EDID. The device enters the EDID setting mode and the EDID button lights.
2. For each input to which you want to copy the default EDID, press both the To OUT 1 and To OUT 2 buttons simultaneously. Both top row and bottom row input LEDs light.
3. Press EDID.

The EDID changes are saved and the button no longer lights.

Using the Web Pages

The web pages enable you to control the VS-622DT via the Ethernet and perform the following:

• Switching and Setting Ports on page 17.
• Managing EDID on page 23.
• Changing the Device Settings on page 29.
• Managing IO Gateway Settings on page 40.
- Configuring Room Automation on page 48.
• Viewing General Information on page 49.

Before attempting to connect:

• Perform the procedures in Connecting VS-622DT via the Ethernet Port on page 11.

- Ensure that your browser is supported.

The following operating systems and Web browsers are supported:

OS	Version	Browser
Windows	7	IE
		Firefox
		Chrome
		Safari
	10	IE
		Edge
		Firefox
		Chrome
Mac	10.11	Safari
iOS	10.3.2	Safari
Android	N/A	N/A

To browse the VS-622DT Web pages:

1. Open your Internet browser.
2. Type the IP address of the device in the address bar of your browser. For example, the default IP address:

http://192.168.1.39

Figure 11: Using the Embedded Web pages – Default IP Address

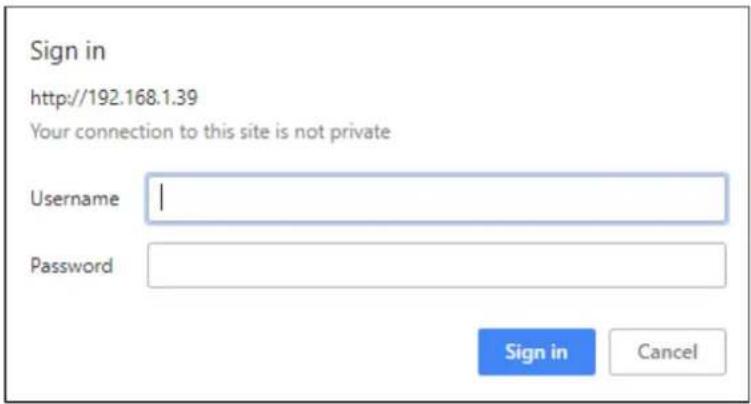

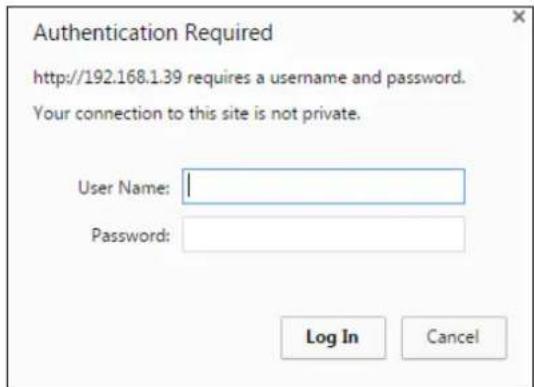

If the web pages are password protected, the Authentication window appears:

Figure 12: Using the Embedded Web Pages – Authentication Window

1. Enter the User Name and Password (Admin, Admin by-default) and click OK. The Routing page appears.

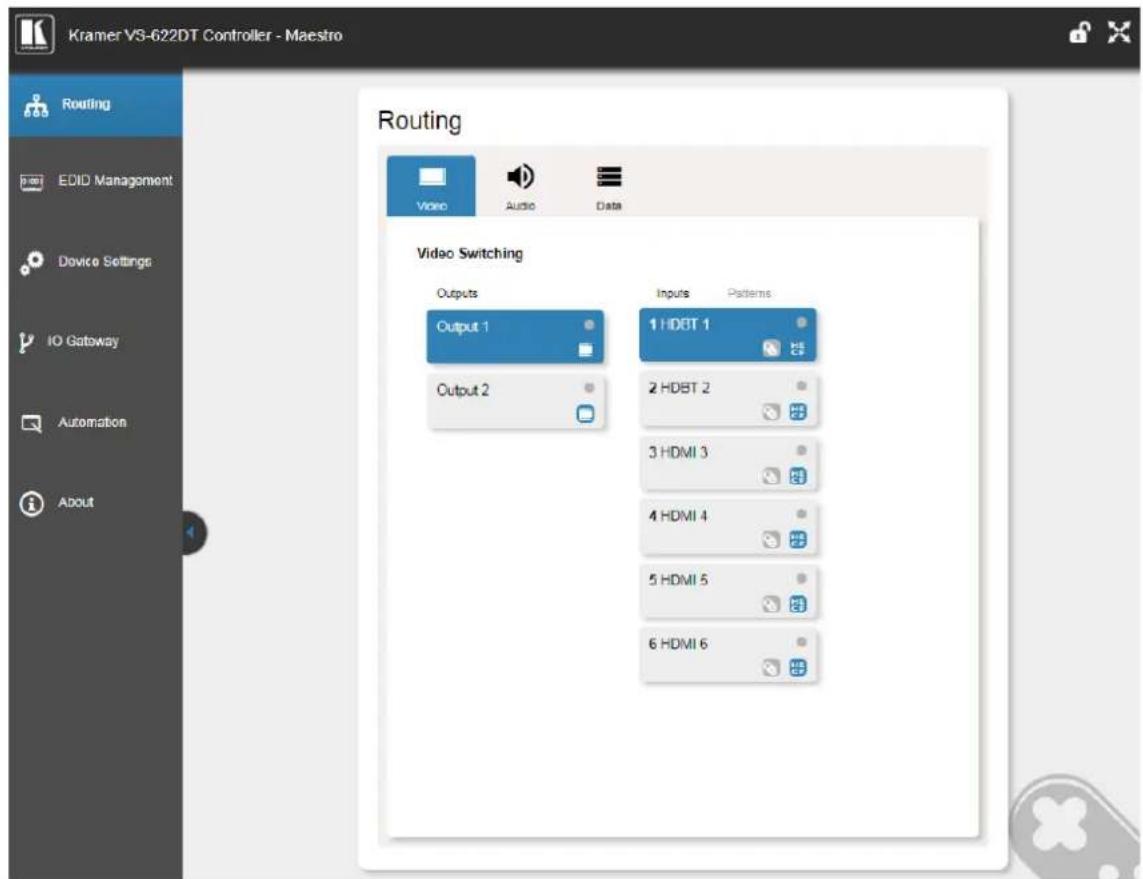

Figure 13: Routing Page with Navigation List on Left

1. Click the desired web page or click the arrow to hide the navigation list.

Figure 14: Routing Page – Navigation List Hidden

Switching and Setting Ports

The Routing page enables performing the following functions:

• Routing Video Inputs on page 18.
- Switching a Pattern to the Outputs on page 20.
• Adjusting Audio Settings on page 21.
• Switching Data on page 22.

Routing Video Inputs

Use the Routing page to switch the video inputs to the outputs.

To switch an input to an output:

1. In the Navigation pane, click The Routing page appears.

2. Click Video. The Video tab appears:

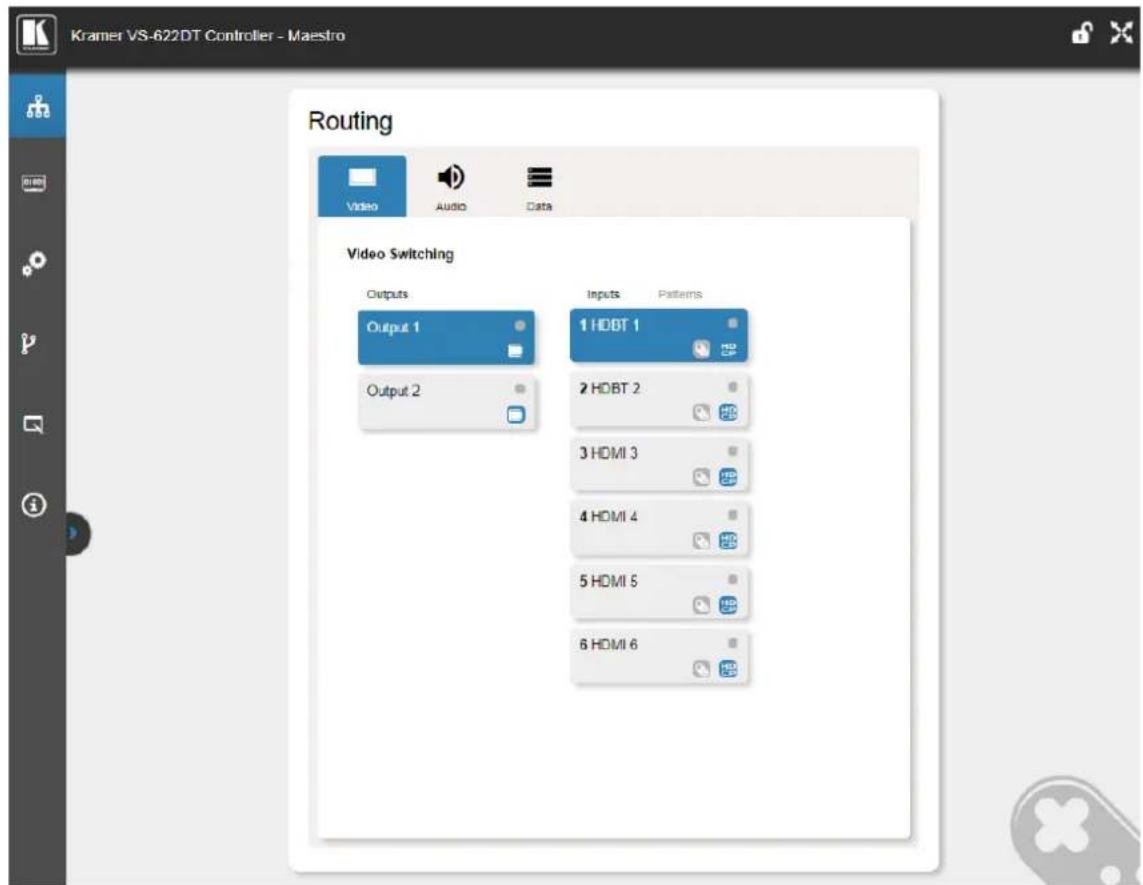

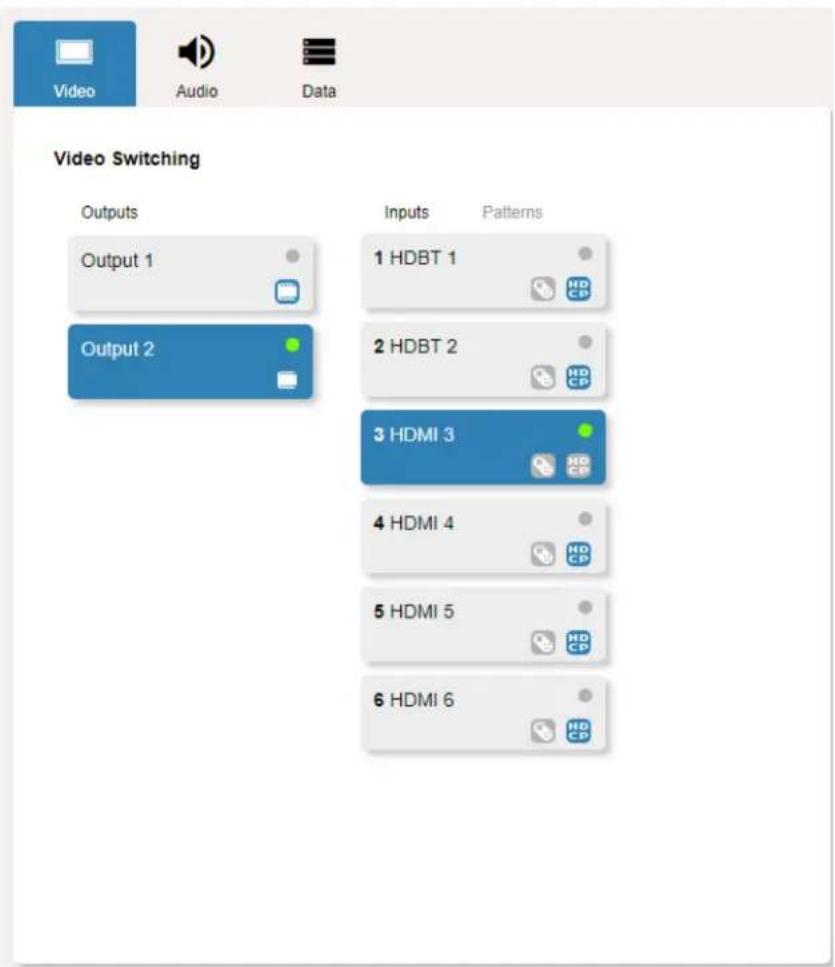

Figure 15: Routing Page – Video Tab

1. Click an Output button (Output 1 or Output 2).

The selected Output button turns blue.

The green dot indicates that an acceptor is connected to the output.

1. Click the Input button to switch to the selected Output. The selected Input button turns blue. That input is switched to the output.

The green dot indicates that a source is connected to the input.

You can:

- Click on an output button to mute the video output.

- Click /on an input button to disable/enable HDCP support.

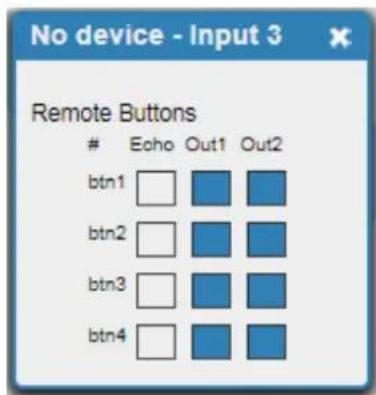

- Click 📋 on an input button to configure remote device buttons, see Setting Remote Devices on page 19.

Setting Remote Devices

When the HDMI/HDBT output of a step-in device (for example, the SID-X3N, DIP-30, DIP-31 For HDMI inputs and DIP-20 for HDBT inputs) is connected to an input on the VS-622DT, you can program the step-in buttons via automation (see Configuring Room Automation on page 48) so that when a step-in is carried out (either by pressing the step-in button on the device or by switching to the input on VS-622DT that is connected to the step-in device, other actions are executed (such as lights, screen and so on) via the VS-622DT.

When connecting a step-in device (for example, the DIP-20) to an HDBT input on the VS-622DT, generally you need to set Data switching to Direct Control (see Switching Data on page 22).

Some step-in devices can function even if Data Switching is set to Follow Video.

Setting data switching to Direct Control disables RS-232 data routing via the HDBT ports.

To configure remote device buttons:

1. In the Navigation pane, click .The Routing page appears.
2. Click on an input button.

If a Step-in device is not connected to that input, you can configure the remote button features for when that input is connected in the future.

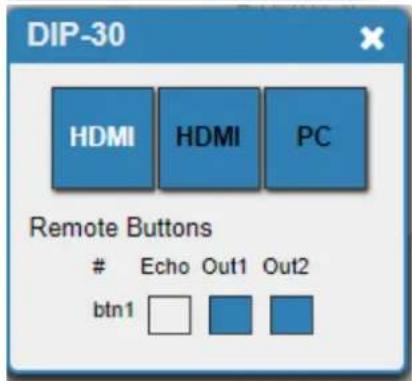

If an Step-in device is connected (for example, the DIP-30), The Step-in buttons appear and you can configure the button(s).

1. You can do the following:

2. Select one of the inputs on the step-in device (visible only when a device is connected) to be switched to the output of that device and routed to the VS-622DT input.

3. Check Echo to send the \~BTN command to all the control ports. This allows a connected controller to perform a variety of tasks triggered by the user buttons, such as room control (lights, screen, and so on).

- Check Out1 and/or Out2 to set the current input to route to OUT 1, OUT 2 or both outputs.

These settings are per input and remain valid even if a remote DIP-30 is exchanged for another DIP-30.

For each button you can activate Echo, Out 1 and Out 2 simultaneously.

Switching a Pattern to the Outputs

You can switch a selected pattern to the outputs.

To switch a selected pattern to the outputs:

1. In the Navigation pane, click Routing. The Routing page appears.
2. Click the Video tab. Verify that Patterns (and not Inputs) is selected.

The list of patterns appears.

1. Click a pattern.

The selected pattern is switched to both output/s (for example, pattern 1 is switched to outputs 1 and 2).

Routing

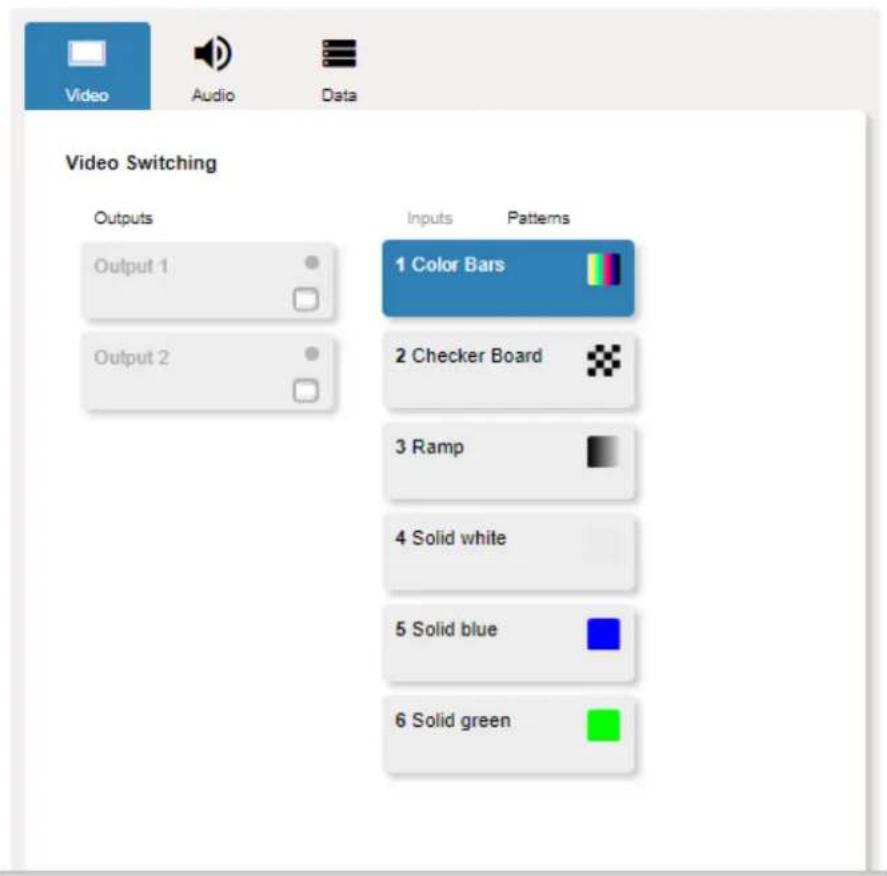

Figure 16: Routing Page – Switching a Pattern to the Outputs

All test pattern outputs are displayed in RGB 720x480/59Hz, 8-bit color resolution.

Adjusting Audio Settings

Use the Routing page to adjust the audio settings and swap the audio line out outputs.

To adjust audio settings:

1. In the Navigation pane, click The Routing page appears.
2. Click Audio. The Audio tab appears:

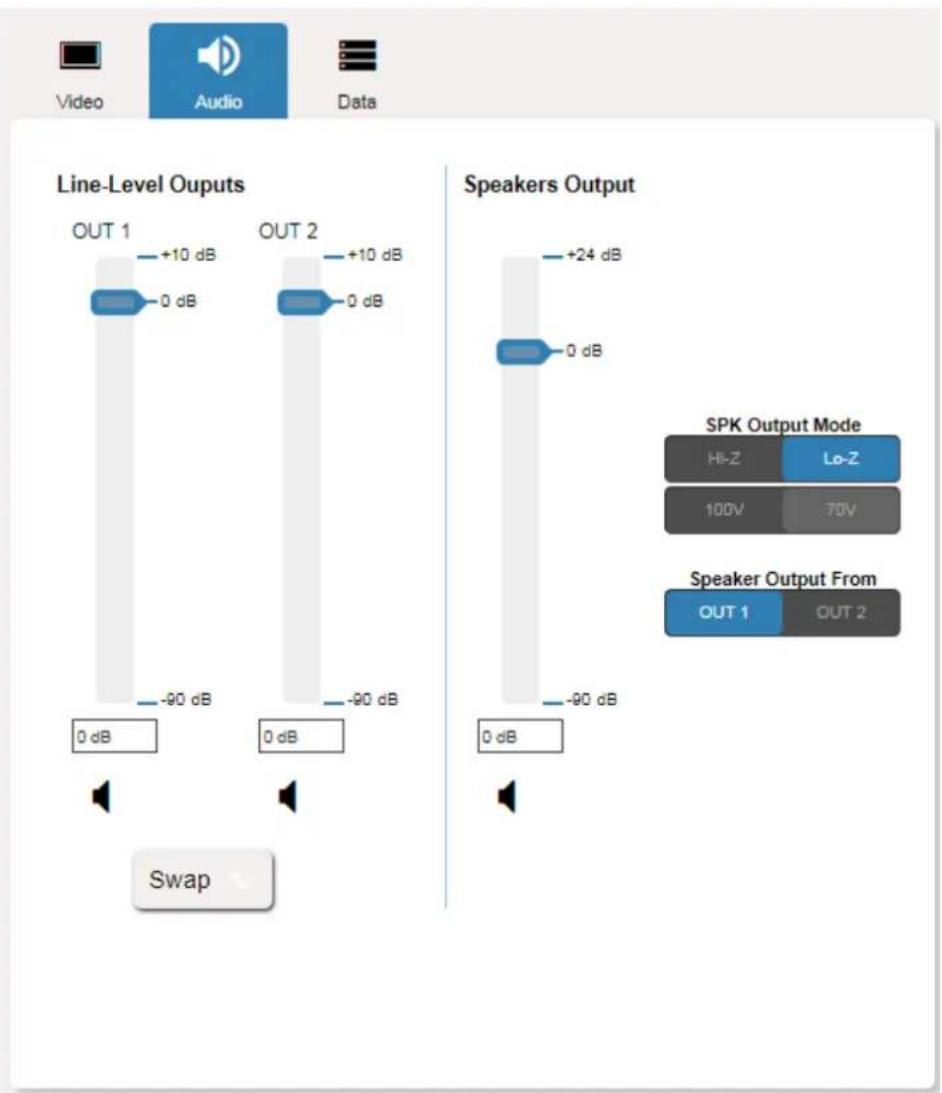

Figure 17: Routing Page – Changing the Output Label

In the Line-Level Outputs area, you can:

• Slide the OUT 1 and OUT 2 sliders to set the audio level on each output (or type the value below the slider and then click anywhere outside that text box).
• Click Swap to swap the audio outputs.
• Click mute an output and toumnute an output.

In the Speakers Output area, you can:

• Slide the Speakers Output slider to set the audio level on the speakers (or type the value below the slider and then click anywhere outside the text box).
• Click to mute the speakers output and toumnute it.
• Set the output mode to Lo-Z (to connect to stereo Lo-Z speakers) or Hi-Z (to connect to mono Hi-Z speakers – and then select 70V or 100V).
• Click to take the speaker output audio signal from OUT 1 or OUT 2.

Switching Data

Use the Routing page to set data switching.

To select the HDBT out data source:

1. In the Navigation pane, click The Routing page appears.
2. Click The Data Switching tab appears:

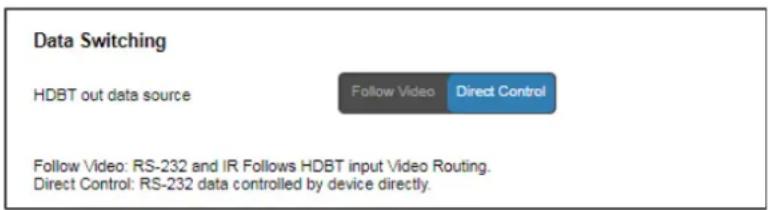

Figure 18: Routing Page – Data Switching

You can:

• Click Follow Video for IR and RS-232 to follow the input video routing.
• Click Direct Control to let the VS-622DT control the RS-232 data.

When connecting a step-in device (for example, the DIP-20) to an HDBT input on the VS-622DT (see Setting Remote Devices on page 19), generally you need to set Data switching to Direct Control.

Some step-in devices can function even if Data Switching is set to Follow Video.

Setting data switching to Direct Control disables RS-232 data routing between the HDBT inputs and the HDBT output.

Managing EDID

Use the Managing EDID page to load a customized EDID file from your PC, or to read the EDID from:

• Any of the outputs.
• Any of the inputs.
• The default EDID.

The selected EDID can be copied to selected input/s.

Click Bytemap on the right side to view the currently selected EDID source Bytemap.

Copying EDID from an Output to an Input

You can copy the EDID from a selected output to any or all the inputs.

To copy an EDID from an output to an input:

1. In the Navigation pane, click EDID Management. The EDID Management page appears.

Figure 19: EDID Management Page

2. Click the EDID source (for example, Output 2).

Figure 20: EDID Management Page – Select an EDID Output (Read From)

If you are reading EDID from an output, make sure that that output is connected to an acceptor.

For example, Output 1 is disconnected and Output 2 is connected to an acceptor:

1. Select the input/s (or all the inputs) to which the EDID is copied (Inputs 1, 2 and 3 in this example).

EDID Management

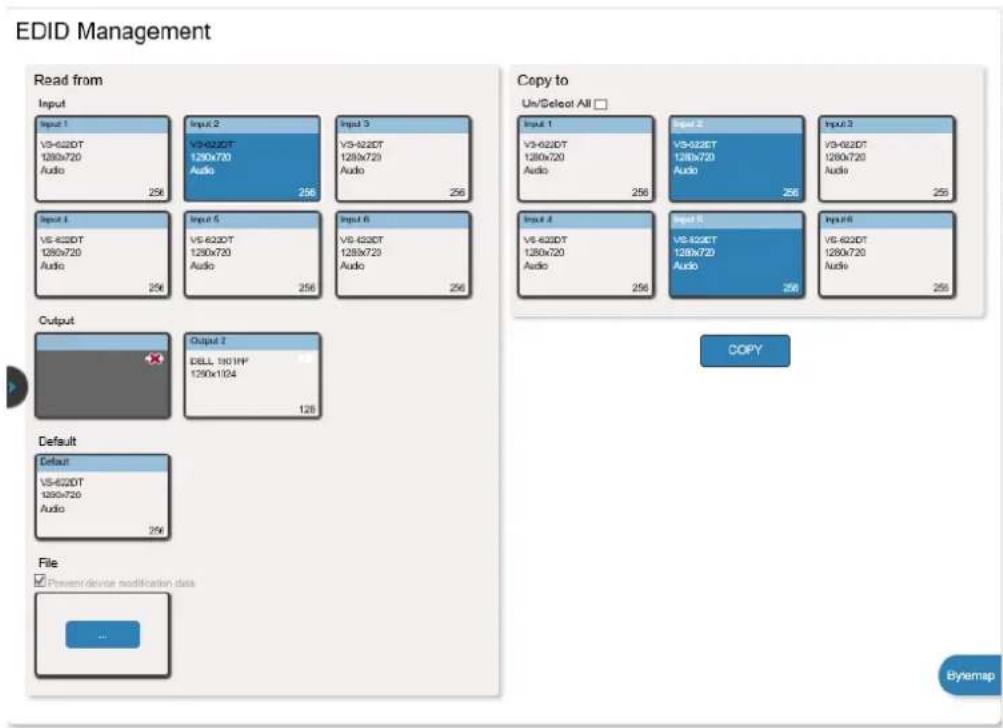

Figure 21: EDID Management Page – Select the Inputs (Copy to)

1. Click COPY.

The Output 2 EDID is copied to the selected inputs.

Figure 22: EDID Management Page – EDID Copied

The EDID copy success message appears:

1. Click OK.

Copying EDID from an Input to an Input

You can copy the EDID from a selected input to any or all the inputs.

To copy an EDID from an input to an input:

1. In the Navigation pane, click EDID Management. The EDID Management page appears (see Figure 19).
2. Select the EDID source (for example, Input 2).

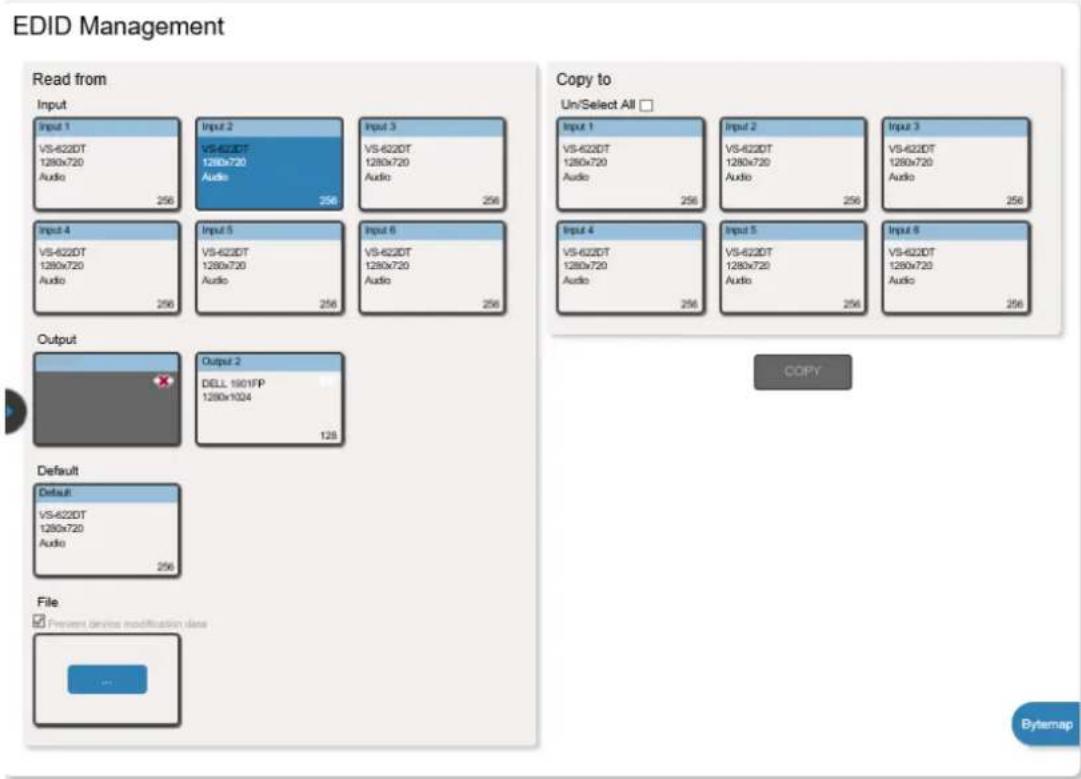

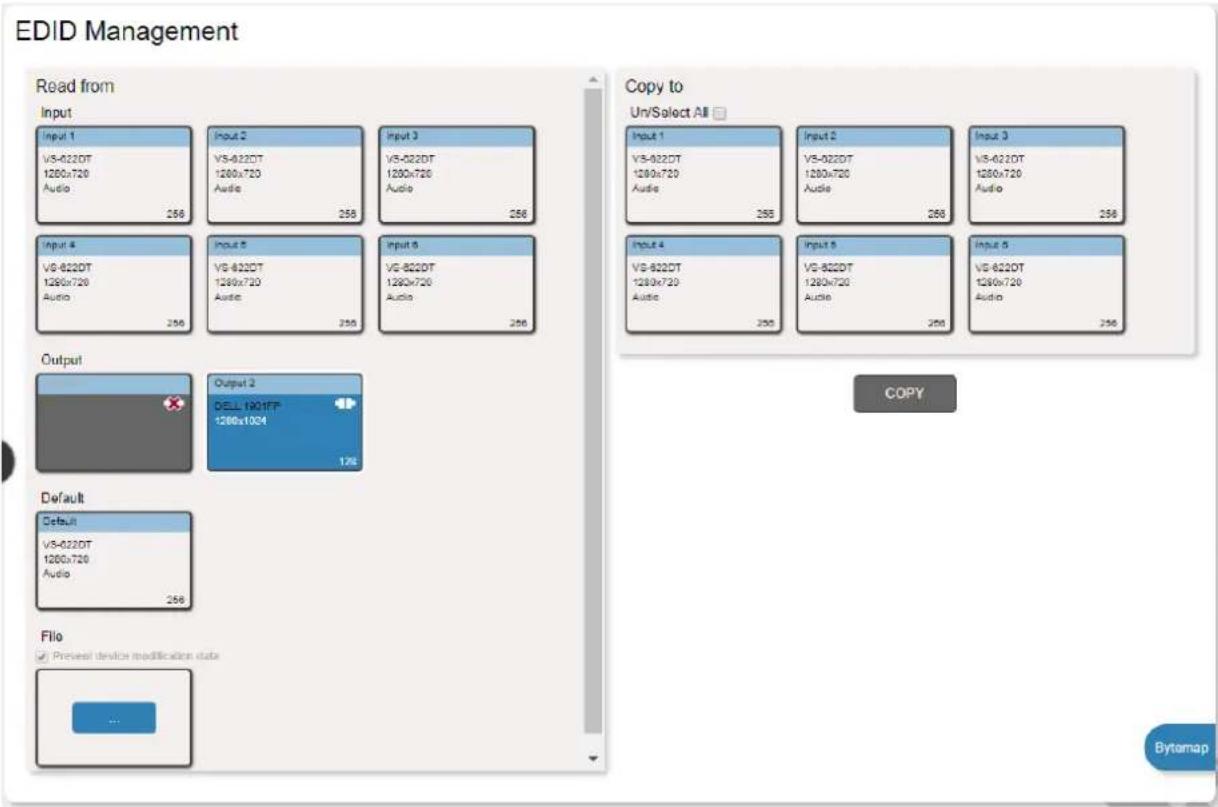

Figure 23: EDID Management Page – Select an EDID Input (Read From)

1. Select the input/s (or all the inputs) to which the EDID is copied (Inputs 2 and 5 in this example).

Figure 24: EDID Management Page – Select the Inputs (Copy to)

4. Click COPY.

The Input 2 EDID is copied to the selected inputs.

Figure 25: EDID Management Page – EDID Copied

The EDID copy success message appears.

1. Click OK.

Copying EDID from the Default EDID to an input

You can copy the default EDID to any or all the inputs.

To copy the EDID from the default EDID:

1. In the Navigation pane, click EDID. The EDID Management page appears (see Figure 19).
2. Click Default.
3. Select the input/s (or all the inputs) to which the default EDID is copied.
4. Click Copy and follow the instructions on-screen.

Loading a Customized EDID from a File

You can Load a customized EDID from a selected file to any or all the inputs.

To load a customized EDID file:

1. In the Navigation pane, click EDID. The EDID Management page appears (see Figure 19).

Keep the Prevent device modification data checked if you wish to prevent any modification of the EDID that the device reads.

1. In the File area click “...”.
2. Select the EDID file.
3. Select the input/s (or all the inputs) to which the EDID is copied.
4. Click Copy and follow the instructions on-screen.

Changing the Device Settings

The Device Settings web page shows the device details such as name, serial number and firmware version and also enables performing the following functions:

• Changing the Unit Name (in the General Settings tab) by typing the new name and saving it.
  • Saving and Loading Settings on page 29.
• Resetting to Factory Default Parameters on page 30.
  • Managing Ethernet Settings on page 30.
• Setting the Date and Time on page 34.
  • Upgrading the Firmware on page 35.
• Setting Authentication on page 37.

Saving and Loading Settings

You can save and load the device configuration settings, including automation settings (e.g., ports, actions, scripts and triggers).

To save the current configuration:

1. In the Navigation pane, click Device Settings. The General tab in the Device Settings page appears:

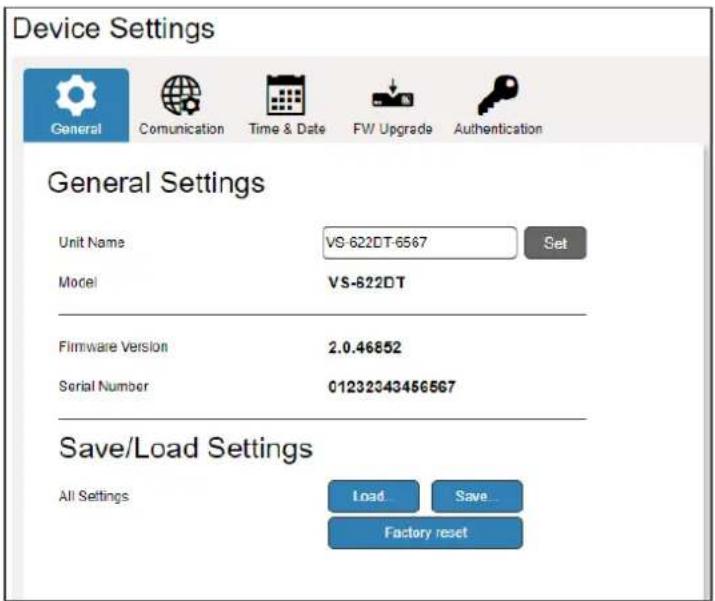

Figure 26: Device Settings Page – General Tab

1. Click Save. A progress message appears. When complete, the following message appears:

Figure 27: Device Settings Page – Downloading the File

1. Click click here.

The file (for example, VS_622DTConfigurationFile.kcd) is downloaded and saved to the Downloads folder.

To load a configuration:

1. In the Navigation pane, click Device Settings. The General tab in the Device Settings page appears (see Figure 26).

2. Click Load. A progress message appears. When the configuration is uploaded to the device, a success message appears.

3. Click OK.

The configuration is uploaded to the device.

Resetting to Factory Default Parameters

To reset the device to its default parameters:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. In the Save/Load Settings area, click Factory reset. A confirmation message is displayed.

3. Click OK.

The device resets to its default parameters. The current web session is disconnected and a new session opens with the default IP address.

Managing Ethernet Settings

The Communication tab enables performing the following functions:

• Changing Ethernet Settings when DHCP is Off on page 31.
• Changing Ethernet Settings when DHCP is On on page 32.
- Setting DHCP to Off on page 33.

Changing Ethernet Settings when DHCP is Off

After changing the Mask address, you need to power cycle the VS-622DT.

To change the Ethernet settings:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Click the Communication tab:

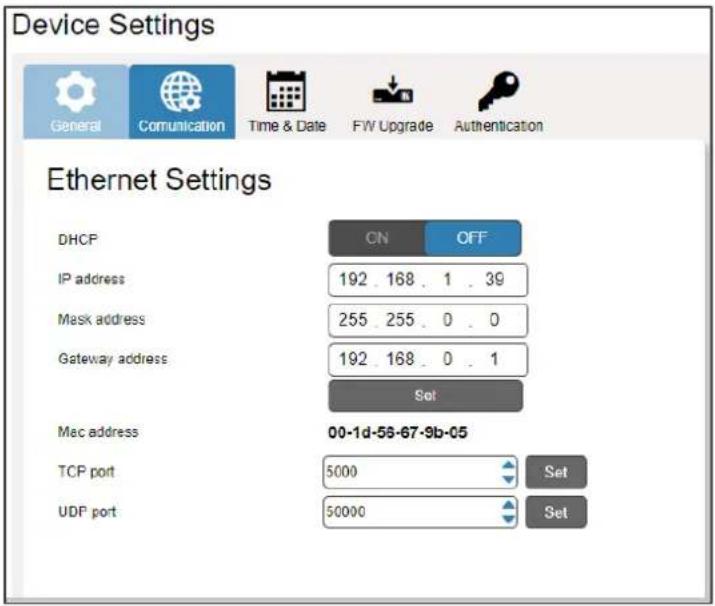

Figure 28: Device Settings Page – Communication Tab

1. If DHCP is OFF, change any of the parameters (IP Address, Netmask and/or Gateway).
2. Click Set.

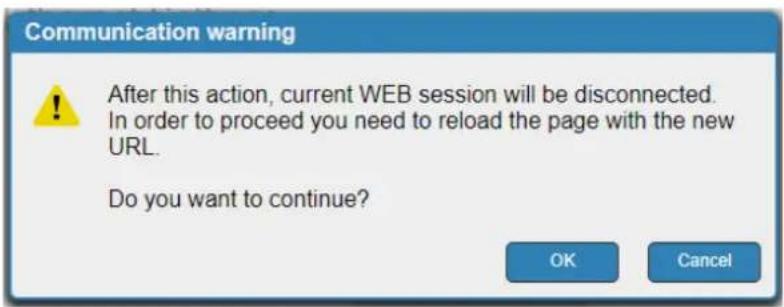

Figure 29: Device Settings Page – Communication Warning

1. Click OK.
   The page with the new settings is reloaded.
2. If required, change the TCP/UDP port number.
3. Click Set.

The port number has changed.

Changing Ethernet Settings when DHCP is On

When DHCP is set to ON, the device IP address is selected automatically by the system.

If the network cable is disconnected after setting DHCP to ON, the IP address changes to 0.0.0.0.

To set parameters when DHCP is set to ON:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Take note of the Device Name (required for step 6).
3. Click the Communication tab (see Figure 28).
4. Click DHCP ON. The following message appears:

Figure 30: Network Settings Page

1. Click Yes.
2. Type the device name in the address bar of your browser to reload the page. You can read the new IP address from the Network Settings page.

DHCP is ON.

Setting DHCP to Off

When setting DHCP to off, you need to enter the IP address manually.

To turn OFF DHCP settings:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Click the Communication tab (see Figure 28).
3. Click DHCP OFF. The DHCP OFF message appears:

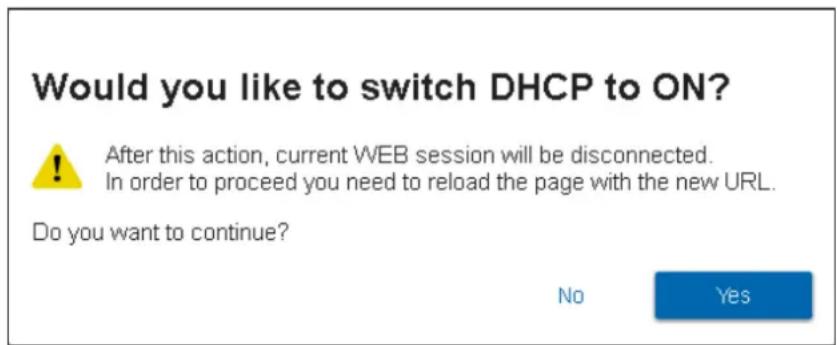

Figure 31: Device Settings Page – DHCP ON Message

1. Check Custom IP and enter an IP address or Check Default IP.
2. Click Apply.

The web page reloads with the new IP address.

Setting the Date and Time

Set the date and time in one of the following methods:

• Setting the Date and Time Manually on page 34.
• Setting the Date and Time from a Server on page 35.

Setting the Date and Time Manually

To manually set the date and time:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Click the Time and Date tab.

Device Settings

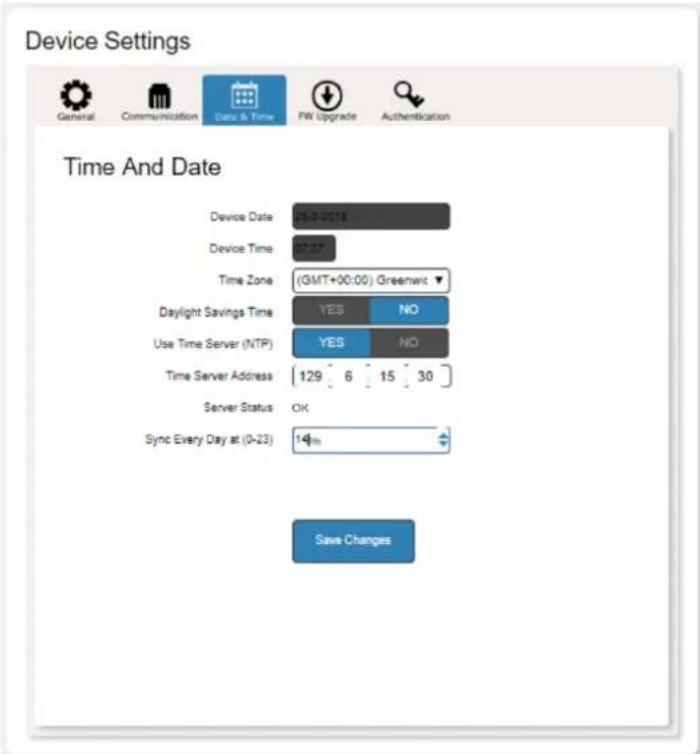

Figure 32: Device Settings Page – Date & Time Tab

1. Update the date and time as necessary:

2. Click the Device Date text box and change the date.

3. Click the Device Time text box and change the time.
   ■ Select the Time Zone.
4. Click YES to set to Daylight Savings Time.

The date and time are set.

Setting the Date and Time from a Server

You can set the date and time from a time server.

To use a time server to set the date and time:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Click the Time and Date tab.
3. Click YES next to Use Time Server (NTP).
4. Enter the Time Server Address.
5. Set the time for the device to sync to the server (Sync every day at (0-23)).

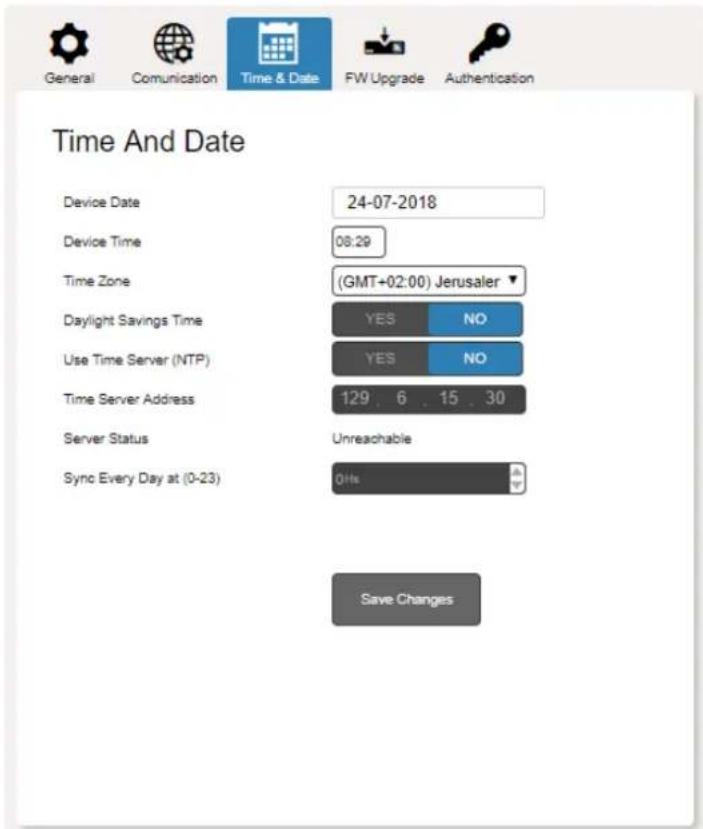

Figure 33: Device Settings Page – Using a Time Server

1. Click Save Changes.

The date and time are set.

Upgrading the Firmware

To perform firmware upgrade:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.
2. Select the FW Upgrade tab.

3. Click Update.

4. Select the new firmware and click Open. The following Warning appears:

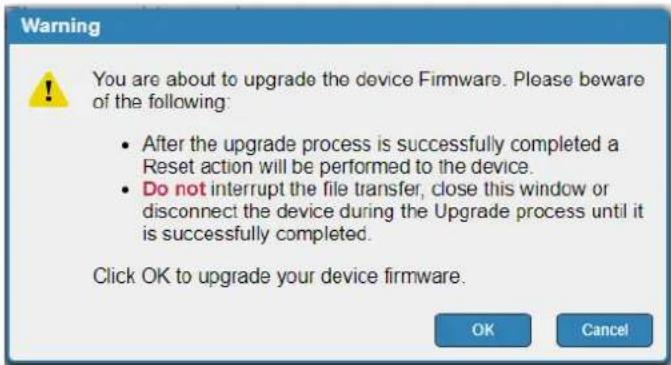

Figure 34: Device Settings Page – Firmware Upgrade Warning

1. Click OK. Wait for completion of the upgrade process:

Figure 35: Device Settings Page – Firmware Upgrade Process

1. Wait for the device to restart.

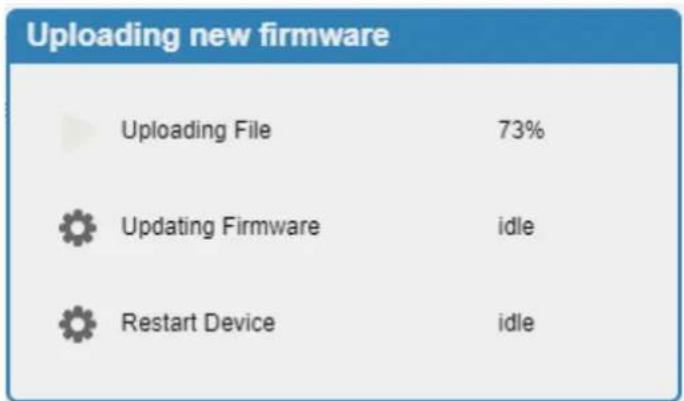

Figure 36: Device Settings Page – Uploading New Firmware

The firmware is upgraded and the web pages reload.

Setting Authentication

The VS-622DT enables activating security and defining logon authentication details. When device security is enabled, Web page access requires authentication. To define access to the Web pages (locked or unlocked), in the Navigation pane click Device Settings and select the Authentication tab.

By default, the Web pages are not secured (user name and password are both: Admin).

The current authentication status is indicated by the locked (or unlocked) lock icon on the top right side of the web page.

To access Web pages using the password:

1. In the Navigation pane, click Device Settings and select the Authentication tab. The Authentication page appears:

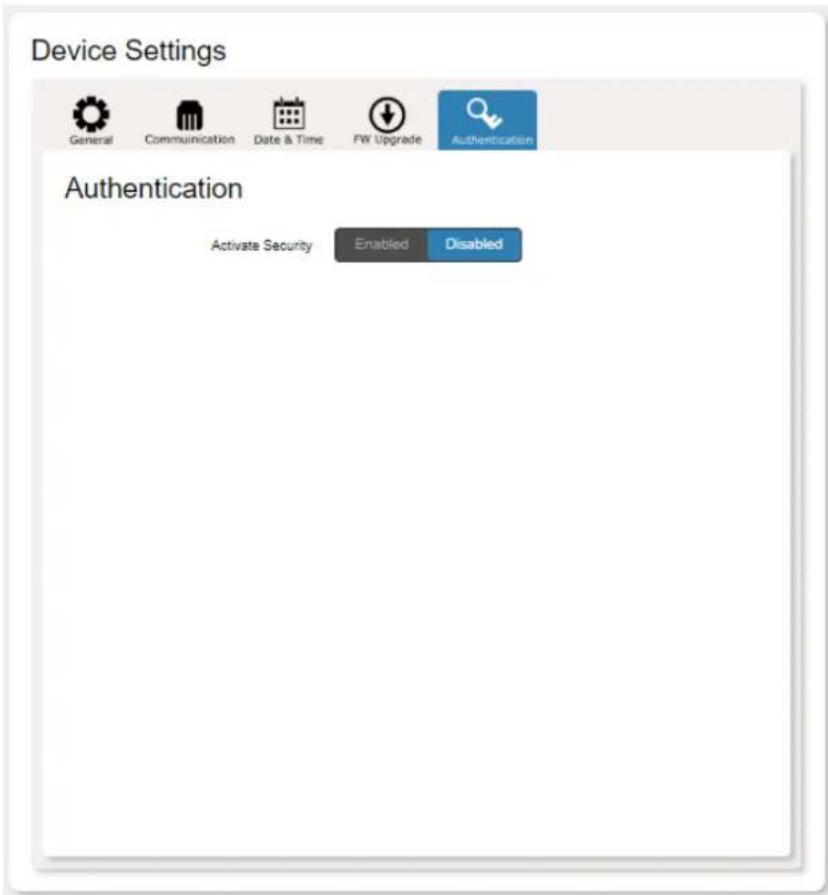

Figure 37: Authentication Page – Security Disabled

1. Click Enabled. A confirmation page appears.

2. Click OK. The Sign in page appears:

Figure 38: Authentication Page – Security Activation Message

1. Enter the default username and password (Admin, Admin) and click Sign in. The Web page reloads.
2. In the Navigation pane, click Device Settings and select the Authentication tab. The Authentication page appears:

Figure 39: Authentication page – Security Enabled

1. Change the password as instructed and click Change. A confirmation message appears.
2. Click OK. A success message appears.
3. Click OK.

The web page reloads, security is enabled, and access is password restricted.

To access Web pages without using the password:

1. In the Navigation pane, click Device Settings and select the Authentication tab. The Authentication page appears (see Figure 39).
2. Click Disabled. The Confirmation message appears:

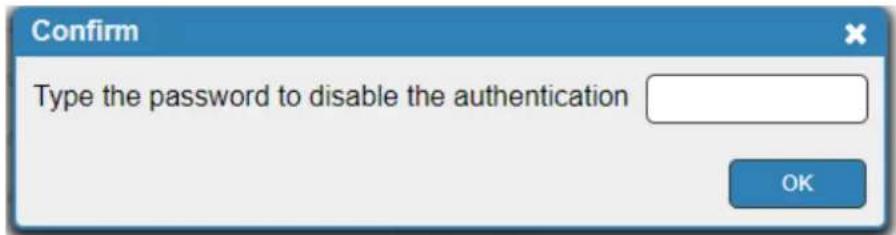

Figure 40: Authentication Page – Disabling Authentication

1. Type the current password and click OK.

Security is disabled.

Managing IO Gateway Settings

The IO Gateway page enables performing the following functions:

• Configuring RS-232 Signal Tunneling on page 40.
• Setting GPI/O Parameters on page 42.

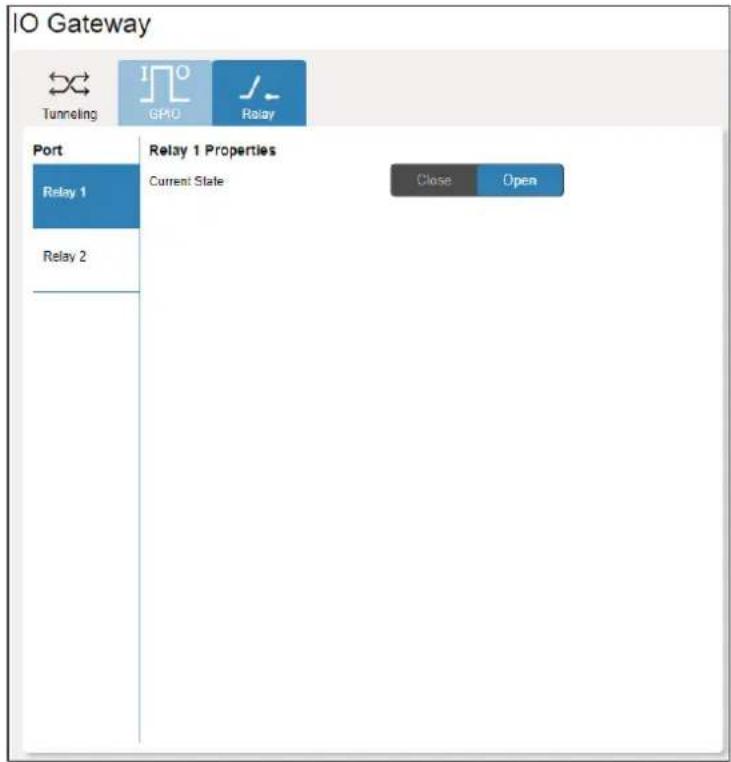

• Setting Relays on page 47.

Configuring RS-232 Signal Tunneling

Use the Tunneling tab to route RS-232 via the RS-232 port ⑳ or the HDBT OUT 1 port . ⑳

To configure port tunneling:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears displaying the Tunneling tab.

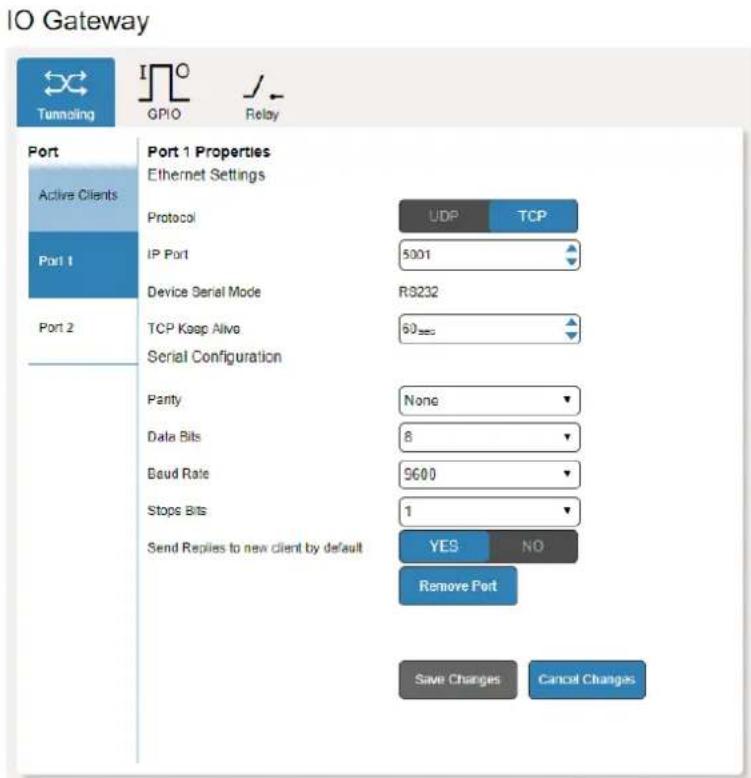

Figure 41: IO Gateway Page – Tunneling Settings

1. Select Port 1 (the RS-232 port) or Port 2 (the HDBT OUT 1 port).
2. Optionally, configure the following:

■ Set the protocol to UDP or TCP.
- Enter the port number.
- Set the TCP Keep Alive time (duration between two transmissions to prevent the link to be broken).
- Set the serial configuration of the port (Parity, Data Bits, Baud Rate, Stop Bits).

• Click YES to enable sending replies to new clients by default or NO to disable.
  ■ Remove the Port to exit tunneling
  ■ Save Changes or Cancel Changes.

Port tunneling is configured.

Viewing Active Clients

To view active clients:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears displaying the Tunneling tab.

2. Click Active Clients and view the following.

3. IP – Client IP address.

4. To – The port to which it is connected on the VS-622DT.
5. Through – Method of connection (UDP or TCP).
6. S/R (Send Replies) – enabled/disabled for the port (see Figure 41).

IO Gateway

Figure 42: IO Gateway Page – Active Clients Data

Setting GPI/O Parameters

Use the GPIO setting tab to configure the following GPI/O ports:

• Configuring the Digital Input Trigger Type on page 42.
• Configuring the Digital Output Trigger Type on page 44.
• Configuring the Analog Input Trigger Type on page 45.

GPI/O ports can be incorporated into automation only when they are set as inputs (see Configuring Room Automation on page 48).

Configuring the Digital Input Trigger Type

Digital Input trigger mode reads the digital input of an external sensor device that is connected to the GPIO port and can detect a:

• High state voltage – when the connected sensor passes the maximum threshold from the low state.
• Low State voltage – when the connected sensor passes the minimum threshold from the high state.

The minimum and maximum threshold levels are defined in the GPIO web page.

To configure the digital input trigger type:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears (see Figure 41).
2. Click GPIO. The GPIO tab appears.

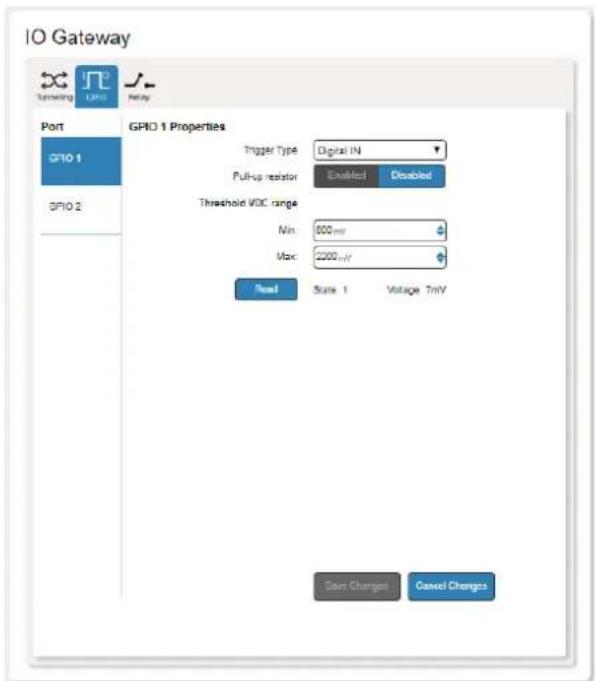

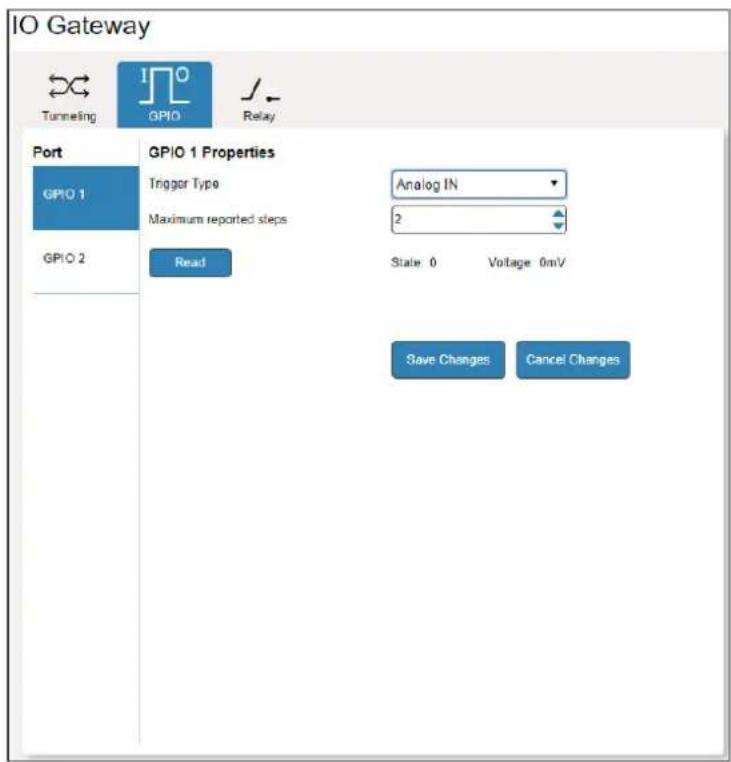

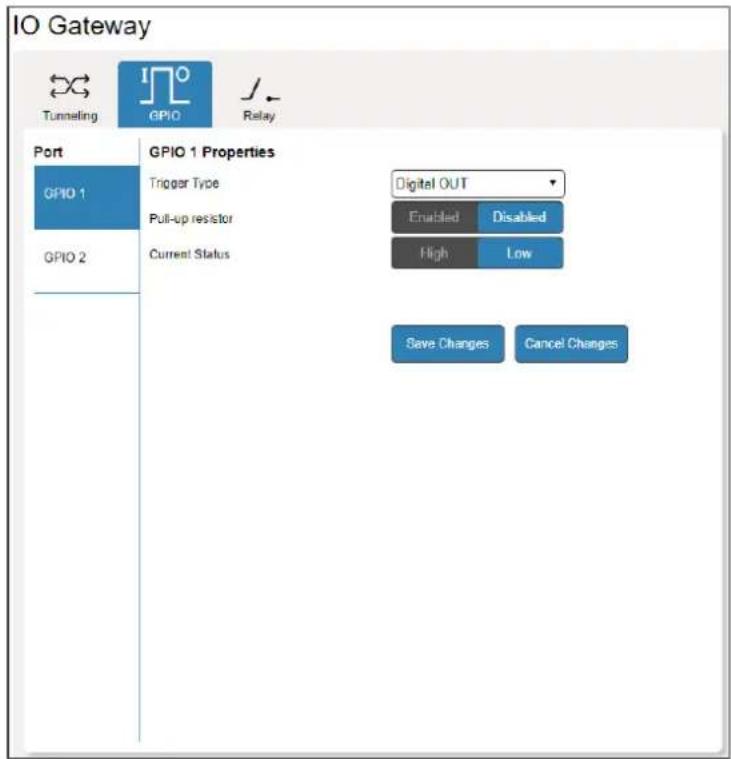

Figure 43: IO Gateway Page – GPIO Tab

1. Select GPIO 1 or GPIO 2.
2. Set Trigger Type to Digital IN.

Figure 44: IO Gateway Page – Digital IN GPI/O Type

1. Enable/Disable Pull-up resistor:

- When enabled, an open circuit is detected as high and a short circuit is detected as low.

For example, enable the pull-up resistor when connecting to a push button switch (one terminal of the switch to ground, and the other to the input) or when connecting to an alarm sensor where a closed circuit triggers a series of actions.

When the pull-up is enabled, the port state is high and to be triggered it must be pulled low by the externally connected sensor.

- When disabled, the port state is low and to be triggered it must be pulled high by the externally connected sensor.

Use this setup, for example, for a high temperature alarm that exceeds the maximum voltage threshold.

You need to set the threshold voltage at which the port changes state.

1. Set the minimum and maximum threshold voltages.
2. Once connected, click Read to view the current state (High or Low) and voltage of the port.
3. Click Save Changes.

The Digital IN GPIO port is configured.

The default parameter settings change depending on which trigger type is selected.

Configuring the Digital Output Trigger Type

The digital output mode function is defined by the pull-up resistor setup:

- When enabled, the external source device determines the voltage output; the maximum voltage is 30V DC and the maximum current is 100mA. The port state is high. For the state to be low, set Current Status to Low. Use this setup to control external devices such as room or light switches.

Make sure that the current in this configuration does not exceed 100mA!

• When disabled, the voltage output is TTL positive logic: open: \~ 3.5V; closed: \~ 0.3V. The port state is low and to set it to high, you must click High in Current Status.
• Use this setup to control devices that accept a TTL signal such as LED powering. Set the trigger type to Digital OUT. With this selection, the external device, (for example, an electric blind) is controlled by the VS-622DT.

To configure the digital output trigger type:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears (see Figure 41).
2. Click GPIO. The GPIO tab appears (see Figure 43).
3. Select GPIO 1 or GPIO 2.
4. Set Trigger Type to Digital OUT. The following warning appears:

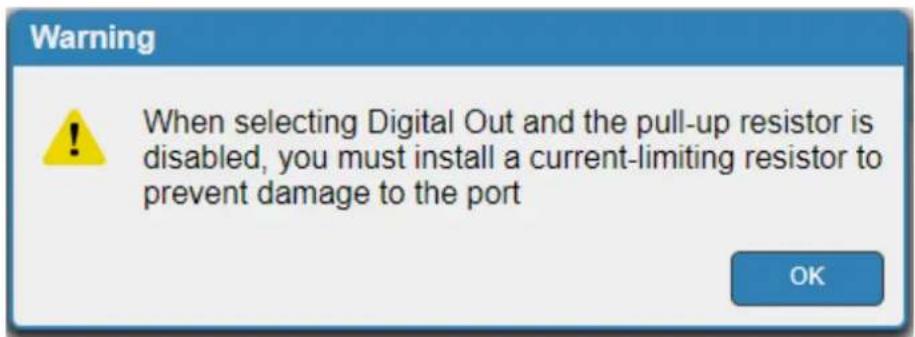

Figure 45: Digital Out Selection Warning Popup

5. Click OK.

Figure 46: IO Gateway Page – GPIO Digital OUT

1. Enable/Disable Pull-up resistor.
2. Set Current Status to High/Low.
3. Click Save Changes.

The Digital OUT GPIO port is configured.

Configuring the Analog Input Trigger Type

In the Analog In trigger type, the port is triggered by an analog external device, such as, a volume control device that changes gradually. The trigger is activated once when the detected voltage is within 0 to 30V DC voltage range.

- You can select the number of steps the analog input signal will be divided into, starting with step 1 to a maximum of 100.

The voltage of each step is dependent on the number of steps selected:

The individual step voltage equals 30V divided by the number of steps.

To configure the analog input trigger type:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears (see Figure 41).
2. Click GPIO. The GPIO tab appears (see Figure 43).
3. Select GPIO 1 or GPIO 2.

4. Set Trigger Type to Analog IN.

Figure 47: IO Gateway Page – GPIO Analog IN Settings

1. Set the number of steps.
2. Once connected, click Read to view the step number and the voltage.
3. Click Save Changes.

The Analog IN GPIO port is configured.

Setting Relays

Use the Relay tab to open or close a relay. By default, the relay is set to Open.

Figure 48: IO-Gateway Page – Relay Settings Tab

The relay ports have the following characteristics:

• Rated at 30V DC and 1A.
- Default state of normally open.
- A non-latching relay function, that is, the contact is left open when unpowered or on power up state. This means that if a relay is closed and power is lost, the relay returns to its default state. To return it to its pre-power loss state, the setting must be changed using either the Web pages or a P3000 command.

To close a relay:

1. In the Navigation pane, click IO Gateway. The IO Gateway page appears.
2. Click Relay. The Relay tab appears.
3. Click Close.

The relay closes.

Configuring Room Automation

Use the Automation page to access Kramer Maestro V1.5 room automation. Maestro is a powerful tool that enables you to configure single-trigger room element automation scenarios without the need for complicated programming. To use room automation, you need to define triggers that, upon an event, will execute scripts which include a sequence of actions (commands, which can appear in different scenarios) that will be carried out via any defined ports.

To access room automation:

1. In the Navigation pane, click Automation. The Maestro page appears.

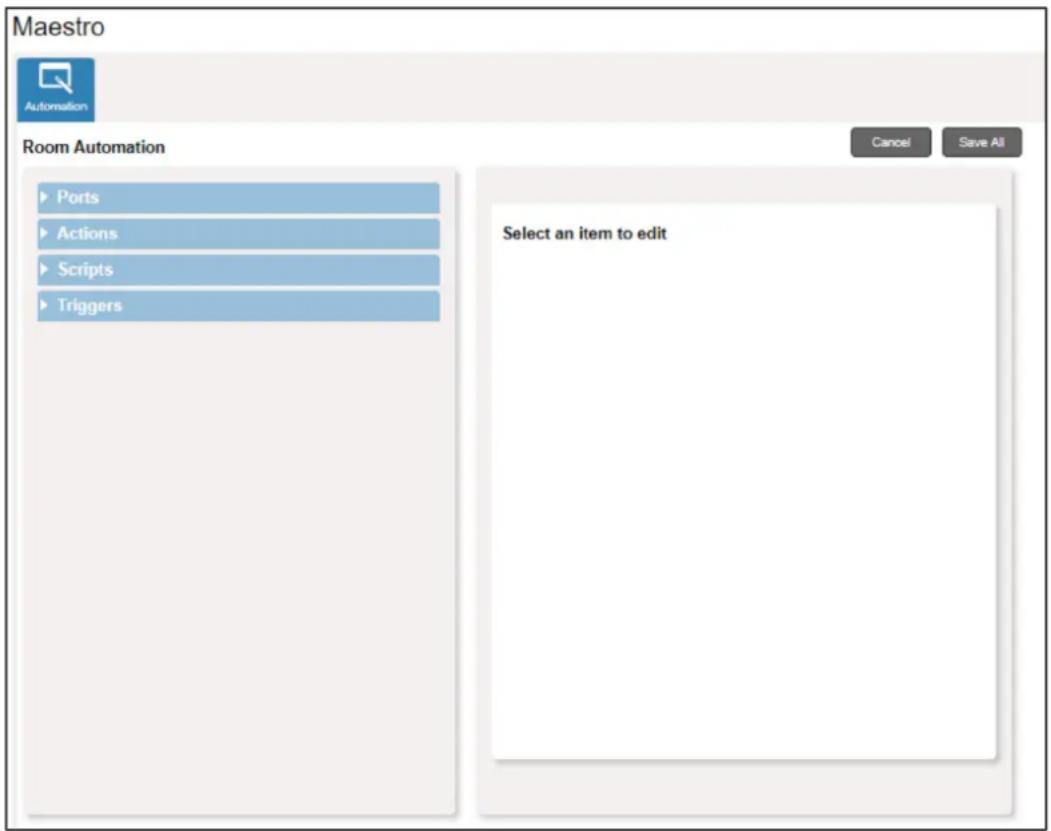

Figure 49: Automation – Maestro Page

For further details on how to use room automation, refer to the Kramer Maestro User Manual, available at www.kramerav.com/downloads/VS-622DT.

Viewing General Information

The VS-622DT About page lets you view the web page version and Kramer Electronics Ltd details.

WEB VERSION 3.2.12

Kramer Electronics Ltd.

3 Am VeOlamo St.

Jerusalem, Israel, 9546303

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Web: http://www.KramerAV.com

© 2018 - Kramer Electronics Ltd. all rights reserved.

Figure 50: About Page

Technical Specifications

Inputs	2 HDBT with PoE	On female RJ-45 connectors
	4 HDMI	On female HDMI connectors
Outputs	1 HDBT with PoE	On a female RJ-45 Connector
	1 HDMI	On a female HDMI connector
	2 Stereo Balanced Audio	On 5-pin terminal block connectors
	1 Power Amplifier for Stereo or 1 Mono Speaker	On a 4-pin large terminal block
Ports	1 Ethernet	On an RJ-45 female connector
	2 RS-232	On 3-pin terminal blocks
	1 USB (PROG)	On a mini USB connector, for firmware upgrade
	4 IR	On 2-pin terminal block connectors
	2 GPI/O	On 2-pin terminal block connectors
	2 Relays	On 2-pin terminal block connectors
Video	Max. Data Rate	10.2Gbps (3.4Gbps per graphics channel)
	Max. Resolution	Up to 4K@60Hz (4:2:0)
	Compliance	HDCP 1.4
Power Amplifier	Stereo	2x60W @4/8Ω
	Mono	1x120W @70V/100V
Extension Line	4K@60Hz (4:2:0)	Up to 100m (330ft)
	Full HD (1080p @60Hz 36bpp)	Up to 130m (430ft)
	HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)	Up to 180m (590ft)
User Interface	Controls	Input selection buttons, swap, EDID, lock and audio control buttons
	Indicators	Power, RS-232, IR, GPI/O and relay LEDs
	Remote	RS-232, Ethernet, Web pages, IR remote control transmitter, Programmable Maestro buttons interface
Supported Web Browsers	Windows 7	Internet Explorer, Firefox, Chrome, Safari
	Windows 10	Internet Explorer, Edge, Firefox, Chrome
	MAC 10.11	Safari
	iOS 10.3.2	Safari
	Android	N/A
Power	Consumption	250VA max.
	Source	100-240V AC
Environmental Conditions	Operating Temperature	0° to +40°C (32° to 104°F)
	Storage Temperature	-40° to +70°C (-40° to 158°F)
	Humidity	10% to 90%, RHL non-condensing
Regulatory Compliance	Safety	CE
	Environmental	RoHs, WEEE
Enclosure	Size	19", 1U
	Type	Aluminum
	Cooling	Fan ventilation
General	Net Dimensions (W, D, H)	43.6cm x 23.7cm x 4.4cm(17.2" x 9.3" x 1.7")
	Shipping Dimensions (W, D, H)	52.5cm x 33cm x 10.7cm(20.7" x 13" x 4.2")
	Net Weight	2.6kg (5.7lbs) approx.
	Shipping Weight	3.7kg (8.2lbs) approx.
Accessories	Included	Power Cord
Specifications are subject to change without notice at www.kramerav.com

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VS 622DT

Default Parameters

RS-232
Baud Rate:		115,200
Data Bits:		8
Stop Bits:		1
Parity:		None
Command Format:		ASCII Protocol 3000
Example (Route input 1 to output 1):		#ROUTE 1,1,1
Ethernet
IP Address:	192.168.1.39	Default UDP Port #:	50000
Subnet mask:	255.255.0.0	Default TCP Port #:	5000
Default gateway:	192.168.0.1	Max. UDP ports:	70
		Max. TCP ports:	10
Maximum number of TCP connections is 70 with no Web client connection and 10 when Web client is connected.
Full Factory Reset
Front panel buttons:	Power off the device, press and hold the RESET button for 3 seconds while powering the device, and then release.
Protocol 3000:	“#FACTORY” command followed by #RESET command.
Web Pages:	In the Device Settings page, General tab, click Factory reset.
Amplifier Values
Amplifier output mode:	Lo-Z
Speaker output from:	OUT 1
Web pages Authentication
User name:	Admin	Password:	Admin

RS-232

Protocol 3000

The VS-622DT 6x2 HDMI/HDBT Audio Matrix Switcher can be operated using the Kramer Protocol 3000 serial commands. The command framing varies according to how you interface with the VS-622DT.

Generally, a basic video input switching command that routes a layer 1 video signal to HDMI out 1 from HDMI input 2 (ROUTE 1,1,2), is entered as follows:

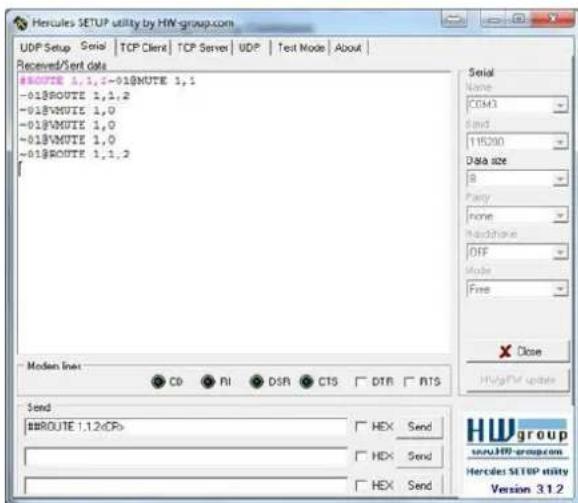

• Terminal communication software, such as Hercules:

The framing of the command varies according to the terminal communication software.

• K-Touch Builder (Kramer software):

• K-Config (Kramer configuration software):

All the examples provided in this section are based on using the K-Config software.

You can enter commands directly using terminal communication software (e.g., Hercules) by connecting a PC to the serial or Ethernet port on the VS-622DT. To enter press the Enter key ( is also sent but is ignored by the command parser).

Commands sent from various non-Kramer controllers (e.g., Crestron) may require special coding for some characters (such as, /X##). For more information, refer to your controller's documentation.

For more information about Protocol 3000 commands, see:

• Understanding Protocol 3000 on page 53.
• Kramer Protocol 3000 Syntax on page 54.
• Protocol 3000 Commands on page 54.

Understanding Protocol 3000

Protocol 3000 commands are structured according to the following:

• Command – A sequence of ASCII letters (A–Z, a–z and -). A command and its parameters must be separated by at least one space.
• Parameters – A sequence of alphanumeric ASCII characters (0–9, A–Z, a–z and some special characters for specific commands). Parameters are separated by commas.
• Message string – Every command entered as part of a message string begins with a message starting character and ends with a message closing character.

A string can contain more than one command. Commands are separated by a pipe (1) character.

- Message starting character:

• – For host command/query

• \~ – For device response

• Device address – K-NET Device ID followed by @ (optional, K-NET only)

- Query sign – ? follows some commands to define a query request

- Message closing character:

• CR – Carriage return for host messages (ASCII 13)
• CR LF – Carriage return for device messages (ASCII 13) and line-feed (ASCII 10)

- Command chain separator character – Multiple commands can be chained in the same string. Each command is delimited by a pipe character (1). When chaining commands, enter the message starting character and the message closing character only at the beginning and end of the string.

Spaces between parameters or command terms are ignored. Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain.

Kramer Protocol 3000 Syntax

The Kramer Protocol 3000 syntax uses the following delimiters:

• CR = Carriage return (ASCII 13 = 0x0D)
• L = Line feed (ASCII 10 = 0x0A)
• S P ≠ Space (ASCII 32 = 0x20)

Some commands have short name syntax in addition to long name syntax to enable faster typing. The response is always in long syntax.

The Protocol 3000 syntax is in the following format:

- Host Message Format:

Start	Address (optional)	Body	Delimiter
#	Device_id@	Message	CR

- Simple Command – Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SPParameter_1,Parameter_2,...	CR

- Command String – Formal syntax with command concatenation and addressing:

Start	Address	Body	Delimiter
#	Device_id@	Command_1Parameter1_1,Parameter1_2,...|Command_2Parameter2_1,Parameter2_2,...|Command_3Parameter3_1,Parameter3_2,...|...	CR

• Device Message Format:

Start	Address (optional)	Body	Delimiter
~	Device_id@	Message	CR LF

• Device Long Response – Echoing command:

Start	Address (optional)	Body	Delimiter
~	Device_id@	Command SP [Param1,Param2 ...] result	CR LF

Protocol 3000 Commands

This section includes the following commands:

• System Commands on page 55.
• EDID Handling Commands on page 67.
- Switching/Routing Commands on page 68.

• Audio Commands on page 72.
• Communication Commands on page 74.
• I/O Gateway Commands on page 80.
• Step-in Commands on page 86.

System Commands

Command	Description
#	Protocol handshaking
BUILD-DATE	Get device build date
FACTORY	Reset to factory default configuration
HELP	Get command list
MODEL	Get device model
PROT-VER	Get device protocol version
RESET	Reset device
SN	Get device serial number
VERSION	Get device firmware version
DISPLAY	Get output HPD status
HDCP-MOD	Set/get HDCP mode
HDCP-STAT	Get HDCP signal status
LOCK-FP	Get front panel lock state
NAME	Set/get machine (DNS) name
NAME-RST	Reset machine (DNS) name to factory default
SIGNAL?	Get input signal status
TIME	Set/get device time and date
TIME-LOC	Set/get local time offset from UTC/GMT
AV-SW-MODE	Get auto switch mode
BAUD	Set/get protocol serial baud rate
DPSW-STATUS	Get the DIP-switch status
FEATURE-LIST	Get feature state according to feature ID
PRIO	Get input priority

Functions		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
Notes
Validates the Protocol 3000 connection and gets the machine number.Step-in master products use this command to identify the availability of a device.

Notes

K-Config Example

“#”, 0x0D

BUILD-DATE

Functions		Permission	Transparency
Set:	-	-	-
Get:	BUILD-DATE?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device build date	#BUILD-DATE?CR
Response
~nn@BUILD-DATESPdateSPtimeCR LF
Parameters
date-Format:YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time-Format:hh:mm:ss where hh = hours, mm = minutes, ss = seconds
K-Config Example
"#BUILD-DATE?",0x0D

FACTORY

Functions		Permission	Transparency
Set:	FACTORY	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory default configuration	#FACTORYCR
Get:	-	-
Response
~nn@FACTORYSPOKCR LF
Notes
This command deletes all user data from the device. The deletion can take some time.Your device may require powering off and powering on for the changes to take effect.
K-Config Example
“#FACTORY”, 0x0D

HELP

Functions		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	#HELPCR

Response

Multi-line: ~nn@Device available protocol 3000 commands:CRLFcommand,SP command...CR LF

Parameters

COMMAND_NAME – name of a specific command

Notes

To get help for a specific command use: HELPSPCOMMAND_NAME CR LF

K-Config Example

“#HELP”, 0x0D

MODEL

Functions		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~nn@MODEISPmodel_nameCR LF
Parameters
model_name – String of up to 19 printable ASCII chars
Notes
This command identifies equipment connected to Step-in master products and notifies of identity changes to the connected equipment. The Matrix saves this data in memory to answer REMOTE-INFO requests.
K-Config Example
"#MODEL?", 0x0D

PROT-VER

Functions		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
version - XX.XX where X is a decimal digit
K-Config Example
"#PROT-VER?", 0x0D

RESET

Functions		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-

Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
~nn@RESET$POKCR LF
Notes
To reset the device, first send the #FACTORY command and then send #RESET.To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.
K-Config Example
"#RESET", 0x0D

SN

Functions		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device serial number	#SN?CR
Response
~nn@SNSPserial_numberCR LF
Parameters
serial_number-11 decimal digits, factory assigned
Notes
This device has a 14-digit serial number, only the last 11 digits are displayed.
K-Config Example
“#SN?",0x0D

VERSION

Functions		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get firmware version number	#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version - XX.XX.XXXX where the digit groups are: major.minor.build version
K-Config Example
"#VERSION?", 0x0D

DISPLAY

Functions		Permission	Transparency
Set:	-	-	-
Get	DISPLAY?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get output HPD status	#DISPLAY?SPout_idCR
Response
~nn@DISPLAYSPout_id,statusCR LF
Parameters
out_id-1 (Output 1), 2 (Output 2)status-HPD status according to signal validation: 0 (Off), 1 (On), 2 (On and all parameters are stable and valid)
Response Triggers
A response is sent to the com port from which the Get was received, after command execution and:After every change in output HPD status from On to Off (0)After every change in output HPD status from Off to On (1)After every change in output HPD status form Off to On and all parameters (new EDID, etc.) are stable and valid (2)
K-Config Example
Get the output HPD status of Output 1:"#DISPLAY? 1",0x0D

HDCP-MOD

Functions		Permission	Transparency
Set:	HDCP-MOD	Administrator	Public
Get	HDCP-MOD?	End User	Public
Description		Syntax
Set:	Set HDCP mode	#HDCP-MOD SP inp_id,mode CR
Get:	Get HDCP mode	#HDCP-MOD? SP inp_id CR
Response
Set/get: ~nn@HDCP-MOD SP inp_id,mode CR LF
Parameters
inp_id - input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6) mode - HDCP mode: 0 (HDCP Off), 1 (HDCP On)
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was received. Response is sent to all com ports after execution if HDCP-MOD was set by any other external control device (button press, device menu and similar) or HDCP mode changed.
Notes
Set HDCP working mode on the device input: HDCP supported - HDCP_ON (default) HDCP not supported - HDCP OFF HDCP supports changes following a detected sink - MIRROR OUTPUT
K-Config Example
Set the input HDCP-MODE of IN 1 to Off: "#HDCP-MOD 1,0",0x0D

HDCP-STAT

Functions		Permission	Transparency
Set:	-	-	-
Get	HDCP-STAT?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get HDCP signal status	#HDCP-STAT?SPstage,stage_idCR
Response
~nn@HDCP-STATSPstage,stage_id,statusCR LF
Parameters
stage-0 (input), 1 (output)stage_id-for input stage: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6);for output stage 1 (OUT 1), 2 (OUT 2)status-signal encryption On/Off status: 0 (HDCP Off), 1 (HDCP On)
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedResponse is sent to all com ports after execution if HDCP-STAT was set by any other external control device (button press, device menu and similar) or HDCP mode changed.
Notes
On output-sink status.On input-signal status.
K-Config Example
Get the output HDCP-STATUS of IN 1:"#HDCP-STAT? 0,1",0x0D

LOCK-FP

Functions		Permission	Transparency
Set:	LOCK-FP	End User	Public
Get	LOCK-FP?	End User	Public
Description		Syntax
Set:	Lock front panel	#LOCK-FPSPlock_modeCR
Get:	Get front panel lock state	#LOCK-FP?
Response
~nn@LOCK-FPSPlock_modeSPOKCR LF
Parameters
lock_mode - 0 (Off, unlock the front panel buttons), 1 (On, lock the front panel buttons)
K-Config Example
Unlock front panel:"#LOCK-FP 0", 0x0D

NAME

Functions		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAME SPmachine_name CR
Get:	Get machine (DNS) name	#NAME ?CR
Response
Set: ~nn@NAME SPmachine_name CR LF
Get: ~nn@NAME SPmachine_name CR LF
Parameters
machine_name - String of up to 14 alpha-numeric characters (can include hyphens but not at the beginning or end)
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on).
K-Config Example
Set the DNS name of the device to “room-442”: "#NAME room-442",0x0D

NAME-RST

Functions		Permission	Transparency
Set:	NAME-RST	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset machine (DNS) name to factory default	#NAME-RSTCR
Get:	-	-
Response
~nn@NAME-RSTSPOKCR LF
Notes
Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number
K-Config Example
Reset the machine name (S/N last digits are 0102):“#NAME-RST KRAMER_0102”, 0x0D

SIGNAL

Functions		Permission	Transparency
Set:	-	-	-
Get	SIGNAL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get input signal lock status	#SIGNAL?SPinp_idCR
Response
~nn@SIGNALSPinp_id,statusCR LF
Parameters
inp_id – input number: 1 (Input)status – signal status according to signal validation: 0 (Off), 1 (On)
Response Triggers
After execution, a response is sent to the com port from which the Get was receivedA response is sent after every change in input signal status from On to Off or from Off to On
K-Config Example
Get the input signal lock status of IN 1:“#SIGNAL? 1”,0x0D

TIME

Command Name		Permission	Transparency
Set:	TIME	Administrator	Public
Get:	TIME?	End User	Public
Description		Syntax
Set:	Set device time and date	#TIME SP day_of_week, date, time CR
Get:	Get device time and date	#TIME? CR
Response
~nn@TIME SP day_of_week, date, time CR LF
Parameters
day_of_week - one of {SUN, MON, TUE, WED, THU, FRI, SAT}date - format: DD-MM-YYYY.time - format: hh:mm:ss
Notes
The year must be 4 digits.The device does not validate the day of week from the date.Time format - 24 hoursDate format - Day, Month, Year
K-Config Example
Set device time and date to December 5, 2018 at 2:30pm:"#TIME MON 05-12-2018, 14:30:00", 0x0D

TIME-LOC

Command Name		Permission	Transparency
Set:	TIME-LOC	End User	Public
Get:	TIME-LOC?	End User	Public
Description		Syntax
Set:	Set local time offset from UTC/GMT	#TIME-LOCSPUTC_off,DayLightCR
Get:	Get local time offset from UTC/GMT	#TIME-LOC?CR
Response
~nn@TIME-LOCSPUTC_off,DayLightCR LF
Parameters
UTC_off - offset of device time from UTC/GMT (without daylight time correction) DayLight - 0 (no daylight-saving time), 1 (daylight saving time)
Notes
If the time server is configured, device time calculates by adding UTC_off to UTC time (that it got from the time server) + 1 hour if daylight savings time is in effect TIME command sets the device time without considering these settings
K-Config Example
Set local time offset to 3 with no daylight-saving time: "#TIME-LOC 3,0",0x0D

AV-SW-MODE

Command Name		Permission	Transparency
Set:	-	-	-
Get:	AV-SW-MODE?	End user	Public
Description		Syntax
Set:	-	-
Get:	Get input auto switch mode (per output)	#AV-SW-MODE?SPlayer,output_idCR
Response
~nn@AV-SW-MODESPlayer,output_id,modeCR LF
Parameters
layer-1 (video)output_id-for video layer: 0 (HDBT Out 1) 1 (HDMI Out 2)mode-0 (Manual), 1 (Priority switch), 2 (Last connected switch)
K-Config Example
Get the input audio switch mode for HDMI Out:"#AV-SW-MODE? 1,1",0x0D

BAUD

Functions		Permission	Transparency
Set:	BAUD	Administrator	Public
Get:	BAUD?	Administrator	Public
Description		Syntax
Set:	Set protocol serial port baud rate	#BAUDSPbaud_rateCR
Get:	Get protocol serial port baud rate (for current baud rate)	#BAUD?CR
Response
~nn@BAUDSPbaud_rateCR LF~nn@BAUDSPcurrent_baud_rateCR LF
Parameters
baud_rate-9600, 115200, else (new baud rate to set)current_baud_rate-9600, 115200, else (current protocol serial port baud rate)
Notes
The new defined baud rate is stored in the EEPROM and used when powering up Default baud rate is 115200 (on factory reset).Only works with devices supporting this command (if ERR 002 is returned, the default baud rate is used).
K-Config Example
Set the baud rate to 9600:“#BAUD 9600”, 0x0D

DPSW-STATUS

Command Name		Permission	Transparency
Set:	-	-	-
Get:	DPSW-STATUS?	End User	Public
Description		Syntax
Set:	-	-
Get :	Get the DIP-switch state	#DPSW-STATUS?SP dp_sw_idCR
Response
~nn@DPSW-STATUS?SP dp_sw_id, statusCR LF
Parameters
dp_sw_id-1 to 8 (num of DIP switches)status-0 (up), 1 (down)
K-Config Example
get the DIP-switch 2 status:"#DPSW-STATUS? 2", 0x0D

FEATURE-LIST

Functions		Permission	Transparency
Set:	-	-	-
Get:	FEATURE-LIST?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get feature state according to the feature ID	#FEATURE-LIST?SPidCR
Response
~nn@FEATURE-LISTSPid, enableCR LF
Parameters
id-1 (Maestro), 2 (Room controller) enable-0 (Disable), 1 (Enable)
Notes
This command is designed to be used by machines and not by users.
K-Config Example
Get the room controller feature state (for the room controller): "#FEATURE-LIST? 2", 0x0D

PRIO

Command Name		Permission	Transparency
Set:	-	-	-
Get	PRIO?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get input priority	#PRIO?SPinput_idCR
Response
~nn@PRIOSPinput_id,prioCR LF
Parameters
input_id-1 (HDBT IN 1) to 6 (INPUT 6)prio-assigned priority: 1 (Highest priority) to 6 (Lowest priority)
Response Triggers
After execution, response is sent to the com port from which the Set/Get was receivedAfter execution, response is sent to all com ports if PRIO was set by any other external control device (button press, device menu and similar)
Notes
The PRIO max value may vary for different devices
K-Config Example
Get INPUT 3 assigned priority:"#FEATURE-LIST? 3",0x0D

EDID Handling Commands

Additional EDID data functions can be performed via the VS-622DT web pages or a compatible EDID management application, such as Kramer EDID Designer (see www.kramerav.com/product/EDID%20Designer).

Command	Description
CPEDID	Copy EDID data from the output to the input EEPROM

CPEDID

Functions		Permission	Transparency
Set:	CPEDID	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Copy EDID data from the output to the input EEPROM	#CPEDIDSPsrc_type,src_id,dst_type,dest_bitmapCR
Get:	-	-

Response

~nn@CPEDIDSPsrc_type,src_id,dst_type,dest_bitmapCR LF

Parameters

src_type- EDID source type (usually output): 0 (Input), 1 (Output), 2 (Default EDID)

src_id-for input source: 1 (Input), for output source: 0 (Default EDID source), 1 (Output 1), 2 (Output 2)

dst_type- EDID destination type (usually input): 0 (input)

dest_bitmap-bitmap representing destination IDs. Format: XXXX...X, where X is hex digit. The binary form of every hex digit represents corresponding destinations. Setting '1' indicates that EDID data is copied to this destination. Setting '0' indicates that EDID data is not copied to this destination.

Response Triggers

Response is sent to the com port from which the Set was received (before execution)

Notes

Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)Example: bitmap 0x0013 means inputs 1, 2 and 5 are loaded with the new EDID.In this device, if the destination type is input (0), the bitmap size is 8 bit, for example bitmap 0x81 means the inputs 1 and 8 are loaded with the new EDID.

K-Config Example

Copy the EDID data from the Output 1 (EDID source) to the Input:“#CPEDID 1,1,0,0x1”,0x0D

Copy the EDID data from the default EDID source to the Input:“#CPEDID 2,0,0,0x1”,0x0D

Switching/Routing Commands

Command	Description
MTX-MODE	Get auto-switch mode
ROUTE	Set/get layer routing
REMOTE-INFO	Get connected Step-in module information
VID	Set/get video switch state

MTX-MODE

Command Name		Permission	Transparency
Set:	-	-	-
Get:	MTX-MODE?	End User	Public
Description		Syntax
Set:	-	-
Get :	Get auto-switch mode	#MTX-MODE?SPoutput_idCR
Response
~nn@MTX-MODESPoutput_id,modeCR
Parameters
output_id-1 (HDBT OUT 1), 2 (HDMI OUT 2)mode -0 (Manual), 1 (Auto priority), 2 (Auto last connected)
Response Triggers
After execution, a response is sent to the comm port from which the Set/Get was receivedAfter execution, a response is sent to all comm ports if MTX-MODE was set by any other external control device (button press, WEB, device menu and similar)
Notes
Not recommended for new devices
K-Config Example
Get the auto switch mode of HDMI Out:"#MTX-MODE? 1",0x0D

ROUTE

Command Name		Permission	Transparency
Set:	ROUTE	End User	Public
Get:	ROUTE?	End User	Public
Description		Syntax
Set:	Set layer routing	#ROUTE\SPlayer,dest,src\CR
Get:	Get layer routing	#ROUTE?\SPlayer,dest\CR
Response
~nn@ROUTE\SPlayer,dest,src\CR LF
Parameters
layer-1 (Video), 2 (Audio)dest-for Video: 1 (HDBT OUT 1), 2 (HDMI OUT 2), * (All), x (Disconnect);for Audio: 3 (Speaker output)src-for Video: Source ID: 1 (Input 1) to 6 (Input 6); for Audio: 1 (HDBT OUT 1), 2 (HDMI OUT 2)
Notes
This command replaces all other routing commands
K-Config Example
Set the remote input switching of video to HDBT OUT 1 from HDMI In 2:"#ROUTE 1,1,2",0x0D

REMOTE-INFO

Command Name	Permission	Transparency
Set:
Get:	REMOTE-INFO?	End User	Public
Description	Syntax
Set:
Get:	Get connected Step-in module info	#REMOTE-INFO?SPstage,stage_idCR
Response
Get: ~nn@REMOTE-INFO SP stage,stage_id,connected,model_name,curr_input,capabilities,num_of_inputs,num_of_ctl_btn,type1,type2...typeNCR LF
Parameters
stage-0 (input), stage_id-for inputs: 1 (Input 1), 2 (Input 2), 3 (Input 3), 4 (Input 4), 5 (Input 5), 6 (Input 6) connected-0 (Disconnected), 1 (Connected) model_name-model name string curr_input-1 to 6 (Input, currently chosen on step-in module) capabilities-1 (Supports Step-in), 0 (Does not support Step-in) num_of_inputs-number of inputs on step-in module num_of_ctl_btn-number of control buttons on step-in module type1,type2...typeN-input type (on step-in module): 0 (Undefined), 1 (DVI), 2 (HDMI), 3 (DisplayPort), 4 (HDBaseT), 5 (SDI), 6 (VGA), 7 (DGKat)
Notes
The GET command identifies input switching on Step-in clients The SET command is for remote input switching on Step-in clients (essentially via by the Web) This is a legacy command. New Step-in modules support the ROUTE command
K-Config Example
Get the remote info of the step-in device (DIP-30) that is connected to input 3: "#REMOTE-INFO 0,3",0x0D

VID

Command Name		Permission	Transparency
Set:	VID	End User	Public
Get:	VID?	End User	Public
Description		Syntax
Set:	Set video switch state	#VIDSPin>outCR
Get:	Get video switch state	#VID?SPoutCR
Response
Set: ~nn@VIDSPin>outCR LF
Get: ~nn@VIDSPin>outCR LF
Parameters
in - 1 (Input 1) 1 (Input 1), 2 (Input 2), 3 (Input 3), 4 (Input 4), 5 (Input 5), 6 (Input 6) or 0 (Disconnect output)> - connection character between in and out parametersout-1 (HDBT OUT 1), 2 (HDMI OUT 2), * (for all outputs)
Notes
The GET command identifies input switching on Step-in clientsThe SET command is for remote input switching on Step-in clients (essentially via by the Web)This is a legacy command. New Step-in modules support the ROUTE command
K-Config Example
Set the video switch state of INPUT 1 to HDBT OUT 1:“#VID 1>1”, 0x0D

Audio Commands

Command	Description
AUD-LVL	Set/get volume level
AUD-SWAP	Set/get audio output swap
MUTE	Set/get audio mute
AUD-HI-Z	Get Hi-Z status

AUD-LVL

Functions		Permission	Transparency
Set:	AUD-LVL	End User	Public
Get:	AUD-LVL?	End User	Public
Description		Syntax
Set:	Set volume level	#AUD-LVLSPstage,channel,volumeCR
Get:	Get volume level	#AUD-LVL?SPstage,channelCR
Response
~nn@AUD-LVLSPstage,channel,volumeCR LF
Parameters
stage-1 (For output processing)channel-1 (AUDIO OUT 1), 2 (AUDIO OUT 2), 3 (Power amp)volume-volume level s-80db to 10dB++ (increase current value by 1dB)-- (decrease current value by 1dB)
K-Config Example
Set AUDIO OUT 1 level to -50dB:“#AUD-LVL 1,2,-50”,0x0D

AUD-SWAP

Command Name		Permission	Transparency
Set:	AUD-SWAP	End User	Public
Get:	AUD-SWAP?	End User	Public
Description		Syntax
Set:	Set audio output swap	#AUD-SWAPSPswap_modeCR
Get:	Get audio output swap status	#AUD-SWAP?CR
Response
~nn@AUD-SWAPSPswap_modeCR LF
Parameters
swap_mode - 0 (OFF), 1 (ON)
K-Config Example
Swap outputs:"#AUD-SWAP 1", 0x0D

MUTE

Command Name		Permission	Transparency
Set:	MUTE	End User	Public
Get:	MUTE?	End User	Public
Description		Syntax
Set:	Set mute ON/OFF for audio output.	#MUTESPchannel,mute_modeCR
Get:	Get mute ON/OFF state for audio output.	#MUTE?SPchannelCRF
Response
Get: ~nn@MUTESPchannel,mute_modeCR LF
Parameters
channel-1 (HDBT OUT 1), 2 (HDMI OUT 2)mute_mode-mute the output: 0 (Off, unmute), 1 (On, mute)
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed.
Notes
Mutes the audio output.
K-Config Example
Mute the HDBT OUT 1 audio output:"#MUTE 1,1",0x0D

AUD-HI-Z

Functions		Permission	Transparency
Set:	AUD-HI-Z	End User	Public
Get	AUD-HI-Z?	End User	Public
Description		Syntax
Set:	Set High Z state	#AUD-HI-ZCRChannelSPHiZState,HiZVoltCR
Get:	Get High Z status	#AUD-HI-Z? 3CR
Response
~nn@AUD-HI-ZSPChannel,HiZState,HiZVoltCR LF
Parameters
Channel-3 (Power amp)HiZState-1 (Hi-Z state high), 0 (Hi-Z state low)HiZVolt-Hi-Z volt level: 0 (70 Volt), 1 (100 Volt), 0xff (Ignore). Optional, active only in high state
Notes
Active only when state is high. Ignore everything else.
K-Config Example
Set the line level output to Hi-Z and 70V:“#AUD-HI-Z 2,1,0”,0x0D

Communication Commands

Command	Description
BEACON-INFO	Get beacon information
ETH-PORT	Set/get Ethernet port protocol
NET-CONFIG	Set/get a network configuration.
NET-DHCP	Set/get DHCP mode
NET-GATE	Set/get gateway IP
NET-IP	Set/get IP address
NET-MAC	Get MAC address
NET-MASK	Set/get subnet mask
TIME-SRV	Set/get time server settings
UART	Set/get com port configuration

BEACON-INFO

Functions		Permission	Transparency
Set:	-	-	-
Get:	BEACON - INFO?	End User	Public
Description		Syntax
Set:	-		-
Get:	Get beacon information, including IP address, UDP control port, TCP control port, MAC address, model, name		#BEACON - INFO?SPport_idCR
Response
~nn@BEACON - INFOSPport_id, ip_string, udp_port, tcp_port, mac_address, model, name CR LF
Parameters
port_id - ID of the Ethernet port, 0 (wired Ethernet connection). 1 and higher (for future use).ip_string - dot-separated representation of the IP addressudp_port - UDP control porttcp_port - TCP control portmac_address - dash-separated MAC addressmodel - device modelname - device name
Response Triggers
After execution, notification is sent containing beacon information.
Notes
There is no Set command.The port_id parameter is not necessary and can be omitted.
Example
Get beacon information:#BEACON - INFO?<CR>

ETH-PORT

Functions		Permission	Transparency
Set:	ETH-PORT	Administrator	Public
Get:	ETH-PORT?	End User	Public
Description		Syntax
Set:	Set Ethernet port protocol	#ETH-PORTSPportType,ETHPortCR
Get:	Get Ethernet port protocol	#ETH-PORT?SPportTypeCR
Response
~nn@ETH-PORTSPportType,ETHPortCR LF
Parameters
portType – string of 3 letters indicating the port type: TCP, UDPETHPort – TCP / UDP port number: 0-65565
Notes
If the port number you enter is already in use, an error is returned.The port number must be within the following range: 0-(2^16-1).
K-Config Example
Set the Ethernet port protocol for TCP to port 12457:“#ETH-PORT TCP,12457”,0x0D

NET-CONFIG

Functions		Permission	Transparency
Set:	NET-CONFIG	End User	Public
Get:	NET-CONFIG?	End User	Public
Description		Syntax
Set:	Set a network configuration.	#NET-CONFIG SPid,ip,net_mask,gateway CR LF
Get:	Get a network configuration.	#NET-CONFIG? SPid CR LF
Response
Get: ~nn@NET-CONFIG SPid,ip,net_mask,gateway CR LF
Parameters
id - Ethernet connection ID number: 0ip - network IP address, in the following format: xxx.xxx.xxx.xxxnet_mask - network mask, in the following format: xxx.xxx.xxx.xxxgateway - network gateway, in the following format: xxx.xxx.xxx.xxx
Example
Set the device network parameters to IP address 192.168.113.10, net mask 255.255.0.0, and gateway 192.168.0.1:#NET-CONFIG 0,192.168.113.10,255.255.0.0,192.168.0.1

NET-DHCP

Functions		Permission	Transparency
Set:	NET-DHCP	Administrator	Public
Get:	NET-DHCP?	End User	Public
Description		Syntax
Set:	Set DHCP mode	#NET-DHCP SP mode CR
Get:	Get DHCP mode	#NET-DHCP? CR
Response
~nn@NET-DHCP SP mode CR LF
Parameters
mode - 0 (do not use DHCP. Use the IP address set by the factory or the NET-IP command), 1 (try to use DHCP. If unavailable, use the IP address set by the factory or the NET-IP command)
Notes
Connecting Ethernet to devices with DHCP may take more time in some networks.To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the NAME command. You can also get an assigned IP by direct connection to RS-232 protocol port, if available.Consult your network administrator for correct settings.
K-Config Example
Enable DHCP mode, if available:"#NET-DHCP 1", 0x0D

NET-GATE

Functions		Permission	Transparency
Set:	NET-GATE	Administrator	Public
Get:	NET-GATE?	End User	Public
Description		Syntax
Set:	Set gateway IP	#NET-GATE SP ip_address CR
Get:	Get gateway IP	#NET-GATE? CR
Response
~nn@NET-GATE SP ip_address CR LF
Parameters
ip_address – gateway IP address, in the following format: xxx.xxx.xxx.xxx
Notes
A network gateway connects the device via another network, possibly over the Internet. Be careful of security problems. Consult your network administrator for correct settings.
K-Config Example
Set the gateway IP address to 192.168.0.1:“#NET-GATE 192.168.000.001”,0x0D

NET-IP

Functions		Permission	Transparency
Set:	NET-IP	Administrator	Public
Get:	NET-IP?	End User	Public
Description		Syntax
Set:	Set IP address	#NET-IPSPip_addressCR
Get:	Get IP address	#NET-IP?CR
Response
~nn@NET-IPSPip_addressCR LF
Parameters
ip_address – IP address, in the following format: xxx.xxx.xxx.xxx
Notes
Consult your network administrator for correct settings.
K-Config Example
Set the IP address to 192.168.1.39:“#NET-IP 192.168.001.039”, 0x0D

NET-MAC

Functions		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCR LF
Parameters
mac_address – unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit
K-Config Example
“#NET-MAC?”, 0x0D

NET-MASK

Functions		Permission	Transparency
Set:	NET-MASK	Administrator	Public
Get:	NET-MASK?	End User	Public
Description		Syntax
Set:	Set subnet mask	#NET-MASKSPnet_maskCR
Get:	Get subnet mask	#NET-MASK?CR
Response
~nn@NET-MASKSPnet_maskCR LF
Parameters
net_mask – format: xxx.xxx.xxx.xxx
Response Triggers
The subnet mask limits the Ethernet connection within the local network.Consult your network administrator for correct settings.
K-Config Example
Set the subnet mask to 255.255.0.0:"#NET-MASK 255.255.000.000",0x0D

TIME-SRV

Functions		Permission	Transparency
Set:	TIME-SRV	Administrator	Public
Get:	TIME-SRV?	End User	Public
Description		Syntax
Set:	Set time server	#TIME-SRVSPmode, time_server, time_server_sync_hourCR
Get:	Get time server	#TIME-SRV?CR
Response
~nn@TIME-SRVSPmode, time_server, time_server_sync_hour, server_statusCR LF
Parameters
mode-0 (OFF), 1 (ON)time_server-time server IP address or hostname. IP must be, in the following format:xxx.xxx.xxx.xxxtime_server_sync_hour-not in use:0server_status-0 (OFF), 1 (ON)
Notes
This command sets up the NTP server.
Example
Set time server with IP address of 128.138.140.44 to ON:#TIME-SRV 1, 128.138.140.44, 0, 1

UART

Functions		Permission	Transparency
Set:	UART	Administrator	Public
Get:	UART?	End User	Public
Description		Syntax
Set:	Set port tunneling UART configuration	#UARTSPbaud_rate, data_bits, parity, stop_bitsCR
Get:	Get port tunneling UART configuration	#UART?SP
Response
~nn@UARTSPbaud_rate, data_bits, parity, stop_bitsSPOKCR LF
Parameters
baude_rate – 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200data_bits – 5 to 8 data bitsparity – none, odd, even, mark, space, n, o, e, m, sstop_bits – 1, 2 stop bits
K-Config Example
Set baud rate to 9600, 8 data bits, parity to none and stop bit to 1:“#UART 9600, 8, node, 1”, 0x0D

I/O Gateway Commands

Command	Description
COM-ROUTE	Set/get tunneling port routing
ETH-TUNNEL	Get opened tunnel parameters
FV	Set/get tunneling mode
GPIO-CFG	Set/get HW GPIO configuration
GPIO-STATE	Set/get HW GPIO state
GPIO-STEP	Set/get HW GPIO step
GPIO-THR	Set/get HW GPIO threshold voltage
GPIO-VOLT	Get HW GPIO voltage level
IR-SND	Send IR command to port
IR-STOP	Send IR stop command to port
RELAY-STATE	Set/get relay state

COM-ROUTE

Command Name		Permission	Transparency
Set:	-	-	-
Get:	COM-ROUTE?	End User	Internal
Description		Syntax
Set:	Set tunneling port routing	#COM-ROUTESPCOM_Num,portType,ETHPort,ETH_rep_en,TCP_keep_alive_timingCR
Get:	Get tunneling port routing	#COM-ROUTE?SPCOM_Num CR
Response
~nn@COM-ROUTESPCOM_Num,portType,ETHPort,ETH_rep_en,TCP_keep_alive_timingCR LF
Parameters
COM_Num-1 (DATA RS-232), 2 (HDBT OUT 1), * (get all route tunnels) portType-1 (UDP), 2 (TCP) ETHPort-TCP/UDP port number ETH_rep_en-1 (COM port sends replies to new clients), 0 (COM port does not send replies to new clients) TCP_keep_alive_timing-0 to 3600 seconds - every x seconds the device sends an empty string to TCP client "/0")
Notes
This command sets tunneling port routing. Every com port can send or receive data from the ETH port. All com ports can be configured to the same ETH port.
K-Config Example
Set tunnel port 1 routing: "#COM-ROUTE 1,2,5001,0,40",0x0D

ETH-TUNNEL?

Command Name		Permission	Transparency
Set:	-	-	-
Get:	ETH-TUNNEL?	Administrator	Internal
Description		Syntax
Set:
Get:	Get open tunnel parameters	#ETH-TUNNEL?SP TunnelIdCR
Response
~nn@ETH-TUNNELSP TunnelId, ComNum, PortType, EthPort, EthIp, RemotPort, EthRepEn, Wired CR LF
Parameters
TunnelId-1 (RS-232), 2 (HDBT OUT 1), * (get all open tunnels)ComNum-UART numberportType-TCP, UDPETHPort-TCP/UDP port numberEthIp-client IP addressRemotPort-remote port numberEthRepEn-1 (COM port sends replies to new clients), 0 (COM port does not send replies to new clients)Wired-1 (wired connection), 0 (not a wired connection)
K-Config Example
Set baud rate to 9600, 8 data bits, parity to none and stop bit to 1:“#ETH-TUNNEL? *”, 0x0D

FV

Command Name		Permission	Transparency
Set:	FV	End User	Public
Get:	FV?	End User	Public
Description		Syntax
Set:	Set data tunneling mode	#FVSPoutput,modeCR
Get:	Get data tunneling mode	#FV?SPoutputCR
Response
~nn@FVSP1,modeCR LF
Parameters
output-1 (HDBT OUT 1)mode-0 (data connected to MCU, direct control), 1 (Data follows video)
K-Config Example
Set set data tunneling to follow video:"#FV 1,1",0x0D

GPIO-CFG

Command Name		Permission	Transparency
Set:	GPIO-CFG	End User	Public
Get:	GPIO-CFG?	End User	Public
Description		Syntax
Set:	Set HW GPIO configuration	#GPIO-CFGSPHwGpioNumber, HwGpioType, HwGpioDir, PullupCR
Get:	Get HW GPIO configuration	#GPIO-CFG?SPHwGpioNumberCR
Response
~nn@GPIO-CFGSPHwGpioNum, HwGpioType, HwGpioDirCR LF
Parameters
HwGpioNum-1 (GPIO 1), 2 (GPIO 2)HwGpioType - hardware GPIO type: 0 (Analog), 1 (Digital)HwGpioDir - hardware GPIO direction: 0 (Input), 1 (Output)Pullup - enable/disable pull-up: 0 (Disable), 1 (Enable)
K-Config Example
Set GPIO 1 configuration to digital in with pull-up:"#GPIO-CONFIG 1,1,0,1", 0x0D

GPIO-STATE

Command Name		Permission	Transparency
Set:	GPIO-STATE	End User	Public
Get:	GPIO-STATE?	End User	Public
Description		Syntax
Set:	Set HW GPIO state	#GPIO-STATE SP HwGpioNumber, HwGpioState CR
Get:	Get HW GPIO state	#GPIO-STATE? SP HwGpioNumber CR
Response
~nn@GPIO-STATE SP HwGpioNum, HwGpioState CR LF
Parameters
HwGpioNum - 1 (GPIO 1), 2 (GPIO 2)HwGpioState - hardware GPIO state: 0 (Low), 1 (High) See note below
Notes
GPIO-STATE? can only be sent in digital out mode and the answer is 0=Low, 1=High.In all other modes an error message is sent.The device uses this command to notify the user of any change regarding the step and voltage in:In digital mode the answer is 0 (low), 1 (high)In analog mode the answer is 0 to 100
K-Config Example
Set GPIO 2 to High:"#GPIO-STATE 2,1",0x0D

GPIO-STEP

Command Name		Permission	Transparency
Set:	GPIO-STEP	End User	Public
Get:	GPIO-STEP?	End User	Public
Description		Syntax
Set:	Set HW GPIO step	#GPIO-STEP SP HwGpioNumber,StepCR
Get:	Get HW GPIO step	#GPIO-STEP? SP HwGpioNumber CR
Response
~nn@GPIO-STEP SP HwGpioNumber,NumOfStep,CurrentStep CR LF
Parameters
HwGpioNum - 1 (GPIO 1), 2 (GPIO 2) NumOfStep - for Digital In GPIO: 0 (Low), 1 (High) CurrentStep - the actual step depending on the measured voltage
Notes
In Digital In mode the response is 2 In Analog In mode the response is 1 to 100 In other modes an error is returned.
K-Config Example
Set GPIO 2 (set to Analog In) configuration step to 38mV: "#GPIO-STEP 2,38",0x0D

GPIO-THR

Command Name		Permission	Transparency
Set:	GPIO-THR	End User	Public
Get:	GPIO-THR?	End User	Public
Description		Syntax
Set:	Set HW GPIO voltage levels	#GPIO-THR SP HwGpioNumber, LowLevel, HighLevel CR
Get:	Get HW GPIO voltage levels	#GPIO-THR? SP HwGpioNumber CR
Response
~nn@GPIO-THR SP HwGpioNumber, LowLevel, HighLevel CR LF
Parameters
HwGpioNum - 1 (GPIO 1), 2 (GPIO 2)LowLevel - voltage 500 to 28000 millivoltsHighLevel - voltage 2000 to 30000 millivolts
K-Config Example
Set GPIO 2 to a low level of 800mV and a high level of 2200mV:“#GPIO-THR 2,800,2200”, 0x0D

GPIO-VOLT?

Command Name		Permission	Transparency
Set:	-	-	-
Get:	GPIO-VOLT?	End User	Public
Description		Syntax
Set:
Get:	Get voltage levels of HW GPIO	#GPIO-VOLT?SPHwGpioNumberCR
Response
~nn@GPIO-VOLTSPHwGpioNumber, Voltage CR LF
Parameters
HwGpioNum - 1 (GPIO 1), 2 (GPIO 2)Voltage - voltage 0 to 30000 millivolts
Notes
This command is not available in digital out mode
K-Config Example
Get GPIO 1 voltage:"#GPIO-VOLT? 1", 0x0D

IR-SND

Command Name		Permission	Transparency
Set:	IR-SND	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Send IR command to port	#IR-SNDSPPortNum,Cmdid,CmdName,Repeat,TotalPackages,PackageNum,CR
Get:	-	-
Response
~nn@IR-SNDSPPortNum,Cmdid,CmdName,StatusCR LF
Parameters
Port_Num-1 (IR port 1), 2 (IR port 2), 3 (IR port 3), 4 (IR port 4), * (broadcasts to all ports)Cmd_id- serial number of command for flow control and response commands from deviceCmdName-command name (length limit 15 chars)Repeat-number of times the IR command is transmitted (limited to 50; repeats >50 are truncated to 50), default = 1Total_packages-number of messages the original command was divided into, 1 (Default)Package_num-chunk serial number (only valid when Total_packages>1)Pronto command-Pronto format command (in HEX format, no leading zeros, no '0x' prefix)Status-0 (Sent), 1 (Stop), 2 (Done), 3 (Busy), 4 (Wrong Parameter), 5 (Nothing to Stop), 6 (Start), 7 (Timeout), 8 (Error)
K-Config Example
Send IR command via IR Port 2 (the command number is set to 3 it should be repeated 4 times the total packages is 5 and package 2 is sent:"#IR-SEND 2,3, command name,4,5,2,pronto format",0x0D

IR-STOP

Command Name		Permission	Transparency
Set:	IR-STOP	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Send IR stop command to port	#IR-STOPSPPortNum,Cmdid,CmdNameCR
Get:	-	-
Response
~nn@IR-STOPSPPortNum,Cmdid,CmdName,StatusCR LF
Parameters
Port_Num-1 (IR port 1), 2 (IR port 2), 3 (IR port 3), 4 (IR port 4), * (broadcasts to all ports)Cmd_id- serial number of command for flow control and response commands from deviceCommandName-a string, the alias of the IR command. The controlling device is responsible for sending the correct nameStatus-0 (Sent), 1 (Stop), 2 (Done), 3 (Busy), 4 (Wrong Parameter), 5 (Nothing to Stop), 6 (Start), 7 (Timeout), 8 (Error)
K-Config Example
Send IR stop command to IR Port 2:"#IR-STOP 2,1,power",0x0D

RELAY-STATE

Command Name		Permission	Transparency
Set:	RELAY-STATE	End User	Public
Get:	RELAY-STATE?	End User	Public
Description		Syntax
Set:	Set relay state	#RELAY-STATESPRelayNumber,RelayStateCR
Get:	Get relay state	#RELAY-STATE?SPRelayNumberCR
Response
~nn@RELAY-STATESPRelayNum,RelayStateCR LF
Parameters
RelayNumber-1 (Relay 1), 2 (Relay 2)RelayState-0 (open), 1 (close)
K-Config Example
Set relay 2 to closed:"#RELAY-STATE 2,1",0x0D

Step-in Commands

Command	Description
PROG-ACTION	Set/get step-in button action list

PROG-ACTION

Command Name		Permission	Transparency
Set:	PROG-ACTION	End user	Public
Get:	PROG-ACTION?	End user	Public
Description		Syntax
Set:	Set step-in button action bitmap	#PROG-ACTIONSPType,port_id,button_id,actions_bitmapCR
Get:	Get step-in button action bitmap	#PROG-ACTIONS?SPport_type,port_id,button_idCR
Response
~nn@PROG-ACTIONSPORT_type,port_id,button_id,actions_bitmapCR LF
Parameters
port_type-0 (input)port_id-1 (Input 1), 1 (Input 1), 2 (Input 2), 3 (Input 3), 4 (Input 4), 5 (Input 5), 6 (Input 6)button_id-external programmable button ID (the Step-in button number on the slave device)actions_bitmap-bitmap representing actions to perform after receiving button_id. format:XXXX...X, where X is a hex digit. The binary form of every hex digit represents actions from the tab.Setting '1' says that the corresponding action must be executed: 0 (echo controller), 1 (step-inHDBT), 2 (step-in HDMI)
Notes
Programs matrix action as a response for external event (programmable button pressed)
K-Config Example
Set step-in button actions on input 3:"#PROG-ACTION 0,3,1,0x07",0x0D

The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates; all Kramer VIA accessories, adapters, tags, and dongles are covered by a standard one (1) year warranty.

2. Kramer fiber optic cables, adapter-size fiber optic extenders, pluggable optical modules, active cables, cable retractors, ring mounted adapters, portable power chargers, Kramer speakers, and Kramer touch panels are all covered by a standard one (1) year warranty.

3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product. If a direct or similar replacement product is supplied, the original product's end warranty date remains unchanged and is transferred to the replacement product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

P/N:

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. All brand names, product names, and trademarks are the property of their respective owners.
