USER MANUAL SHS-N251 ALPINE

Dual Source Mobile Wireless Headphone System

- User's Manual

Please read this manual to maximize your enjoyment of the outstanding capabilities of this equipment. Retain this manual for future reference.

Line drawing of two headsets and a speaker stand (no text or symbols)

INTRODUCTION

CONGRATULATIONS on your purchase of the state-of-the-art, single source Mobile Wireless Headphone System. This system frees you from the tangle of headphone wires and lets you enjoy movies, video games or T.V. without the tangle of cables around you. To ensure the best performance of your system, please read this manual carefully.

SPECIAL FEATURES

-1 Dual Source

• E.B.D. (Extended Bass Driver)

-UAutomatic Level Control prevents input signal overloading.

-Uses high frequency infrared light to assure a clean signal for clear

reception

-1Easy-fit, adjustable headband

-Opti-angle, dual source transmitter

-Independent source selection

•Automatic Power OFF - (After a few minlues without a signal source.

the power to the headphones will automatically turn itself OFF.

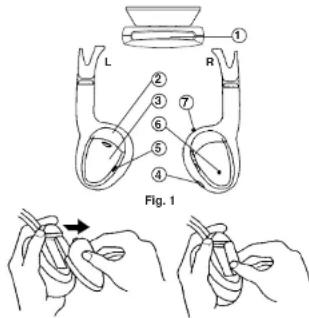

EXPLANATION OF CONTROLS (flq.1)

Infrared Transmitter

10 INFRARED EMITTING LEDs

JLL Transmits signal to headphones

JLLPermits connection to two stereo sources, providing simultaneous

transmission of both stereo signals

Headphone Receivers

2) INFRARED SENSORS

I Receive signal from the transmitter

3) BATTERY COVER

4) VOLUME CONTROL

5) POWER SWITCH

6) POWER INDICATOR LED

7) SOURCE A/B SWITCH

BATTERY INSTALLATION (fig. 2)

13) Place two AA batteries into the battery compartment of the

1) Place two red batteries into the battery compartment of the Headphones(s), making sure that the battery priority is correct.

Hedaphriscos(a), making sure that the battery polarity is critical

CONTENTS

2 - Dual Source, Headphones (SHS-N201) + 1 - IR Transmitter

4-AAA

1 - User's Manual

1 - Power/Source A Connector, 1 - Source B Connector

2 ea - Mounting Screws and Mounting Screw Covers

NOTE: This system and the dual source, SHS-N201 headphone is not compatible with the single source headphone, SHS-N101.

OPERATION

Please Read Carefully to Prevent Damage to the Headphones or your Ears:

WARNING: Before switching between channels A&B, remove head phones and turn down the volume to its lowest setting. It is possible that the signal of one channel could be louder than the other. 1) Be sure batteries are properly installed in the headphones.

1). Be sure batteries are properly installed in the headphones 2). Turn the headphone volume completely down before placing it on your cars and turning on the power.

Turn on the headphone power and adjust the headphone volume to a comfortable level (You can increase the audio source volume if needed).

Fig. 2

WARNING

Failure to heed the following instructions can result in serious injury or death.

THE DRIVER MUST NOT USE HEADPHONES WHILE DRIVING. This headphone system is designed for use by the vehicle's passengers only. Use of headphones while driving can inhibit the driver's ability to hear emergency vehicles and other warnings. This can result in an accident causing serious injuries or death.

VIDEO PRODUCTS MUST BE INSTALLED SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS PARKED It is dangerous (and illegal in many states) for the driver to watch the TV/video while driving. If the product is not installed correctly, the TV/Video can cause a distraction, causing the driver to lock away from the road ahead. This could result in an accident and serious injuries or death to the driver and passengers.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP SMALL OBJECTS SUCH AS BATTERIES OR SCREWS OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. If swallowed, consult a physician immediately. DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, fire or electric shock.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS. Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE Doing so may result in fire of electric shock.

DO NOT INSTALL THE TRANSMITTER NEAR THE PASSENGER SEAT AIR BAG. If the unit is not installed correctly the air bag may not function correctly and when triggered the air bag may cause the monitor to spring upwards causing an accident and injuries.

DO NOT BLOCK VENTS OR RADIATOR PANELS. Doing so may cause heat to build up inside and may result in fire.

CAUTION

Failure to heed the following instructions can result in injury or property damage.

DO NOT LEAVE THE HEADPHONES WHERE IT CAN BE EXPOSED TO EXTREMELY HIGH TEMPERATURES (SUCH AS DIRECT SUNLIGHT) Longly exposure to extremely high temperatures, can cause the plastic to pollen and possibly deform.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS. The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE. Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber gromnet to prevent the wire's insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST. Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

ALPINE ELECTRONICS LIMITED WARRANTY

ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or Alpine at one of the telephone numbers listed below.

This Warranty covers Car Audio/Visual Products and Related Accessories ("the product"). Products purchased the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

LENGTH OF WARRANTY:

This Warranty is in effect for one year from the date of the first consumer purchase.

LIFETIME TAPE HEAD WARRANTY:

All Alpine Car Audio analog tape heads excluding Video tape heads are warranted for life against manufacturing defects causing failure.

WHO IS COVERED:

This Warranty only covers the original purchaser of the product who must reside in the United States, Puerto Rico or Canada.

WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts and labor) in the product.

WHAT IS NOT COVERED:

This Warranty does not cover the following:

1) Damage occurring during shipment of the product to Alpine for repair (claims must be presented to the carrier).

2) Damage caused by accident, abuse, negligence, misuse, improper connections, improper operation or failure to follow instructions contained in the Owner's manual.

30 Damage caused by act of God, including without limitation, earthquake, fire, flood, storms or other acts of nature.

40 Any cost or expense related to the removal or reinstallation of the product

50 Service performed by an unauthorized person, company or association.

6) Any product which has the serial number defaced, altered or removed.

7) Any product which has been adjusted, altered or modified without Alpine's consent.

8) Any product not distributed by Alpine within the United States, Puerto Rico or Canada.

90 Any product not purchased from an Authorized Alpine Dealer. 10 Any product that has been determined to contain an excessive amount of dust or dirt and any product that contains other contaminants including liquid or foreign objects.

HOW TO OBTAIN WARRANTY SERVICE:

You are responsible for delivery of the product to an Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.

2) You should provide a detailed description of the problem(s) for which service is required.

50You must supply proof of your purchase of the product 40You must package the product securely to avoid damage during shipment.

HOW WE LIMIT IMPLIED WARRANTIES:

ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

HOW WE EXCLUDE CERTAIN DAMAGES

ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE

ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM

"CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS. (HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY:

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

HOW TO CONTACT CUSTOMER SERVICE:

Should the product require service, please call the following number for your nearest Authorized Alpine Service Center. 1-800-ALPINE-1 (1-600-257-4631)

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radioc communications.

PRINTED IN CHINA

© Copyright 2000
