SLKSC17YL - Toy SereneLife - Free user manual and instructions

Product Type	Kids Kick Scooter
Brand	SereneLife
Model	SLKSC17YL
Color	Yellow
Deck Material	Aluminum
Handlebar Height	Adjustable from 68 cm to 82 cm
Wheel Size	Front: 120 mm, Rear: 100 mm
Wheel Material	PU (Polyurethane)
Bearing Type	ABEC-5
Brake System	Rear foot brake
Weight Capacity	50 kg (110 lbs)
Product Weight	2.5 kg (5.5 lbs)
Recommended Age	3 to 8 years
Foldable	Yes, with quick folding mechanism
Handlebar Grip	Foam grip for comfort
Assembly Required	Yes, includes all necessary tools
Safety Features	Non-slip deck, reflective stickers
Cleaning Instructions	Wipe with a damp cloth; avoid abrasive cleaners
Maintenance	Regularly check and tighten bolts; keep wheels clean
Repairability	Replacement parts available (handlebars, wheels, brakes)
Power Source	Manual (no batteries required)

Frequently Asked Questions - SLKSC17YL SereneLife

What age is the SereneLife SLKSC17YL scooter suitable for?

The scooter is recommended for children aged 3 to 8 years.

What is the maximum weight limit for this scooter?

The maximum weight capacity is 50 kg (110 lbs).

Is the handlebar adjustable?

Yes, the handlebar height can be adjusted from 68 cm to 82 cm to accommodate growing children.

Does the scooter fold for storage?

Yes, it features a quick folding mechanism for easy storage and portability.

What type of wheels does it have?

It has PU wheels (polyurethane) with front wheel size 120 mm and rear 100 mm, providing a smooth ride.

How do I clean the scooter?

Wipe the scooter with a damp cloth. Do not use abrasive cleaners or submerge in water.

Is assembly required?

Yes, some assembly is required. The necessary tools are included, and instructions are provided in the manual.

What safety gear should my child wear?

We recommend always wearing a helmet, knee pads, and elbow pads while riding.

Are replacement parts available?

Yes, replacement parts such as handlebars, wheels, and brakes can be purchased separately.

How do I maintain the scooter?

Regularly tighten all bolts and screws, lubricate bearings if needed, and keep wheels free of debris.

USER MANUAL SLKSC17YL SereneLife

3-Wheel Foldable Kids Scooter

USER GUIDE

Features:

• Kid Kick Scooter Fun
  • Built-in LED Wheel Lights
• Lean-to-Steer Technology
  • Lightweight, Compact & Portable
• Adjustable Handlebar
• Rear Foot Brake
• Wide Deck with Anti-Slip Surface
• Easy to Assemble
• Adjustable T-Bar Handlebar Height
• Soft TPE Handle Grip
• Multi-Wheeled Scooter Stability
  • Lab Tested & Safety Certified
• Indoor/Outdoor Use
• Suitable for Ages 3+
• Fun for Kids: Small Children

- Long-Lasting, Super Smooth Gliding PU Wheels

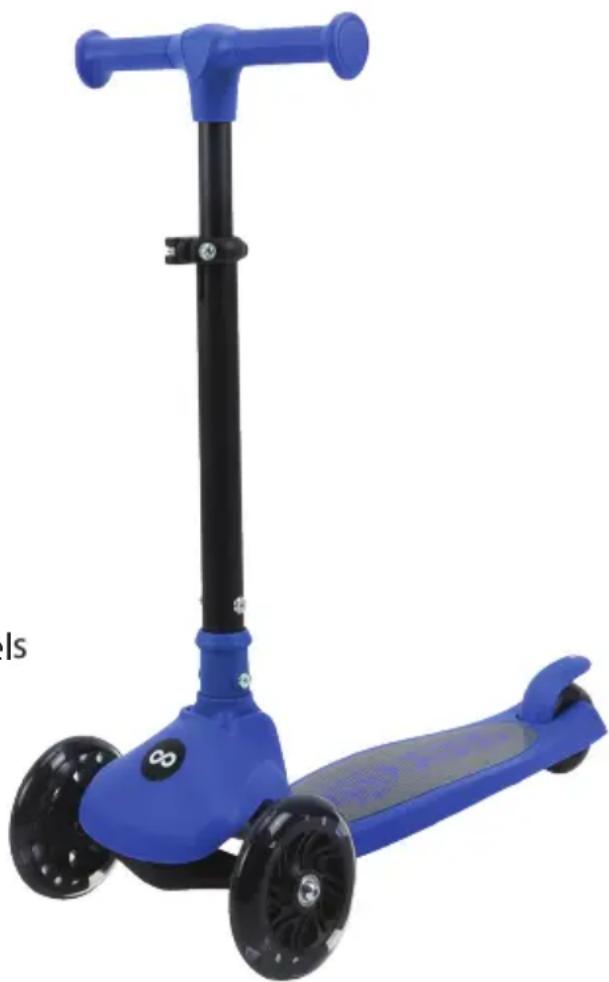

What's in the Box:

- Foldable Kid Kick Scooter • PE Bag

Blue and black toy scooter with wheels and a handle, no visible text or symbols

Construction Materials:

• Aluminum Metal + Nylon Engineered PP Frame
- Handlebar: Aluminum + TPE
- Tube: Aluminum + Steel
- Folding Part: Nylon
- Wheel Type/Wheel Material: High-quality Engineered Polyurethane

Technical Specs:

• Front Wheels: PU 4.72" x 0.94"-inches with Flash
• Rear Wheels: PU 3.15" x 1.18"-inches with Rear Brake
• Handlebar Height Setting: 24.40", 26.37", 28.34"-inches
• Wheel Size Diameter: 120mm Front, 80mm Rear
  • Recommended Age: 3 Years and Up
  • Weight Capacity: Up to 110 lbs.
• Total Unfold Scooter Size (L x W x H): 21.65" x 10.23" x 24.40"-28.34"-inches

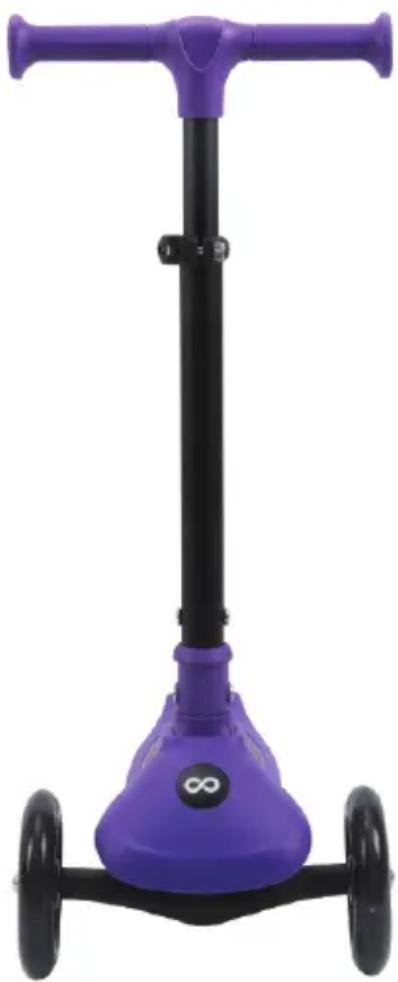

Purple and black toy scooter with a black body and three wheels (no text or symbols visible)

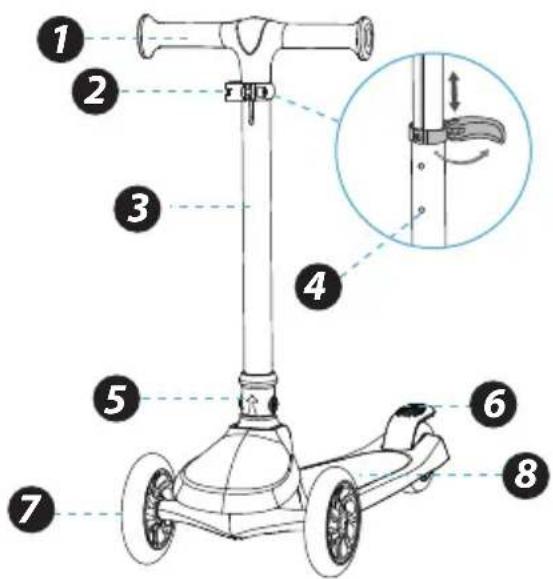

Product Parts

1. Handle Bar
2. Fast Release Main Lock
3. Tube
4. Sub-Lock
5. Folding Mechanism
6. Brake
7. Wheel
8. Deck

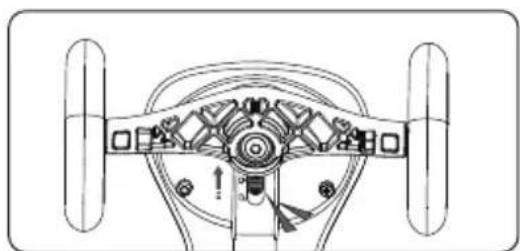

Bottom Lock Button Usage

Technical diagram of a mechanical assembly with gears and levers (no text or labels)

Lock the Wheel:

Push up the bottom lock button to lock the wheels.

Technical line drawing of a mechanical component with no visible text or symbols

Unlock the Wheel:

Push down on the bottom lock button to unlock the wheels.

Folding-Sliding Mode

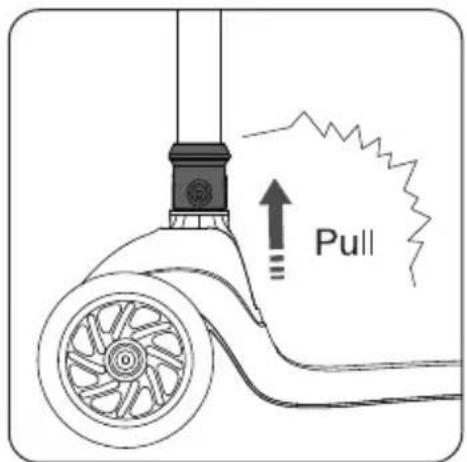

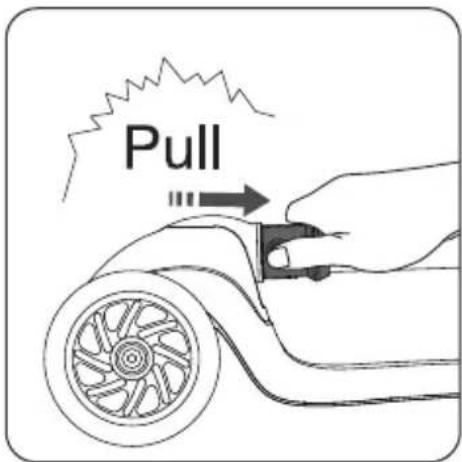

Pull up the folding mechanism towards the rear of the scooter.

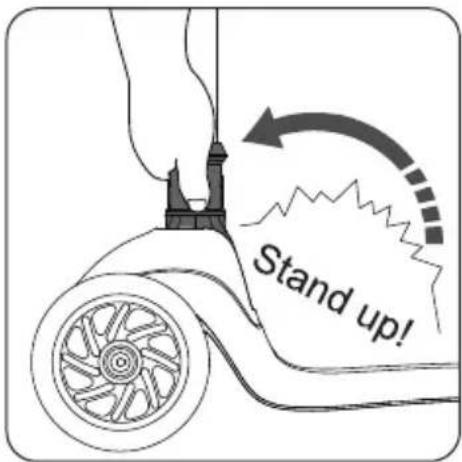

Pull up the tube. Pull up the folding mechanism and the tube towards the front of the scooter.

Red and black electric scooter with wheels and a black handle (no text or symbols visible)

Finished sliding mode.

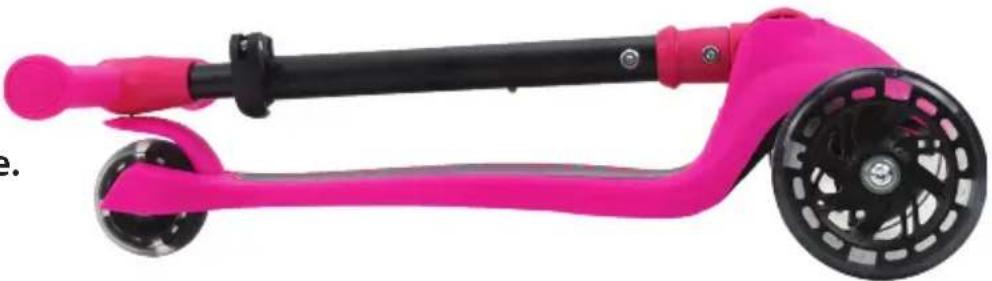

Folding-Storage State

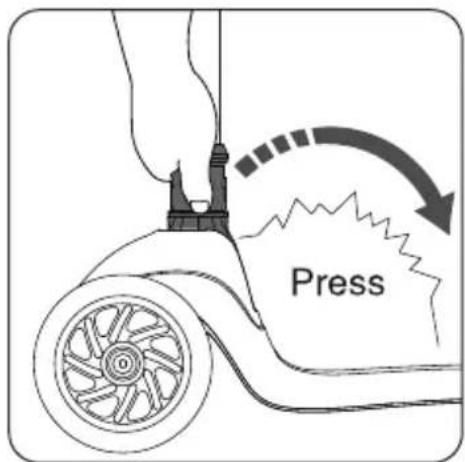

Press down on the tube. Pull up the folding mechanism and press down the tube in the direction of the deck.

Pull the folding mechanism upward.

Finished storage state.

Pink and black scooter with wheels and handle, no visible text or symbols

Handlebar Height Adjustment

Illustration of a hand holding a mechanical tool with a curved arrow indicating rotation (no text or symbols)

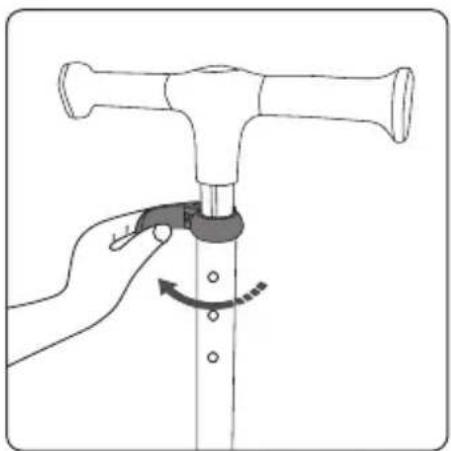

Open the quick release clockwise.

Illustration of a hand holding a vertical tool with a double-headed arrow indicating upward motion (no text or symbols)

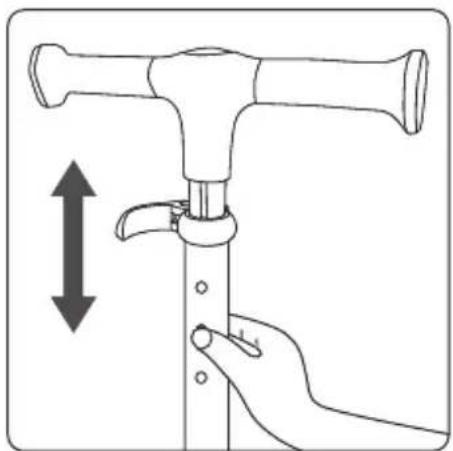

Press the positioning button while adjusting the handlebar up and down to the right height.

Illustration of a hand holding a mechanical tool with a rotating knob (no text or symbols)

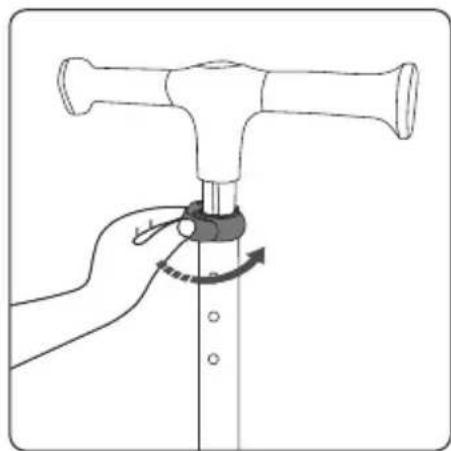

Close the quick release to lock it tightly.

Warnings

• Maximum load: 50kg.
• Applicable age: Over 3 years.

WARNINGS

1. Ensure there are no obstacles around before playing.
2. Do not use in places with obstacles (e.g., ramps, uneven surfaces, ditches).
3. Avoid roads, parking lots, and other places with potential safety hazards.
4. Keep fingers, hair, and clothes away from wheels and rotating parts.
5. Only one child should ride at a time.
6. Brake will heat up when braking.
7. Do not use if damaged, deformed, or faulty.
8. Store in a moisture-proof and damp-proof condition.
9. Regularly check the product for faults.
10. Keep this package for future reference.
11. Power is supplied by electromagnetic induction; power supply parts are not detachable.
12. Assembly must be completed by adults due to small parts.
13. Use with caution to prevent falls or collisions.
14. Wear protective equipment (helmet, gloves, knee pads, elbow pads).
15. Ensure the locking mechanism works normally.

Safety Precaution

1. Frequently check all fasteners.
2. Do not use on slippery ground or in low visibility conditions.
3. Normal wear and tear are not covered by the warranty.
4. The brake sheet may become hot during use.

Maintenance

1. Regularly clean with a wet cloth.
   Avoid industrial detergents and products containing alcohol or ammonia.
2. Keep wheels free of debris.
3. Store in a cool, dry place away from heat and fire sources. Avoid direct sunlight.

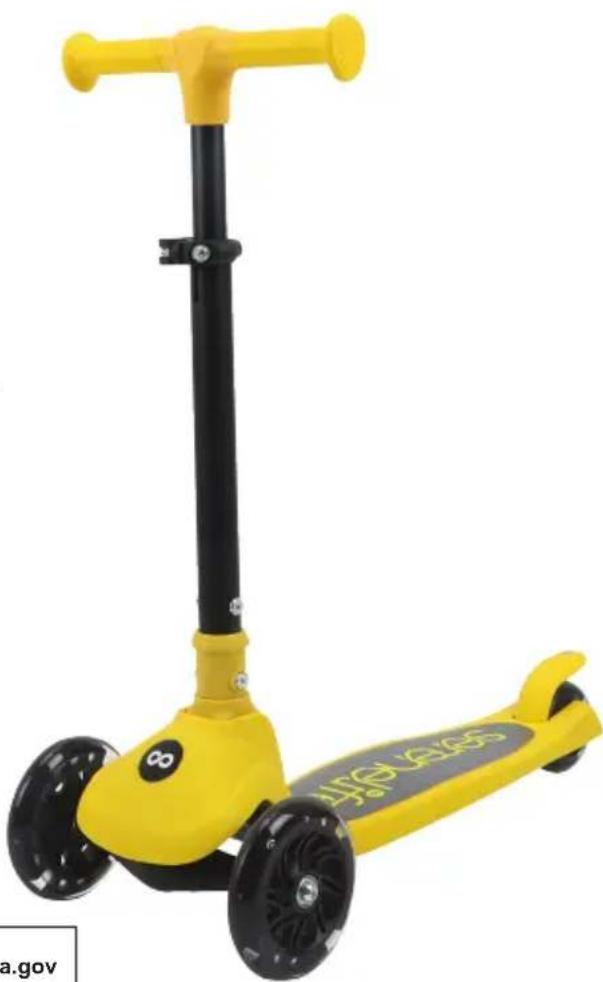

Yellow and black electric scooter with visible wheels and a handle (no text or symbols)

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

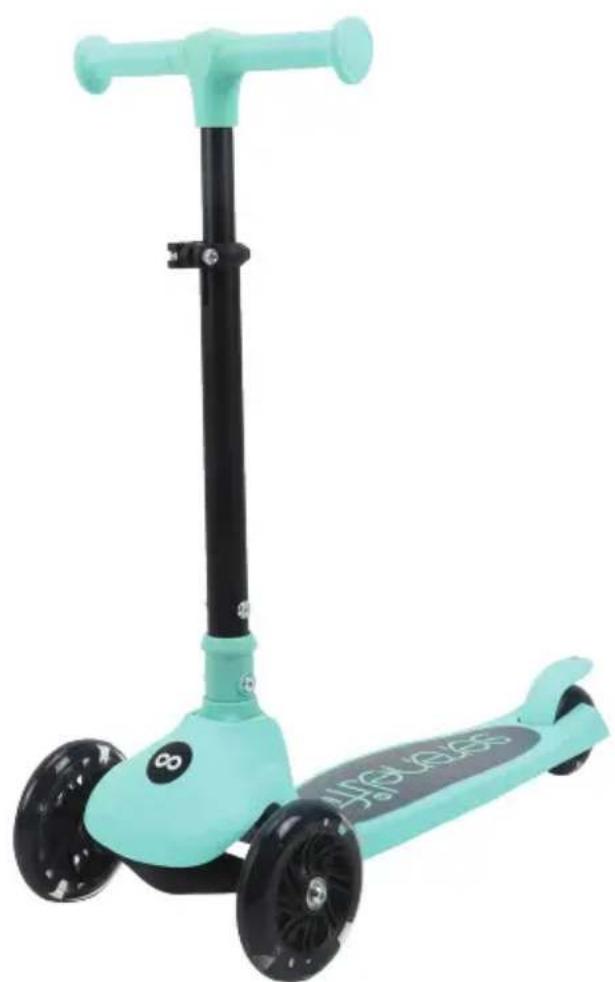

Teal and black electric scooter with visible wheels and a handle (no text or symbols)

Register Product

Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your SereneLife purchase in perfect condition.

Serenelifehome.com/ register

Yellow and black toy scooter with a handle and wheels (no visible text or symbols)

Purple toy scooter with black body and wheels, no visible text or symbols

Blue and black toy scooter with three wheels (no text or symbols visible)

SLKSC17YL SLKSC16PR SLKSC15BL

Illustration of a light blue and black electric scooter with wheels and a handle (no text or symbols visible)

Green and black light green toy scooter with a handle and wheels (no visible text or symbols)

Red and black toy scooter with a handle and wheels (no text or symbols visible)

Pink and black toy scooter with a black handle and wheels (no text or symbols visible)

SLKSC14AQ SLKSC12RD SLKSC11PNSLKSC13MG
