USER MANUAL RXN60LV1B DAIKIN

Operating Manual Handset Wireless

REMOTE CONTROLLER LOSS PREVENTION WITH BALL CHAIN (OPTIONAL) / PRÉVENTION CONTRE LA PERTE DE LA TÉLÉCOMMANDE PAR CHAÎNETTE À BOULES (FACULTATIF) / DIE FERNBEDIENUNG IST DURCH EINE KUGELKETTE VOR VERLUST GESICHERT (OPTIONAL) / PREVENZIONE PERDITA TELECOMANDO CON CATENA A SFERA (OPZIONALE) /PREVENCIÓN DE PÉRDIDA DEL CONTROL REMOTO CON CADENA DE BOLAS (OPCIONAL) / ПРЕДОТВРАЩЕНИЕ ПОТЕРИ ПДУ С ПОМОЩЬЮ ШАРИКОВОЙ ЦЕПИ (ДОПОЛНИТЕЛЬНОЕ ОБОРУДОВАНИЕ) / ZÍNCÍ RLE UZAKTAN KUMANDANIN KAYBOLWASNIN ÖNLENMESI (İSTEĞE BAĞLI)

Remote controller

Télécommande

Fernbedienung

Telecomando

Control Remoto

Match the ring at the end of the ball chain with the screw hole on the back of the remote controller and secure it with the screw.
Attach the holder and the ball chain as above at the position where signals from the remote controller can be received easily.
Pass the ball chain through the back of the holder and match the ring at the end of the ball chain to the upper hole of the holder. Fix the holder to the wall by putting through 2 screws across it.

Installation

1) Type: AAA.R03
2) Quantity: 2 pieces

Disposal Requirements

DAIKIN RXN60LV1B - Disposal Requirements - 1

The batteries supplied with the controller are marked with this symbol.

This means that the batteries shall not be mixed with unsorted household waste.

If a chemical symbol is printed beneath the symbol, this chemical symbol means that the battery contains a heavy metal above a certain concentration.

Possible chemical symbols are:

■ Pb: lead (>0.004%)

Waste batteries must be treated at a specialized treatment facility for re-use. By ensuring correct disposal, you will help to prevent potential negative consequences for the environment and human health. Please contact your local authority for more information.

Pile

1. Transmission source

- The source where the signal will be transmitted.

2. Signal transmission indication

- Blink to confirm that the last setting has been transmitted to the unit.

3. "ON/OFF" Button

Press once to start the air conditioner unit.
Press again to stop the unit.

4. Fan speed selection

- Pressing the button continuously will toggle the fan speed in the following order:

Low —Med → High —Auto

- Stop pressing when the desired fan speed appears on the display screen.

5. Operation mode

Press the MODE button to select the type of operating mode.
For cooling only unit, the available modes are: COOL (*), DRY (♠) and FAN (♣).
For heat pump unit, the available modes are: AUTO (△), COOL (*), DRY (♠), FAN (♣) and HEAT (♦)
The AUTO (△) mode is unavailable for chilled water system.

6. Automatic air swing

Press the SWING △ button to activate the automatic air swing function.
To distribute the air to a specific direction, press the SWING △ button and wait until the louver move to the desired direction and press the button once again.

Swing mode selection method (for CK-E model)

Press SWING ⏻ button for 4 seconds to enter field setting mode. While in field setting mode, it will only show SWING MODE (◀).
Press temperature ▲ and ▼ button to select SWING MODE ( ) rotation from Swing Mode 1 to Swing Mode 3.
There are 3 different SWING MODE, which are:

DAIKIN RXN60LV1B - Swing mode selection method (for CK-E model) - 1

DAIKIN RXN60LV1B - Swing mode selection method (for CK-E model) - 2

DAIKIN RXN60LV1B - Swing mode selection method (for CK-E model) - 3

Swing mode 1 Swing mode 2 Swing mode 3

SWING MODE will not activate unless SWING is activated.

Swing is indicated by the logo:

- If no mode changes within 4 seconds, unit will operate according to the selected SWING MODE (✗).

7. Turbo function (model dependent)

Press 📋 for fast cooling or heating operation.
• Fan speed turn to maximum speed.
Press again to deactivate the function.
• Available under HEAT and COOL modes only.
Any change of fan speed will deactivate this function.
The Turbo function (2) is unavailable for chilled water system and remote control with SWING MODE (function.

8. OFF timer setting

Press the OFF TIMER button will activate the off timer function.
Set the desired off time by pressing the OFF TIMER button continuously.
Press the CANCEL button to cancel the off timer setting.

9. Quiet function (model dependant)

Press Ⓜ for quiet operation.
• Fan speed turn to minimum speed.
Press again to deactivate the function.
Any change of fan speed will deactivate this function.
The Silent function (7) is unavailable for chilled water system.

10. Clock time setting

- Press and hold ⏻ button to set the clock time.

11. ON timer setting

Press the ON TIMER button will activate the on timer function.
Set the desired on time by pressing the ON TIMER button continuously. If the timer is set to 7.30am, the air conditioner will turn on at 7.30am sharp.
Press the CANCEL button to cancel the on timer setting.

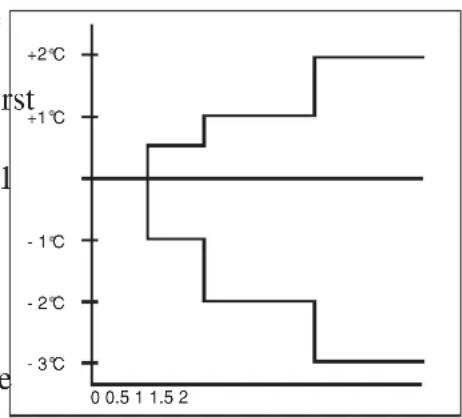

12. Sleep mode setting

- Press the ★ button will activate the sleep mode function.

- This is an energy saving option. When the unit is operating under cooling mode, the set temperature is increased by 0.5^ C after the first half an hour, another 0.5^ C after the second half an hour and 1^ C after the following hour.

- When the unit is operating under heating mode, the set temperature is decreased by 1°C after the first half an hour, another 1°C after the second half an hour and 1°C after the following 1 hour.

DAIKIN RXN60LV1B - Sleep mode setting - 1

line

| Time (s) | Temperature (°C) | | :--- | :--- | | 0.5 | -1 | | 1.0 | -1 | | 1.5 | -1 | | 2.0 | -1 | | 2.5 | -1 | | 3.0 | -1 | | 3.5 | -1 | | 4.0 | -1 | | 4.5 | -1 | | 5.0 | -1 | | 5.5 | -1 | | 6.0 | -1 | | 6.5 | -1 | | 7.0 | -1 | | 7.5 | -1 | | 8.0 | -1 | | 8.5 | -1 | | 9.0 | -1 | | 9.5 | -1 | | 10.0 | -1 | | 10.5 | -1 | | 11.0 | -1 | | 11.5 | -1 | | 12.0 | -1 | | 12.5 | -1 | | 13.0 | -1 | | 13.5 | -1 | | 14.0 | -1 | | 14.5 | -1 | | 15.0 | -1 | | 15.5 | -1 | | 16.0 | -1 | | 16.5 | -1 | | 17.0 | -1 | | 17.5 | -1 | | 18.0 | -1 | | 18.5 | -1 | | 19.0 | -1 | | 19.5 | -1 | | 20.0 | -1 | | 20.5 | -1 | | 21.0 | -1 | | 21.5 | -1 | | 22.0 | -1 | | 22.5 | -1 | | 23.0 | -1 | | 23.5 | -1 | | 24.0 | -1 | | 24.5 | -1 | | 25.0 | -1 | | 25.5 | -1 | | 26.0 | -1 | | 26.5 | -1 | | 27.0 | -1 | | 27.5 | -1 | | 28.0 | -1 | | 28.5 | -1 | | 29.0 | -1 | | 29.5 | -1 | | 30.0 | -1 | | 30.5 | -1 | | 31.0 | -1 | | 31.5 | -1 | | 32.0 | -1 | | 32.5 | -1 | | 33.0 | -1 | | 33.5 | -1 | | 34.0 | -1 | | 34.5 | -1 | | 35.0 | -1 | | 35.5 | -1 | | 36.0 | -1 | | 36.5 | -1 | | 37.0 | -1 | | 37.5 | -1 | | 38.0 | -1 | | 38.5 | -1 | | 39.0 | -1 | | 39.5 | -1 | | 40.0 | -1 | | 40.5 | -1 | | 41.0 | -1 | | 41.5 | -1 | | 42.0 | -1 | | 42.5 | -1 | | 43.0 | -1 | | 43.5 | -1 | | 44.0 | -1 | | 44.5 | -1 | | 45.0 | -1 | | 45.5 | -1 | | 46.0 | -1 | | 46.5 | -1 | | 47.0 | -1 | | 47.5 | -1 | | 48.0 | -1 | | 48.5 | -1 | | 49.0 | -1 | | 49.5 | -1 | | 50.0 | -1 | | 50.5 | -1 | | 51.0 | -1 | | 51.5 | -1 | | 52.0 | -1 | | 52.5 | -1 | | 53.0 | -1 | | 53.5 | -1 | | 54.0 | -1 | | 54.5 | -1 | | 55.0 | -1 | | 55.5 | -1 | | 56.0 | -1 | | 56.5 | -1 | | 57.0 | -1 | | 57.5 | -1 | | 58.0 | -1 | | 58.5 | -1 | | 59.0 | -1 | | 59.5 | -1 | | 60.0 | -1 | | 60.5 | -1 | | 61.0 | -1 | | 61.5 | -1 | | 62.0 | -1 | | 62.5 | -1 | | 63.0 | -1 | | 63.5 | -1 | | 64.0 | -1 | | 64.5 | -1 | | 65.0 | -1 | | 65.5 | -1 | | 66.0 | -1 | | 66.5 | -1 | | 67.0 | -1 | | 67.5 | -1 | | 68.0 | -1 | | 68.5 | -1 | | 69.0 | -1 | | 69.5 | -1 | | 70.0 | -1 | | 70.5 | -1 | | 71.0 | -1 | | 71.5 | -1 | | 72.0 | -1 | | 72.5 | -1 | | 73.0 | -1 | | 73.5 | -1 | | 74.0 | -1 | | 74.5 | -1 | | 75.0 | -1 | | 75.5 | -1 | | 76.0 | -1 | | 76.5 | -1 | | 77.0 | -1 | | 77.5 | -1 | | 78.0 | -1 | | 78.5 | -1 | | 79.0 | -1 | | 79.5 | -1 | | 80.0 | -1 | | 80.5 | -1 | | 81.0 | -1 | | 81.5 | -1 | | 82.0 | -1 | | 82.5 | -1 | | 83.0 | -1 | | 83.5 | -1 | | 84.0 | -1 | | 84.5 | -1 | | 85.0 | -1 | | 85.5 | -1 | | 86.0 | -1 | | 86.5 | -1 | | 87.0 | -1 | | 87.5 | -1 | | 88.0 | -1 | | 88.5 | -1 | | 89.0 | -1 | | 89.5 | -1 | | 90.0 | -1 | | 90.5 | -1 | | 91.0 | -1 | | 91.5 | -1 | | 92.0 | -1 | | 92.5 | -1 | | 93.0 | -1 | | 93.5 | -1 | | 94.0 | -1 | | 94.5 | -1 | | 95.0 | -1 | | 95.5 | -1 | | 96.0 | -1 | | 96.5 | -1 | | 97.0 | -1 | | 97.5 | -1 | | 98.0 | -1 | | 98.5 | -1 | | 99.0 | -1 | | 99.5 | -1 | | Note: The data is in a format where the 'first' value is the first temperature value and the 'second' value is the second temperature value.

- This function is available under COOL, HEAT and AUTO mode.

13. Temperature setting

To set the desired room temperature, press theor▼ button to increase or decrease the set temperature.
The temperature setting range is from 16°C to 30°C (Optional setting 20°C to 30°C).
Press both buttons ▲ and ▼ simultaneously to toggle from °C to °F setting.

FAULT DIAGNOSIS (For Inverter only)

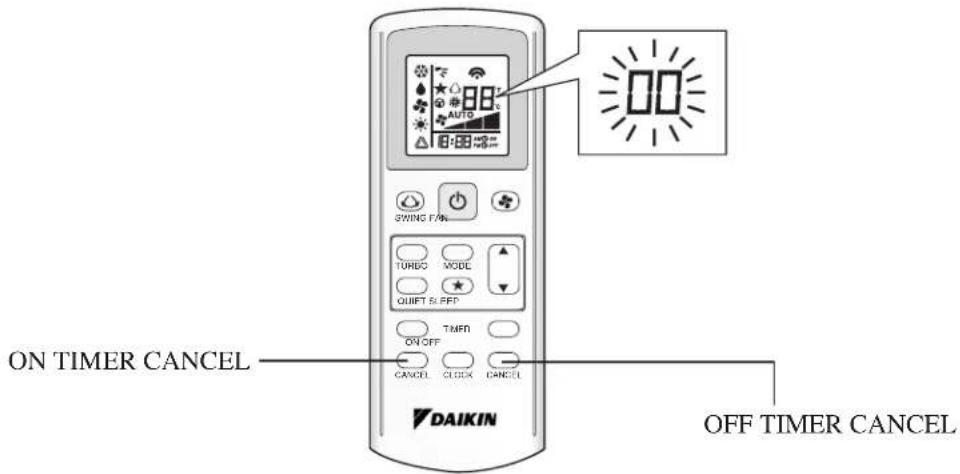

FAULT DIAGNOSIS BY REMOTE CONTROLLER

The temperature display sections indicate corresponding codes.

When the ON TIMER CANCEL button or OFF TIMER CANCEL button is held down for 5 seconds, a "☐☐" indication flashes on the temperature display section.

DAIKIN RXN60LV1B - FAULT DIAGNOSIS BY REMOTE CONTROLLER - 1

Press the ON TIMER CANCEL button or OFF TIMER CANCEL button repeatedly until a continuous beep is produced.

- The code indication changes as shown below, and notifies with a long beep.

ERROR CODE	MEANING
00 NORMAL
A1 INDOOR PCB ERROR
A3 DRAIN PUMP ABNORMAL
A5 ANTIFREEZE (COOLING)/HEAT EXCHANGER OVERHEAT (HEATING)
A6 INDOOR FAN MOTOR ABNORMAL
AH	ELECTRICAL AIR CLEANER ABNORMAL
C4	INDOOR HEAT EXCHANGER (1) THERMISTOR SHORT/OPEN
C5	INDOOR HEAT EXCHANGER (2) THERMISTOR SHORT/OPEN
C7	LOUVER LIMIT SWITCH ERROR
C9	INDOOR ROOM THERMISTOR SHORT/OPEN
E1	OUTDOOR PCB ERROR
E3	HIGH PRESSURE PROTECTION
E4	LOW PRESSURE PROTECTION
E5	COMPRESSOR MOTOR LOCK/COMPRESSOR OVERLOADED
E6	COMPRESSOR START-UP ERROR
E7	OUTDOOR DC FAN MOTOR LOCK
E8	AC INPUT OVER CURRENT
E9	EXV ERROR
EA	4 WAY VALVE ERROR
F3	DISCHARGE PIPE OVERHEAT
F6	HEAT EXCHANGER OVERHEAT
HO	COMPRESSOR SENSOR SYSTEM ERROR
H3 HIGH PRESSURE SWITCH ERROR
H6 COMPRESSOR FEEDBACK DETECTION ERROR
H7 FAN MOTOR OVERLOADED/OVERCURRENT/SENSOR ABNORMAL
H8 AC CURRENT SENSOR ERROR
H9 OUTDOOR AIR THERMISTOR SHORT/OPEN
J1 PRESSURE SENSOR ERROR
J3 COMPRESSOR DISCHARGE PIPE THERMISTOR SHORT/OPEN/MISPLACED
J5 SUCTION PIPE THERMISTOR SHORT/OPEN
J6 OUTDOOR HEAT EXCHANGER THERMISTOR SHORT/OPEN
J7 SUBCOOLING HEAT EXCHANGER THERMISTOR SHORT/OPEN
J8 LIQUID PIPE THERMISTOR SHORT/OPEN
J9 GAS PIPE THERMISTOR SHORT/OPEN
L1 INVERTER OUTDOOR PCB ERROR
L3 OUTDOOR CONTROL BOX OVERHEAT
L4 HEAT SINK OVERHEAT
L5 IPM ERROR/IGBT ERROR
L8 INVERTER COMPRESSOR OVERCURRENT
L9 COMPRESSOR OVERCURRENT PREVENTION
LC COMMUNICATION ERROR (OUTDOOR CONTROL PCB AND INVERTER PCB)
P1 OPEN PHASE OR VOLTAGE UNBALANCE
P4 HEAT SINK THERMISTOR SHORT/OPEN
PJ CAPACITY SETTING ERROR
U0 INSUFFICIENT GAS
U2 DC VOLTAGE OUT OF RANGE
U4 COMMUNICATION ERROR
U7 COMMUNICATION ERROR (OUTDOOR CONTROL PCB AND IPM PCB)
UA INSTALLATION ERROR
UF	PIPING & WIRING INSTALLATION MISMATCH/WRONG WIRING/INSUFFICIENT GAS
UH ANTIFREEZE (OTHER ROOMS)

NOTE

A short beep and two consecutive beeps indicate non-corresponding codes.
To cancel the code display, hold the ON TIMER CANCEL button or OFF TIMER CANCEL button down for 5 seconds. The code display also cancel itself if the button is not pressed for 1 minute.
