USER MANUAL ZDSKR1 PHOENIX GOLD

ZDSKR1

Plug & Play 2-Way Speaker Upgrade Kit

150W MAX POWER

75W RMS

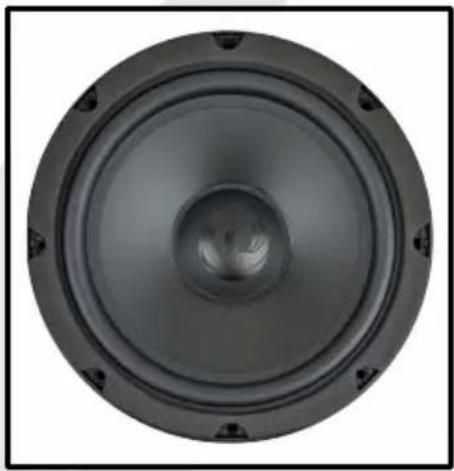

2x Speakers 2x Adapter Rings 2x Tweeters

2x Tweeter Adapters

2x Speaker Harness 2x

2x Tweeter Harness

2x ZZF-LP4000 2x ZZF-HP5000-6

Quick Start Guide

1

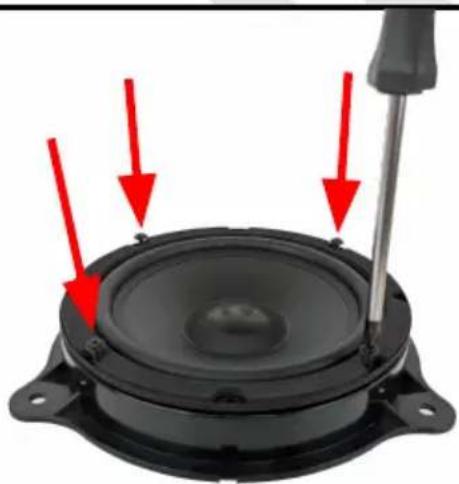

Screw the speaker into the speaker adapter.

2

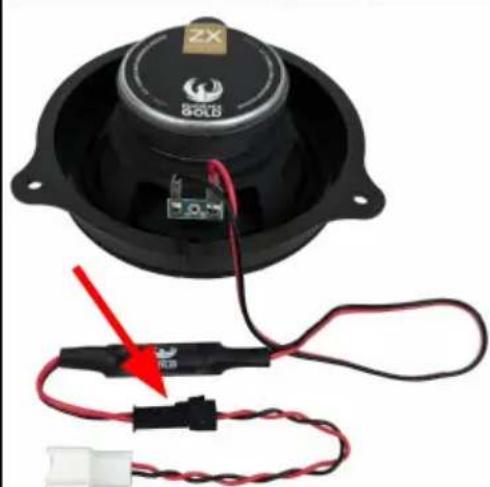

Connect the ZZF-LP4000 filter to the speaker.

3

Connect the speaker connector to the ZZF-LP4000 filter.

Quick Start Guide

4

Put the tweeter into the tweeter adapter.

5

Attach the bottom plate to the back of the tweeter adapter.

6

Connect the ZZF-HP5000-6 filter to the tweeter.

Connect the tweeter harness to the ZZF-HP5000-6 filter.

Specifications

Speaker Type: 2-Way Speaker Kit
Speaker Size: 6.5” (165mm) / 0.78”
Frequency Response: 60Hz - 20kHz
Power Handling (RMS): 75W
Power Handling (MAX): 150W
Impedance: 4Ω
Sensitivity: 89dB (1W/1m)
Fs: 62Hz
Qts: 0.593
Crossover: Inline Crossovers
1” (25mm) Voice Coil
Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment
Renault Captur 2013 - 2017 (J87) Front Doors
Renault Captur 2017 - 2019 (J87) (Facelift) Front Doors
Renault Captur 2019 - 2024 (J5) Front Doors
Renault Captur 2024 → (J5) (Facelift) Front Doors
Renault Clio 2012 - 2019 (IV) Front Doors
Renault Clio 2019 - 2023 (V) Front Doors
Renault Clio 2023 → (V) (Facelift) Front Doors
Renault Express 2021 → (II) Front Doors
Renault Grand Scenic 2016 - 2022 (IV) Front Doors
Renault	Kadjar	2015 - 2022 (I)	Front Doors
Renault Kangoo	2021 → (III)	Front Doors
Renault Megane 2009 - 2012 (III)	Front Doors
Renault Megane 2012 - 2015 (III) (Facelift) Front Doors
Renault Megane 2015 - 2020 (IV) Front Doors
Renault Megane 2020 → (IV) (Facelift)	Front Doors
Renault	Megane E-Tech	2022 → (I)	Front Doors
Renault Scenic 2016 - 2022 (IV) Front Doors

Fitment List

Make Model Year Fitment
Renault Trafic 2014 - 2019 (X82) Front Doors
Renault Trafic 2019 → (X82) (Facelift) Front Doors
Renault Twingo 2014 - 2019 (III) Front Doors
Renault Twingo 2019 → (III) (Facelift) Front Doors
Renault ZOE 2012 - 2020 (I) Front Doors
Renault ZOE 2020 → (I) (Facelift) Front Doors
See the latest updated compatibility list in the PG ZD Fitment List

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
