USER MANUAL SME-10M-DS-24V-E-2 5-Q-OE Festo
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8172643
2022-05d
[8172645]
8172643
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 Applicable Documents
[Unreadable]
All available documents for the product → www.festo.com/sp.
2 Safety
2.1 Safety instructions
WARNING
Risk of injury due to electric shock.
- For the electric power supply, use only PELV circuits that ensure a reliable electric disconnection from the mains network.
- Observe IEC 60204-1/EN 60204-1.
- Before working on the product: Switch off the power supply, ensure that it is off and secure it against being switched on again.
2.2 Intended use
The proximity switch is intended for use in Festo products for sensing the position of magnets, e.g. the position of the piston.
The product is intended for use in industrial environments.

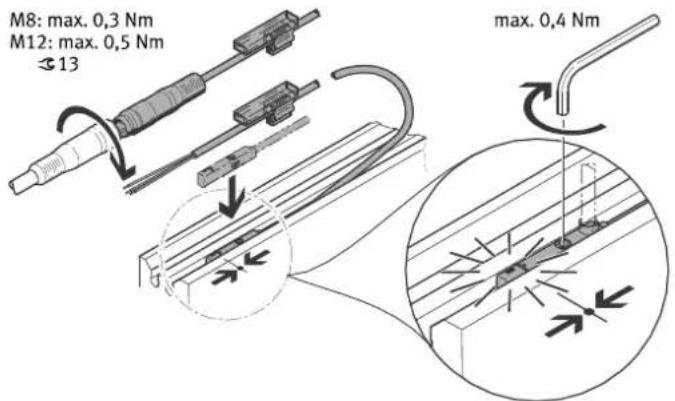

3 Mounting
Fig. 1: Mounting
4 Electrical installation
SME-10M-DS-24V-...
| -M8/-M8D -M12 -OE | ||
| 41+ + 3 | 3 + + 14 | |
Tab. 1: Electrical connection SME-10M-DS-24V-...
SME-10M-ZS-24V-...
| -M8/-M8D -M12 -OE | ||
| 41+ + | + + 14 | |
Tab. 2: Electrical connection SME-10M-ZS-24V-...
5 Technical data
SME-10M -DS -ZS
| Operating voltage range [V AC/DC] 5 ... 30 | ||
| Max. output current [mA] 300 100 | ||
| Max. output current at mounting kit [mA] 50 | ||
| Max. switching capacity AC [VA] | 9 | 3 |
| Max. switching capacity DC [W] | 9 | 3 |
| Max. switching capacity in mounting kit AC [VA] | 1.5 | |
| Max. switching capacity in mounting kit DC [W] | 1.5 | |
| Ambient temperature [°C] | -40 ... +70 | |
| Ambient temperature with flexible cable installation [°C] | -20 ... +70 | |
| Degree of protection | IP65, IP68 | |
Tab. 3: Technical data
