Product Type	Audio Control Processor
Model	ACP 100
Brand	Extron
Dimensions (H x W x D)	1.7 in (4.3 cm) x 17.0 in (43.2 cm) x 6.0 in (15.2 cm)
Weight	3.5 lbs (1.6 kg)
Power Supply	100-240 VAC, 50/60 Hz, internal
Power Consumption	30 watts
Main Functions	Audio signal processing, mixing, and distribution
Audio Inputs	4 balanced mono line-level inputs
Audio Outputs	2 balanced line-level outputs
Frequency Response	20 Hz to 20 kHz ±0.5 dB
Control Interface	RS-232, Ethernet, contact closures
Mounting	Rack-mountable (1U)
Maintenance	Keep vents clean; use dry cloth for exterior
Safety	Complies with UL, CE, FCC standards
Spare Parts	Power supply module, fan assembly available
Repairability	Modular design; field-replaceable parts
General Information	Designed for professional AV installations

Frequently Asked Questions - ACP 100 Extron

How do I connect the ACP 100 to my audio sources?

Use balanced XLR or 3.5mm connectors for line-level inputs. Ensure proper gain staging to avoid distortion.

What is the default IP address of the ACP 100?

The default IP address is 192.168.254.254. You can change it via the web interface or RS-232.

Can I control the ACP 100 remotely?

Yes, via Ethernet (web GUI, Telnet, or SSH) or RS-232 serial commands.

How do I reset the ACP 100 to factory defaults?

Press and hold the reset button on the rear panel for 10 seconds while powering on.

What is the maximum audio input level?

The maximum input level is +24 dBu before clipping.

Does the ACP 100 support phantom power?

No, it does not provide phantom power. Use external preamps if needed.

How do I update the firmware?

Download the latest firmware from the Extron website and upload via the web interface under Maintenance.

What type of power cord does it use?

Standard IEC C13 power cord. Voltage range is 100-240 VAC.

Is the ACP 100 rack-mountable?

Yes, it is 1U rack height and includes rack ears.

Can I use the ACP 100 with unbalanced sources?

Yes, but use unbalanced to balanced converters for best noise rejection.

USER MANUAL ACP 100 Extron

The Extron ACP 100 Audio Control Panel is a fully configurable control interface for use with any Extron ACP-enabled device.

Each ACP 100 includes two ACP ports, which support both power and communication between the host device and the ACP 100. Up to eight ACP panels can be used per host device for more demanding control needs.

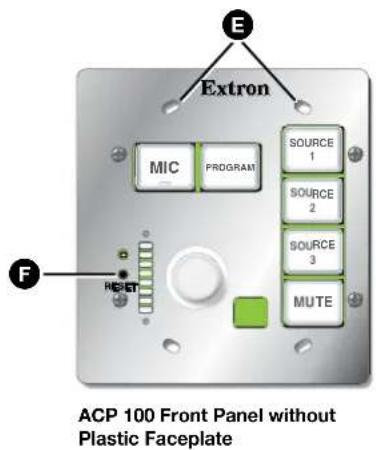

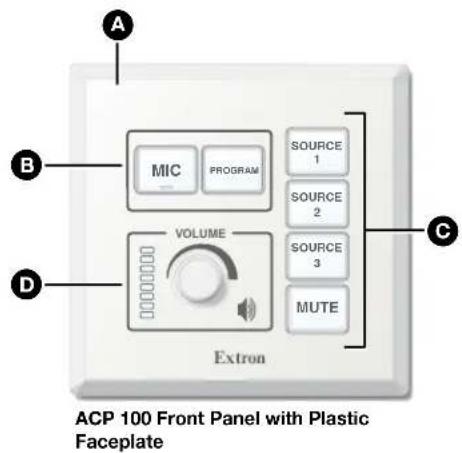

Front Panel Features

A Plastic Faceplate
B Function Buttons 1 and 2
© Function Buttons 3-6
Volume LEDs and Knob
E Mounting Holes (4)
F Reset Button

Figure 1. ACP 100 Front Panel

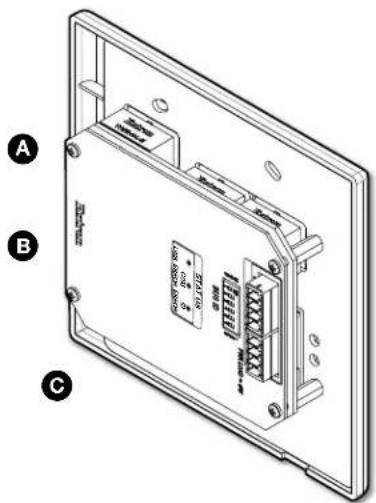

Rear Panel Features

A Bus ID DIP Switches
B ACP Ports (2)
© ACP Status LEDs

Figure 2. ACP 100 Rear Panel

Planning the System and Installation

When planning to install an ACP system, consider how many ACP panels to use, maximum cable distance, and mounting (see the ACP 100 product page at www.extron.com for more information about the ACP 100).

Installation

Step 1: Get Ready

Use the following checklist to prepare for the installation:

☐ Download and install the latest version of software, firmware, and device drivers needed to configure the host device and configure the connected ACP products (see the host device user guide, available on www.extron.com, for details on software and drivers).
☐ Obtain cables, mounting hardware, and any other supplies required for ACP 100 installation.

Step 2: Prepare the Installation Site

ATTENTION:

NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the ACP 100 must be installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the ACP 100.

Americans with Disabilities ACT (ADA) Compliance

When planning where to install these devices, consider factors affecting accessibility of the button panel such as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see sections 307 (“Protruding Objects”) and 308 (“Reach Ranges”) of the 2010 ADA Standards for Accessible Design available at http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site Preparation

Extron offers an assortment of mud rings, optional UL Listed in-wall junction boxes, external wall boxes (EWBs), and surface or tabletop mounting boxes for use with the ACP button panels. The ACP 100 is a US 2-gang size device.

Step 3: Replace Plastic Faceplate, Button Labels, or Knob

The plastic faceplate button labels can be replaced. Some button labels ship with the unit. Customized labels can be created and printed using Extron Button Label Generator software from www.extron.com.

To change a plastic faceplate or translucent button label:

1. The plastic faceplate is secured with four magnetic catches on the underside of the plastic faceplate. Remove the plastic faceplate by holding the body of the unit with one hand, gripping the sides of the plastic faceplate with the other hand, then pulling the plastic faceplate away from the unit.

2. Gently separate the button lens cap from its white diffuser. Insert the end of the provided Extron removal (pry) tool into the corner notch and gently twist the tool (see ① in the image to the right).

1. Remove the label insert from the button lens cap.
2. Select one of the button labels from the printed label sheet included with the device. Remove the label from its backing and remove the clear protective film from the front of the label.
3. Insert the button label into the button lens cap (see ② in the image on the previous page).
4. Align the button lens cap with the white diffuser and the panel opening, then press the button lens cap into place on the button.
5. Attach the plastic faceplate to the ACP 100. Align the openings of the faceplate with the buttons and knob and place the plastic faceplate against the unit. The four magnetic catches fasten the faceplate onto the unit.

To replace the rotary knob:

1. Remove the plastic faceplate as described at the bottom of the previous page.
2. Firmly grasp the knob and pull it away from the ACP 100.
3. Align the ridge inside the new knob with the channel on the knob control and allow the magnet in the knob to snap into place.
4. Reattach the plastic faceplate to the unit as described in step 7 above.

Step 4: Set Bus ID Addresses

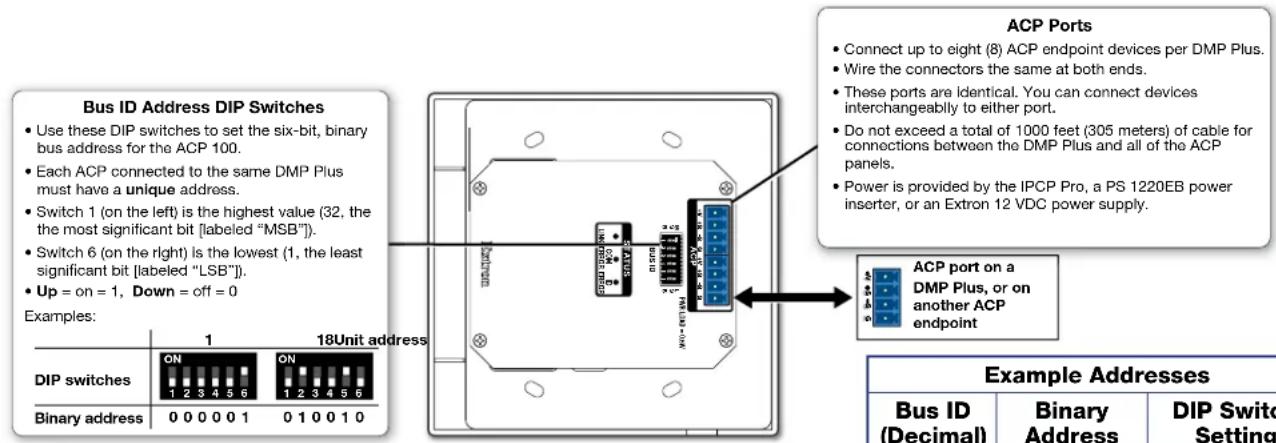

Figure 3. ACP 100 Rear Panel Bus ID

Set the bus identification (ID) DIP switches for the ACP 100 and any other ACP panels being connected to the system. Each ACP device must have a unique bus ID. If multiple ACP panels have the same bus ID, address conflicts may cause one or more of the panels to not be recognized in DSP Configurator or by the host device. Up to eight ACP devices can be connected in the same system.

Each ACP device in a system must have a unique six-digit binary bus ID. ACP bus IDs are set by using the DIP switch assembly on the rear panel of the ACP 100.

Switch 1 on the left sets the most significant bit (highest number, 32) while switch 6 on the right sets the least significant bit (the lowest number, 1). See the example addresses in the table to the right.

Example Addresses
Bus ID(Decimal)	Binary Address	DIP Switch Setting
0 000000*
1 000001
2 000010
3 000011
4 000100
5 000101
6 000110
7 000111
8 001000

*Address 000000 is reserved for the control processor and cannot be used by any ACP devices.

Step 5: Cable All Devices

1. Connect the ACP panel to the host device.
2. Connect ACP panels to each other if multiple panels are being used in the control system (see figure 4 below for correct wiring).

NOTES:

• Wire both ends of each ACP cable the same. Connectors are interchangeable between the host device and ACP device.

• Do NOT power an ACP panel from more than one power source.

• Apply power to the host device after correctly cabling all devices.

Cabling

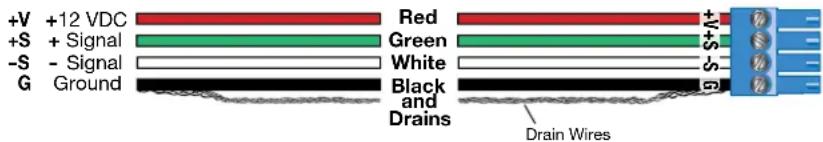

Attach cables using the diagram below as a guide. Wiring is the same for all ACP models. Connect a 4-pole captive screw connector to each end of the cable, wiring both ends the same. In most cases, the ACP devices are powered by the DMP Plus series device. Power is carried on the V+ pin of the ACP 100 and other ACP devices.

Extron STP20-2/1000 or STP20-2P/100 cable is recommended for ACP device connections.

Figure 4. Basic ACP Connector Wiring

ACP devices that are relatively far from the host device can be connected to an optional Extron PS 1220EB eBUS power inserter or an Extron 12 VDC desktop power supply as shown in the diagrams below and on the next page (see the ACP 100 Specifications at www.extron.com for cable length to determine if additional power is recommended).

ATTENTION:

Figure 5. Cabling ACP Devices with a PS 1220EB Power Inserter

NOTE: Check the polarity of the power supply before connecting it to the ACP.

Figure 6. Cabling ACP Panels with an Extron 12 VDC Power Supply

Step 6: Configure the System

NOTE: For complete information on creating configuration files and operating DSP Configurator, see the host device user guide and the DSP Configurator Help file.

1. Create a new host device configuration file in DSP Configurator and create all groups, presets, and macros to be controlled by the ACP device.
2. Select Tools>Configure ACPs in DSP Configurator and configure the ACP button actions and panel IDs.
3. Connect to the host device in Live mode with a TCP/IP connection and push the configuration file to the device.

Step 7: Test and Troubleshoot

1. Verify the ACP bus ID DIP switches are set to the desired address on each unit and that there are no bus ID address conflicts in the system.

The ACP 100 may have a single monochrome LED (green) or three separate LEDs (green, amber, or red). The LED (or LEDs) are a diagnostic tool showing the device status:

Device Status Single LED (green) Three LEDs
No power, ACP cable broken. Off Off
Device is receiving power and communicating correctly with the DMP Plus.	Lights solidly Green
Device is receiving power but cannot communicate with the DMP Plus	Slow blink Amber
Device is receiving power and communicating with the DMP Plus but there is an address conflict.	Fast blink Red

1. Verify cables to and from the ACP devices are wired the same at each end.
2. Test the system:

a. Press the ACP device buttons and ensure the buttons light as expected and that the appropriate control actions are triggered. Commands can be verified using DSP Configurator. DataViewer can also be used for command verification if responses are configured.

b. Ensure the audio levels respond correctly to the volume and mute buttons.

1. Make adjustments to wiring, bus ID addresses, and system configuration as needed. Remember that the rear panel ports and DIP switches are not accessible after the ACP is mounted. If needed, push a revised configuration to the ACP device through the host device using DSP Configurator.

If you have questions during installation and setup, call the Extron S3 Sales and Technical Support Hotline or the Extron S3 Control Systems Support Hotline [phone]).

Step 8: Mounting the ACP 100

Prior to mounting:

1. Feed all device cables through the wall or furniture and, if applicable, through the plastic spacer.

NOTE: If the unit is not installed in a mud ring, the plastic spacer must be installed. The spacer positions the unit to allow the magnetic catches on the plastic faceplate to attach properly and securely.

1. Ensure the cables are connected to the ACP 100 rear panel.

Mount the ACP 100 as follows:

1. Insert the cabled ACP 100 into the mud ring or junction box within the wall or furniture, aligning the mounting holes in the ACP 100 with those in the box or mud ring.
2. Secure the ACP 100 in the junction box, wall or surface mounting box, or mud ring as follows (see ① in the figures below)

a. Insert the included screws through the oval slots at the top and bottom of the ACP 100 metal mounting plate, through the plastic spacer (if not using a mud ring), and into the corresponding threaded holes in the box or mud ring. b. Using a Phillips screwdriver, gently tighten the screws until snug.

1. Attach the plastic faceplate to the ACP 100. Align the plastic faceplate openings with the buttons, knob, and LEDs and place the plastic faceplate against the metal mounting plate (see ② in the figures below). The magnetic catches fasten the plastic faceplate onto the metal mounting plate.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
