USER MANUAL BM-2SL Baumr-AG

Exterior view of a Bäumn air purifier with red and black components, no visible text or symbols on the device itself.

BM-2SL 20L Wet & Dry Vacuum

User Manual

[Revision 2.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well-ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Important Safety Instructions

• For your safety: carefully read and understand all instructions, this appliance complies with mandatory safety regulations for electrical equipment. However, improper use will harm persons and property, please read these instructions carefully.
• When using electrical appliances, you must follow basic precautions.
• Do not allow other uses and unattended operation.
• Do not use the air outlet directly against people or animals when using this product.
• The manufacturer cannot be liable for damages due to improper use or improper operation.
• Do not inhale flammable, toxic liquids, such as gasoline, oil, acids, or other volatile substances, to avoid dangerous hazards.
• Only relevant professionals can repair electrical equipment. Improper repairs may result in considerable risk.
• Do not store the appliance directly at high temperatures such as hot stoves or heat sinks.
• Do not use a cleaning agent or detergent containing solvent.
• Unauthorized parts or third-party accessories may be dangerous and make the warranty invalid.

• Always check whether the float is normal.

- If you notice that liquid leaks from your equipment, immediately turn it off.

- Do not use the appliance in wet/damp locations.

- Do not inhale hot dust ashes or sharp objects.

- Do not touch the motor directly when blowing. Keep children away while operating the vacuum. Wear safety goggles.

- Do not reverse the vacuum cleaner, causing damage to the motor.

- The hose cannot be overly bent and forced to elongate, otherwise the hose will be deformed or damaged.

- Do not allow the lid part to get wet with water or rinse with water to prevent water from entering the electronic parts. If there is leakage, the proper operation is to gently wipe the surface with a soft rag.

- The vacuum cleaner can only use the specified battery pack. If other battery packs are used, it will not be covered by the warranty if an accident occurs.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance is only to be used with the power supply unit provided with the appliance. The appliance is only to be used with the battery pack provided with the appliance.

• Exhausted batteries are to be removed from the appliance and safely disposed of.
• If the appliance is to be stored unused for a long period, the batteries should be removed.
• The supply terminals are not to be short-circuited.
• Li-ion battery should be charged under an ambient temperature specified by the battery user instruction, an environment with a low (e.g. below 0°C) or high (e.g. above 45°C) temperature could cause serious battery safety problem.
• Remove the battery and dispose of it according to local regulations when disposing of this product.

Disposal of battery

• Remove the built-in rechargeable battery before disposal of the battery pack. Please make sure that the batteries are disposed of at an officially assigned location, it should not be mixed with general household waste.
• Before disposal of the battery pack, make sure there is not power left inside batteries. Then open the battery pack and the take out the batteries.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....5

Parts Identification ....8

Assembly....9

Operation....10

Charging the Battery....10

ON/OFF Switch....11

General Vacuum Operation....11

Emptying the Dust Tank 12

Wet Vacuuming 13

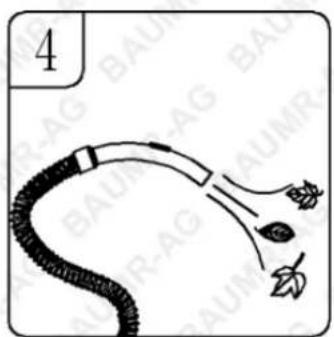

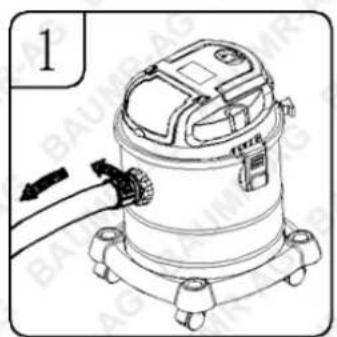

Blower Operation....14

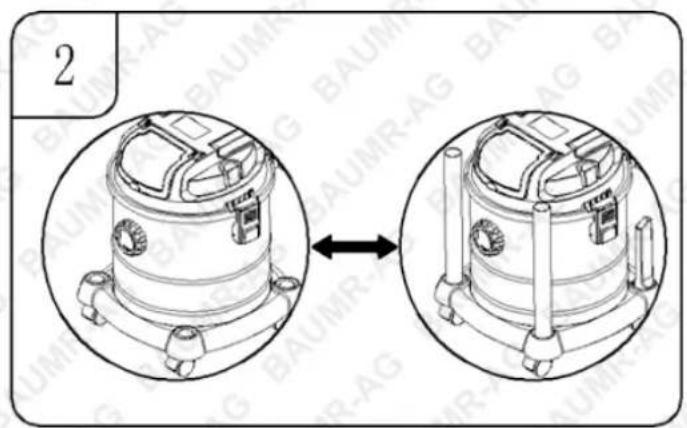

Accessories Operation ....14

Lithium Battery Care and Maintenance 15

Top 3 Battery Care Requirements....15

Maintenance....17

General Maintenance ....17

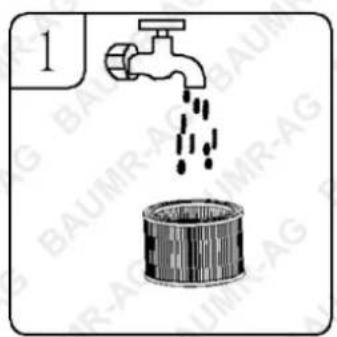

Filter Cleaning....17

Troubleshooting ....18

Specifications ....18

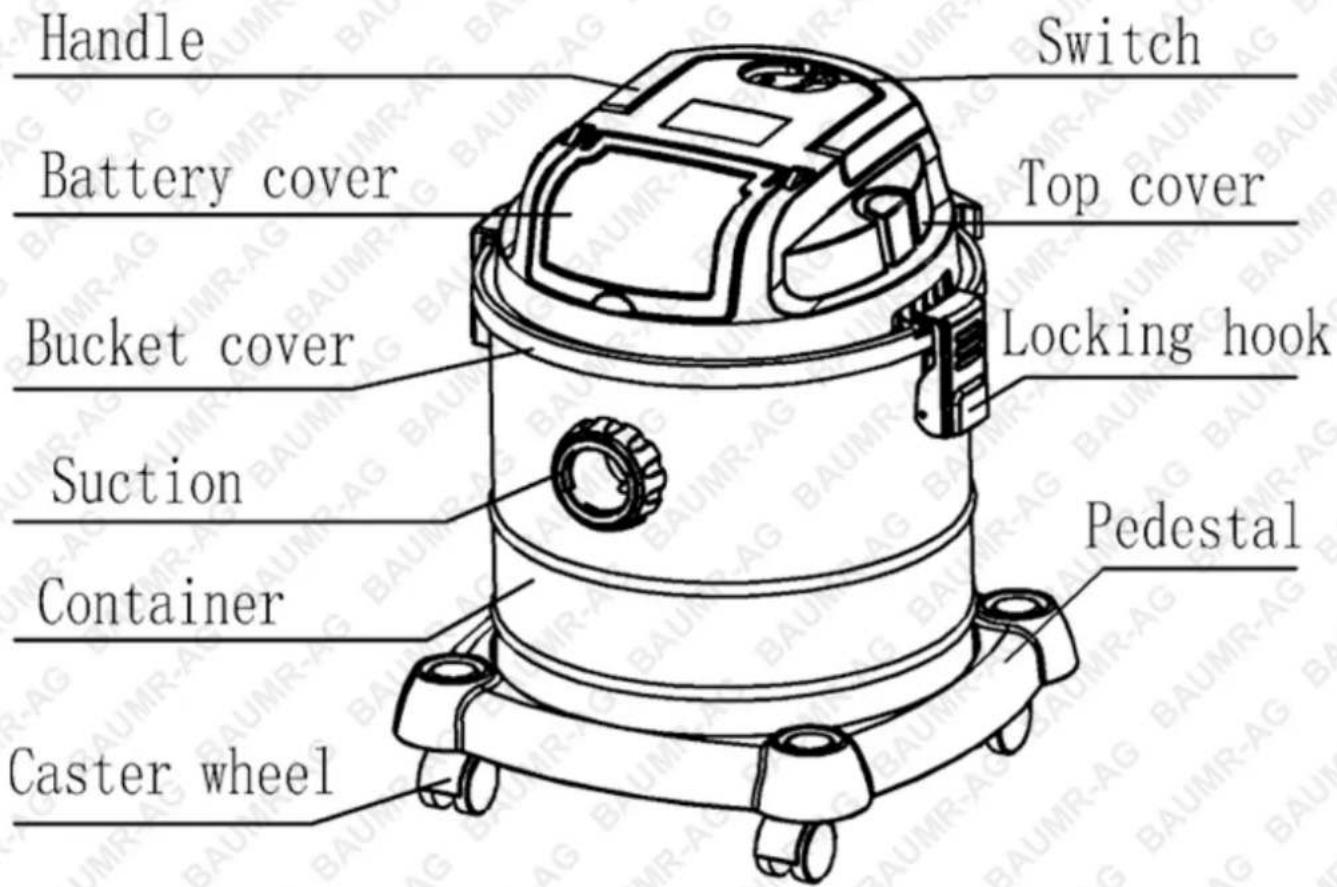

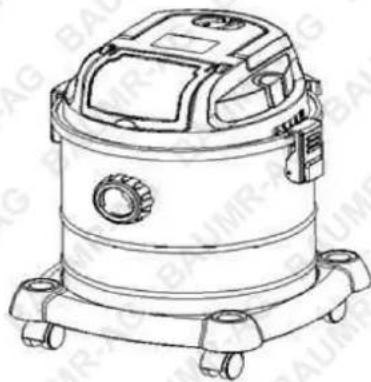

Parts Identification

A

B

C

Line drawing of a vacuum cleaner with control panel and mounting base (no text or symbols)

A ....

Hose Assembly

B ....

Tube

C ....

Wet Dry Floor nozzle

D ....

Crevice Nozzle

E ....

HEPA

F ....

Water Absorbing Sponge

G ....

Battery

H ....

Charger

L ....

Dust paper bag

M ....

Arch brush

D

E

F

G

L

M

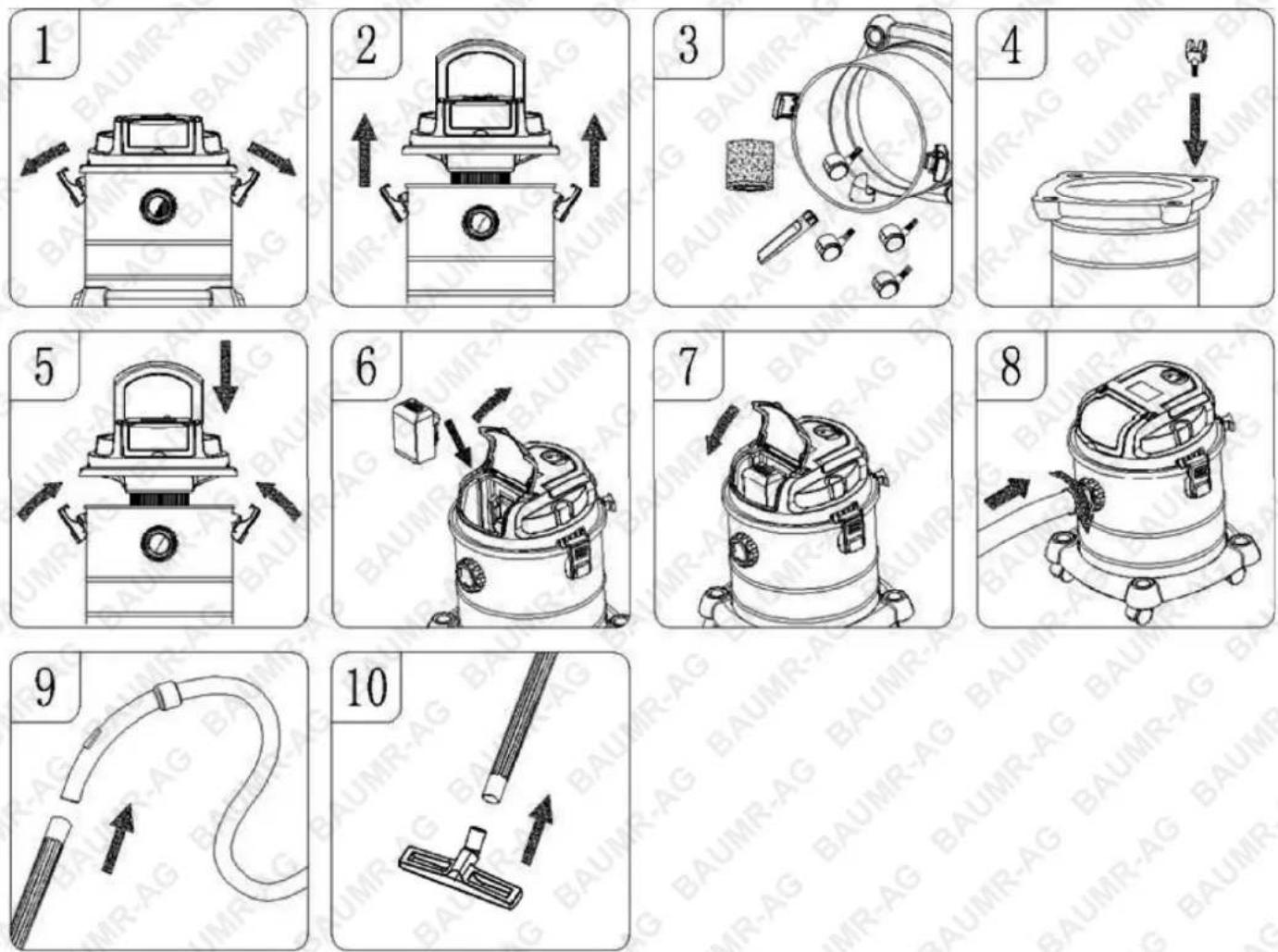

Assembly

1. Loosen Clips (Fig. 1).
2. Raise the nose assembly from the dustpan (Fig. 2).
3. Take out all accessories from the dust container (Fig. 3).
4. Install the wheels. Align the corresponding holes, push down, and install the four casters on the barrel (Fig. 4).
5. Place the nose assembly on the dust barrel that already has a filter assembly and lock it with both sides of the clips (Fig. 5).
6. Open the battery cover. Do this by swinging up the cover, as shown. Then insert the battery into the mount and push it down until you hear the battery engage (Fig. 6).
7. Cover the battery cover (Fig. 7).
8. Align the hose assembly port with the suction port, and then rotate it to the right and insert it (Fig. 8).
9. Optional tube and hose assemblies can be installed. It will be a diameter of the big end of the force in place (Fig. 9).
10. Optional brush and three tube installation. Will be one end of the brush to plug in place (Fig. 10).

Operation

Charging the Battery

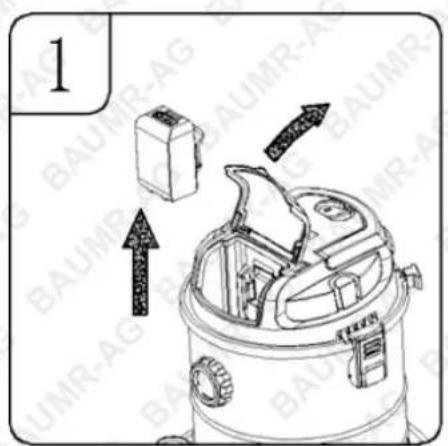

1. Remove the Battery Pack (Fig 1): Take the battery pack out of the equipment by pressing the side push-lock buttons.

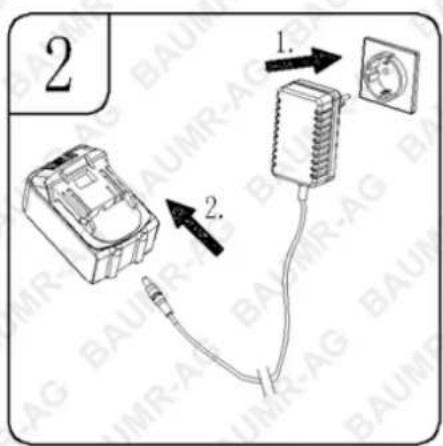

2. Charging the Battery (Fig 2):

a. Check that your mains voltage matches the voltage marked on the rating plate of the battery charger.
b. Insert the power plug of the charger into the socket outlet.
c. Insert the battery charger into the battery pack.
d. The indicator light on the charger will show red, indicating that the charger is starting to charge.
e. The indicator light will turn green when the battery is fully charged.

NOTE: The charger indicator may show green if the battery is charged immediately after a long period of operation. After a few minutes, it will show red to start charging. This is a normal phenomenon to avoid the danger of high-temperature charging.

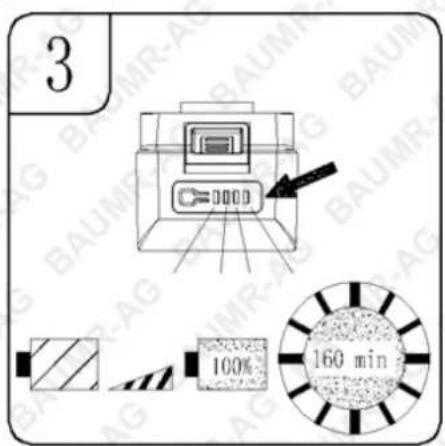

1. Check Battery Capacity:

Press the switch for the battery capacity indicator. The battery capacity indicator shows the charge status of the battery using 4 LEDs:

– All 4 LEDs lit: The battery is fully charged.
- 3 or 2 LEDs lit: The battery has an adequate remaining charge.
- 1 LED lit: The battery is empty and needs recharging.

WARNING: Batteries must be charged normally within the ambient temperature range of 0^ C- 45^ C. Charging should be prohibited when the ambient temperature is below 0^ C.

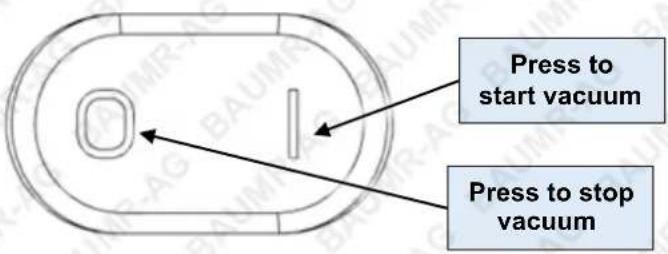

ON/OFF Switch

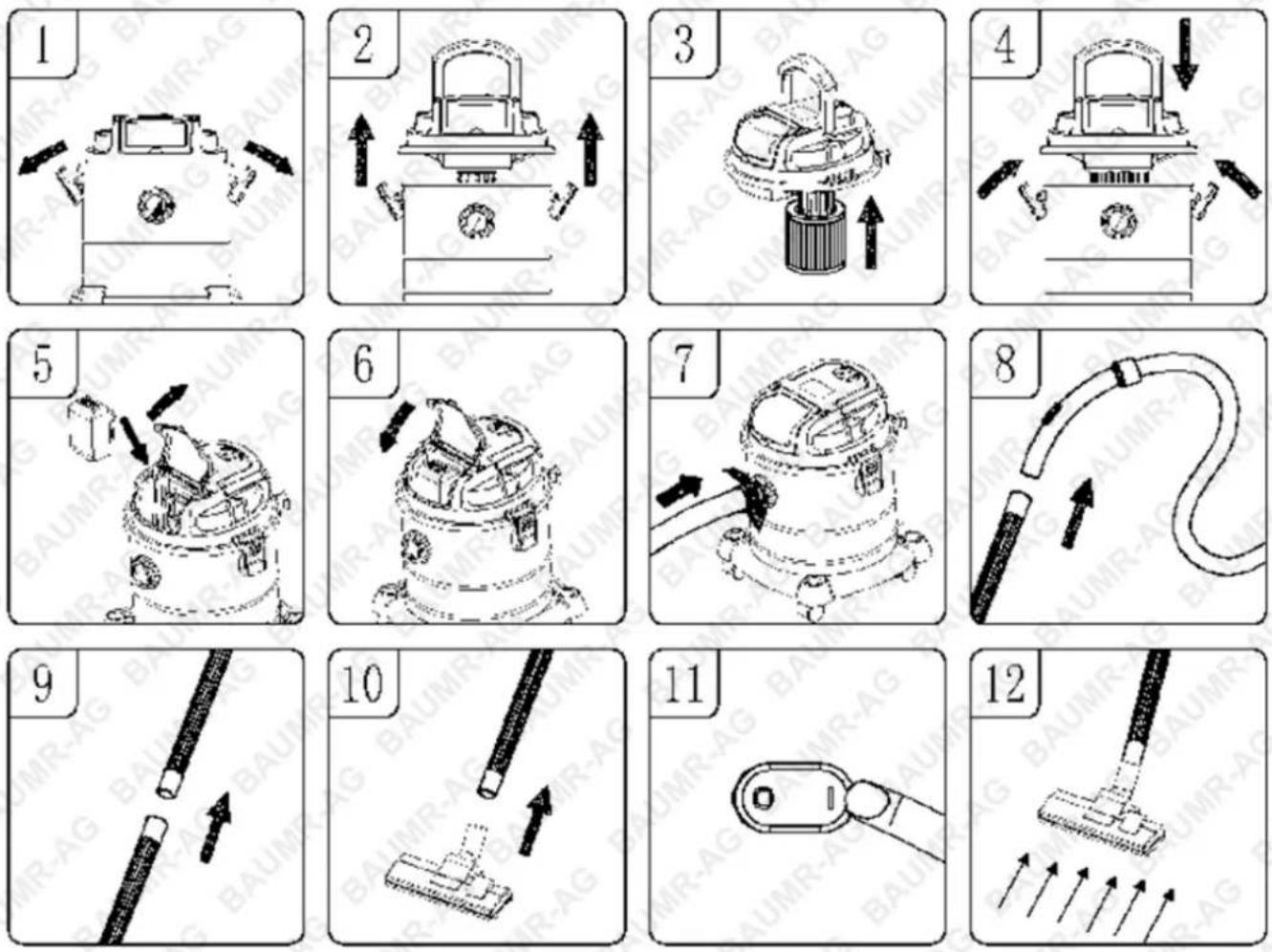

General Vacuum Operation

1. Loosen the Clips (Fig. 1).
2. Raise the Head assembly from the dust tank (Fig. 2).
3. Install the HEPA, secure the HEPA tightly on the bottom cap basket (Fig. 3).
4. Place the nose assembly on the dust bucket and lock it with both sides of the buckle (Fig. 4).
5. Open the battery cover. Do this by swinging up the cover, as shown. Then insert the battery into the mount and push it down until you hear the battery engage (Fig. 5).
6. Cover the battery cover (Fig. 6).

7. Align the hose assembly port with the suction port, and then rotate it to the right and insert it (Fig. 7).

8. Optional three tube and hose assemblies can be installed. It will be a three-tube diameter of the big end of the force in place (Fig. 8).

9. When choosing the three-tube installation, it will be a three-tube diameter of the big end of the force in place (Fig. 9).
10. Optional brush and three tube installation. It will be one end of the brush to plug in place (Fig. 10).
11. Start the switch button (Fig. 11).
12. Start the vacuum (Fig. 12).

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED 'SAFETY INSTRUCTIONS & WARNINGS'. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO, COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

Emptying the Dust Tank

Diagram of a vehicle interior with labeled parts and directional arrows (no readable text or symbols)

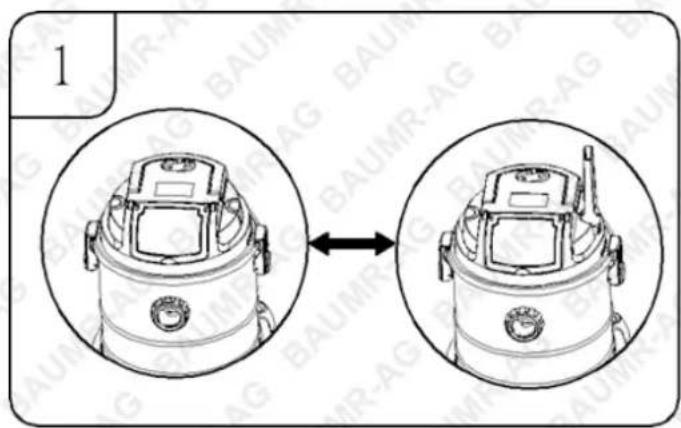

1. Check if the dust tank is full (Fig. 1).

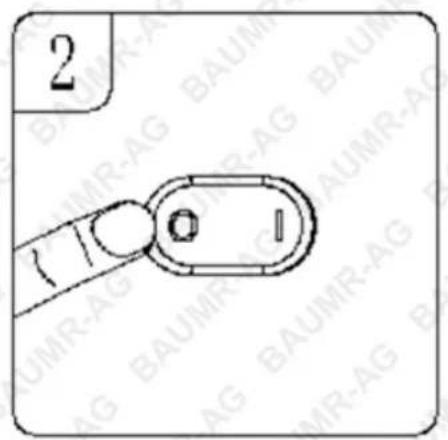

2. Turn off the vacuum (Fig. 2).

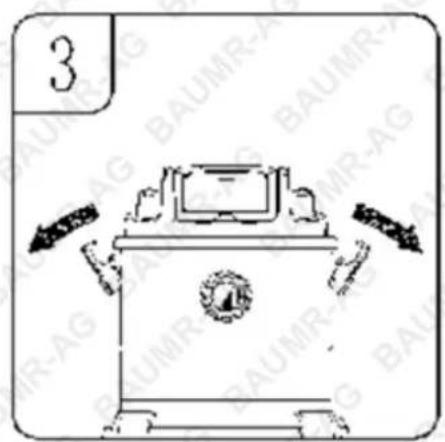

3. Release the buckle (Fig. 3).

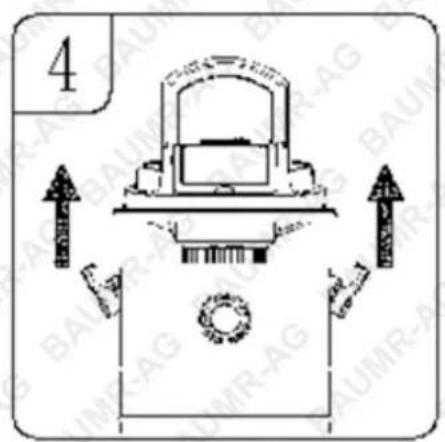

4. Raise the nose assembly from the dust container (Fig. 4).
5. Properly dispose of the contents from the dust bucket (Fig. 5).

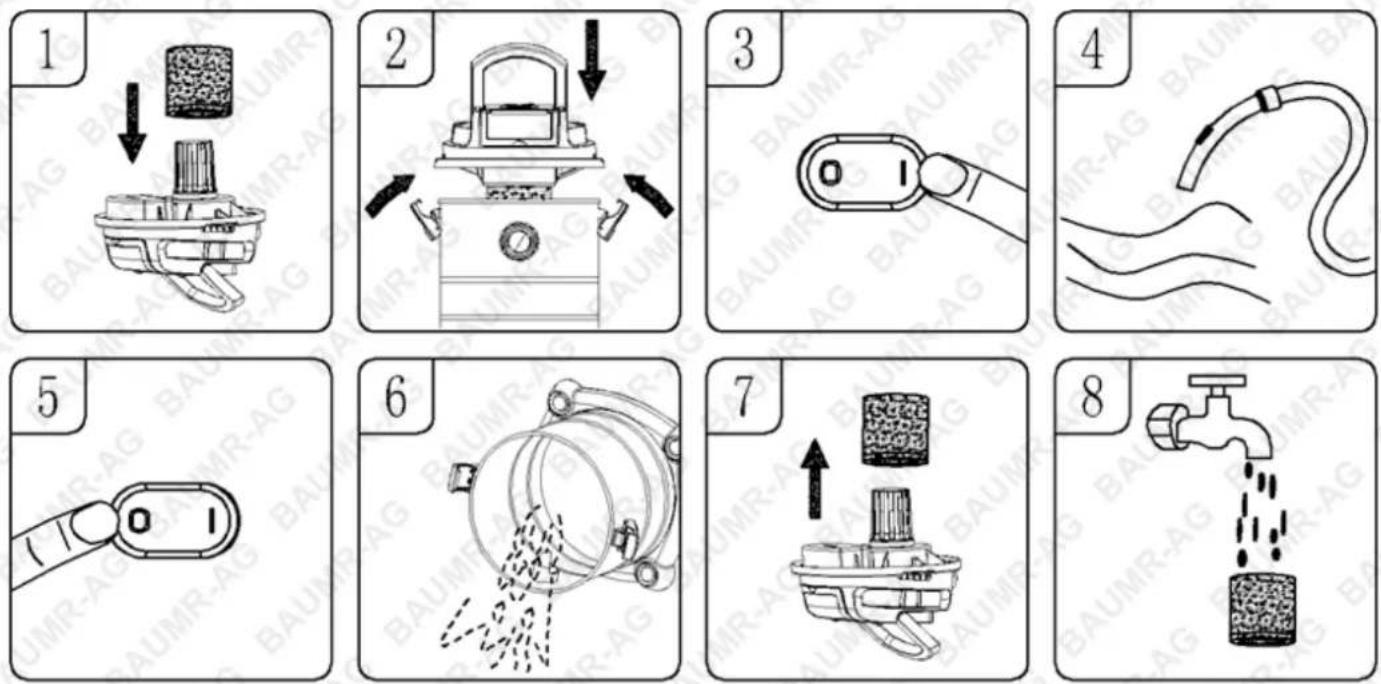

Wet Vacuuming

1. Cover the bottom cap basket with a water-absorbing sponge, make sure to cover the whole basket (Fig. 1).
2. Place the Head assembly on the dust barrel and lock it with both sides of the clips (Fig. 2).
3. Turn vacuum ON (Fig. 3).
4. Install the required suction accessories on the hose assembly (Fig. 4).
5. When the water is absorbed to the maximum capacity, the safety valve operates, and the suction port has no more suction, turn OFF the power (Fig. 5).
6. Pour out the water (Fig. 6).
7. To ensure the best water absorption results, please remove the air filter sponge and gently hand-wring it dry after drainage (Fig. 7).
8. Wash the sponge with clean running water, and gently hand-wring it dry before re-using it again (Fig. 8).

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED 'SAFETY INSTRUCTIONS & WARNINGS'. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO, COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

Blower Operation

WARNING: ALWAYS WEAR SAFETY GOGGLES BEFORE USING BLOWER. KEEP BY STANDERS CLEAR FROM BLOWING DEBRIS. WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

Illustration of a curved tube with floral elements, no text or symbols present

1. Unscrew the inserted hose assembly from the suction port with a left-hand rotation (Fig. 1).
2. Insert the main cannula of the hose assembly into the air outlet at the back of the head and tighten it with the right-hand rotation (Fig. 2).
3. Start the switch button (Fig. 3).
4. Hold the hose assembly and aim the outlet port towards leaves/debris (Fig. 4).

Accessories Operation

Technical illustration of a mechanical component with two views showing internal structure (no text or symbols)

1. Storage brush, crevice nozzle.
2. Storage brush, crevice nozzle, floor nozzle, tubes.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged on the initial charge and for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10^ and 30^
• When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
• If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.
  • Use only with the battery charger specified by the manufacturer.

- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.

- Do not use the charger in wet areas or expose it to rain or water.

- The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

- Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.

- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.

- Do not open the battery – danger of short-circuiting and/or explosion.

- Do not attempt to destroy or disassemble the battery pack or remove any of its components.

- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

- Explosion hazard – do not open and/or short-circuit the battery.

- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.

- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating, or fire may result.

DANGER - BATTERY CHARGING, USE AND STORAGE

Like mobile phones, laptops, cordless vacuum cleaners etc, this product may contain or be related to a lithium ion battery pack (lithium ion batteries and lithium ion battery related items only). Lithium ion batteries allow fast charging and high capacities, however care must be taken to reduce chances of a fault, and increase safety in case a fault occurs. Catastrophic incidents involving lithium ion batteries have a tendency to result in large amounts of smoke and fire. Be sure to follow the points below to reduce the likelihood of danger whenever you use, charge or store any lithium ion battery.

• Never charge a battery that has been damaged or subjected to a forceful impact.
• Never charge a battery that has been exposed to moisture or water.
• Never charge a battery with a charger that wasn't supplied with the battery.
• Never use a battery in a device that it wasn't specifically designed for.
• Never use a battery with a modified or damaged device.
• Never modify the battery, product, charger, circuitry or wiring.
• Never charge a battery in an exit path that may be used by people to leave a room or building in case of an emergency, for example, the hallway or foyer of a residence.
• Never charge a battery in an area or building that doesn't have the recommended number of working smoke detectors that have been tested in accordance with local guidelines.
• Never charge a battery when the battery or charger is displaying a problem or charging incorrectly.
• Always charge batteries on a non-combustible surface, for example, on a concrete floor.
• Always charge batteries at least 3m away from anything combustible, such as floors, wall surfaces, furniture, storage shelves etc.
• Always charge batteries in an open area (outside if possible) ensuring the battery and charger are away from moisture and water.
• Always disconnect batteries from the charger after charging.
• Always remove or disconnect batteries from the device/product when not in use.
• Always ensure batteries are charged under adult supervision. Do not charge unattended. Do not charge batteries while no one is home or while people are sleeping.
• Keep batteries away from heat and moisture.
• Damaged batteries should be disposed of through your local e-waste collection service.
• Avoid mixing and matching chargers. Unplug products when fully charged, and charge batteries in a cool, dry place away from combustible materials like beds, lounges, or carpet.
• During charging and use, check your lithium-ion batteries for overheating, signs of swelling, leaking, or venting gas. Immediately stop using your product if these signs are present.
• Allow batteries to cool after use and before charging.

Maintenance

WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE PERFORMING ANY MAINTENANCE.

General Maintenance

• After cleaning the barrels, filters, and related accessories, check if there are leaks. After each use, clean the filter; NEVER use a wet filter.
• Check if the air intake is clogged and clean it in a timely manner.
  • Carefully store the machine, do not beat it.
• Keep the machine dry.
• If the filter is covered with dust, wash it with cold water, and if necessary, may also use neutral detergent to clean. Do not use corrosive cleaners to clean. Do not put entire head directly in the water cleaning.
• After an extended period, the filter will be covered with dust, and suction power will be weakened. To avoid this, always clean the filter in a timely manner.
• If you observe any abnormal vibration, noise, or smell, immediately stop using the machine, and inspect/perform the necessary maintenance.

Filter Cleaning

• Periodically check the cleaning filter to maintain performance.
• If the suction has very tiny dust, the filter may need more frequent cleaning.

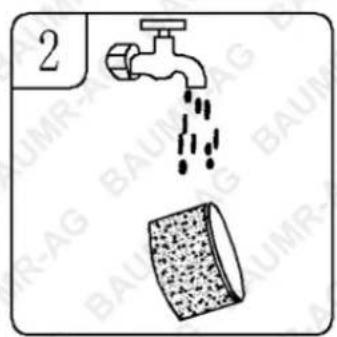

- Wash filter sponge with cold or warm water without the use of detergent (Fig. 1 and 2).

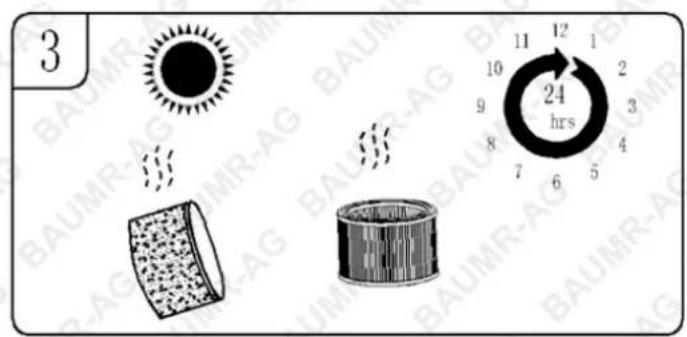

- Keep the cleaned parts in an open, well-ventilated area to air-dry for at least 24 hours.
- Do not put the filter in a dishwasher, washing machine, roller dryer, oven, microwave oven or open flame (Fig. 3).

Troubleshooting

WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE PERFORMING ANY TROUBLESHOOTING.

Symptom	Possible Causes	Corrective Action
Vacuum will not operate	No battery pack installed Install Battery Pack
	Battery packs run out of power	Charge the battery pack with a charger, then use it.
	Container full. Empty container.
Dust comes out from motor cover.	The cartridge filter or collection bag is missing or damaged.	Attach or replace cartridge filter or collection bag.
Reduced efficiency and motor/speed vibration.	There is a blockage in the nozzle or hose, or the container inlet. Or dust filter blocked by fine dust.	Check nozzle, hose, and container inlets for blockage. Take off the filter and clean it. Or install new cartridge filter.

Specifications

Function	Wet and dry vacuuming / Blowing
Voltage 18.5V
Tank Capacity 20L
Airflow Volume 16L/s
Power 200W
Hose Length 1.5m
Hose Diameter 32mm
Tank Material	Stainless Steel
Tank Diameter	280mm
Suction	15Kpa

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

© Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
