Product Type	Flat Panel TV Wall Mount
Brand	Kogan
Model	KATVULT80LA

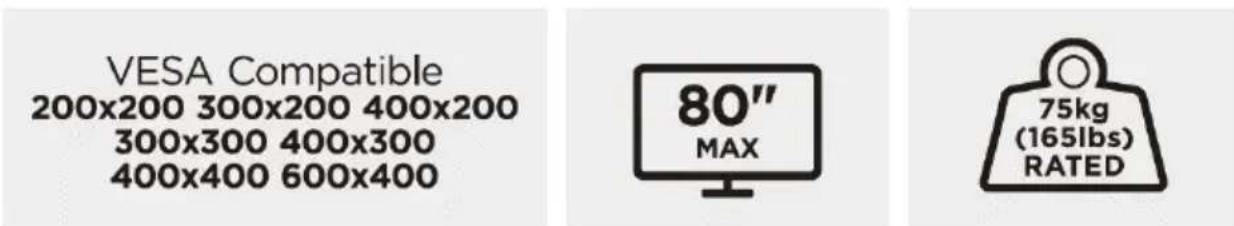

VESA Compatibility	200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Maximum TV Size	80 inches
Maximum Weight Capacity	75 kg (165 lbs)
Wall Types Supported	Solid concrete, masonry, wood stud walls
Installation Type	Fixed mount (non-tilting, non-articulating)
Included Components	Wall mount (A), TV brackets (B) x2, wall brackets (C) x2, kickstand (D), end caps (E, F), spirit level (G), foam pads (H, I) x4 each, allen key (J), screws (M-A to M-D), washers, spacers, wall anchors (W-B), screws (W-A), washers (W-C)
Required Tools	Stud finder, pencil, drill with drill bits (4.5mm for drywall, 10mm for masonry), ratchet & sockets, Phillips head screwdriver
Installation Steps	Separate wall mount, attach wall brackets, mark and drill holes, attach wall mount, adjust bracket distance, attach TV brackets, install kickstand (optional), attach foam pads, hang TV
Safety Notes	Do not exceed 75kg; use with products heavier than rated may cause instability; ensure wall can support combined weight; use provided screws; do not overtighten; small parts choking hazard; indoor use only
Maintenance	Check product is secure and safe at least every three months
Intended Use	Indoor use only
Kickstand Purpose	Provides additional support if TV has corresponding hole

Frequently Asked Questions - KATVULT80LA Kogan

What is the maximum TV size and weight this mount can support?

This mount supports TVs up to 80 inches and a maximum weight of 75 kg (165 lbs). Do not exceed these limits.

What VESA patterns are compatible?

Compatible VESA patterns include: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, and 600x400.

Can I install this mount on drywall or plasterboard?

Yes, but you must use a stud finder to locate wood studs. Drill pilot holes 4.5mm diameter, 55mm deep. Use the provided ST6.3x55 screws and D6 washers. Do not use wall anchors for drywall.

What tools are needed for installation?

You will need a stud finder, pencil, drill with appropriate drill bits (4.5mm for drywall, 10mm for masonry), ratchet & sockets, and a Phillips head screwdriver.

How do I remove the TV from the mount?

With the help of another person, carefully lift the TV upwards to unhook the TV brackets from the wall brackets. Do not attempt to remove the TV alone.

Is the kickstand mandatory?

No, the kickstand is optional. Use it only if your TV has a corresponding screw hole at the bottom. It provides additional support.

What if the screws provided are too long or too short?

The kit includes multiple screw lengths (M6x14, M8x16, M6x30, M8x35) and spacers to adjust depth. Choose the combination that fits snugly without bottoming out or protruding. Use washers with all screws.

Can I use this mount outdoors?

No, this mount is intended for indoor use only. Using it outdoors may lead to product failure and personal injury.

How often should I check the mount?

Regular maintenance is recommended at least every three months to ensure the mount is secure and safe.

What should I do if I lost the installation screws?

Contact Kogan customer support or your place of purchase for replacement parts. Using non-specified screws may cause instability or damage.

USER MANUAL KATVULT80LA Kogan

Read the entire user guide before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact your local distributor for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Never exceed the maximum load capacity of 75kg or it may result in product failure or personal injury.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

COMPONENTS

Pure technical line drawing of a rectangular mechanical component with evenly spaced holes (no text or symbols)

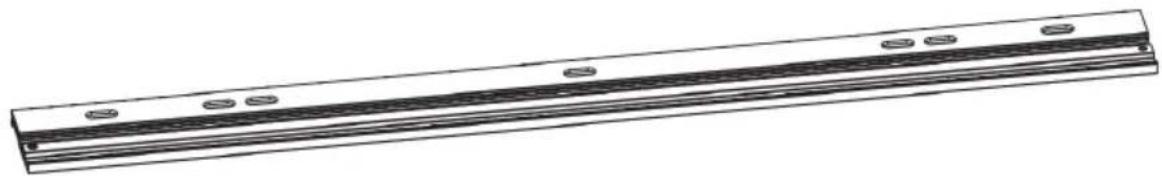

A Wall Mount (x1)

Technical line drawing of a mechanical component with no visible text or symbols

B TV Bracket (x2)

C Wall Bracket (x2)

D Kickstand (x1)

E Left Endcap (x1)

F Right Endcap (x1)

G Spirit Level (x1)

H Foam Pad (x4)

I Foam Pad (x4)

J Allen Key (3mm) (x1)

M-A M6x14 Screw (x4)

M-B M8x16 Screw (x4)

M-C M6x30 Screw (x4)

M-D M8x35 Screw (x4)

M-E D8 Washer (x4)

M-F Spacer (x4)

M-G Spacer (x4)

W-A ST6.3x55 Screw (x4)

W-B Wall Anchors (x4)

W-C D6 Washer (x4)

ASSEMBLY

Tools Required

Stud finder

Pen/pencil

Drill & Drill Bit

Ratchet & Sockets

Phillips head screwdriver

Step 1:

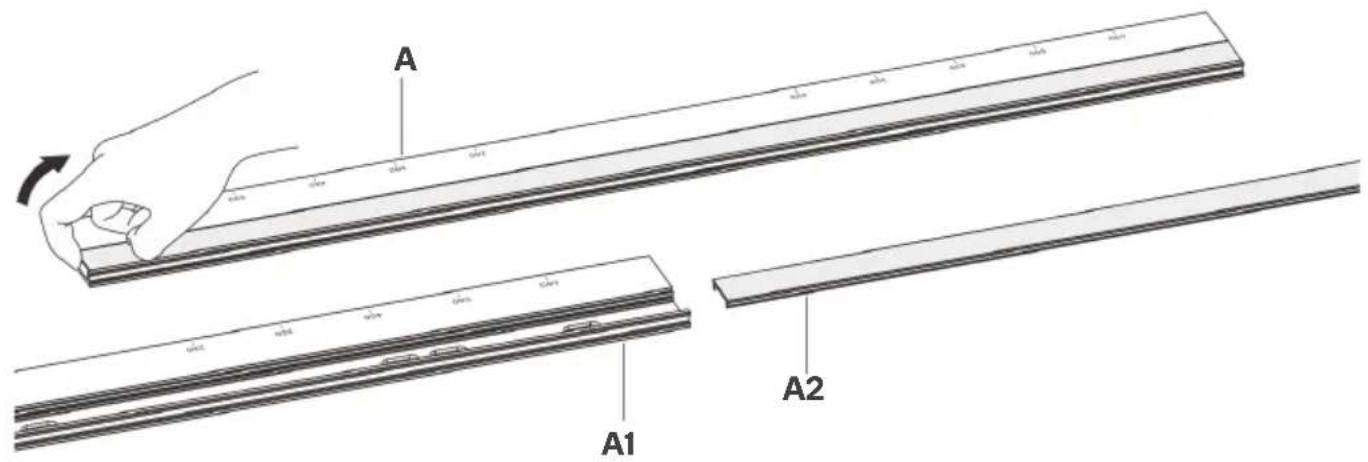

Separate the wall mount (A) into (A2) & (A1).

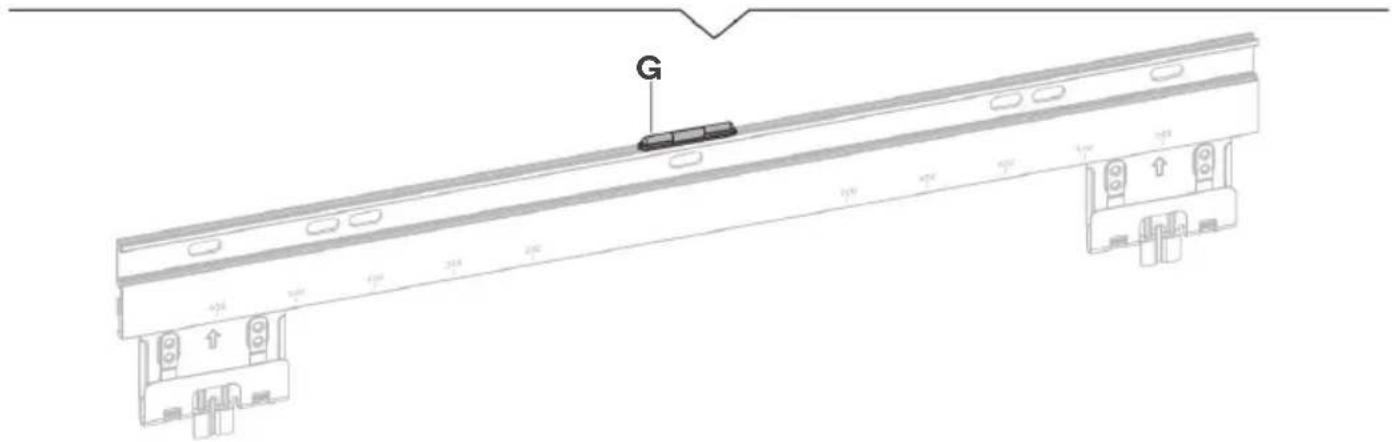

Step 2:

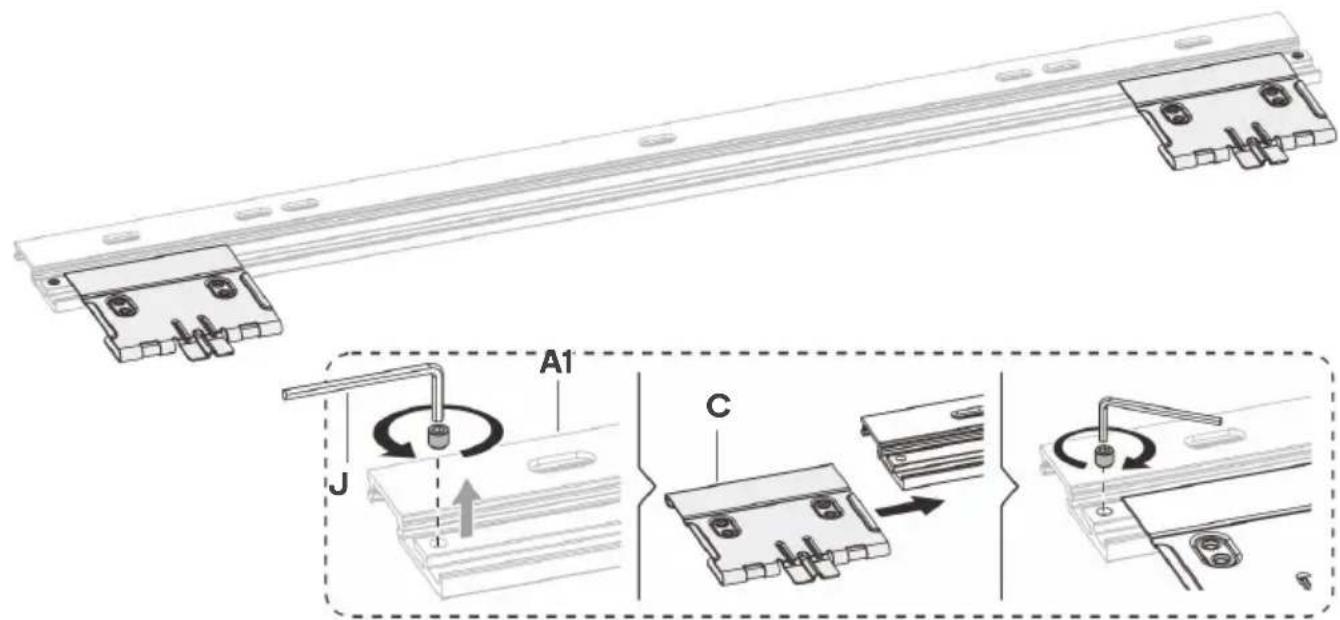

• Remove the fasteners from the end of the wall mount (A) and slide the 2 wall brackets (C) into the channel. Replace the fasteners.
• Attach the spirit level (G) to the top of the wall mount (A).

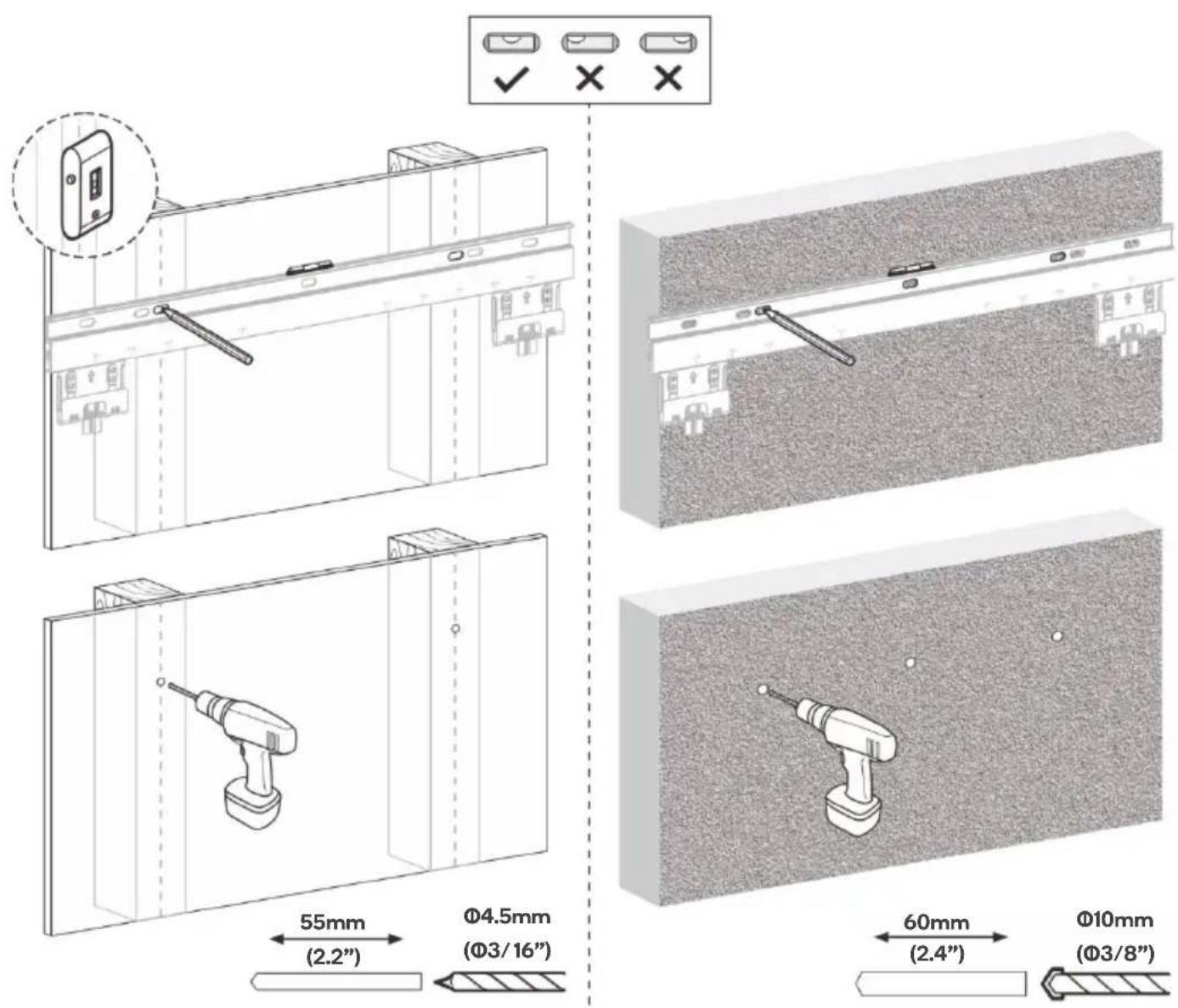

Step 3:

Using a pencil and spirit level (G), mark the desired position for the mount on your wall, using the wall mount (A) as a template for the hole positions. Note: When using the spirit level, ensure the bubble is centred as per the image shown below.

If mounting on dry wall or plaster-board, use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.

Drywall / plaster: Use a 4.5mm or 3/16" drill bit, drilling 55mm deep – 2 holes

Masonry / concrete: Use a 10mm or 3/8'' drill bit, drilling 60mm deep - 3 holes

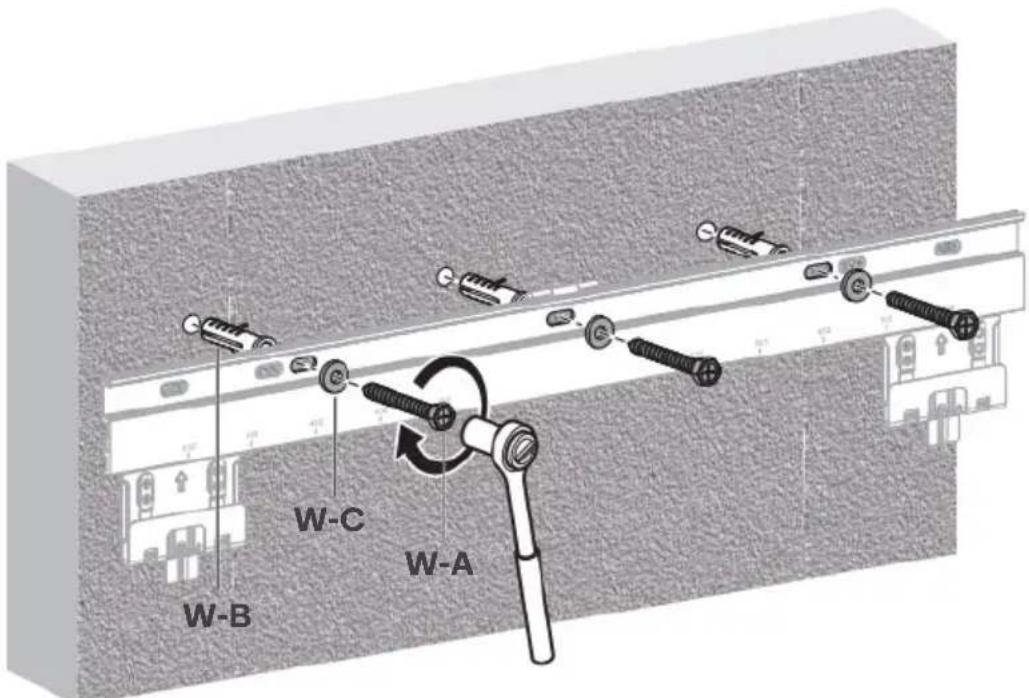

Step 4:

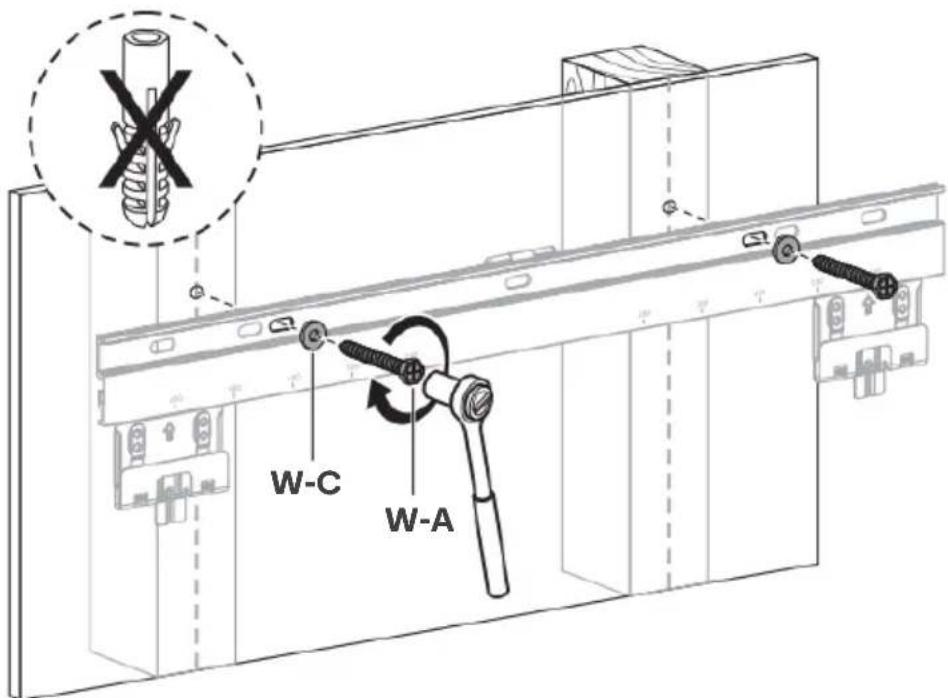

Drywall / plaster: Attach the wall mount (A) to the wall using the 2 ST6.3x55 screws (W-A) and D6 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface. Do not use wall anchors.

Masonry / concrete: Insert wall anchors (W-B) into all 3 drilled holes. Attach the wall mount (A) to the wall using the 3 ST6.3x55 screws (W-A) and D6 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface.

Step 5:

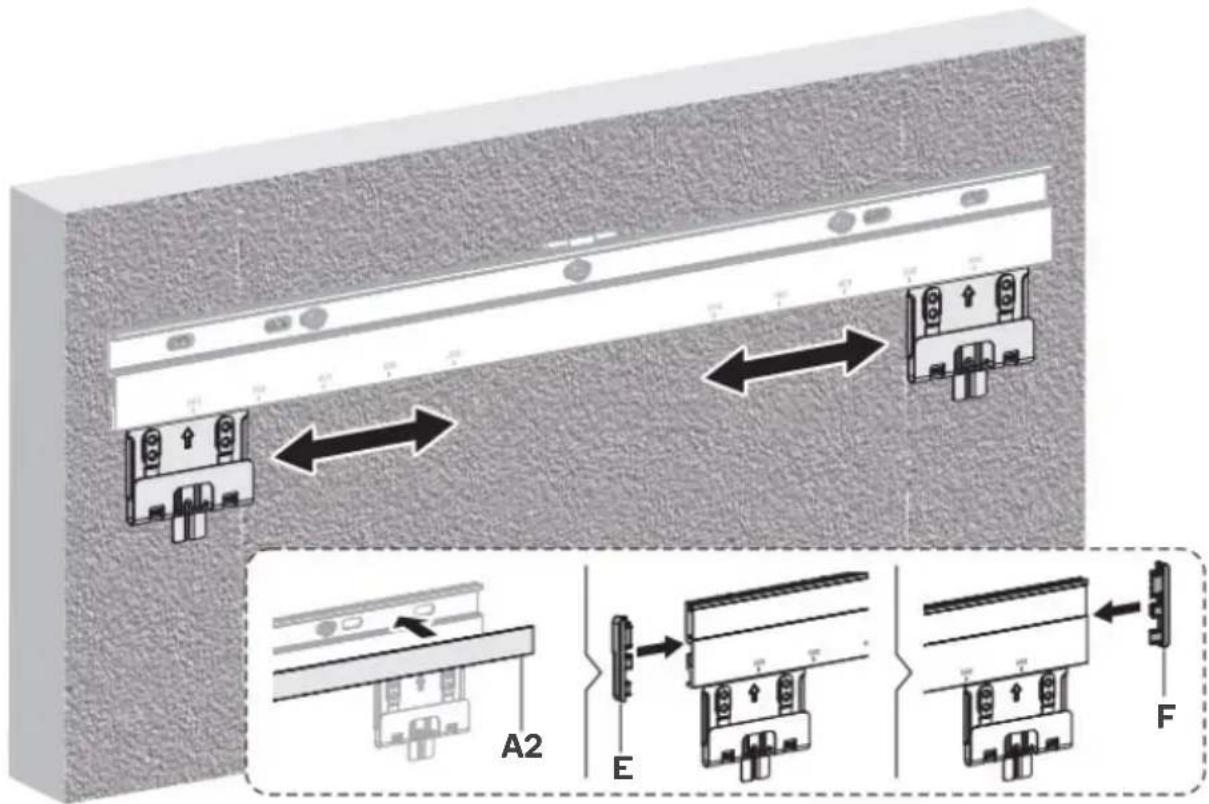

- Set the distance of the wall brackets (C) depending on the size of your TV.

- Replace part (A2) back onto the wall mount (A) and attach the endcaps (E) & (F). to the ends of wall mount (A).

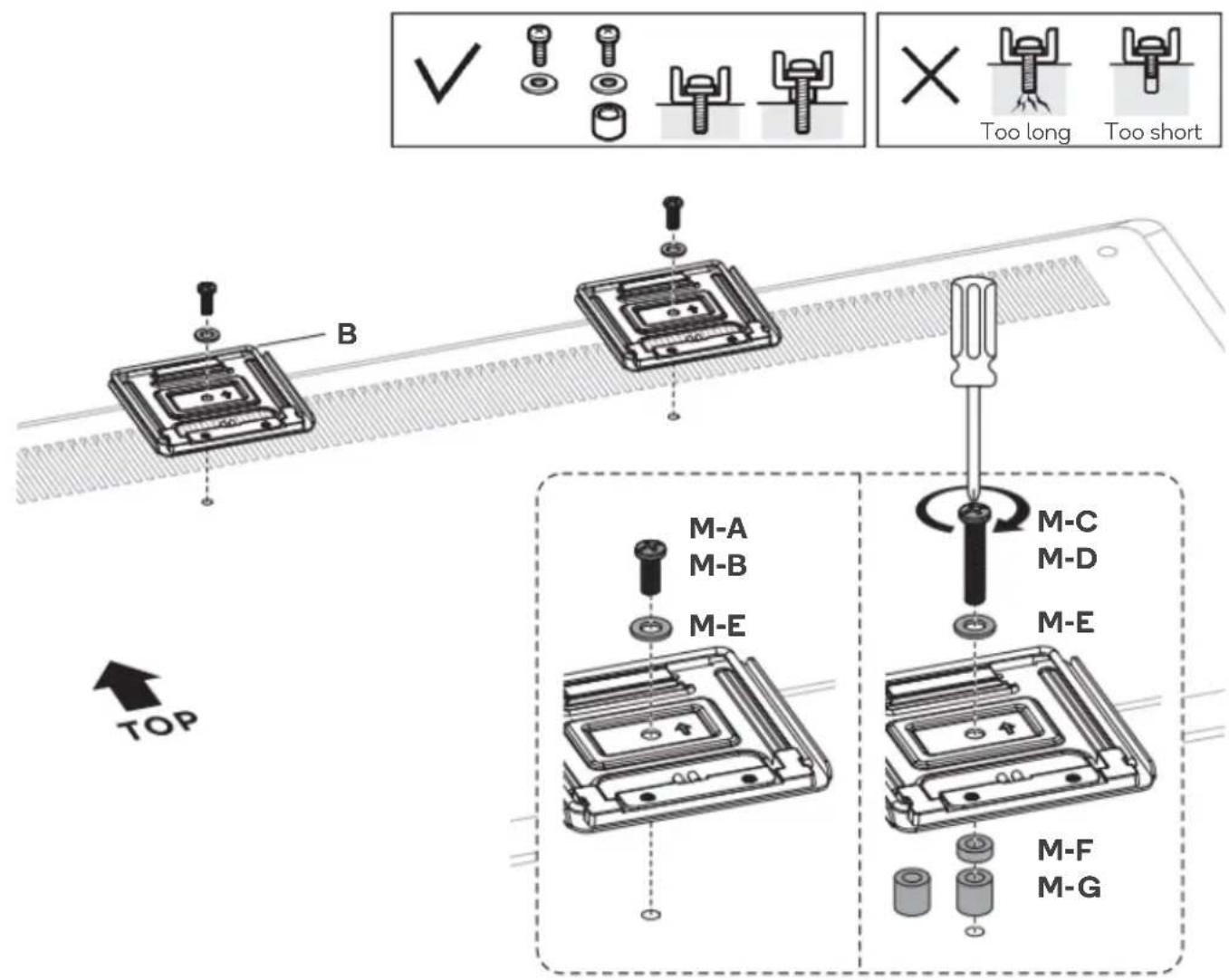

Step 6:

Align the brackets (B) with your TV's VESA holes and secure using supplied screws ("M-" set), Washer (M-E) and spacers (M-F, M-G) depending on required length.

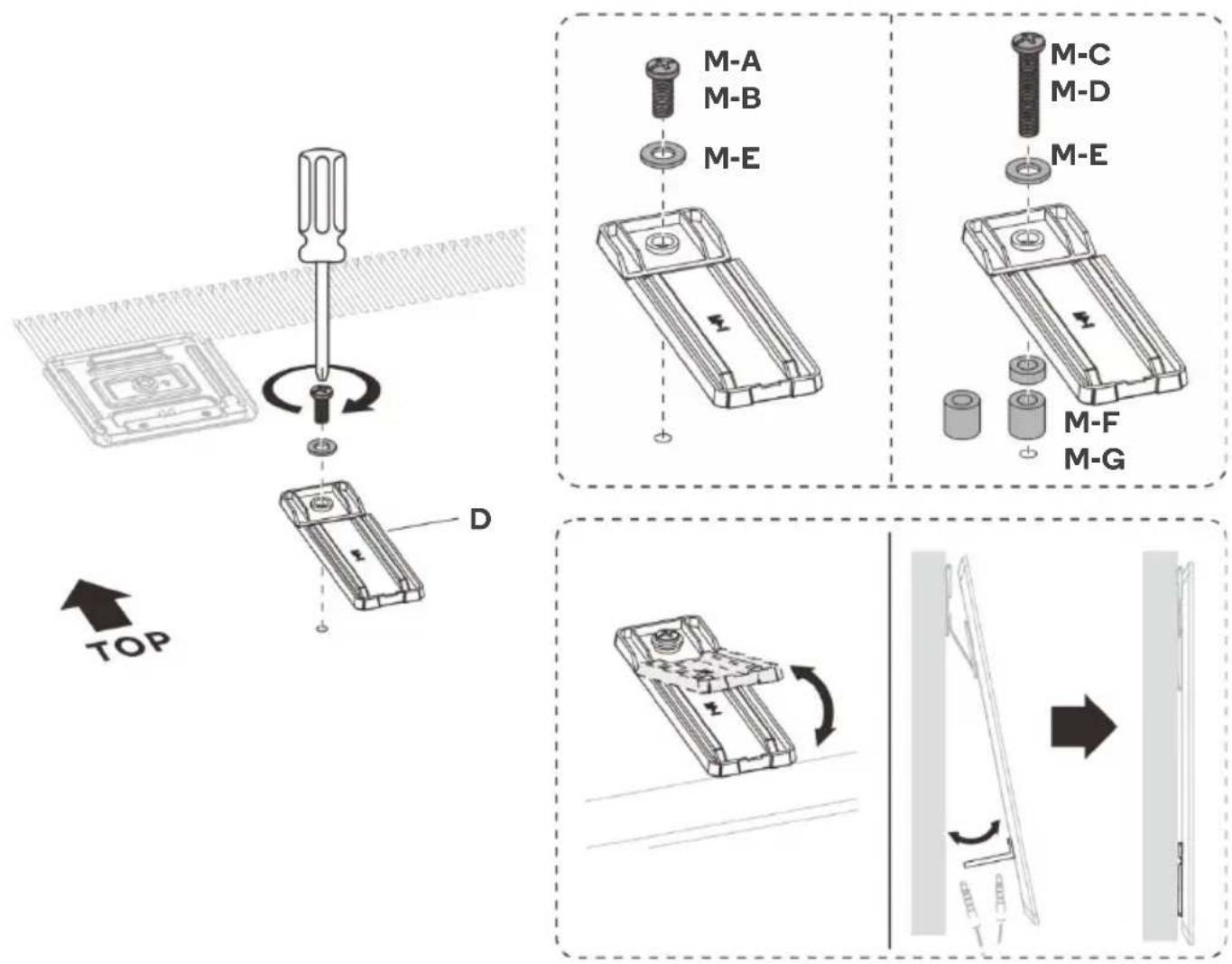

Step 7:

If a corresponding hole is available on your TV, attach the kickstand (D) and secure using supplied screws ("M-" set), Washer (M-E) and spacers (M-F, M-G) depending on required length.

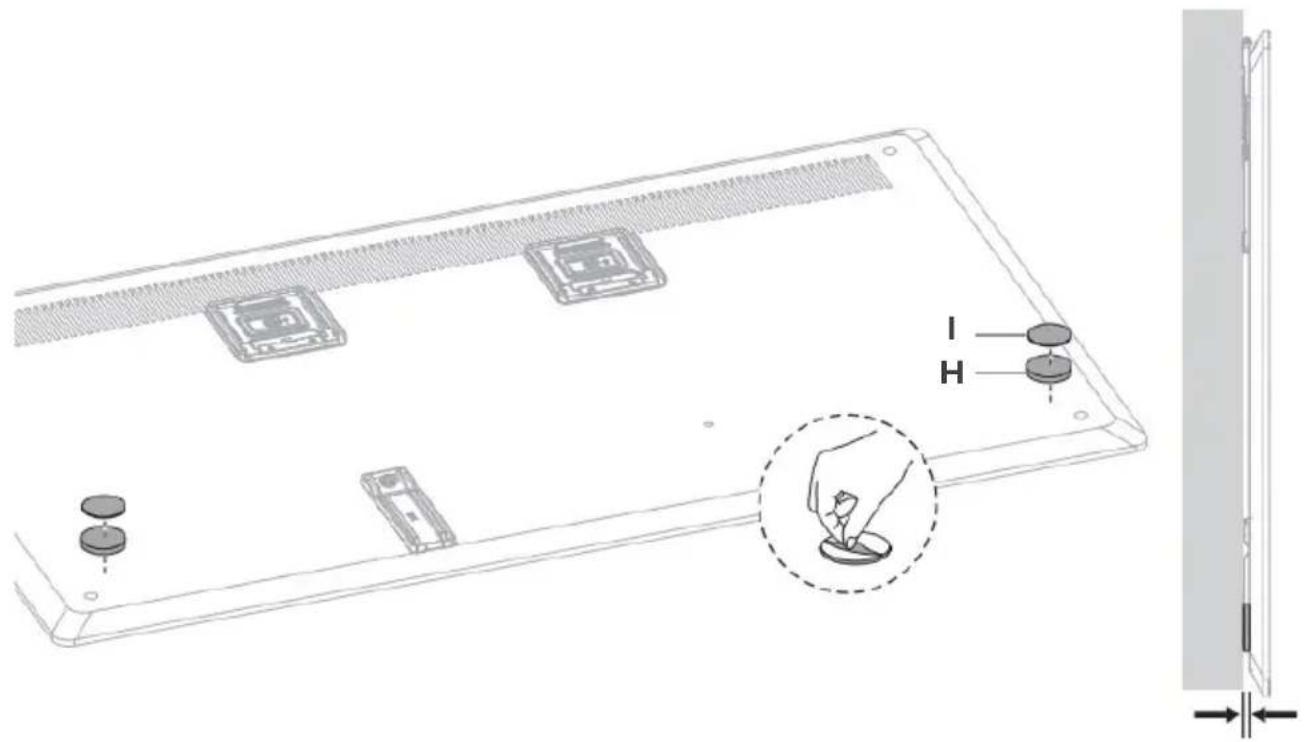

Step 8:

Attach the appropriate EVA pads (H) & (I) to the rear of the TV to fill the wall-to-TV gap.

Step 9:

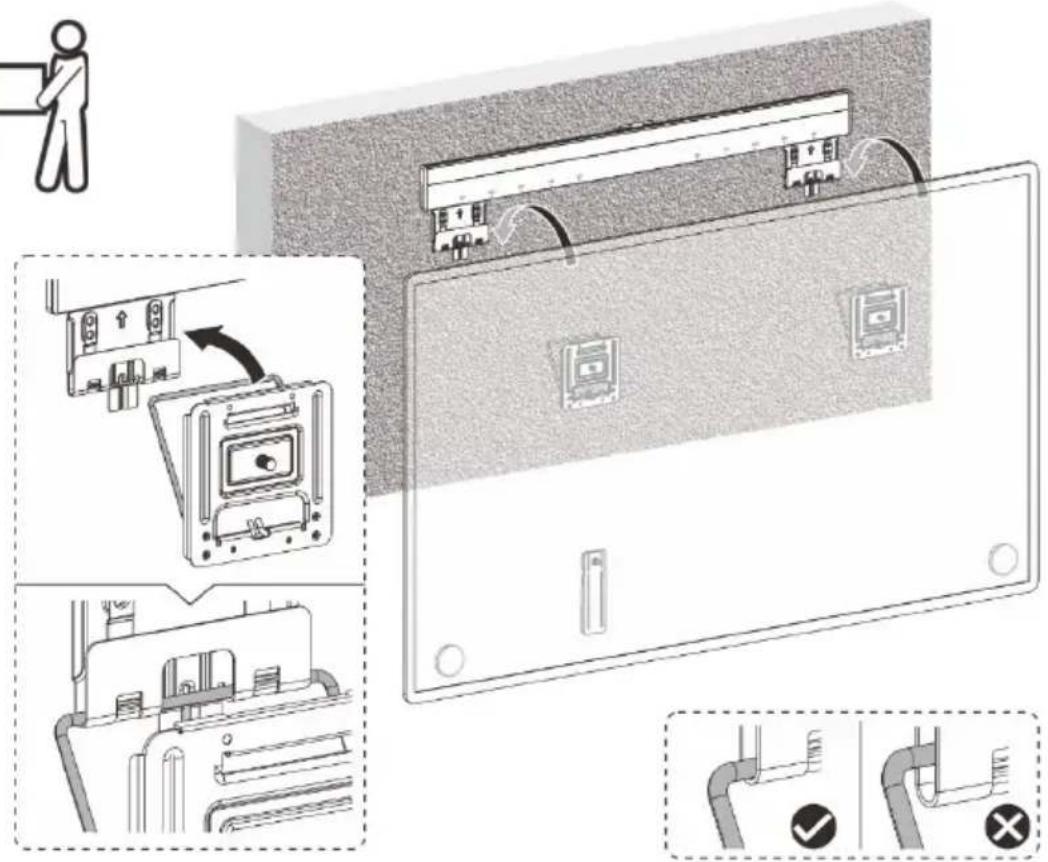

• Carefully hook the TV with brackets and optional kickstand installed onto the wall mount. 2 people should carry the TV to prevent damage. Note: Ensure the hooks on the TV brackets are completely seated in the wall brackets.

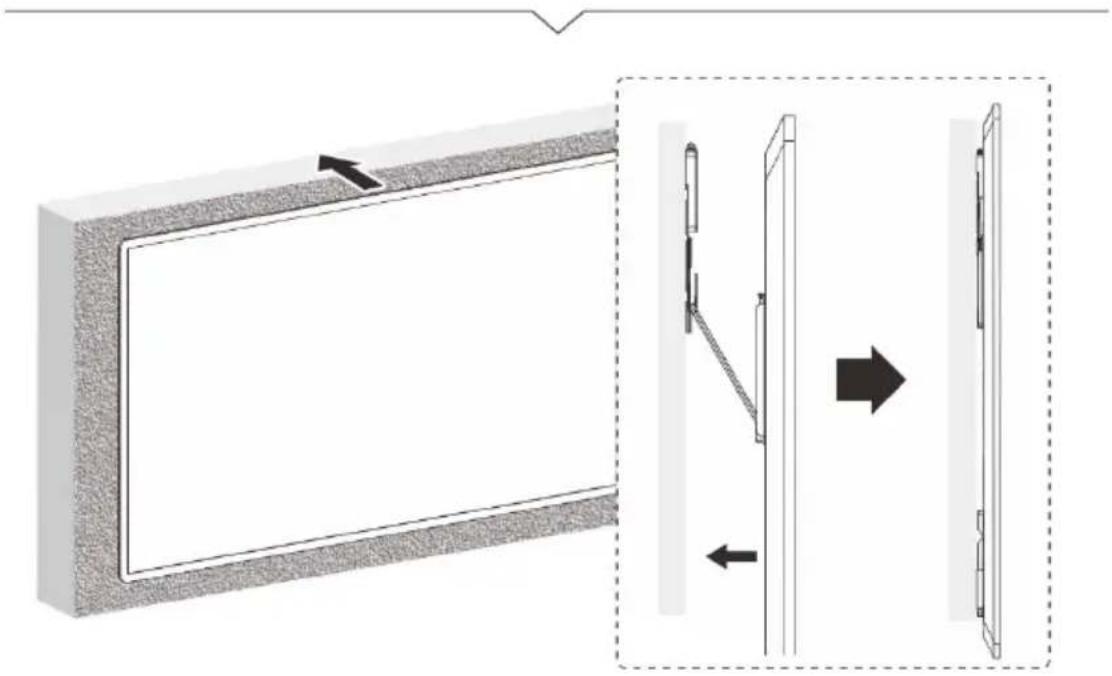

  • Gently lower TV so it is flush with wall and the foam pads are contacting the wall.

Diagram showing a door frame with an arrow indicating direction, alongside a close-up of the door structure (no text or symbols present)

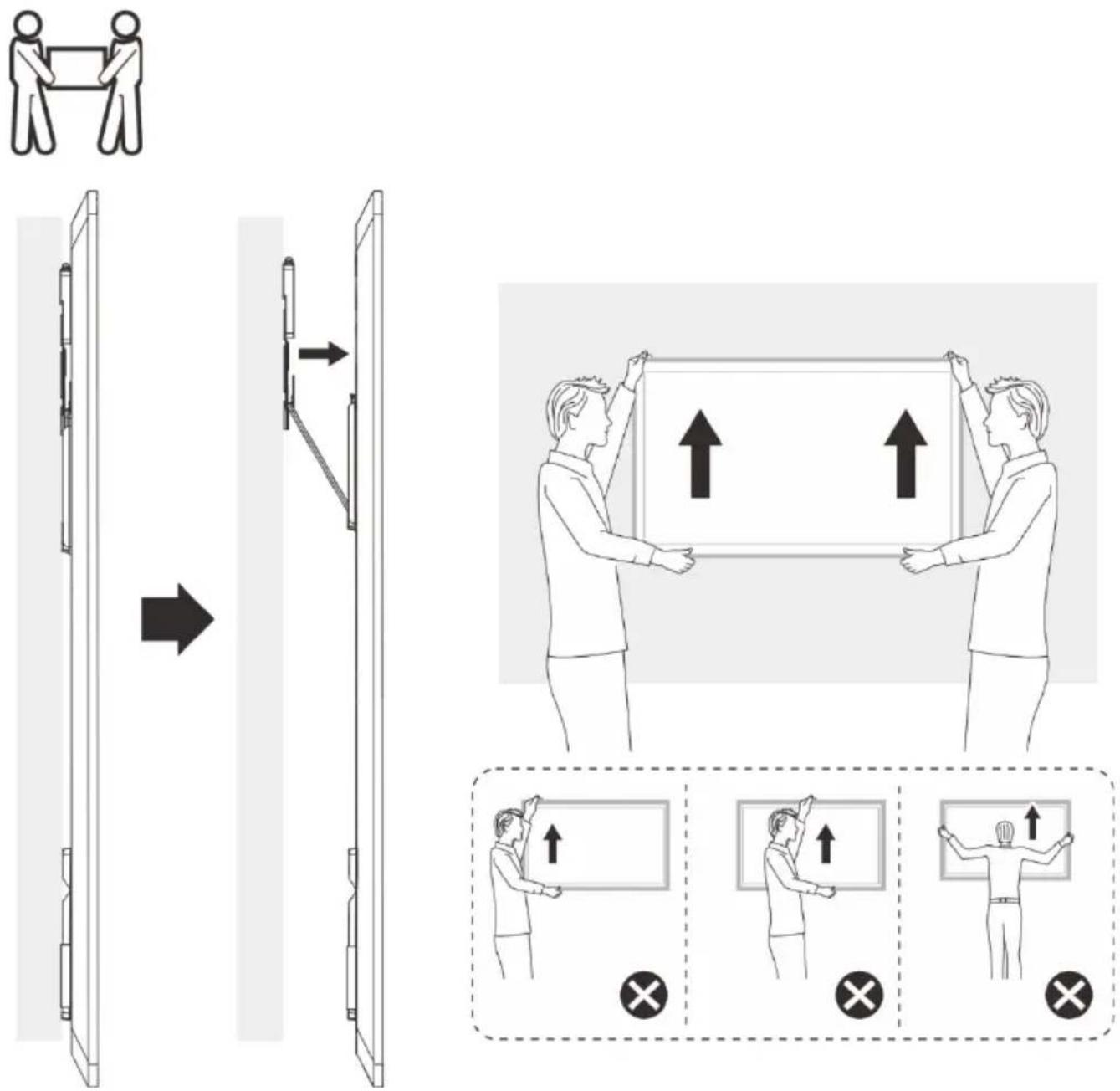

Step 10: Removing the TV from the Wall Mount

To remove, using the assistance of another person, carefully lift the TV upwards and unhook TV brackets from the wall brackets.

IMPORTANT: Do not attempt to remove the TV by yourself

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
