USER MANUAL KAS1MSGCHRA Kogan

Modern massage chair with gray and white design, no visible text or symbols

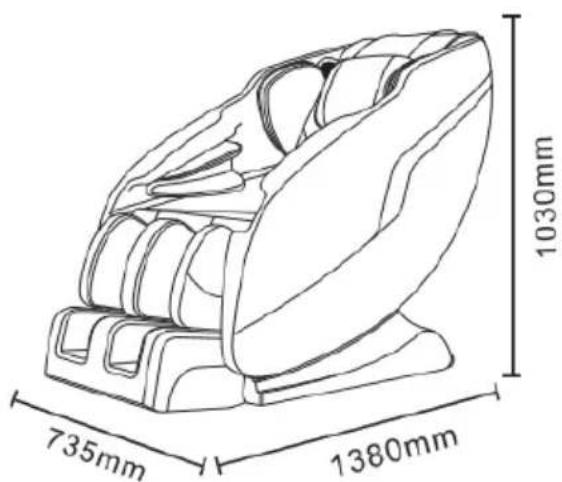

S1 ZERO-GRAVITY HEATED SHIATSU MASSAGE RECLINER CHAIR

KAS1MSGCHRA

SAFETY & WARNINGS

Read all instructions before using this massage chair.

This massage chair is intended for household use only. When using an electrical appliance, basic precautions should always be followed, including the following:

DANGER: To reduce the risk of electric shock:

• Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
• Never use pins or other metallic fasteners with this appliance.
• Carefully examine the covering before each use. Discard the appliance if the covering shows any sign of deterioration, such as checking, blistering or cracking.
• Keep dry - Do not operate in wet or moist conditions.

WARNING: To reduce the risk of burns, fire, electric shock or injury to persons:

• An appliance should never be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts.
• Do not operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock or injury to persons.
• Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons. Keep children away from extended foot support.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Kogan.com.
• Never operate this appliance if it has a damaged cord or plug if it is not working properly, if it has been dropped or damaged or if it has been dropped into water.
• Return the appliance to a service centre for examination and repair.
• Do not carry this appliance by its supply cord or use the cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair and the like.
  • Never drop or insert any object into any opening.
  • Do not use at outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

- To disconnect, turn all controls to the off position, then remove the plug from the outlet.

- Temperatures sufficiently high to cause burns may occur regardless of the control setting. Do not use on an infant or invalid or a sleeping or unconscious person. Do not use on insensitive skin or a person with poor blood circulation. Check the skin in contact with the heated area of the appliance frequently to reduce the risk of blistering.

- Do not crush - Avoid sharp folds.

- Do not use massager near loose clothing or jewellery.

- Keep long hair away from massager while in use.

- Connect this appliance to a properly grounded outlet only. See Grounding Instructions.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective gear thing connection.

- The appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

- If it is not in use for a long time or after use, turn off the power and pull out the power plug.

- Do not damage, break, over-bend, compress, tighten, wind, rotate or knot the power cord.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Usage Environment

• Do not use the massage chair in an excessively humid or dusty environment as this may result in malfunction or electric shock.
• Do not use the massage chair in a room with a temperature of 104^ or higher.
• Do not expose the massage chair to heaters, stoves or direct sunlight.
• Place and use the massage chair on an even, non-slip floor.
  • The massage chair is designed for home use and not for commercial purposes.

• The massage chair is to be used indoors only.
- If you use the massage chair in a cold room, do not increase the room temperature abruptly. It is recommended that you increase the temperature gradually to a normal level.
- If the massage chair is stored in a cold place and is being brought into a warm environment, it is advisable to wait one hour before use. This is because its performance may not be at an optimum level, as there may be water droplets on the mechanical parts due to condensation. Using the massage chair under such conditions may result in malfunction.

Safety Precautions

• To ensure the safe and correct use of the massage chair, do not operate it without reading this operation manual carefully.
• Do not use the massage chair when the upholstery or seat is removed. This may cause injury or malfunction.
• Do not use the massage chair in combination with other therapeutic equipment or electric blanket, etc., as this may result in ineffectiveness or injury.
• Do not use the massage chair an hour before or after eating as this may have adverse effects on the user.
• Do not allow children or pets to play around the massage chair, e.g., behind the backrest, under the seat or leg rest of the massage chair. This may result in injury.
• Do not rest or place heavy objects on the armrests, legrest or backrest as this may result in malfunction or injury.
• Do not use the massage chair when your body is wet.
• Do not operate the massage chair with wet hands.
• It is not recommended to use the massage for more than 30 minutes.
• Do not perform continuous massage on the same spot of your body for more than 5 minutes at a time as this may result in excessive stimulation and may have adverse effects.
• Do not insert your hand or foot along the paths of the massage rollers during use as this may cause injury.
• Stop the operation immediately if you experience any discomfort.
• This product is not intended for self-treatment of conditions that should be managed by a qualified health care provider.
  • People on medication or with medical conditions, consult your doctor before use.
  • Do not use the product if you are not feeling well.
• Remove all scarves, neckties, necklaces and jewellery before using the massager.

1. People with Medical Conditions

Consult your doctor before use if you:

• Are under medical rest as ordered by a doctor.
- Have spinal disorders, an abnormal spinal condition or have suffered a spinal injury.
• Have back problems.
• Have diabetes, osteoporosis or sensory impairment.
• Have joint dysfunction.
• Have a pacemaker or other electronic medical devices.
• May be pregnant.
• Have phlebitis or thrombosis.
• Have an increased risk for blood clots.
• Had recent surgery.
• Have surgical pins, screws or anything mechanical implanted in your body.

2. Instances when the massage chair should not be used

In the following events, switch off the main power switch immediately and disconnect the power cord from the electrical outlet:

• If water is accidentally spilled onto the massage chair, this may result in electric shock or malfunction.
• If the fabric of the backrest is torn and the internal components are exposed.
• If pain or discomfort is felt during a massage, stop operation immediately and consult your doctor.
  • If you detect any malfunction or any other abnormal condition during operation.
  • If there is a power failure. Injury may occur when power is restored unexpectedly.
• If there is lightning.

3. Assembly and repair of the massage chair:

• Do not disassemble the backrest cover of the massage chair. Touching the internal components may result in malfunction or electric shock.
• The massage chair must only be professionally serviced or repaired. Do not attempt to disassemble or repair the massage chair yourself.

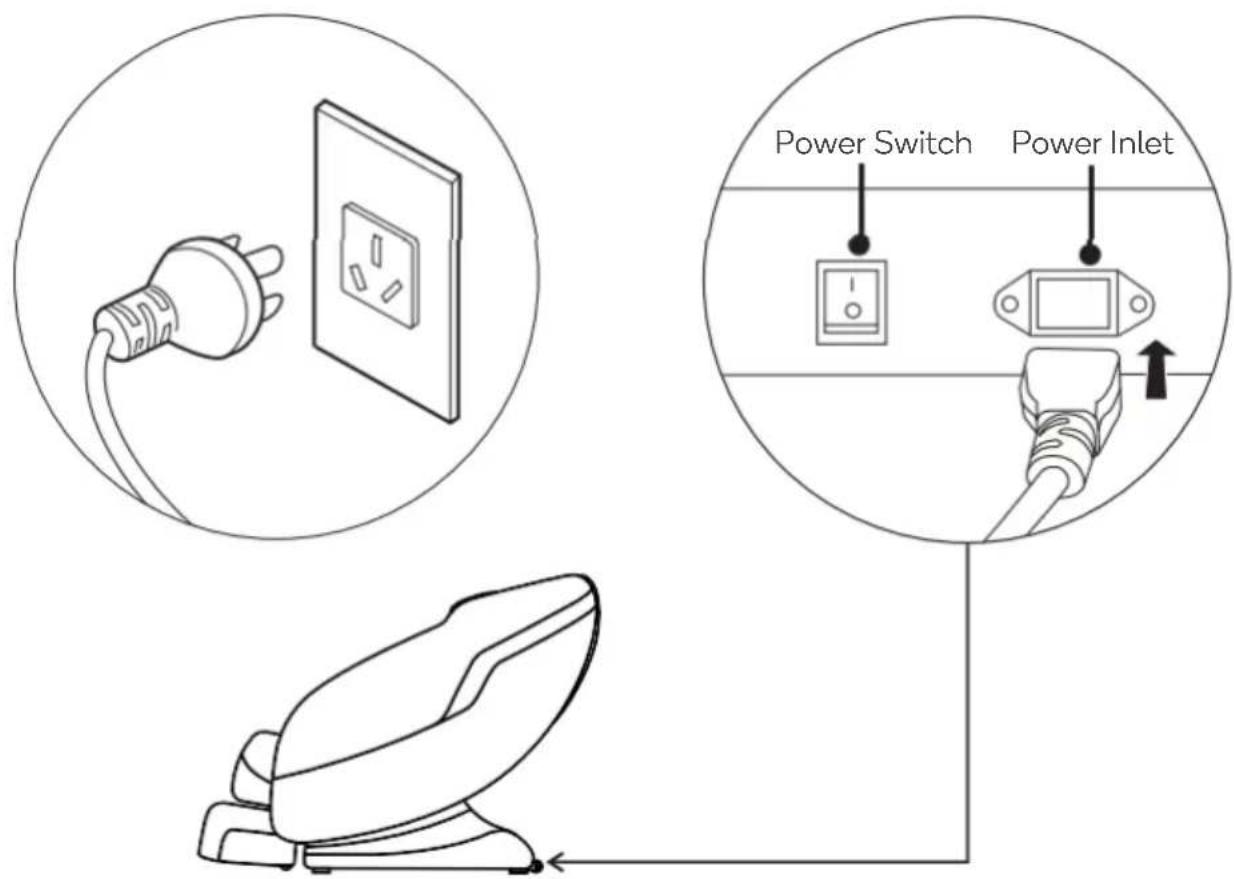

4. Things to note about the power plug and cord

• Check that the Alternating Current (AC) voltage corresponds with the specifications indicated for the massage chair.
• Do not connect or disconnect the power plug from the electrical outlet with wet hands. This may result in malfunction or electric shock.
• When disconnecting the power plug, pull it by holding the plug, not the cord.
• Although operation will be stopped automatically by the Auto-Timer function, always remember to switch off the main power switch after use.
• Do not place the power cord under the massage chair or any other heavy objects.
• Do not wind the power cord around the massage chair as this may damage the cord and result in a fire or electric shock.
• Do not operate the massage chair with a damaged cord or extension cord.
• Do not use the massage chair if the electrical outlet is loose.
  • If the power cord is damaged, it should be replaced by a qualified technician.

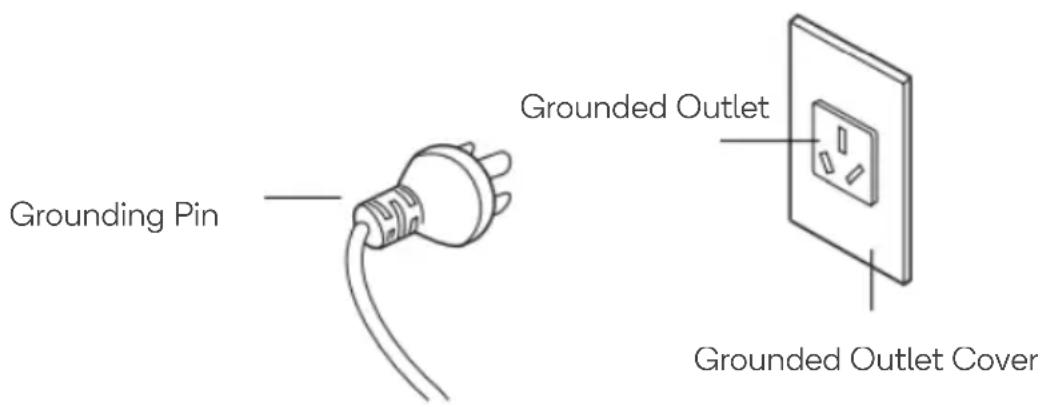

Grounding Instructions

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded by all local codes and ordinances.

Dander- Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 100-240V\~ circuit and has a grounding plug that looks like the plug illustrated in sketch A as the following illustration. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

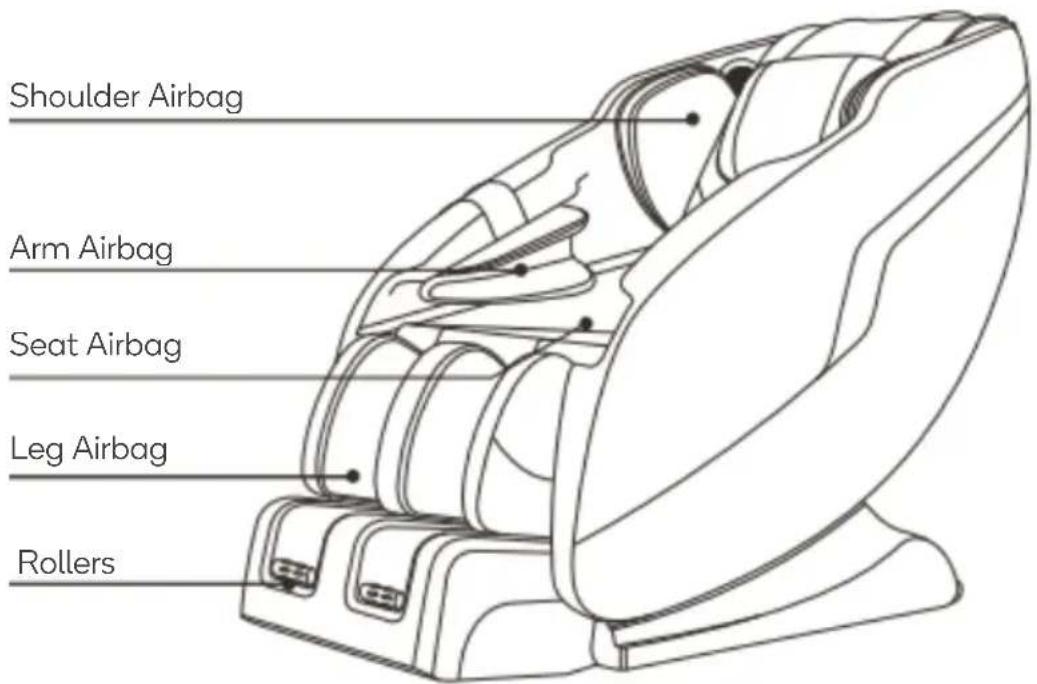

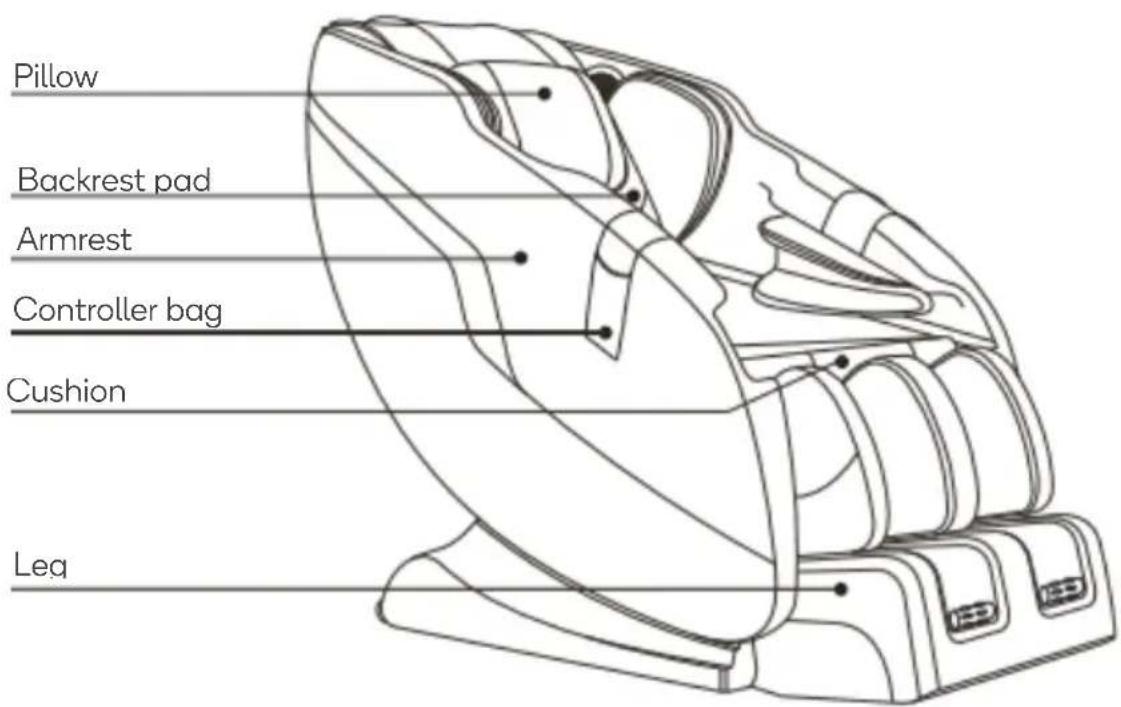

OVERVIEW

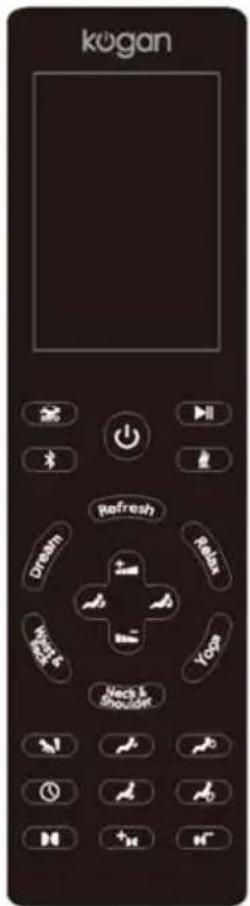

Remote control

Caution:

• Do not sit, step or place heavy objects on the remote control.
• Do not drop the remote control. It is recommended that the remote unit be placed in the remote control side pocket when not in use.
  • Do not exert excessive force on the remote control.
  • Do not handle the remote control with wet hands.
• Do not operate the remote control by using sharp-edged or hard objects. It may result in damage.

Remote control function

Function	Icon	Description
Power		When the power is on, press to turn on the massage chair and then press again to turn off.
Zero-G		Press to turn on, switch and turn off Zero-G function successively.
Pause		Press to pause all massage functions of the whole machine and then press again to resume mass.
Bluetooth		Press to turn on/off the function.
Heat		Press once to turn on the heating function and the screen will show [​]. Press again to turn off the heating function and the icon goes out.
Intensity +/Intensity -		Press (+) to increase the massage intensity.
		Press (-) to decrease the massage intensity.
Back Up/Back Down		Long press to adjust the up of the backrest and release the button to lock the current angle of the backrest.
		Long press to adjust the down of the backrest and release the button to lock the current angle of the backrest.
Rollers		Press to turn on/off the roller massage function and switch the roller intensity.
Neck & Shoulder		Press to turn on/off massage rollers on the shoulder and neck.
		Under the above neck and shoulder mode, press to switch rollers between clockwise and counter-clockwise.
Timing		Press to set the massage time. The selected time is 15/20/25/30 minutes.
Waist & Back		Press to turn on / off massage rollers on the waist and back.
	[VD68]	Under the above waist and back mode, press to switch rollers between clockwise and counter-clockwise.
Airbag		Press the button to switch or turn off the airbags function on shoulder, arm, hip, calf and feet.
Airbag Intensity		Press to increase the airbag intensity.
		Press to decrease the airbag intensity.

Auto Mode

Function	Description
Refresh	Master mode, full body massage, the intensity of roller and airbag massage is stronger.
Relax	Relaxing mode, full body massage, medium intensity for roller and airbag massage.
Yoga	Full body massage, like Yoga exercise.
Neck & Shoulder	Partial massage, focus on improving neck pain and shoulder muscle strain, the roller is focusing more on the neck and shoulder massage.
Waist & Back	Partial massage, focus on the waist and back massage to improve back pain, the roller is focusing more on the waist back massage.
Dream	Full body massage, light intensity for roller.

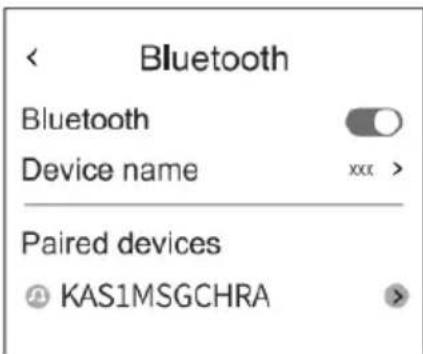

Bluetooth pairing

From your phone or other Bluetooth-capable device, search for devices, locate KASIMSGCHRA and pair. A beep will sound to confirm when the connection is completed.

OPERATION

Moving the chair

• Turn off the main power and unplug the power from the electrical outlet.

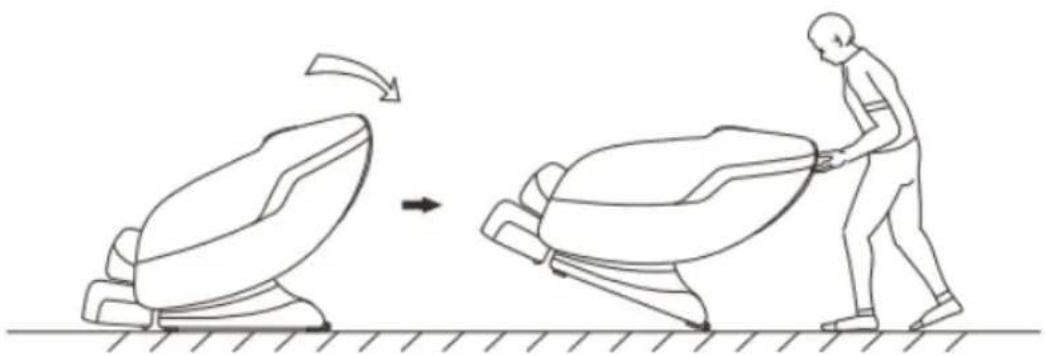

• Tilt the chair backward as illustrated below and wheel it to the desired location.

- Cover the floor with the mat when moving the massage chair to minimise the possibility of any damage to the floor.

Line drawing showing a person pushing a massage chair on a flat surface, with motion arrows indicating movement (no text or symbols)

Chair placement

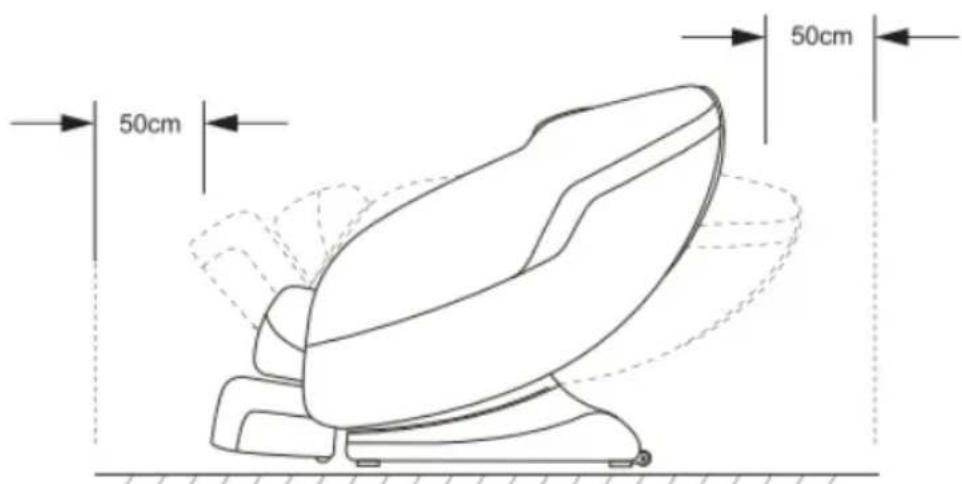

Ensure that there is more than 50cm clearance behind hand more than 50cm clearance in front of the massage chair to allow the backrest to recline without obstruction during operation.

Legrest installation

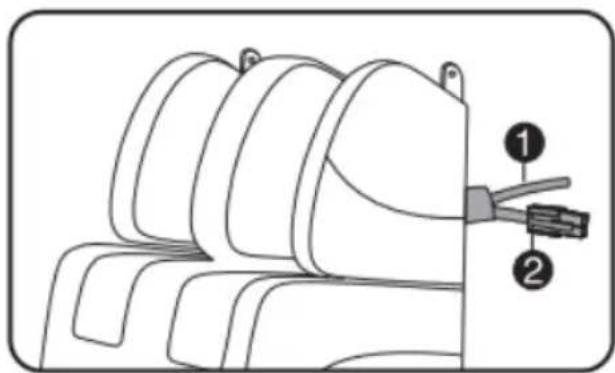

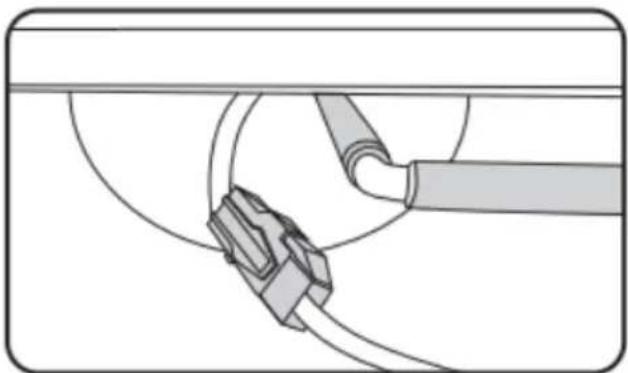

- As illustrated below, insert the air tube ① and DC cable ② into the slots. After connecting well, cover with nylon cloth and fasten with cable ties.

Diagram of a mechanical assembly with numbered components (1 and 2), showing layered components without any text or symbols.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

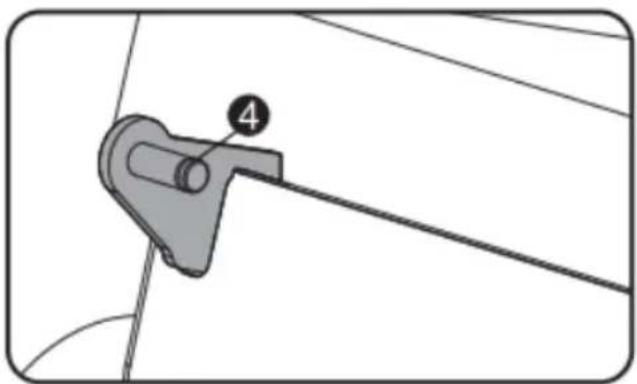

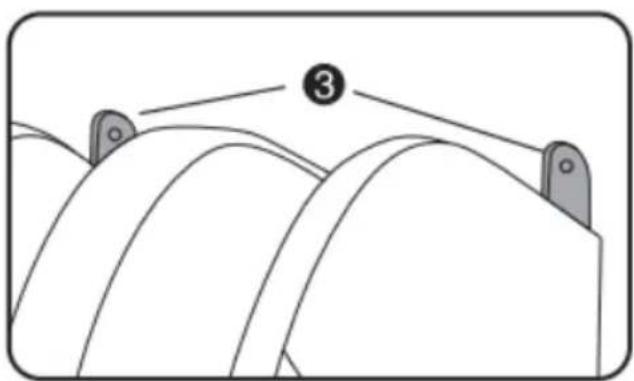

• Install the slots ③ of leg rest into fixed part ④.

Diagram of a mechanical component with curved surfaces and mounting brackets, labeled with number 3 (no text or symbols beyond the number)

Mechanical linkage component with numbered callout (4), no visible text or symbols

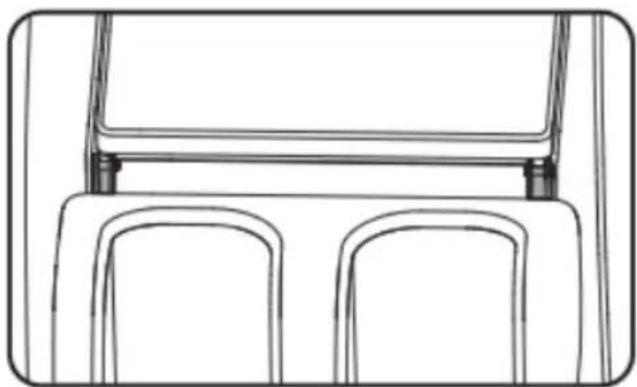

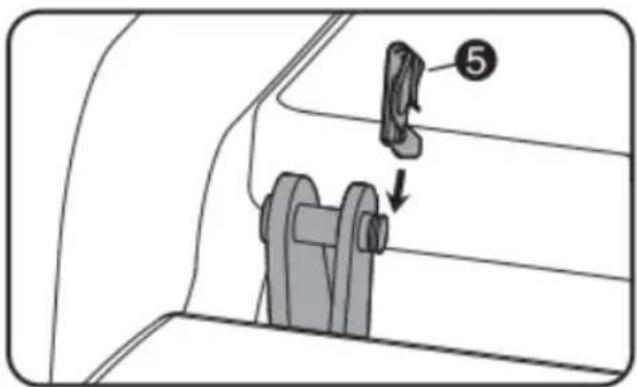

- Insert the lock buckle ⑤ into each side to complete installation.

Line drawing of a mechanical component with two curved cutouts and a rectangular base (no text or symbols)

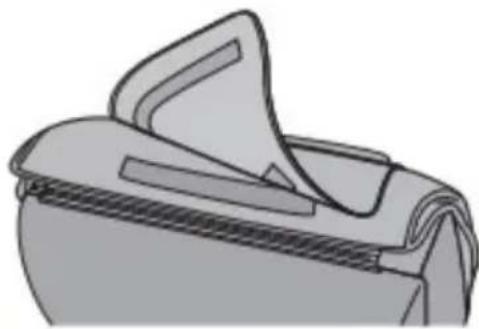

Backrest and pillow pad installation

• Attach the upper backrest pad to backrest with zipper.
• Attach the pillow pad to backrest pad with zipper.
• Remove the cloth on Velcro and then attach the pillow and pillow pad with Velcro.

Illustration of a folded garment with a curved seam and an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a handle and cover (no text or symbols)

Connect power

- Plug the power cord into power inlet and turn on the power switch.

CLEANING & CARE

Follow the below steps to clean leather and plastic parts

- Ensure the main switch is turned off and the power plug is unplugged from the electrical outlet.

- Dip a soft, dry cloth in water or warm water containing 3% to 5% neutral detergent and wring it thoroughly.

- Clean the leather and plastic parts.

• Then wipe with a dry soft cloth.

- Let it dry naturally.

Warning!

• Do not use alcohol, thinner, gasoline and other chemicals for cleaning.

- Do not dry the surface with a blower.

- Do not iron the fabric.

- During maintenance, always unplug the power plug. Do not unplug it by wet hands.

- Use a dust cover to avoid dust if you won't use the chair for a long time.

- As fabric's colour may be dyed on the leather, be careful when using denim and coloured cloth to wipe the product.

- Wipe the product with the melamine foam dipped in mild detergent if the dirt is hard to remove.

• Do not let the leather touch plastic in case of the colour fading.

• Water temperature should not exceed 40 degrees.

Do not use

Water temperature should not exceed 40 degree

Pure geometric line drawing with intersecting and curved lines (no text or symbols)

Do not iron

SPECIFICATIONS

Rated Voltage	100-240V
Rated Frequency	50-60Hz
Rated Power	90W
Upright position-Approximately	1380 x 735 x 1030mm

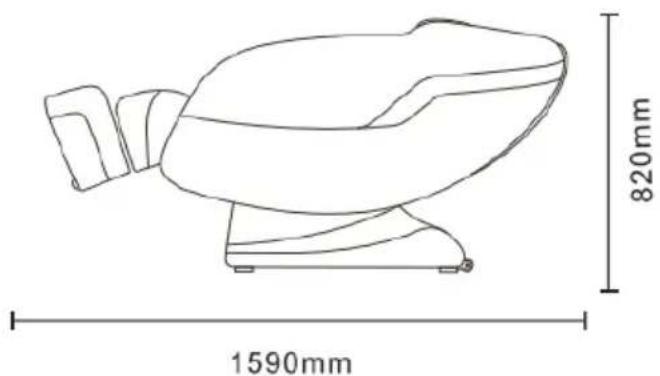

Reclined position- Approximately	1590 x 735 x 820mm

TROUBLESHOOTING

If there is still an abnormality after the following checks, to prevent any accident, stop using the massage chair immediately. Unplug the power cord from the outlet and contact Kogan.com.

Issue	Steps to resolve
The massage chair cannot operate even though it has been connected to the power supply.	Check whether the plug is well connected and working well.Check whether the switch on the Massage Chair is turned to position “I”.
During operation, the remote control is working but not the massage chair.	After prolonged use, the massage chair will automatically cool down to resume its normal condition. Turn off and allow the chair to cool down for 30 to 50 minutes.
The massage chair could be overheated during operation; both the remote control and the massage chair are not working.	If the set time in the Timer has been reached, press the timer function again to resume operation.Switch off power and switch on again to activate the chair.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kōgan
