Product Type	32-inch LED Screen
Screen Size	32 inches (diagonal)
Resolution	1920 x 1080 (Full HD)
Dimensions (with stand)	720 x 480 x 180 mm (approx.)
Weight (with stand)	4.5 kg (approx.)
Power Consumption	40W (typical)
Power Supply	AC 100-240V, 50/60Hz
Inputs	HDMI (2), USB, VGA, Audio In
Built-in Speakers	Yes, 2 x 5W
Stand	Included, detachable
Wall Mount Compatible	VESA 100x100 mm
Remote Control	Included
Care Instructions	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety Warnings	Do not expose to moisture. Ensure proper ventilation.
Spare Parts Availability	Contact Kogan support for replacement parts.
Repairability	Refer to manual for maintenance; professional repair recommended.

Frequently Asked Questions - KAMN32F16FSA Kogan

How do I connect my Kogan KAMN32F16FSA to a laptop?

Use an HDMI cable to connect the laptop's HDMI output to one of the HDMI inputs on the screen. Then select the correct HDMI source using the input button on the remote or the screen.

What is the recommended viewing distance for a 32-inch screen?

For a 32-inch Full HD screen, a viewing distance of about 1.2 to 1.8 meters is recommended for optimal clarity.

How do I mount the screen on a wall?

Ensure the wall mount supports VESA 100x100mm. Remove the stand, attach the mounting bracket to the VESA holes, and follow the mount's instructions. Ensure the wall can support the weight.

Why is there no sound from the screen?

Check that the volume is not muted and that the audio source is connected correctly. Ensure the screen's speakers are enabled in the settings menu. If using external speakers, verify connections.

Can I use this screen as a computer monitor?

Yes, the screen has HDMI and VGA inputs, making it suitable as a computer monitor. Connect your PC using an HDMI or VGA cable.

How do I clean the screen safely?

Turn off the screen and let it cool. Use a soft, lint-free microfiber cloth slightly dampened with water. Gently wipe the screen. Do not spray liquid directly onto the screen.

What should I do if the remote control stops working?

First, replace the batteries. If still not working, ensure there are no obstructions between the remote and the screen's IR sensor. Try resetting the remote by removing batteries and pressing all buttons.

What is the power consumption in standby mode?

Standby power consumption is typically less than 0.5W, meeting energy-saving standards.

How do I update the firmware on my Kogan screen?

Check the Kogan support website for firmware updates. If available, download the file to a USB drive, insert it into the screen's USB port, and follow the on-screen update instructions.

Is the screen compatible with a soundbar?

Yes, you can connect a soundbar via the HDMI ARC port (if available) or using the audio out jack (3.5mm or optical). Consult the soundbar's manual for the best connection method.

USER MANUAL KAMN32F16FSA Kogan

32 Full HD 165Hz Freesync Monitor (1920 x 1080)

KAMN32F16FSA

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

COMPONENTS

Blank white rectangle with black border (no text or symbols)

Monitor Stand connector

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a mechanical tool or tool with a long handle and a small protrusion (no text or symbols)

Stand base

Stand base screw (M4 x 10mm, x1)

VESA screws (M4 x 10mm, x4)

Line drawing of a USB cable with two connectors (no text or symbols)

DP cable Power Adapter

Illustration of a connected cable with a rectangular component (no text or symbols)

User guide

OVERVIEW

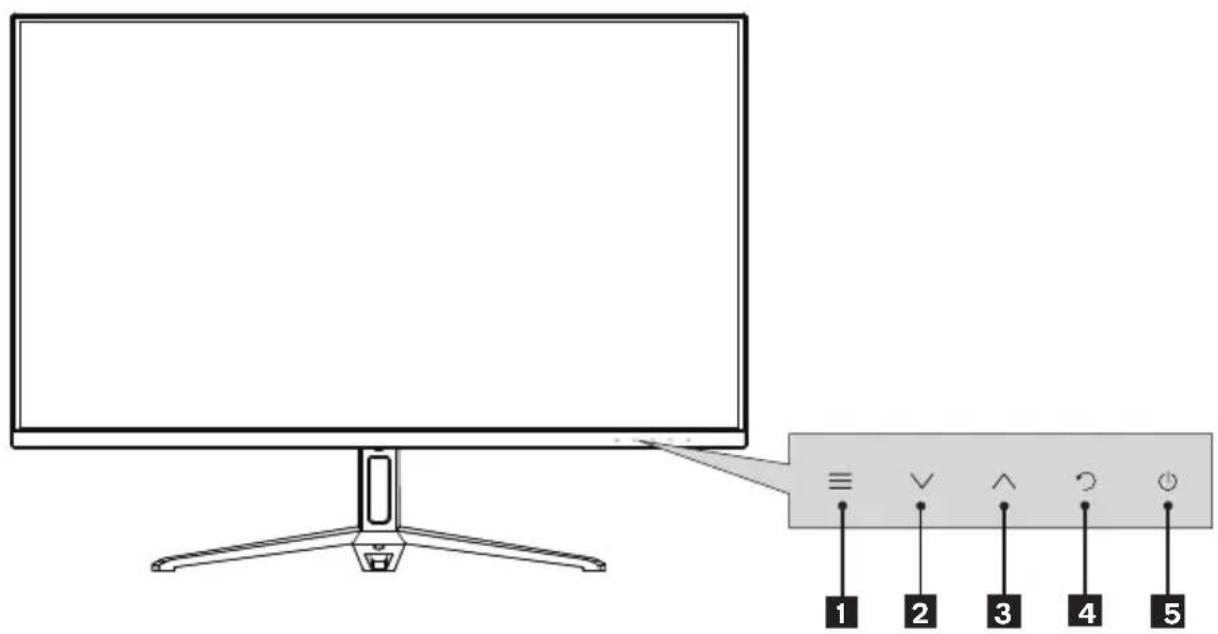

Monitor Controls

1 ≡ Menu Press to display the OSD menu or enter sub-menus.
2 ∨ Down Press to move down in the menu.
3 ^Up Press to move up in the menu.
4 Exit Press to exit the menu.
5 Ⓞ Standby Press to turn the monitor on/off.

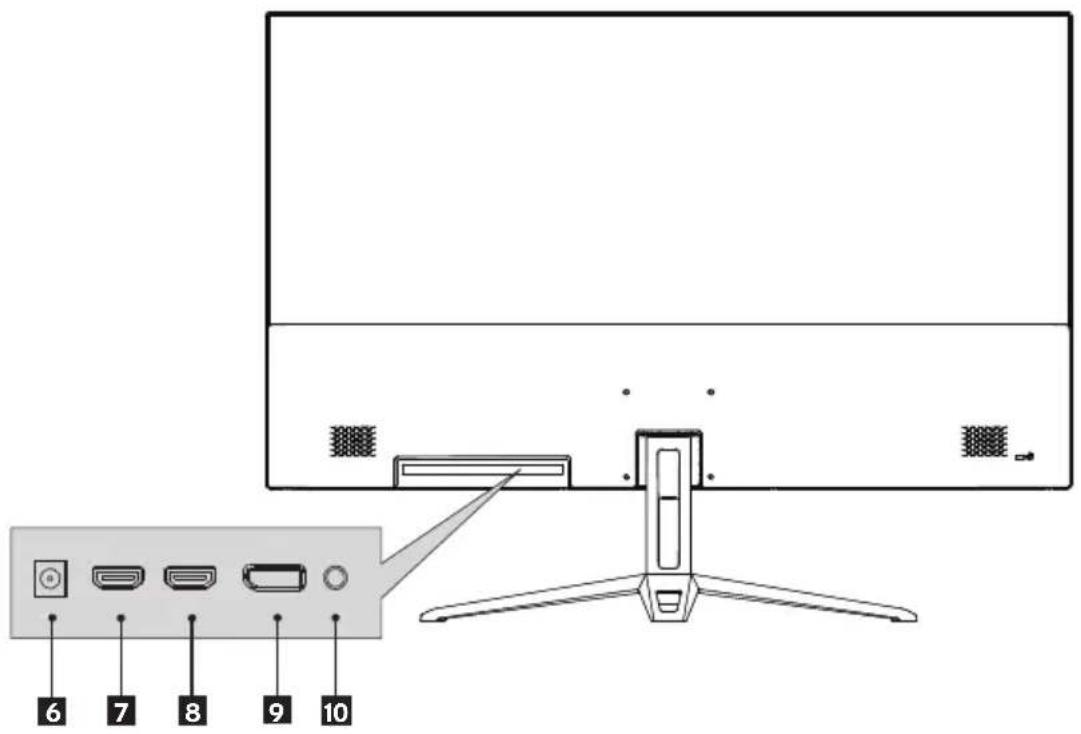

Monitor Ports

6 Power port (DC 12V)
7 HDMI2 connector
8 HDMI1 connector
9 DP connector
10 AUDIO OUT(3.5mm)

©

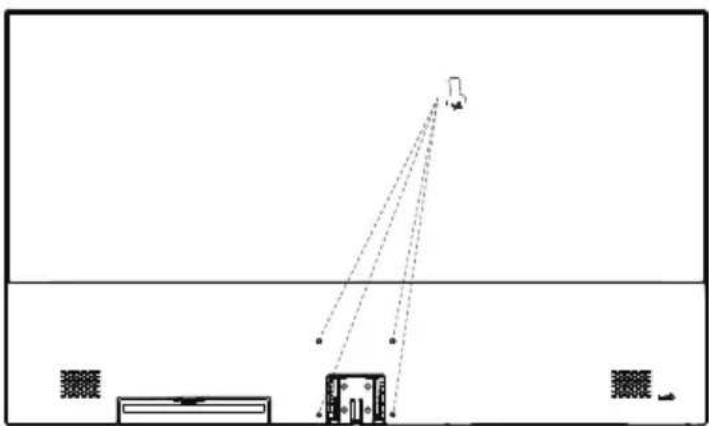

VESA MOUNT

VESA mounting pattern 75 x 75mm, screw size M4.

Note: VESA mount or mounting accessories are NOT included.

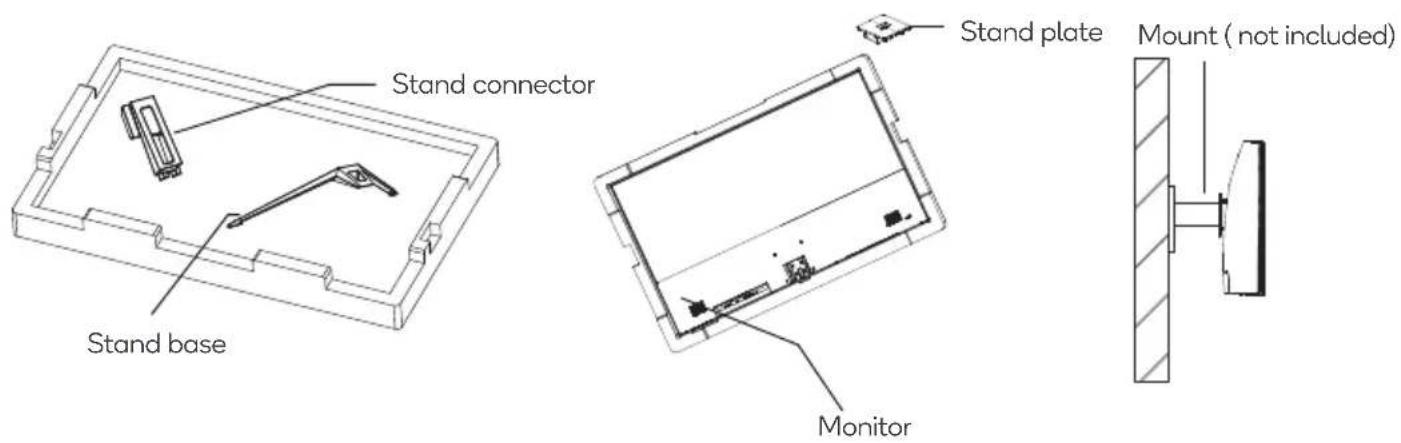

1. Open the box, take out the monitor with protection form attached and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

1. Assemble the mount as per the instructions provided with the mount.

Diagram showing a device with a sensor array and antenna array, no text or symbols present

CONNECTIVITY

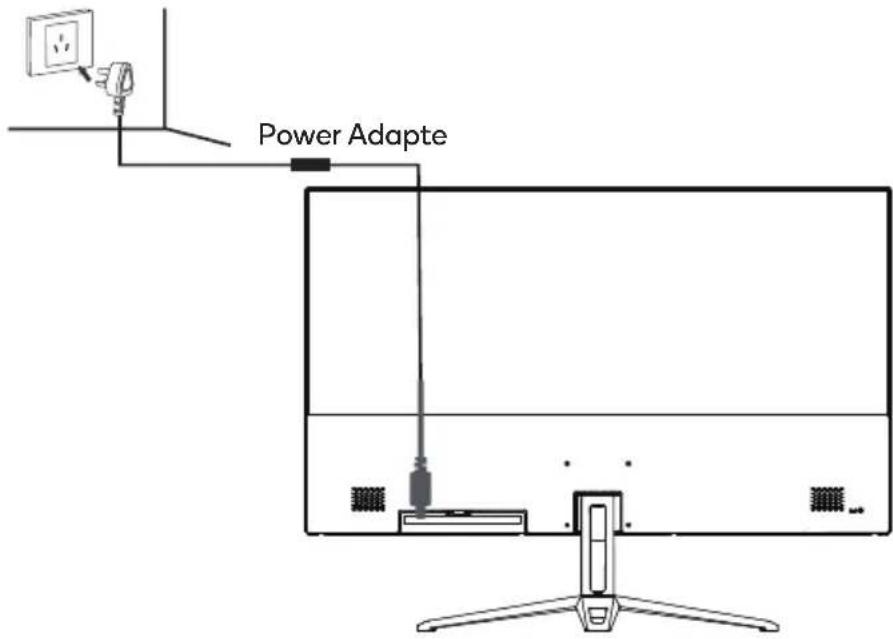

Power cable

Connect the included Power Cable to the monitor power port, then connect the other end to a power outlet.

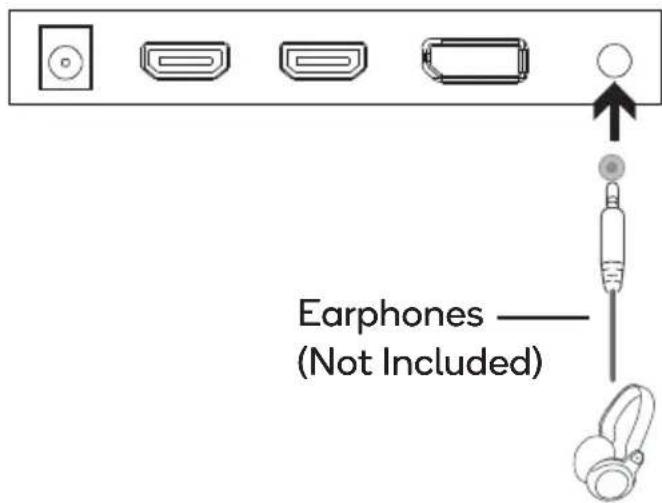

Earphones (Audio Out)

Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor. The monitor may need to be set as the PC's default sound output device.

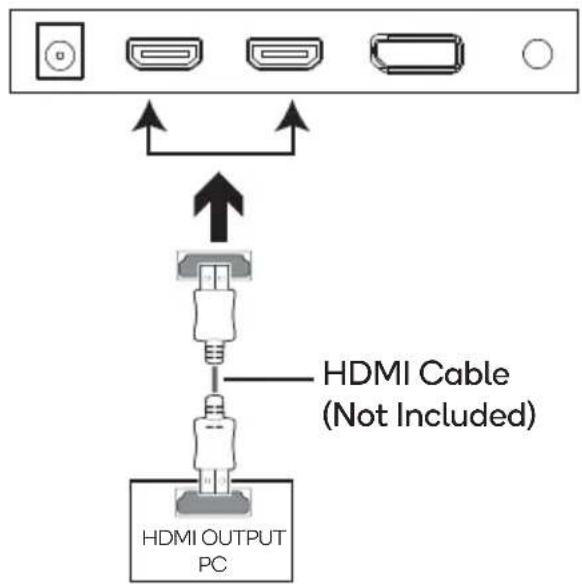

HDMI

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

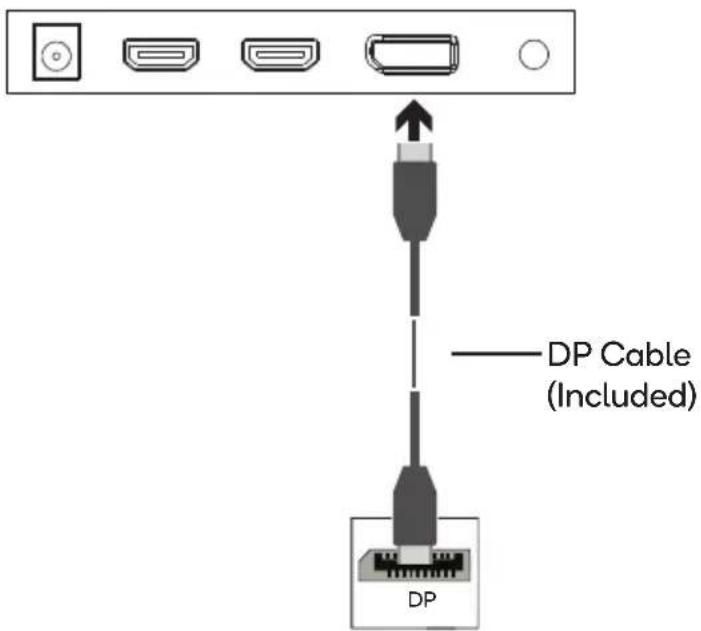

DisplayPort

In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.

OPERATION

1. Connect the monitor to the input device via HDMI / DisplayPort.
2. Connect the power cable to the monitor, then connect the other end directly to a power socket.
3. Use the power button to turn the monitor on.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu.
• See your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

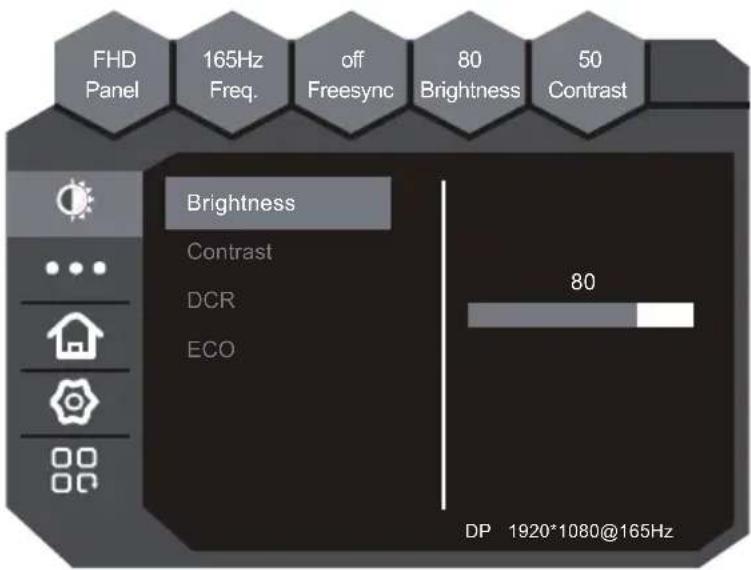

The On-Screen Display (OSD) Menu may be used to adjust your monitor's settings and appears on the screen after turning on the monitor and pressing the "OK key" button.

When using the monitor for the first time, it will configure optimal settings automatically.

1. Press "→" to activate the navigation window.

Auto Select DP HDMI1 HDMI2

1. Press" ≡ " to enter the OSD menu.

1. Press▼ or ▲ to browse functions.

With the desired function highlighted, press "≡" to enter the sub-menu.

Press ▼ or ▲ to browse sub-menus, then press “≡” to highlight the desired function.

Press ▼ or ▲ to highlight an option, then press “≡” to confirm the settings and exit the current screen.

1. Press "○" to exit the current screen.

Refer to the following pages for a detailed list of the OSD menu functions.

Menu	Sub-Menu	Options	Description
	Brightness	~0-100	Adjust display brightness
	Contrast	~0-100	Adjust display contrast
	DCR On/ Off		Turns dynamic contrast ratio on/off
	ECO	STANDARD/TEXT/GAME/MOVIE/FPS/RTS	Preset colour modes
	Colour Temperature	Standard	Select colour temperature mode or allow manual colour configuration (USER)
		Warm
		Cool
		sRGB
		User Define
	Red	~0-100	Adjust red value (USER mode only)
	Green	~0-100	Adjust green value (USER mode only)
	Blue	~0-100	Adjust blue value (USER mode only)
	Language Set OSD language, Español, Français,日本语	English, 简体中文, 한국어, 比국어, Español, Français, 日本语
	OSD Horizontal	0-100	Adjust OSD horizontal position
	OSD Vertical	0-100	Adjust OSD vertical position
	OSD Transparency	0-100	Set OSD overall transparency
	OSD Time Out	10-60	Set how long the OSD remains open after last input
	Input Source	Auto Source/DP/HDMI1/HDMI2	Select input source or allow manual selection
	Mute	ON/OFF	Enable or disable monitor speaker output
	Volume	0-100	Adjust monitor speaker volume
	Reset	/	Uptate monitor firmware via USB flash drive.
	Display Size	Full Screen	Select the display's aspect ratio
		Auto
		4:3
	Low blue	Off	Blue light reduction adjustment
		Weak
		Strong
	Over Drive	On/Off	Enable or disable overdrive for faster response time
	FreeSync	On/Off	Enable or disable AMD FreeSync
	HDR	On/Off/Auto	Enable or disable HDR

ECO MODES

1. Press "▲" button to switch ECO modes. These modes include Standard, Text, Movie, Game, FPS, RTS, sRGB and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.

ECO Standard

SPECIFICATIONS

Screen size	32
Aspect ratio 16:9
Brightness	300cd/m^2 (typical)
Panel VA
Resolution 1920x1080
Refresh rate 165Hz
Response time 5ms
Viewing angle	≥178^(H) / 178^(V)
Contrast ratio 4000:1
VESA mounting 75 x 75mm
Colours 16.7M
Signal input	HDMI 1.4 x 2, DP 1.2 x 1
Power 12V --- 4.0A	—
Audio
Speakers	YES
Audio out	YES
Accessories
Power adapter	YES
DP Cable	YES
Additional functions
Low Blue Light	YES
Flicker Free	YES
Physical dimensions
Dimensions (w. Stand)	715.1*540.2*198.9 (mm)
Dimensions (w/o Stand)	715.1*422.8*49.3 (mm)
Net weight	5.65 kg
Gross weight	7.27 kg

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
