IHU-300L - Dehumidifier Imarflex - Free user manual and instructions

Product Type	Ultrasonic Humidifier with LED Mood Light
Model Number	IHU-300L
Brand	Imarflex
Rated Voltage	230 V ~ 60 Hz
Power Consumption	20 Watts
Water Tank Capacity	2.5 Liters
Mist Output Duration (Low)	15 hours
Mist Output Duration (High)	12 hours
Lighting	LED Mood Light with 7 Colors (Play, Pause, Stop)
Scent Box	Yes, for aromatherapy
Technology	Ultrasonic Silent Operation
Control Panel	Mist Select (Low/High) and Light Select
Cleaning Frequency (Water Tank)	Once a week
Cleaning Frequency (Transducer & Basin)	At least once a month
Safe for Use	Indoor household use only
Safety Feature	Do not immerse base in water; unplug before cleaning
Accessories	Cleaning brush provided
Warranty	Warranty card included, must be filled and sent

Frequently Asked Questions - IHU-300L Imarflex

How do I turn on the Imarflex IHU-300L humidifier?

Plug the unit into a 230V outlet and press the Select button on the control panel to turn it on.

What is the water tank capacity and how long does it run?

The water tank holds 2.5 liters. On low mist setting, it runs for about 15 hours; on high, about 12 hours.

How do I change the mood light colors?

Use the Select button to cycle through Play (continuous cycling of 7 colors), Pause (freeze on a color), and Stop (turn off light).

Can I use essential oils in the humidifier?

Yes, add a few drops of your desired scent into the scent box located on the unit.

Why is there no mist coming out?

Check that the unit is plugged in, the water tank has water, and the tank cover is properly locked. If still no mist, clean the transducer as described in the manual.

How do I clean the water tank?

Unplug the unit, remove the water tank, fill with water and mild detergent, shake well, then rinse thoroughly. Clean the tank once a week.

How do I clean the transducer and water basin?

Pour about 2 tbsp of white vinegar and water into the basin, leave for 30 minutes, then scrub with the provided brush. Rinse well. Do this at least once a month.

What type of water should I use?

To avoid white dust, use distilled or filtered water instead of tap water with high mineral content.

Is it safe to leave the humidifier running unattended?

The unit is designed for household use, but always follow safety precautions. Do not tilt or move while operating, and keep away from children and heat sources.

What should I do if there is a strange odor?

Clean the water tank thoroughly and leave it open without the cover for some time to air out. Regular cleaning prevents odors.

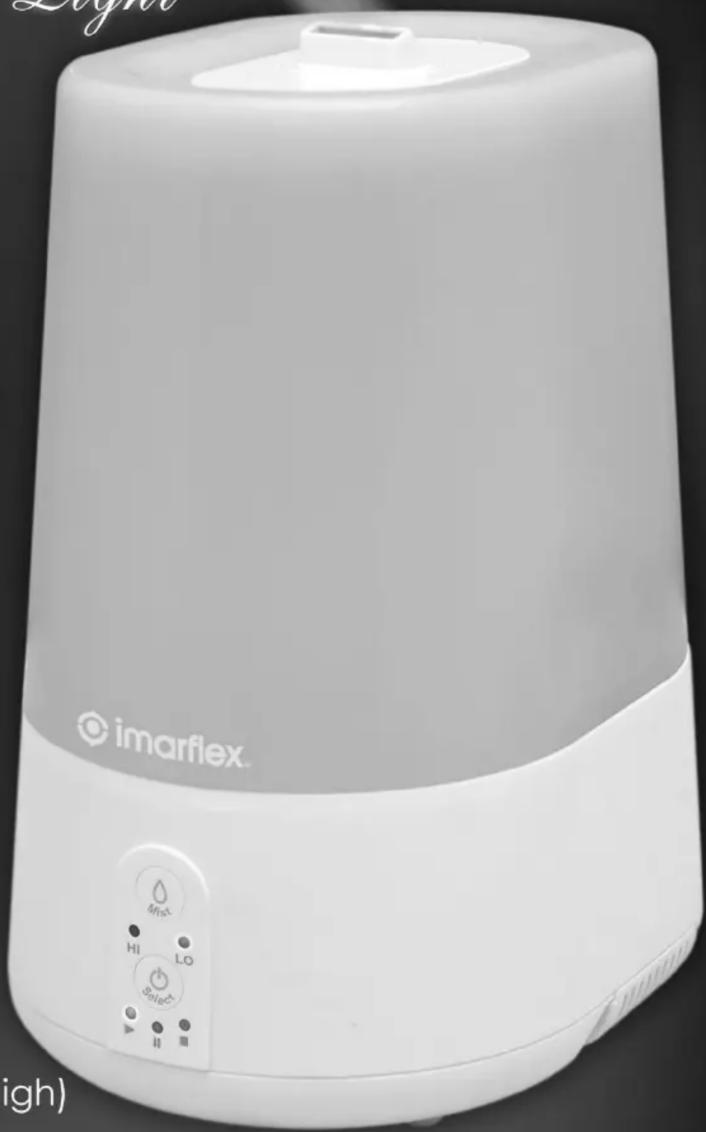

USER MANUAL IHU-300L Imarflex

Row of identical white plastic containers with no visible text or symbols

2.5 LITERS CAPACITY

• With Scent Box
• Mist Control (15-hour Low/12-hour High)

imarflex®

In Every Home.

White imarflex® water purifier with control buttons and indicator lights (no visible text or symbols on body)

IHU-300L

SPECIFICATION

MODEL NO.: IHU-300L

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 20 Watts

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with another appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Do not attempt to empty, fill and tilt the humidifier while it is working.
11. Do not use the unit for outdoor use.
12. Do not use this unit other than its intended use.
13. For household use only; not intended for any business purposes.
14. Save this instruction for future reference.

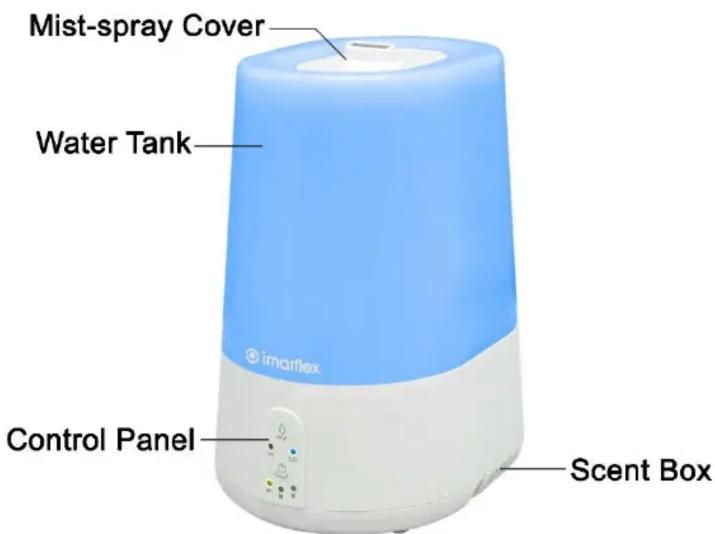

DESCRIPTION OF PARTS:

CONTROL PANEL:

HOW TO USE:

1. Lift the Water Tank and turn upside down.
2. Open the Water Tank Cover.
3. Fill the Water Tank with water but not all the way to the water tank rim.
4. Lock the Cover back on.
5. Turn the Water Tank upside down and return to the base.
6. Put your desired perfume scent into the scent box.
7. Plug the unit into the convenience outlet.
8. Turn on the unit by clicking SELECT.
9. Choose your desired mist volume control.

- High: 12 hours

- Low: 15 hours

1. Turn OFF after use.

NOTE: It is normal to hear a dripping sound when mist output is at a high level.

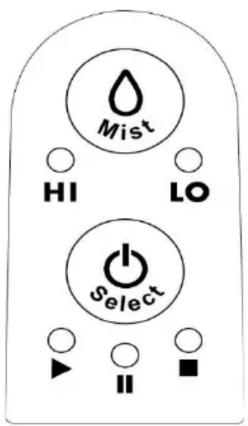

Control Panel

Mist

This icon serves as the mist volume control selector.

High: 12 hours of mist

Low: 15 hours of mist

Select

This icon serves as the light selector and on/off of the unit.

The following icons ▶ || ■ are for the light control of the unit.

Play function: The 7 mood light colors will continuously PLAY as you select this function.

Pause function: This function gives you the benefit to select the desire color you want. As you select this function the mood light color will PAUSE.

Stop function: As you select this function, the mood light color will be turned off.

CLEANING AND MAINTENANCE:

1. Unplug the unit from the convenience outlet before cleaning.
2. Wipe the base of the unit with damp cloth.
3. Do not use abrasive materials to avoid scratches.

How to Clean the Water Tank

1. Fill the water tank with water.
2. Put a mild detergent and then shake it well.
3. While shaking, hold it with both hands and do not hold it with the handle.
4. After shaking, remove the water and rinse it thoroughly.

NOTE: The water tank should be cleaned once a week.

How to Clean the Transducer & Water Basin

1. To remove the water residue, pour approximately 2 tbsp. of white vinegar and add water into the water basin. Make sure it fills the entire water basin but not all the way to the rim.
2. Leave the water with vinegar for at least one-half hour.
3. Brush the solution in the transducer and in the areas encrusted with water residue. Use the brush provided by the unit or with soft bristled brush.
4. Discard the solution and rinse it thoroughly.

NOTE: Clean the Transducer & Water Basin at least once a month to prevent the accumulation of water residue.

TROUBLE SHOOTING:

PROBLEM	SOLUTION
Humidifier does not work at all.	Make sure it is properly plugged into the convenience outlet.
The Light Indicator is on but no mist or very little is being emitted.	Check if there is water in the tank.
White dust appears outside the humidifier.	The water you are using might have too minerals. Change to distilled or filtered water.
If there is a strange odor.	Clean the water tank.Leave the water tank open without the cover for some time.

REMINDER: Please do not forget to fill up and send the warranty card.
