ICB-1550PRO - Blender Imarflex - Free user manual and instructions

Product Type	Blender
Brand	Imarflex
Model	ICB-1550PRO
Motor Power	500 W
Capacity	1.5 L
Blade Material	Stainless steel
Speed Settings	2 speeds + pulse
Pulse Function	Yes
Jar Material	Glass
Dishwasher Safe Parts	Yes (jar, lid, blade assembly)
Cord Length	1.2 m
Weight	2.5 kg
Dimensions (L x W x H)	20 x 18 x 40 cm
Voltage	220-240 V
Frequency	50/60 Hz
Safety Features	Non-slip feet, overload protection
Included Accessories	Blender jar, lid, blade assembly
Warranty	1 year

Frequently Asked Questions - ICB-1550PRO Imarflex

How do I clean the blender jar?

Rinse the jar immediately after use. Fill with warm water and a drop of dish soap, then blend on low for 30 seconds. Rinse thoroughly. The jar, lid, and blade assembly are dishwasher safe.

Can I crush ice with this blender?

Yes, the ICB-1550PRO can crush ice. Use the pulse function to achieve desired consistency. Do not overload with ice.

What should I do if the blender stops working during use?

The blender has overload protection. If it stops, unplug and let it cool down for 15 minutes. Reduce the load and try again.

How loud is this blender?

The noise level is typical for a blender of this power (around 80 dB). Using it on a hard surface can amplify noise; place a mat under it to reduce vibration.

Are replacement parts available?

Yes, replacement jars, lids, and blade assemblies are available through Imarflex customer service or authorized retailers. Check the user manual for part numbers.

Can I blend hot liquids?

No, do not blend hot liquids as pressure can build up and cause the lid to blow off. Let liquids cool to at least 60°C before blending.

What is the maximum capacity for dry ingredients?

For dry ingredients like nuts or grains, do not exceed 1 cup (about 200g) to prevent motor strain and ensure proper blending.

Does the blender have a warranty?

Yes, the ICB-1550PRO comes with a 1-year limited warranty covering manufacturing defects. Retain your purchase receipt.

How do I detach the blade assembly for cleaning?

Unscrew the blade assembly from the jar by turning it counterclockwise. Use caution as blades are sharp. Wash separately or place in dishwasher.

What is the recommended power outlet for this blender?

Use a grounded outlet with voltage matching the rating (220-240V). Avoid using extension cords to prevent voltage drop.

USER MANUAL ICB-1550PRO Imarflex

with LED Light Indicator

BREAK RESISTANT

2000cc

BPA-free

JAR

28,000 RPM

1500W

POWER MOTOR

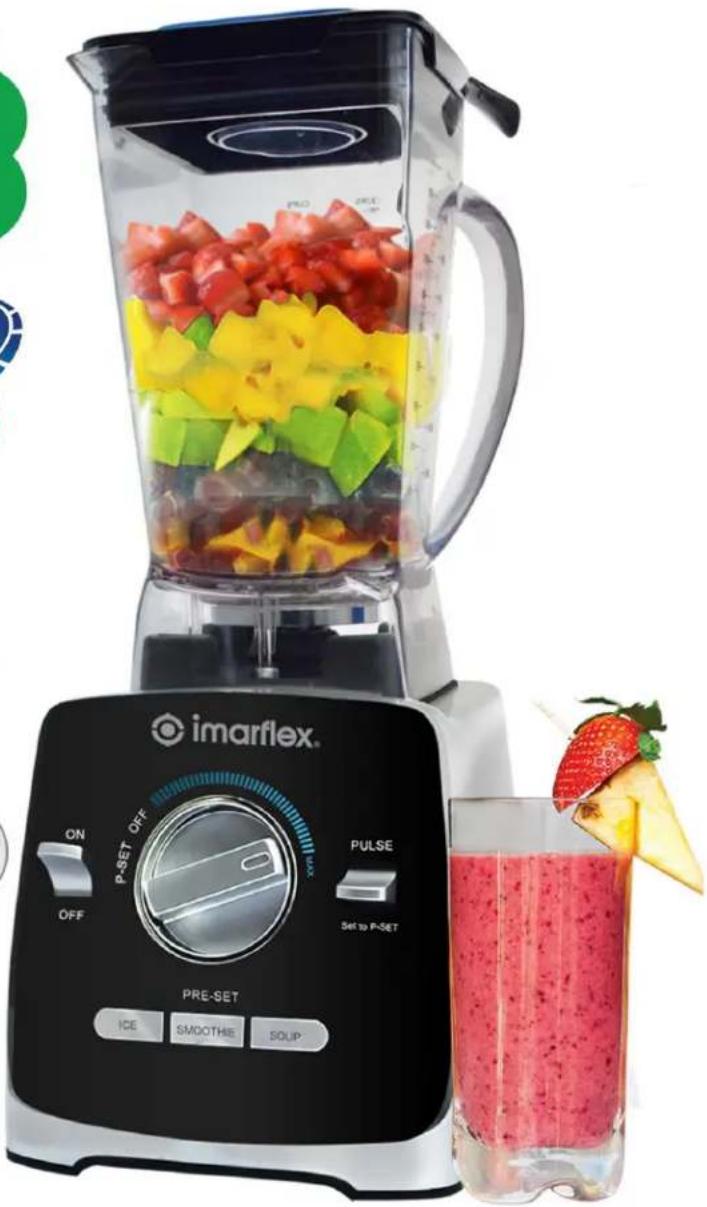

Exterior view of a imarflex blender with colorful fruit being filled, alongside a glass of smoothie and a strawberry on a side (no text or symbols visible)

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with other appliance.
4. Do not abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.

5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to any authorized Imarflex Service Center for examination, repair or adjustment.

6. Do not place the unit near gas stove, electric stove or in a heated oven.

7. Put the unit on flat surfaced; keep it away from the edge of counter to avoid accident.

8. Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

9. Children should be supervised to ensure that they do not play with the appliance.

10. This appliance is not intended to be uses by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

11. Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning.

12. Do not blend hot liquids, doing so may cause excessive pressure build-up, resulting in risk of the user being burned.

13. To reduce the risk of injury, never operate the appliance without the lid in place

14. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

15. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

16. Do not use this appliance for anything other than its intended use.

17. This appliance is not intended for outdoor use.

18. To protect against electric shock, do not immerse the base in water.

19. The maximum continuous operating time of the blender is three minutes only. Do not exceed with the maximum operating time. It may cause damage to the unit.

20. Blade is sharp, handle it carefully.

21. Do not put the blade assembly on the base without the plastic jar.

22. Do not use the blender if the plastic jar has a crack.

23. Do not use this unit other than its intended use.

24. Save this instruction manual for future reference.

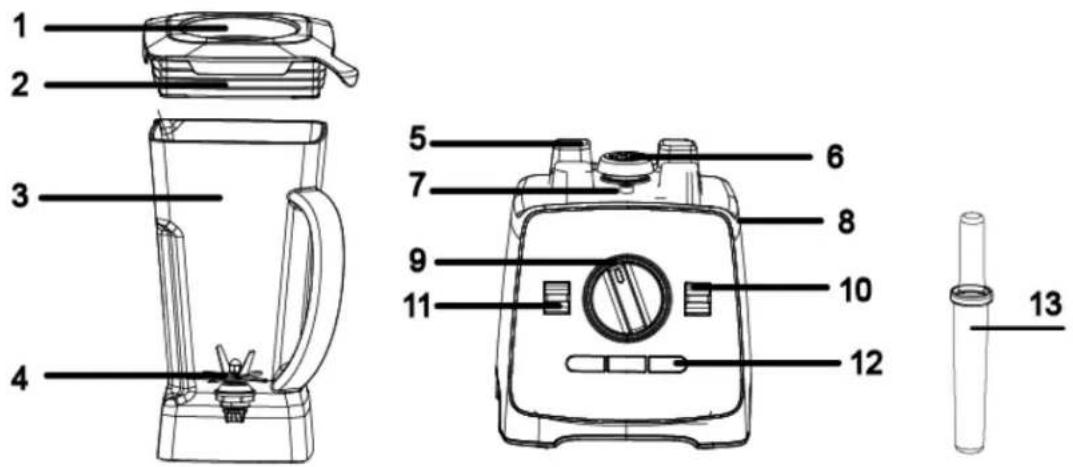

DESCRIPTION OF PARTS:

1	Measuring cup	8	Motor Base
2	Jar lid	9	Function & Speed Control
3	Jar	10	Pulse button
4	Stainless Steel Blades	11	ON / OFF Switch
5	Top Housing Pad	12	Pre-set Buttons
6	Motor running gear	13	Tamper
7	Safety Switch

CONTROL PANEL

Close-up of a metallic control dial with 'P-SET OFF' and 'H150' labels, no readable text or symbols beyond the indicator.

• ON/OFF: Plug the unit into a convenience outlet. Switch the Power ON. The unit will be on standby mode
  • After use, switch the Power OFF.

- Pulse: Switch Power ON, set to P-SET, Toggle the_Pulse Switch

• Speed Control: Turn the function selector to the desired speed. Note: The function selector must be initially in OFF position before operation.
• P-SET: Set to P-SET for the pulse function and preset function (Ice, Smoothies, and Soup).

- Pre-set Function:

- Preset programs (Time and Speed) Auto-stop

a. Ice:

1. Switch Power ON.
2. Set the function selector to P-SET. (Ice, Smoothie, Soup) will be flashing.
3. Press Ice function and Ice function light indicator must be ON. It will chop the ice in intervals separated by short breaks for approximately 40 seconds.
4. Wait until it stops.
5. Once done, the 3 pre-set function will be flashing.

b. Smoothie:

1. Switch Power ON.
2. Set the function selector to P-SET. (Ice, Smoothie, Soup) will be flashing.
3. Press Smoothie function, it will blend for approximately 2 minutes.
4. Wait until it stops.
5. Once done, the 3 pre-set function will be flashing.

c. Soup:

1. Switch Power ON.
2. Set the function selector to P-SET. (Ice, Smoothie, and Soup) will be flashing.
3. Press the Soup function, it will blend for approximately 5 minutes.
4. Wait until it stops.
5. Once done, the 3 pre-set function will be flashing.

Note:

• To stop the program, press the selected button and the pre-set function will be flashing.
• If you desire to jump from one pre-set function to another, select the new desired pre-set function and it will automatically override the program.

Safety Instruction for HOT LIQUIDS:

1. Be careful in adding or mixing the ingredients.
2. Do not use the blender to process boiling liquids.
3. Liquid must be within 50°.
4. Hot liquid maximum capacity is 700ml / 0.7L or 3 cups only.
5. Speed must be set in low speed (1-2 speed) and gradually change speed until you reach the desired speed.
6. Blending process is maximum of 3 minutes only.

HOW TO ASSEMBLE

IMPORTANT: Your blender jar and blades are subject to wear during normal use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged.

Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Make sure that the top housing pad is properly installed in the motor base.
2. Put the Measuring Cup on the Jar Lid.
3. Secure the Lid into the Plastic Jar and press down.
4. Place the Plastic Jar with Blade Assembly on the Motor Base and press down until securely engaged.

HOW TO USE

1. For initial use, wash plastic jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method".
2. Make sure that the top housing pad is properly installed in the motor base.
3. Place the measuring cup into the hole of the Jar Lid and turn it clockwise to lock.
4. Put the desired mixture.
5. Put the lid on the plastic jar and close securely.
6. Place the plastic jar with blade assembly on the motor base.
7. Plug the unit into the convenience outlet.
8. Switch power ON.
9. Select the desired speed or function.
10. Switch power OFF after every use.

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from getting stuck.

CLEANING AND MAINTENANCE:

Motor Base

1. Unplug the power cord.
2. Wipe or clean the outside surface with a damp or soft cloth.
   NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.
3. Thoroughly clean switches so that they work freely. They will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switches. You may also lightly spray the surface around the switches with an all-purpose cleaner and work the switches back and forth a few times to loosen any dried residue under switch.
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

Container and Blade Assembly

Method 1:

After use, add warm water and a splash of vinegar to blender jar. Set the variable speed to medium speed. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method 2:

Fill the blender jar half way (1L) with warm water, add a small amount of liquid dish detergent and turn the unit on MEDIUM speed for about 30 seconds. Repeat if needed. Rinse well.

Method 3:

If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

TROUBLE SHOOTING

ISSUE	SOLUTION
The pre-set buttons are not flashing, the blender is not working	Place the jar into the motor base and plug the unit into the convenient outletPress the jar down to reach the safety switchTurn the function selector to OFF and, turn back to P-SET
The unit stops and does not work	Unplug the unit and let it cool down for 30 minutes
The mixture is not fine enough	Cut the ingredients and blend it the small portionsIngredient should be chopped into pieces not larger than 2cm.
Ice is not chop enough	Use smaller piece of ice not larger than 2cmUse pre-set Ice function for easy operation
The result of the mixture is too fine or watery	Blend in a short period of timeUse pulse function for a better blending

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
