Product Type	Blender
Brand	Imarflex
Model	IB-560G
Power Consumption	700 W
Capacity	1.5 L
Blade Material	Stainless Steel
Jar Material	Plastic (Tritan)
Speed Settings	2 speeds + Pulse
Functions	Blending, Crushing Ice, Smoothies
Safety Features	Automatic Shut-off, Non-slip Base
Cleaning	Detachable parts, Dishwasher safe jar
Dimensions (HxWxD)	40 x 18 x 18 cm
Weight	2.8 kg
Cord Length	1.2 m
Voltage	220-240 V, 50/60 Hz
Warranty	1 Year
Included Accessories	Measuring Cup, Recipe Book

Frequently Asked Questions - IB-560G Imarflex

How do I assemble the blender?

Place the jar on the motor base and twist until it locks. Add ingredients, then secure the lid. Plug in and select speed.

Can I crush ice with this blender?

Yes, use the Pulse function for ice crushing. Add a little water to aid blending.

Is the jar dishwasher safe?

Yes, the plastic jar is top-rack dishwasher safe. Remove the blade assembly before washing.

Why is the blender not starting?

Ensure the jar is properly locked onto the base. Check power connection. If still not working, the thermal fuse may have tripped; let it cool for 15 minutes.

How do I clean the blender?

Fill the jar halfway with warm water and a drop of dish soap. Run on high for 30 seconds, then rinse thoroughly. Wipe the base with a damp cloth.

Can I blend hot liquids?

No, allow liquids to cool to room temperature before blending. Hot liquids can build pressure and cause the lid to blow off.

What is the maximum capacity?

Do not fill beyond the MAX line (1.5 L) to avoid overflow during blending.

How do I use the pulse function?

Press and hold the Pulse button for short bursts. Release to stop. Ideal for chopping or mixing thick ingredients.

My blender is leaking. What should I do?

Check if the sealing gasket is properly placed under the blade assembly. Ensure the jar is not cracked and the lid is tightly closed.

Where can I find replacement parts?

Contact Imarflex customer service or visit the official website for spare parts like blades, jars, and lids.

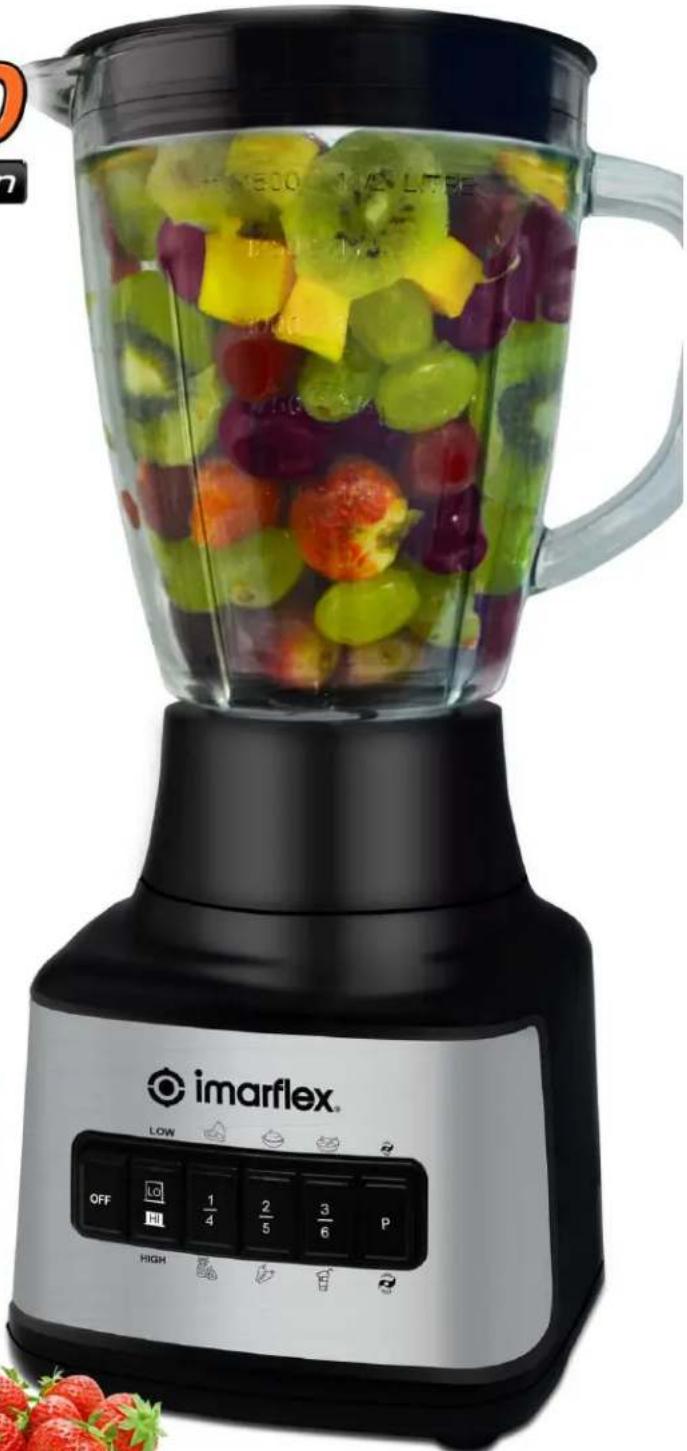

USER MANUAL IB-560G Imarflex

6SPEED with Pulse Function

500W

POWER MOTOR

1500 cc

CAPACITY

Healthy Living

Creative beverage setup featuring a glass of pink smoothie with fruit slices and strawberries, alongside a blender with a digital display (no text or symbols on main objects)

IMARflex blender with colorful candy pieces inside, no visible text or symbols on the main body.

IB-560G

SPECIFICATION

MODEL NO. : IB-560G

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 500 Watts

BOX DIMENSION : 218*185*398mm

UNIT DIMENSION : 216*177*391mm

GROSS WEIGHT : 3.4 kg

: High speed 24000RPM

: Medium Speed 19500RPM

: Low Speed 16000RPM

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use the two-way socket with other appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the base in water or any other liquid.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the blender when blending as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Carry or move the blender's glass jar only by its handle.

15. Blade is sharp, handle it carefully.

16. Do not put the blade assembly on the base without the glass jar.

17. Do not use the blender if the glass jar has a crack.

18. This appliance is not intended for outdoor use.

19. Never place the blender near hot surfaces.

20. In case of malfunctions, please bring the blender to the nearest Authorized Imarflex Service Center.

21. Avoid water spillage into the socket, connector, cord and alike.

22. Switch off the appliance before removing the glass jar into the motor base.

23. Do not use this unit other than its intended use.

24. For household use only; not intended for any business purposes

25. Save this instruction manual for future reference.

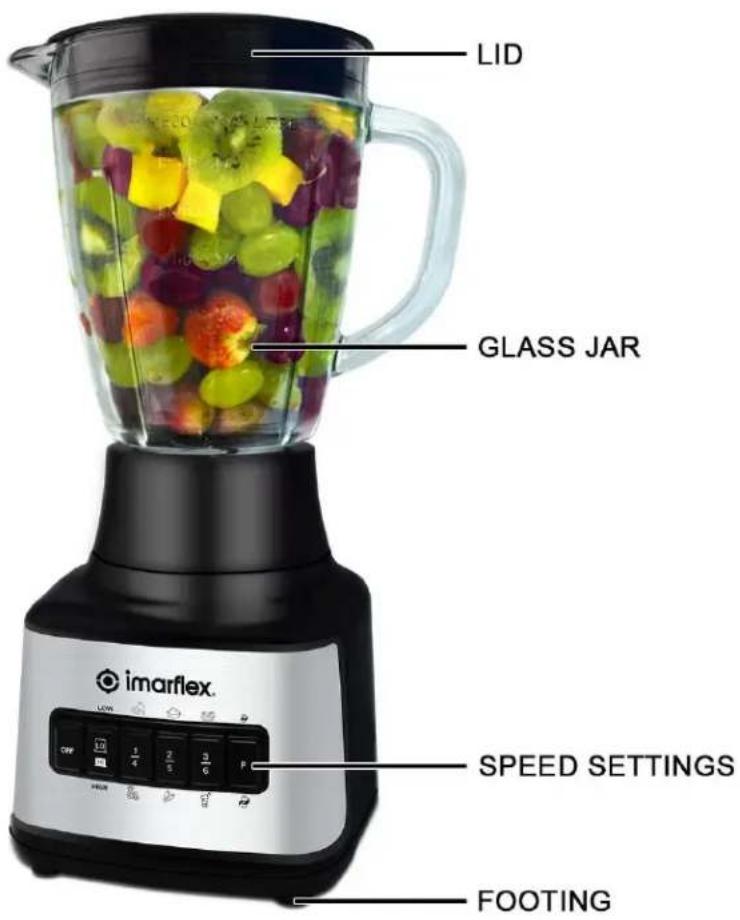

DESCRIPTION OF PARTS

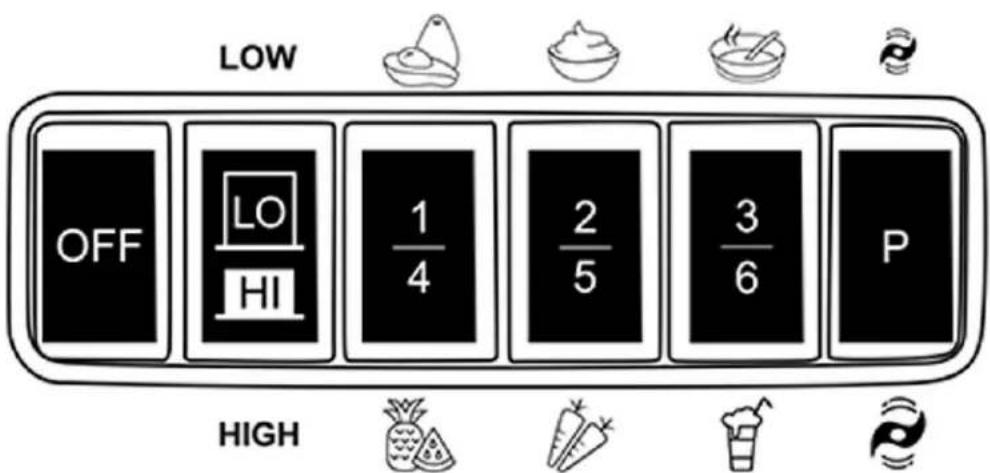

Control Panel

HOW TO ASSEMBLE

IMPORTANT: The blender jar and blades are subject to wear during regular use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged.

Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

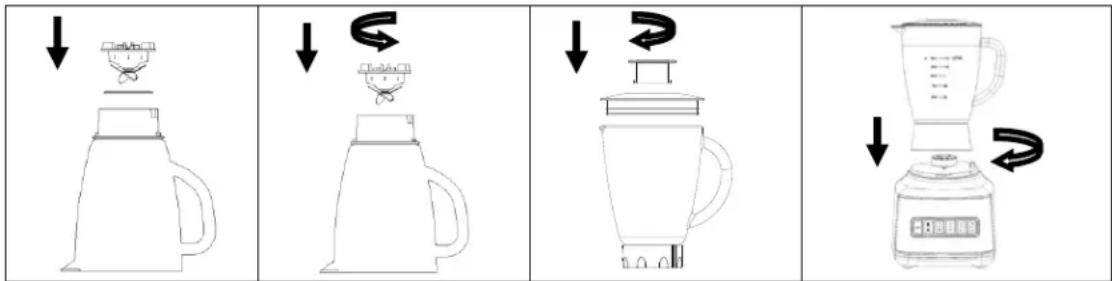

1. Place the Rubber Packing into the Blade Assembly. Put the assembly into the Jar Support. (see pic.1 & 2)
2. Assemble the Jar Support Assembly with the Glass Jar. (see pic.3)
3. Put the Center Lid on the Lid. (see pic.3)
4. Secure the Lid into the Glass Jar and press down. (see pic.3)
5. Put the Glass Jar Assembly on the Motor Base and press down
6. until securely engaged. (see pic. 4)

HOW TO USE

1. For initial use, wash glass jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method #2". Wipe it dry.
2. Put the glass jar with blade assembly on the motor base.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables if needed.
5. Put the desired mixture.
6. Put the lid on the glass jar and close securely. Place the center lid into the hole of the lid and push down to lock.
7. Plug the unit into the convenience outlet.
8. Press the pulse button first to crack the ice.
9. Select the desired speed and function.

a. LOW SPEED - Press the desired speed 1, 2 or 3.
b. HIGH SPEED - Press "HI" button then press the desired speed 4, 5 or 6.

1. Additional ingredients can be added through opening in the lid.

2. Turn OFF and unplug the unit after every use.

NOTE:

• Some electric smell may be observed on first use.
  • Maximum continuous operation time is 1 minute.

CAUTION: When using ice, always put water or liquid and use the pulse speed first before setting to desired speed.

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from being stuck.

CLEANING AND MAINTENANCE

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth.
3. Thoroughly clean Speed Selector Switch so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch.
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.

Lid/Center Lid

1. Wash in warm soapy water. Rinse under clean running water and dry. Reassemble before use.

Container and Blade Assembly

Method #1

1. After use, add warm water and a splash of vinegar to blender jar. Turn ON and let the blender work the liquid for about 30 seconds. Pour out, rinse the blender jar well.

Method #2

1. Fill the blender jar half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

1. If blender was left sitting until there is dried, crusty food bits inside: Fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

2. Turn OFF the unit and wait for the blade and motor to stop.

3. Always unplug the unit after every use.
4. Remove the blade assembly by turning it counter-clockwise.
5. Wash the rubber packing and jar support with soap and water.
6. Turn the plastic jar upside down to remove excess water.
7. Wipe the plastic jar and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.
8. Never leave food inside the blender jar for a long period of time.
9. Store the blender on a dry cool place.

NOTE: NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET.

TROUBLE SHOOTING

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized lmarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the jar	1. Rubber packing is not properly install2. Rubber was damaged	1. Turn OFF the unit.Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized lmarflex Service Center.
Attachment not functioning	1. Not properly install	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
