USER MANUAL IB-250P Imarflex

600cc CAPACITY

350W POWER

BLEND

GRIND

MASH

BPA-free

TRITAN

TUMBLERS

Two imarflex cooktopers with colorful fruit toppings, one emitting orange juice and the other pouring yellow liquid (no text or symbols visible on main objects)

IB-250P

SPECIFICATION:

MODEL NO. : IB-250P

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 350 watts

RPM : 19,000 RPM

BOX DIMENSION : 220*160*250mm

UNIT DIMENSION : 130*100*400mm

GROSS WEIGHT : 1.66 kg.

UNIT WEIGHT : 1.15 kg.

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the base in water or any other liquid.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the blender when blending as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Carry or move the blender's tumbler only by its handle.

15. Switch off the appliance and unplug the unit before replacing tumbler or accessories.

16. Blade is sharp, handle it carefully.

17. Do not put the blade assembly on the base without the tumbler.

18. Do not use the blender if the tumbler has a crack.

19. This appliance is not intended for outdoor use.

20. Never place the blender near hot surfaces.

21. In case of malfunctions, please bring the blender to the nearest Authorized Imarflex Service Center.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Switch off the appliance before removing the glass jar into the motor base.

24. Do not use this unit other than its intended use.

25. For household use only; not intended for any business purposes

26. Save this instruction manual for future reference.

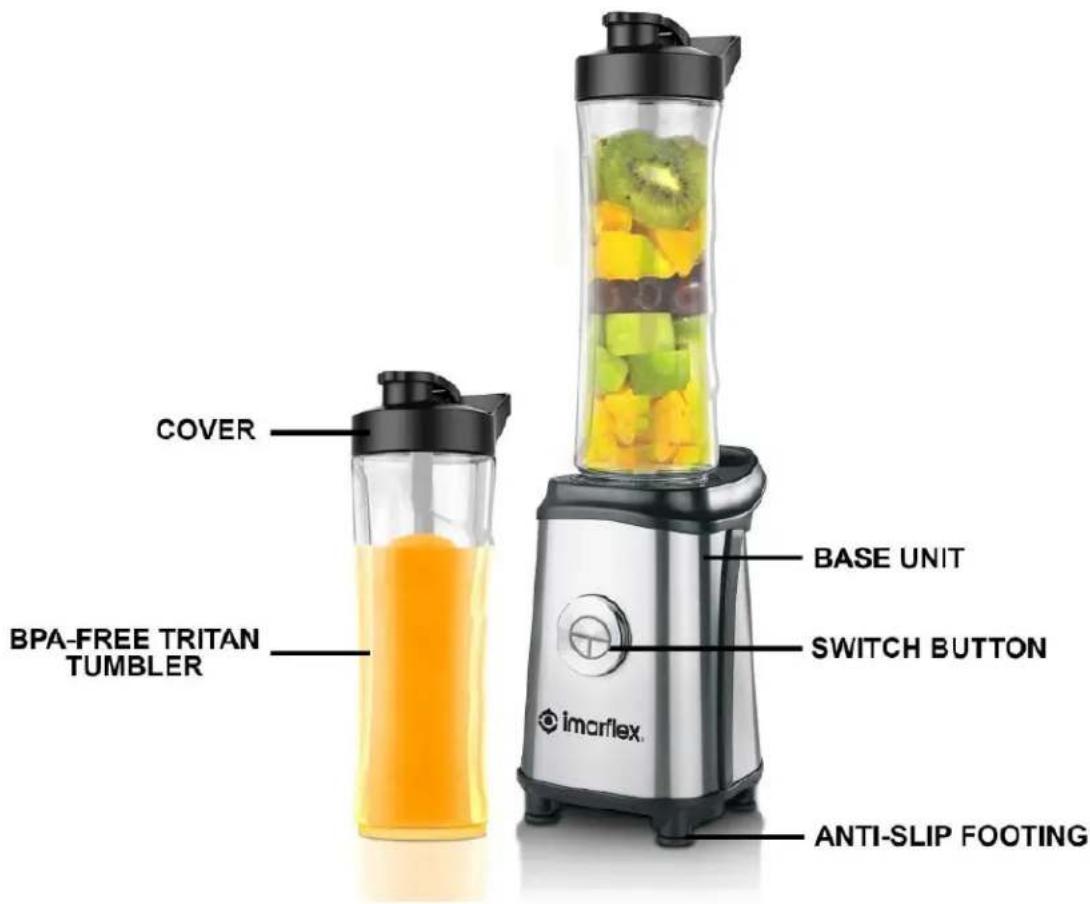

DESCRIPTION OF PARTS:

HOW TO USE:

1. For initial use, wash BPA-free Tritan Tumbler and Blade Assembly thoroughly.
2. Plug the unit into the convenience outlet.
3. Be sure to remove the seeds of the fruits/vegetable if necessary.
4. Put all the ingredients for blending into the BPA-free Tritan Tumber, cover it with Blade Assembly and turn clockwise to tighten.
5. Invert and attach the Cup Assembly onto the Motor Section and turn counter clockwise to lock it in place.
6. Press and hold the Switch to turn the unit ON, while blending/grinding tap and twist the unit for even processing.
7. Unplug the unit after every use.

NOTES:

• It is advisable to use crushed ice.
• Some electric smell may be observed on first use.
• Maximum continuous operation time is 1 minute.
• Always put a little bit of water or liquid in the blender if you are going to blend with ice.

CLEANING AND MAINTENANCE:

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth. NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.
3. Thoroughly clean switch button so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch.
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.
6. Do not use abrasive materials to avoid scratches.

Lid - Wash in warm soapy water. Rinse by running water and dry. Reassemble before use.

Tumbler and Blade Assembly

Method #1

1. After use, add warm water and a splash of vinegar to blender tumbler. Turn ON and let the blender work the liquid for about 30 seconds. Pour out, rinse the blender tumbler well.

Method #2

1. Fill the blender tumbler half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

1. If blender was left sitting until there is dried, crusty food bits inside: Fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

2. Turn OFF the unit and wait for the blade and motor to stop.

3. Always unplug the unit after every use.
4. Remove the blade assembly by turning it counter-clockwise.
5. Wash the rubber packing and tumbler support with soap and water.

Note: Be careful not to lose the rubber.

• Turn the tumbler upside down to remove excess water.
• Wipe the tumbler and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.
• Never leave food inside the blender tumbler for a long period of time.
• Store the blender on a dry cool place.

NOTE: NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp. 901 G.Masangkay St., Manila Made in China
