Product Type	Induction Cooker (Ceramic Cooktop)
Brand	Imarflex
Model	IDC-1810
Power	2000W
Voltage	230V AC
Functions	Hotpot, Stir-fry, BBQ, Stew, Soup, Porridge, Warm
Power Adjustment (Hotpot, Stew)	200W - 2000W
Temperature Adjustment (Stir-fry, BBQ)	80°C - 600°C
Timer Range	1 minute to 4 hours (Hotpot, Stir-fry, BBQ, Stew)
Preset Timer Range	1 minute to 24 hours (Soup, Porridge, Warm)
Child Lock	Yes
Overload Protection	Yes
High Temperature Indicator	Yes (shows 'HOT')
Safety Features	Auto shut-off after 2 hours inactivity, overheat protection
Surface Material	Glass ceramic
Cleaning	Wipe with damp cloth after cooling; do not immerse in water
Usage	Indoor household use only

Frequently Asked Questions - IDC-1810 Imarflex

How do I turn on the Imarflex IDC-1810 induction cooker?

Plug the unit into a power outlet. You will hear a beep and the display shows '- - - -'. Press the ON/OFF button; the display shows 'ON' indicating standby mode. Place cookware on the center of the cooking plate and select a function.

What are the cooking functions and how do I select them?

Press the FUNCTION button repeatedly to cycle through: HOTPOT (default 2000W, adjustable 200-2000W), STIR-FRY (default 600°C, adjustable 80-600°C), BBQ (default 520°C, adjustable 80-600°C), STEW (default 1300W, adjustable 200-2000W), SOUP (fixed 1600W), PORRIDGE (fixed 1300W), and WARM (fixed 80°C).

How do I set the timer?

For Hotpot, Stir-fry, BBQ, and Stew: select the function, press TIMER, adjust from 0:01 to 4:00 using UP/DOWN, then wait until the display stops flashing. The timer counts down. For Soup, Porridge, and Warm: press TIMER to set a preset time from 0:01 to 24:00; the function starts automatically when the preset time elapses.

How does the child lock work?

Press and hold the LOCK button for 3 seconds. The display shows 'LOC' and all buttons become unresponsive. To unlock, press and hold LOCK again for 3 seconds.

What does the 'HOT' indicator mean?

The 'HOT' indicator lights up when the cooking plate is hot. Do not touch the plate during or after use. Wait for the unit to cool before moving or cleaning.

Why does my cooker turn off automatically?

The cooker has an overload protection and an auto shut-off after 2 hours of inactivity. If it turns off, unplug and wait 2 minutes before plugging in again. If the problem persists, contact the nearest Imarflex Service Center.

What do the error codes E1, E2, E3, E5 mean?

E1 indicates voltage too low; E2 indicates voltage too high; E3/E5 indicates the cooking plate temperature is too high. Unplug and wait 2 minutes before plugging in again. For E3/E5, let the plate cool down. If the error persists, contact the nearest Imarflex Service Center.

How do I clean the induction cooker?

Unplug and let the unit cool completely. Use a damp cloth with mild detergent to wipe the surface. Do not immerse in water or use abrasive cleaners, benzene, or thinner. Clean the cooking plate before each use to prevent burnt-on dirt.

Can I use any cookware on this induction cooker?

Use cookware with a flat, magnetic bottom (e.g., cast iron, stainless steel). Do not place metal utensils, lids, or magnetic objects on the surface when the cooker is on.

What should I do if the cooker is not heating?

Check that the power cord is properly plugged in. Ensure the cookware is compatible and centered on the cooking plate. If the display shows an error code, refer to the troubleshooting guide. If the problem continues, contact Imarflex service.

USER MANUAL IDC-1810 Imarflex

• High Energy Efficiency
- Child-lock Function

• Up to 24-hour Timer
  • Overload Protection

2000W

POWER

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Do not use the Ceramic Cooker on any metal table.
3. Do not use the Ceramic Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).
4. Keep curtains, furniture, flammable materials, etc. away from the Ceramic Cooker and from the convenience outlet where the Ceramic Cooker is plugged.
5. Before using the Ceramic Cooker, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the Ceramic Cooker to the nearest Authorized Service Center.

7. Do not use a two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the Ceramic Cooker and the power plug with wet hands.

10. Do not block the ventilation slots of the Ceramic Cooker. Keep a minimum distance of 10cm to 20cm away from the wall or from other items.

11. The Ceramic Cooker's surface is made of glass, if damaged, unplug immediately.

12. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.

13. Do not allow the cord to touch the hot surface of the unit.

14. The Ceramic Cooker does not heat up during cooking, but the heat from the cookware may transferred to in the Ceramic Cooker. Do not touch the hot surface of the glass.

15. Scientific tests have proven that Ceramic Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the unit while using.

16. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the Ceramic Cooker is ON.

17. Do not place any magnetic objects on the glass surface while the Ceramic Cooker is in use.

18. To protect against electric shock, do not immerse the Ceramic Cooker in water.

19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

20. Do not use the unit if the glass is damaged or has a cracked.

21. This Ceramic Cooker is only intended for tabletop use.

22. Do not use the Ceramic Cooker for other than intended use.

23. Not intended for outdoor use.

24. For household use only, not intended for any business purposes.

25. Save this instruction for future references.

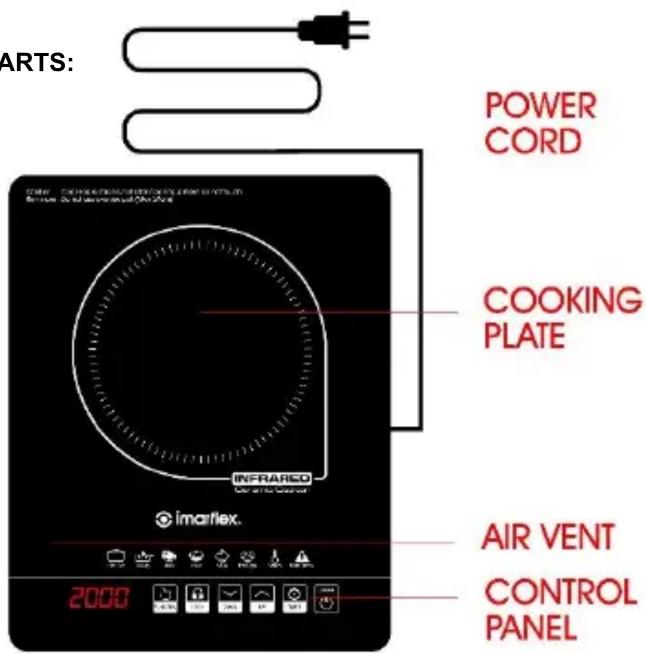

DESCRIPTION OF PARTS:

HOW TO USE:

1. Plug the unit into the convenience outlet. A beep sound will be heard and digital display will be flashing and shows ‘- - - -’ indicating that the unit is ON.
2. Press ON/OFF button and digital display shows 'ON' indicating that the unit is in standby mode.
3. Place the cookware into the center of the cooking plate.

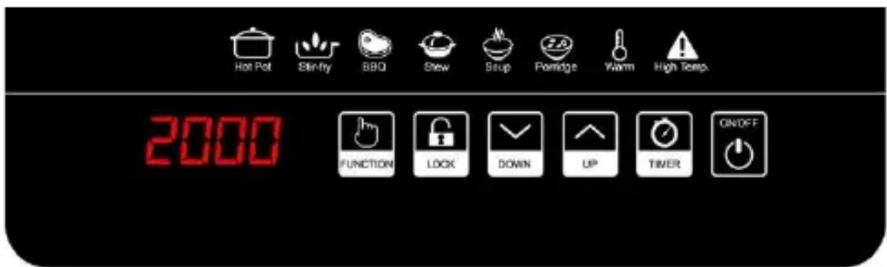

4. Then press FUNCTION to select the desire function.

5. Press FUNCTION button once for 'HOTPOT' function. The default power is 2000W and can be adjusted from 200W to 2000W by pressing UP and DOWN

6. Press FUNCTION button twice for 'STIR-FRY' function. The default temperature is 600°C and can be adjusted from 80°C to 600°C by pressing UP and DOWN
7. Press FUNCTION button three times for 'BBQ' function. The default temperature is 520°C and can be adjusted from 80°C to 600°C by pressing UP and DOWN
8. Press FUNCTION button four times for 'STEW' function. The default power is 1300W and can be adjusted from 200W to 2000W by pressing UP and DOWN
9. Press FUNCTION button five times for 'SOUP' function. The default power is 1600W and it cannot be adjusted
10. Press FUNCTION button six times for 'PORRIDGE' function. The default power is 1300W and it cannot be adjusted
11. Press FUNCTION button seven times for 'WARM' function. The default power is 80°C and it cannot be adjusted

TIMER SETTING is only applicable for HOTPOT, STIR-FRY, BBQ and STEW function.

- Select the desired function first then press 'TIMER' button once. The digital display will be flashing and shows "0:00" indicating the default time is 0 minute.

Timer can be adjusted from 00:01 to 04:00. To confirm the set time, wait until the time is steady or stop flashing. The timer will start the countdown automatically. If the timer is set "0:00", the digital display will flash and the setting will cancel after 10 seconds.

PRESET TIMER is only applicable for SOUP, PORRIDGE and WARM function.

- Select the desired function first then press 'TIMER' button once. The digital display will be flashing and shows "0:00" indicating the default time is 0 minute.

Preset time can be adjusted from 00:01 to 24:00. To confirm the preset time, wait until the time is steady or stop flashing. Once the preset time is done, a beep sound will be heard and the selected function will automatically start. If the preset is set "0:00", the digital display will flash and the setting will cancel after 10 seconds.

CHILD-LOCK FUNCTION is to lock all the settings at working mode or "Timer" mode. Under lock status, ceramic cooker would not respond to any key press.

• After selecting the desired function, press and hold the LOCK button for 3 seconds to lock, and digital display shows 'LOC' indicating that all the settings are lock
  • To unlock, press and hold LOCK button for 3 seconds

HIGH TEMP. light indicator will light up and digital display will show 'HOT' indicating that the cooking plate is hot. Do not touch the cooking plate during cooking process or after use. It will be extremely hot and may cause burn or injuries. Let the unit cool down before moving the unit or before cleaning.

1. After use, Press the "ON/OFF" key to switch back to sleeping mode.
2. Unplug the unit after every use.

PARAMETER TABLE:

FUNCTION	DEFAULT (POWER / TEMP)	ADJUSTABLE (POWER / TEMP)	TIMER	PRESET TIMER
HOT POT	2000W	200 - 2000W	0:01-4:00
STIR-FRY	600°C	80°C - 600°C	0:01-4:00
BBQ	520°C	80°C - 600°C	0:01-4:00
STEW	1300W	200W - 2000W	0:01-4:00
SOUP	1600W	-	-	0:01-24:00
PORRIDGE	1300W	-	-	0:01-24:00
WARM	80°C	-	-	0:01-24:00

CLEANING AND MAINTENANCE:

1. Turn off the power and pull out the plug before cleaning.
2. Wait for the unit to cool down before cleaning.
3. Select proper detergent to remove the dirt.
4. Use neat wet cloth to clean the unit after removing the dirt.
5. Do not clean the unit directly with water.
6. Clean the cooking plate and pan before cooking. Otherwise, dirt after charring is difficult to clean and the plate may get discoloration.
7. You may clean air vent or air entry's dirt by vacuum cleaner to suck up or by cotton. If there is dirt with oil, it is right to use toothbrush with a little detergent to clean the surface. Never clear inside with water or any kind of liquid.
8. Do not use caustic detergents to clean the unit. It may damage the unit by chemical reaction.
9. Do not use benzene, thinner, scrubbing brush or polishing powder to clean the induction cooker.

TROUBLESHOOTING:

PROBLEM	POSSIBLE CAUSE	RECOMMENDATION
No Power Indicator	Power cord not properly plugged	Kindly make sure that the power cord is properly plugged
Automatically switched OFF	Overload ProtectionNo operation for more than 2hrs	Unplug the unit and wait for about two minutes before plugging in.Bring the unit to the nearest lmarflex Service Center
E1	Voltage too low	Unplug the unit and wait for about two minutes before plugging in.
E2	Voltage too high	Unplug the unit and wait for about two minutes before plugging in.
E3/E5	Temperature in the cooking plate is too high	Wait for a few minutes to let the cooking plate cool down.Bring the unit to the nearest lmarflex Service Center

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]
